Elephant  |  SKU: D300-00410

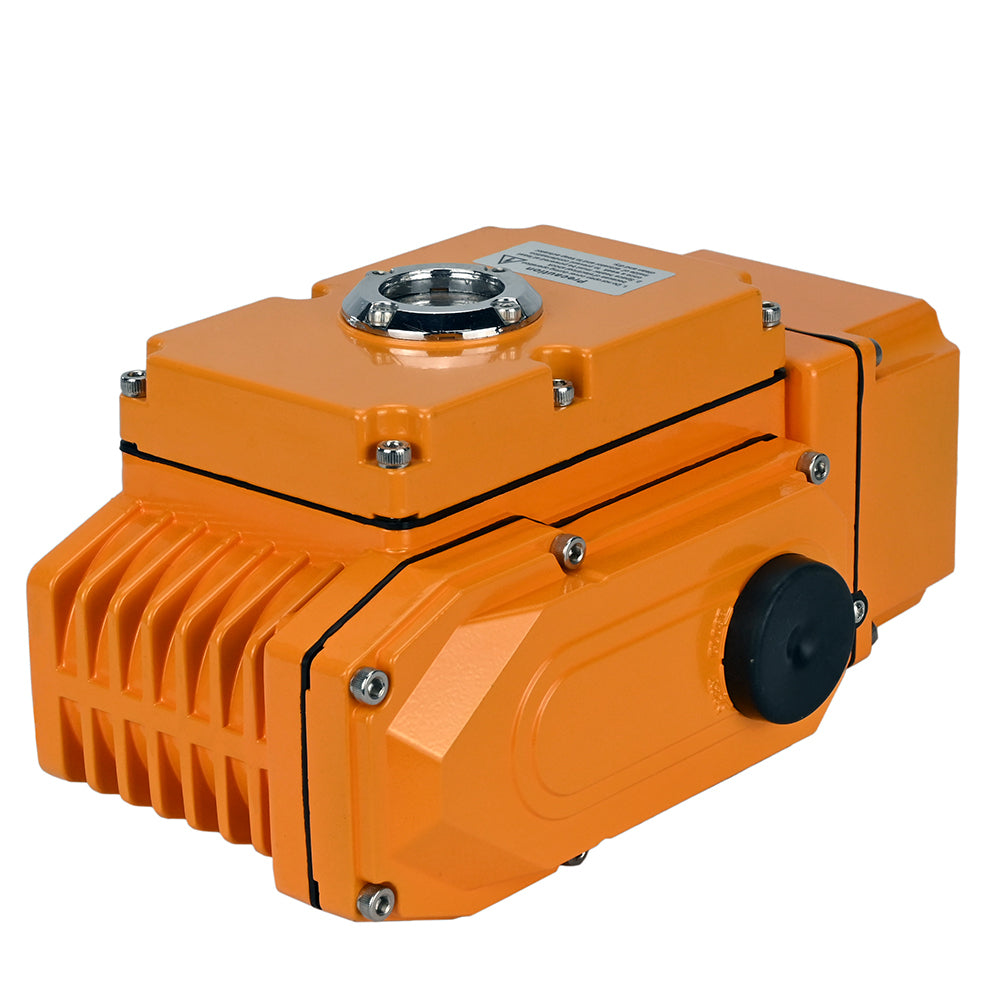

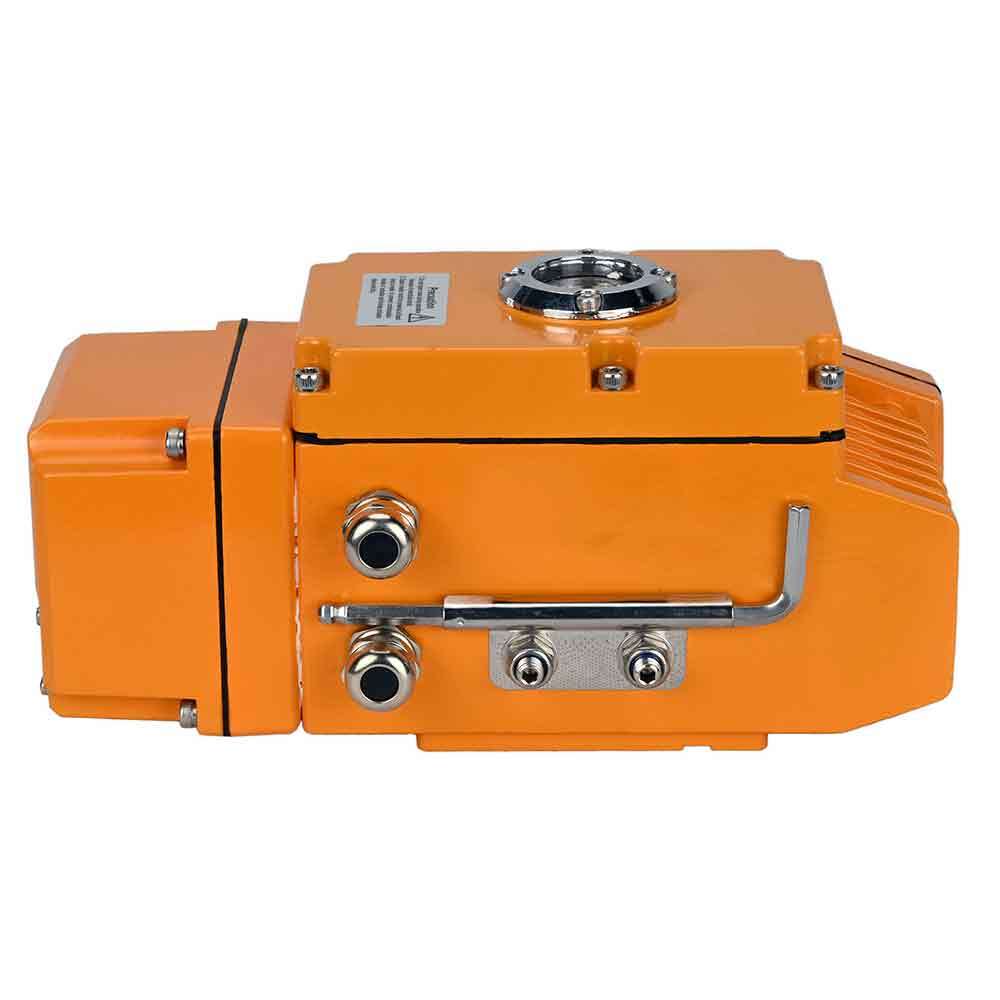

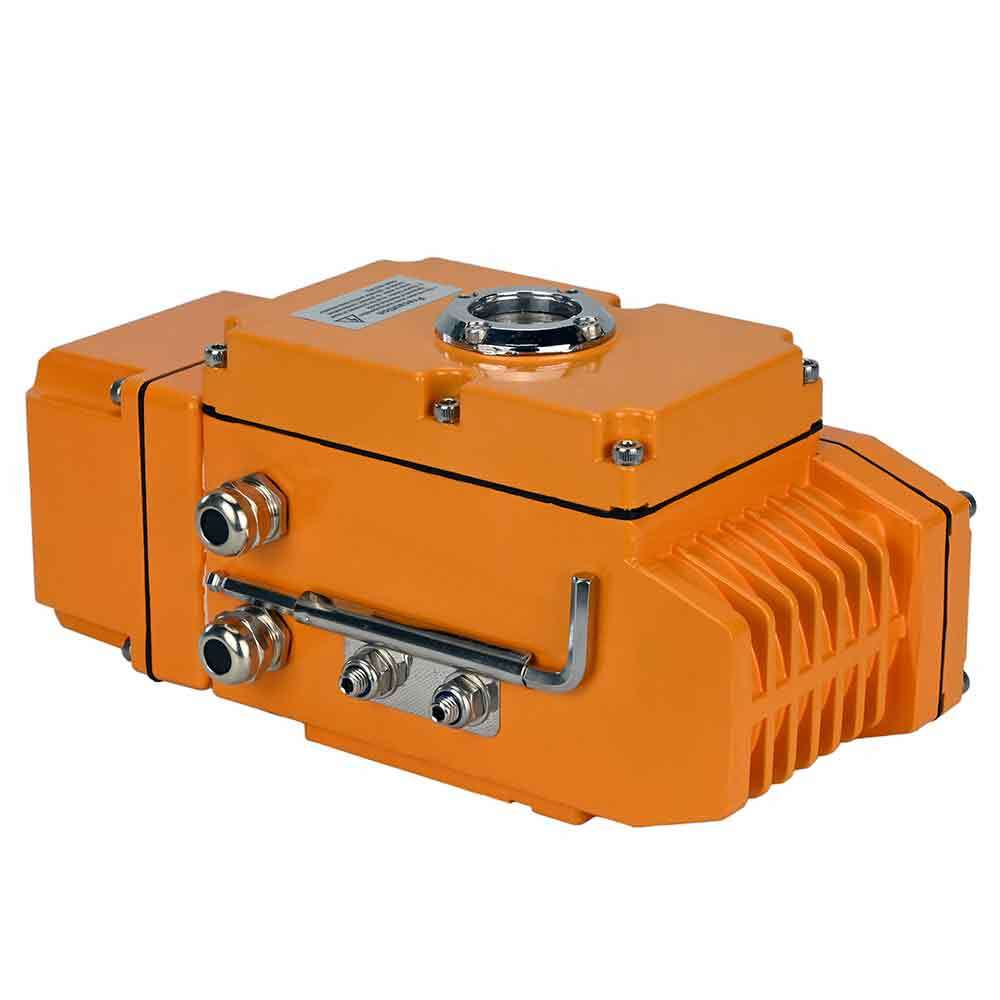

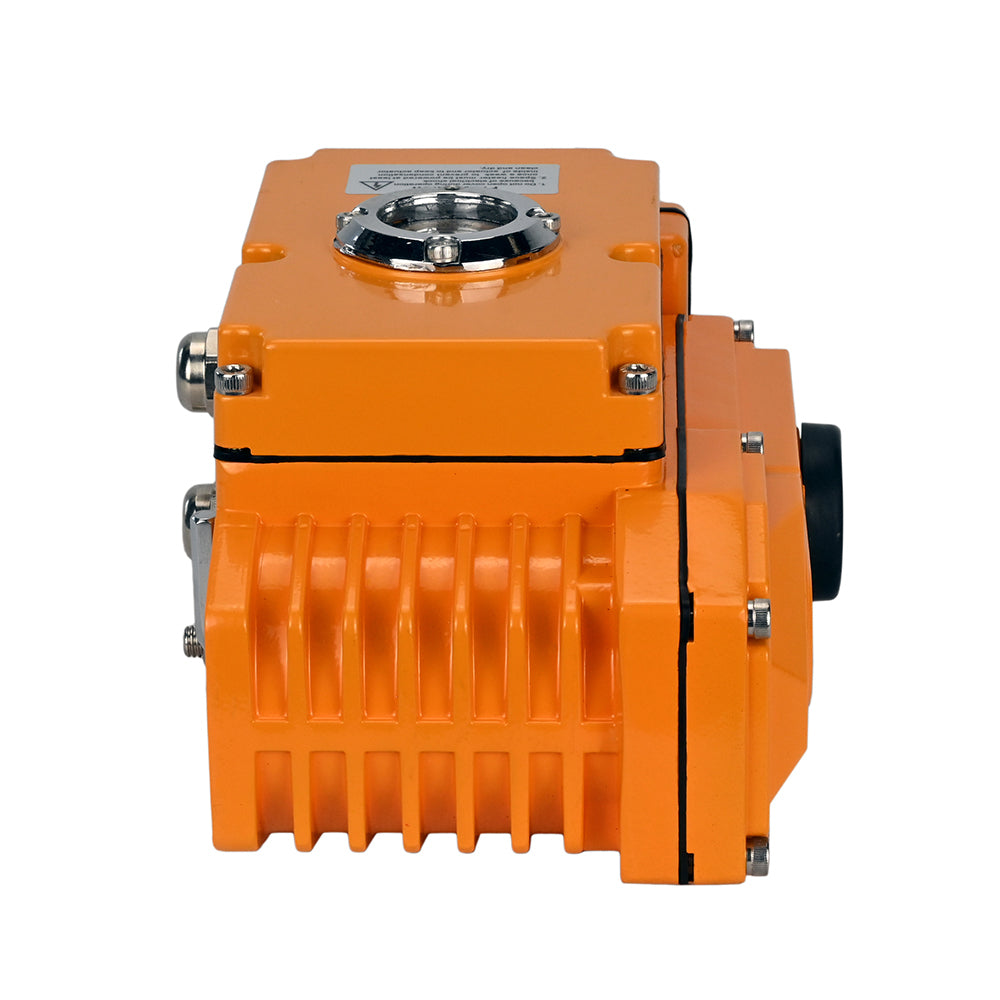

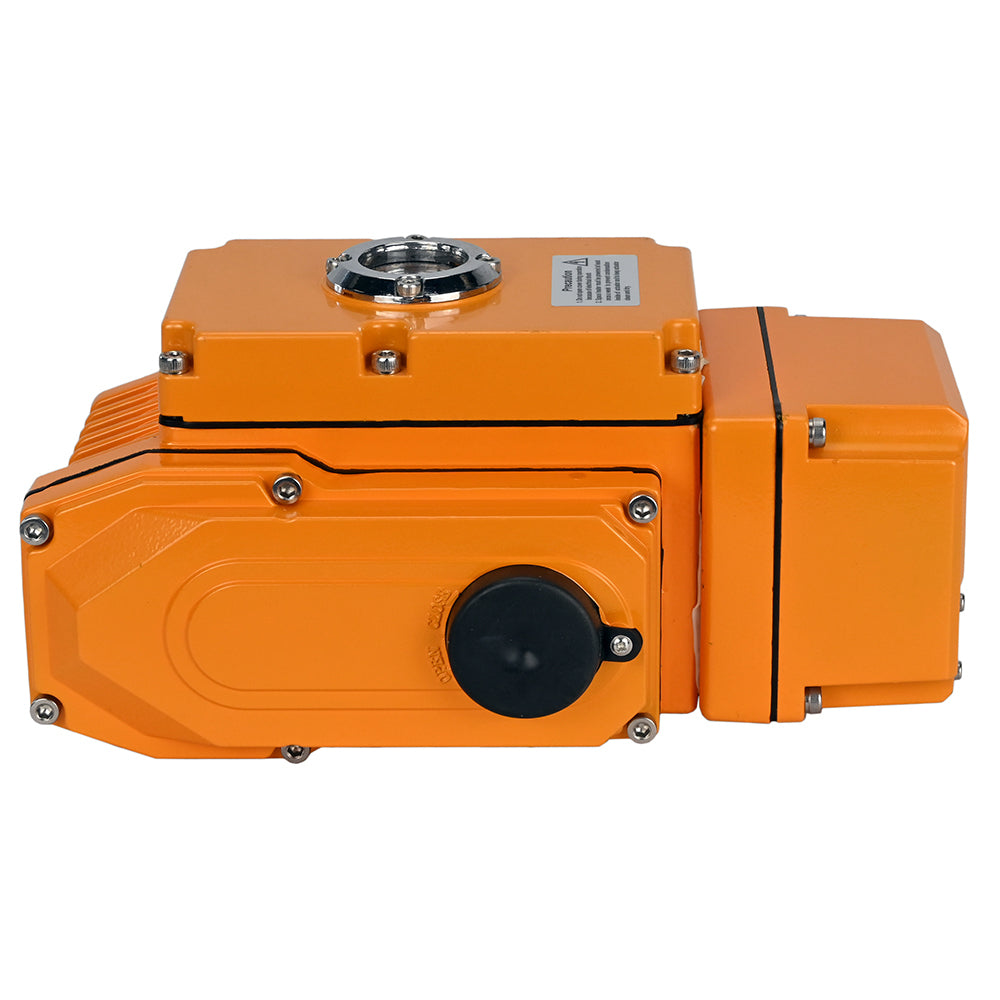

Quarter-turn electric actuator Elephant 005-040 110/220V with feedback sensor and 0-10 V input control signal

€88,00
Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Quarter-turn electric actuator Elephant 005-040 220V with feedback sensor and 0-10 V input control signal is designed for remote and local control of valves. It is widely used in the gas, oil, metallurgical and food industries, housing and communal services, etc. with ambient temperature from -4…+158°F. The case is equipped with a heater (7-10W 110V) and has the following degrees of protection: IP67, NEME 4 and 6, anti-corrosion coating. Mounting dimensions comply with the international standard ISO05211 / DIN3337. The electric drive is equipped with a squirrel-cage induction motor, automatic position locking of the electric drive, mechanical handle, thermal protection, vibration protection X Y Z 10g (0.2-34 Hz, 30 minutes) and is designed for operation in intermittent duty S2. Actuator stroke 90° with adjustment range ±10°. Restriction of the course of the electric drive - trailer switches. Power is supplied by alternating voltage 220V.

Overall and installation dimensions of the actuator Elephant 005-040 110/220V with feedback sensor and 0-10 V input control signal

Overall and installation dimensions of the actuator Elephant 005-040 110/220V with feedback sensor and 0-10 V input control signal

Dimensional sketch of the actuator Elephant 005-040 110/220V with feedback sensor and 0-10 V input control signal

003 005 008 010 015 030 040 060
X 123 160 188 189 189 268 268 268
Y 123 146 145 163 163 212 212 255
Z 113 121 127 129 129 164 164 164
ФА Ф50 Ф70 Ф70 Ф70 Ф70 Ф125 Ф125 Ф125
N-B 4-M6 4-M8 4-M8 4-M8 4-M8 4-M12 4-M12 4-M12
N-D 8-M5 4-M6 4-M6 4-M6 4-M6 8-M10 8-M10 4-M10
E 50 66 100 100 100 140 140 140
F 50 66 90 90 90 130 130 130
G - 114 114 114 114 114 114 114
H - 40 40 40 40 40 40 40
I - 100 150 100 100 100 100 150
M x M 11 x 11 14 x 14 14 x 14 17 x 17 17 x 17 22 x 22 22 x 22 27 x 27

Drive design Elephant 005-040 110/220V with feedback sensor and 0-10 V input control signal

Drive design Elephant 005-040 110/220V with feedback sensor and 0-10 V input control signal

Drive detail sketch Elephant 005-040 110/220V with feedback sensor and 0-10 V input control signal

№ Part name
1 output shaft
2 cable lock
3 mechanical stop
4 hand wrench
5 body
6 Modular box
7 cover
8 viewing window
9 dust protection

Specifications
  • Country of origin
    China
  • Explosion-proof
    No
  • Thermal protection
    No
  • Type of electric actuator
    Quarter-turn
  • Feedback sensor
    Limit switches, 4-20mA
  • Control signal
    ON/OFF
  • Shaft shape rod
    13 mm
  • Shaft shape square
    11х11mm, 14х14 mm
  • ISO - flange type
    F05,F07
  • Rated current consumption
    0.25 A
  • Power consumption
    10 W
  • Supply voltage
    110/220 V
