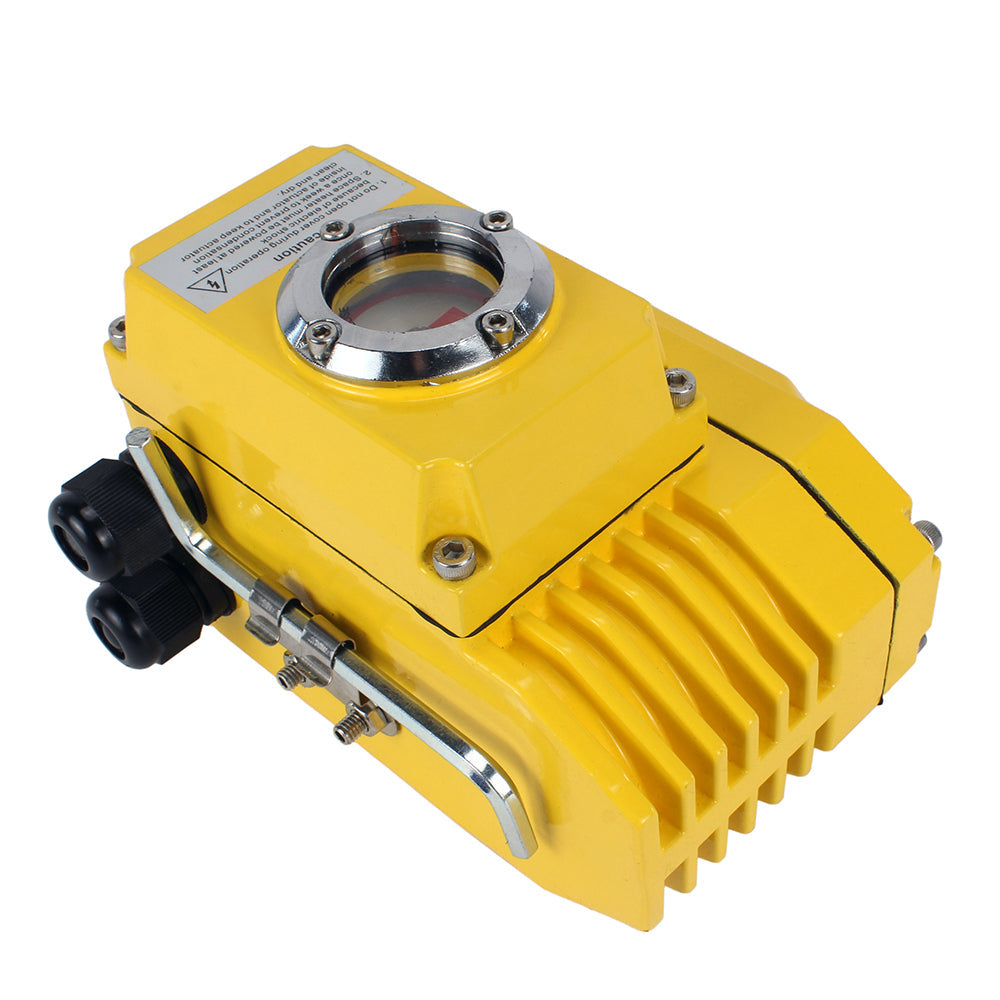

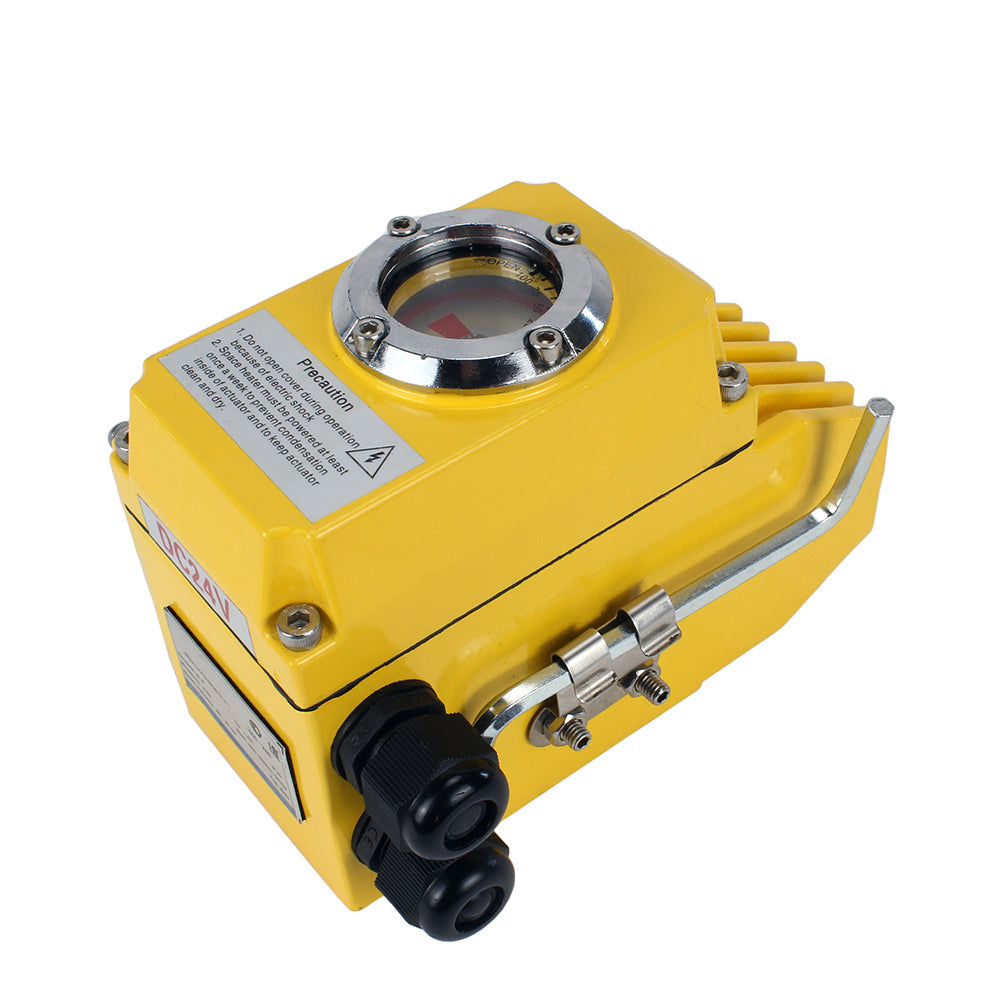

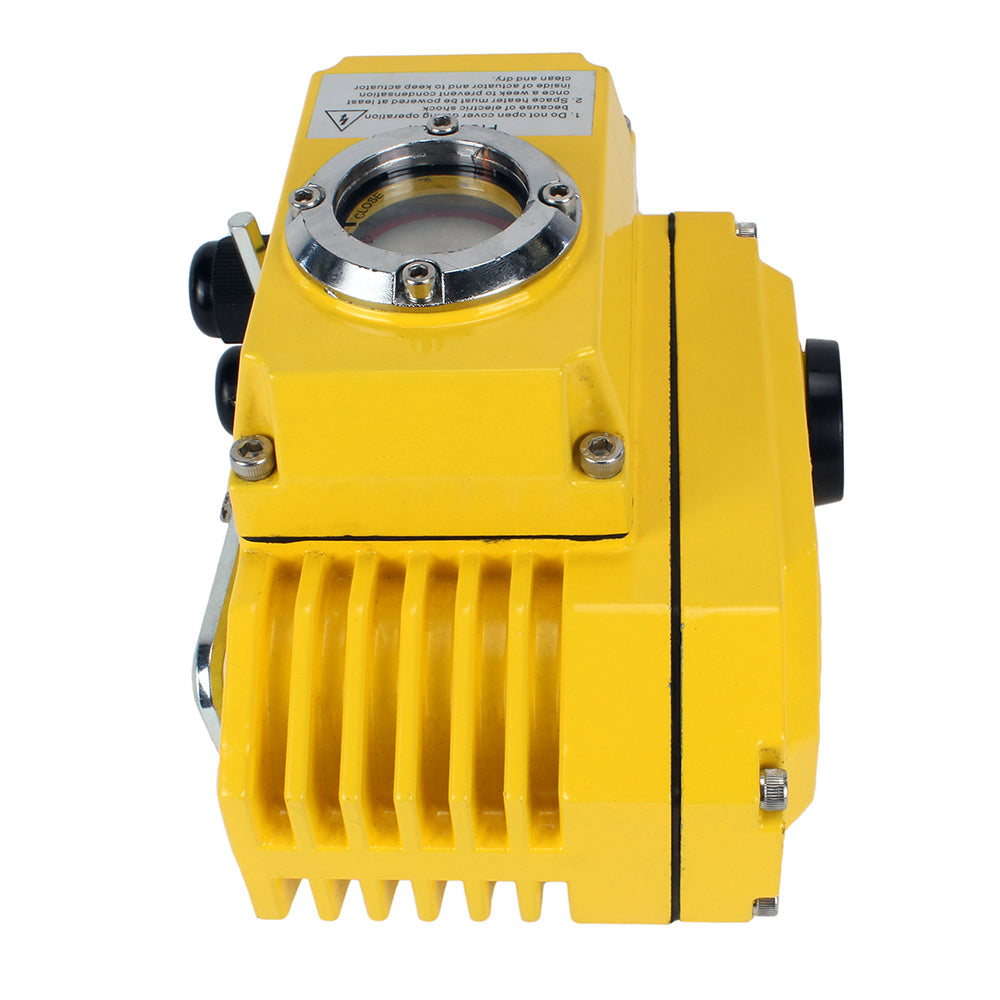

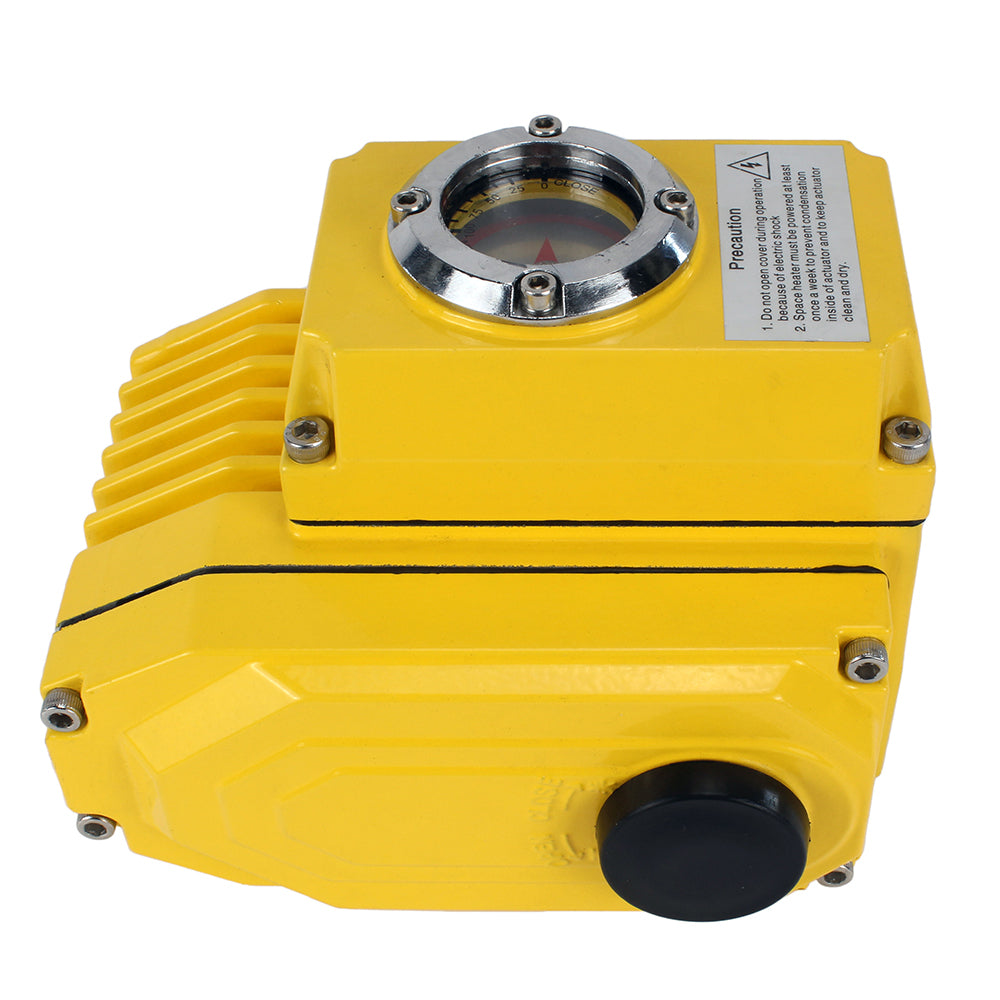

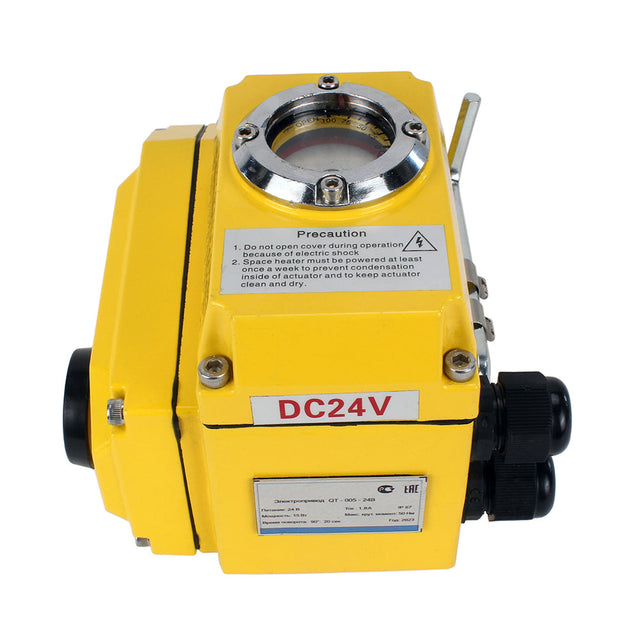

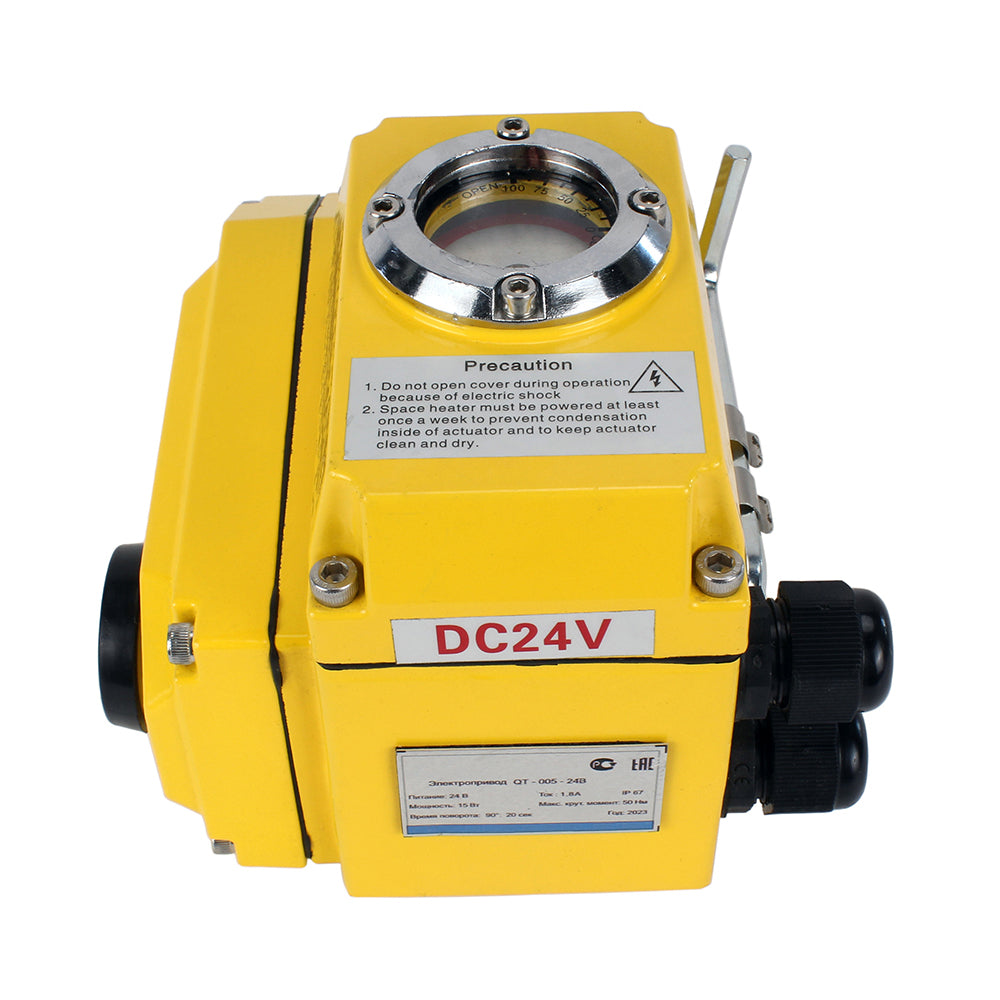

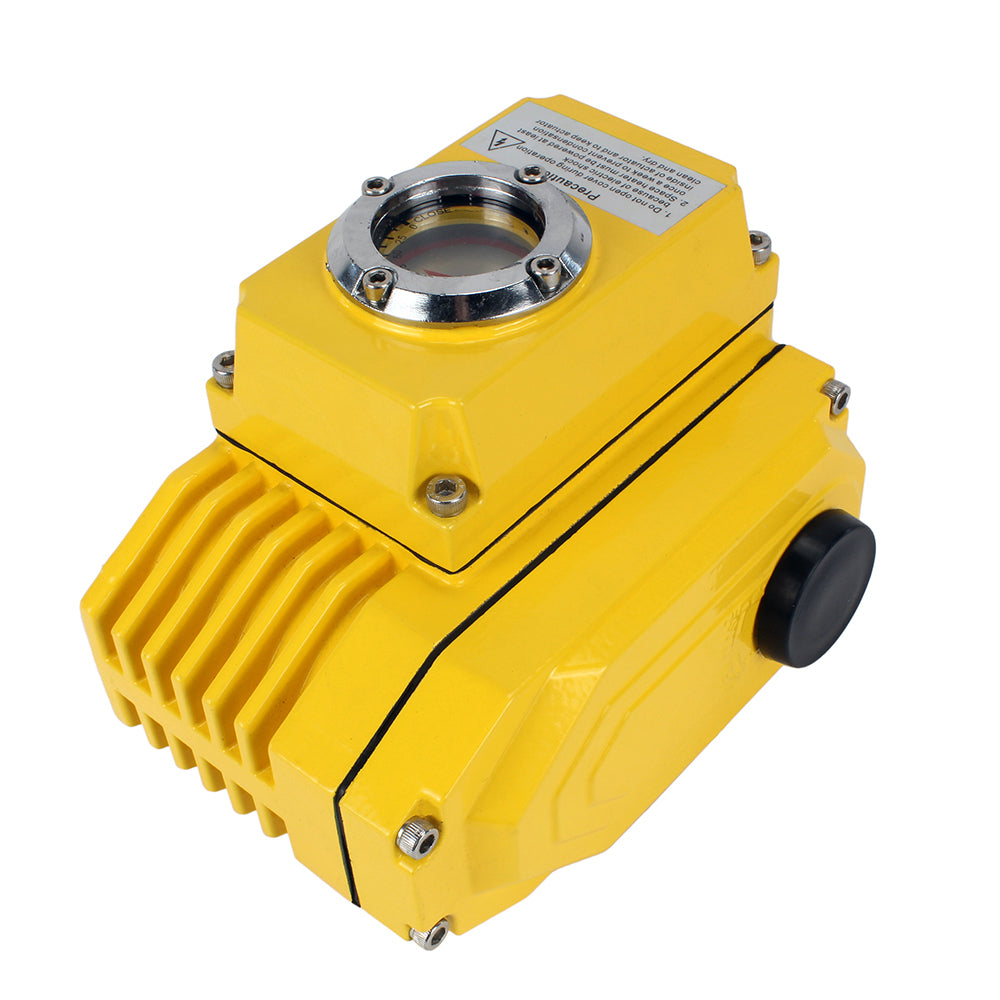

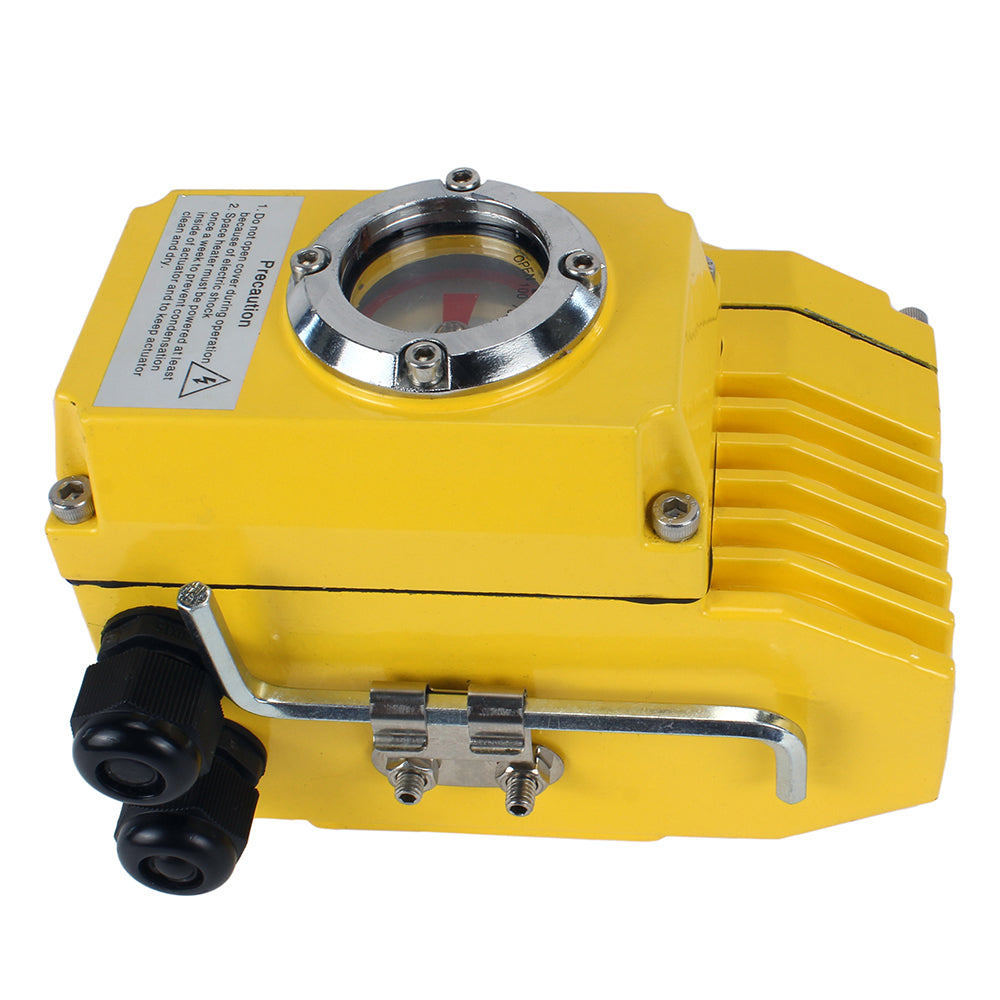

Quarter-turn electric actuator Elephant 003 24 V

€531,46
Tax included Shipping calculated at checkout.

Quarter-turn electric actuator Elephant 003 24 V - 400 Nm is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

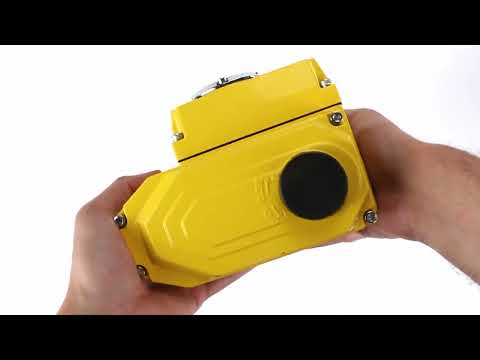

Electric quarter-turn actuators Elephant are designed for remote and local control of shut-off valves. It is widely used in the gas, oil, metallurgical and food industries, in housing and communal services, etc. with an ambient temperature of -20°...+70°C. The housing is equipped with a heater (7-10W 220V) and has the following degrees of protection: IP67, NEME 4 and 6, anti-corrosion coating. The installation dimensions comply with the international standard ISO05211 / DIN3337. The electric drive is equipped with an asynchronous motor with a short-circuited rotor, automatic locking of the position of the electric drive, a mechanical handle, thermal protection, vibration protection X Y Z 10g (0.2-34 Hz, 30 minutes) and is designed to operate in a repeatedly short-term S2 mode. The stroke of the electric drive is 90° with an adjustment range of ± 10°. Limitation of the electric drive stroke - limit switches. Cable connection 2 x M18. The power supply is provided with a constant voltage of 24 V.





Main technical characteristics Elephant 003 24 V

Drive model Torque Operating time Power Current Weight Stem size square
30 blue 30 25 25 0,1 1,2 11
30 30 20 9 0,15 2,1 11
50 50 30 10 0,25 3,6 14
80 80 30 10 0,25 3,6 17
100 100 30 15 0,35 4,6 17
150 150 40 15 0,33 4,6 17
400 400 60 45 0,33 13,8 27





Drive dimensions Elephant 003 24 V

model L H A
30 140 118 109
50 166 122 118
80 200 128 133
100 200 128 133
150 200 128 133
200 269 155 174
300 269 155 174
400 269 155 174

Drive sketch Elephant 003 24 V





Electrical diagram of the actuator Elephant 003 24 V



Specifications
  • Country of origin
    China
  • Actuator cycle time
    30s
  • Explosion-proof
    No
  • Thermal protection
    No
  • Type of electric actuator
    Quarter-turn
  • Feedback sensor
    Limit switches
  • Control signal
    ON/OFF
  • Shaft shape rod
    28 mm
  • Shaft shape square
    27х27 mm
  • ISO - flange type
    F10,F12
  • Rated current consumption
    3 A
  • Power consumption
    60 W
  • Supply voltage
    24 V
