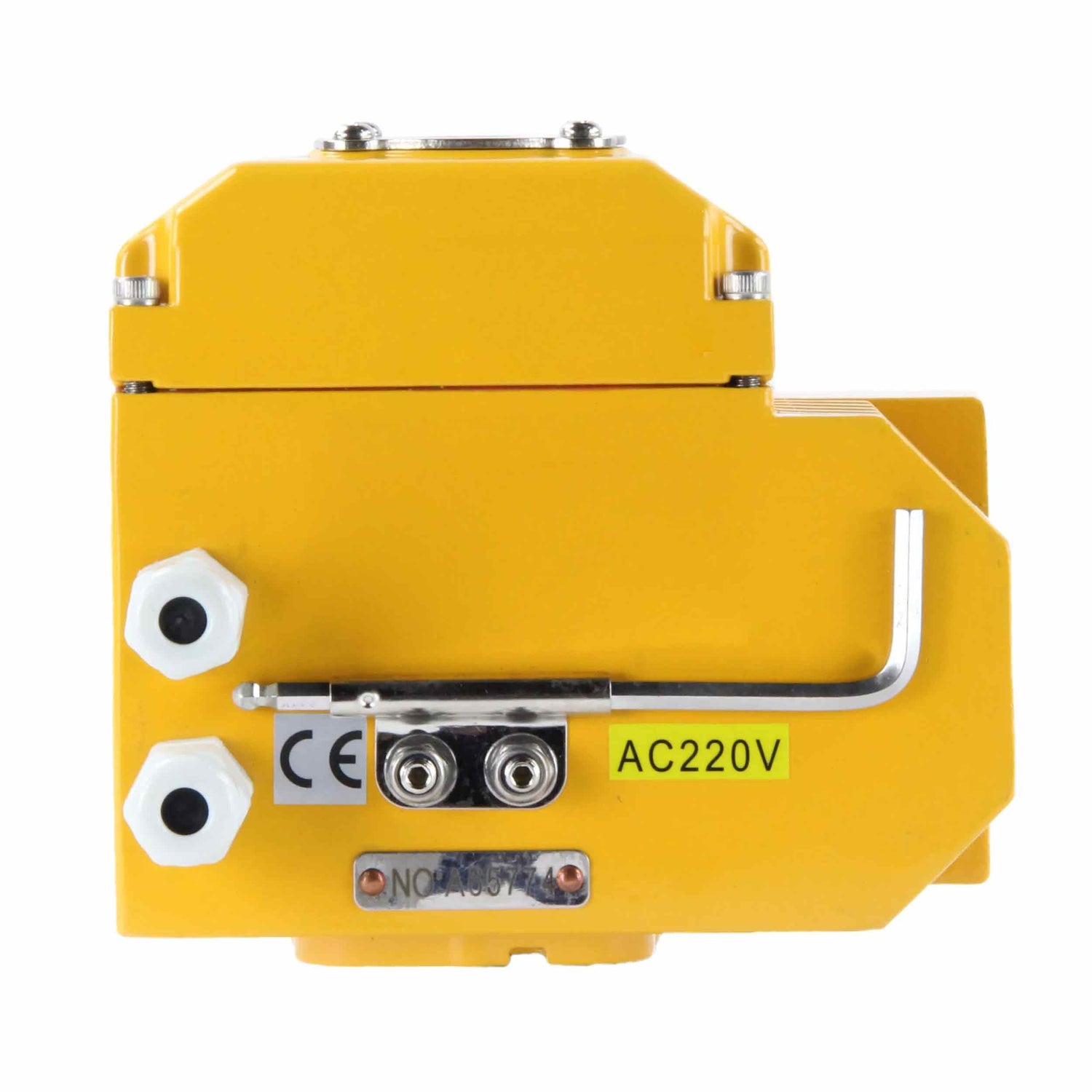

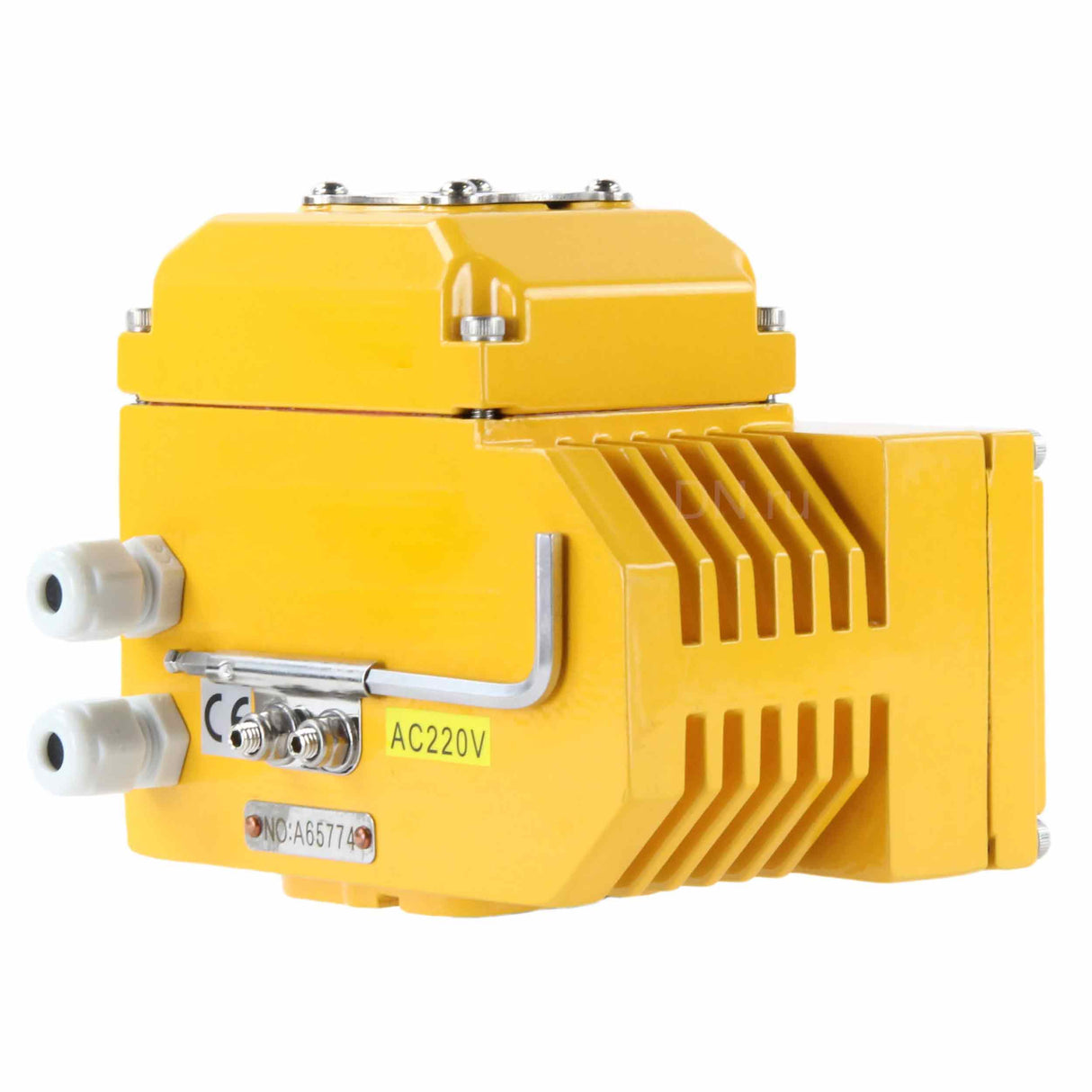

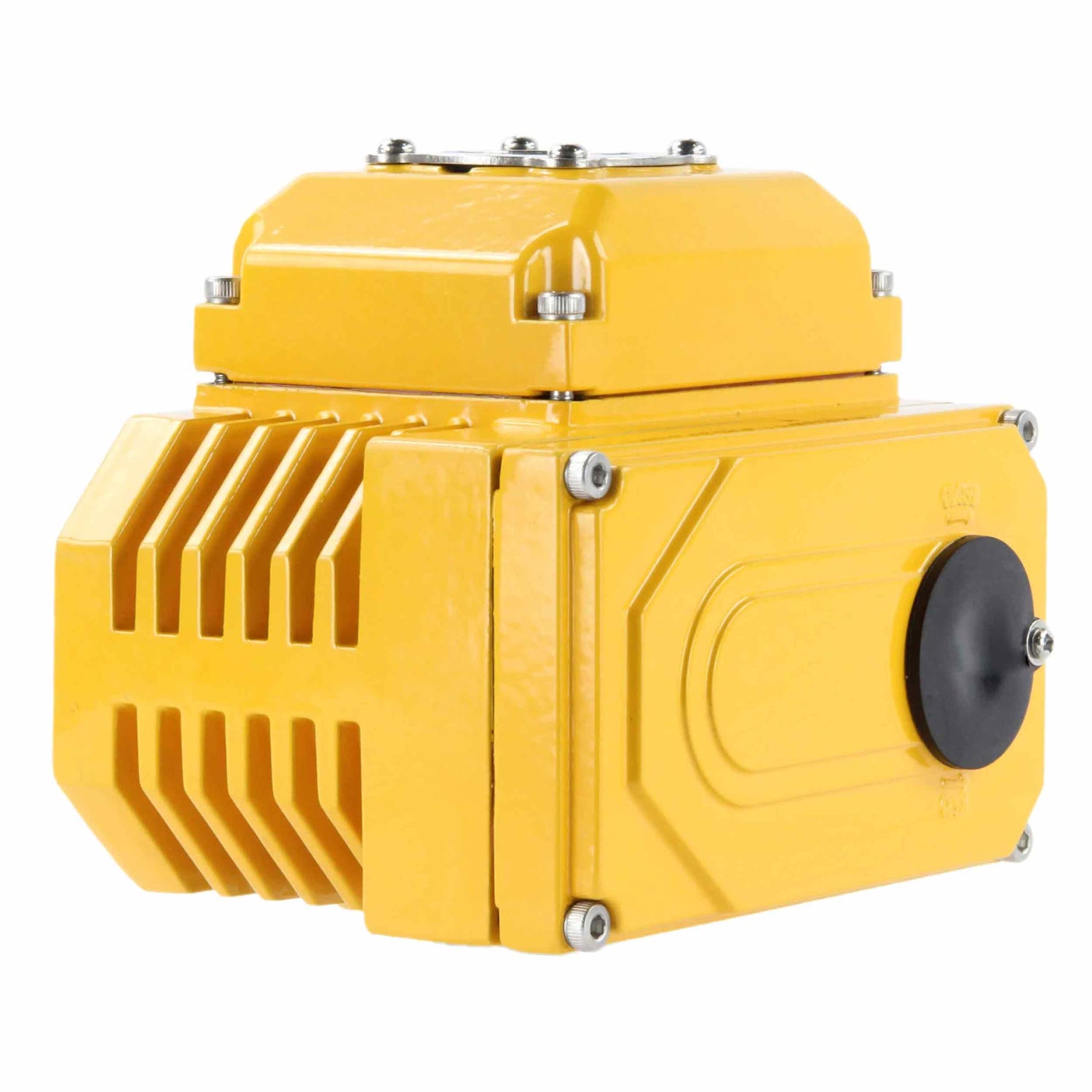

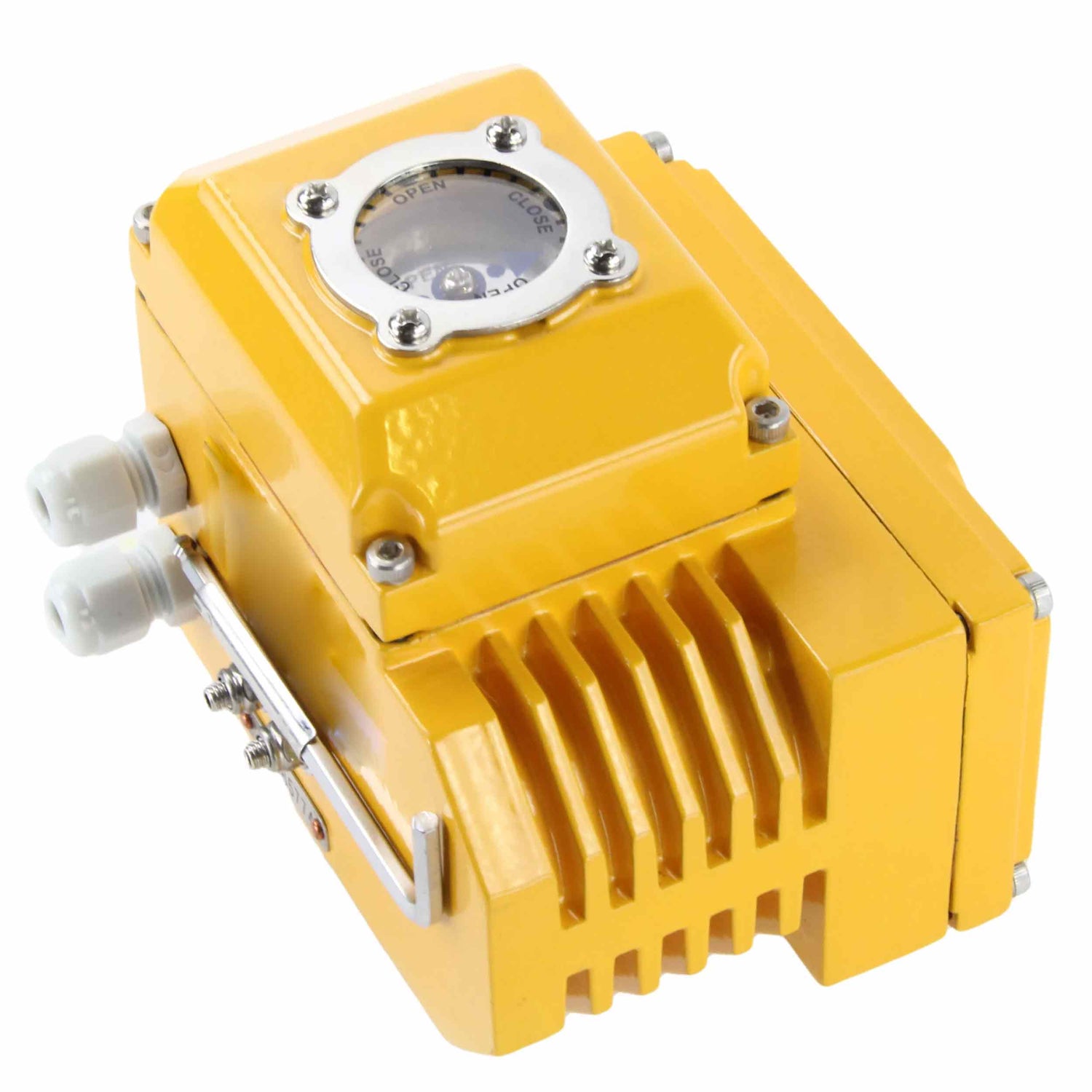

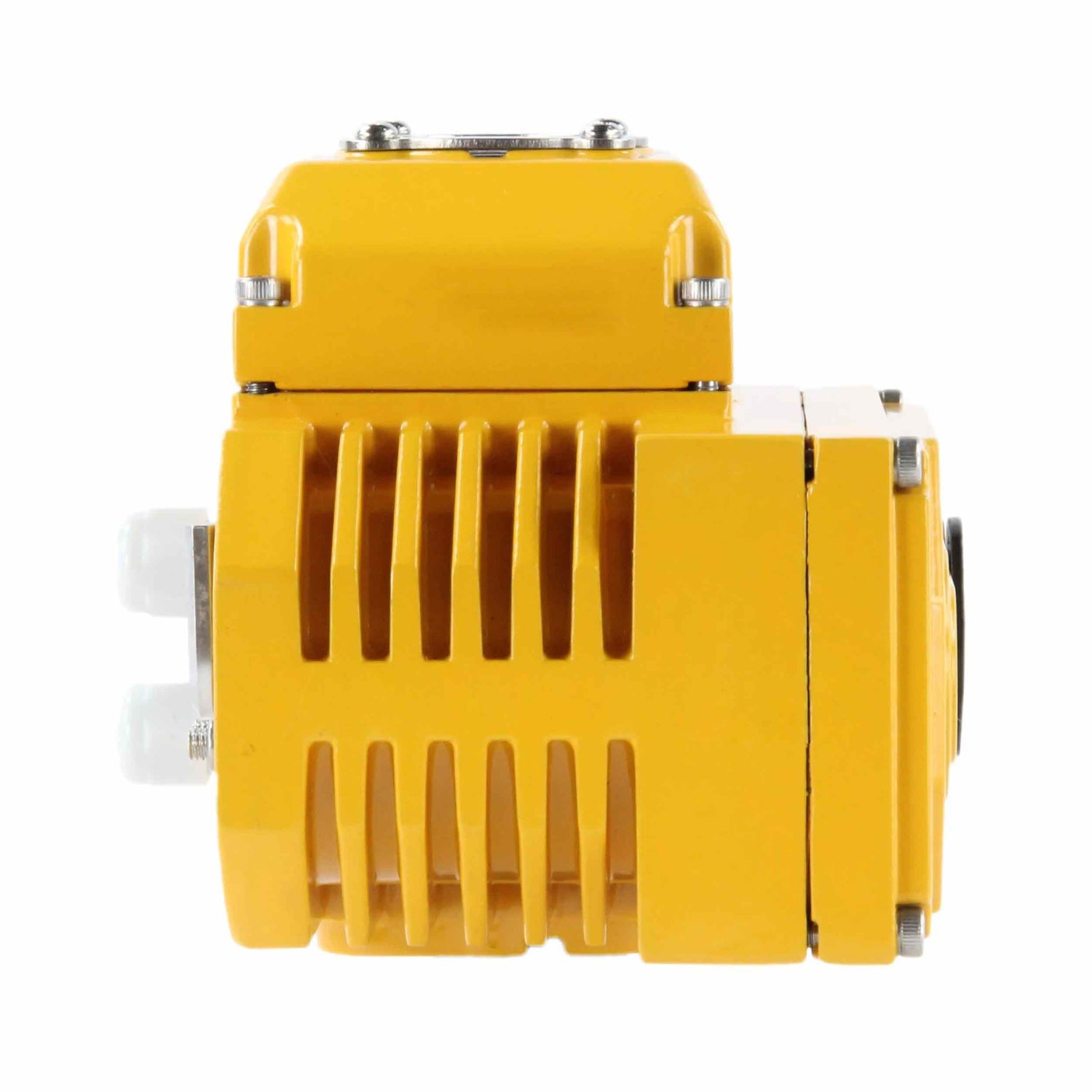

Quarter-turn electric actuator Elephant 003-060 110/220V
Quarter-turn electric actuator Elephant 003-060 110/220V - 50 Nm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Quarter-turn electric actuator Elephant 003-060 220V is designed for remote and local control of shut-off valves. It is widely used in the gas, oil, metallurgical and food industries, in housing and communal services, etc. with an ambient temperature of -4 °....+158°F. The housing is equipped with a heater (7-10W 220 V) and has the following degrees of protection: IP67, NEMA 4 and 6, anti-corrosion coating. The installation dimensions comply with the international standard ISO 05211 / DIN3337. The electric drive is equipped with an asynchronous motor with a short-circuited rotor, automatic locking of the position of the electric drive, a mechanical handle, thermal protection, vibration protection X Y Z 10g (0.2-34 Hz, 30 minutes) and is designed for operation in the repeatedly short-term S2 mode. The stroke of the electric drive is 90° with an adjustment range of ± 10°. Limiting the stroke of the electric drive - limit switches. Cable connection 2 x M18. The power supply is carried out with an alternating voltage of 220 V with a frequency of 50 Hz.
Specifications
Specifications
-
Country of origin
-
Actuator cycle time
-
Explosion-proof
-
Thermal protection
-
Type of electric actuator
-
Feedback sensor
-
Control signal
-
Shaft shape rod
-
Shaft shape square
-
ISO - flange type
-
Rated current consumption
-
Power consumption
-
Supply voltage
