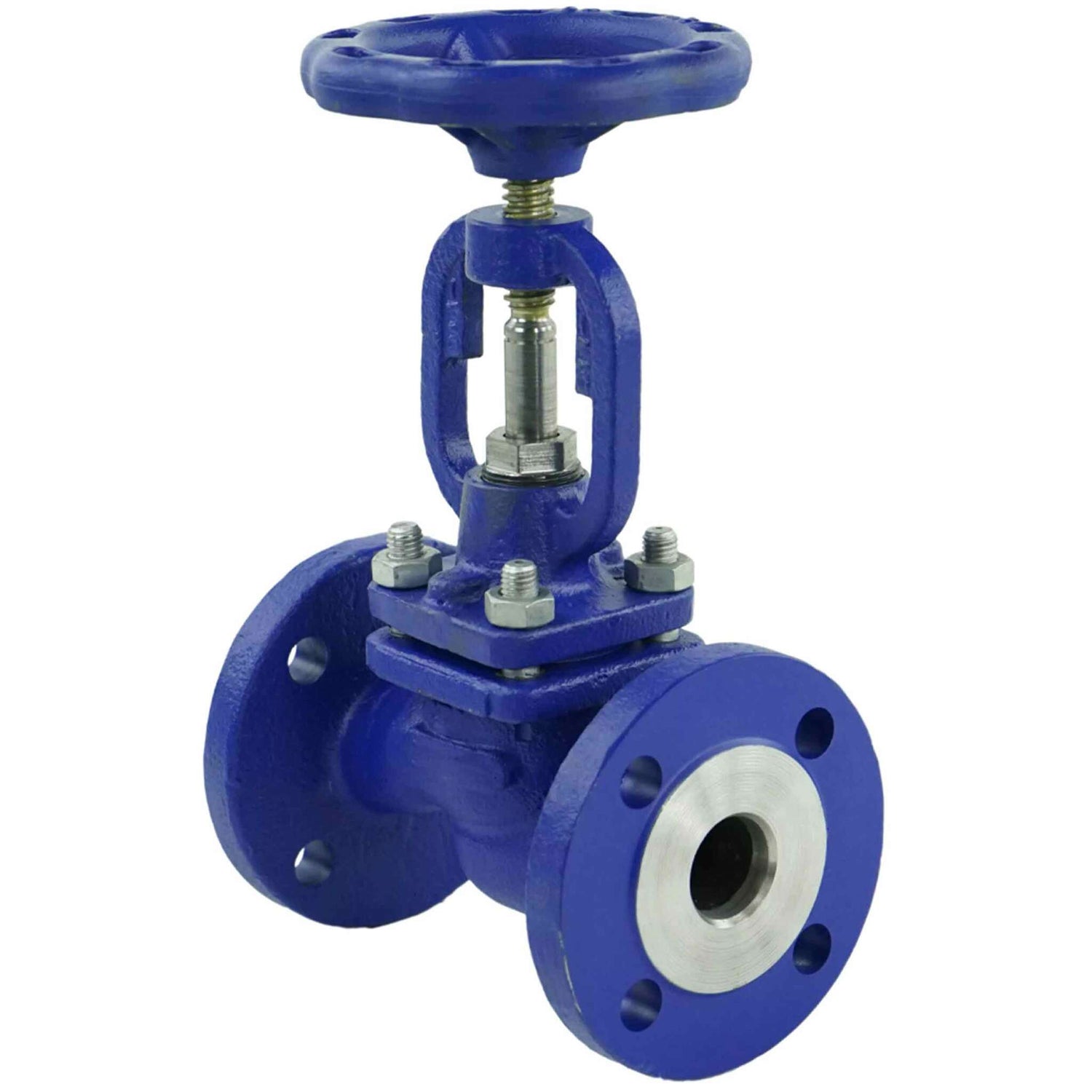

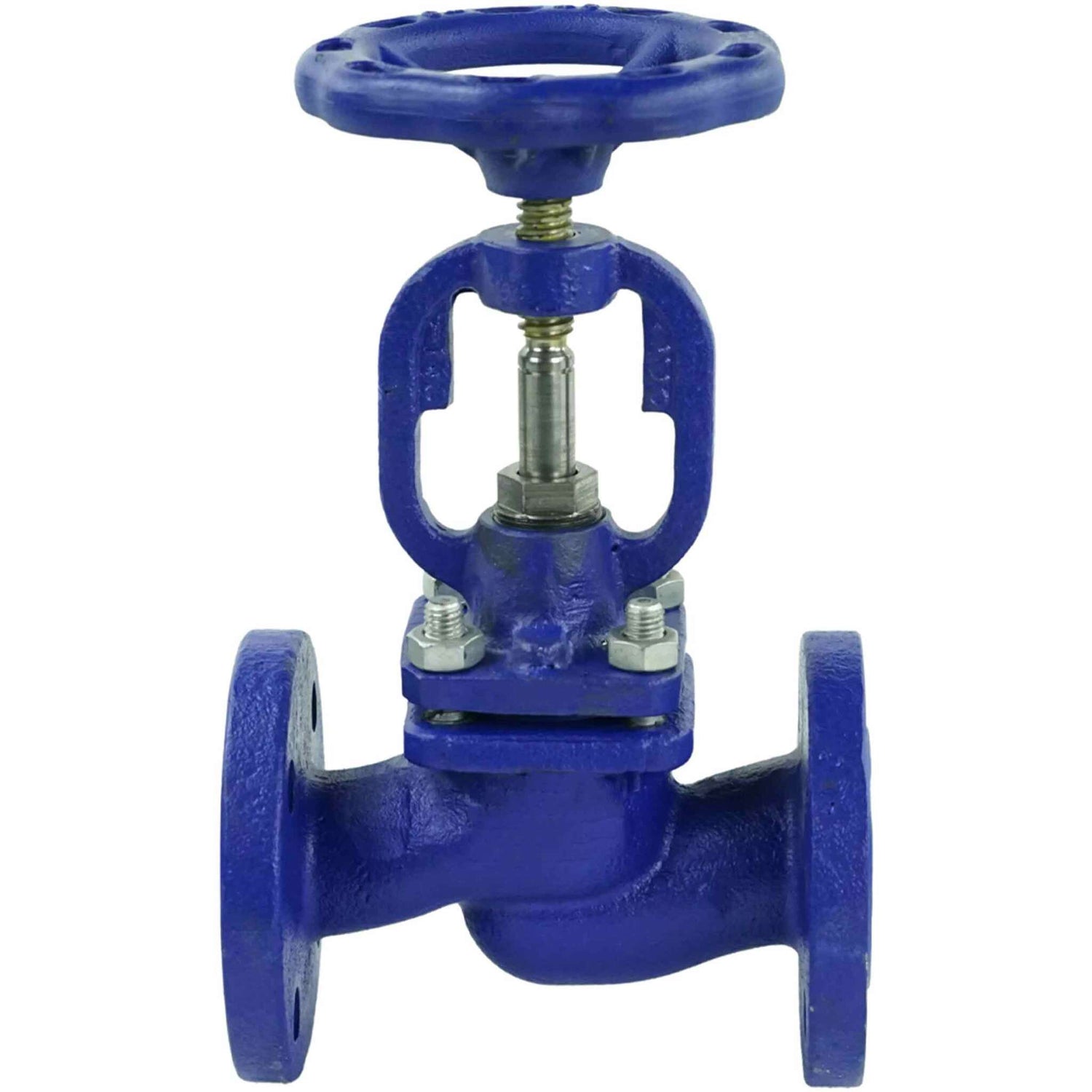

Pressure sealed stop valve Elephant VS2130M-F-S PSI580, flanged, body material - steel GS-C25, seal - PTFE, steering wheel
Pressure sealed stop valve Elephant VS2130M-F-S PSI580, flanged, body material - steel GS-C25, seal - PTFE, steering wheel - DN15 / 40 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Pressure sealed stop valve Elephant is designed for installation as a shut-off device on pipelines. Operating principle: When the flywheel rotates clockwise or counterclockwise, the rotational motion is transmitted to the spindle, and the spool attached to it closes or opens the passage hole in the housing. WARNING: The use of shut-off valves as control valves is prohibited.
Overall and installation dimensions of gland shut-off valves Elephant VS2130M-F-S PSI580, flanged, body material - steel GS-C25, seal - PTFE, steering wheel
| Model |
d |
L |
D2 |
D1 |
D |
C |
f |
n |
d1 |
Weight, kg |
| DN15 | 15 | 130 | 45 | 65 | 95 | 16 | 2 | 4 | 14 | 3.7 |
| DN20 | 20 | 150 | 58 | 75 | 105 | 16 | 2 | 4 | 14 | 4.5 |
| DN25 | 25 | 160 | 65 | 85 | 115 | 18 | 2 | 4 | 14 | 5.5 |
| DN32 | 32 | 180 | 78 | 100 | 140 | 18 | 2 | 4 | 18 | 7.5 |
| DN40 | 40 | 200 | 88 | 110 | 150 | 18 | 3 | 4 | 18 | 13.5 |
| DN50 | 50 | 230 | 102 | 125 | 165 | 18 | 3 | 4 | 18 | 15 |
| DN65 | 65 | 290 | 122 | 145 | 185 | 22 | 3 | 8 | 18 | 24 |
| DN80 | 76 | 310 | 138 | 160 | 200 | 24 | 3 | 8 | 18 | 30 |
| DN100 | 100 | 350 | 162 | 190 | 235 | 24 | 3 | 8 | 22 | 44 |
Dimensional sketch of gland shut-off valves Elephant VS2130M-F-S PSI580, flanged, body material - steel GS-C25, seal - PTFE, steering wheel
Materials of gland shut-off valves Elephant VS2130M-F-S PSI580, flanged, body material - steel GS-C25, seal - PTFE, steering wheel
| № | Name | Material |
| 1 | Case | steel GS-C25 |
| 2 | Face seal | steel WCB+13Cr |
| 3 | Disk | steel X10Cr13 |
| 4 | Stem | steel 13Cr |
| 5 | Gasket | steel SS304+graphite |
| 6 | Back seal | steel WCB+13Cr |
| 7 | Hairpin | steel А193 В7 |
| 8 | Nut | steel А194 2Н |
| 9 | padding | графит |
| 10 | Gland flange | steel WCB |
| 11 | Fasteners | C.S |
| 12 | Eye bolt | steel А193 В7 |
| 13 | Nut | steel А194 2Н |
| 14 | Cover | steel WCB |
| 15 | Rod nut | aluminum bronze |
| 16 | Fasteners | C.S |
| 17 | Helm | КТН330-08 |
| 18 | Lock nut | steel А194 2Н |
Material sketch of gland shut-off valves Elephant VS2130M-F-S PSI580, flanged, body material - steel GS-C25, seal - PTFE, steering wheel
Specifications
Specifications
-
Country of origin
-
Body material
-
Connection type
-
Operating environment
-
Applications
-
Nominal pressure
-
Type of seal
-
Stop valve type
