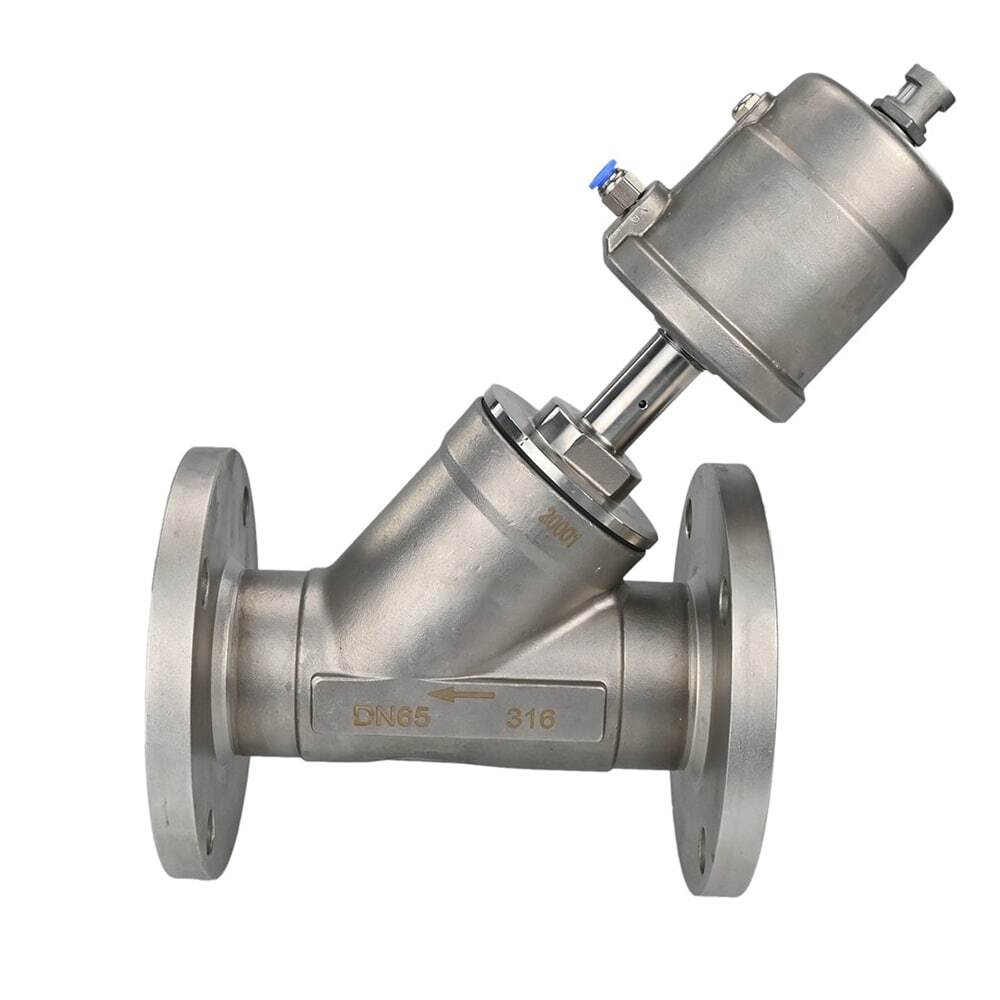

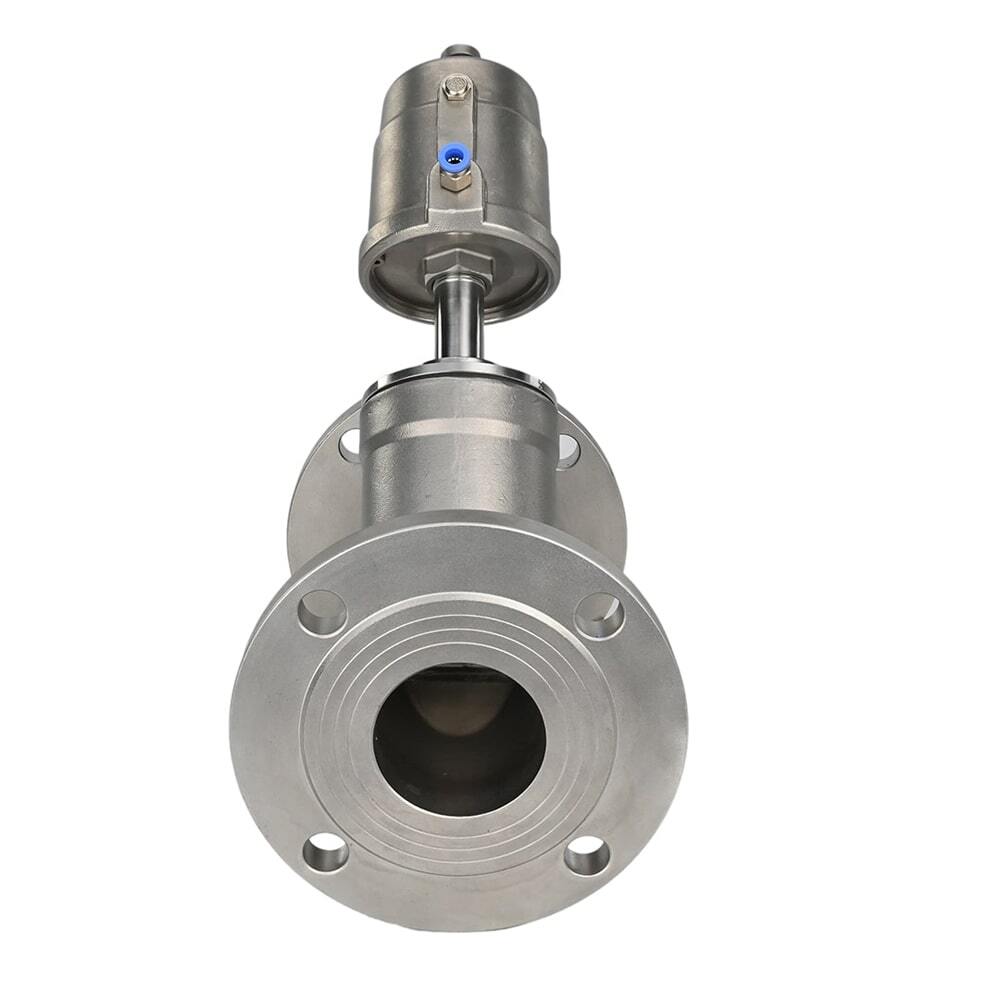

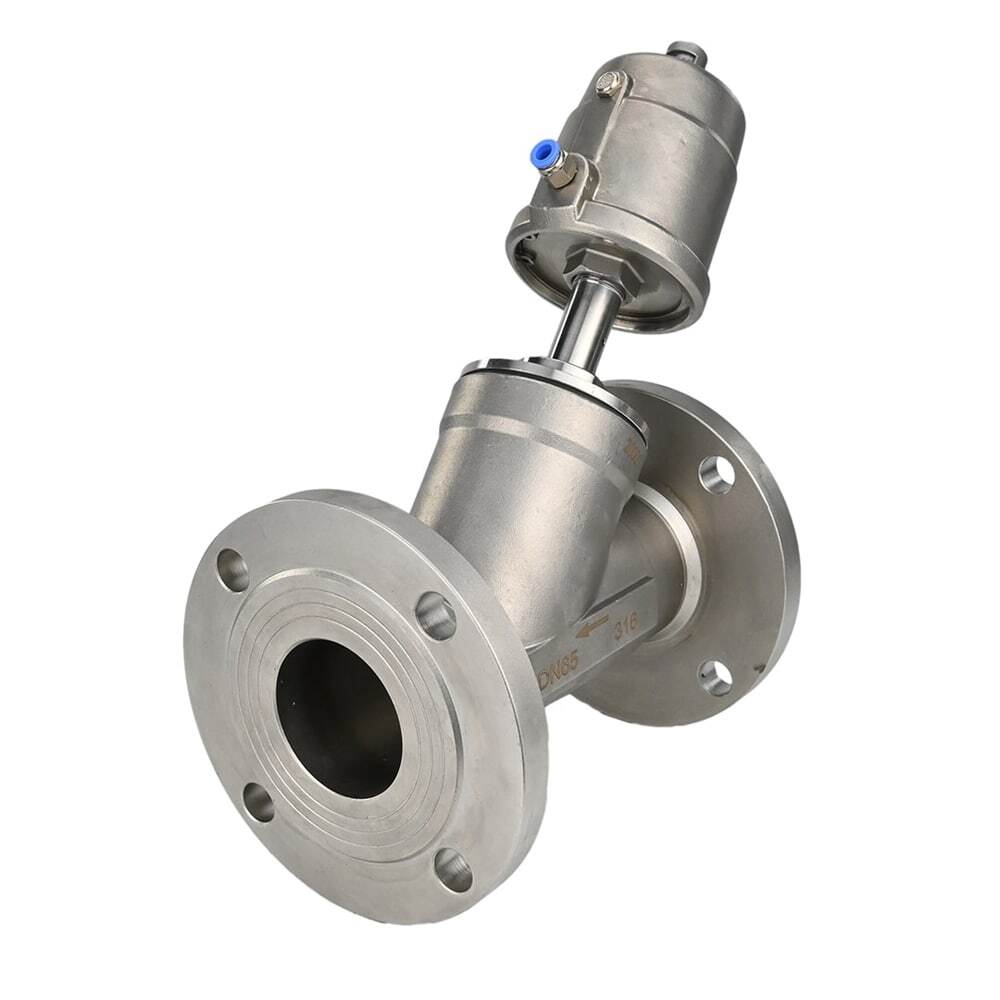

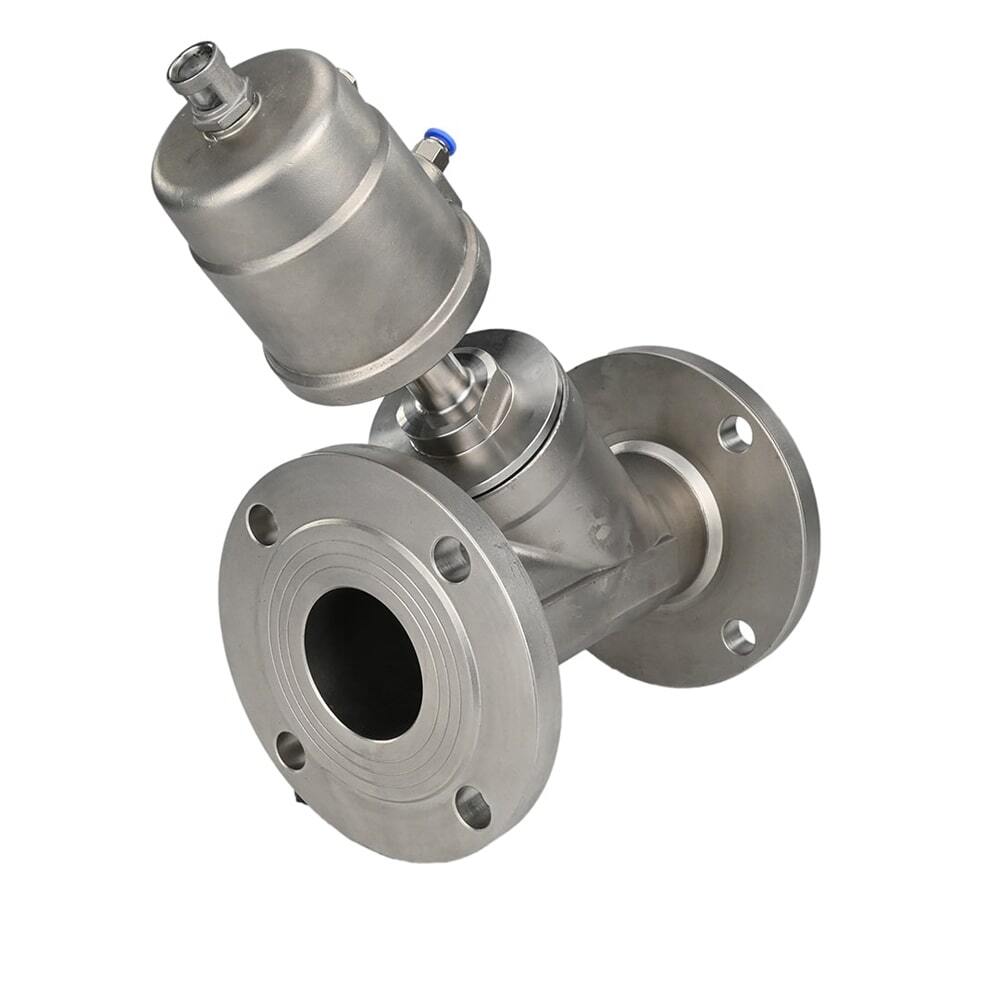

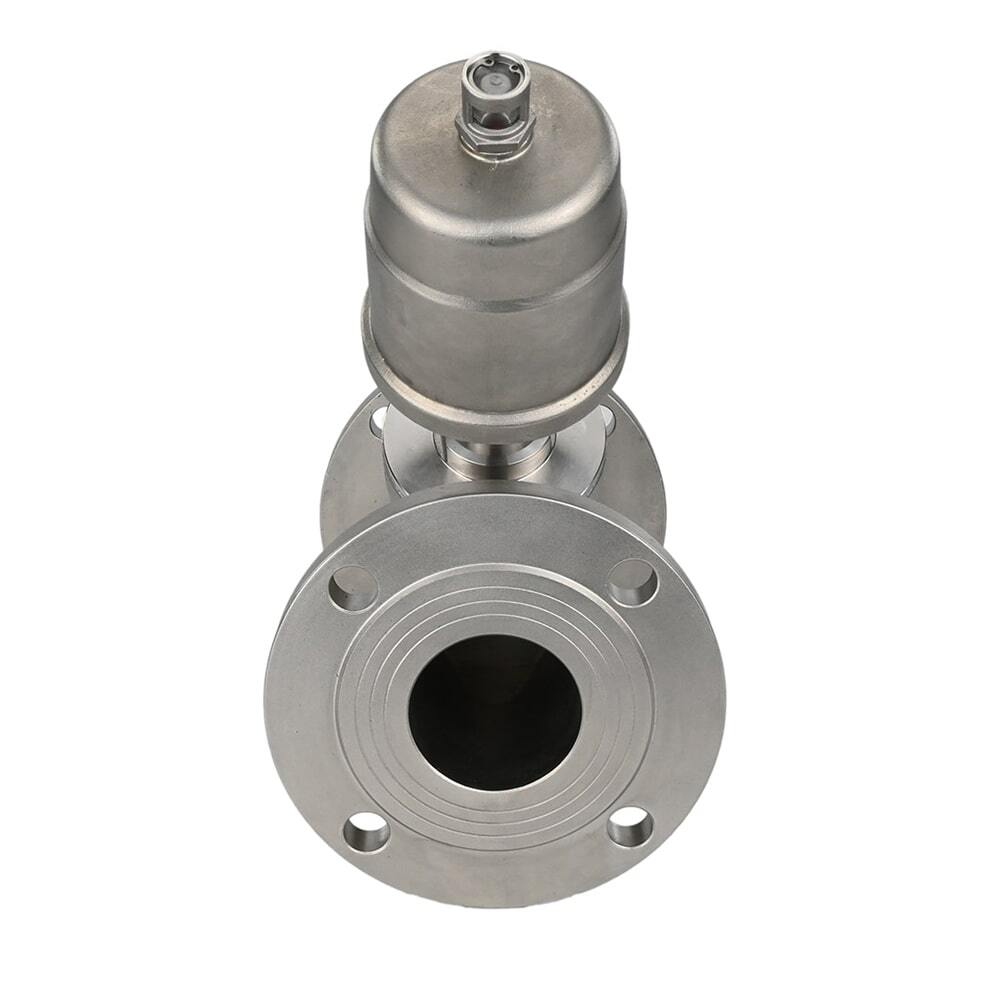

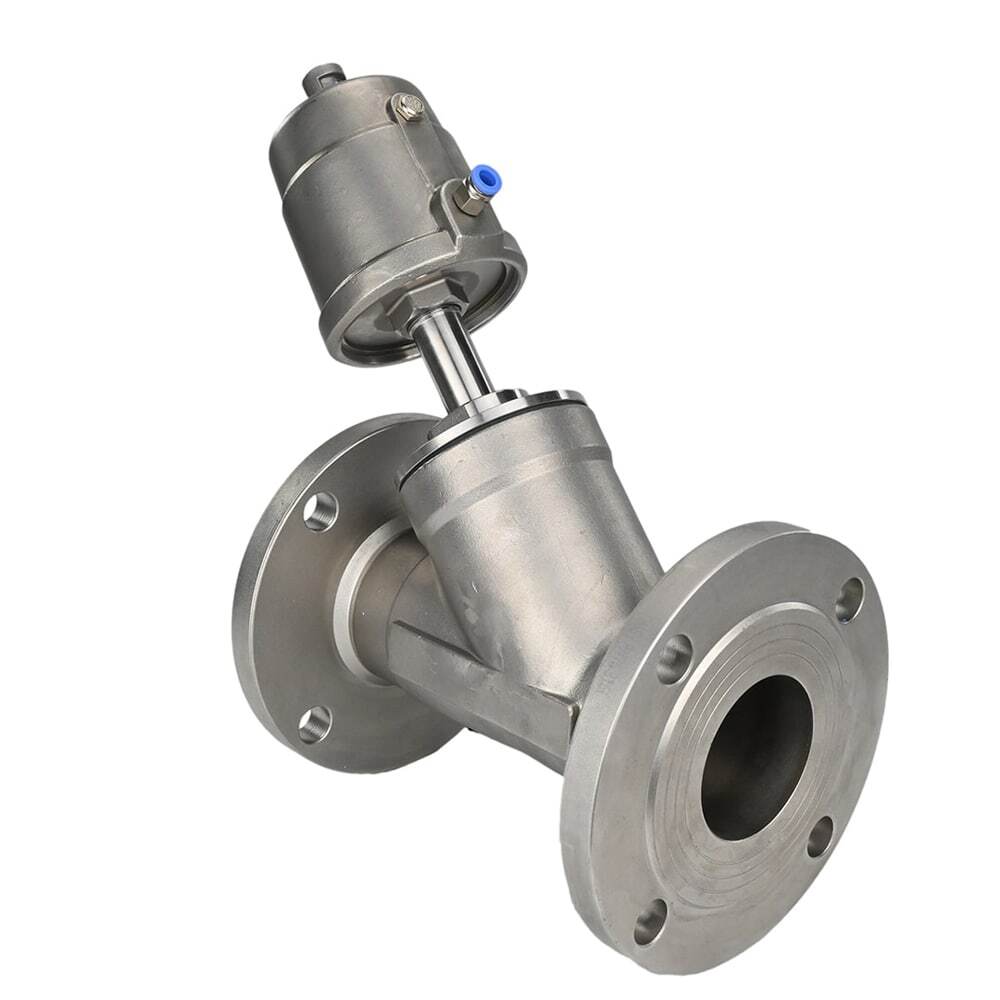

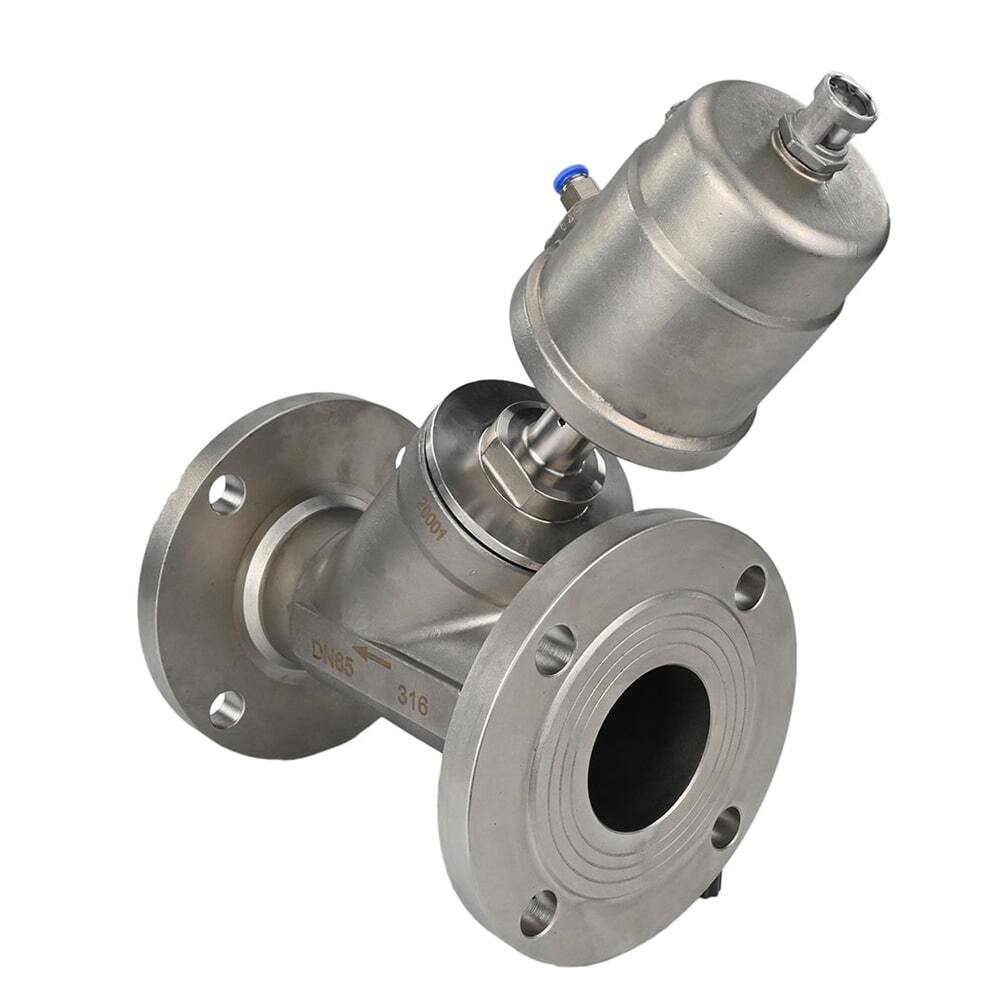

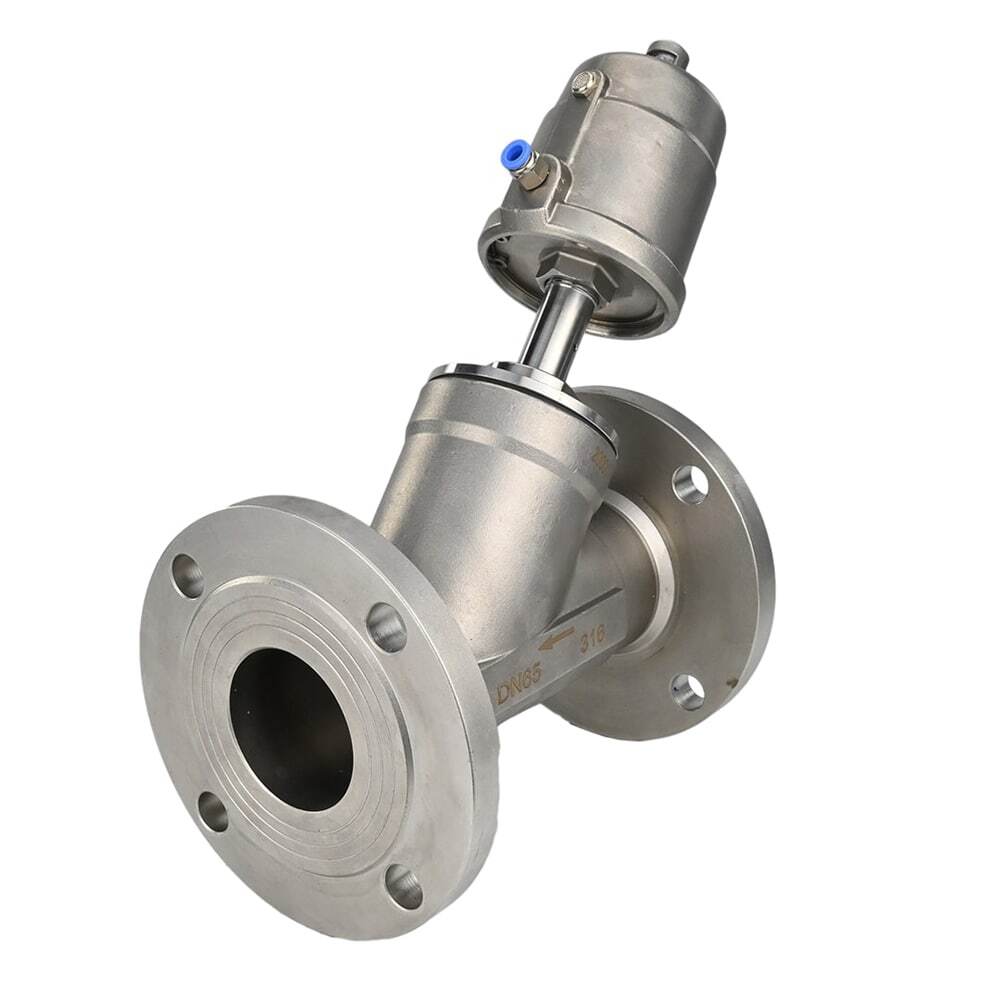

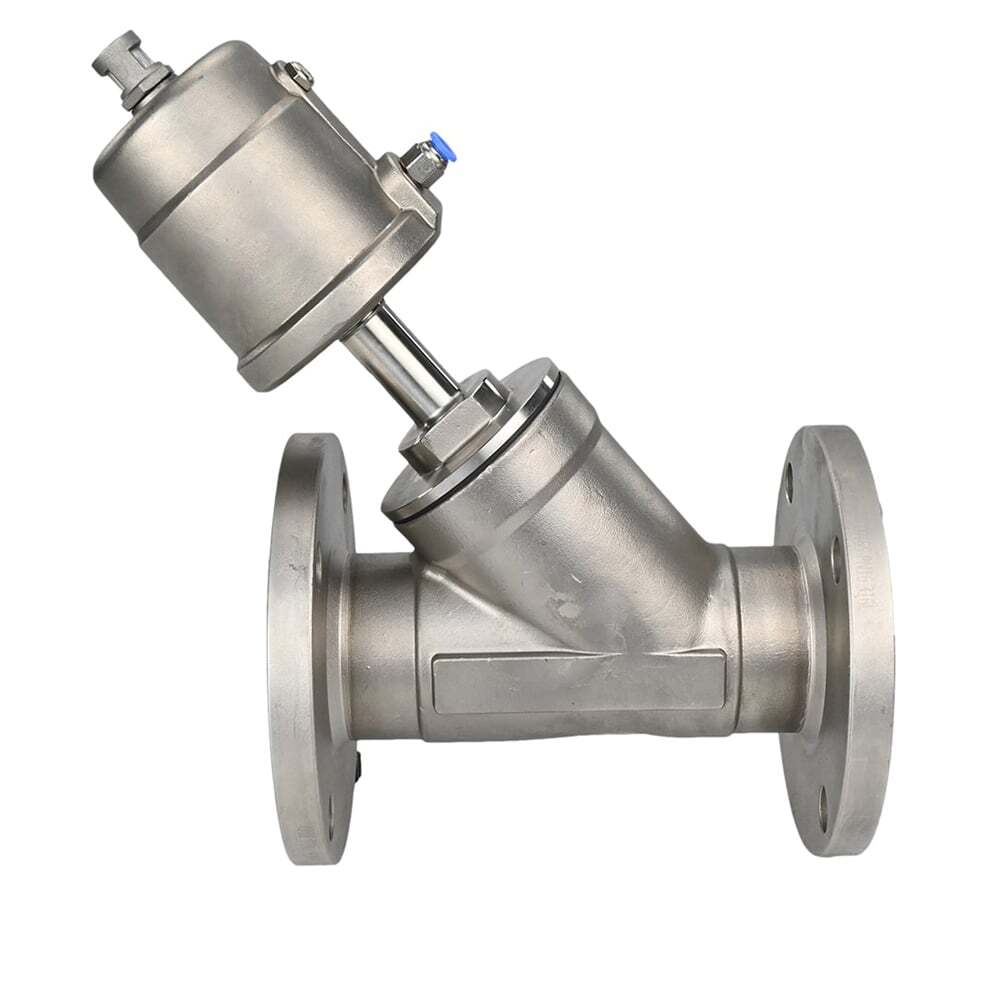

Pneumatic valve Elephant VS3232PV-F-1PNC PSI232, body material - stainless steel AISI 316, flanged, Y-shaped
Pneumatic valve Elephant VS3232PV-F-1PNC PSI232, body material - stainless steel AISI 316, flanged, Y-shaped - DN15 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Pneumatic valves Elephant are designed to regulate or block the flow of the working medium in the pipeline. Principle of operation: the valve is triggered by the pressure of compressed air supplied to the pneumatic actuator, and the return to the starting position is due to the force of elastic deformation of the spring, which contracts when the valve is triggered.
Overall and installation dimensions of pneumatic shut-off valves Elephant VS3232PV-F-1PNC PSI232, body material - stainless steel AISI 316, flanged, Y-shaped
| DN | L | D | D1 | D2 | A | H | b | B | N | K | Weight, kg |
| 15 | 120 | 95 | 65 | 40 | 187 | 160 | 14 | 62 | 4 | G 1/8″ | 2.9 |
| 20 | 130 | 105 | 75 | 50 | 190 | 162 | 14 | 62 | 4 | G 1/8″ | 3.2 |
| 25 | 140 | 115 | 85 | 60 | 218 | 185 | 14 | 76 | 4 | G 1/8″ | 4.6 |
| 32 | 150 | 135 | 100 | 70 | 223 | 199 | 16 | 96 | 4 | G 1/8″ | 5.8 |
| 40 | 180 | 145 | 110 | 80 | 250 | 201 | 16 | 96 | 4 | G 1/8″ | 6.5 |
| 50 | 195 | 160 | 125 | 92 | 290 | 253 | 16 | 117 | 4 | G 1/4″ | 8.8 |
| 65 | 230 | 185 | 145 | 115 | 325 | 272 | 18 | 117 | 4 | G 1/4″ | 12.2 |
| 80 | 250 | 195 | 160 | 130 | 355 | 305 | 18 | 163 | 8 | G 1/4″ | 20.0 |
| 100 | 280 | 215 | 180 | 150 | 385 | 334 | 18 | 184 | 8 | G 1/4″ | 30.5 |
Sketch of pneumatic shut-off valves Elephant VS3232PV-F-1PNC PSI232, body material - stainless steel AISI 316, flanged, Y-shaped
Materials of parts of pneumatic shut-off valves Elephant VS3232PV-F-1PNC PSI232, body material - stainless steel AISI 316, flanged, Y-shaped
| № | Name | Material |
| 1 | Case | steel CF8M |
| 2 | Plunger | steel CF8M |
| 3 | Plunger seal | PTFE |
| 4 | Valve cover | steel CF8M |
| 5 | Spring | steel 60Si2MnA |
| 6 | Drive cover | steel CF8M |
| 7 | Drive housing | steel CF8M |
| 8 | Indicator cover | plastic |
| 9 | Spring | steel 60Si2MnA |
| 10 | piston | aluminum alloy AD31 |
| 11 | Piston seal | VITON |
| 12 | V-shaped piston seal | VITON |
| 13 | Sealing | NBR |
| 14 | Stem | steel CF8M |
| 15 | Stem seal | PTFE |
| 16 | Valve cover seal | PTFE |
Material sketch of pneumatic shut-off valves Elephant VS3232PV-F-1PNC PSI232, body material - stainless steel AISI 316, flanged, Y-shaped
