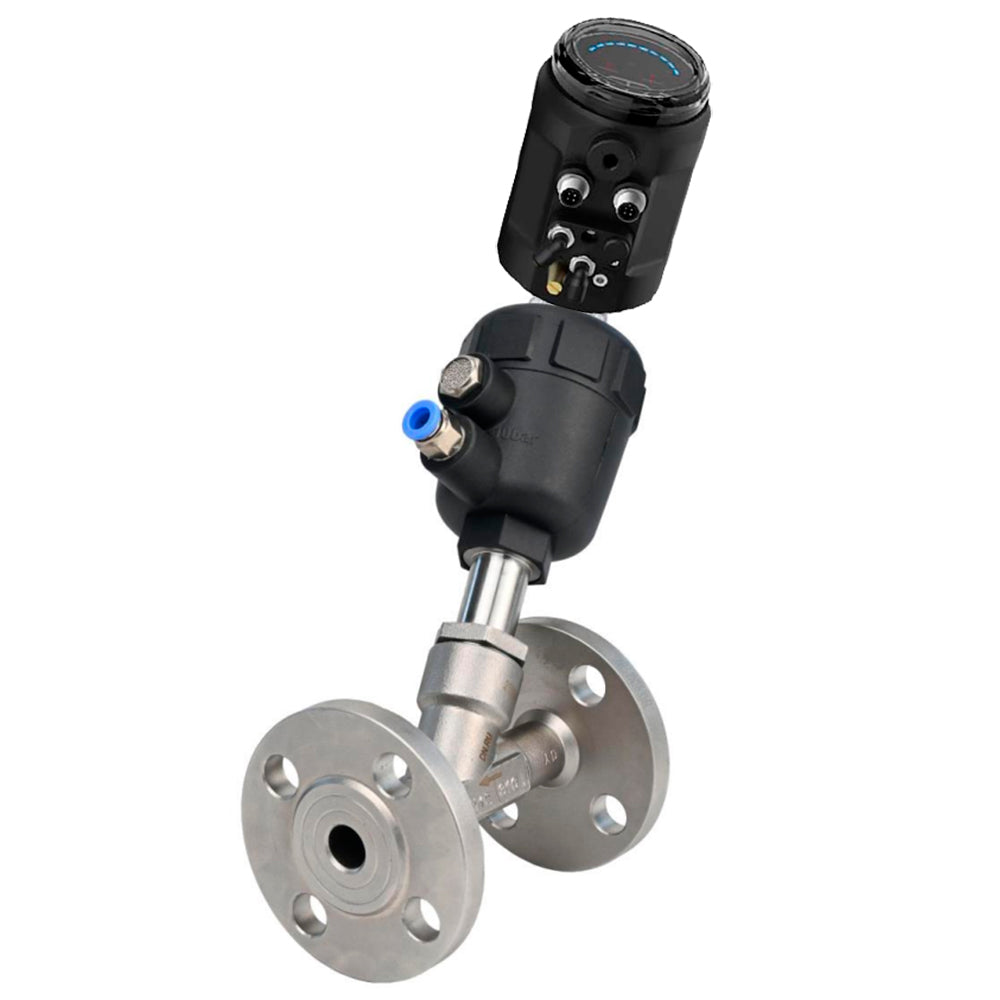

Pneumatic shut-off valves Elephant VSP324PV-F-1PNC, body - stainless steel SS316, flanged, Y-shaped, with electropneumatic intelligent positioner EIP-1500 (stroke 5-25mm)
Pneumatic shut-off valves Elephant VSP324PV-F-1PNC, body - stainless steel SS316, flanged, Y-shaped, with electropneumatic intelligent positioner EIP-1500 (stroke 5-25mm) - DN15 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Pneumatic shut-off valves VSP324PV-F-1PNC steel, flanged, Y-shaped are designed to regulate or shut off the flow of medium in the pipeline. Operating principle: valve actuation occurs due to the pressure of compressed air supplied to the pneumatic actuator, and the return to the initial position - due to the force of elastic deformation of the spring, which is compressed when the valve is triggered.
The electropneumatic intelligent positioner is designed to adjust the valve travel using automatic control algorithm and PWM control technology.
Technical characteristics of pneumatic shut-off valves Elephant VSP324PV-F-1PNC, body - stainless steel SS316, flanged, Y-shaped, with electropneumatic intelligent positioner EIP-1500 (stroke 5-25mm):
| Name | Value |
| Marking | VSP324PV-T-1PNC with EFI-1500 (stroke 5-25mm) |
| Nominal diameter | 15 - 100 mm |
| Nominal pressure | 25 bar |
| Type of control | pneumatic actuator |
| Connection type | flanged |
| Working medium | water, steam and liquids compatible with the valve materials of construction |
| Direction of medium flow | arrow on valve body |
| Maximum kinematic viscosity of the medium | 600 mm2/s |
| Control characteristic | linear |
| Design | normally closed |
| Areas of application | heating and water supply systems, industrial pipelines |
| Operating medium temperature | from -40 to 200 °С |
| Ambient temperature | from -10 to +60 °С |
| Average service life | 10 000 000 closing/opening cycles |
Pneumatic shut-off valves Elephant VSP324PV-F-1PNC, body - stainless steel SS316, flanged, Y-shaped, with electropneumatic intelligent positioner EIP-1500 (stroke 5-25mm)
Technical characteristics of electropneumatic intelligent positioner EIP-1500 stroke range 5-25mm:
| Name | Value |
| Enclosure material | polycarbonate PC; silicone SI; plastic PA6-GF30 |
| Enclosure protection degree | IP66 |
| Visual indication | display with LED indicators |
| Stroke range linear | 5-25mm |
| Electrical connection parameters | 24VDC ±10%; 1A |
| Status at power failure | reset |
| Air supply pressure | 3-7 bar |
| Control medium | neutral gas, air according to DIN ISO 8573-1 quality class 3 |
| Pneumatic connection | G1/4 (inner diameter Ø6 mm) |
| Electrical connection | M12 4 contacts D-coded (cable ø 4-6mm) |
| Ambient temperature | 0 to +80 °C |
| Vibration resistance parameter | 100 Hz |
| Weight | 0.14 kg |
| Average life | 10 years |
Electropneumatic intelligent positioner EIP-1500 stroke range 5-25mm
Overall and installation dimensions of pneumatic shut-off valves Elephant VSP324PV-F-1PNC, body - stainless steel SS316, flanged, Y-shaped, with electropneumatic intelligent positioner EIP-1500 (stroke 5-25mm):
| DN | L, mm | D, mm | D1, mm | D2, mm | A, mm | H, mm | b, mm | B, mm | N-Ød, pcs-mm | K | Weight, kg |
| 15 | 120 | 95 | 65 | 40 | 182 | 154 | 14 | 64 | 4-14 | G 1/4″ | 2.8 |
| 20 | 130 | 105 | 75 | 50 | 185 | 155 | 14 | 64 | 4-14 | G 1/4″ | 3 |
| 25 | 140 | 115 | 85 | 60 | 212 | 186 | 14 | 80 | 4-14 | G 1/4″ | 4.1 |
| 32 | 150 | 135 | 100 | 70 | 242 | 210 | 16 | 100 | 4-18 | G 1/4″ | 5.2 |
| 40 | 180 | 145 | 110 | 80 | 260 | 212 | 16 | 100 | 4-18 | G 1/4″ | 5.8 |
| 50 | 195 | 160 | 125 | 92 | 314 | 286 | 16 | 126 | 4-18 | G 1/4″ | 8.1 |
| 65 | 230 | 185 | 145 | 115 | 355 | 303 | 18 | 126 | 4-18 | G 1/4″ | 10.8 |
| 80 | 250 | 195 | 160 | 130 | 390 | 335 | 18 | 156 | 8-18 | G 1/4″ | 18.3 |
| 100 | 280 | 215 | 180 | 150 | 410 | 355 | 18 | 156 | 8-18 | G 1/4″ | 28.2 |
Sketch of dimensions of pneumatic shut-off valves Elephant VSP324PV-F-1PNC, body - stainless steel SS316, flanged, Y-shaped, with electropneumatic intelligent positioner EIP-1500 (stroke 5-25mm)
Overall and installation dimensions of electropneumatic positioner EIP-1500 stroke range 5-25mm for actuators with linear motion:
| D1, mm | D2, mm | D3, mm | A, mm | B, mm | C, mm | E, mm | F, mm | G |
| 100 | 86 | 8 | 162 | 139 | 124 | 15 | 11.5 | M26x1.5 |
Sketch of electropneumatic positioner EIP-1500 stroke range 5-25mm with linear motion
Materials of parts of pneumatic shut-off valves Elephant VSP324PV-F-1PNC, body - stainless steel SS316, flanged, Y-shaped, with electropneumatic intelligent positioner EIP-1500 (stroke 5-25mm):
| № | Part name | Material |
| 1 | Body | CF8M steel |
| 2 | Plunger | CF8M steel |
| 3 | Plunger seal | PTFE |
| 4, 5 | Stem seal | PTFE |
| 6 | Valve cover | CF8M steel |
| 7 | Stem | CF8M steel |
| 8 | Indicator cover | plastic |
| 9 | Actuator housing | plastic |
| 10 | Spring | 60Si2MnA steel |
| 11 | Piston | aluminum alloy AD31 |
| 12 | Piston O-ring | VITON |
| 13 | O-ring | NBR |
| 14 | Spring | 60Si2MnA steel |
| 15 | Rod seal | VITON |
Material sketch of pneumatic shut-off valves Elephant VSP324PV-F-1PNC, body - stainless steel SS316, flanged, Y-shaped, with electropneumatic intelligent positioner EIP-1500 (stroke 5-25mm)
The main units of electropneumatic intelligent positioner EIP-1500 stroke range 5-25mm:
| № | Name | Quantity |
| 1 | Protective cover | 1 pc |
| 2 | Enclosure | 1 pc |
| 3 | Electrical connectors | 2 pcs |
| 4 | Pneumatic connectors | 2 pcs |
| 5 | Connection to IM | 1 pc |
Sketch of electropneumatic intelligent positioner EIP-1500 stroke range 5-25mm
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environmentWater, steam, non-aggressive liquids
-
Nominal pressure
-
Type of seal
-
Locking material
