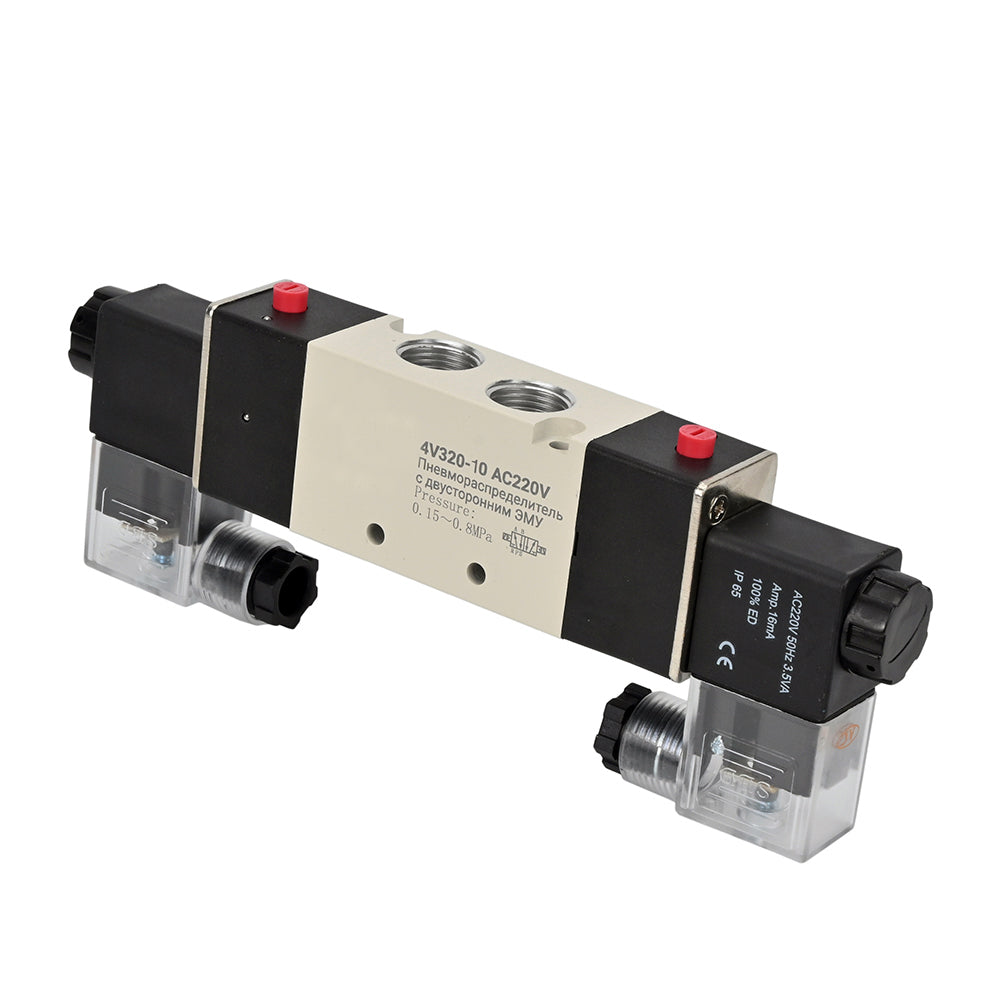

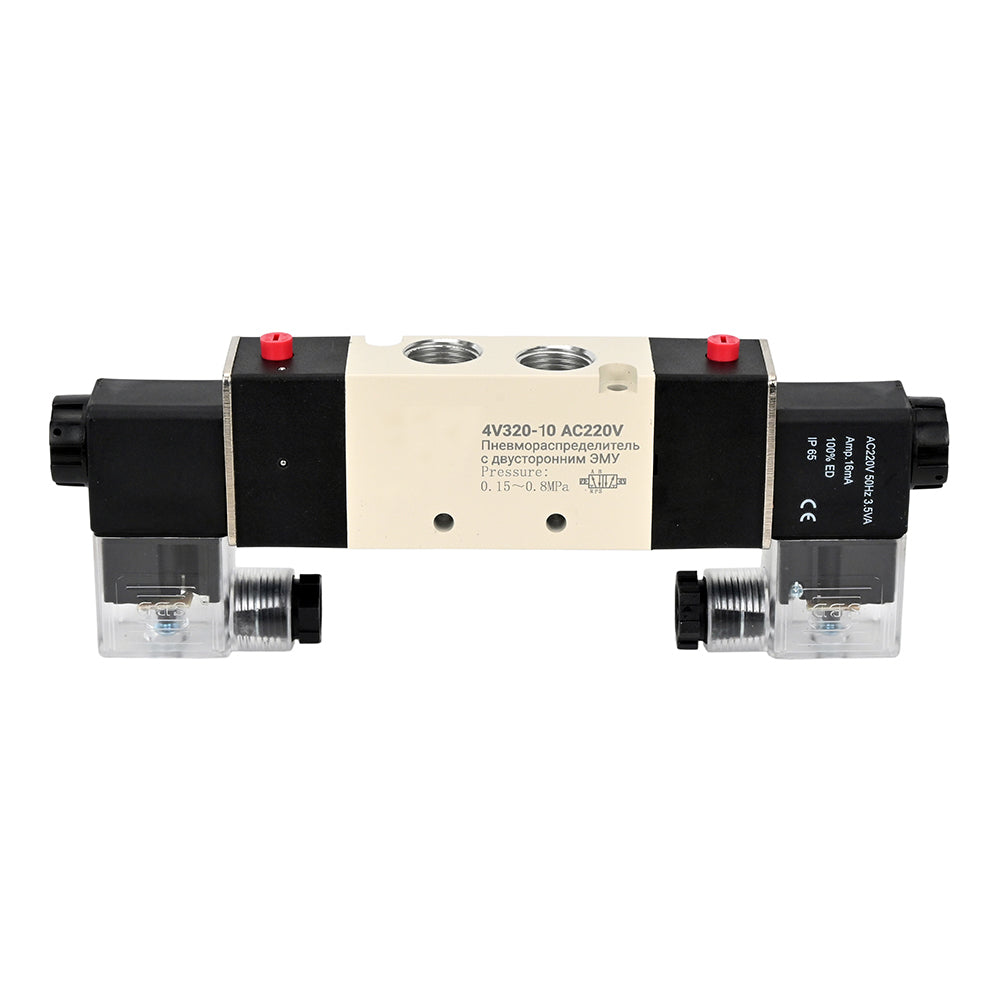

Pneumatic distributor Elephant 4V320 AC220V, 8 mm working channels, with two-way electromagnetic control
Pneumatic distributor Elephant 4V320 AC220V, 8 mm working channels, with two-way electromagnetic control - DN8 / 110/220 V is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
A pneumatic distributor, also known as a pneumatic valve manifold or pneumatic distribution block, is a device used in pneumatic systems to control the flow of compressed air to various pneumatic components or actuators. Pneumatic distributors are crucial components in industrial automation, allowing precise and automated control of pneumatic processes by routing compressed air to specific components, controlling the direction of airflow, and regulating the pressure supplied to different parts of a pneumatic system. They are commonly utilized in manufacturing, robotics, and other automated systems for efficient operation and control of pneumatic devices.
Technical parameters Pneumatic valves Elephant 4V320 AC220V, 8 mm working channels, with two-way electromagnetic control
| Name | Significance |
| Maximum pressure, bar | 12 |
| Degree of protection of the enclosure, IP | 65 |
| Operating temperature, °C | -5 to +50 |
| Pneumatic actuator operating medium | purified air (purification fineness 40 µm) |
| Maximum actuation frequency, cycles per second | 5 |
| Total power, VA | 4.5 VA |
| Type of accessory for pneumatic actuator | Pneumatic valves |
| Working pressure of pneumatic actuator, bar | 1.5 to 1.8 |
| Type of pneumatic valve | spool |
| Operating diagram of the pneumatic valve | 5/2 |
| Effective cross-sectional area, mm2 | 1.4 |
| Average life, cycles | 20000000 |
| Housing material | aluminum alloy, technopolymer |
| Country of manufacture | China |
| Guarantee, g. | 1 |
Overall and installation dimensions Pneumatic valves Elephant 4V320 AC220V, 8 mm working channels, with two-way electromagnetic control
| Size | 1/4″ | 3/8″ |
| A, mm | 71.9 | 71.9 |
| B, mm | 45 | 45 |
| C, mm | 94.4 | 94.4 |
| D, mm | 27 | 27 |
| E, mm | 69 | 69 |
| F, mm | 40 | 40 |
| I, mm | 24 | 24 |
| K, mm | 40 | 40 |
| L, mm | 188.8 | 188.8 |
| M, mm | 69.4 | 69.4 |
| H, mm | 82.4 | 82.4 |
| N, mm | 50 | 50 |
| O, mm | 83.4 | 82.4 |
| P, mm | 22 | 24 |
| S, mm | 20 | 20 |
| T, mm | 6.5 | 6.5 |
| U, mm | 2.4 | 2.4 |
| V, mm | 4 |
Sketch Pneumatic valves Elephant 4V320 AC220V, 8 mm working channels, with two-way electromagnetic control
