Elephant  |  SKU: D290-00313

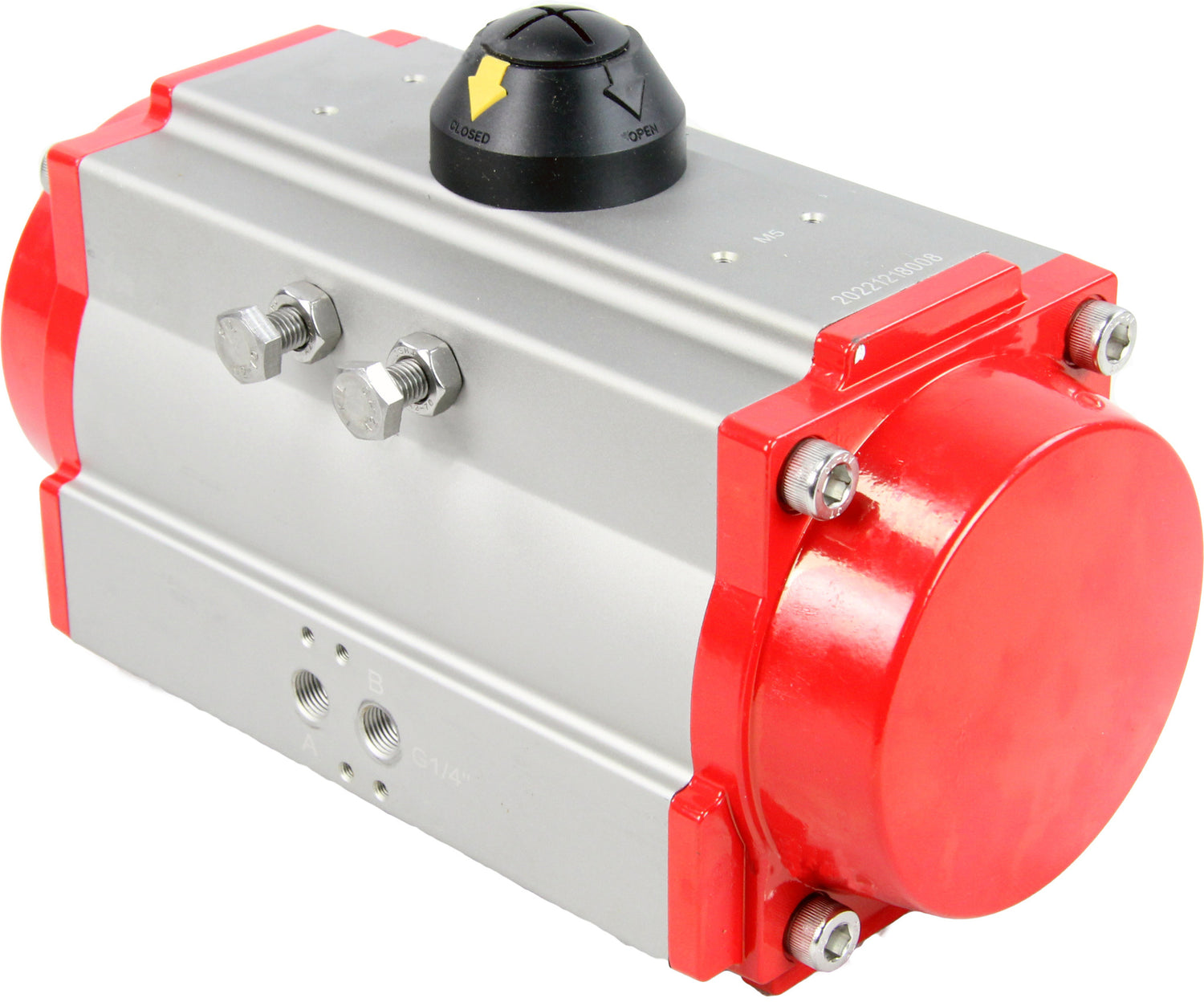

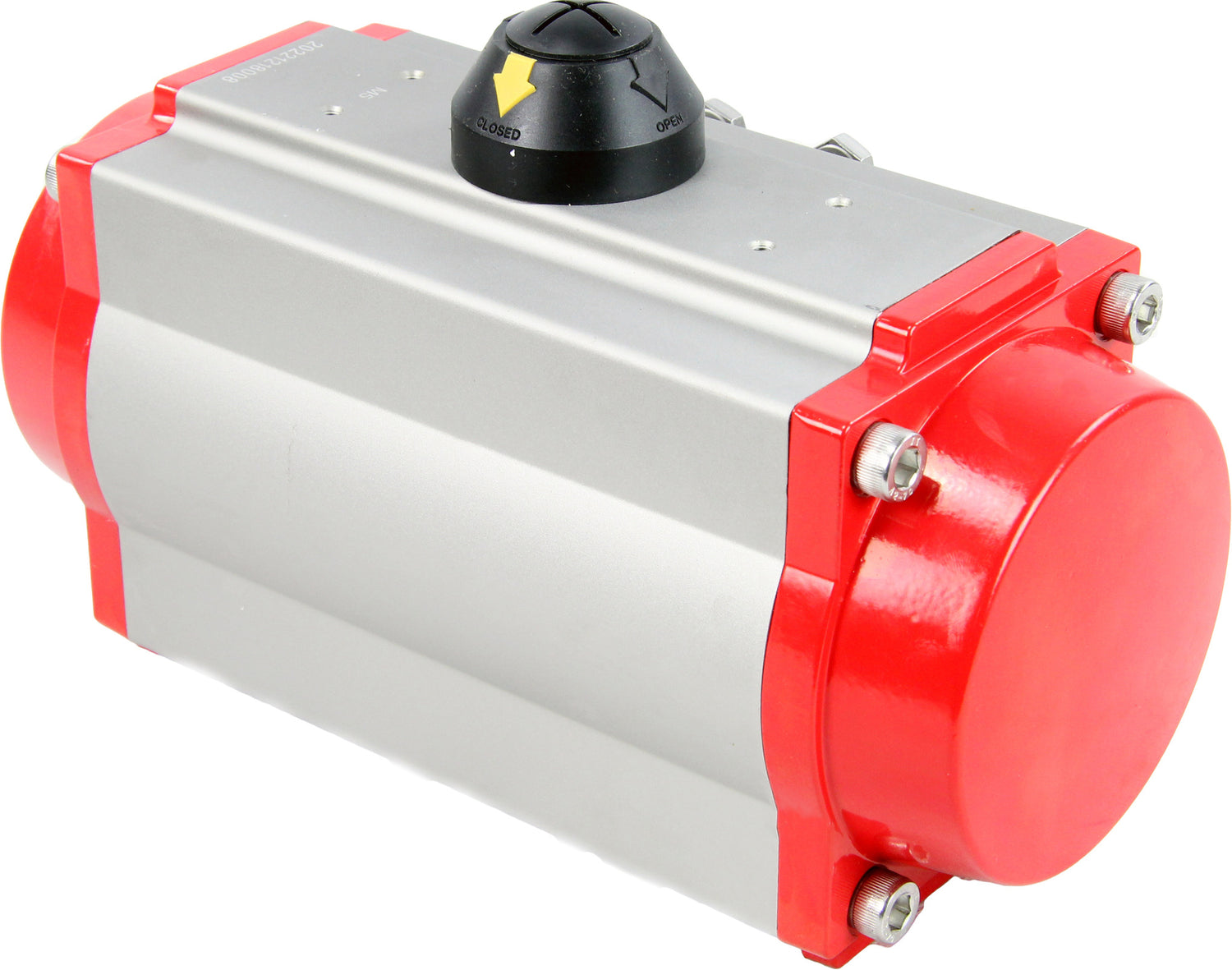

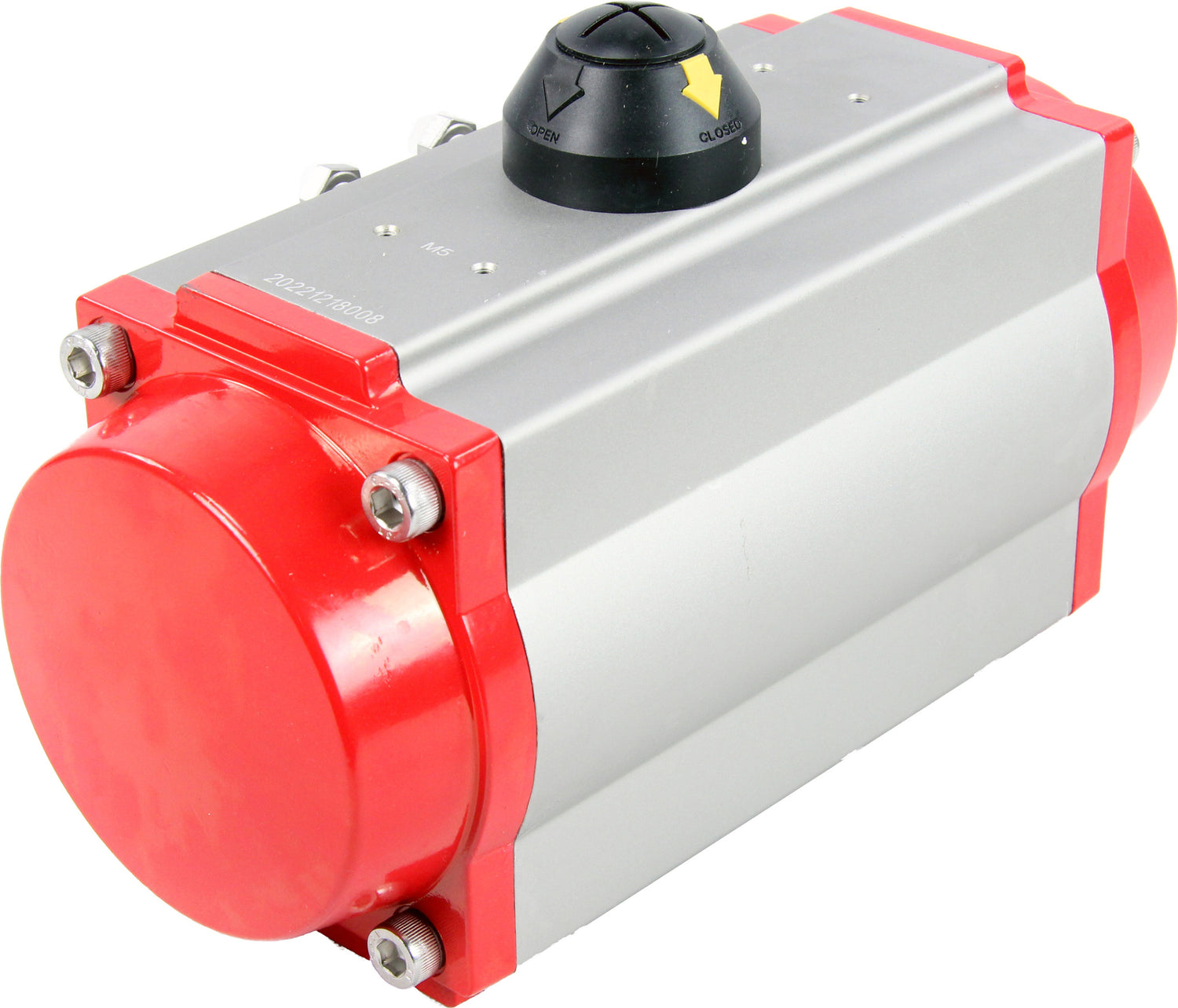

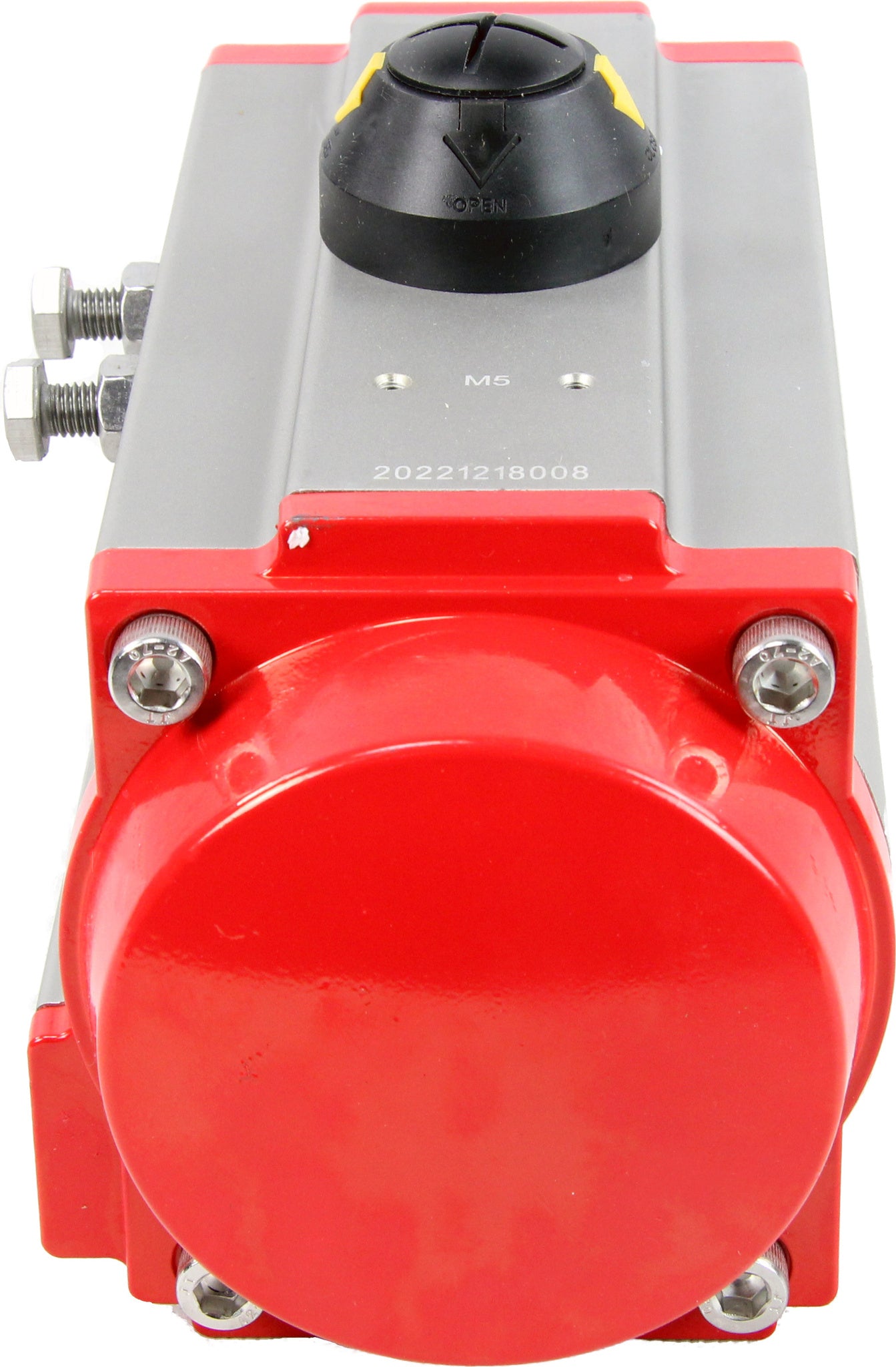

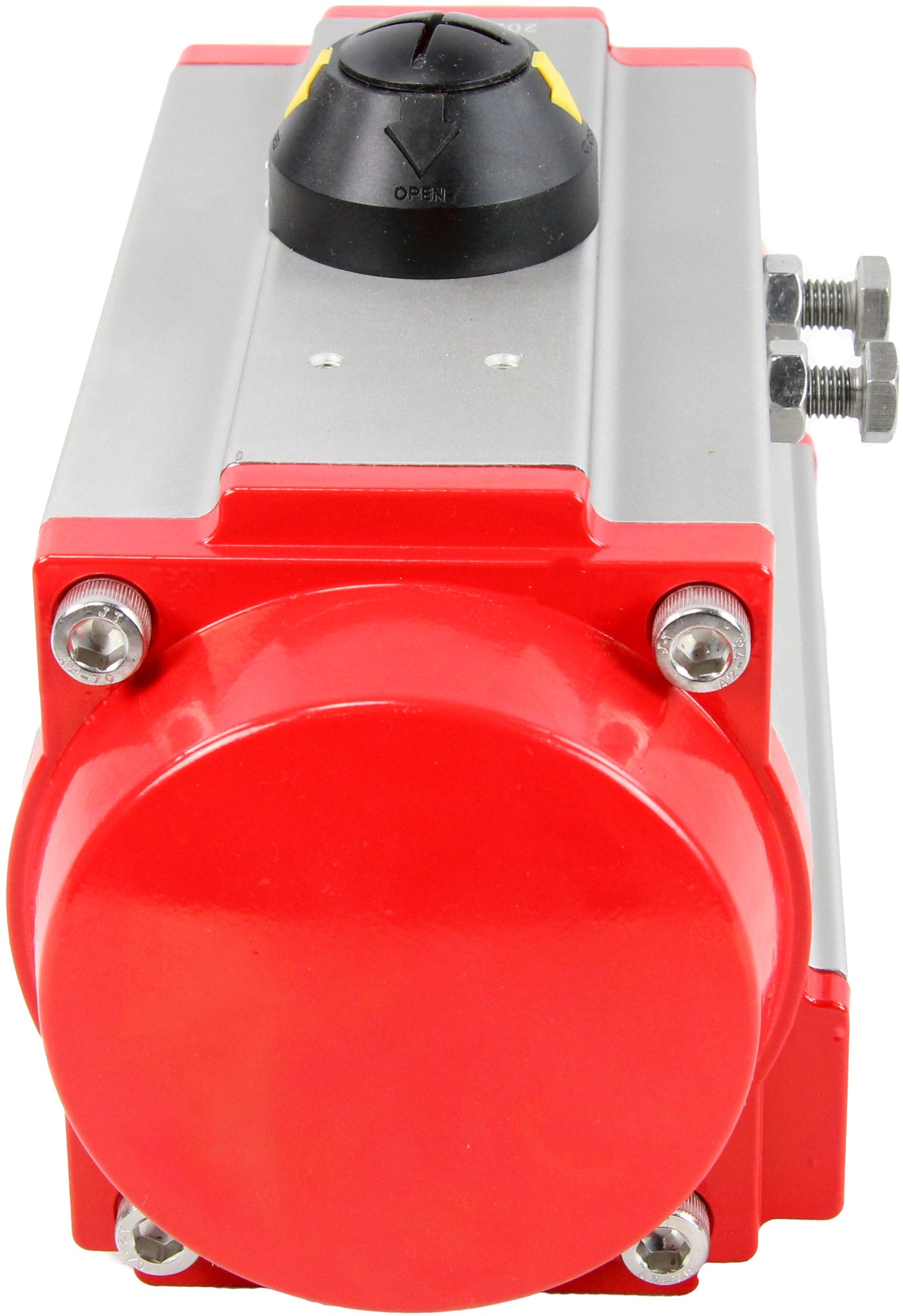

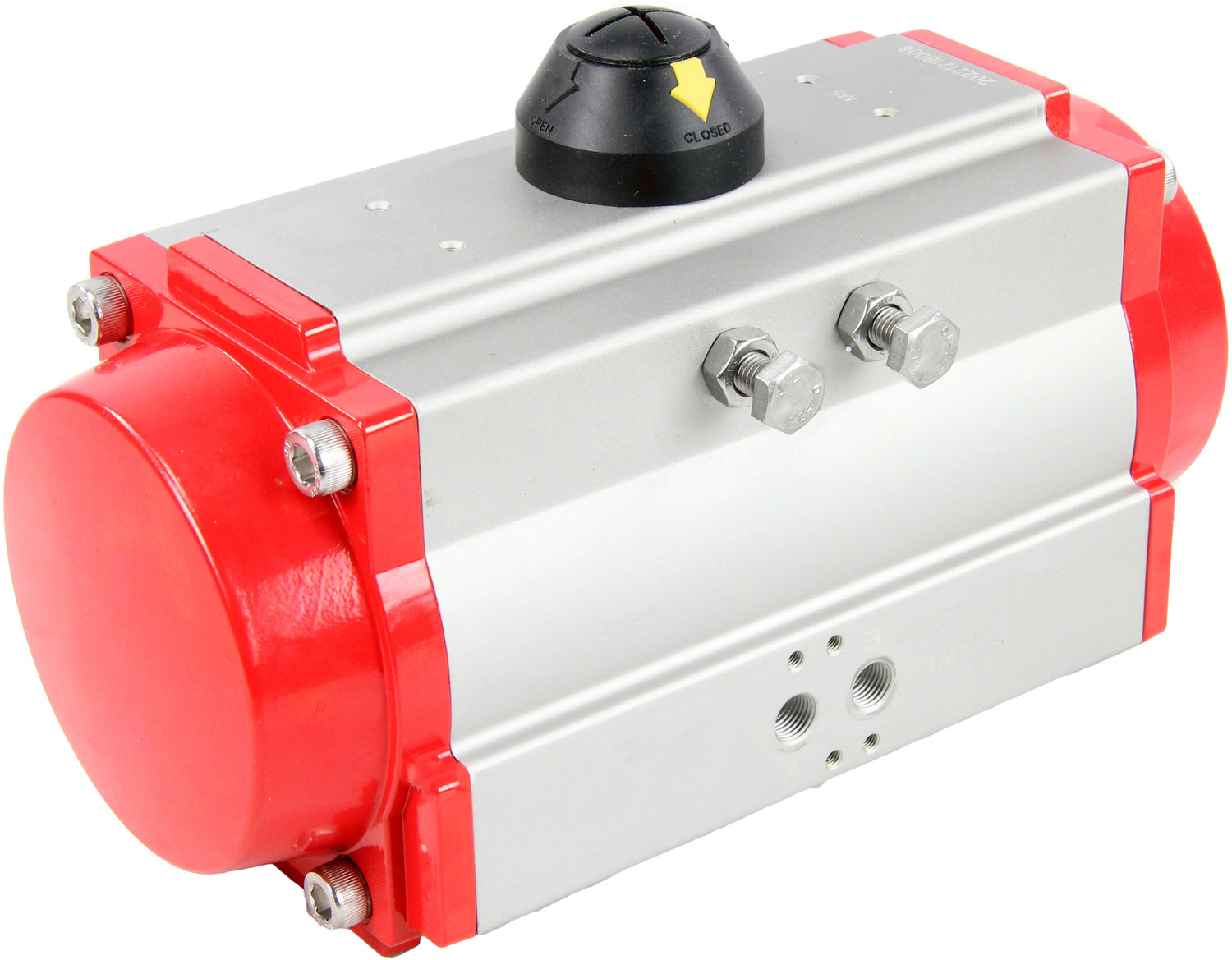

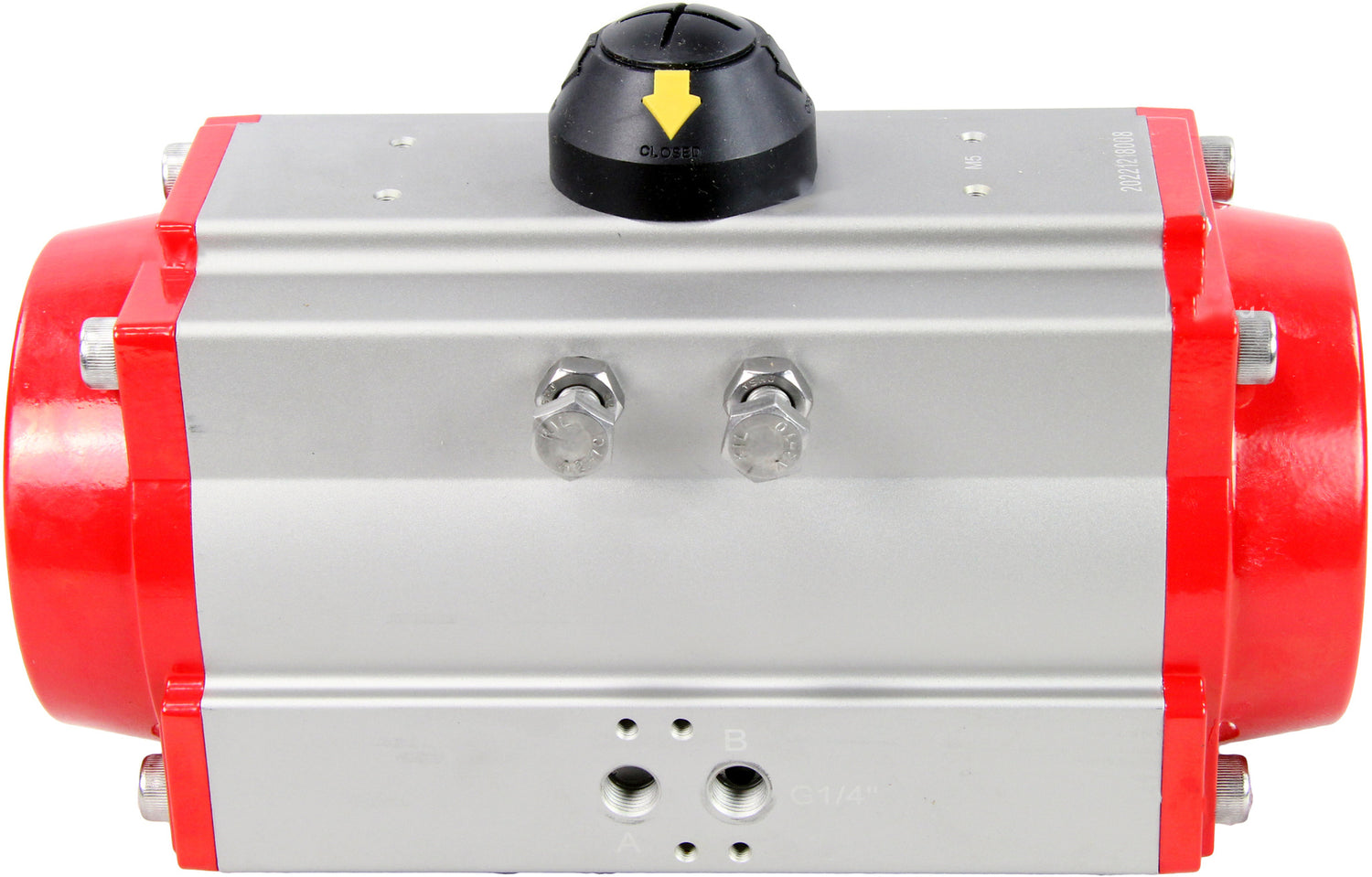

Pneumatic actuator with return springs Elephant-SA052-350, ISO-flange F03-F16, square 11х11-46х46

€96,09
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

SA pneumatic rotary actuators with return springs are designed to automate the process of controlling industrial shut-off valves - gates, ball valves. SA pneumatic actuators with return springs are designed for operation both indoors and outdoors. All internal and external parts have an anti-corrosion coating.





Technical data of SA pneumatic actuators with return springs:

Type of pneumatic actuator SA - with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


SA pneumatic actuators rotary with return springs




Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130



Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130

Sketch of dimensions of SA pneumatic actuators with return springs





Materials of parts of SA pneumatic actuators with return springs:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of SA pneumatic actuators with return springs

Specifications
  • Country of origin
    China
  • Maximum allowable temperature
    176 °F / 80 °C
  • Operating environment
    Compressed Air, Oils, Neutral Gases
  • Nominal pressure
    12 bar
  • Feedback sensor
    No
  • Manual understudy
    No
  • Type of pneumatic actuator
    Spring return
  • Angle of rotation
    90°
  • Drive adjustment range
    5°

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUTorquePrice AvailabilityQuantity Add to cart
    D290-0031316 Nm €96,09 50 In stock
    D290-0030536 Nm €151,54 60 In stock
    D290-0030694 Nm €185,05 25 In stock
    D290-00307214 Nm €390,80 10 In stock
    D290-00312127 Nm €313,49 10 In stock
    D290-00092326 Nm €679,26 5 In stock
    D290-00308713 Nm €857,41 Sold out
    D290-003091512 Nm €1.893,58 Sold out
    D290-003101752 Nm €2.768,51 Sold out
    D290-003112816 Nm €3.817,29 Sold out
    D290-0019310 Nm €84,89 41 In stock
