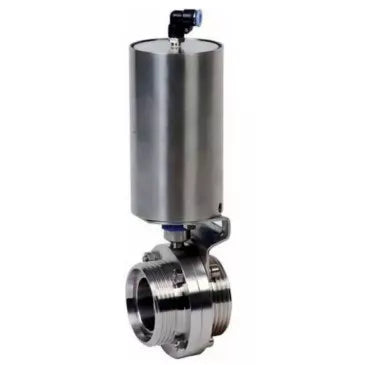

Pneumatic actuator with return springs Elephant PA-SA-85 for food seals WBV3131E(S)-2W-W/T/C-H, square 10mm, 22Nm

€140,25
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Pneumatic actuators with return springs Elephant PA-SA-85 for food valves WBV3131E-2W-W/T/CH are designed to automate the process of controlling quarter-turn pipeline valves.





Main technical characteristics of pneumatic actuators with return springs Elephant PA-SA-85 for food valves WBV3131E-2W-W/T/CH

Parameters Values
Type of pneumatic drives single acting (with return springs)
Body material stainless steel 304
Control pressure, bar 4 – 7
Control environment compressed air:
  • at an ambient temperature of +5°C to +50°C, the dew point is 10°C lower than the ambient temperature;
  • at temperatures below +5°C the dew point is 5°C lower than the ambient temperature.
Ambient air temperature, °C from -20 to +60
Closing/opening time at 6 bar, sec 2 / 2
Compressed air connection thread G1/8”
Average service life, years 10
Average resource, cycles of closing/opening 500000





Pneumatic actuators with return springs Elephant PA-SA-85 for food valves WBV3131x-2W-W/T/CH, square 8-10mm, 22Nm



Dimension sketch of pneumatic actuators with return springs Elephant PA-SA-85 for food gate WBV3131E-2W-W/T/C-H complete with gate valve



Overall and installation dimensions of pneumatic actuators with return springs Elephant PA-SA-85 for food valves WBV3131E-2W-W/T/CH

Model Size in mm
Height D
rod 8 mm 147 mm 85 mm
rod 10 mm 147 mm 85 mm





Material sketch of pneumatic actuators with return springs Elephant PA-SA-85 for food gates WBV3131E-2W-W/T/C-H



Materials of pneumatic actuators with return springs Elephant PA-SA-85 for food valves WBV3131E-2W-W/T/CH

Item No. Name Material
1 Compressed air supply nipple n/a
2 Retaining ring stainless steel 304
3 Top cover stainless steel 304
4 Sealing ring NBR
5 Sealing ring NBR
6 Piston aluminum alloy 4A11 (with high silicon content - from 4.5 to 6%)
7 Needle bearing n/a
8 Spring spring steel 65Mn
9 Spring spring steel 65Mn
10 Needle bearing n/a
11 Needle bearing n/a
12 Transfer ring stainless steel 304
13 Sealing ring NBR
14 Needle bearing n/a
15 Frame stainless steel 304
16 Muffler brass H62

Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG40/EN-GJS-400-15
