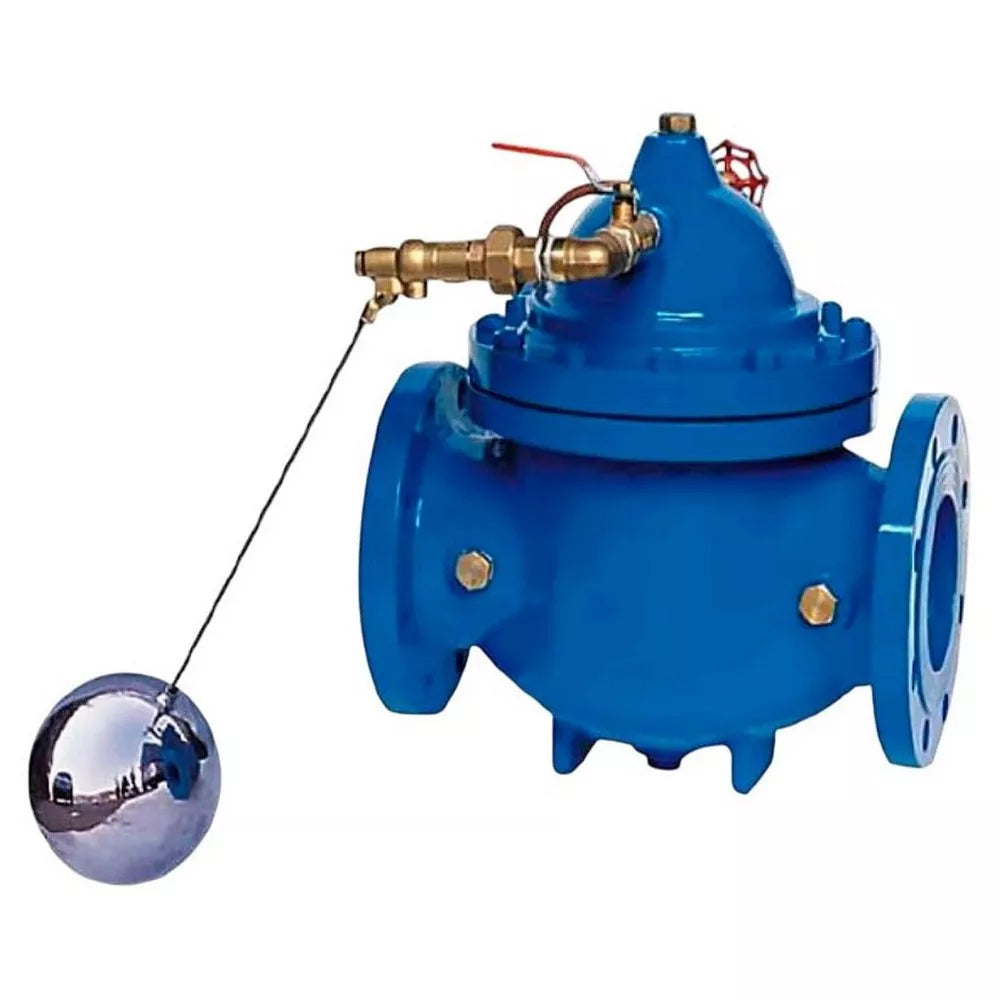

Pilot type float regulator PVF8-1331RR-F, body material - cast iron GGG40, disk material - stainless steel AISI 304, seal - natural rubber, flanged
Pilot type float regulator PVF8-1331RR-F, body material - cast iron GGG40, disk material - stainless steel AISI 304, seal - natural rubber, flanged - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Membrane float level regulator of pilot type is designed for automatic maintenance of set liquid level in vessel equipment. It is used for filling tanks and maintaining liquid level in the tank.
Overall and installation dimensions of pilot type float regulators PVF8-1331RR-F, body material - cast iron GGG40, disk material - stainless steel AISI 304, seal - natural rubber, flanged:
| Model | L, mm | H, mm | D, mm | D1, mm | n–Ød, mm |
| DN50 | 215 | 265 | 165 | 125 | 4–18 |
| DN65 | 215 | 310 | 185 | 145 | 4–18 |
| DN80 | 250 | 350 | 200 | 160 | 8–18 |
| DN150 | 360 | 570 | 285 | 240 | 8–22 |
| DN250 | 622 | 730 | 405 | 355 | 12–26 |
| DN300 | 698 | 760 | 460 | 410 | 12–26 |
Materials Elephant VSO3434M-FS 40 bar gland stop valves, body material - carbon steel, disk material - carbon steel, seal - metal, flanged:
| № | Part name | Material |
| 1 | Body | cast iron GGG40 |
| 2 | Cover | cast iron GGG40 |
| 3 | Disk | stainless steel 304 |
| 4 | Diaphragm | natural rubber reinforced |
| 5 | Stem | stainless steel 304 |
| 6 | Spring | stainless steel 304 |
| 7 | Seat | stainless steel 304 |
| 8 | Diaphragm clamping plate | stainless steel 304 |
| 9 | Diaphragm clamping plate with O-ring | stainless steel 304 |
| 10 | O-ring | natural rubber |
Specifications
Specifications
-
Country of origin
-
Body material
-
Connection type
-
Operating environment
-
Applications
-
Nominal pressure
-
Type of seal
-
Locking material
Reviews (0)
Reviews (0)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Available Variants
| SKU | Connection size | Pressure | Price | Availability | Max Temperature | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|
| D230-10611 | DN50 | 16 bar | €187,00 | Out of stock | - | ||
| D230-10612 | DN65 | 16 bar | €216,00 | Out of stock | - | ||
| D230-10613 | DN80 | 16 bar | €237,00 | Out of stock | - | ||
| D230-10614 | DN150 | 16 bar | €426,00 | Out of stock | - | ||
| D230-10615 | DN250 | 16 bar | €1.494,00 | Out of stock | - | ||
| D230-10616 | DN300 | 16 bar | €2.056,00 | Out of stock | - |
