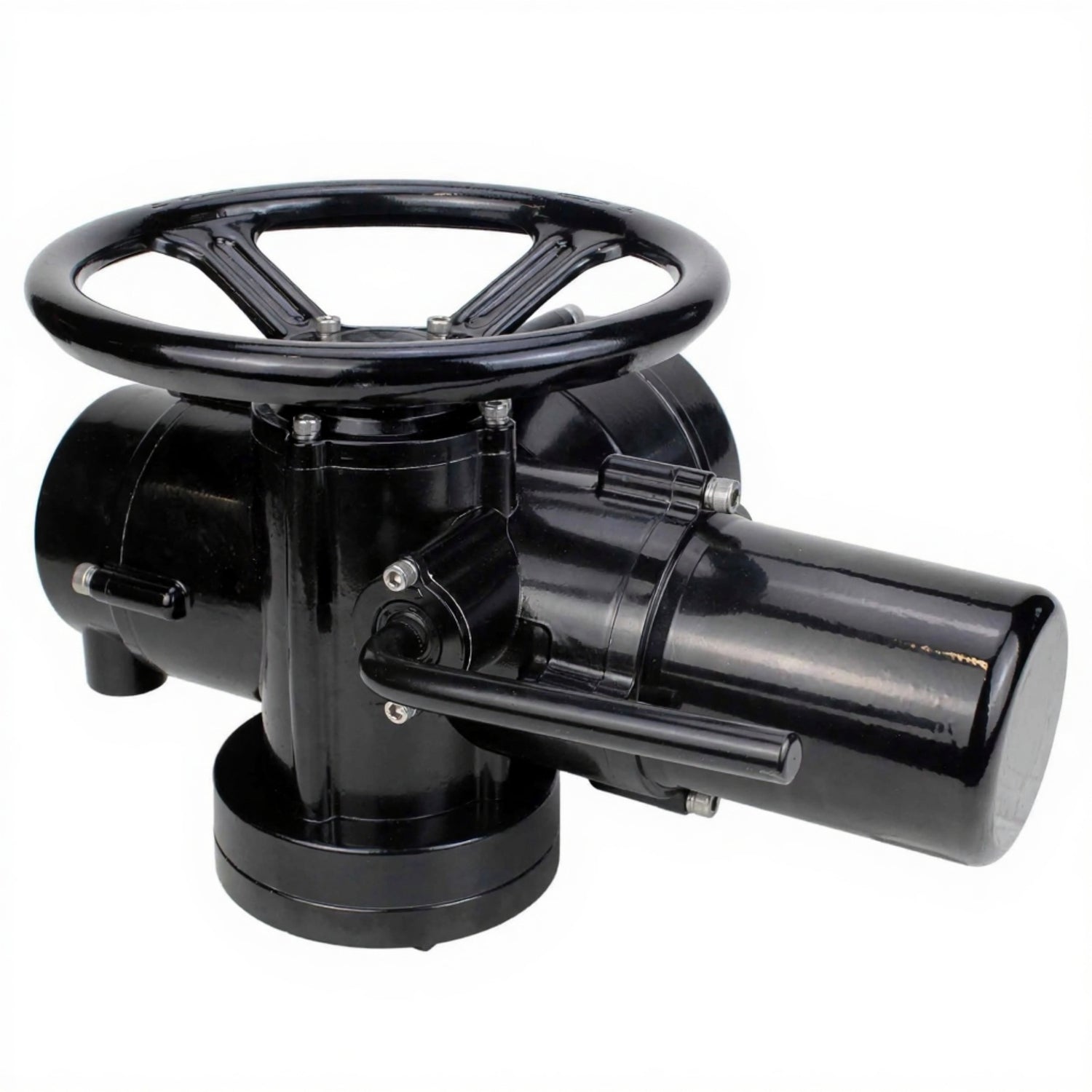

Multi-turn electric drives Elephant MT-N-xM-O2-380VAC-U1 380V five-cam, torque 50-900 Nm

€966,10
Tax included Shipping calculated at checkout.

Multi-turn electric drives Elephant MT-N-xM-O2-380VAC-U1 380V five-cam, torque 50-900 Nm - 005M 50 Nm is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The multi-turn electric actuator is designed to automate the control of industrial valves and determine the valve shutoff valve position.

The electric actuator operates by converting an electrical signal from the control device into rotary motion of the output shaft.





Technical parameters of multi-turn electric drives Elephant MT-N-xM-O2-380VAC-U1 380V five-cam, torque 50-900 Nm

Name Value
Electric Drive Brand Elephant
Electric Drive Type Multi-turn
Power Voltage 380V
Ambient Temperature, °C -30 to 70
Enclosure Protection Rating, IP 67
Manual Override Steering wheel
Explosion Protection no







Dimensions and sizes of multi-turn electric drives Elephant MT-N-xM-O2-380VAC-U1 380V five-cam, torque 50-900 Nm

Model 005M 010M 015M 020M 030M 045M 060M 090M
W, mm 334 334 334 365 365 433 433 587
H, mm 258 258 258 290 290 337 337 352
L, mm 411 411 411 470 470 564 564 637
DxD, mm 100х100 100х100 100х100 122х122 122х122 200х200 200х200 200х200
D1, mm 104 104 104 135 135 220 220 220
D2, mm 70 70 70 108 108 155 155 155
d1, mm 32 32 32 45 45 70 70 70
d2, mm 44 44 44 57 57 84 84 84
f, mm 8 8 8 15 15 22 22 22
h, mm 5 5 5 8 8 11 11 11
h1, mm 3 3 3 7 7 11 11 11
h2, mm 18 18 18 22 22 28 28 28
4–M 4–M12 4–M12 4–M12 4–M12 4–M12 4–M20 4–M20 4–M20
Sketch of the overall dimensions and sizes of multi-turn electric drives Elephant MT-N-xM-O2-380VAC-U1 380V five-cam, torque 50-900 Nm







Schematic diagram of the multi-turn electric drives Elephant MT-N-xM-O2-380VAC-U1 380V five-cam, torque 50-900 Nm

№ Name
1 Electric Motor
2 Gear Motor
3 Worm Gear
4 Worm
5 Handle
6 Torque Mechanism
7 Set of Disc Springs
8 Opening Indicator
9 Movement Mechanism
10 Output Shaft
11 Worm Gear
12 Bevel Gear
Sketch of the circuit diagram of multi-turn electric drives Elephant MT-N-xM-O2-380VAC-U1 380V five-cam, torque 50-900 Nm

Specifications
  • Country of origin
    China
  • Maximum allowable temperature
    70°C
  • Voltage
    380V
  • Explosion-proof
    No
  • Torque
    50-900 Nm
  • Type of electric actuator
    Multi-turn
