Elephant  |  SKU: D260-02724

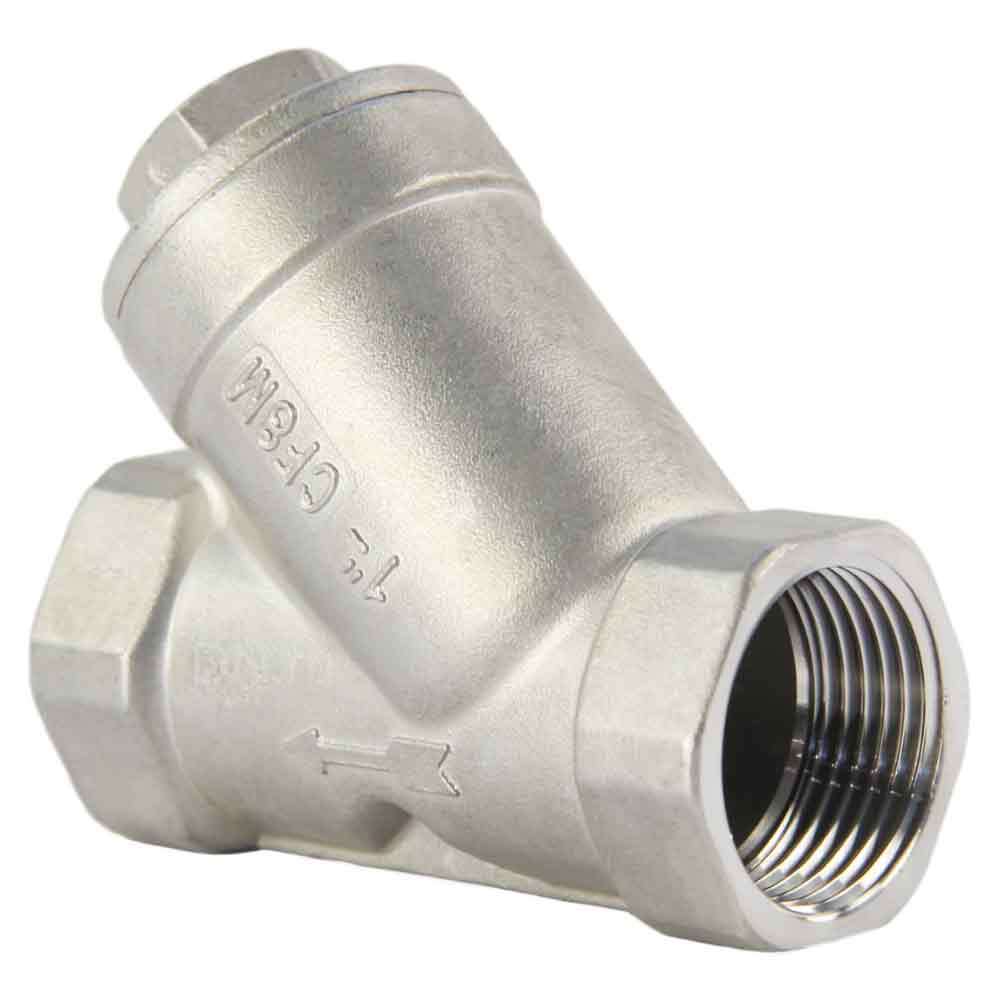

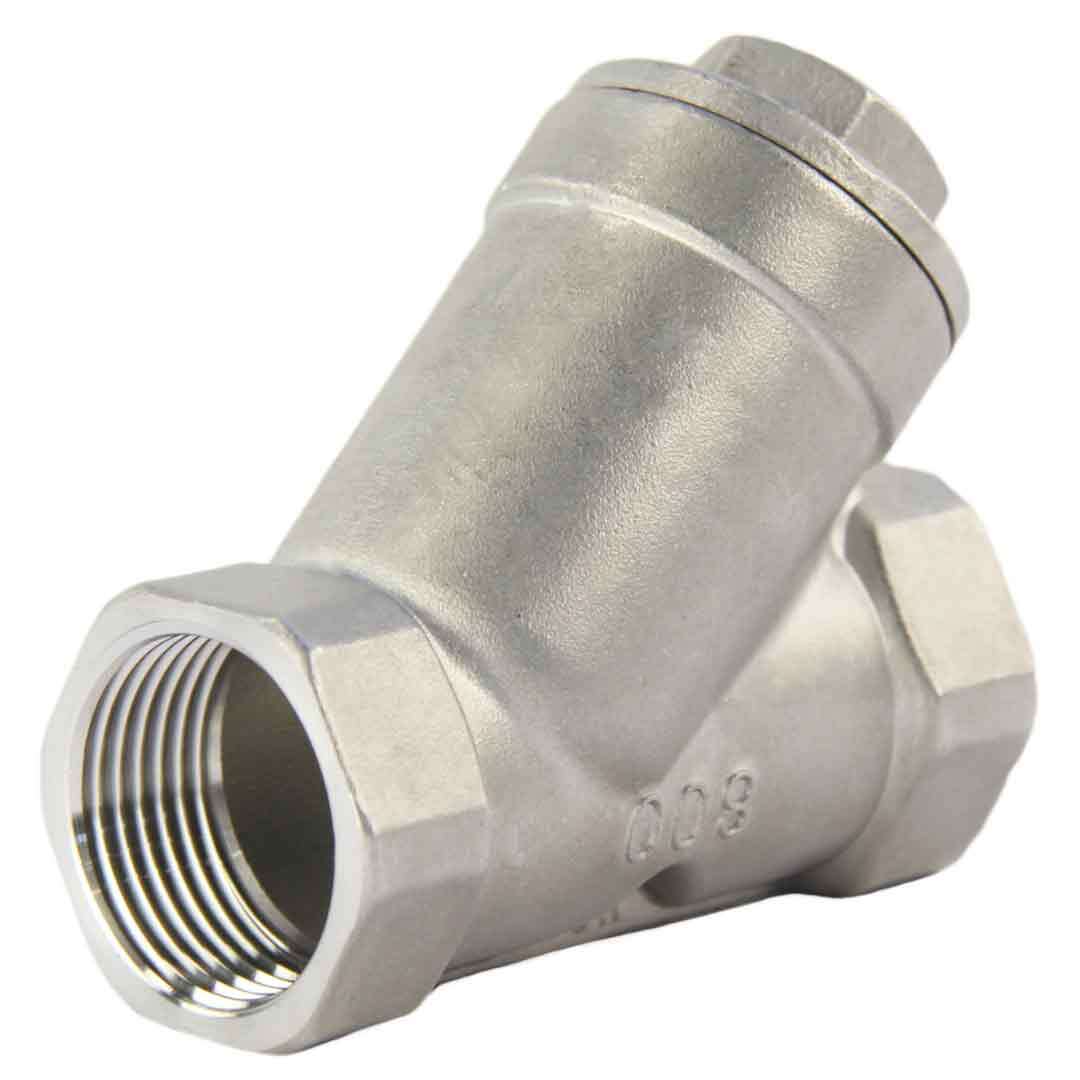

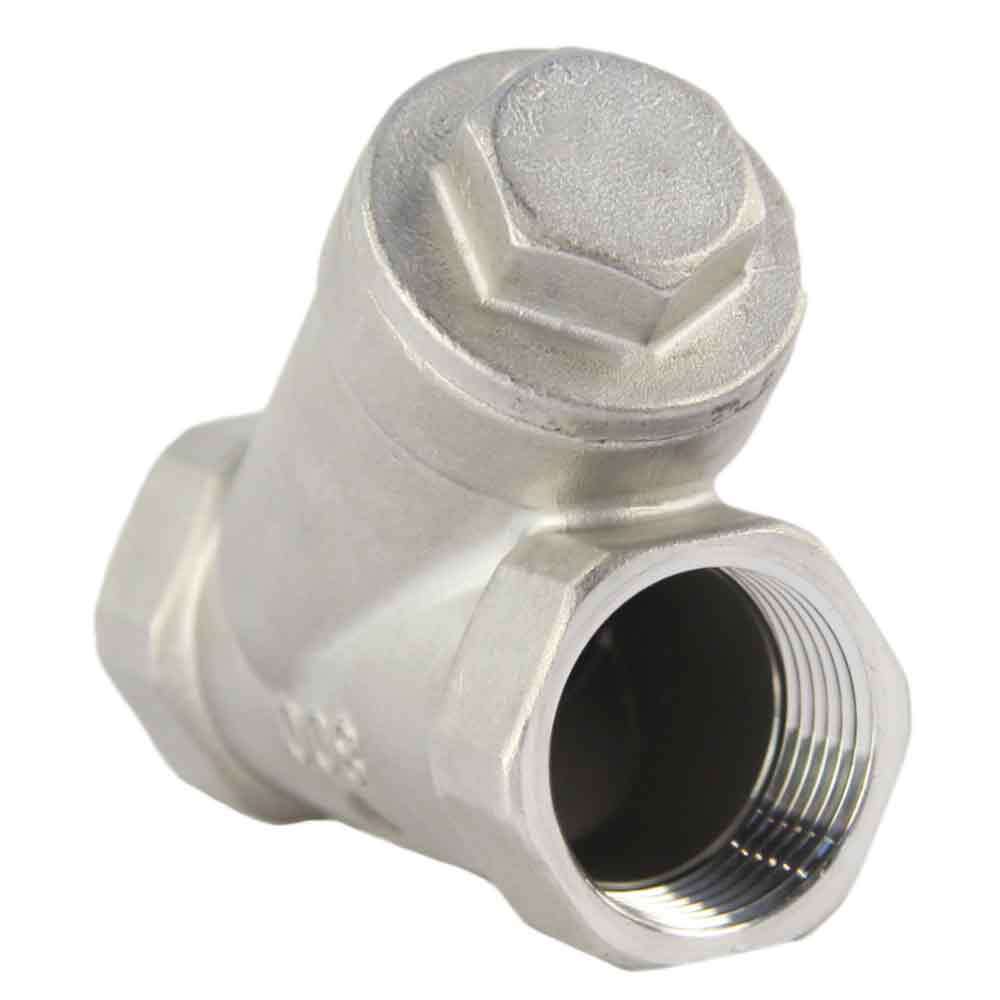

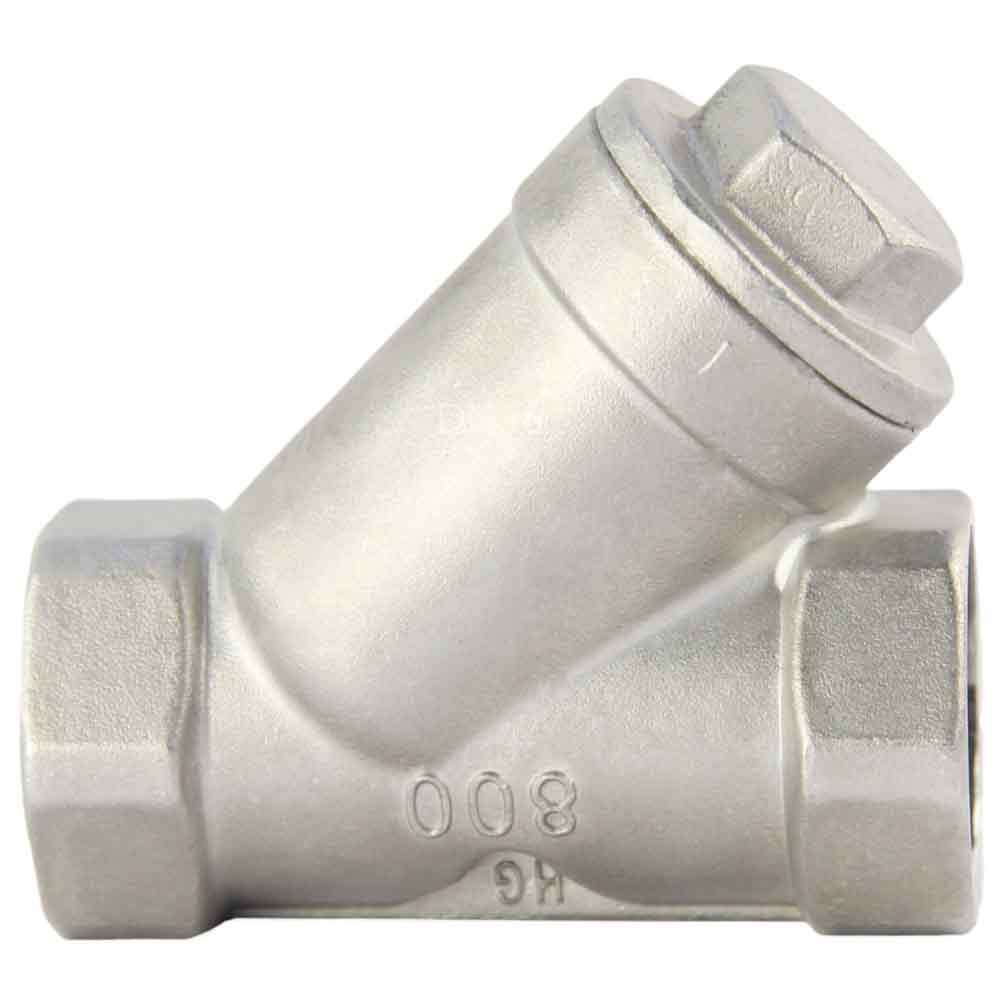

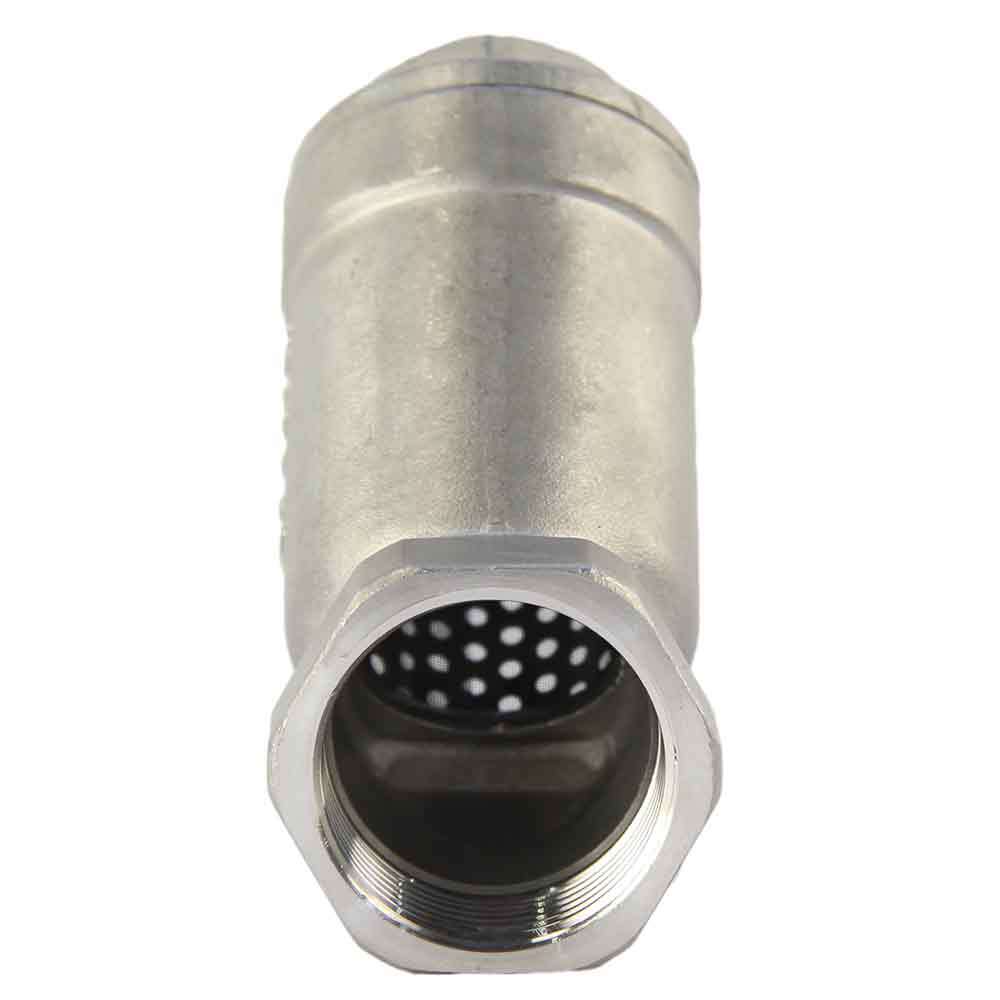

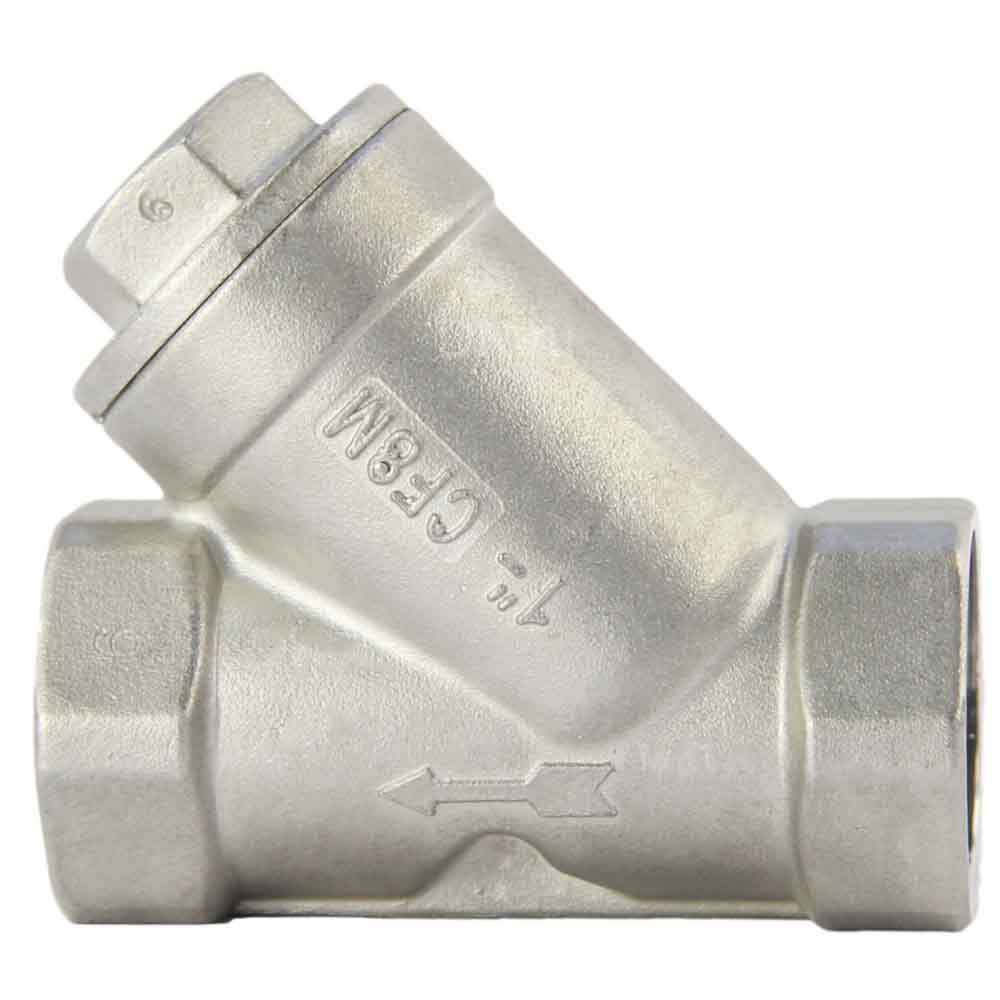

Mesh strainer Elephant YS-316, body material - stainless steel AISI 316,filter element material - stainless steel AISI 316, seal - PTFE

€4,00
Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Mesh strainer refers to a type of strainer that uses a mesh or net-like structure to trap particles, allowing the passage of fluids or gases through the openings in the mesh. These strainers are commonly used in various applications to separate and strainer out impurities or particles from liquids or gases. Mesh strainers can be made from different materials such as stainless steel, nylon, or other metals and polymers, and they are widely used in industries like water treatment, air filtration, and industrial processes.

Overall dimensions of the strainer Elephant YS-316

Overall dimensions of the strainer Elephant YS-316

Sketch of strainer Elephant YS-316, body material - stainless steel AISI 316,filter element material - stainless steel AISI 316, seal - PTFE

DN L H Weight
mm kg
15 60 150 0.1
20 75 165 0.2
25 85 185 0.3
32 100 200 0.5
40 110 220 0.6
50 130 250 1.2
65 165 280 1.4
80 200 300 1.7

Materials of mesh filter parts Elephant YS-316

Materials of mesh filter parts Elephant YS-316

Material sketch of mesh filter parts Elephant YS-316, body material - stainless steel AISI 316,filter element material - stainless steel AISI 316, seal - PTFE

Name Material
1 Cover steel 316
2 Body steel 316
3 Gasket PTFE
4 Filter steel 316

Specifications

  • Country of origin
    China
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    230 °C
  • Connection type
    Threaded NPT/BSP
  • Operating environment
    Water,air,liquid medium
  • Applications
    Heating systems,irrigation systems,ventilation systems
  • Nominal pressure
    16 bar
  • Type of seal
    PTFE
  • Filter element material
    Stainless steel AISI 316/1.4401
