Elephant | SKU: D260-01219

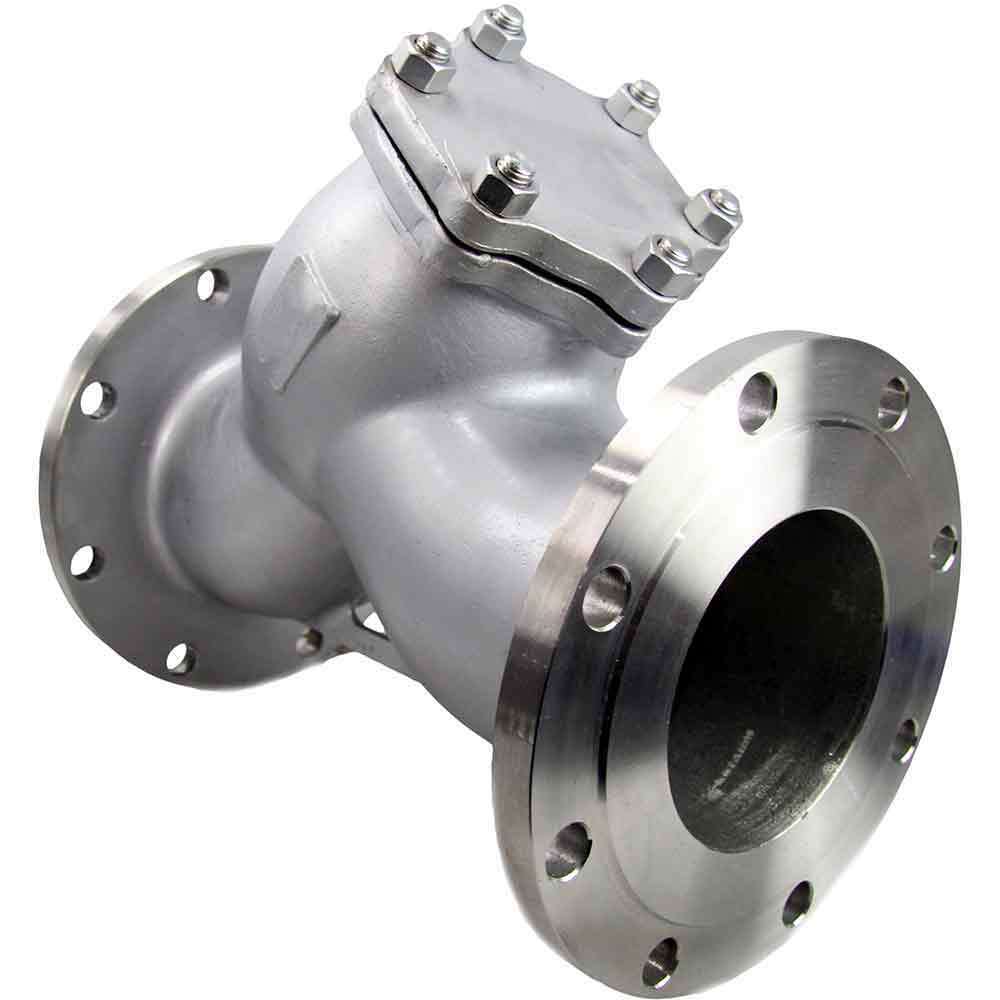

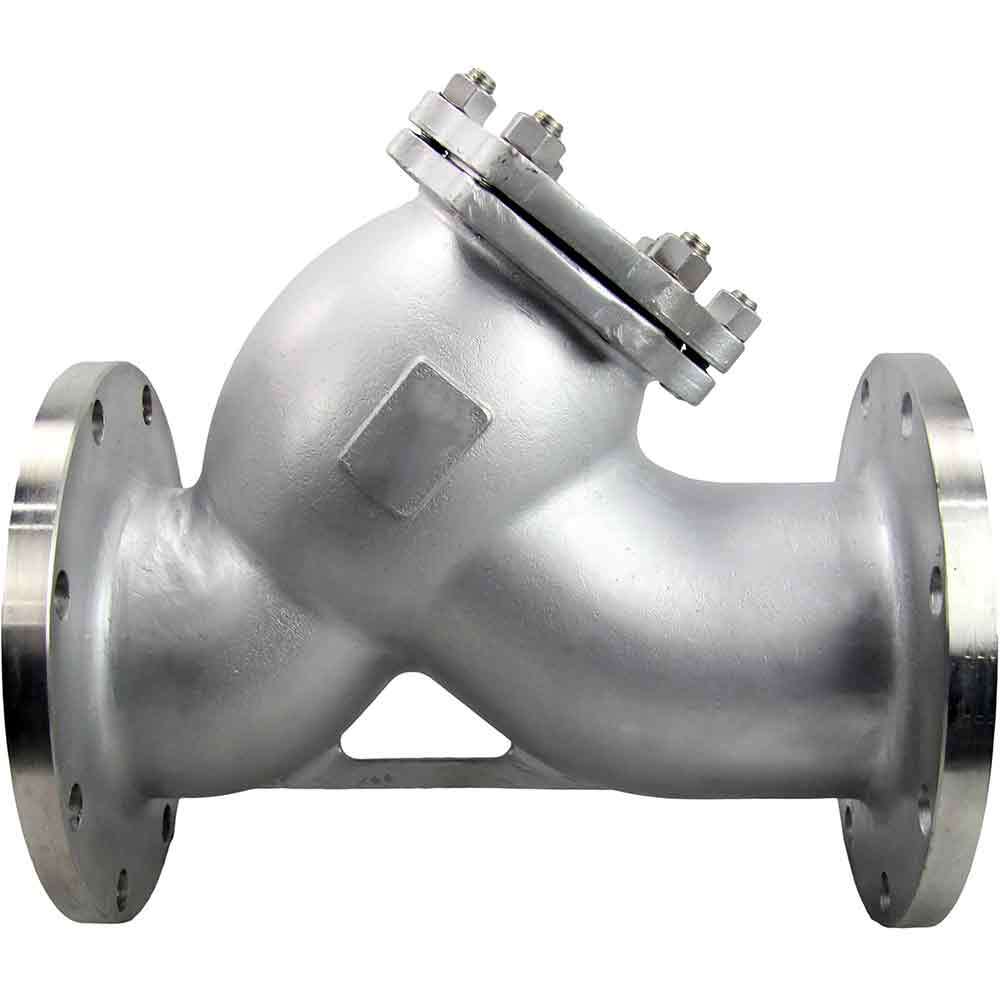

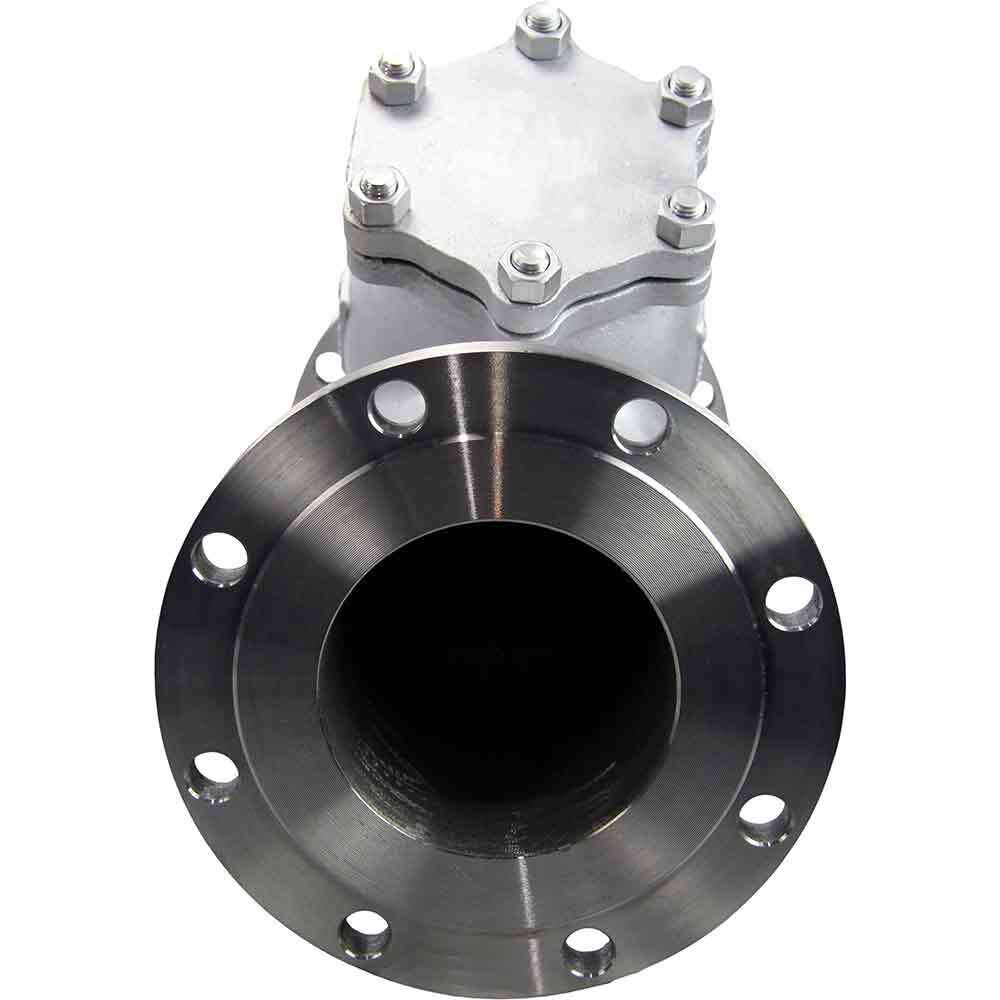

Mesh strainer Elephant SS316, body material - stainless steel AISI 316,filter element material - stainless steel AISI 304, seal - PTFE

€25,00

Shipping calculated at checkout.

Connection size

Pressure

Product variants

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Mesh strainer refers to a type of strainer that uses a mesh or net-like structure to trap particles, allowing the passage of fluids or gases through the openings in the mesh. These strainers are commonly used in various applications to separate and strainer out impurities or particles from liquids or gases. Mesh strainers can be made from different materials such as stainless steel, nylon, or other metals and polymers, and they are widely used in industries like water treatment, air filtration, and industrial processes.

Overall dimensions of the strainer Elephant SS316, body material - stainless steel AISI 316

Overall dimensions of the strainer Elephant SS316, body material - stainless steel AISI 316, filter element material - stainless steel AISI 304, seal - PTFE

DN	L	d	D2	D1	D	b	f	n –Ød1	Weight
15	130	15	45	65	95	14	2	4-14	1,75
20	140	20	55	75	105	14	2	4-14	2,00
25	150	25	65	85	115	14	2	4-14	2,50
32	180	32	78	100	135	16	2	4-18	3,50
40	200	40	85	110	145	16	3	4-18	4,50
50	220	50	100	125	160	16	3	4-18	5,00
65	250	65	120	145	180	18	3	4-18	7,00
80	280	80	135	160	195	20	3	8-18	9,00
100	300	100	155	180	215	20	3	8-18	11,00
125	350	125	185	210	245	22	3	8-18	16,00
150	390	150	210	240	280	24	3	8-23	22,00
200	475	200	265	295	335	26	3	12-23	38,00

Materials of mesh filter parts Elephant SS316, body material - stainless steel AISI 316

Material sketch of mesh filter parts Elephant SS316, body material - stainless steel AISI 316,filter element material - stainless steel AISI 304, seal - PTFE

№	Name	Material
1	Body	SS316
2	Filter screen	SS304
3	Filter cover gasket	PTFE
4	Cover	SS316
5	Fixing bolt	SS304
6	Nut	SS304

Specifications

Country of origin

China
Body material

Stainless steel AISI 316
Maximum allowable temperature

180 °C
Connection type

Flanged
Operating environment

Water,air,liquid medium
Applications

Heating systems,irrigation systems,ventilation systems
Nominal pressure

16 bar
Type of seal

PTFE
Filter element material

Stainless steel AISI 304/1.4301
