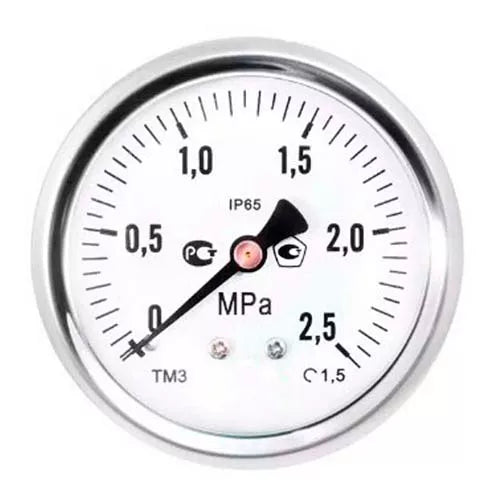

Manometers vibration-resistant Elephant MB-311-A1.5, axial, stainless steel, accuracy class 1.5
Manometers vibration-resistant Elephant MB-311-A1.5, axial, stainless steel, accuracy class 1.5 - 0-0.6 MPa is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The vibration-resistant pressure gauge is designed to measure overpressure of non-crystallizing, non-aggressive to copper alloy media. The operating principle of the gauges is based on the dependence of the deformation of the sensing element on the measured pressure. A Bourdon tube is used as a sensing element. Under the influence of the measured pressure, the free end of the tube is moved by a special mechanism and rotates the arrow of the manometer. The gauge can be used in conditions of high vibration and when measuring variable pressure.
Dimensions of vibration-resistant axial pressure gauges Elephant MB-311-A1.5, stainless steel, accuracy class - 1.5
| Model | Size | G | |||||
| D1 | D2 | b | b1 | e | S | ||
| 0-0.6 MPa | 68 | 62 | 30 | 52 | 6 | 14 | DN8 |
| 0-1 MPa | 68 | 62 | 30 | 52 | 6 | 14 | DN8 |
| 0-1.6 MPa | 68 | 62 | 30 | 52 | 6 | 14 | DN8 |
| 0-2.5 MPa | 68 | 62 | 30 | 52 | 6 | 14 | DN8 |
| 0-4 MPa | 68 | 62 | 30 | 52 | 6 | 14 | DN8 |
| 0-6 MPa | 68 | 62 | 30 | 52 | 6 | 14 | DN8 |
Dimension sketch of vibration-resistant axial pressure gauges Elephant MB-311-A1.5, stainless steel, accuracy class - 1.5
Materials of vibration-resistant axial pressure gauges Elephant MB-311-A1.5, stainless steel, accuracy class - 1.5
| Name | Material |
| Housing material | stainless steel 304 |
| Sensing element material | copper alloy |
| Hydrofilling | glycerine |
Reviews (0)
Reviews (0)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Available Variants
| SKU | Other models: | Price | Availability | Max Temperature | Quantity | Add to cart |
|---|---|---|---|---|---|---|
| D070-06933 | 0-0.6 MPa | €92,00 | Out of stock | - | ||
| D070-06934 | 0-1 MPa | €92,00 | Out of stock | - | ||
| D070-06935 | 0-1.6 MPa | €92,00 | Out of stock | - | ||
| D070-06936 | 0-2.5 MPa | €92,00 | Out of stock | - | ||
| D070-06937 | 0-4 MPa | €92,00 | Out of stock | - | ||
| D070-06938 | 0-6 MPa | €92,00 | Out of stock | - |
