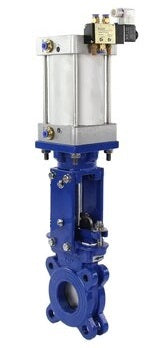

Knife Gate Valve wafer type Elephant GGG40-SS304-EPDM-2W-DA PSI145 Class 125 with pneumatic actuator and 4V210-08 110/220V pneumatic solenoid valve
Knife Gate Valve wafer type Elephant GGG40-SS304-EPDM-2W-DA PSI145 Class 125 with pneumatic actuator and 4V210-08 110/220V pneumatic solenoid valve - DN50 / 10 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Knife Gate Valve wafer type Elephant GGG40-SS304-EPDM-2W-DA PSI145 Class 125 with pneumatic actuator and 4V210-08 220V pneumatic solenoid valve is designed to shut off the flow of the working medium in pipelines in sewerage systems and treatment facilities, the food and mining industries. A 4v210-08-220 pneumatic distributor is installed on the pneumatic drive housing and is designed to change the direction, start, and stop of compressed air flows in the pneumatic system depending on external control input.
Overall and connection dimensions:
| D.N. | 50 | 65 | 85 | 100 | 125 | 150 | 200 | 250 | 300 |
| L, mm | 48 | 48 | 51 | 51 | 57 | 57 | 70 | 70 | 76 |
| D | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 395 | 445 |
| D1, mm | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 |
| D2, mm | 99 | 118 | 132 | 156 | 184 | 212 | 266 | 319 | 370 |
| D0, mm | 80 | 100 | 100 | 125 | 125 | 160 | 160 | 200 | 200 |
| d, mm | Ø18 | Ø18 | Ø18 | Ø18 | Ø18 | Ø23 | Ø23 | Ø23 | Ø23 |
| N-Th, mm | 4-M16 | 4-M16 | 8-M16 | 8-M16 | 8-M16 | 8-M20 | 8-M20 | 12-M20 | 12-M20 |
| H, mm | 455 | 500 | 530 | 635 | 715 | 810 | 955 | 1090 | 1225 |
| Weight, kg | 9 | 11 | 14 | 17.5 | 21 | 29 | 41 | 62 | 75 |
Materials
| No. | Description | Material |
| 1 | Frame | carbon steel |
| 2 | Disk | Stainless steel 304 |
| 3-4 | Bolt / Nut | Steel A3 |
| 5 | Saddle seal | Metal |
| 6 | Seal | WCB steel |
| 7-9 | Bolt / Nut | Steel A3 |
| 10 | Stock | Steel 2Cr13 |
| 11 | Support plates | Steel A3 |
| 12 | Bearing | ZChSnSb10-6 |
| 13 | Pneumatic drive | - |
| 14 | Stem nut | Steel A3 |
| 15-16 | Bolt / Nut | Steel A3 |
| 17 | Support | Steel 304 |
Specifications
Specifications
-
Country of origin
-
Body material
-
Stopper Material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environmentViscous Media, Waste Water, Water, Liquid Media, Neutral Liquids
-
Gate valve type
-
Nominal pressure
-
Type of seal
-
Coating type
-
Explosion-proof
-
Pneumatic actuator
-
ISO - flange type
-
Supply voltage
-
Telescopic rod
-
Control column
-
Actuator model
