Elephant | SKU: D040-03150

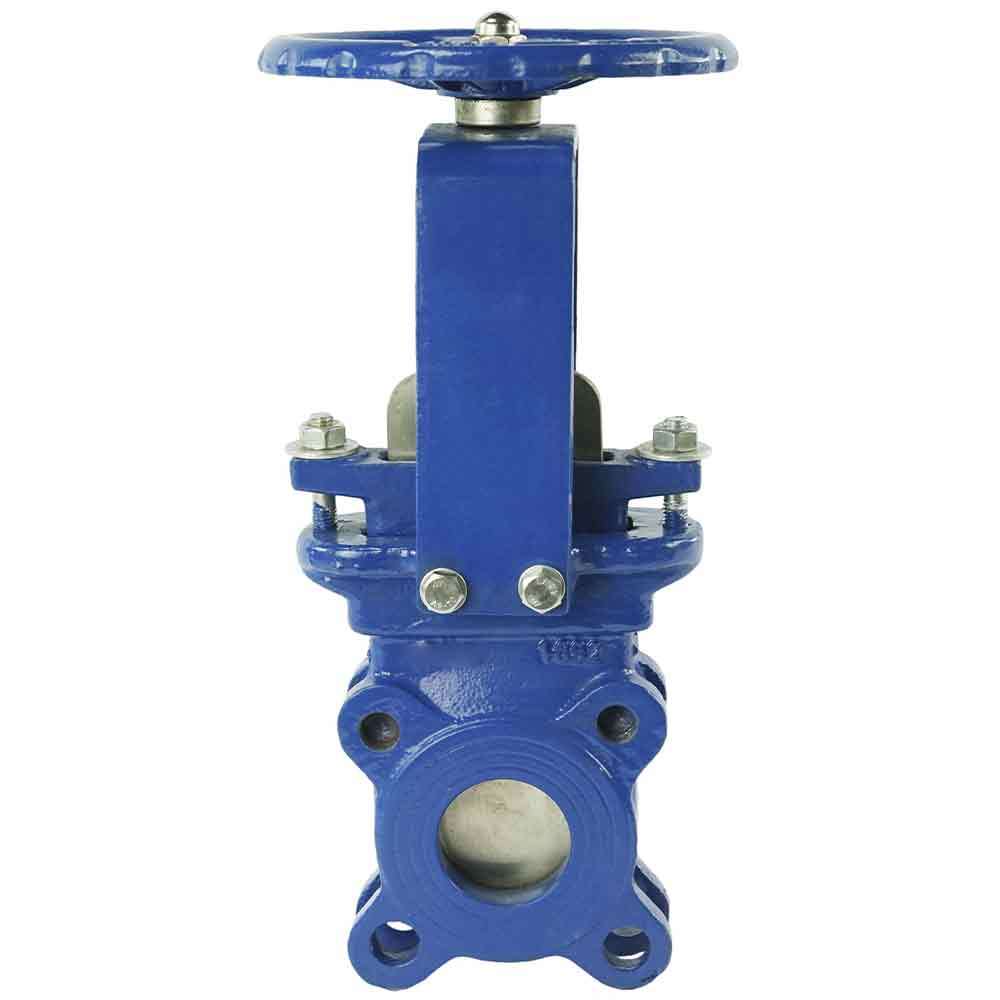

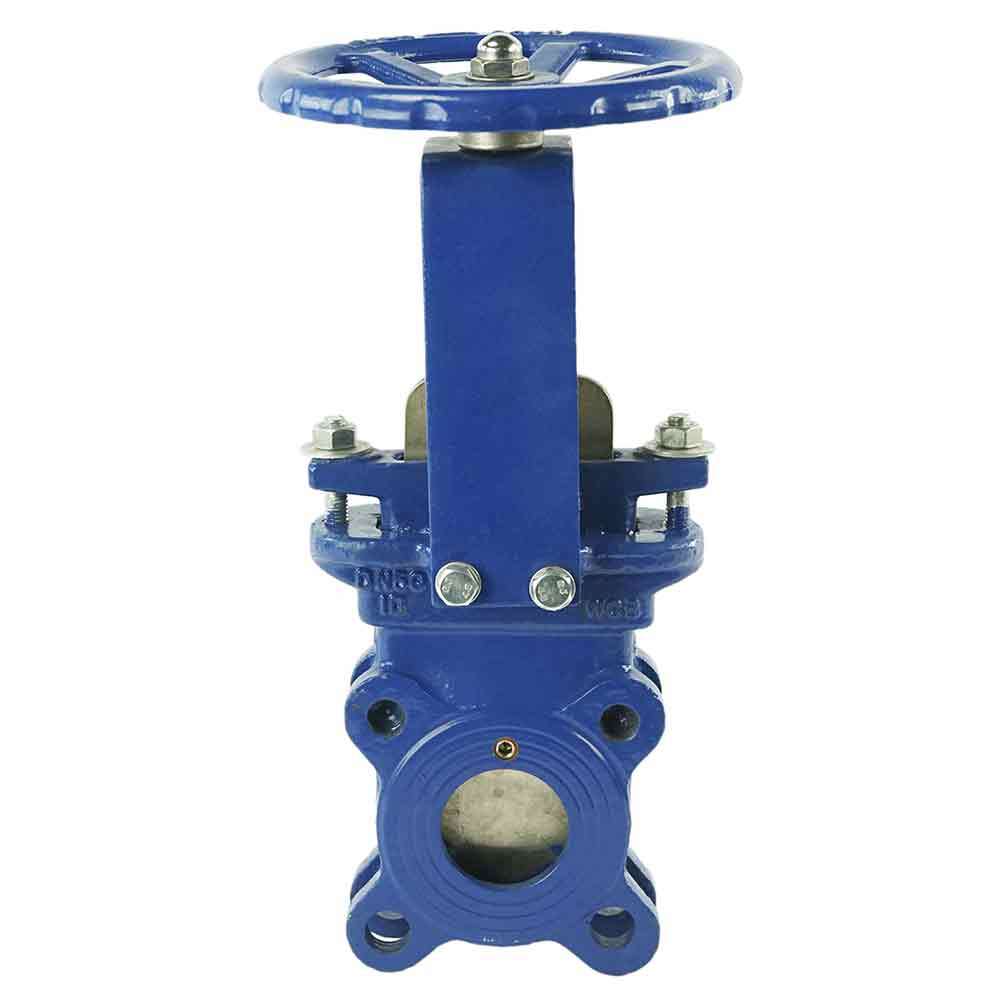

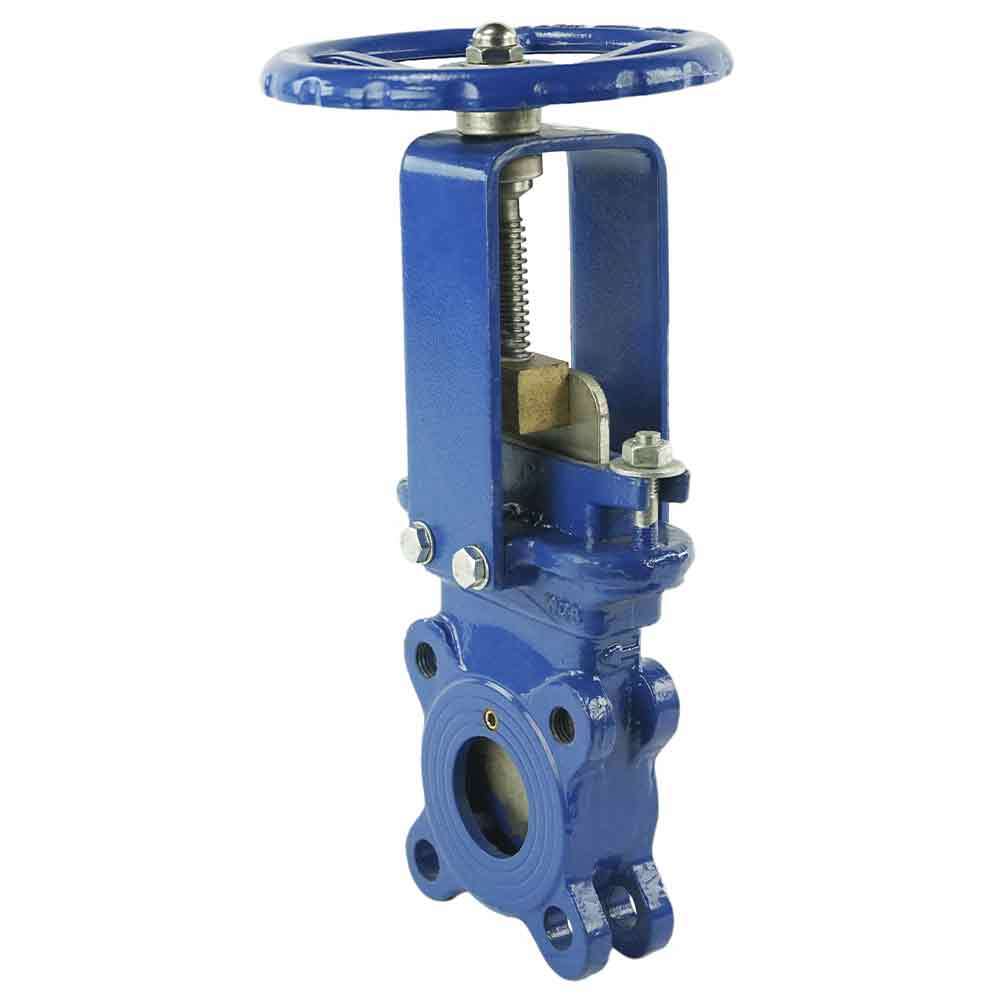

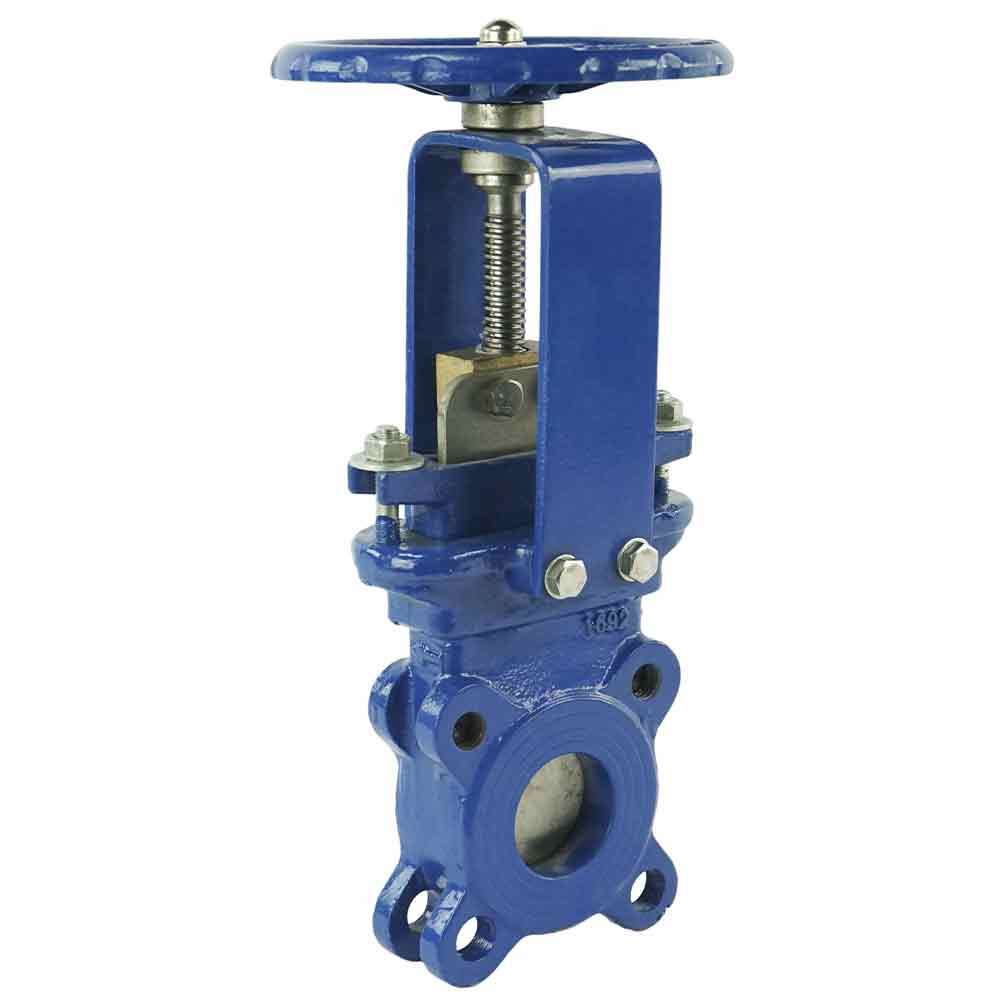

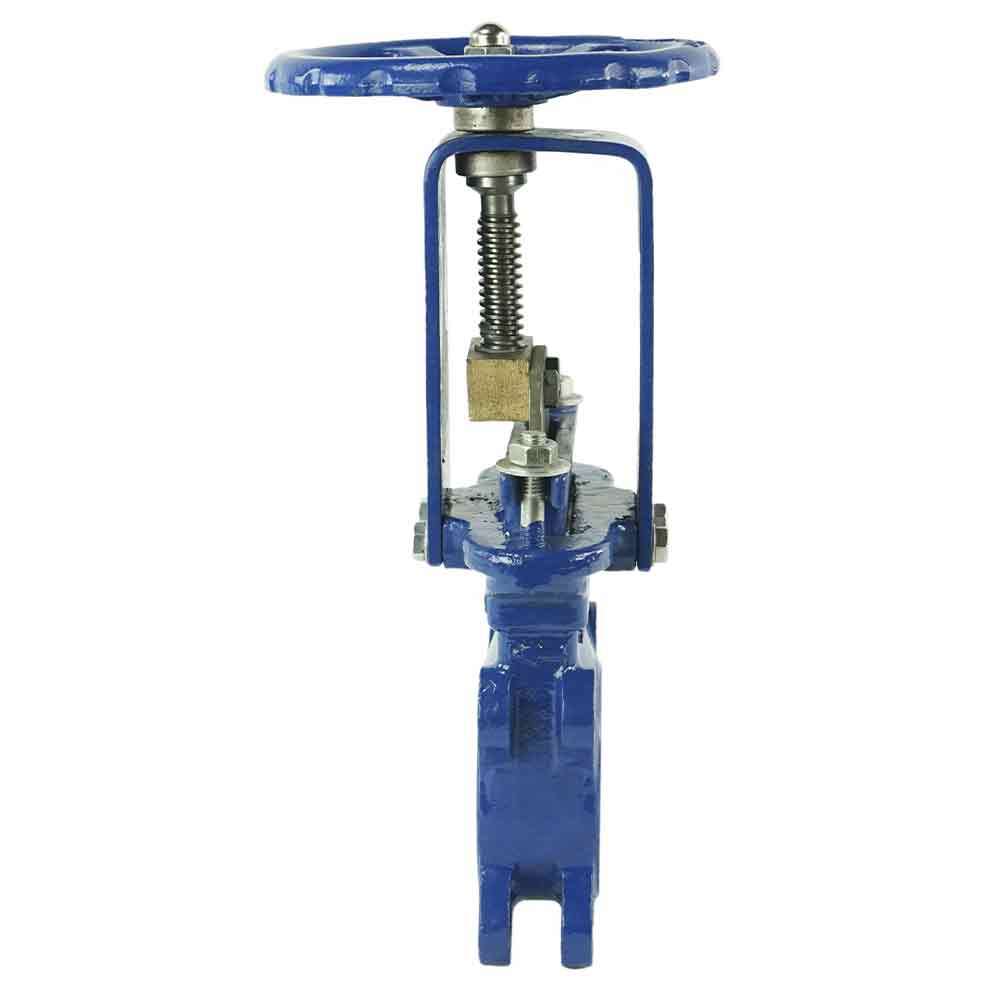

Knife gate valve Elephant WCB-SS304-METAL-1W, body material - stainless steel WCB, knife material - stainless steel AISI 304, seal - METAL, handwheel operated

€67,00

Shipping calculated at checkout.

Connection size

Pressure

Product variants

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Knife gate valves are a specific type of gate valve that are typically used in industries for handling tough solids and slurries. Named for their shape, knife gate valves have a sharp, knife-like gate that can cut through viscous or solid material in the flow. They are commonly used in wastewater treatment plants, paper mills, mining operations, and food industries, among others. Their primary function is to start or sop a flow or adjust its volume, but they do not control the pressure or flow rate.

Overall and installation dimensions of the gate valve Elephant WCB-SS304-METAL-1W, body material - stainless steel WCB, knife material - stainless steel AISI 304, seal - METAL, handwheel operated

Valve sketch Elephant WCB-SS304-METAL-1W, body material - stainless steel WCB, knife material - stainless steel AISI 304, seal - METAL, handwheel operated

DN	L	D	D1	D2	D0	N-Th	d	H	Weight
DN	mm								kg
50	48	160	125	99	180	4-М16	Ø18	290	7
80	51	195	160	132	220	8-М16	Ø18	350	10
100	51	215	180	156	240	8-М16	Ø18	385	13
150	57	280	240	212	280	8-М20	Ø23	485	23
200	70	335	295	266	300	8-М20	Ø23	565	30

Construction and materials of the gate Elephant WCB-SS304-METAL-1W, body material - stainless steel WCB, knife material - stainless steel AISI 304, seal - METAL, handwheel operated

Material sketch of valve parts Elephant WCB-SS304-METAL-1W, body material - stainless steel WCB, knife material - stainless steel AISI 304, seal - METAL, handwheel operated

№	Part name	Material
1	Body	Steel WCB
2	Disk	Steel 304
3 - 4	Bolt / Nut	Steel A3
5	Sealing	METAL
6	gland	Steel WCB
7 - 9	Bolt / Nut	Steel A3
10	Stem	Steel 2Cr13
11	Support plates	Steel A3
12	Bearing	ZChSnSb10-6
13	Helm	cast iron QT450
14 - 15	Bolt / Nut	Steel A3
16	Bolt / Nut	cast iron QT450
17 - 18	Bolt / Nut	Steel A3
19	Support	Steel 304

Specifications

Country of origin

China
Body material

Stainless steel WCB
Stopper Material

Stainless steel AISI 304/1.4301
Maximum allowable temperature

752 °F / 400 °C
Connection type

Compact flanged
Control type

Handwheel
Gate valve type

Knife Gate Valve
Nominal pressure

10 bar
Type of seal

Metal
Coating type

Epoxy powder
