Elephant  |  SKU: D040-07609

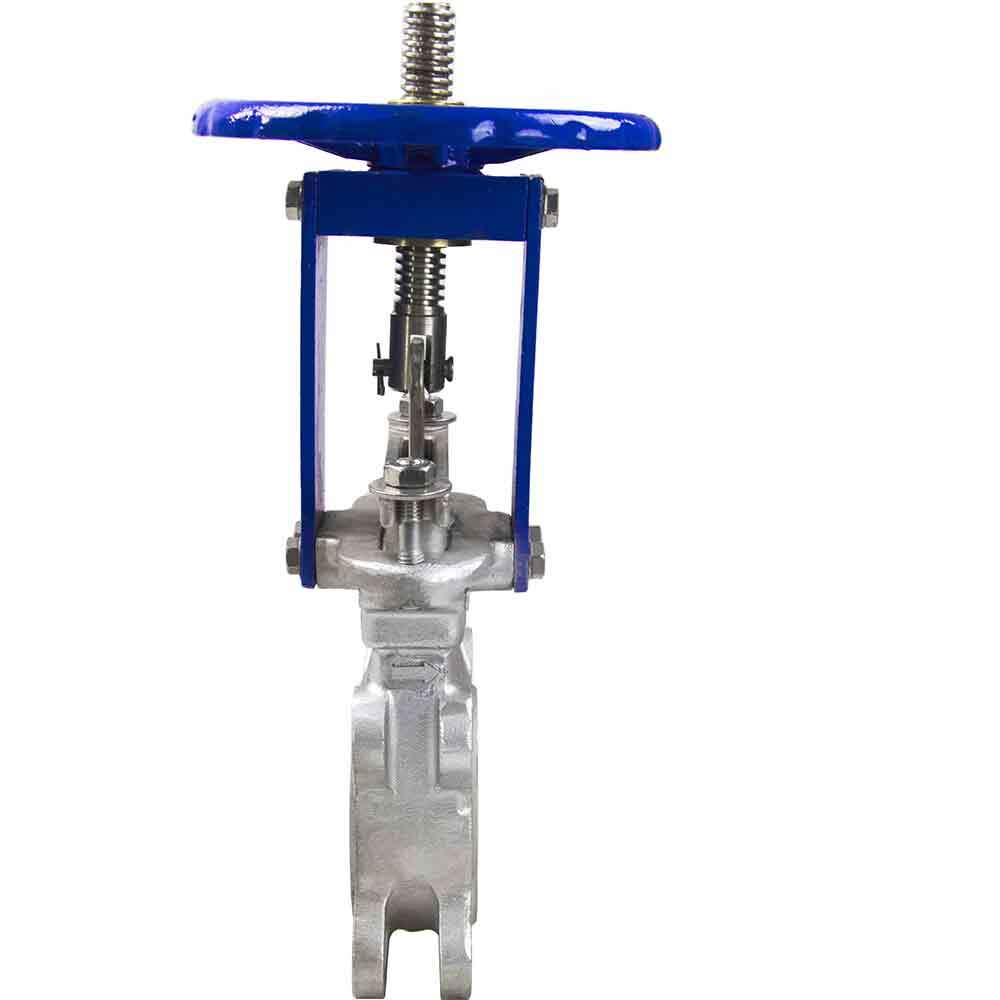

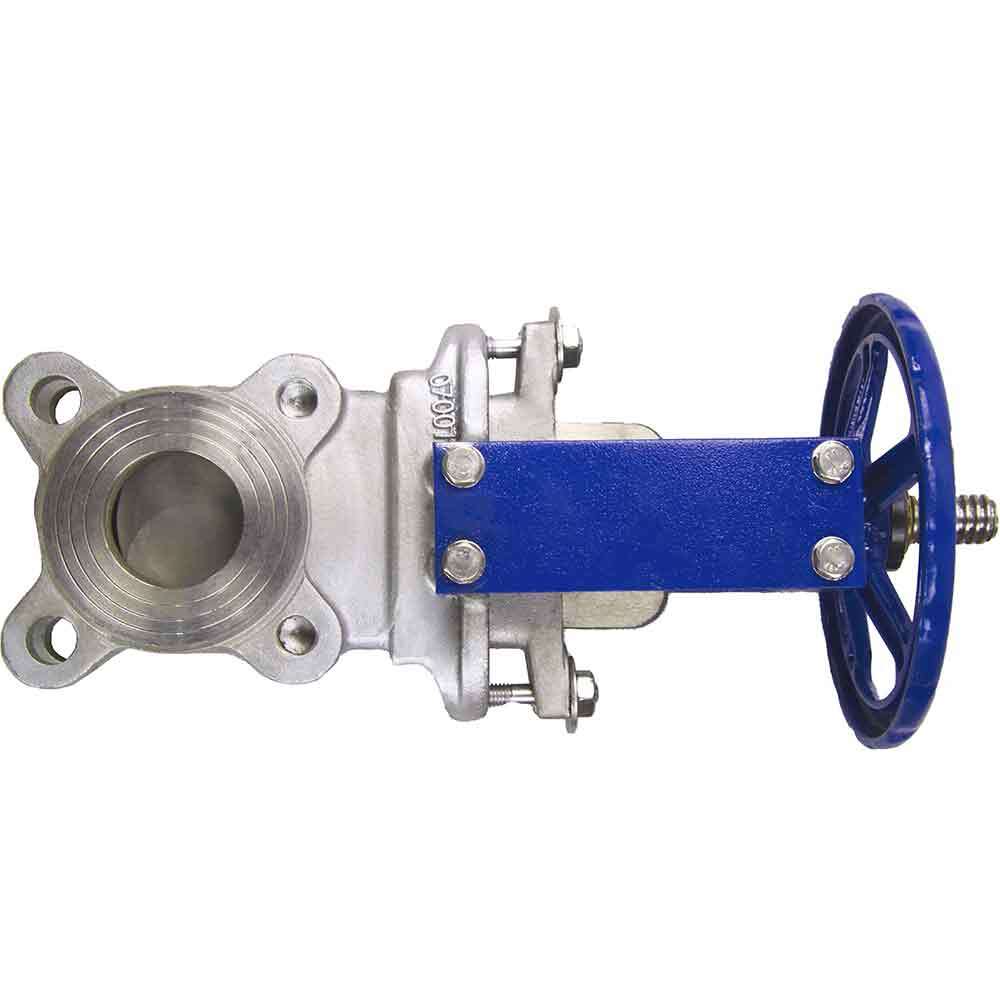

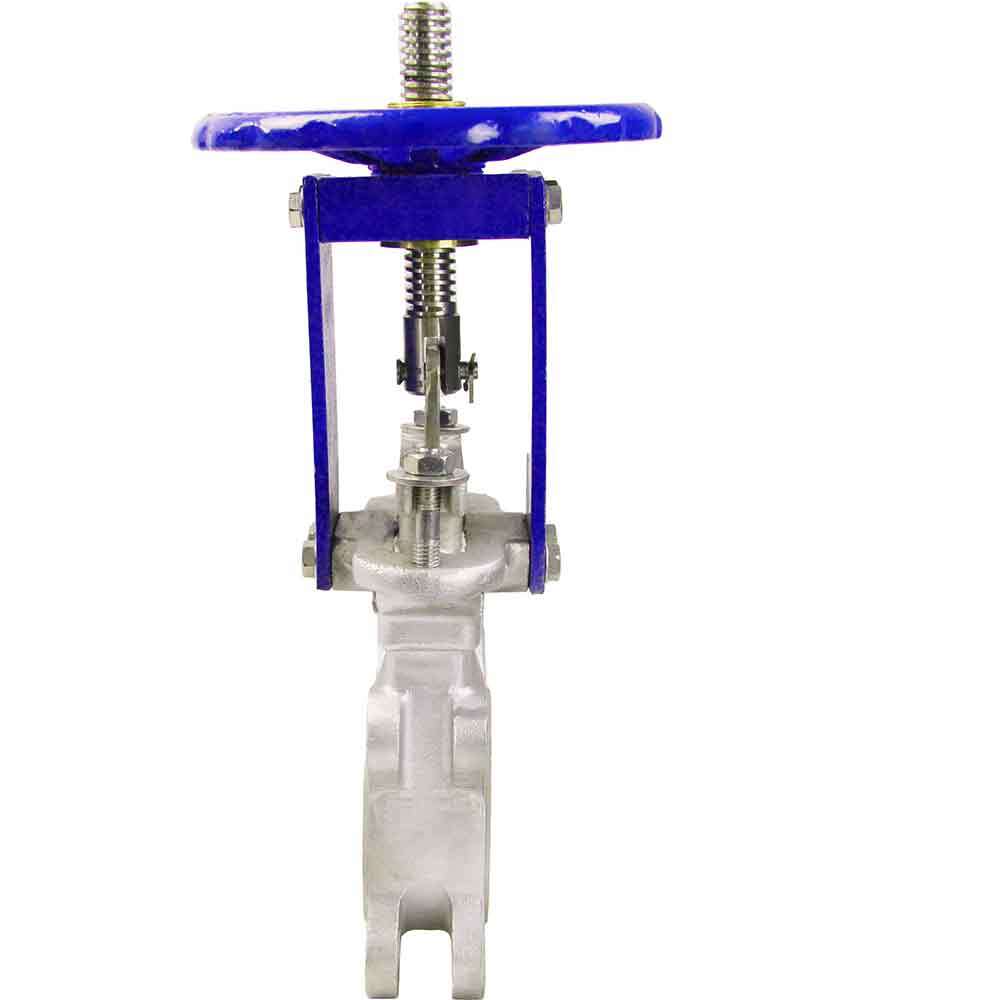

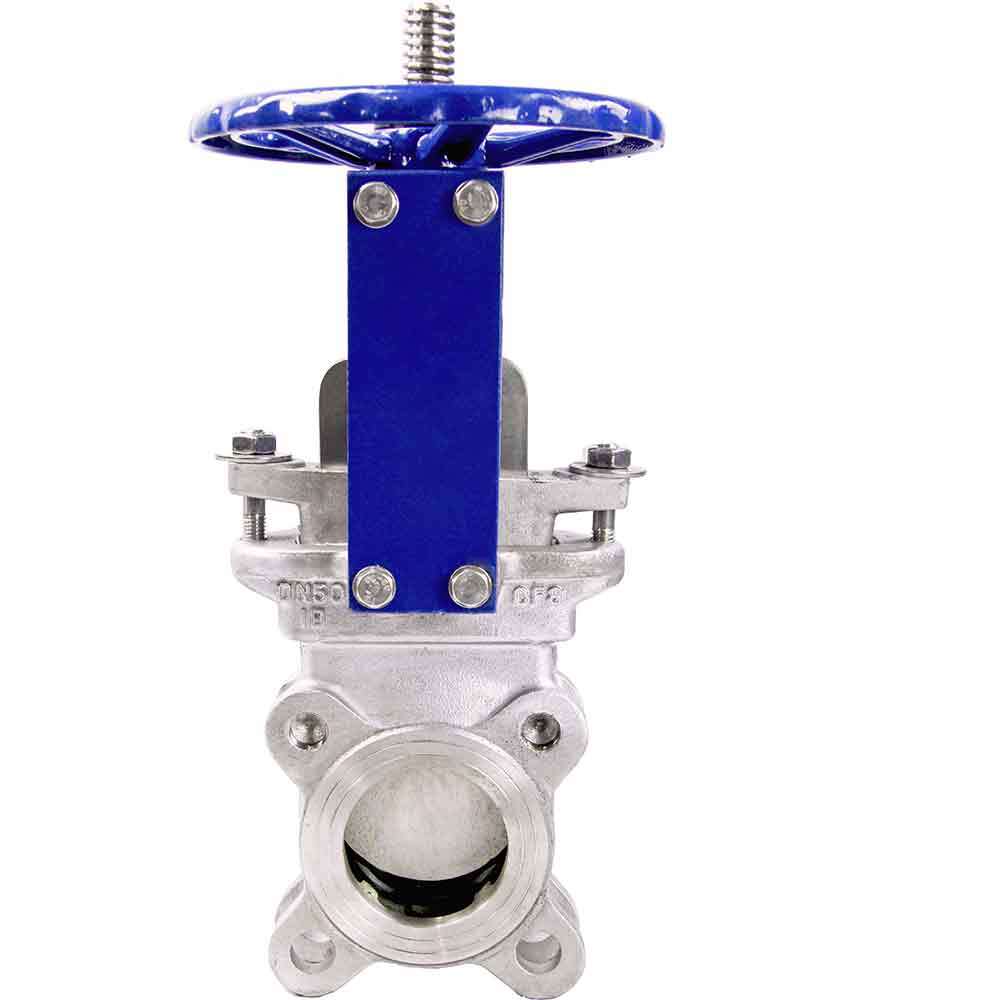

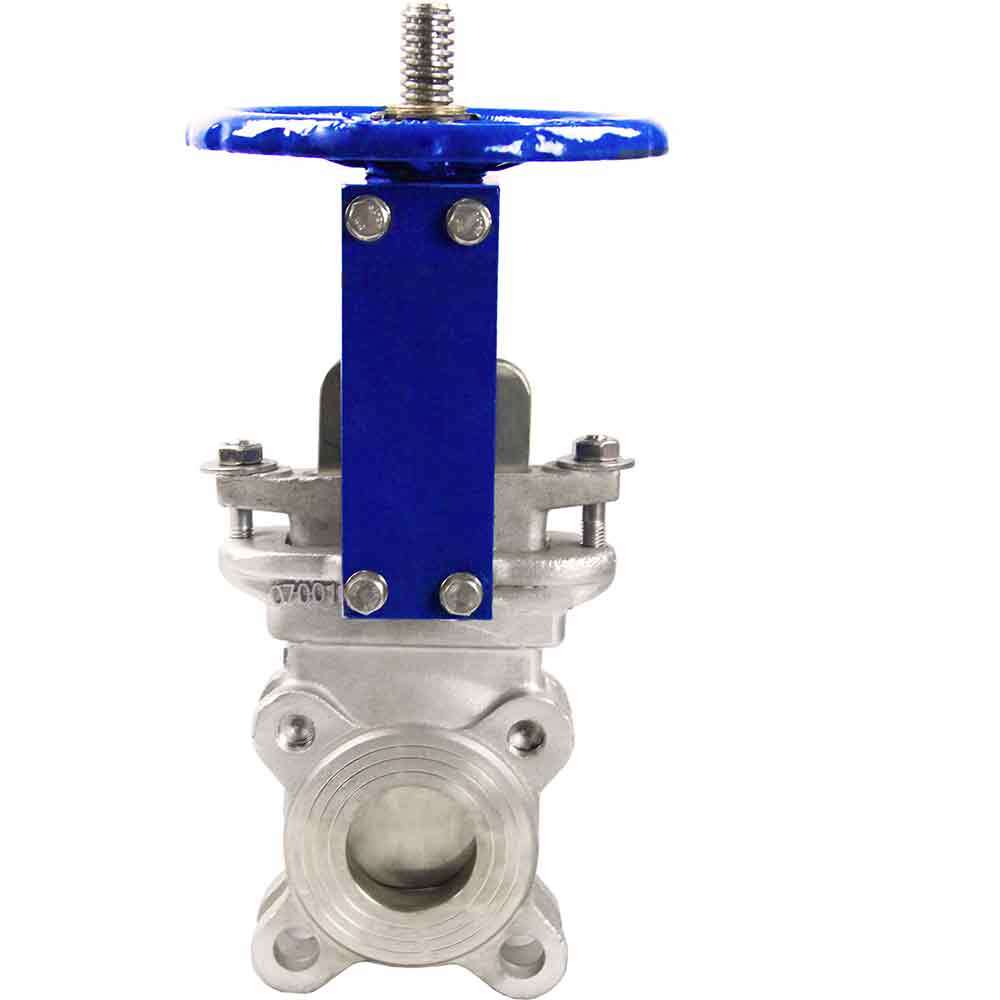

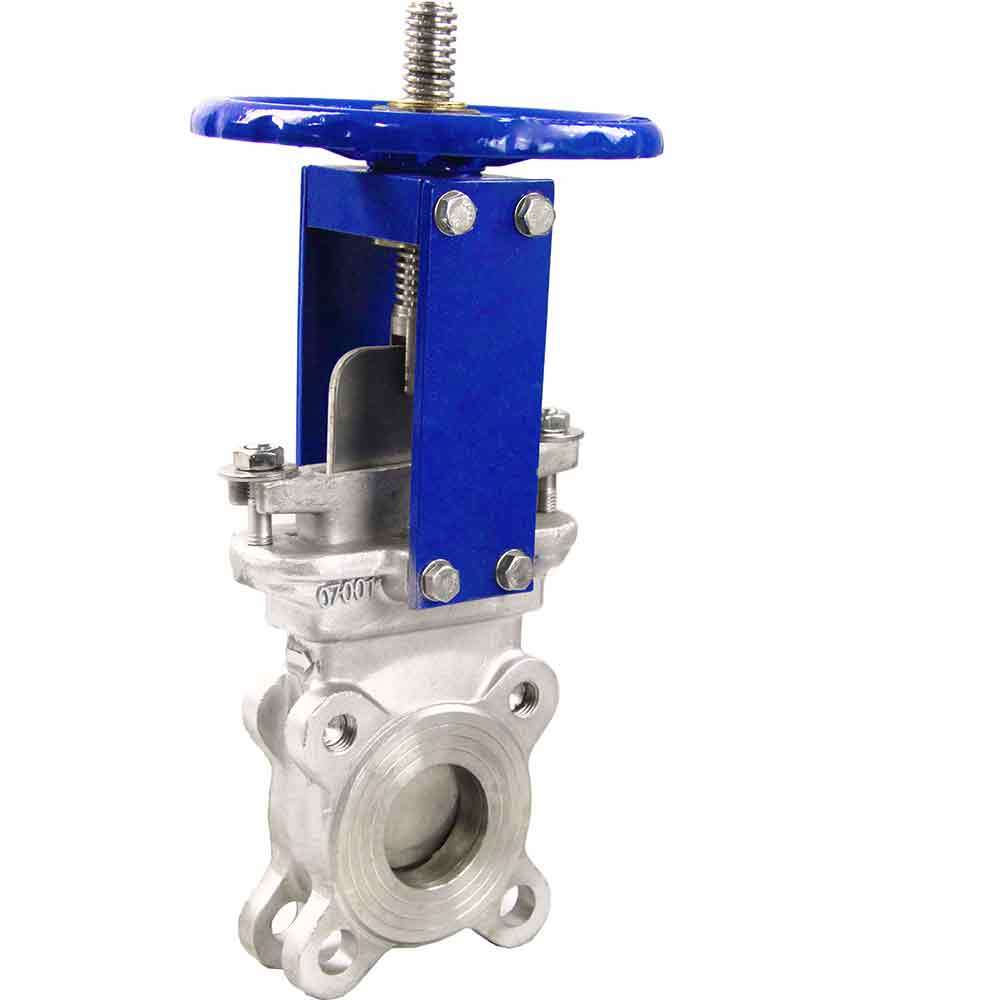

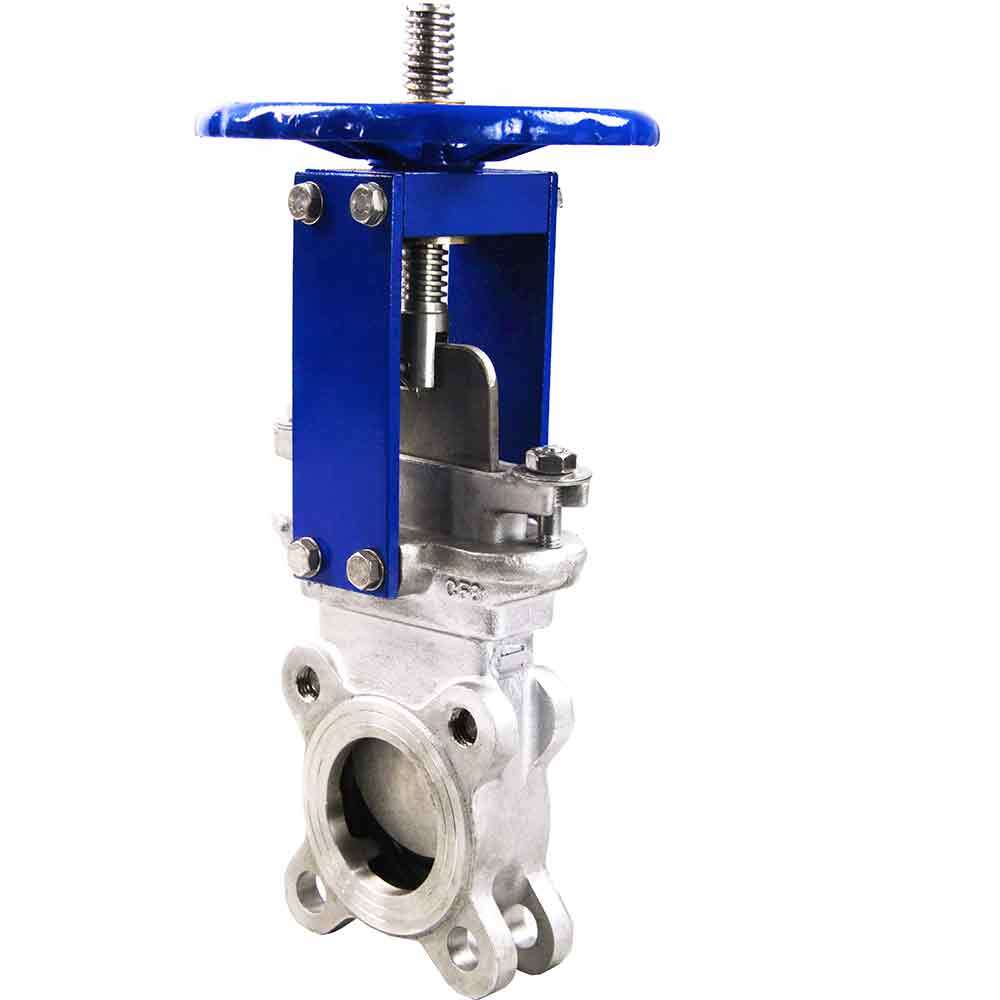

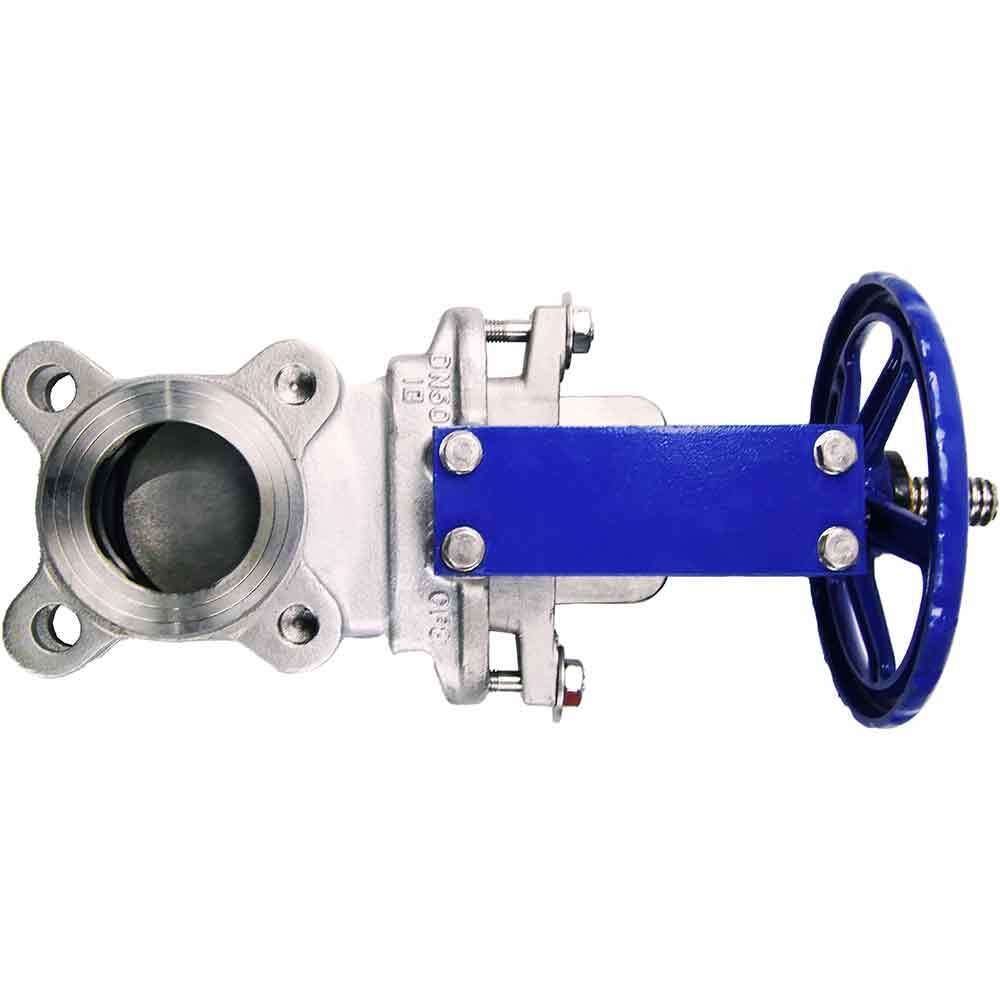

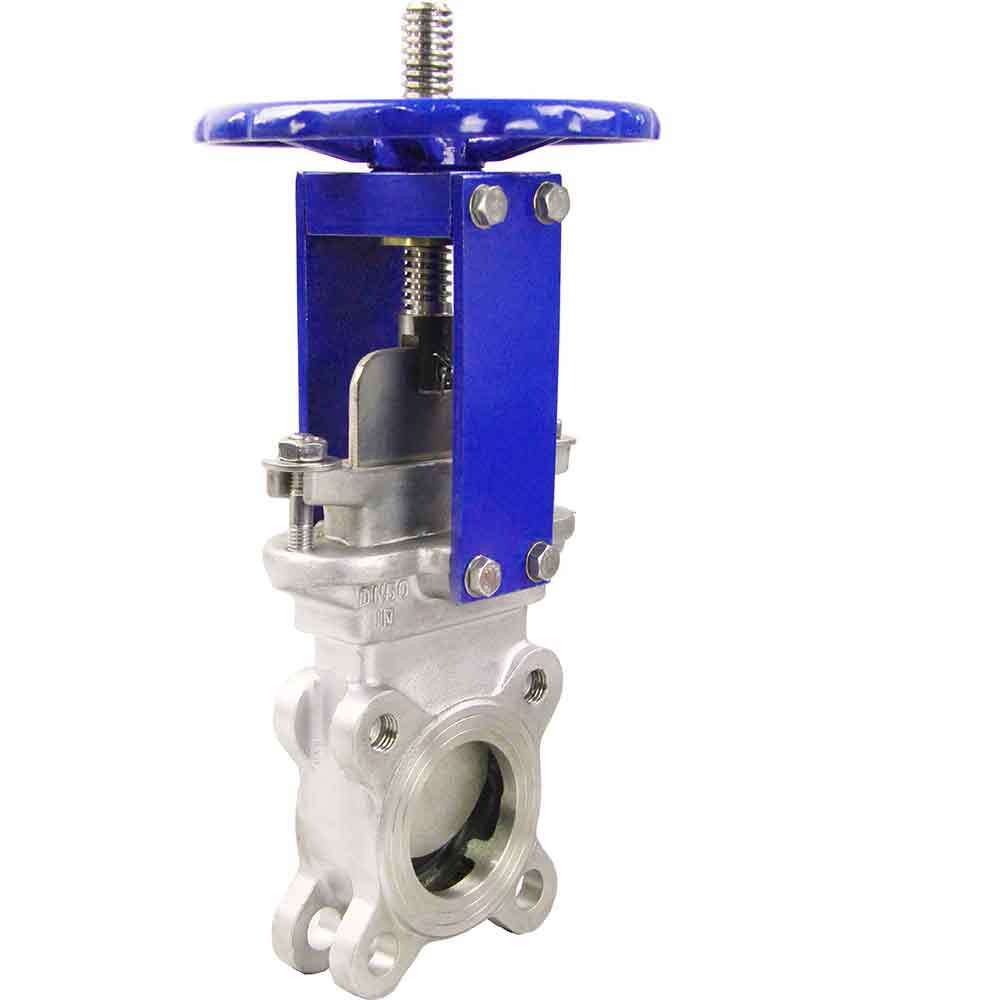

Knife gate valve Elephant SS304-SS304-EPDM-1W-W, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, handwheel operated

€59,00
Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Knife gate valves are a specific type of gate valve that are typically used in industries for handling tough solids and slurries. Named for their shape, knife gate valves have a sharp, knife-like gate that can cut through viscous or solid material in the flow. They are commonly used in wastewater treatment plants, paper mills, mining operations, and food industries, among others. Their primary function is to start or sop a flow or adjust its volume, but they do not control the pressure or flow rate.

Overall and installation dimensions of the gate valve Elephant SS304-SS304-EPDM-1W-W, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, handwheel operated

Overall and installation dimensions of the gate valve Elephant SS304-SS304-EPDM-1W-W, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, handwheel operated

Valve sketch Elephant SS304-SS304-EPDM-1W-W, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, handwheel operated

DN L D D1 N - Th Weight
50 48 160 125 4 – М16 8
65 48 180 145 4 – М16 11
80 51 195 160 8 – М16 12
100 51 215 180 8 – М16 15
125 57 245 210 8 – М16 24
150 57 280 240 8 – М20 35
200 70 335 295 8 – М20 50
250 70 390 350 12 – М20 64
300 76 440 400 12 – М20 80

Construction and materials of the gate Elephant SS304-SS304-EPDM-1W-W, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, handwheel operated

Construction and materials of the gate Elephant SS304-SS304-EPDM-1W-W, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, handwheel operated

Material sketch of valve parts Elephant SS304-SS304-EPDM-1W-W, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, handwheel operated

Part name Material
1 Body Steel 304/316
2 Slider Steel 304/316
3-4 Bolt / nut Steel 304
5 padding PTFE + graphite
6 gland Steel 304
7-9 Bolt / washer / nut Steel 304
10 Stem Steel 304
11 staple Steel А3
12 Main bracket Steel А3
13 Bearing ZChSnSb10-6
14 Helm Cast iron GGG40
15 Sealing Steel 304 / EPDM

Specifications

  • Country of origin
    China
  • Body material
    Stainless steel AISI 304/1.4301
  • Stopper Material
    Stainless steel AISI 304/1.4301
  • Maximum allowable temperature
    95 °C
  • Connection type
    Compact flanged
  • Control type
    Handwheel
  • Gate valve type
    Knife Gate Valve
  • Nominal pressure
    10 bar
  • Type of seal
    EPDM
