Elephant  |  SKU: D040-02623

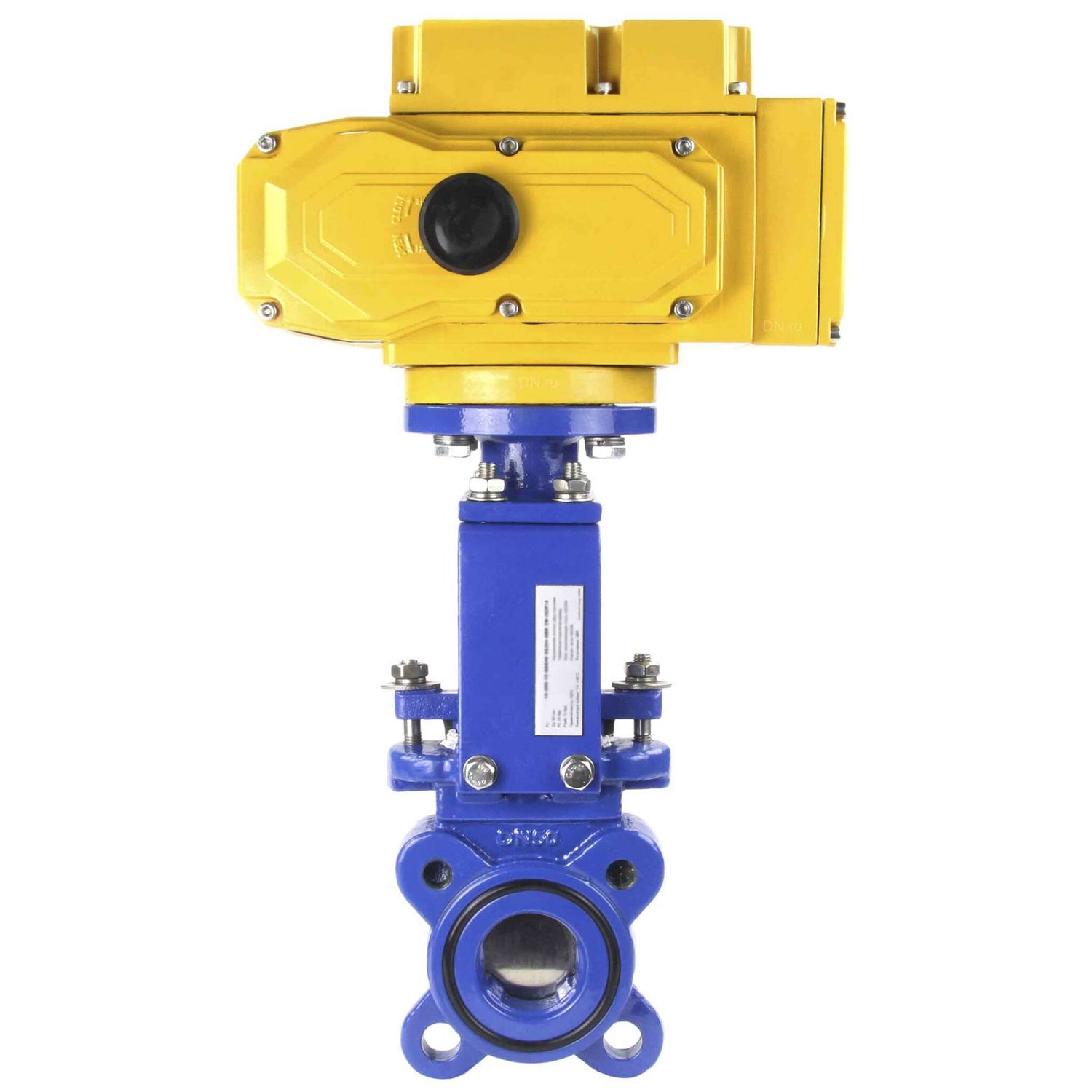

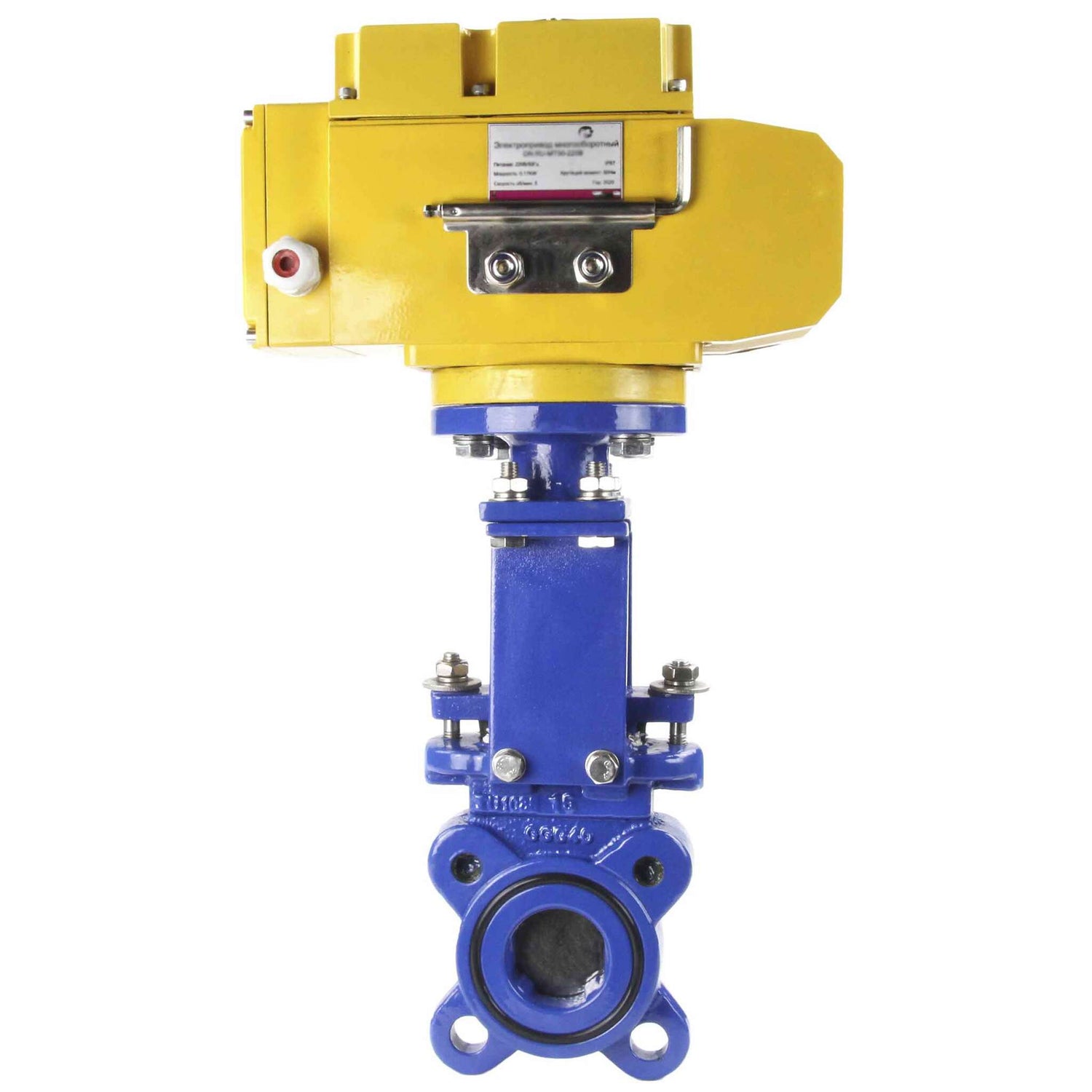

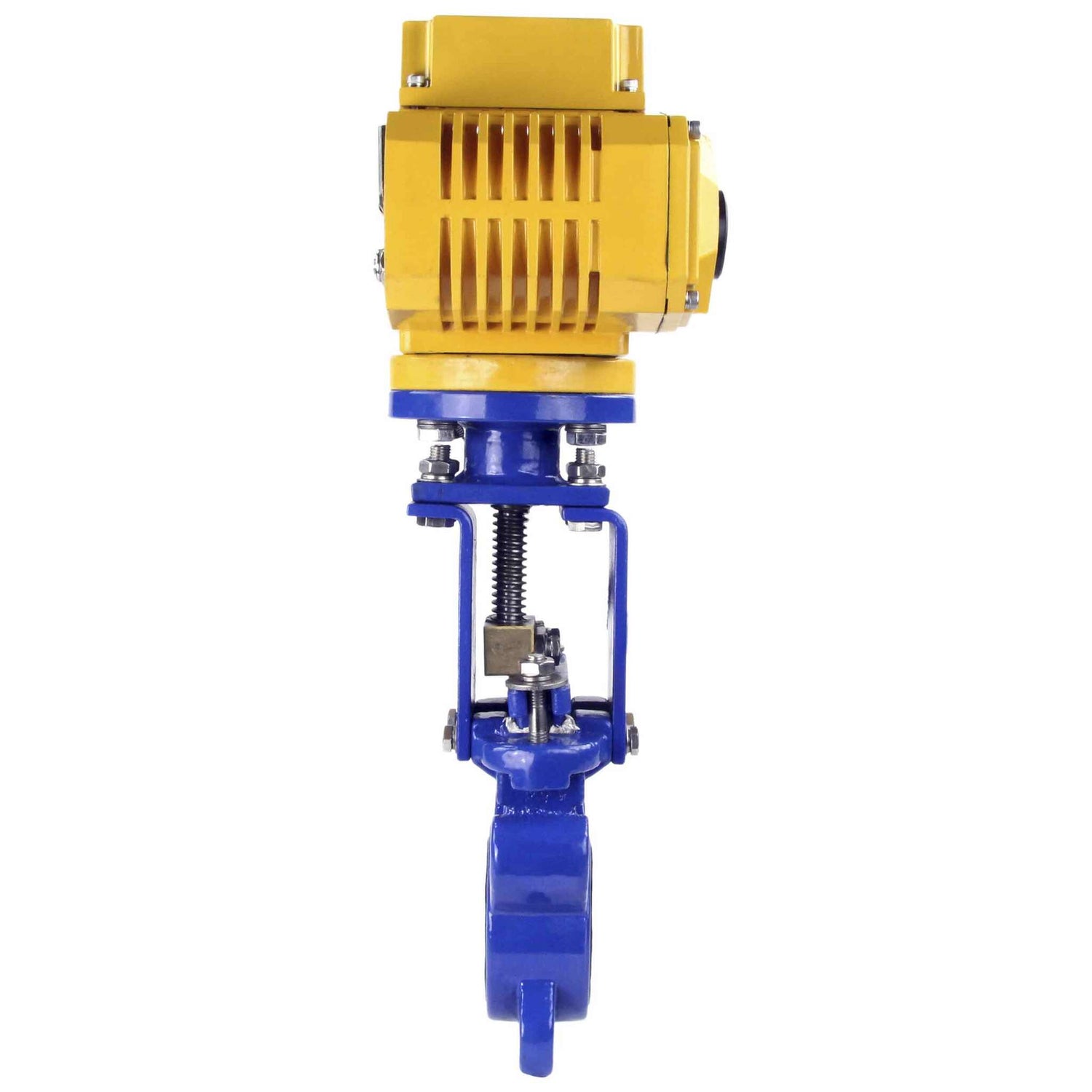

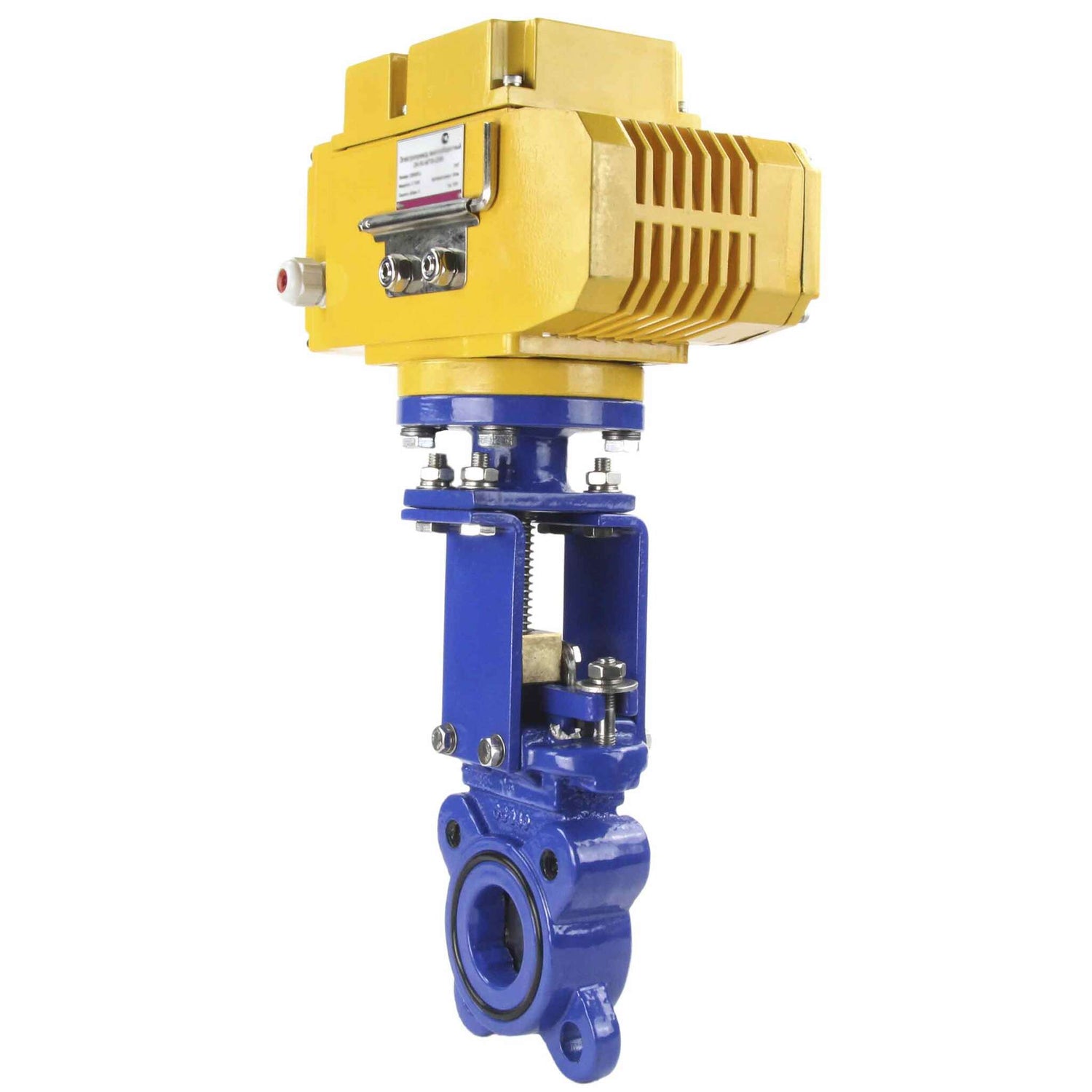

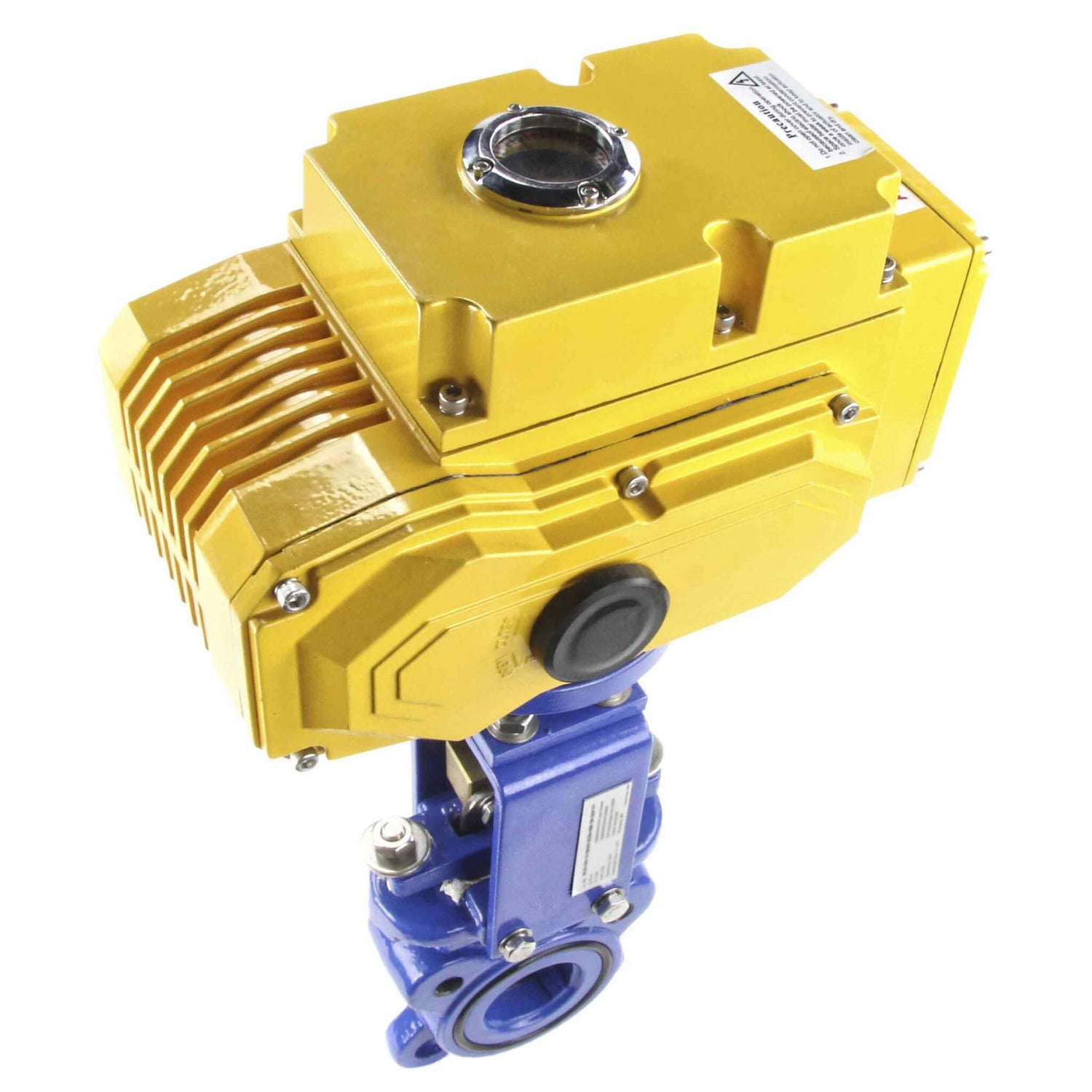

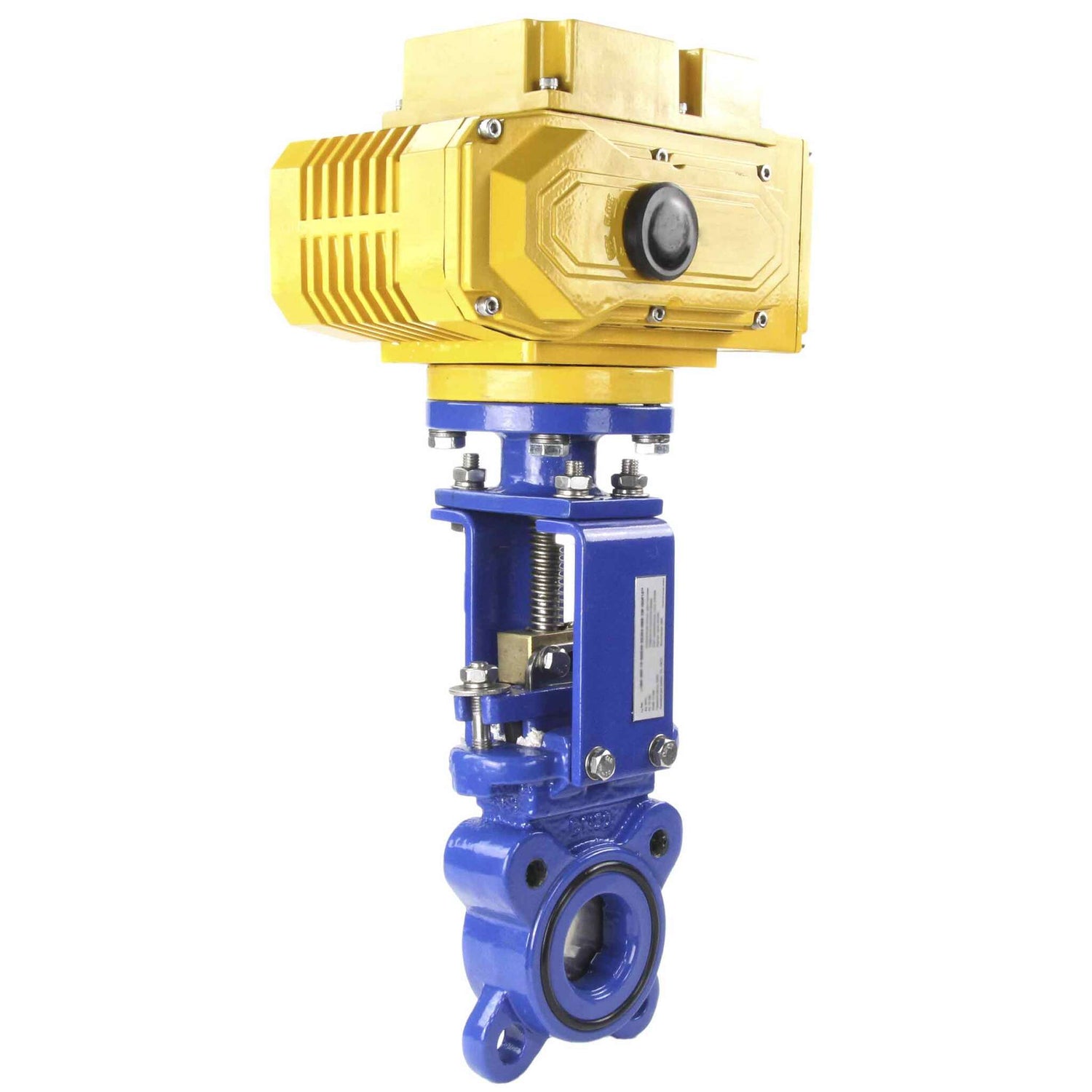

Knife Gate Valve Elephant PSI232 Class 125 NBR Wafer type, Cast Iron, Bidirectional, with Elephant-MT-50 110/220V electric actuator

€1.041,00
Shipping calculated at checkout.
Connection size
Pressure

Leave your email

Get notified as soon as this product is available, along with the latest updates on new collections, sales, offers, and product arrival dates.

Secure Your Preorder

Please fill out the form to submit your preorder request. Include your full name, email, phone number, shipping address, product SKU, quantity, preferred payment method, and any additional notes or questions.

Description

Knife Gate Valve Elephant PSI232 Class 125 NBR Wafer type, Cast Iron, Bidirectional, with Elephant-MT-50 220V electric actuator belong to shut-off pipeline valves for industrial use. Elephant valves can be used to work with such working media as drinking water, waste water, pulp, viscous, powder and crystallized media, and can be installed at industrial and civil heat and water supply facilities, wastewater treatment plants, and production lines. Hydraulic tests of the housing are carried out at a pressure exceeding the operating pressure by 1.5 times. Hydraulic tests of the gland seal and seat seal are carried out at a pressure exceeding the operating pressure by 1.1 times.

Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG40/EN-GJS-400-15
  • Stopper Material
    Stainless steel AISI 304/1.4301
  • Maximum allowable temperature
    90 °C
  • Connection type
    Compact flanged
  • Control type
    Electric actuator
  • Operating environment
    Viscous media, waste water, water, liquid media, powder and crystallized media
  • Gate valve type
    Knife Gate Valve
  • Nominal pressure
    16 bar
  • Type of seal
    NBR
  • Coating type
    Epoxy powder
  • Explosion-proof
    No
  • Torque
    50 Nm
  • Type of electric actuator
    Multi-turn
  • Shaft shape square
    16х16 mm
  • ISO - flange type
    F10,F12
  • Supply voltage
    110/220 V
  • Telescopic rod
    No
  • Control column
    No
  • Actuator model
    MT-50-220
