Knife Gate Valve Elephant PSI145 Class 125 NBR Wafer type, Cast Iron,
1 3
Elephant  |  SKU: D040-07297

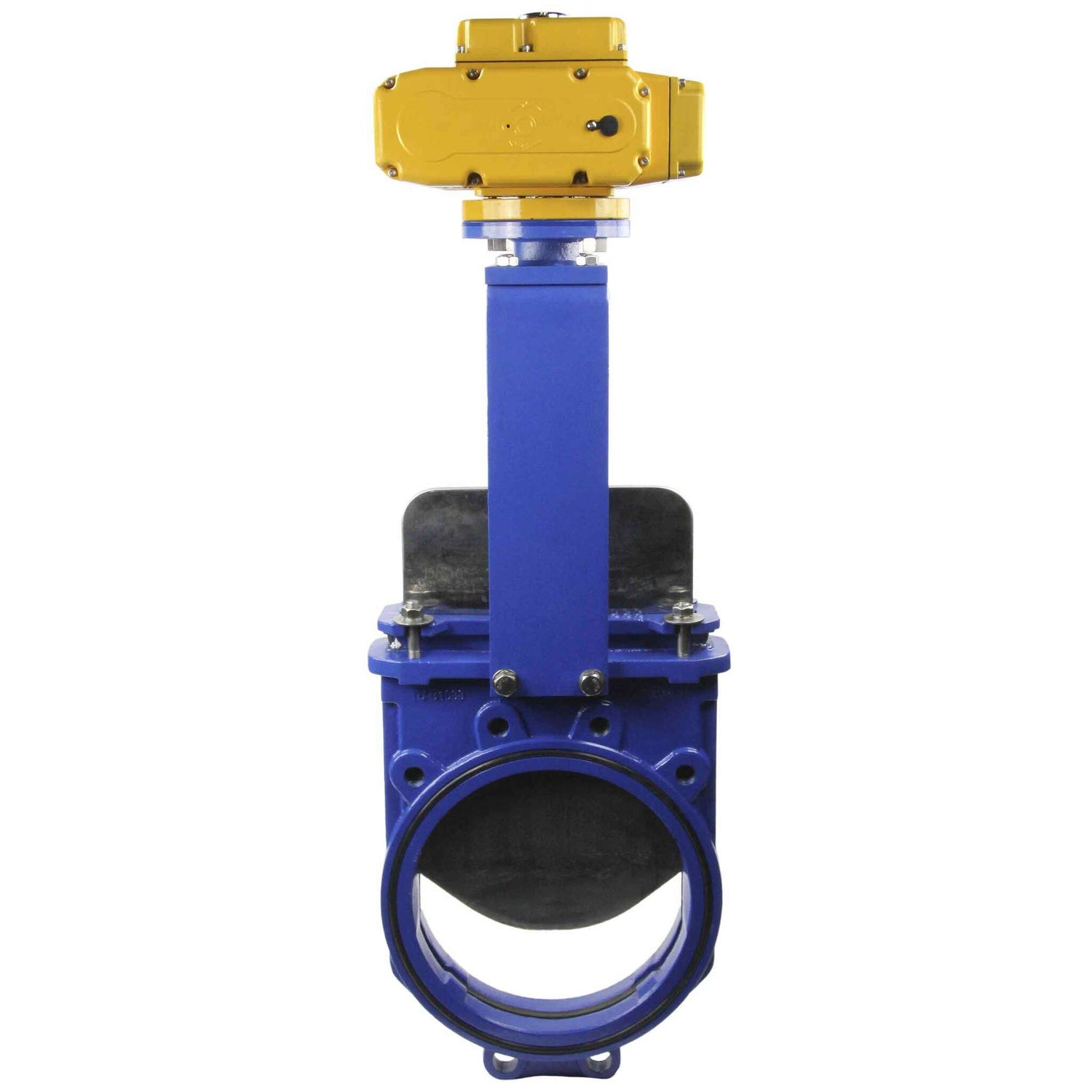

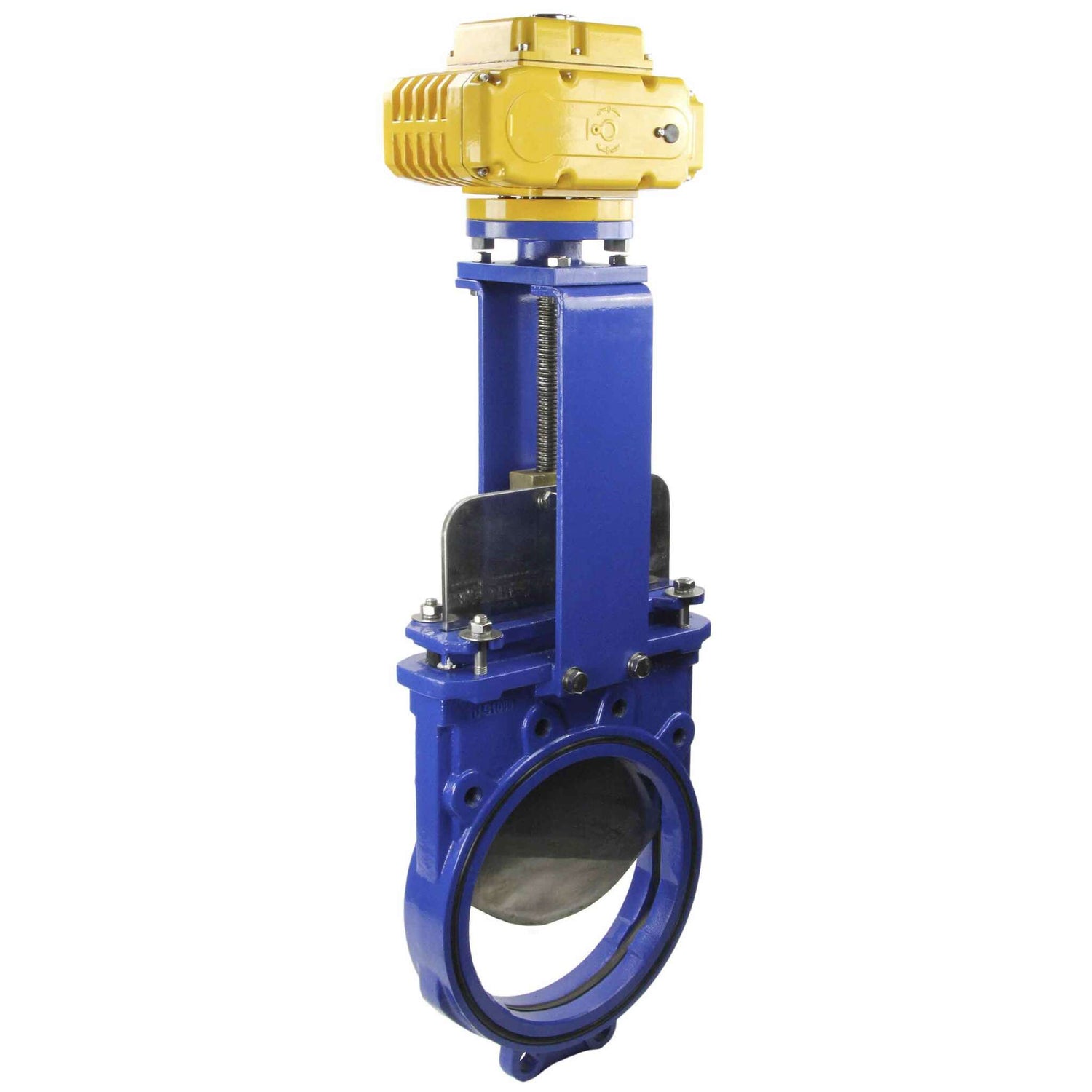

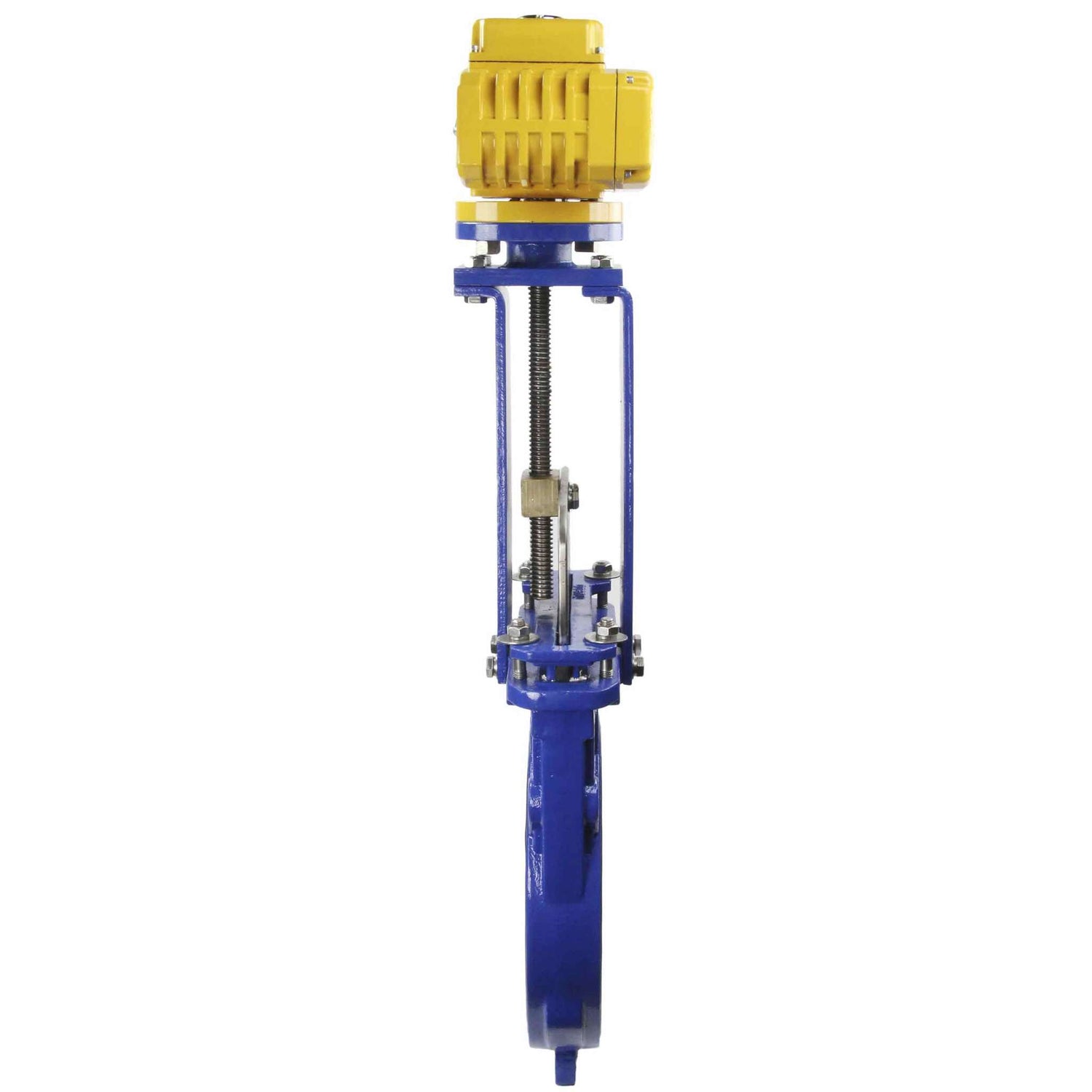

Knife Gate Valve Elephant PSI145 Class 125 NBR Wafer type, Cast Iron, Bidirectional, with Elephant-MT-200 380V electric actuator

€1.409,63
Tax included Shipping calculated at checkout.

Knife Gate Valve Elephant PSI145 Class 125 NBR Wafer type, Cast Iron, Bidirectional, with Elephant-MT-200 380V electric actuator - DN200 / 10 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Knife Gate Valve Elephant PSI145 Class 125 NBR Wafer type, Cast Iron, Bidirectional, with Elephant-MT-200 380V electric actuator belong to shut-off pipeline valves for industrial use. Elephant valves can be used to work with such working media as drinking water, waste water, pulp, viscous, powder and crystallized media, and can be installed at industrial and civil heat and water supply facilities, wastewater treatment plants, and production lines. Hydraulic tests of the housing are carried out at a pressure exceeding the operating pressure by 1.5 times. Hydraulic tests of the gland seal and seat seal are carried out at a pressure exceeding the operating pressure by 1.1 times.

Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG40/EN-GJS-400-15
  • Stopper Material
    Stainless steel AISI 304/1.4301
  • Maximum allowable temperature
    90 °C
  • Connection type
    Compact flanged
  • Control type
    Electric actuator
  • Operating environment
    Viscous media, waste water, water, liquid media, powder and crystallized media
  • Gate valve type
    Knife Gate Valve
  • Nominal pressure
    10 bar
  • Type of seal
    NBR
  • Coating type
    Epoxy powder
  • Valve feedback
    Limit switches
  • Explosion-proof
    No
  • Torque
    200 Nm
  • Type of electric actuator
    Multi-turn
  • Shaft shape square
    18х18 mm
  • ISO - flange type
    F10,F14
  • Supply voltage
    380 V
  • Telescopic rod
    No
  • Control column
    No
  • Actuator model
    MT-200-380

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D040-07297DN20010 bar €1.409,63 0 in stock
    D040-07298DN25010 bar €1.610,53 0 in stock
    D040-07299DN30010 bar €1.928,92 0 in stock
    D040-07291DN5010 bar €951,57 0 in stock
    D040-07292DN6510 bar €964,00 0 in stock
    D040-07293DN8010 bar €1.005,64 0 in stock
    D040-07294DN10010 bar €1.036,47 0 in stock
    D040-07295DN12510 bar €1.105,51 0 in stock
    D040-07296DN15010 bar €1.182,29 0 in stock
