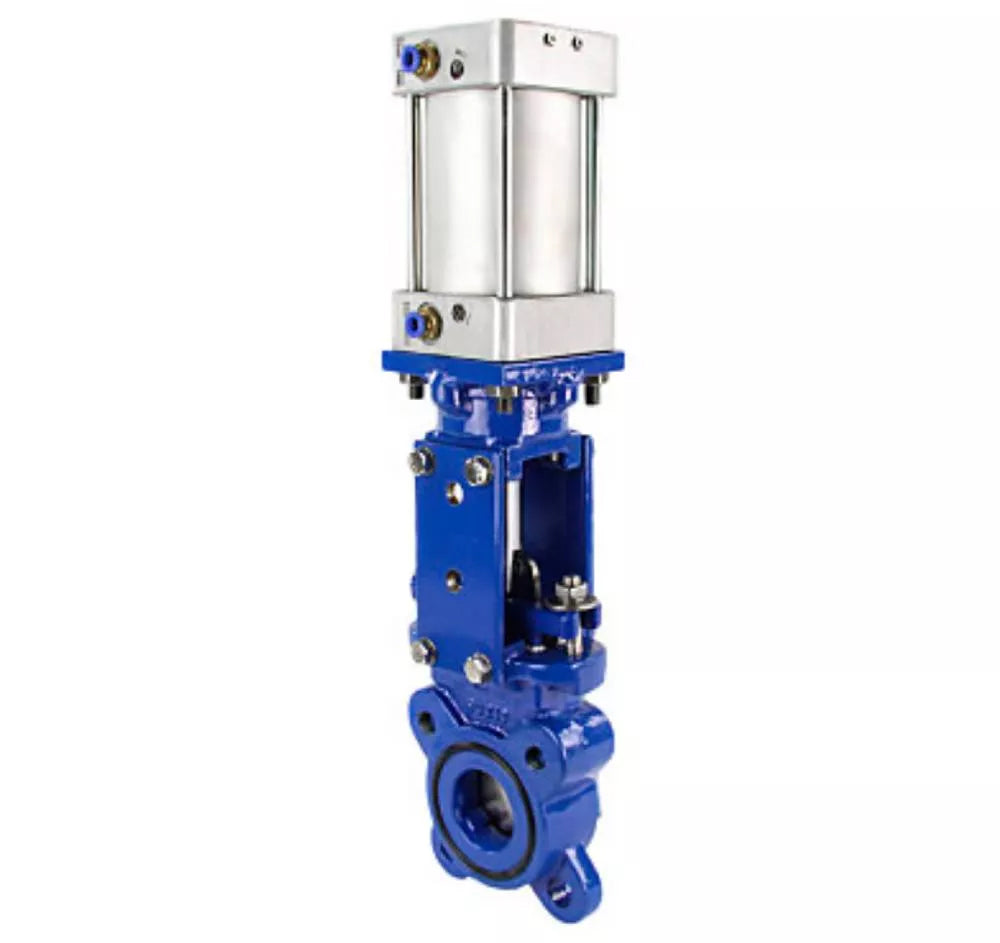

Knife gate valve Elephant GVKR3431M-1W-Fb-2P1 , body material - carbon steel, knife material - stainless steel AISI 304, seal - metal, pneumatic actuator
Knife gate valve Elephant GVKR3431M-1W-Fb-2P1 , body material - carbon steel, knife material - stainless steel AISI 304, seal - metal, pneumatic actuator - DN50 / 10 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The gate valve is designed to be installed on the pipeline as a shut-off device and regulate the flow of medium in water supply systems (except drinking water supply systems) and chemical industry.
The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of medium. When the diameter of the nominal bore of the pipeline is completely blocked, the flow is stopped, and when it is partially blocked, the flow is adjusted.
The principle of operation of the pneumatic actuator is based on the movement of the built-in piston due to compressed air, which is supplied to the system from a compressor or tank.
Pneumatic actuator is based on the movement of the built-in piston by compressed air.
Overall and installation dimensions Elephant GVKR3431M-1W-Fb-2P1 knife gate gate valves, body material - carbon steel, knife material - stainless steel AISI 304, seal - metal, pneumatic actuator:
| DN | L, mm | D, mm | D1, mm | D2, mm | D0, mm | H1, mm | T, mm | d, mm | ● | O | N-Th, mm | G |
| 50 | 48 | 165 | 125 | 99 | 100 | 417 | 12 | 18 | 4 | 0 | 4-M16 | 1/2″ |
| 65 | 48 | 165 | 145 | 118 | 100 | 460 | 12 | 18 | 4 | 0 | 4-M16 | 1/2″ |
| 80 | 51 | 200 | 160 | 132 | 100 | 510 | 12 | 18 | 4 | 4 | 8-M16 | 1/2″ |
| 100 | 51 | 220 | 180 | 156 | 100 | 600 | 12 | 18 | 4 | 4 | 8-M16 | 1/2″ |
| 125 | 57 | 250 | 210 | 181 | 100 | 628 | 12 | 18 | 4 | 4 | 8-M16 | 1/2″ |
| 150 | 57 | 285 | 240 | 211 | 125 | 780 | 14 | 23 | 4 | 4 | 8-M20 | 1/2″ |
| 300 | 76 | 445 | 400 | 370 | 160 | 1232 | 16 | 23 | 6 | 6 | 12-M20 | 1/2″ |
| 400 | 89 | 565 | 515 | 480 | 200 | 1528 | 20 | 27 | 10 | 6 | 16-M24 | 1/2″ |
Materials Elephant GVKR3431M-1W-Fb-2P1 knife gate gate valves, body material - carbon steel, knife material - stainless steel AISI 304, seal - metal, pneumatic actuator:
| № | Part name | Material |
| 1 | Body | WCB steel |
| 2 | Schieber | SS304 stainless steel |
| 3 | Guide seal | PTFE |
| 4 | Packing | PTFE |
| 5 | Gland packing | WCB steel |
| 6 | Rack | Q235 steel |
| 7 | Pin | steel 45 |
| 8 | Patron | WCB steel |
| 9 | Rod | steel 45+Cr |
| 10 | Switch | - |
| 11 | Rack head | cast iron GGG40 |
| 12 | Pneumatic cylinder | - |
| 13 | Solenoid valve | - |
| 14 | Filter | - |
| 15 | Wedge | WCB steel |
Specifications
Specifications
-
Country of origin
-
Body material
-
Stopper Material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Gate valve type
-
Nominal pressure
-
Type of seal
