Knife gate valve Elephant GVKR3232E-1W-Fb-S DN50 16 bar unilateral, fl – Valve Elephant
Elephant  |  SKU: D040-09566

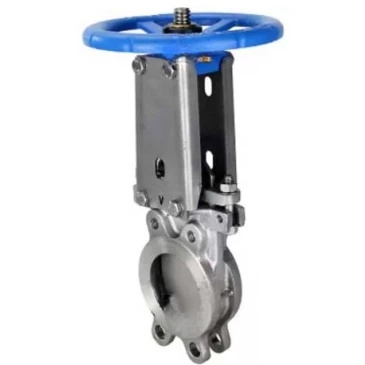

Knife gate valve Elephant GVKR3232E-1W-Fb-S DN50 16 bar unilateral, flanged joint, spindle - retractable, body - 316 stainless steel, gate valve - 316 stainless steel, seal - EPDM, control - handwheel, WENZ

€680,82
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Gate valves are designed for installation on pipelines as shut-off devices and for regulating the flow of working media in water supply systems (except for drinking water systems) and in the chemical industry. The principle of operation of gate valves is based on the movement of the gate (blade) perpendicular to the flow of the medium. When the nominal diameter of the pipeline is completely blocked, the flow stops; when partially blocked, the flow is regulated.





Main technical characteristics GVKR3232E-1W-Fb-S DN50 16 bar unilateral, flanged joint, spindle - retractable, body - 316 stainless steel, gate valve - 316 stainless steel, seal - EPDM, control - handwheel, WENZ

Parameter Meaning
Nominal diameter DN, mm 50
Nominal pressure, bar 16
Working medium temperature t, C from -30 to +110
Working medium water, lightly contaminated liquids with suspended solids content up to 5%
Medium flow direction single-sided
Sealing class A
Control type steering wheel
Pipeline connection interflange
Body material AISI 316 stainless steel
Areas of application heating and water supply systems (except drinking water systems), industrial pipelines
Average service life, years 10
Average service life, open/close cycles 20 000 – 50 000





Overall and mounting dimensions GVKR3232E-1W-Fb-S DN50 16 bar unilateral, flanged joint, spindle - retractable, body - 316 stainless steel, gate valve - 316 stainless steel, seal - EPDM, control - handwheel, WENZ

Parameter Model (Nominal diameter DN, mm)
DN50
L, mm 46
D, mm 160
D1, mm 125
D2, mm 95
D0, mm 180
H1, mm 250
N-Th 4-M16
T, mm 12
Ød, mm 18
⚫, pcs 2
⊕, pcs 2
Weight, kg 6

Sketch of overall and installation dimensions GVKR3232E-1W-Fb-S DN50 16 bar unilateral, flanged joint, spindle - retractable, body - 316 stainless steel, gate valve - 316 stainless steel, seal - EPDM, control - handwheel, WENZ





Main materials of gate valve parts GVKR3232E-1W-Fb-S DN50 16 bar unilateral, flanged joint, spindle - retractable, body - 316 stainless steel, gate valve - 316 stainless steel, seal - EPDM, control - handwheel, WENZ

№ Part name Material
1 Housing SS316 stainless steel
2 Seal EPDM
3 Ring SS316 stainless steel
4 Gate valve SS316 stainless steel
5 Guide seal PTFE
6 Packing PTFE
7 Oil seal SS304 stainless steel
8 Cartridge WCB carbon steel
9 Rod SS304 stainless steel
10 Stand Q235 steel
11 Handwheel GGG40 cast iron
12 Cover Q235 steel
13 Wedge SS316 stainless steel

{content:title}

Sketch of the main materials for gate valve parts GVKR3232E-1W-Fb-S DN50 16 bar unilateral, flanged joint, spindle - retractable, body - 316 stainless steel, gate valve - 316 stainless steel, seal - EPDM, control - handwheel, WENZ

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel
  • Maximum allowable temperature
    110 °C
  • Connection type
    Compact flanged
  • Control type
    manual
  • Operating environment
    Water, Technical water
  • Applications
    Water Supply, Heat supply, industry
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Manual override
    No
