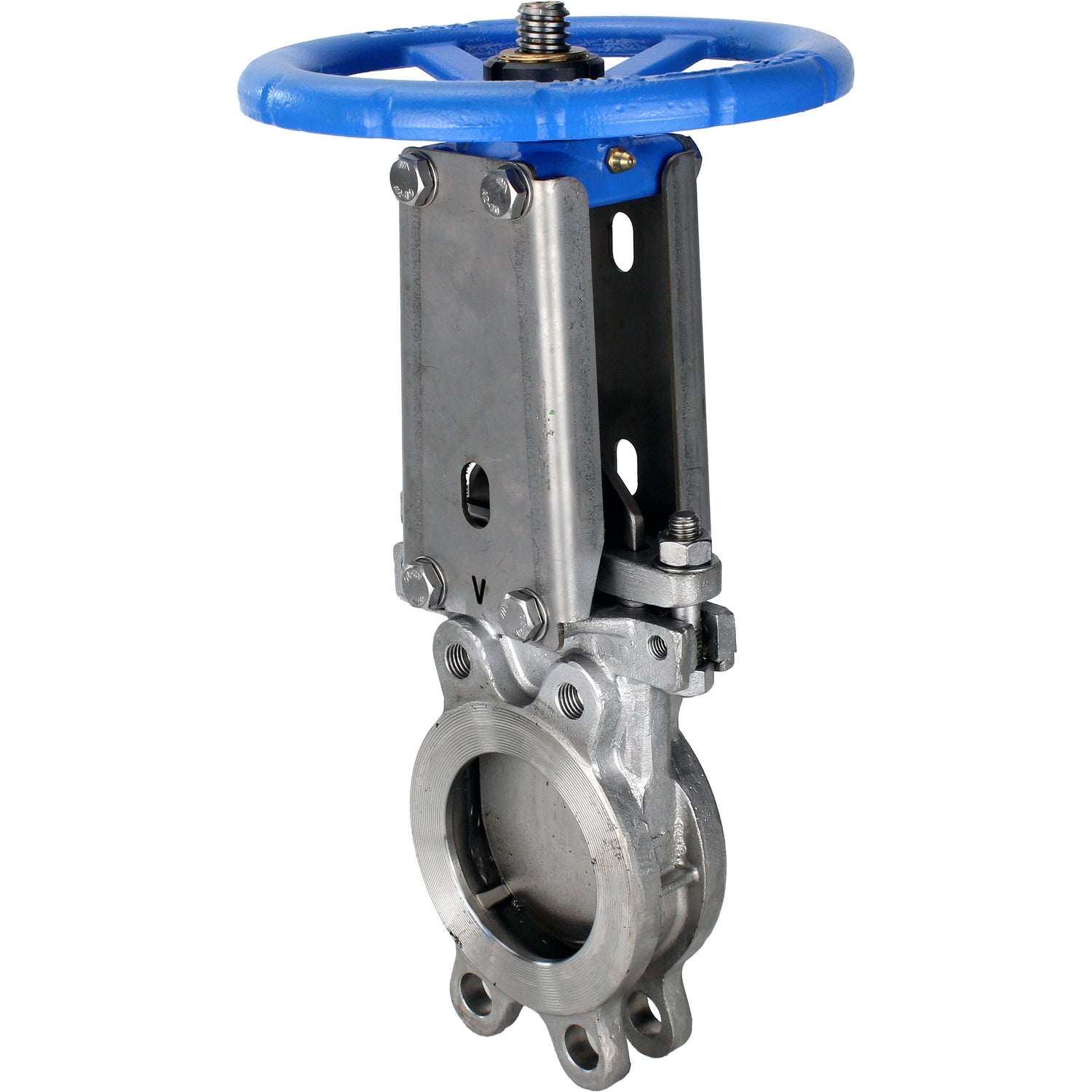

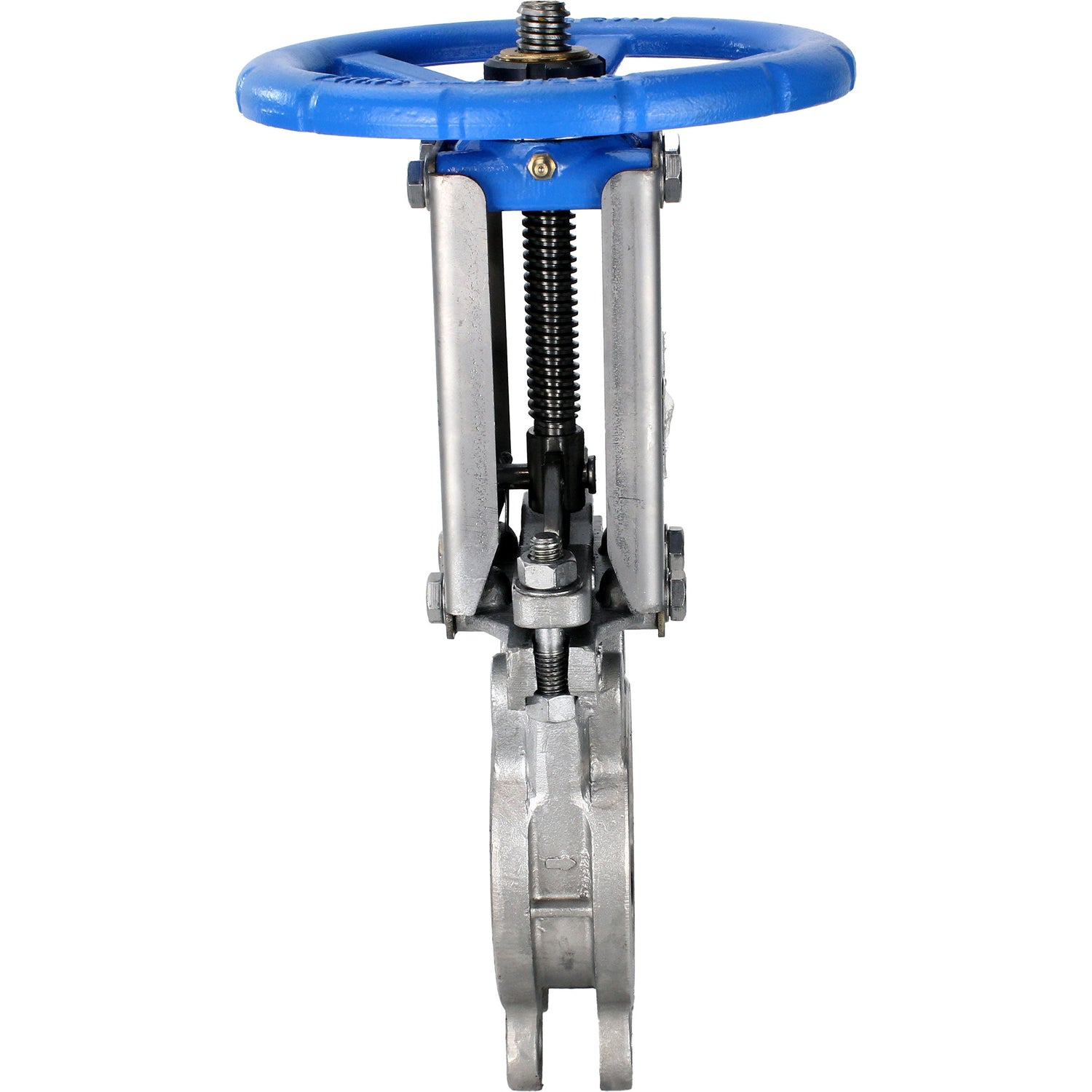

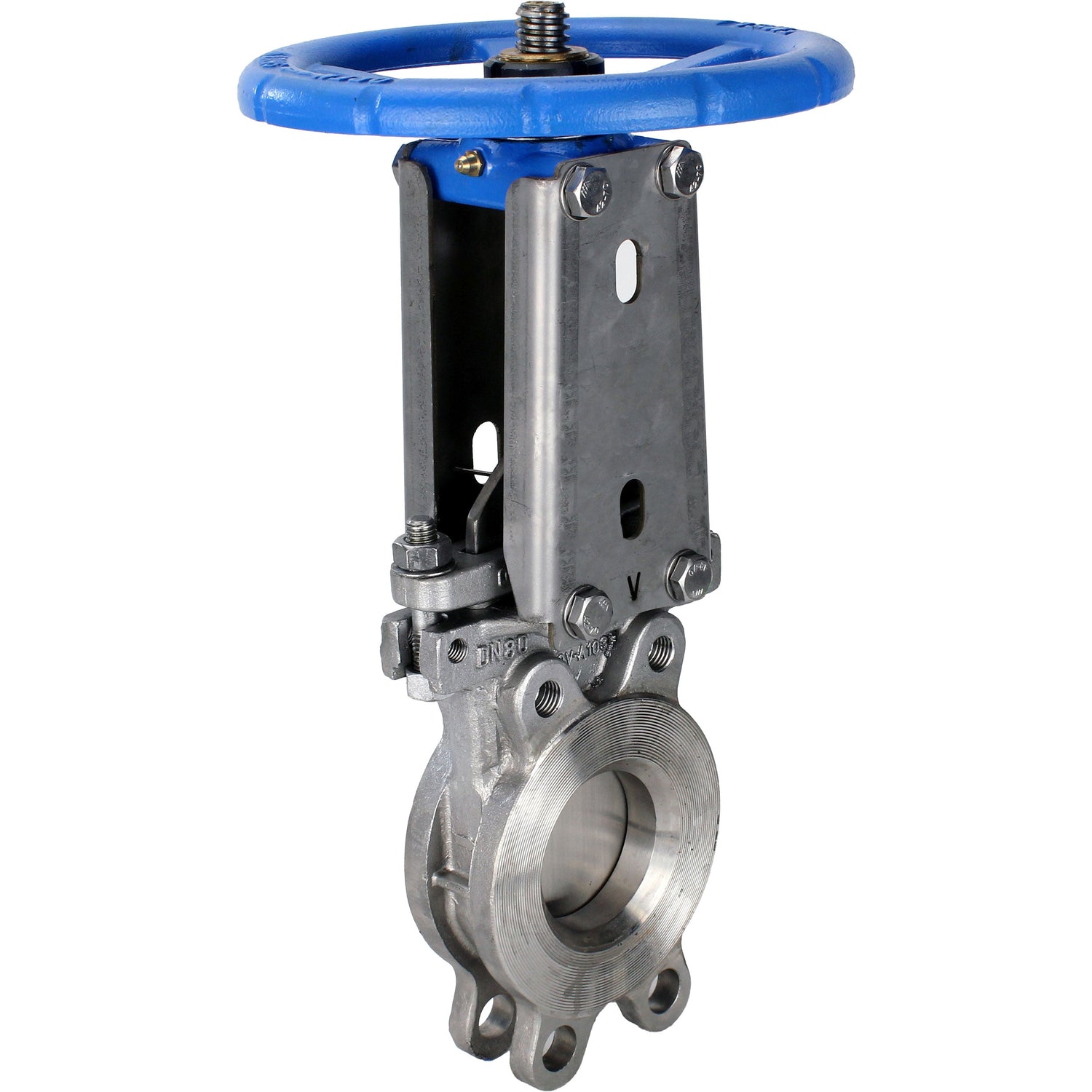

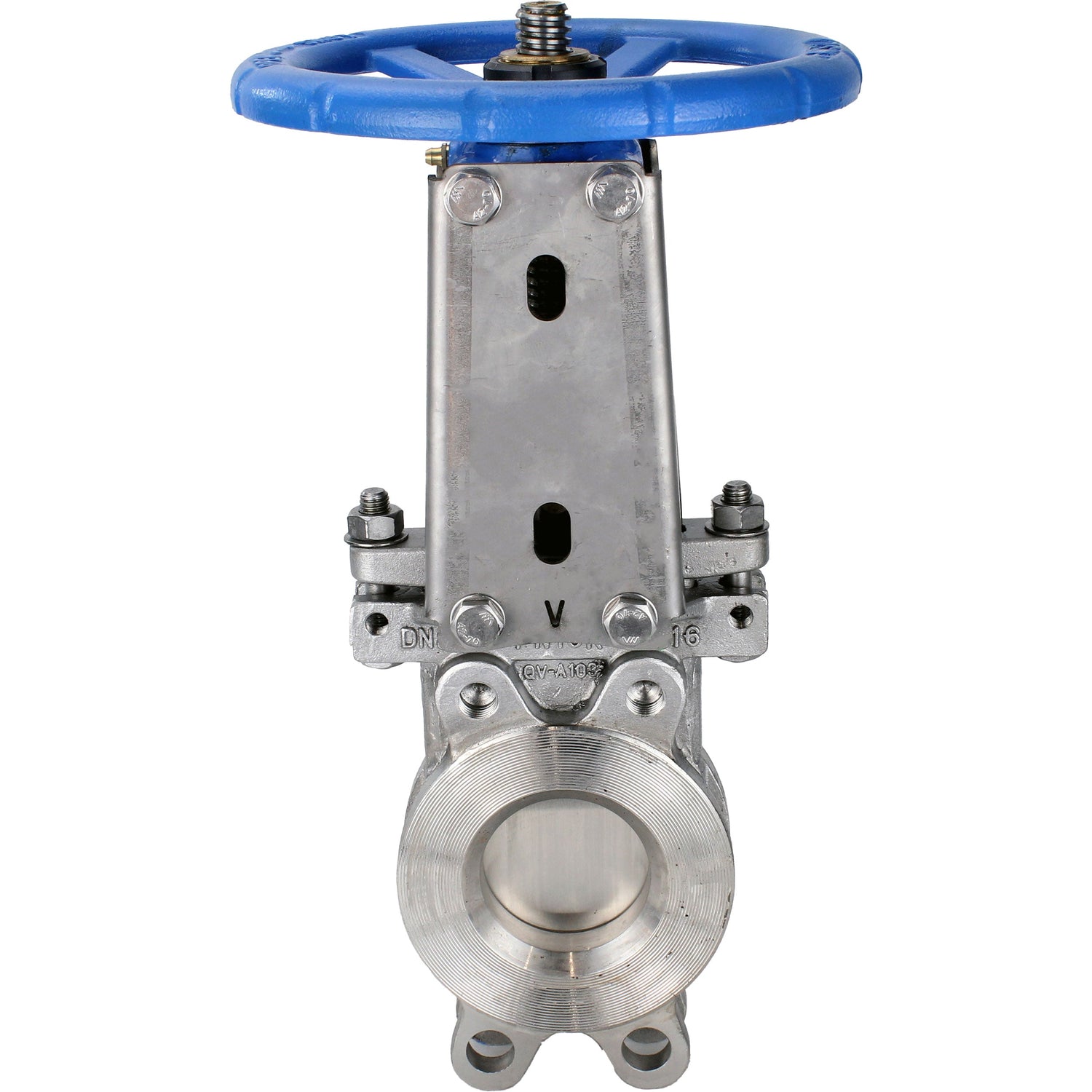

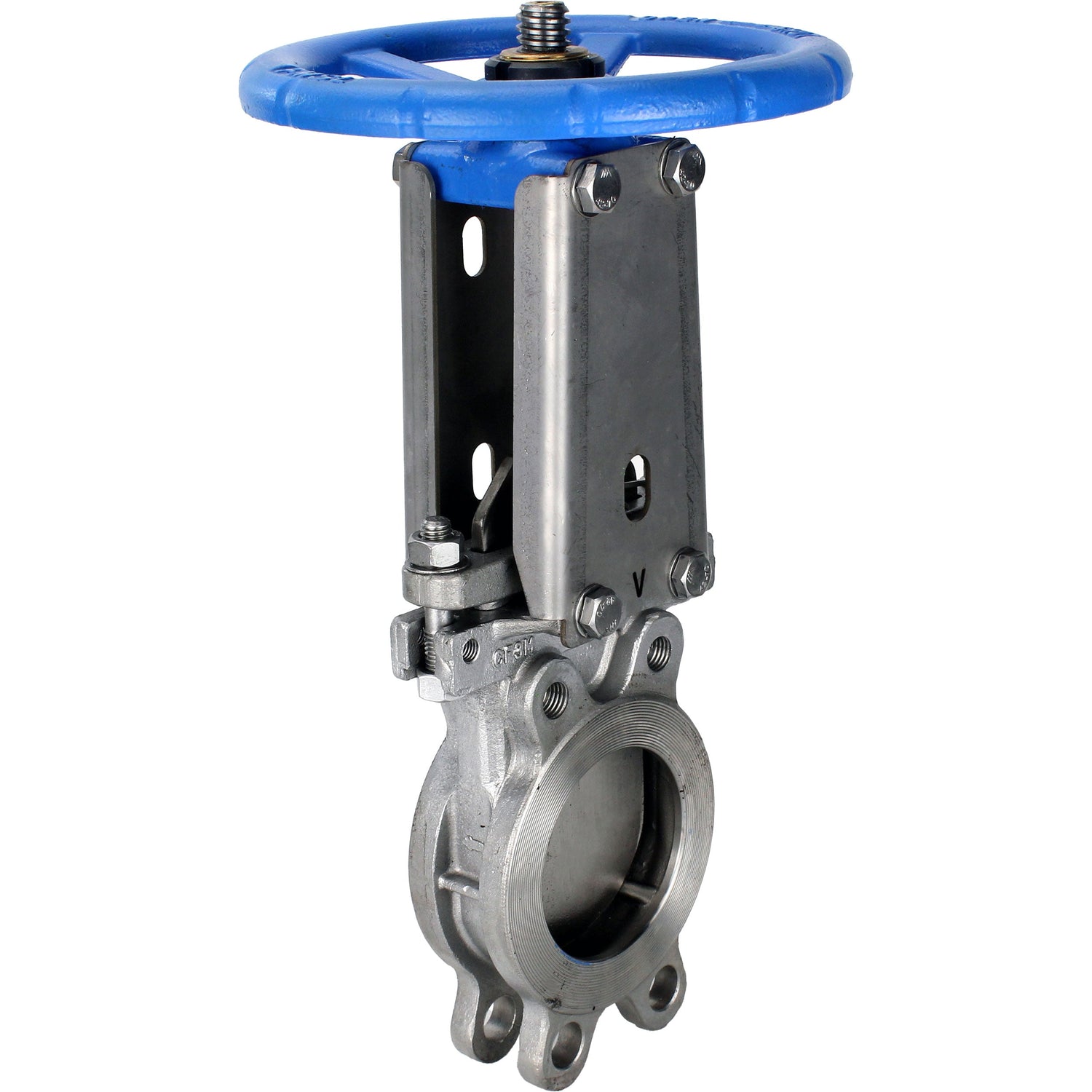

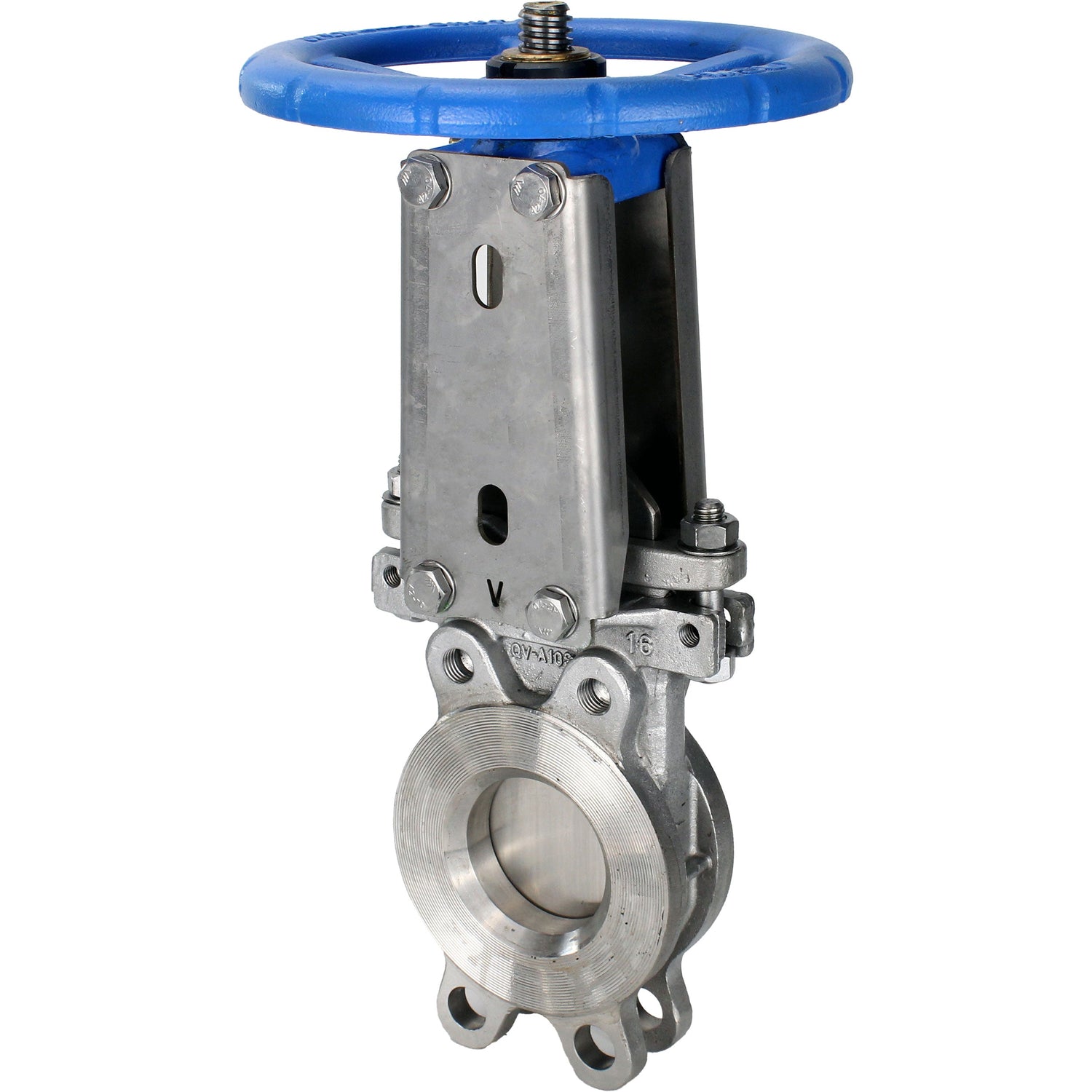

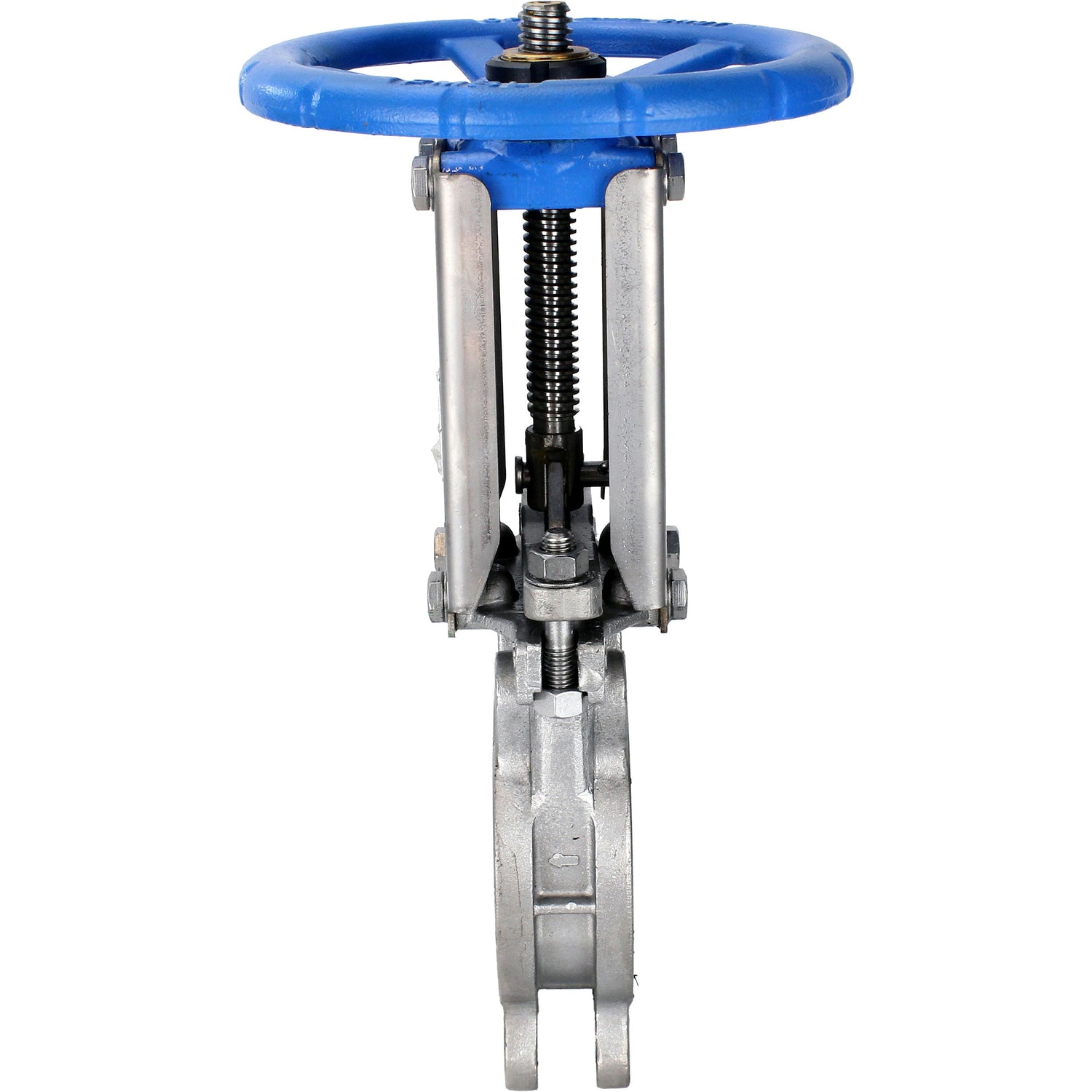

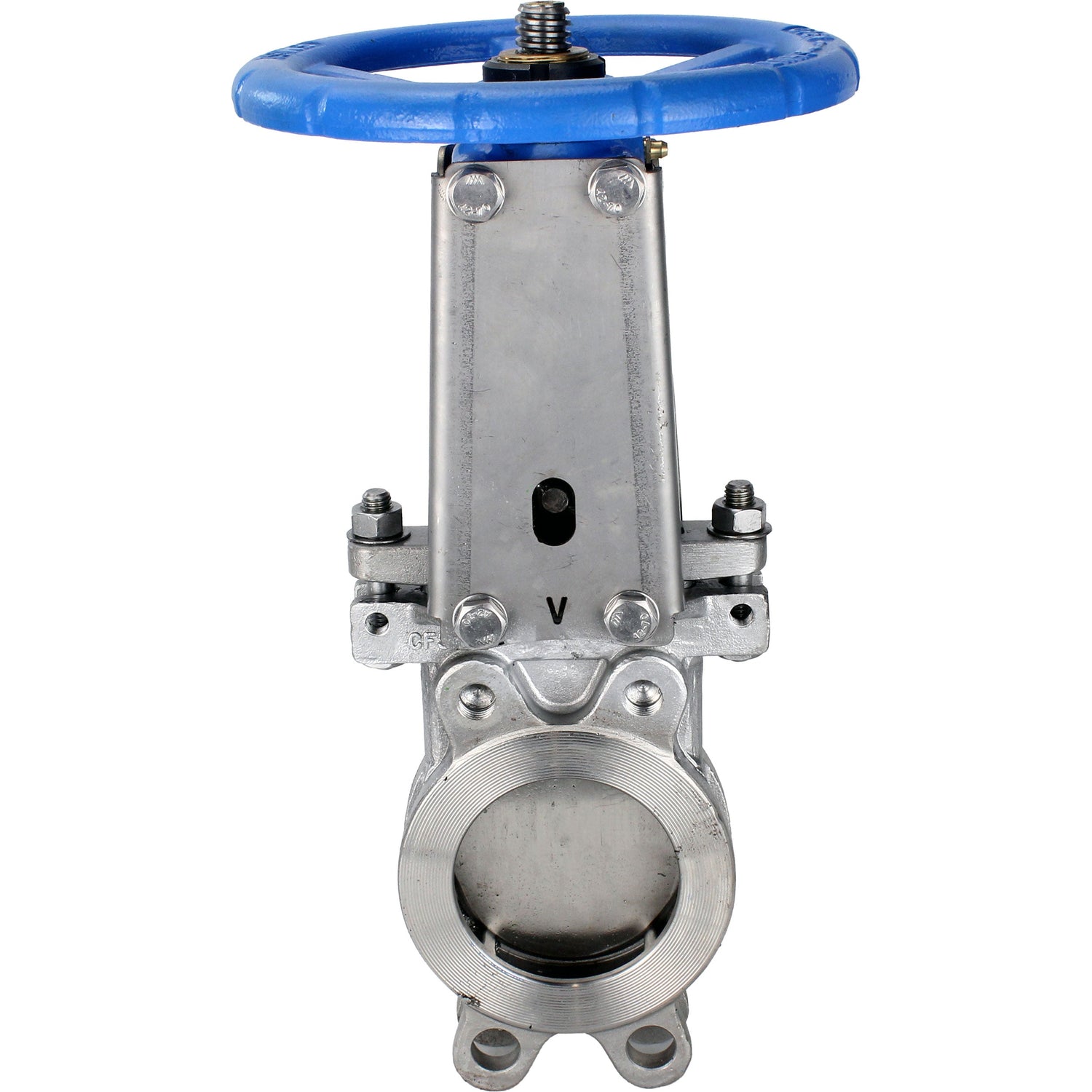

Knife gate valve Elephant GVKR3232E-1W-Fb-S, body material - stainless steel AISI 316, knife material - stainless steel AISI 316, seal - EPDM, handwheel
Knife gate valve Elephant GVKR3232E-1W-Fb-S, body material - stainless steel AISI 316, knife material - stainless steel AISI 316, seal - EPDM, handwheel - DN50 / 10 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The gate valve is designed to be installed on the pipeline as a shut-off device and regulate the flow of medium in water supply systems (except drinking water supply systems) and chemical industry. The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of medium. The flow is stopped when the diameter of the nominal bore of the pipeline is completely blocked, and adjusted when it is partially blocked.
Overall and installation dimensions Elephant GVKR3232E-1W-Fb-S knife gate gate valves, body material - stainless steel AISI 316, knife material - stainless steel AISI 316, seal - EPDM, handwheel:
| DN | L, mm | D, mm | D1, mm | D2, mm | D0, mm | H1, mm | T, mm | d, mm | ●, mm | O, mm | N-Th, mm |
| 50 | 48 | 165 | 125 | 99 | 180 | 292 | 12 | 18 | 2 | 2 | 4-M16 |
| 80 | 51 | 200 | 160 | 132 | 200 | 348 | 12 | 18 | 2 | 6 | 8-M16 |
| 100 | 51 | 220 | 180 | 156 | 240 | 395 | 12 | 18 | 2 | 6 | 8-M16 |
| 150 | 57 | 285 | 240 | 211 | 280 | 504 | 14 | 23 | 2 | 6 | 8-M20 |
| 200 | 70 | 340 | 295 | 266 | 300 | 617 | 18 | 23 | 2 | 6 | 8-M20 |
| 250 | 70 | 395 | 350 | 319 | 320 | 758 | 18 | 23 | 4 | 8 | 12-M20 |
Materials Elephant GVKR3232E-1W-Fb-S knife gate valves, body material - stainless steel AISI 316, knife material - stainless steel AISI 316, seal - EPDM, handwheel:
| № | Part name | Material |
| 1 | Body | SS316 stainless steel |
| 2 | Seal | EPDM |
| 3 | Ring | SS316 stainless steel |
| 4 | Schieber | SS316 stainless steel |
| 5 | Guide seal | PTFE |
| 6 | Packing | PTFE |
| 7 | Gland | SS304 stainless steel |
| 8 | Patron | WCB steel |
| 9 | Rod | SS304 stainless steel |
| 10 | Rack | Q235 steel |
| 11 | Hand wheel | cast iron GGG40 |
| 12 | Cover | steel Q235 |
| 13 | Wedge | stainless steel SS316 |
Specifications
Specifications
-
Country of origin
-
Body material
-
Stopper Material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Gate valve type
-
Nominal pressure
-
Type of seal
