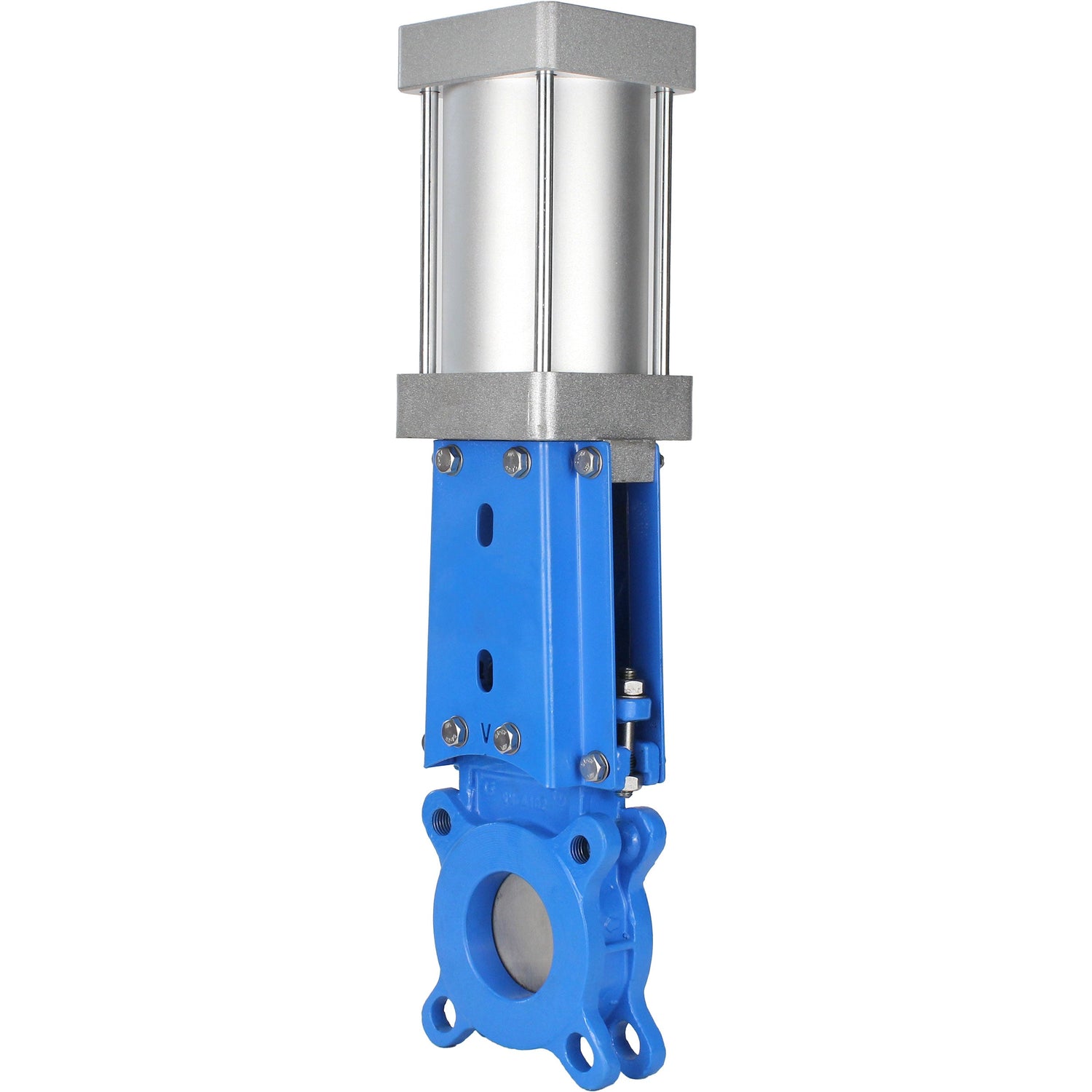

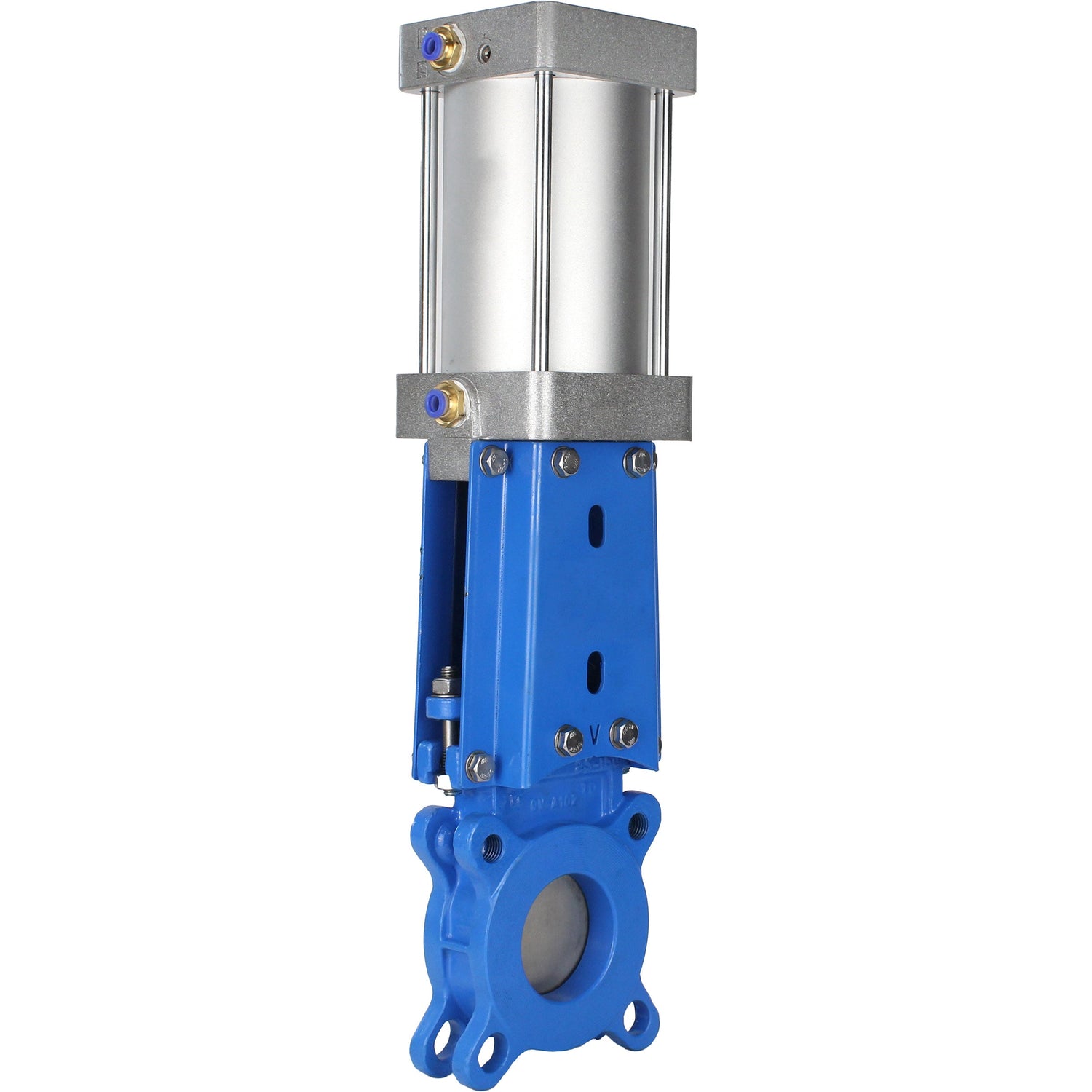

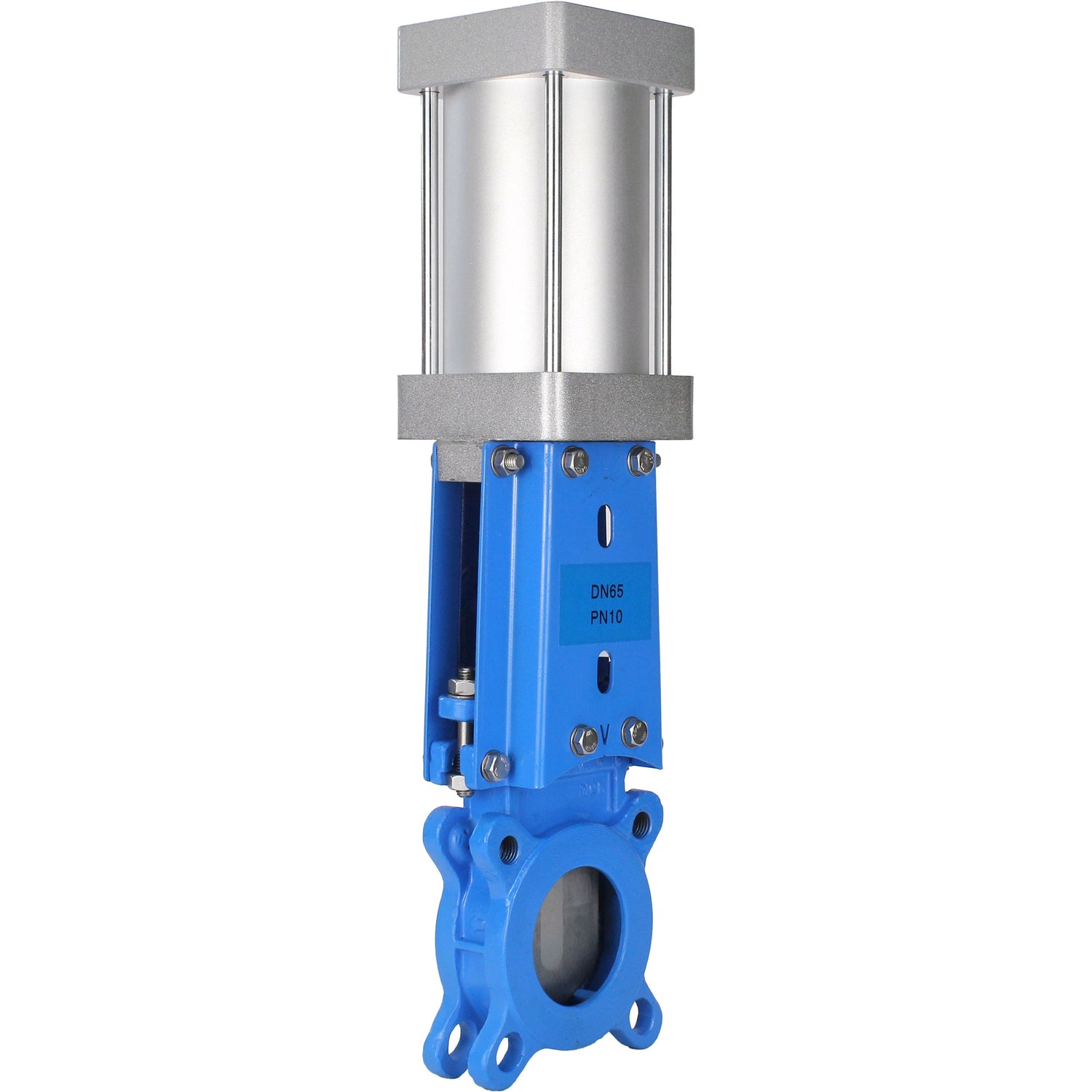

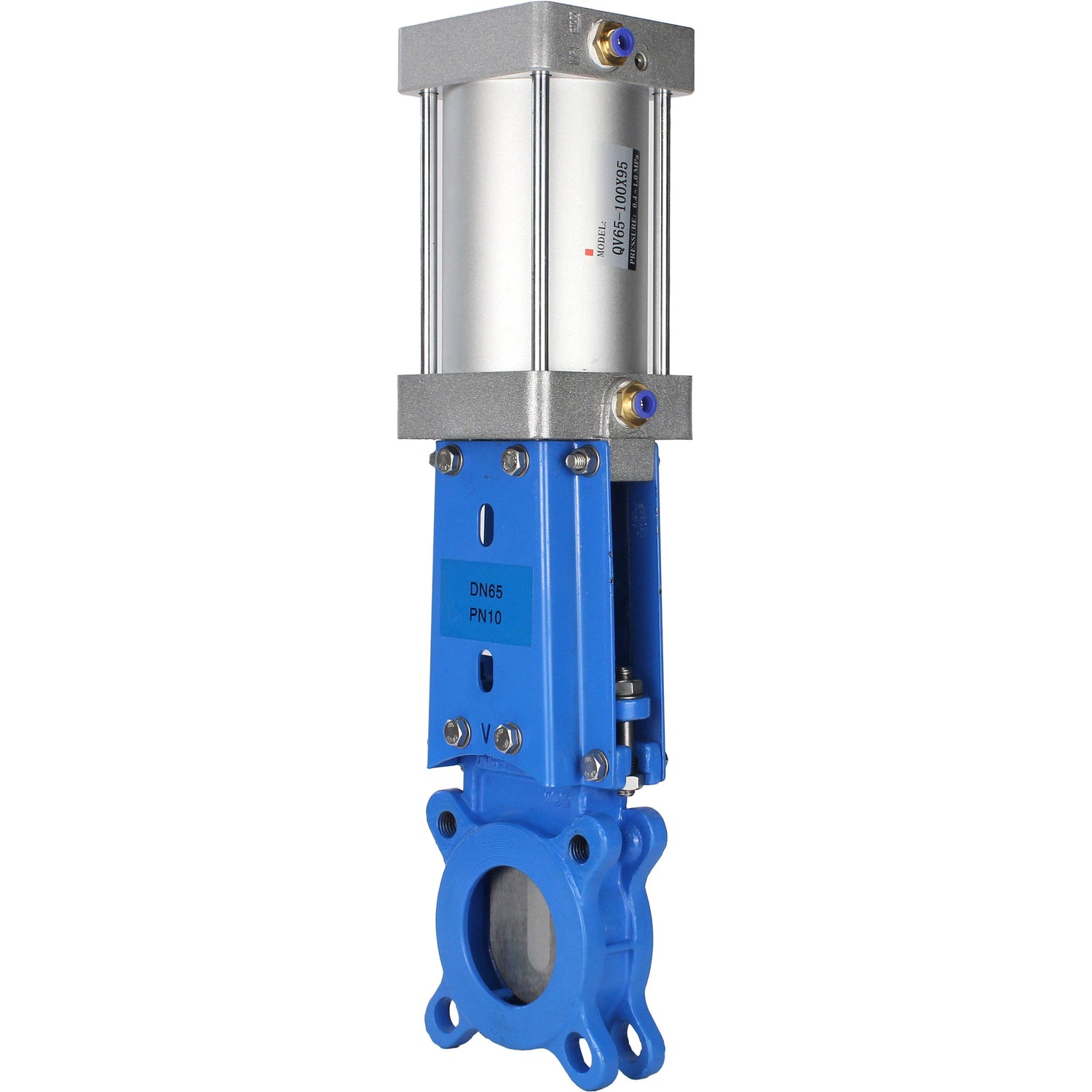

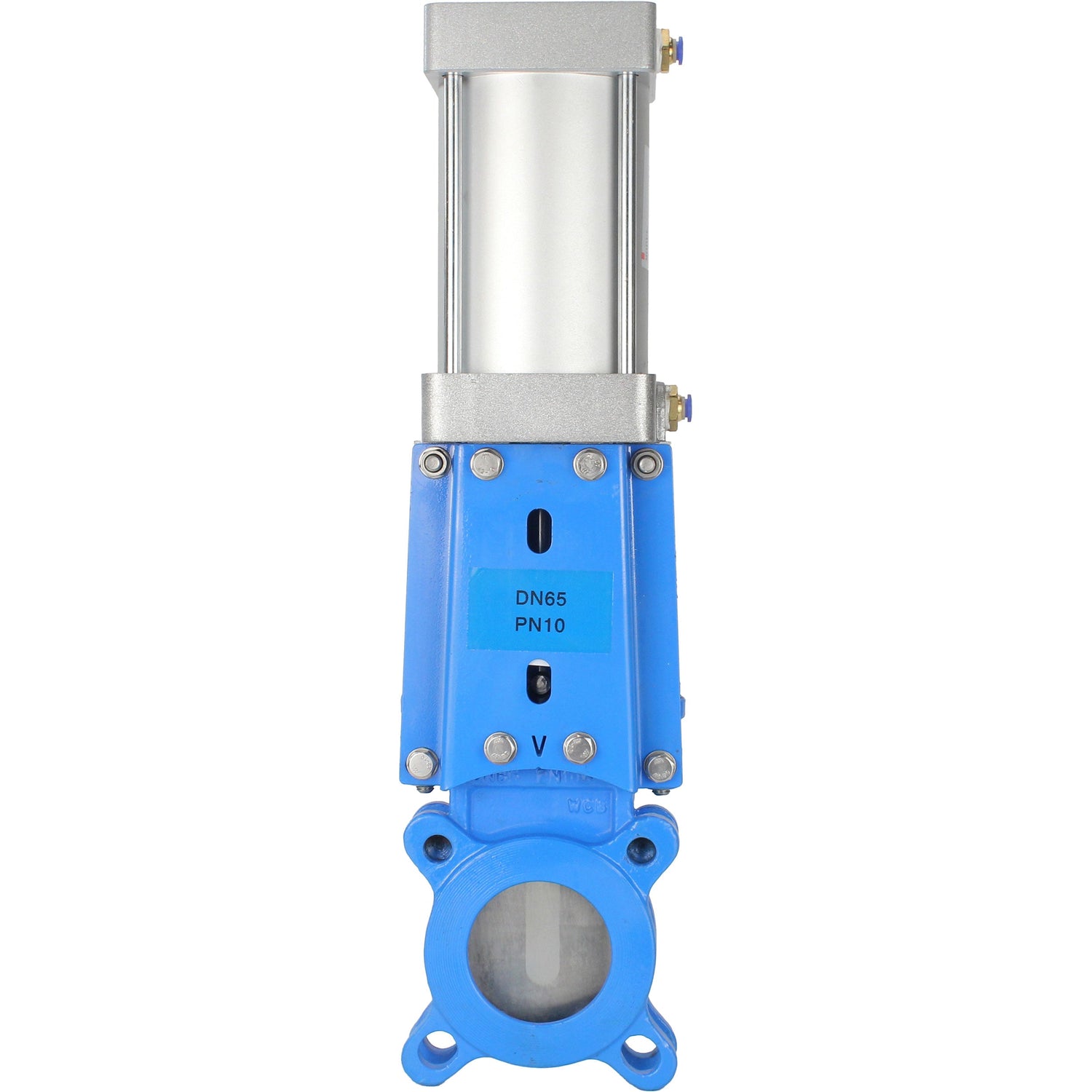

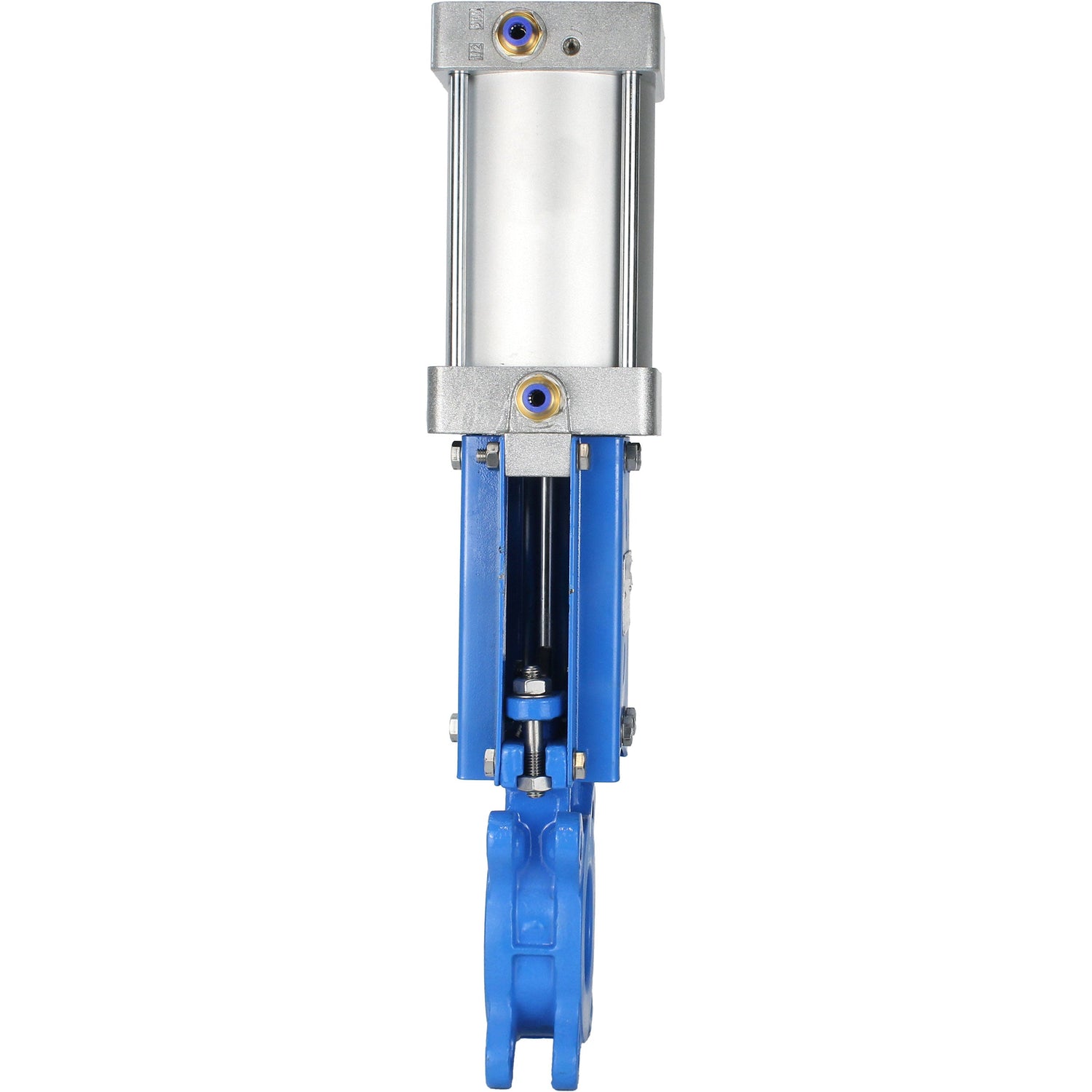

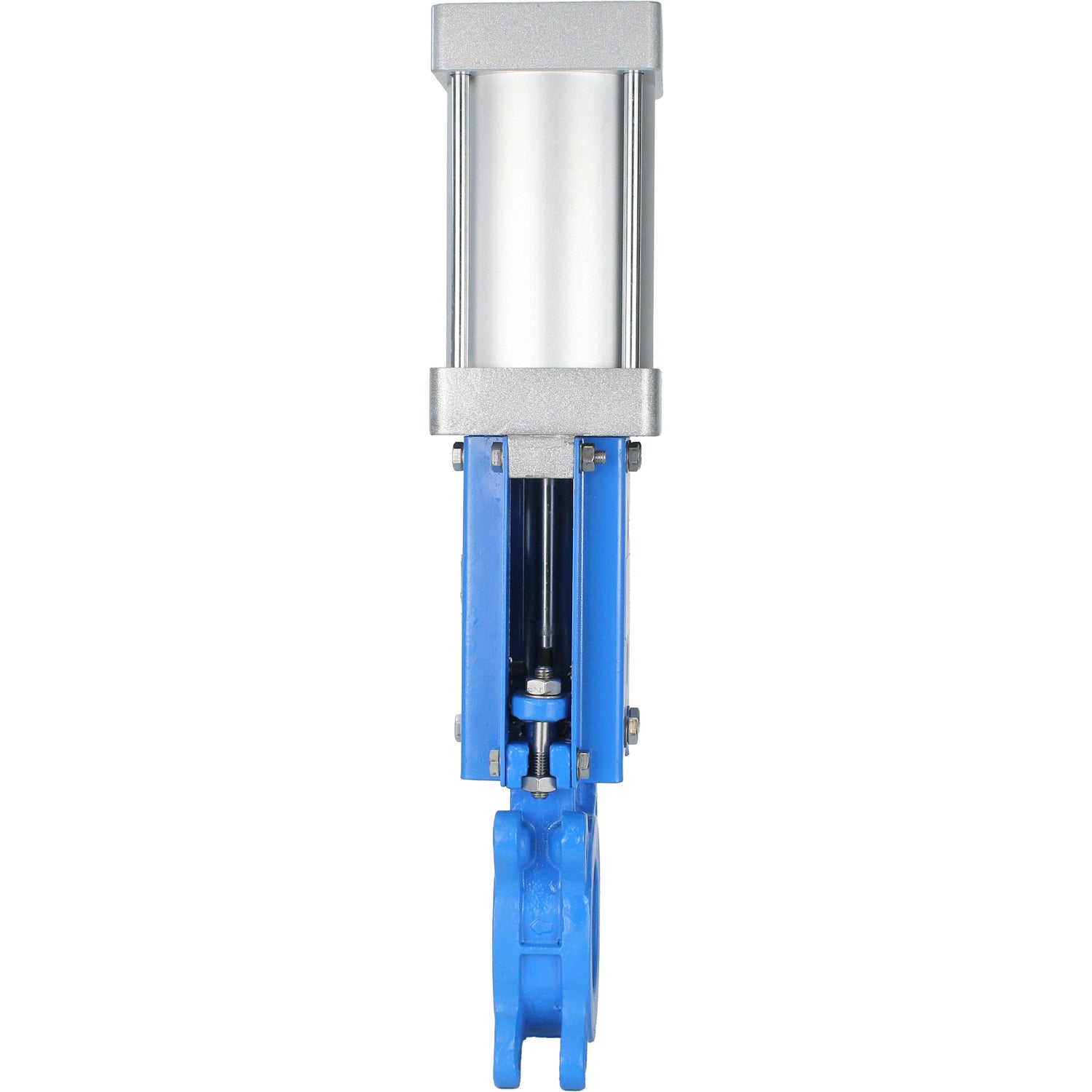

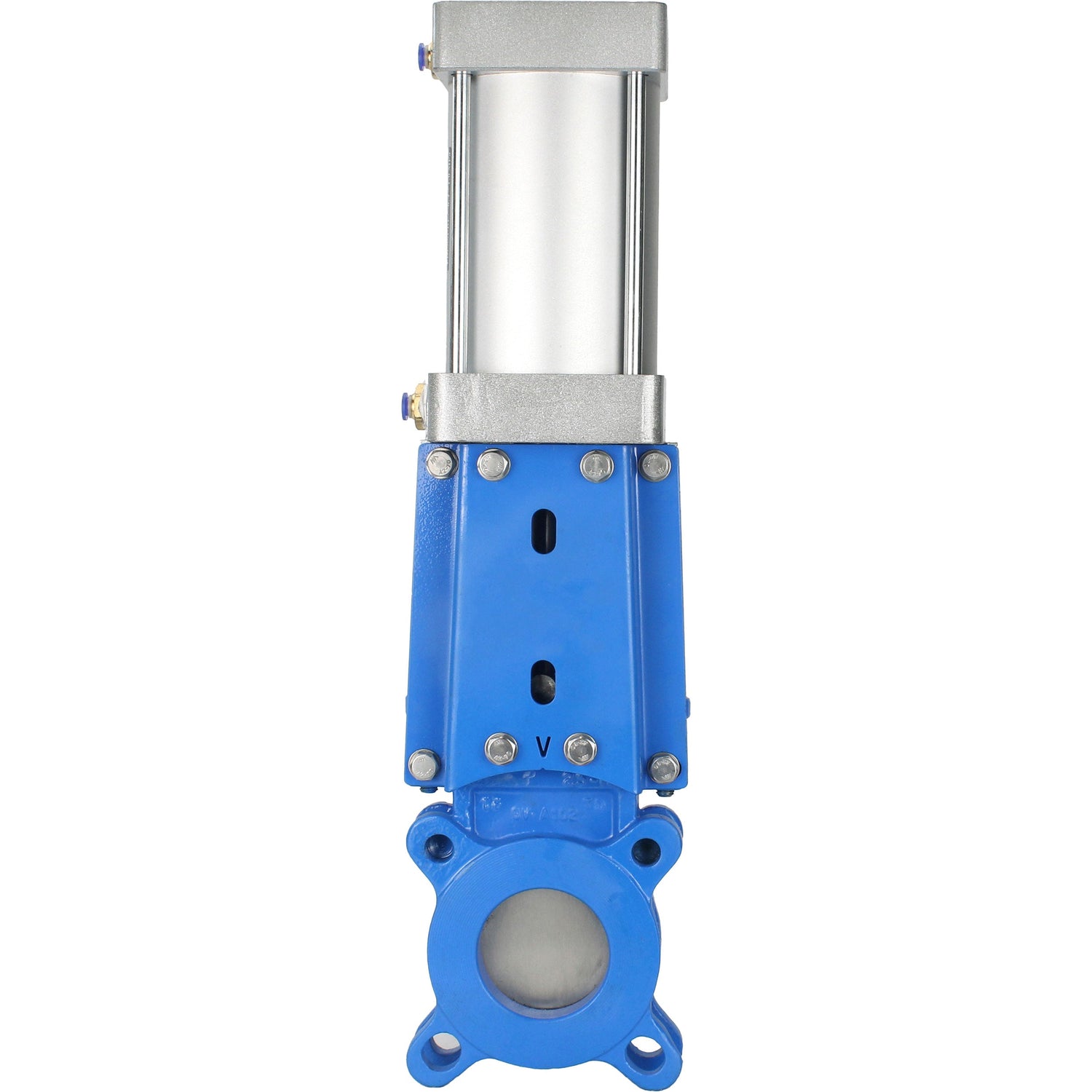

Knife gate valve Elephant GVKR3131M-1W-Fb-2P, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - metal, pneumatic actuator
Knife gate valve Elephant GVKR3131M-1W-Fb-2P, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - metal, pneumatic actuator - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The gate valve is designed for installation on the pipeline as a shut-off device and regulation of the working medium flow in water supply systems (except for drinking water supply systems) and chemical industry.
The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of medium. At full closing of the pipeline nominal bore diameter the flow is stopped, at partial closing the flow is regulated.
The principle of operation of pneumatic actuator is based on the movement of the built-in piston due to compressed air, which is supplied to the system from a compressor or tank.
Overall and installation dimensions Elephant GVKR3131M-1W-Fb-2P knife gate gate valves, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - metal, pneumatic actuator:
| DN | L, mm | D, mm | D1, mm | D2, mm | D0, mm | H1, mm | T, mm | d, mm | ● | O | N-Th, mm | G |
| 50 | 48 | 165 | 125 | 99 | 100 | 417 | 12 | 18 | 2 | 2 | 4-M16 | 1/2″ |
| 65 | 48 | 185 | 145 | 118 | 100 | 460 | 12 | 18 | 2 | 2 | 4-M16 | 1/2″ |
| 100 | 51 | 220 | 180 | 156 | 100 | 600 | 12 | 18 | 2 | 6 | 8-M16 | 1/2″ |
| 125 | 57 | 250 | 210 | 184 | 100 | 628 | 14 | 18 | 2 | 6 | 8-M16 | 1/2″ |
| 150 | 57 | 285 | 240 | 211 | 125 | 780 | 14 | 23 | 2 | 6 | 8-M20 | 1/2″ |
| 200 | 70 | 340 | 295 | 266 | 125 | 880 | 18 | 23 | 4 | 8 | 12-M20 | 1/2″ |
Materials Elephant GVKR3131M-1W-Fb-2P knife gate valves, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - metal, pneumatic actuator:
| № | Part name | Material |
| 1 | Body | SS304 stainless steel |
| 2 | Lining | EPDM |
| 3 | Steel ring | stainless steel SS304 |
| 4 | Schieber | stainless steel SS304 |
| 5 | Guide seal | PTFE |
| 6 | Packing | PTFE |
| 7 | Gland packing | SS304 stainless steel |
| 8 | Patron | WCB steel |
| 9 | Rod | 45+Cr steel |
| 10 | Rack | Q235 steel |
| 11 | Switch | - |
| 12 | Rack head | cast iron GGG40 |
| 13 | Pneumatic cylinder | - |
| 14 | Solenoid valve | - |
| 15 | Filter | - |
| 16 | Wedge | stainless steel SS304 |
Specifications
Specifications
-
Country of origin
-
Body material
-
Stopper Material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Gate valve type
-
Nominal pressure
-
Type of seal
