Knife gate valve Elephant GVKR3131E-2W-Fb-2P, body material - stainles – Valve Elephant
Elephant  |  SKU: D040-08790

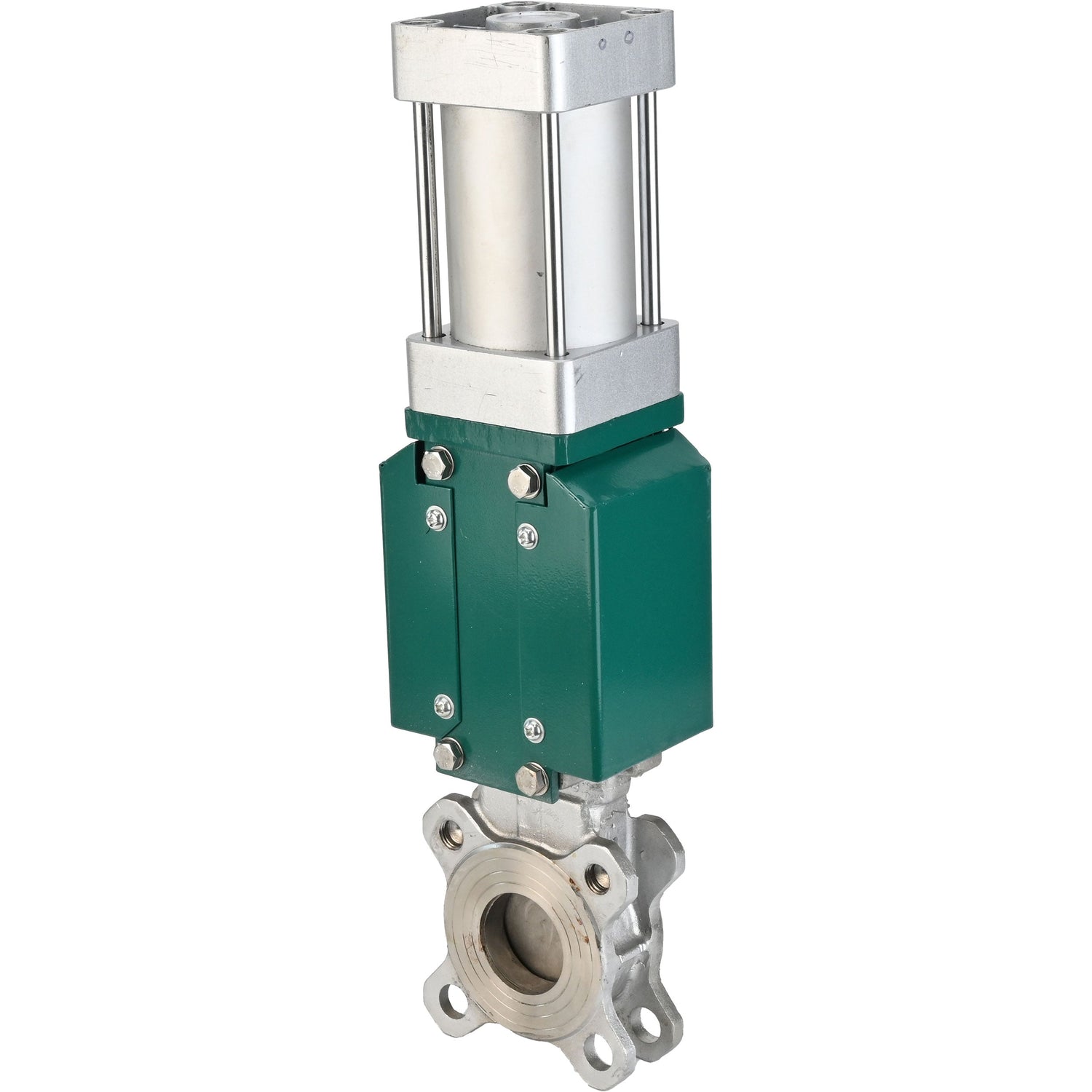

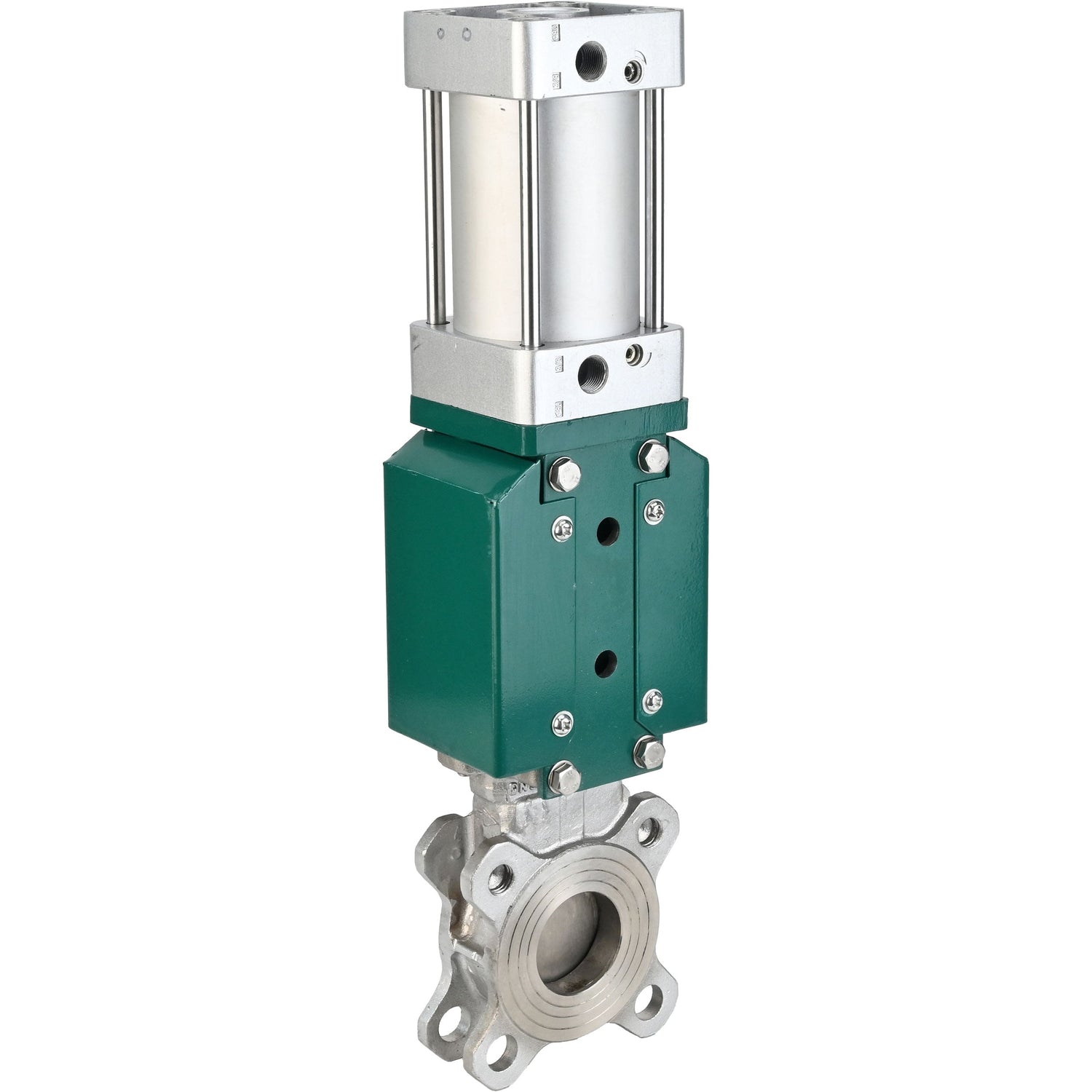

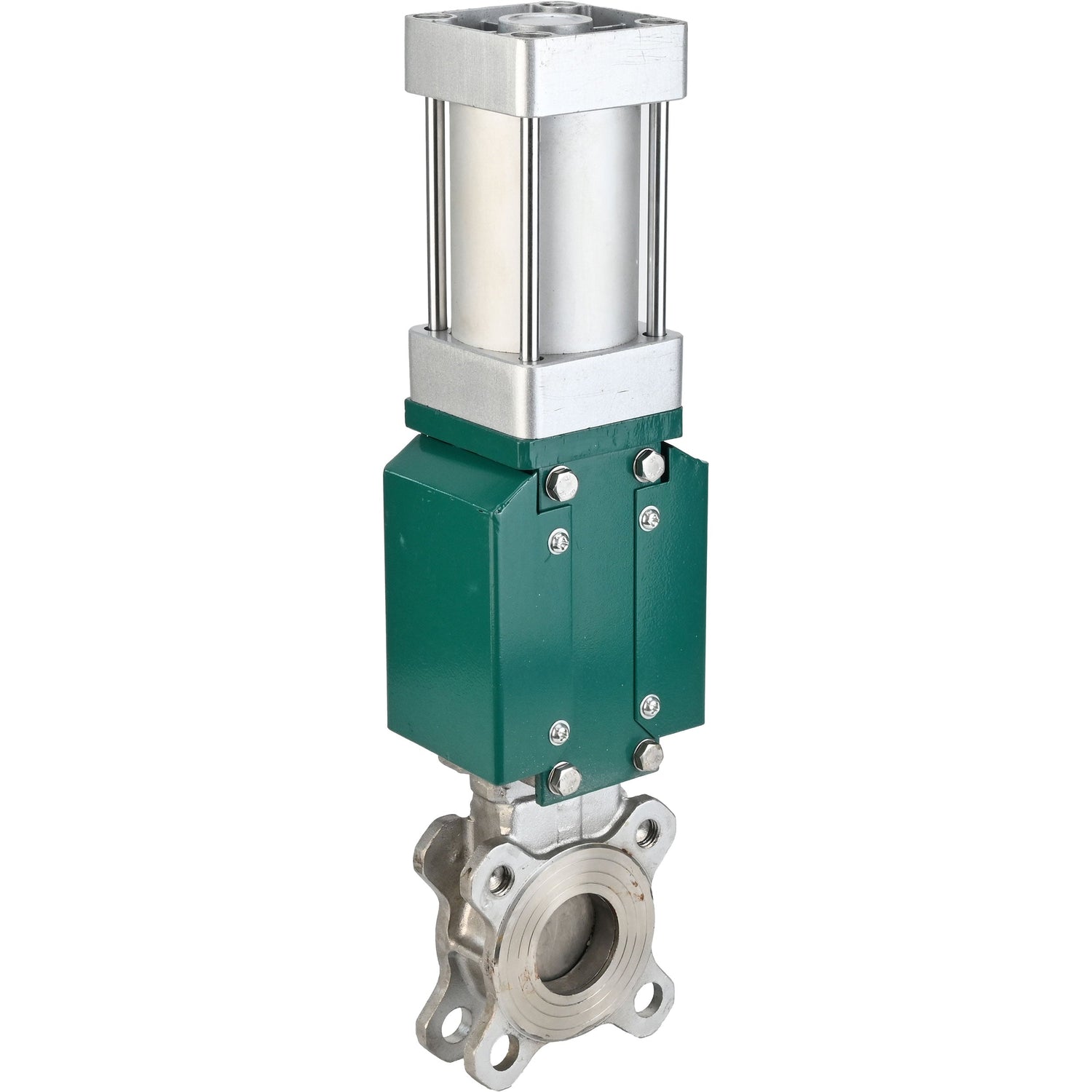

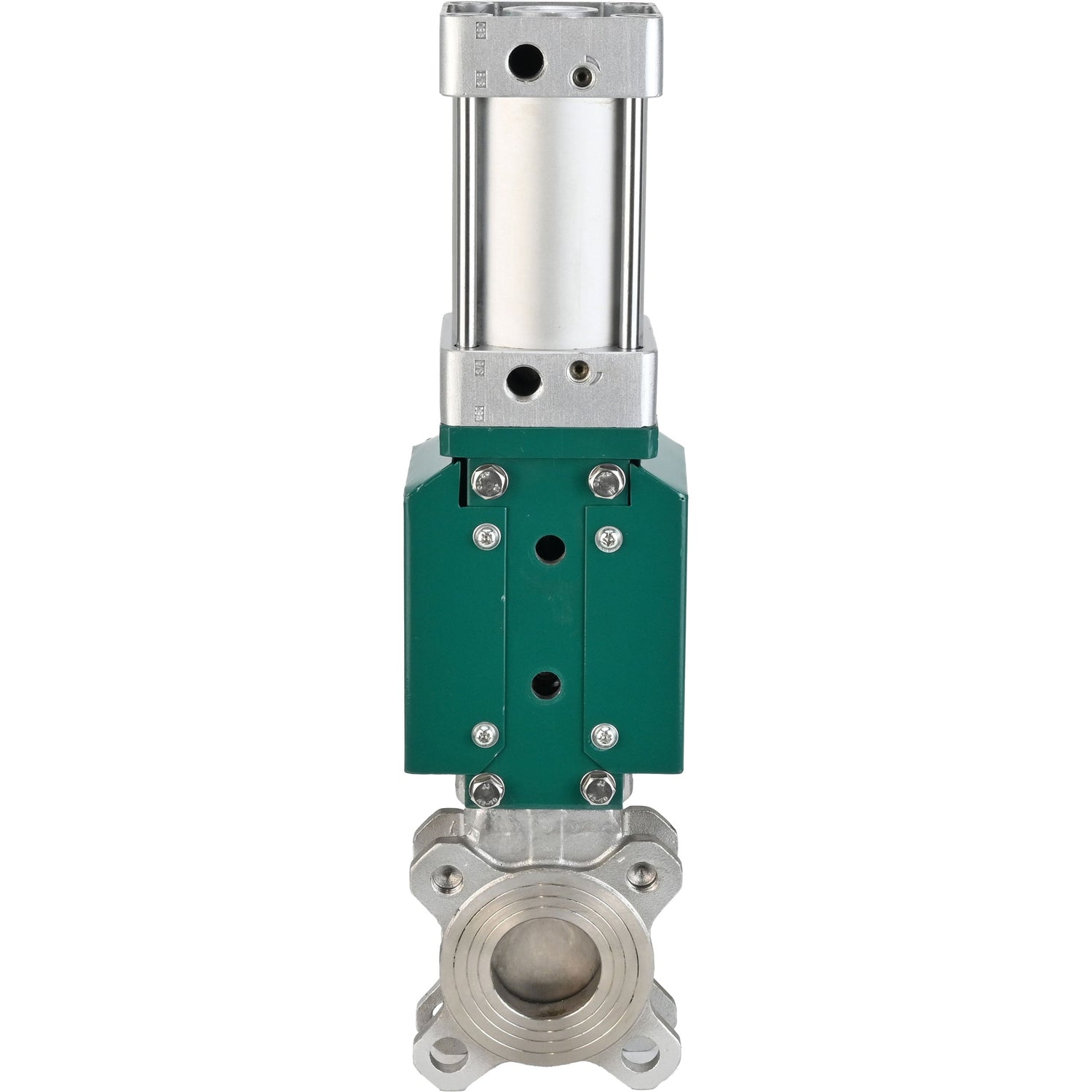

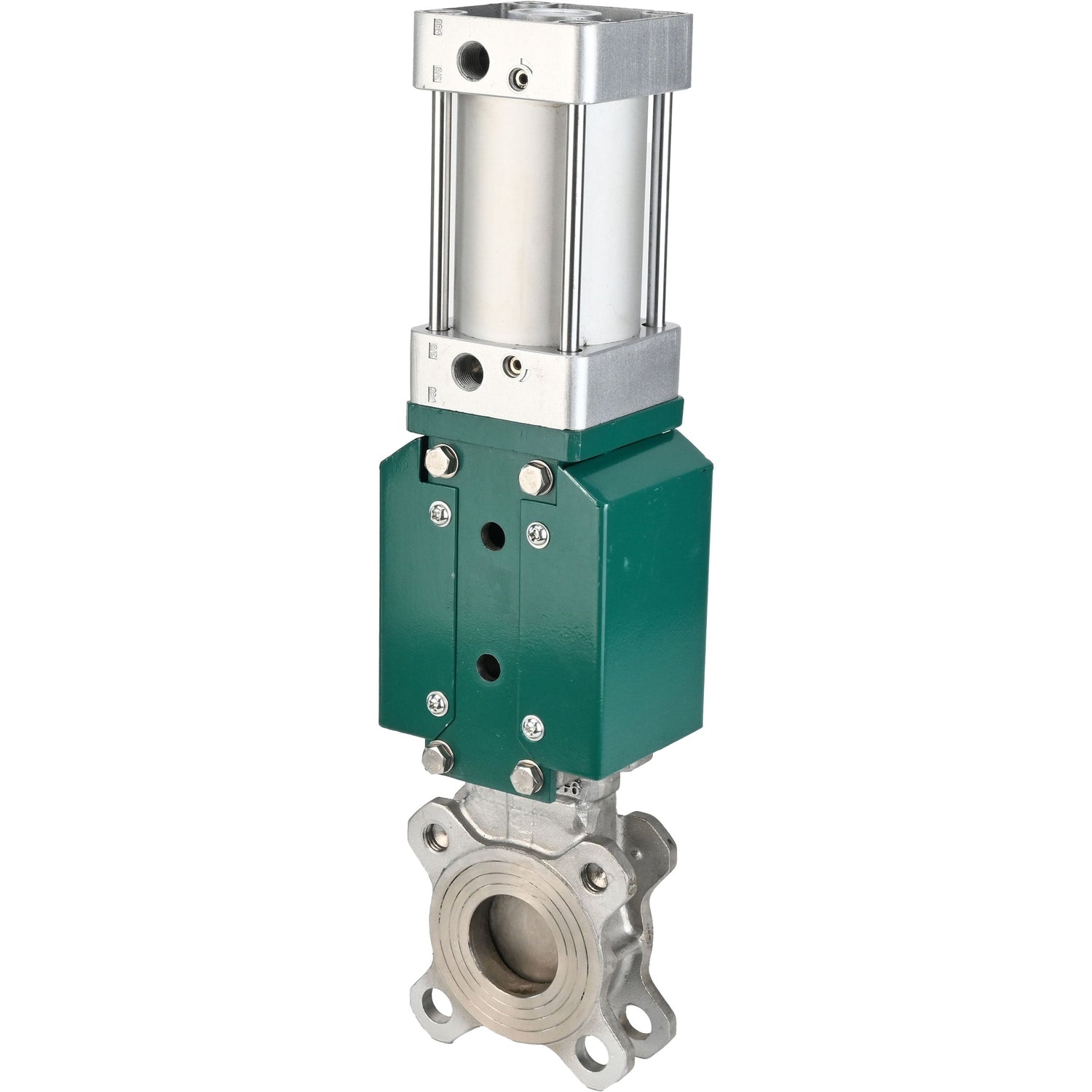

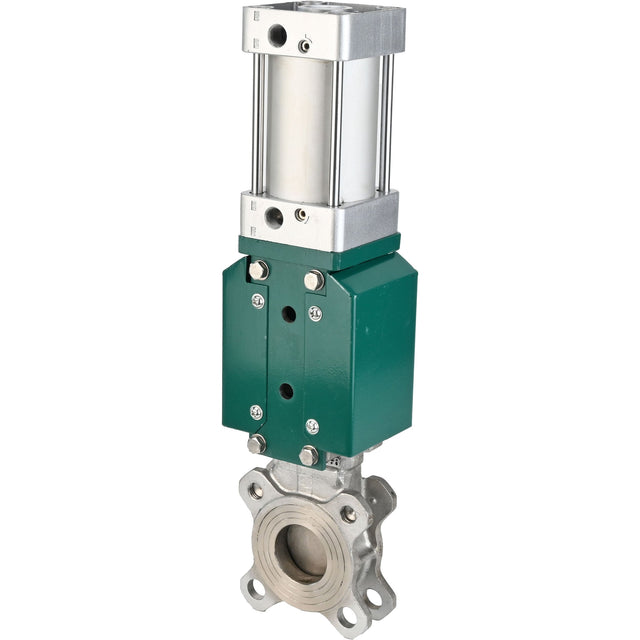

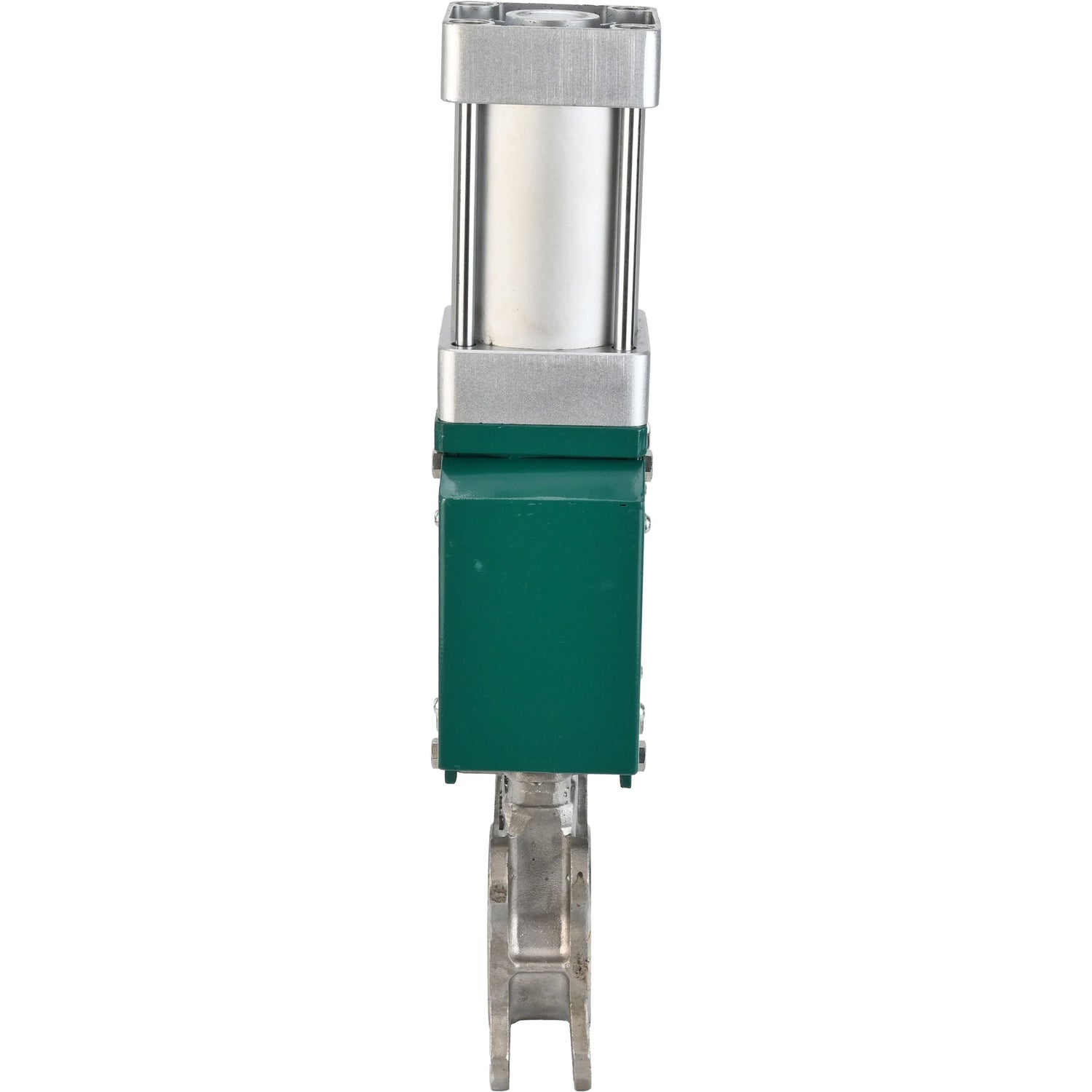

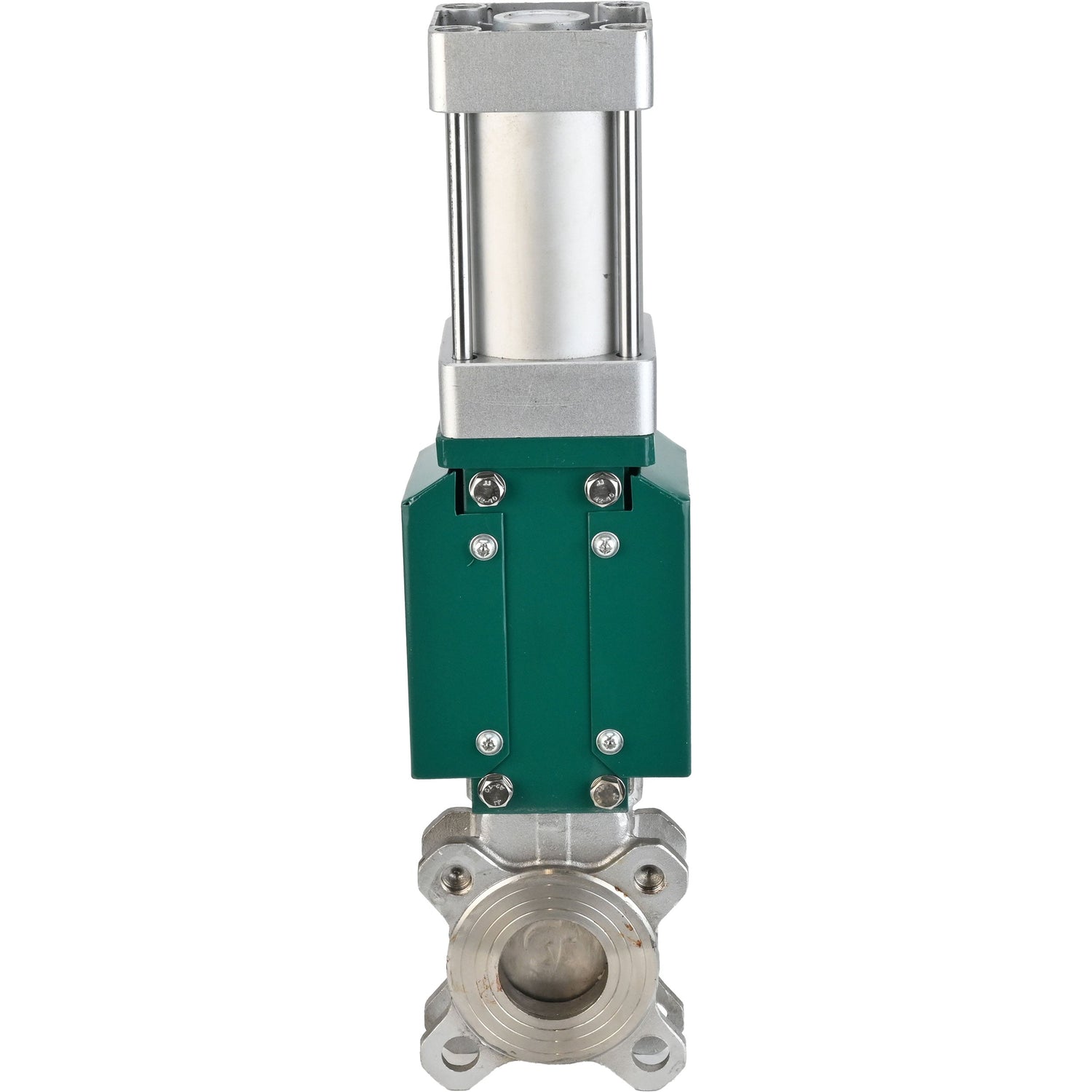

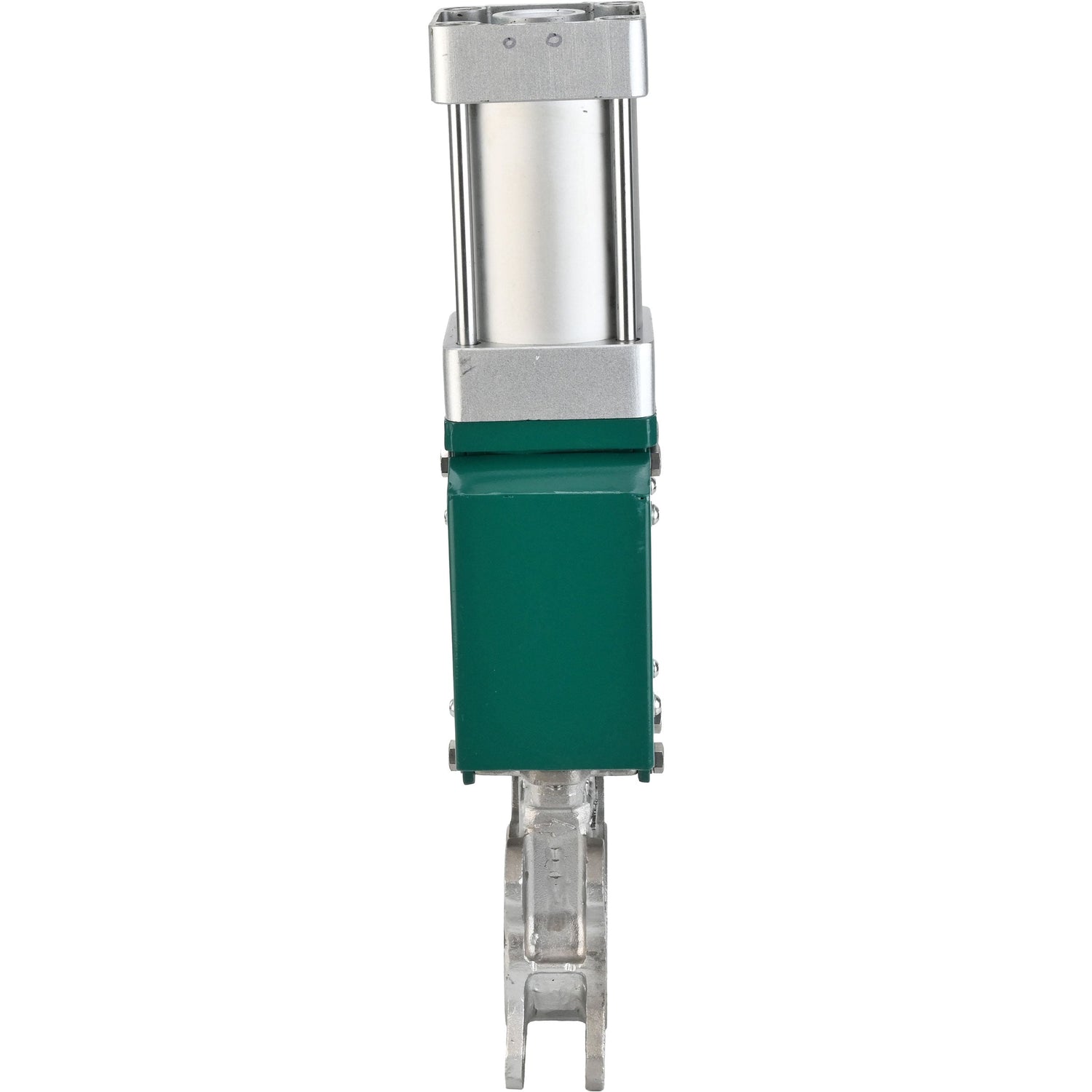

Knife gate valve Elephant GVKR3131E-2W-Fb-2P, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, pneumatic actuator

€824,33
Tax included Shipping calculated at checkout.

Knife gate valve Elephant GVKR3131E-2W-Fb-2P, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, pneumatic actuator - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The gate valve is designed to be installed on the pipeline as a shut-off device and regulate the flow of medium in water supply systems (except drinking water supply systems) and chemical industry.

The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of medium. When the diameter of the nominal bore of the pipeline is completely blocked, the flow is stopped, and when it is partially blocked, the flow is adjusted.

The principle of operation of the pneumatic actuator is based on the movement of the built-in piston due to compressed air, which is supplied to the system from a compressor or tank.

Pneumatic actuator is based on the movement of the built-in piston by compressed air.





Dimensions and installation dimensions of gate valves Elephant GVKR3131E-2W-Fb-2P, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, pneumatic actuator

Parameter Model (Nominal diameter DN, mm)
DN100 DN125 DN150 DN200
L 51 57 57 70
D 220 250 285 340
D1 180 210 240 295
D2 156 184 211 266
H1 743 855 969 1295
G, inch 1/2″ 1/2″ 1/2″ 1/2″
N-Th 8-M16 8-M16 8-M20 12-M20
T 12 12 14 16
Ød 18 18 23 23
⚫, piece 2 2 2 4
⊕, piece 6 6 6 8
Weight, kg 12.5 16.7 23 31

Dimensional sketch of gate valves Elephant GVKR3131E-2W-Fb-2P, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, pneumatic actuator





Materials of gate valves Elephant GVKR3131E-2W-Fb-2P, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, pneumatic actuator

Part name Material
1 Case stainless steel SS304
2 Lining EPDM
3 Schieber stainless steel SS304
4 Guide seal PTFE
5 Seat seal EPDM+steel
6 padding PTFE
7 Gland packing stainless steel SS304
8 Stem steel 45+Cí
9 Rack steel Q235
10 Switch -
11 Pneumatic cylinder -
12 Solenoid valve -
13 Filter -

Material sketch of slide gate valves Elephant GVKR3131E-2W-Fb-2P, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, pneumatic actuator

Specifications

  • Country of origin
    China
  • Body material
    stainless steel AISI 304
  • Stopper Material
    stainless steel AISI 304
  • Maximum allowable temperature
    110 °C
  • Connection type
    Compact flanged
  • Control type
    pneumatic actuator
  • Gate valve type
    Knife Gate Valve
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D040-08790DN5016 bar €824,33 0 in stock
    D040-08789DN6516 bar €857,55 0 in stock
    D040-08516DN10016 bar €461,47 0 in stock
    D040-08517DN12516 bar €1.036,00 0 in stock
    D040-08520DN15016 bar €1.209,77 0 in stock
    D040-08521DN20016 bar €1.735,44 0 in stock
