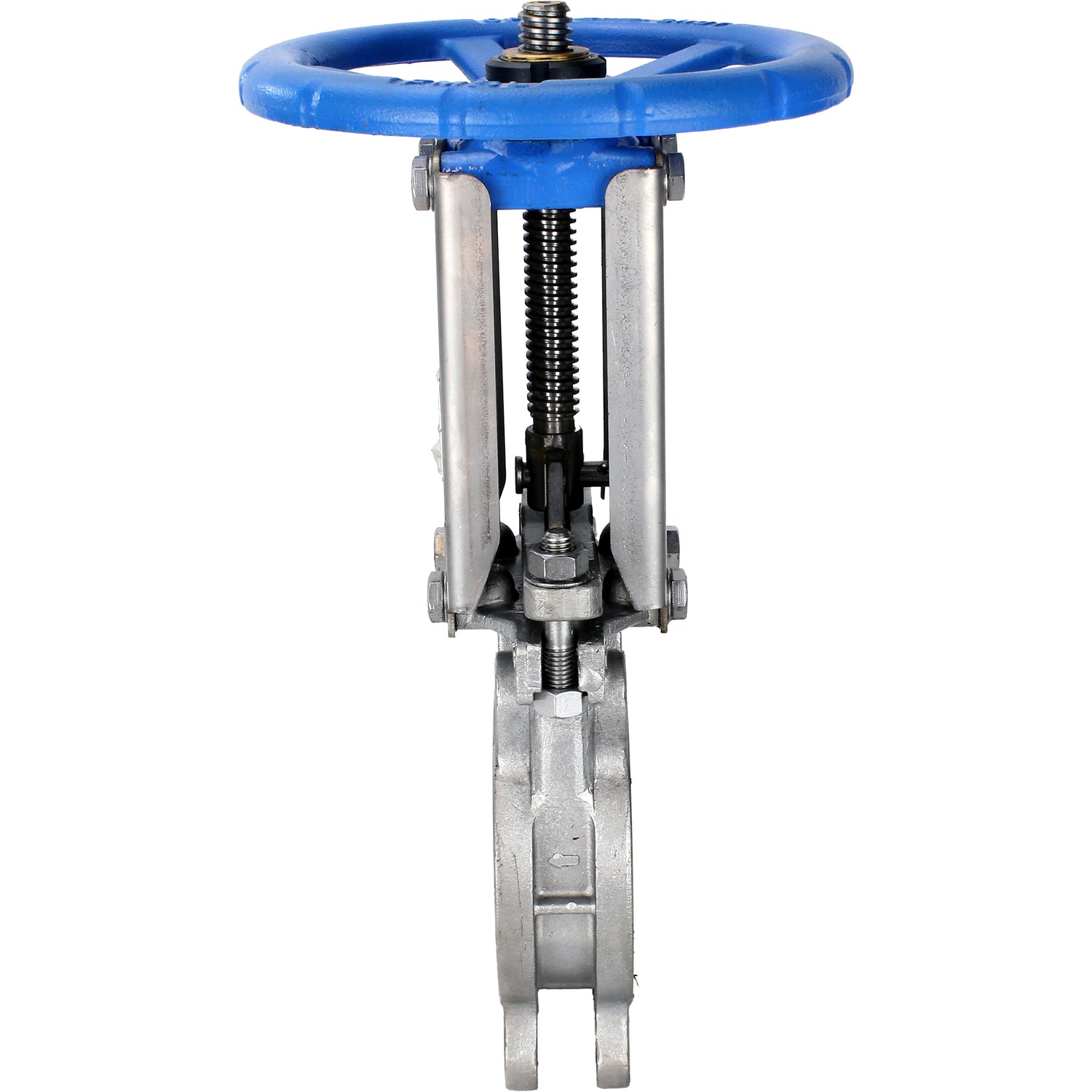

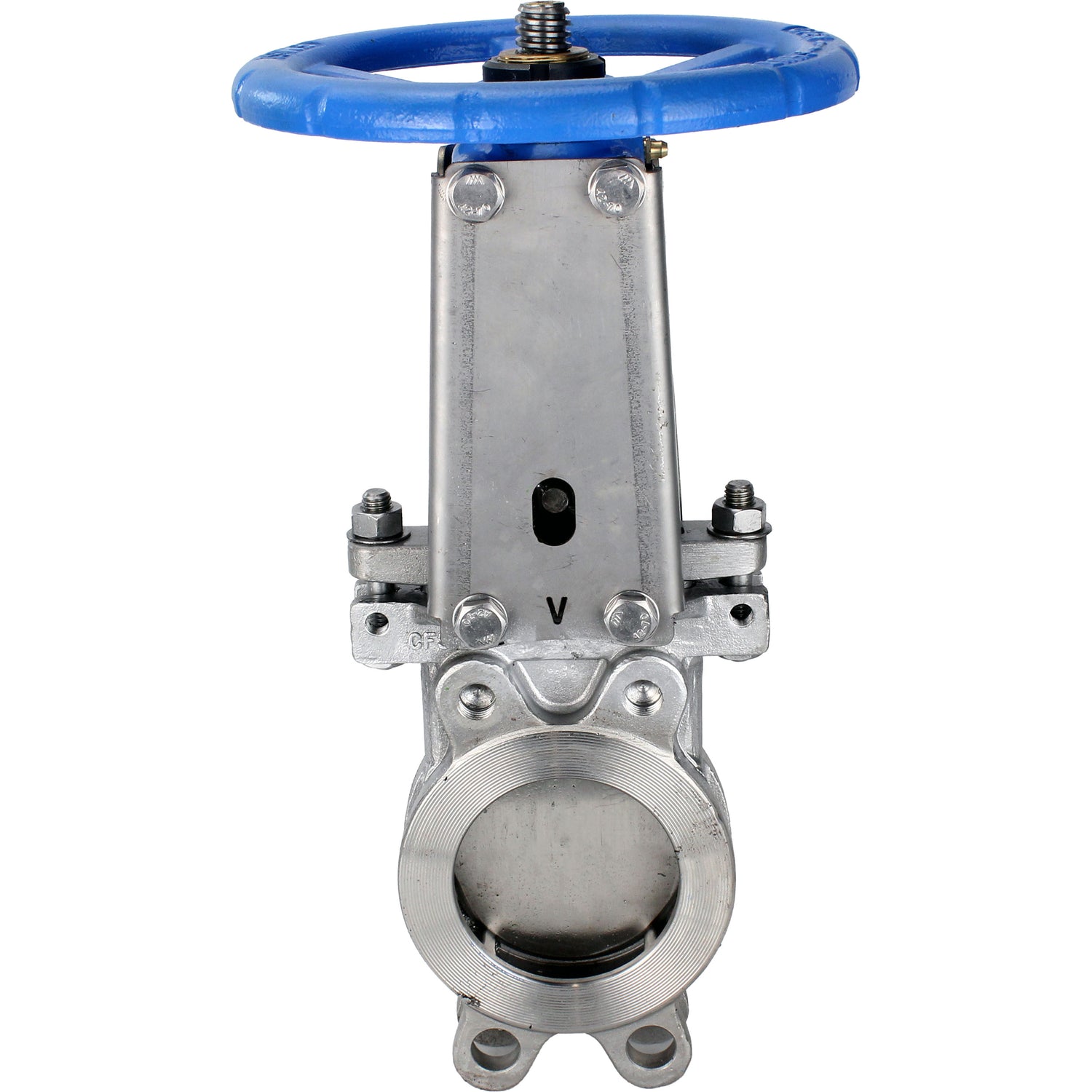

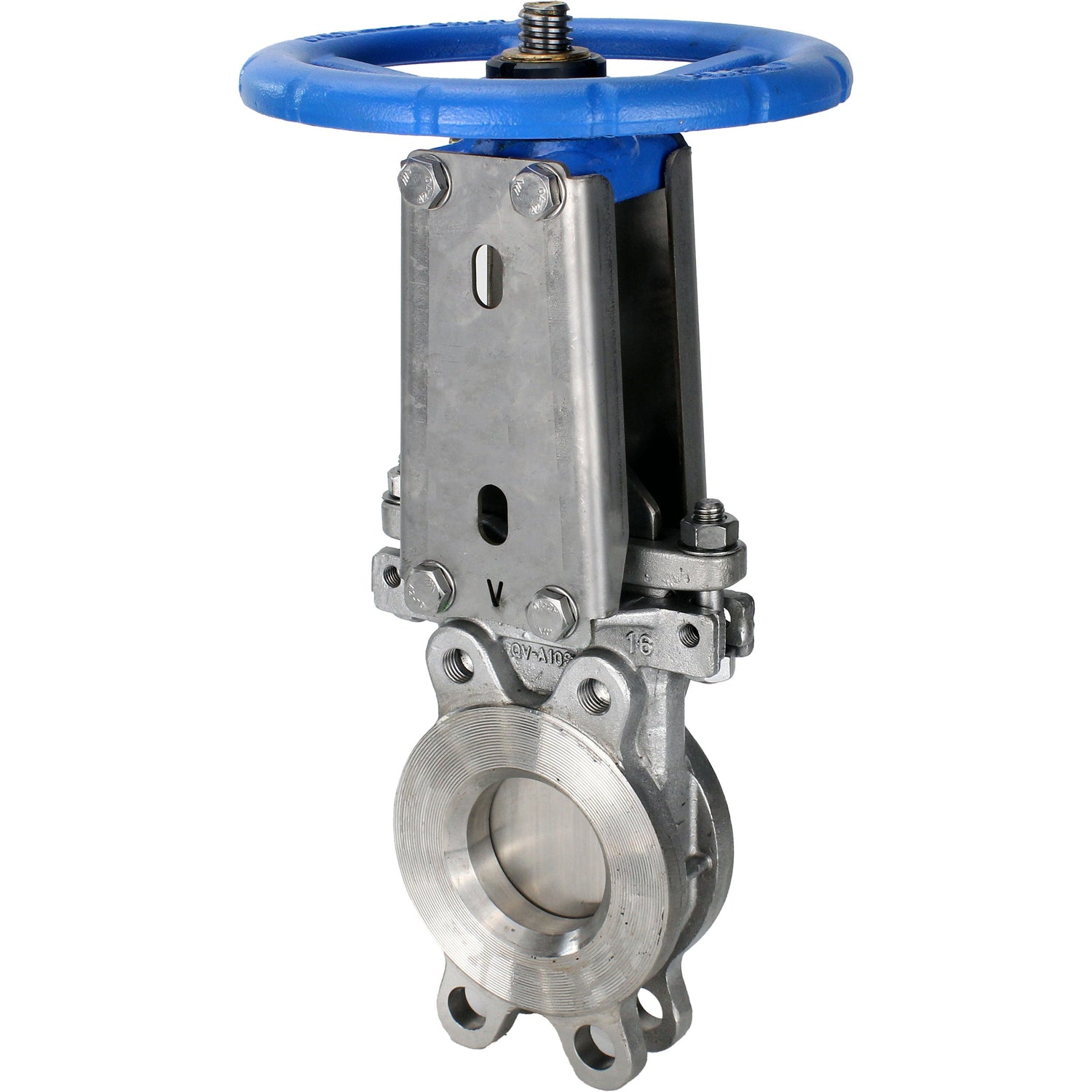

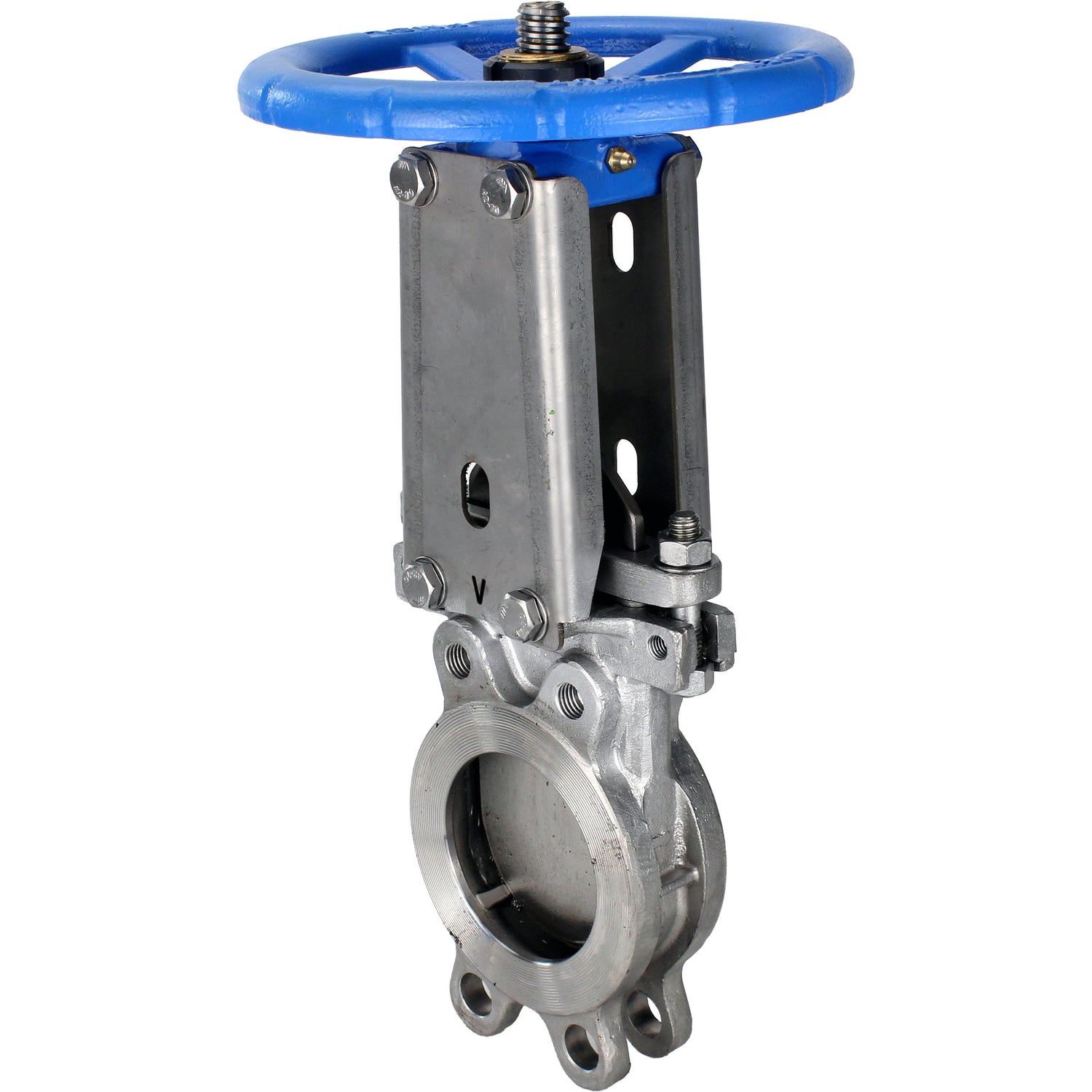

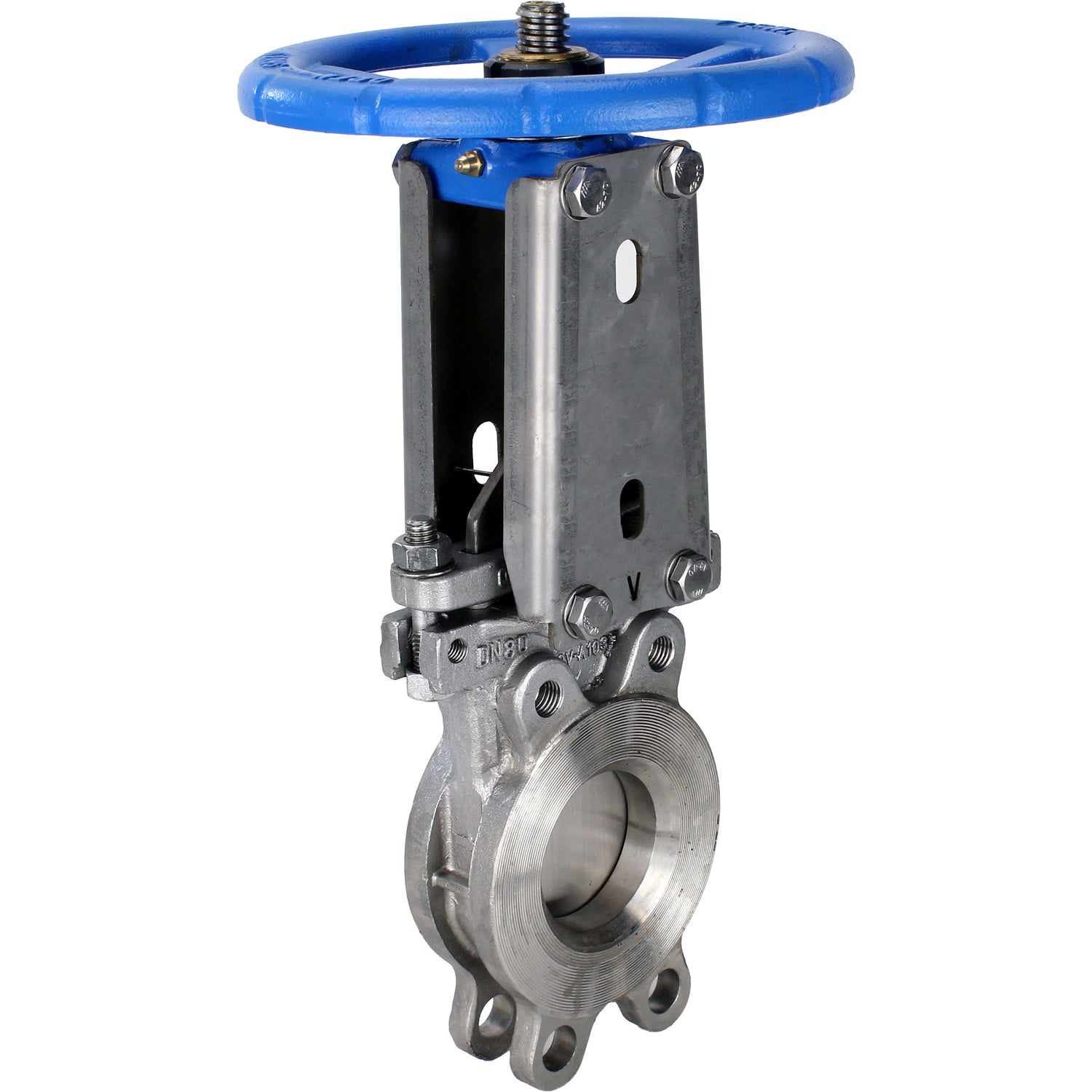

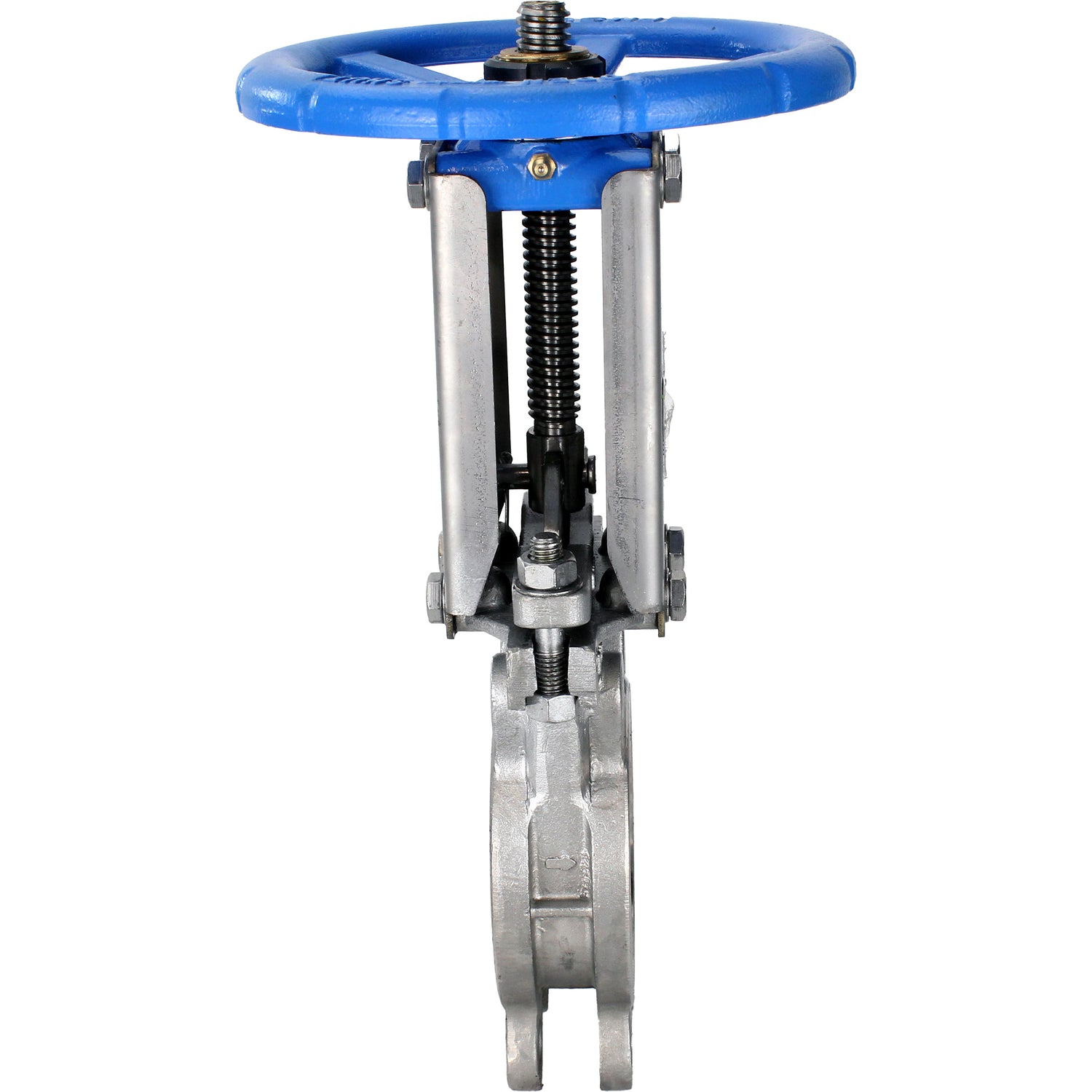

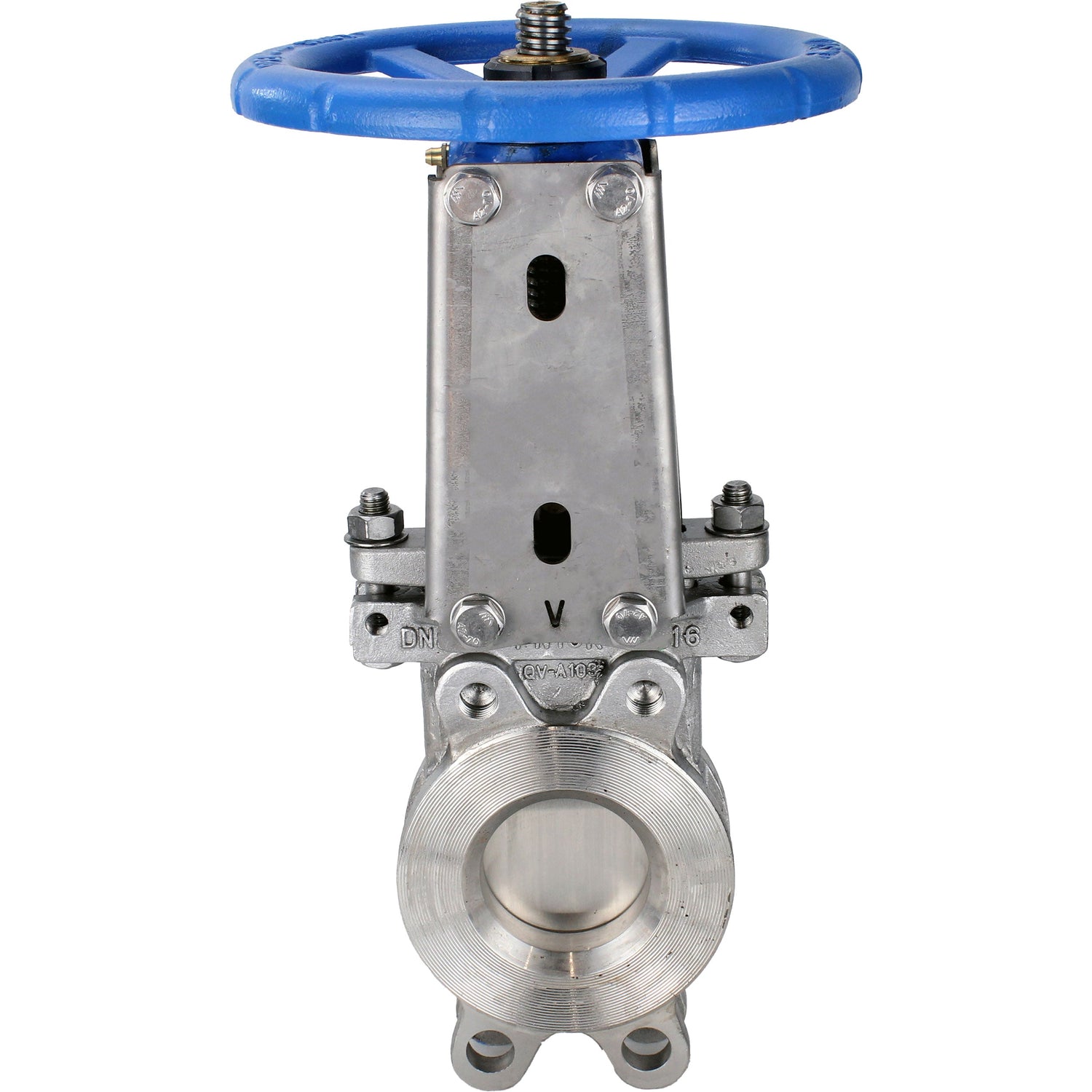

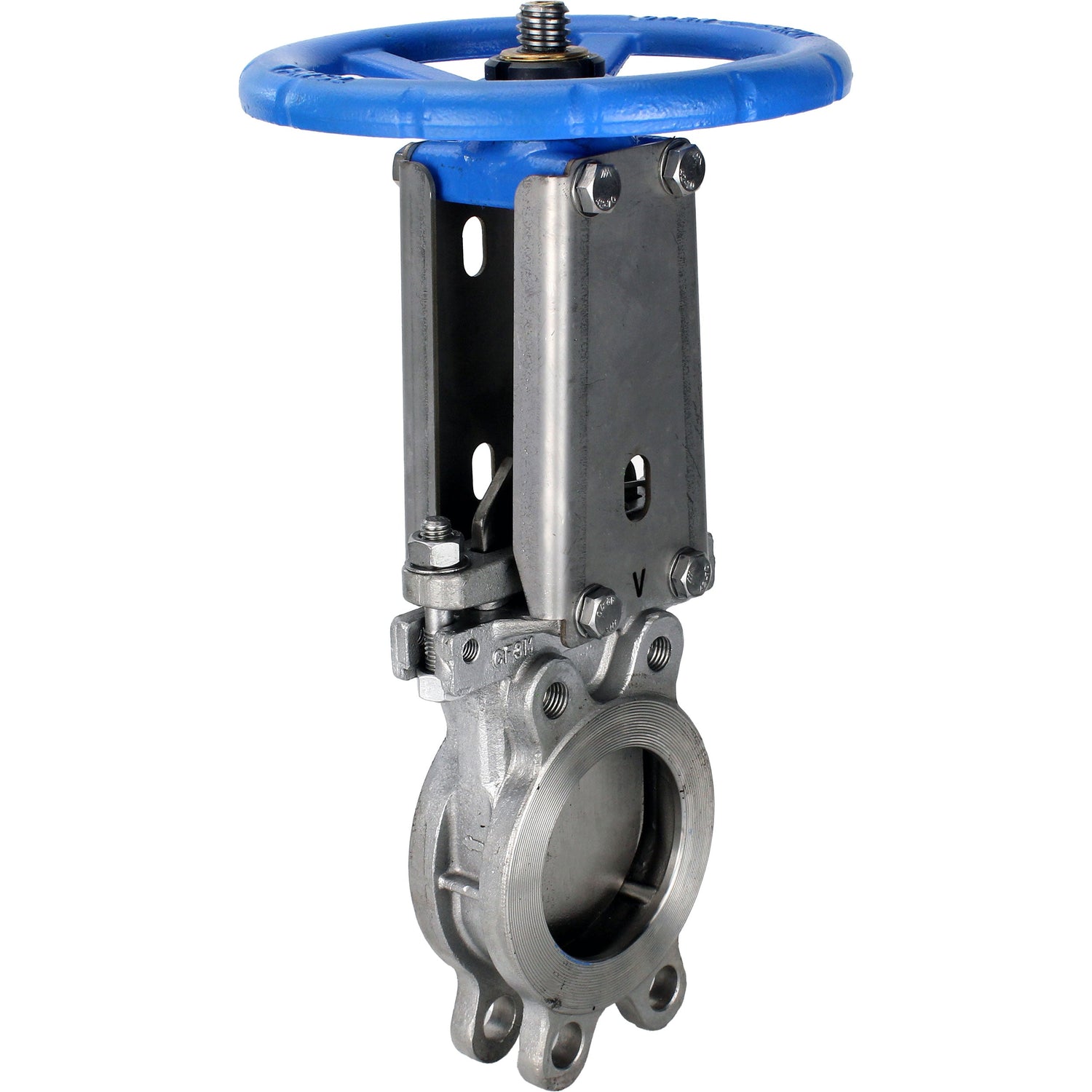

Knife gate valve Elephant GVKR3131E-1W-Fb-S, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, handwheel
Knife gate valve Elephant GVKR3131E-1W-Fb-S, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, handwheel - DN50 / 10 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The gate valve is designed for installation on the pipeline as a shut-off device and regulation of medium flow in water supply systems (except drinking water supply) and chemical industry.
The operating principle of the gate valve is to move the gate (knife) perpendicular to the medium flow. At complete closing of the pipeline nominal bore diameter the flow is stopped, and at partial closing the flow is regulated.
Overall and installation dimensions of Elephant GVKR3131E-1W-Fb-S gate valves, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, handwheel:
| DN | L, mm | D, mm | D1, mm | D2, mm | D0, mm | H1, mm | T, mm | d, mm | N-Th, mm |
| 50 | 48 | 165 | 125 | 99 | 180 | 292 | 12 | 18 | 4-М16 |
| 65 | 48 | 185 | 145 | 118 | 200 | 320 | 12 | 18 | 4-М16 |
| 80 | 51 | 200 | 160 | 132 | 200 | 348 | 12 | 18 | 8-М16 |
| 100 | 51 | 220 | 180 | 156 | 240 | 395 | 12 | 18 | 8-М16 |
| 125 | 57 | 250 | 210 | 184 | 260 | 450 | 14 | 18 | 8-М16 |
| 150 | 57 | 285 | 240 | 211 | 280 | 504 | 14 | 23 | 8-М20 |
| 200 | 70 | 340 | 295 | 266 | 300 | 617 | 18 | 23 | 8-М20 |
| 250 | 70 | 395 | 350 | 319 | 320 | 758 | 18 | 23 | 12-М20 |
| 300 | 76 | 445 | 400 | 370 | 350 | 857 | 20 | 23 | 12-М20 |
Materials Elephant GVKR3131E-1W-Fb-S gate valves, body material - stainless steel AISI 304, knife material - stainless steel AISI 304, seal - EPDM, handwheel:
| № | Part name | Material |
| 1 | Body | SS304 stainless steel |
| 2 | Seal | EPDM |
| 3 | Ring | SS304 stainless steel |
| 4 | Schieber | SS304 stainless steel |
| 5 | Guide seal | PTFE |
| 6 | Packing | PTFE |
| 7 | Gland | SS304 stainless steel |
| 8 | Patron | WCB steel |
| 9 | Rod | SS304 stainless steel |
| 10 | Rack | Q235 steel |
| 11 | Hand wheel | cast iron GGG40 |
| 12 | Cover | steel Q235 |
| 13 | Wedge | stainless steel SS304 |
Specifications
Specifications
-
Country of origin
-
Body material
-
Stopper Material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Gate valve type
-
Nominal pressure
-
Type of seal
