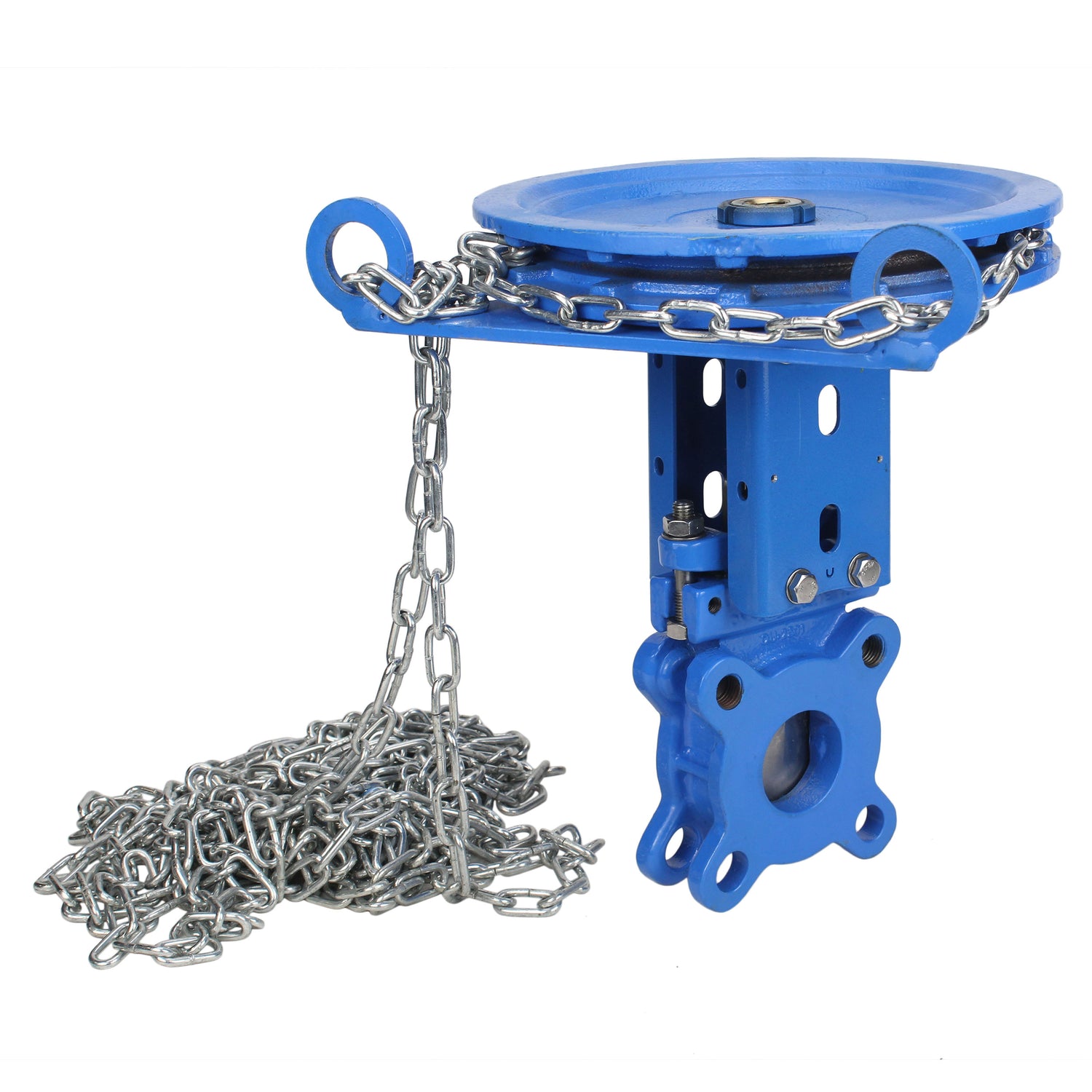

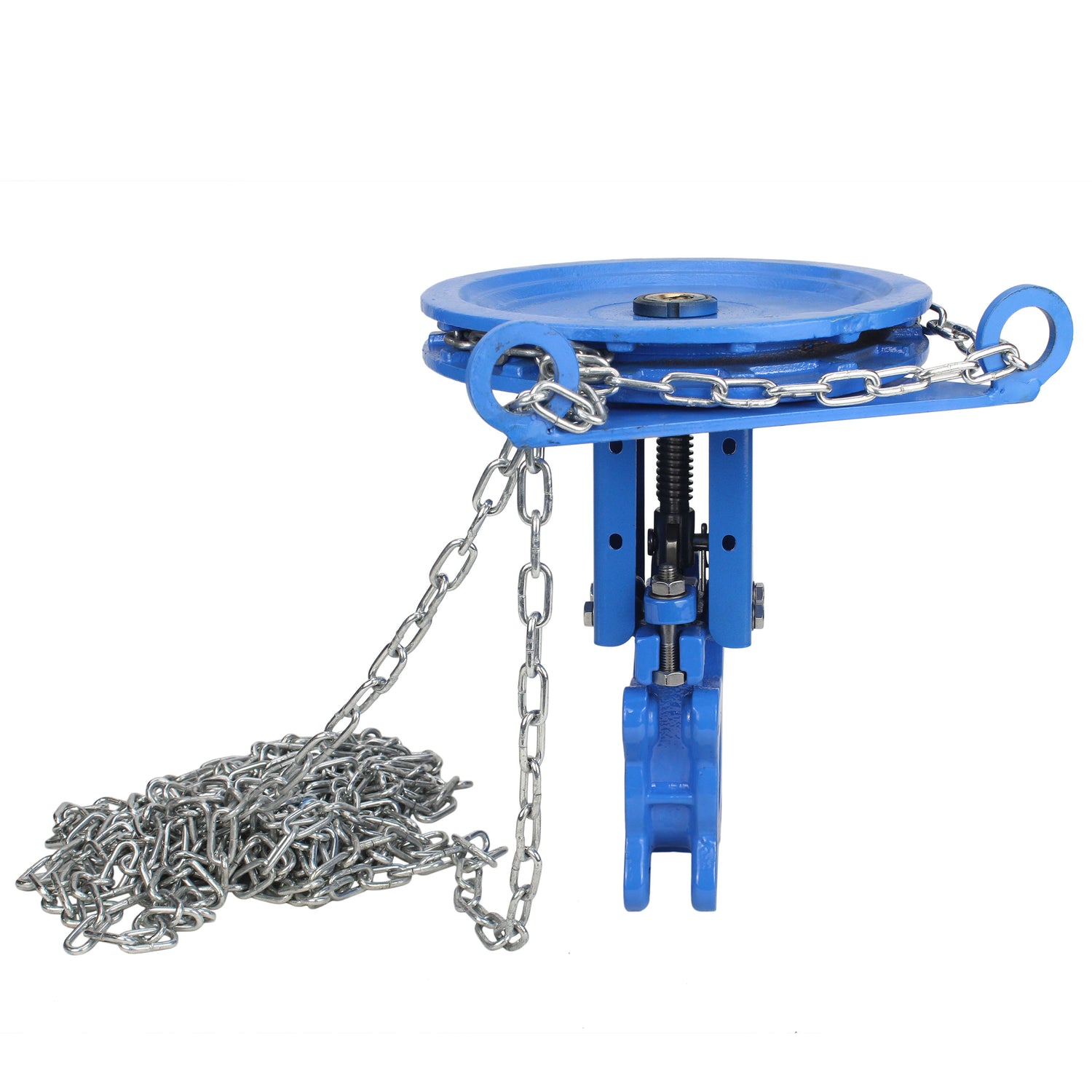

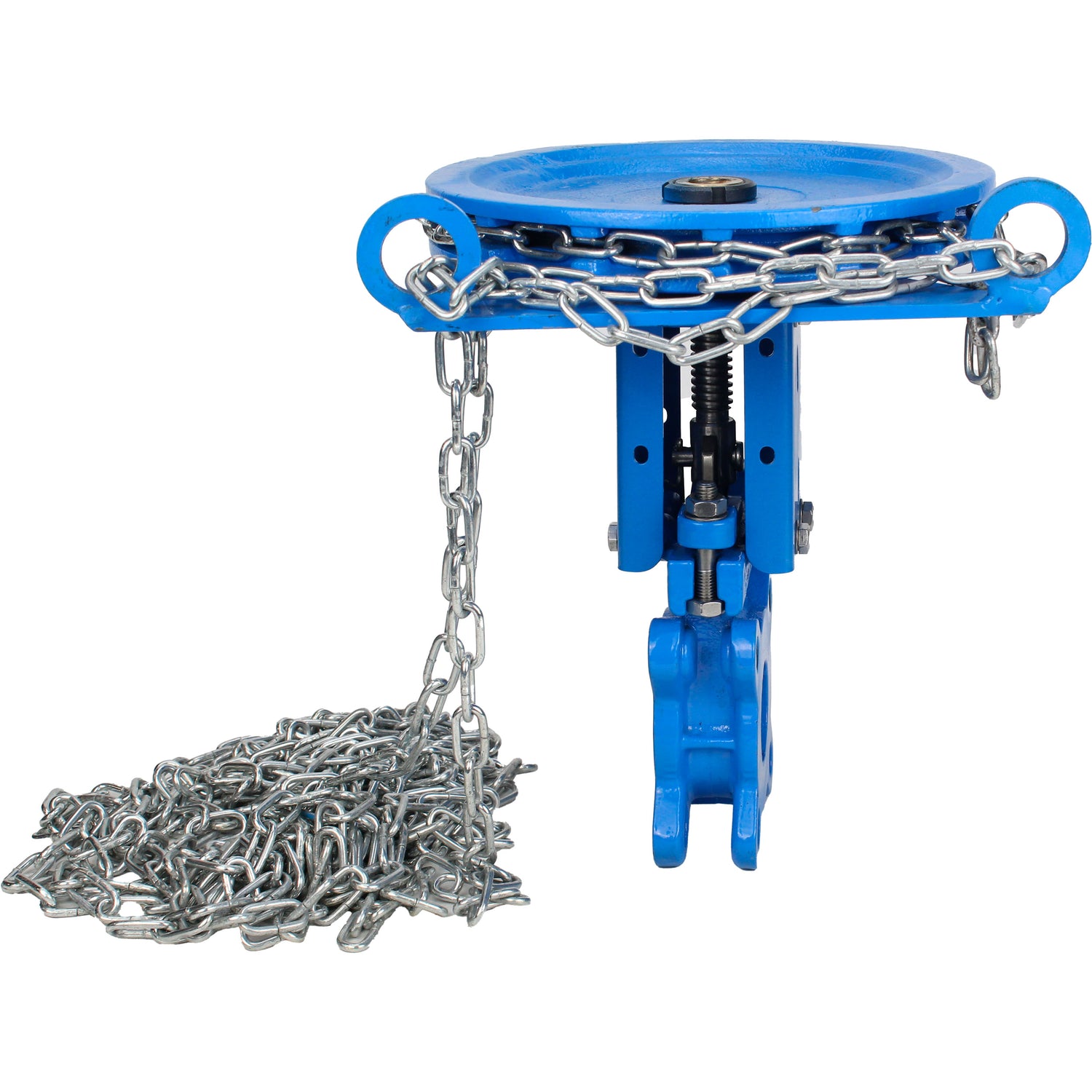

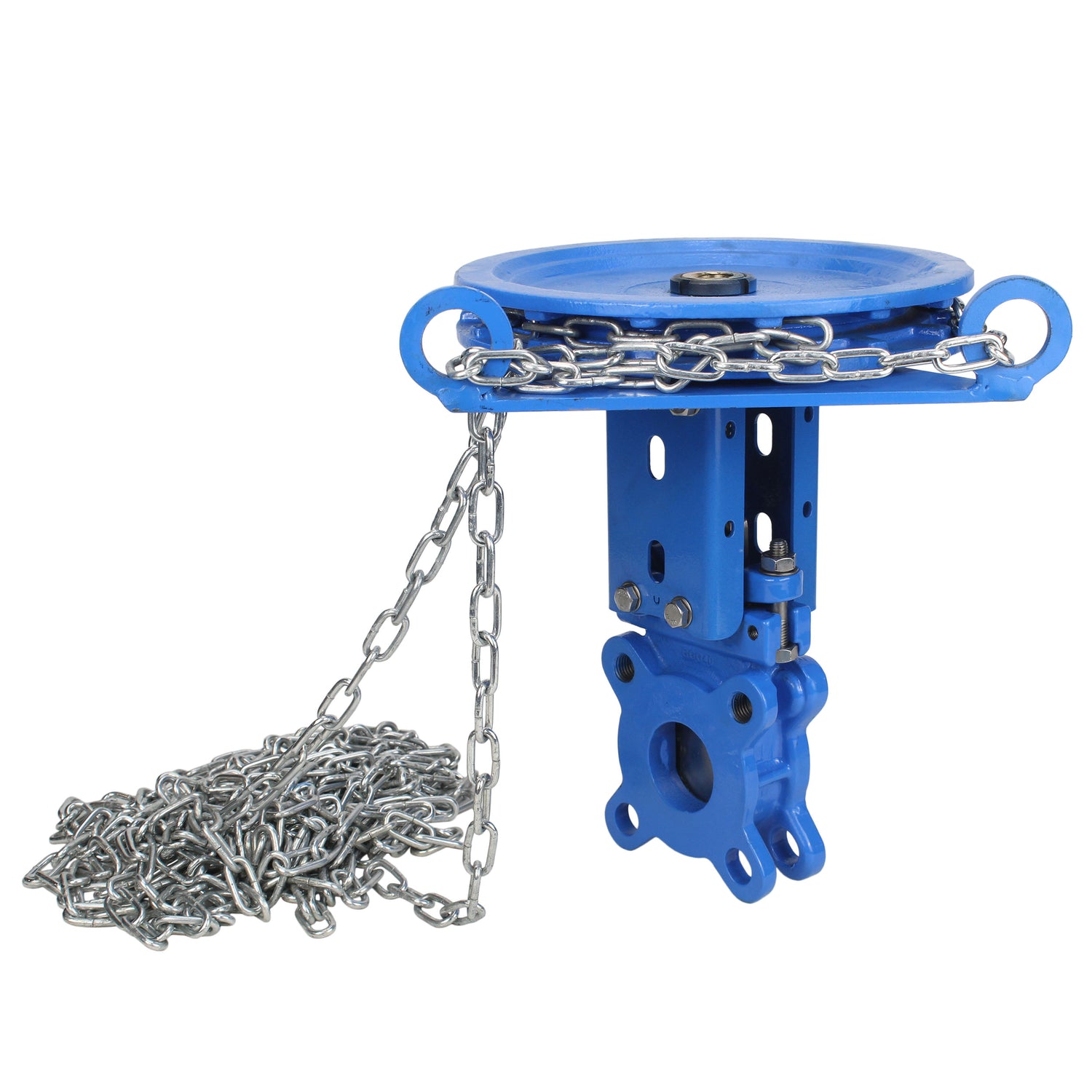

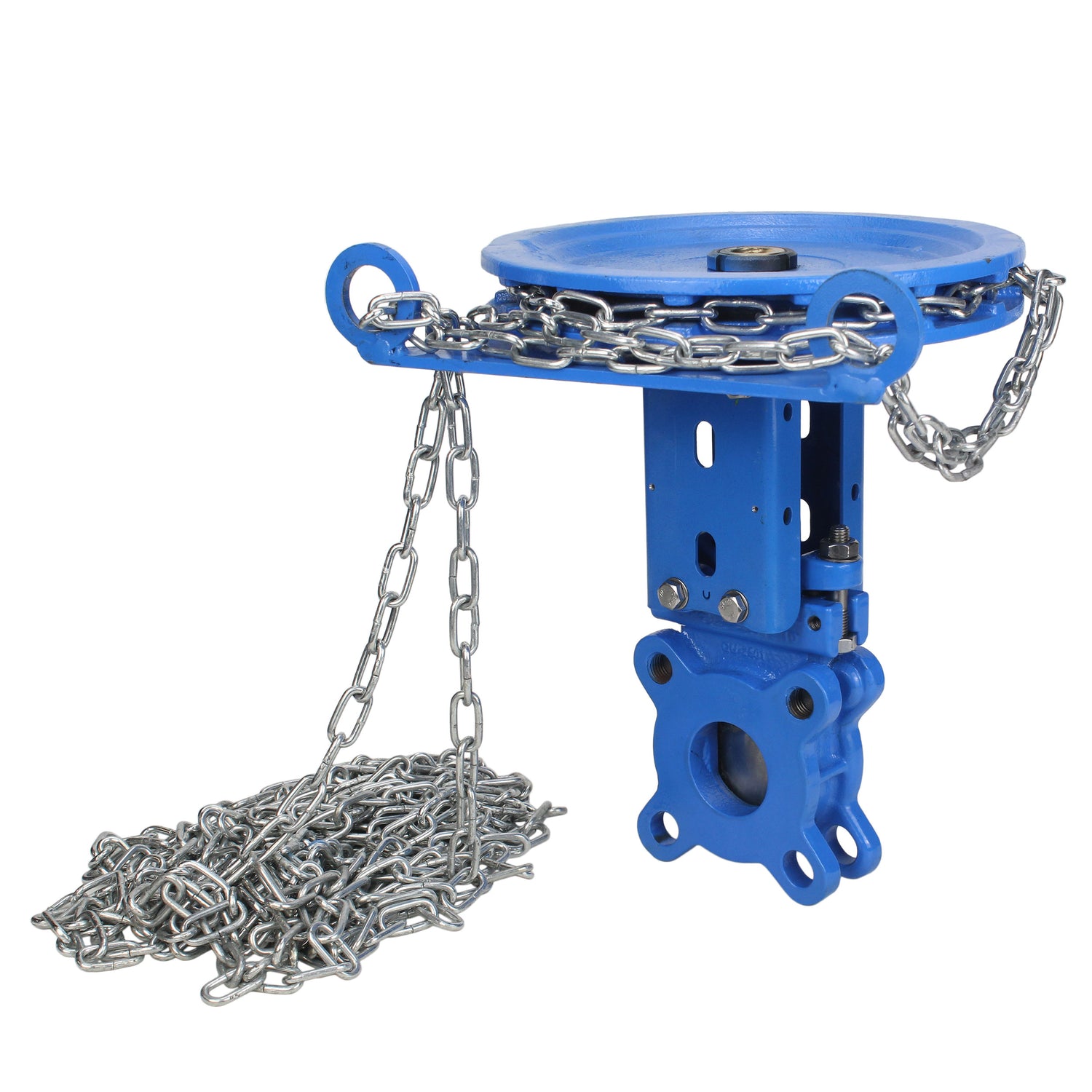

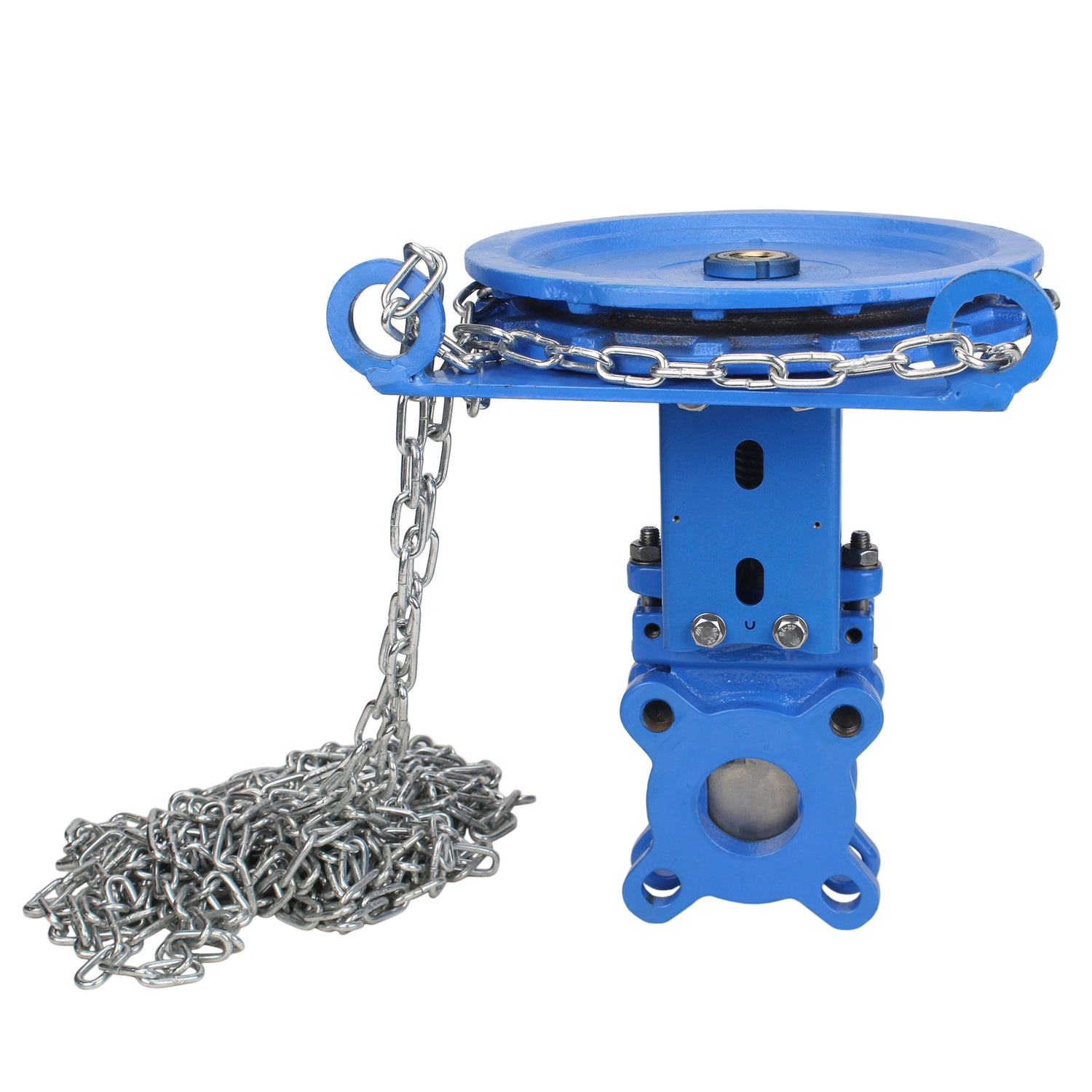

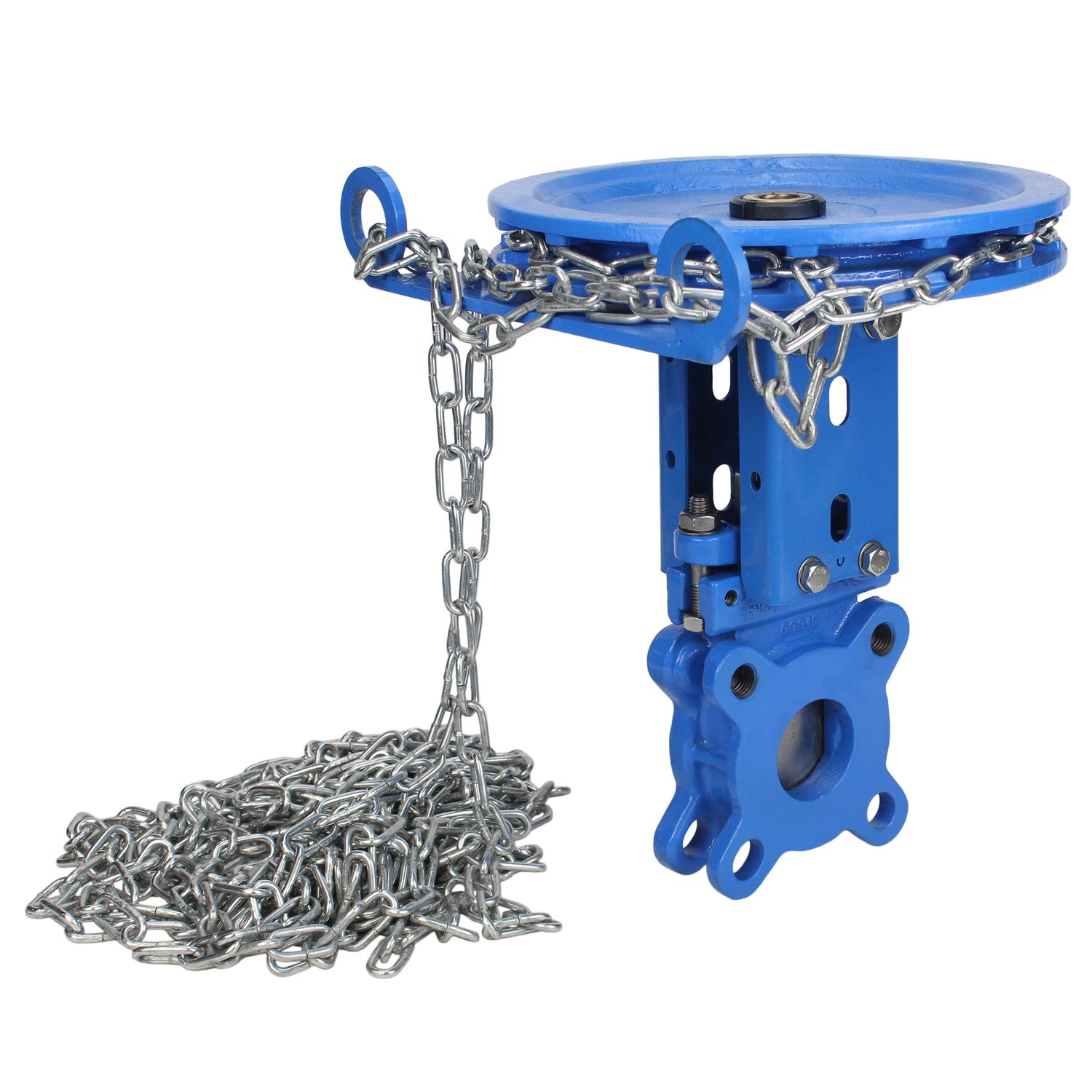

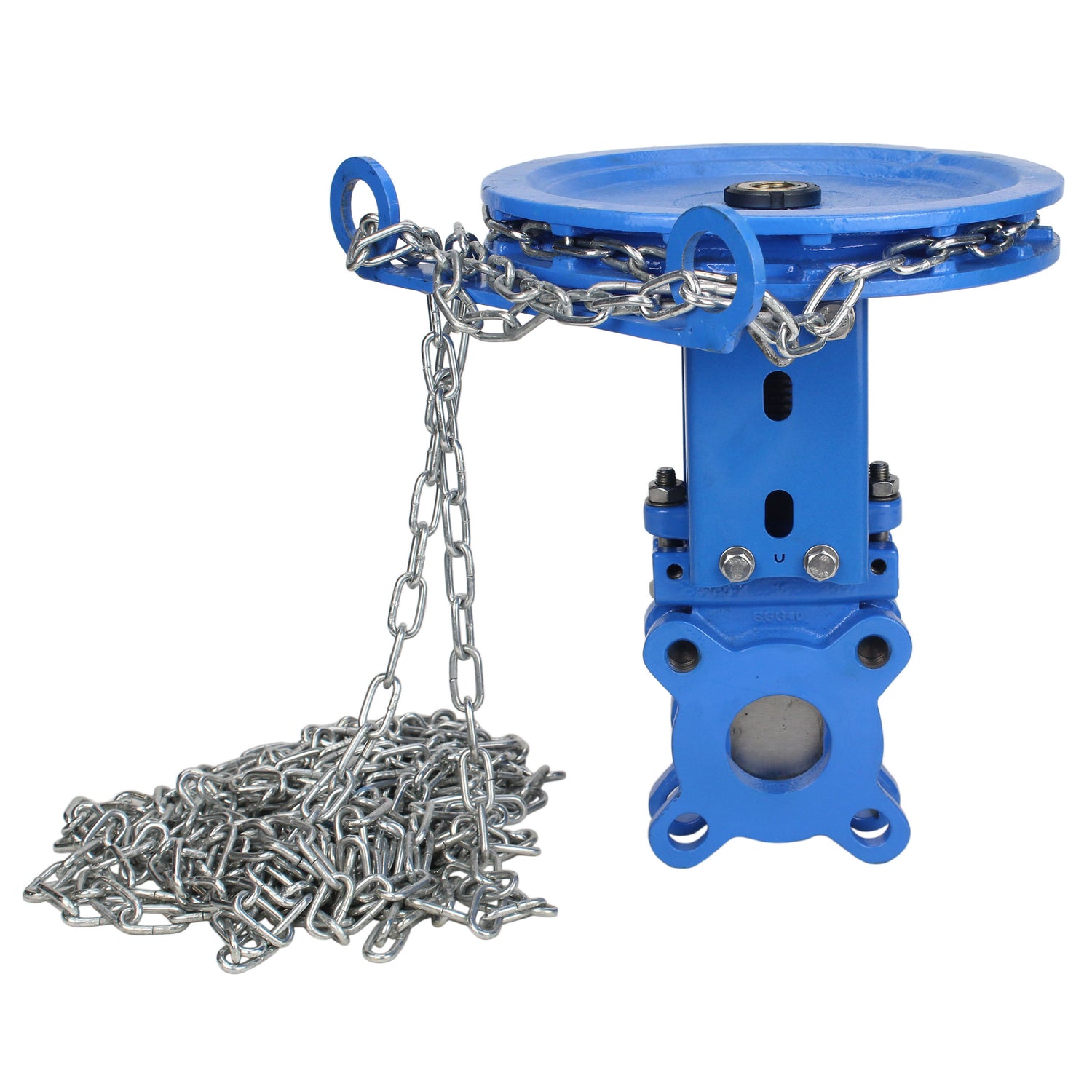

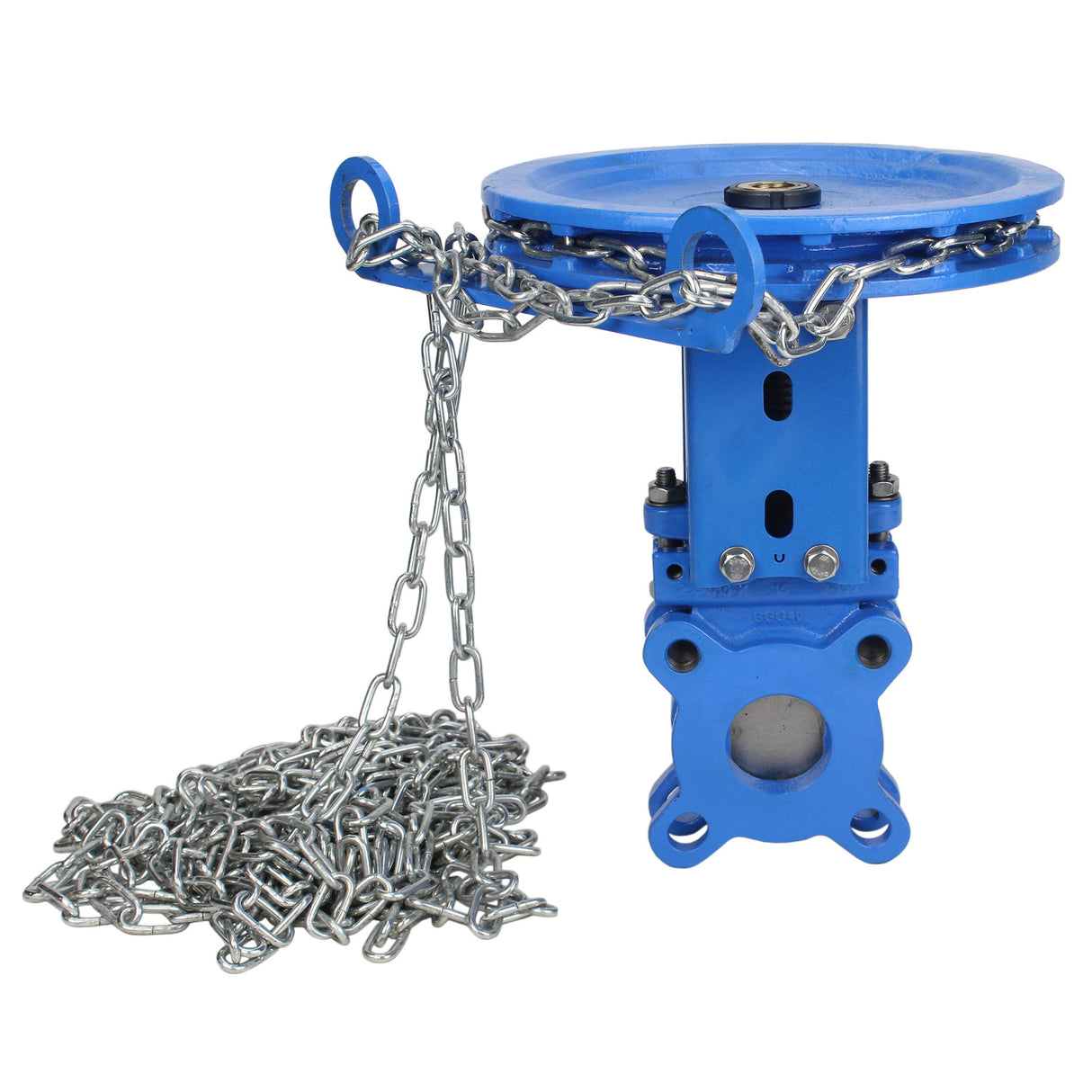

Knife gate valve Elephant GVKR1331N-2W-Fb-CC, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, handwheel with chain
Knife gate valve Elephant GVKR1331N-2W-Fb-CC, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, handwheel with chain - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Gate valve Elephant GVKR1331N-2W-Fb-CC cast iron, interflanged with hand wheel with chain is designed for installation on the pipeline as a shut-off device and regulating the flow of working medium in water supply systems and chemical industry.
Dimensions and installation dimensions of gate valves Elephant GVKR1331N-2W-Fb-CC, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, handwheel with chain
| Model | Size | piece | ||||||||||
| DN | L | D | D1 | D2 | D0 | H1 | N-Th | T | Ød | E | F | |
| DN50 | 50 | 48 | 165 | 125 | 99 | 250 | 290 | 4-М16 | 12 | 18 | 2 | 2 |
| DN80 | 80 | 51 | 200 | 160 | 132 | 250 | 358 | 8-М16 | 12 | 18 | 2 | 6 |
| DN100 | 100 | 51 | 220 | 180 | 156 | 250 | 378 | 8-М16 | 12 | 18 | 2 | 6 |
| DN200 | 200 | 70 | 340 | 295 | 266 | 250 | 588 | 8-М20 | 16 | 23 | 2 | 6 |
Dimensional sketch of gate valves Elephant GVKR1331N-2W-Fb-CC, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, handwheel with chain
Materials of gate valves Elephant GVKR1331N-2W-Fb-CC, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, handwheel with chain
| № | Name | Material |
| 1 | Case | High-strength cast iron GGG40/BCh40/EN-GJS-400-15 |
| 2 | Seat seal | NBR |
| 3 | Schieber | Stainless steel AISI/SS 304/08X18H10 |
| 4 | Guide seal | PTFE |
| 5 | Sealing | PTFE |
| 6 | Gland packing | steel WCB |
| 7 | pin | steel 45 |
| 8 | Clamping chuck | steel WCB |
| 9 | Stem | steel 2Cr13 |
| 10 | Rack | steel Q235 |
| 11 | Head end of the rack | cast iron HT200 |
| 12 | Bearing | steel GCr15 |
| 13 | Nut | brass |
| 14 | Chain | steel Q235 galvanized |
Material sketch of slide gate valves Elephant GVKR1331N-2W-Fb-CC, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, handwheel with chain
Specifications
Specifications
-
Country of origin
-
Body material
-
Stopper Material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Gate valve type
-
Nominal pressure
-
Type of seal
