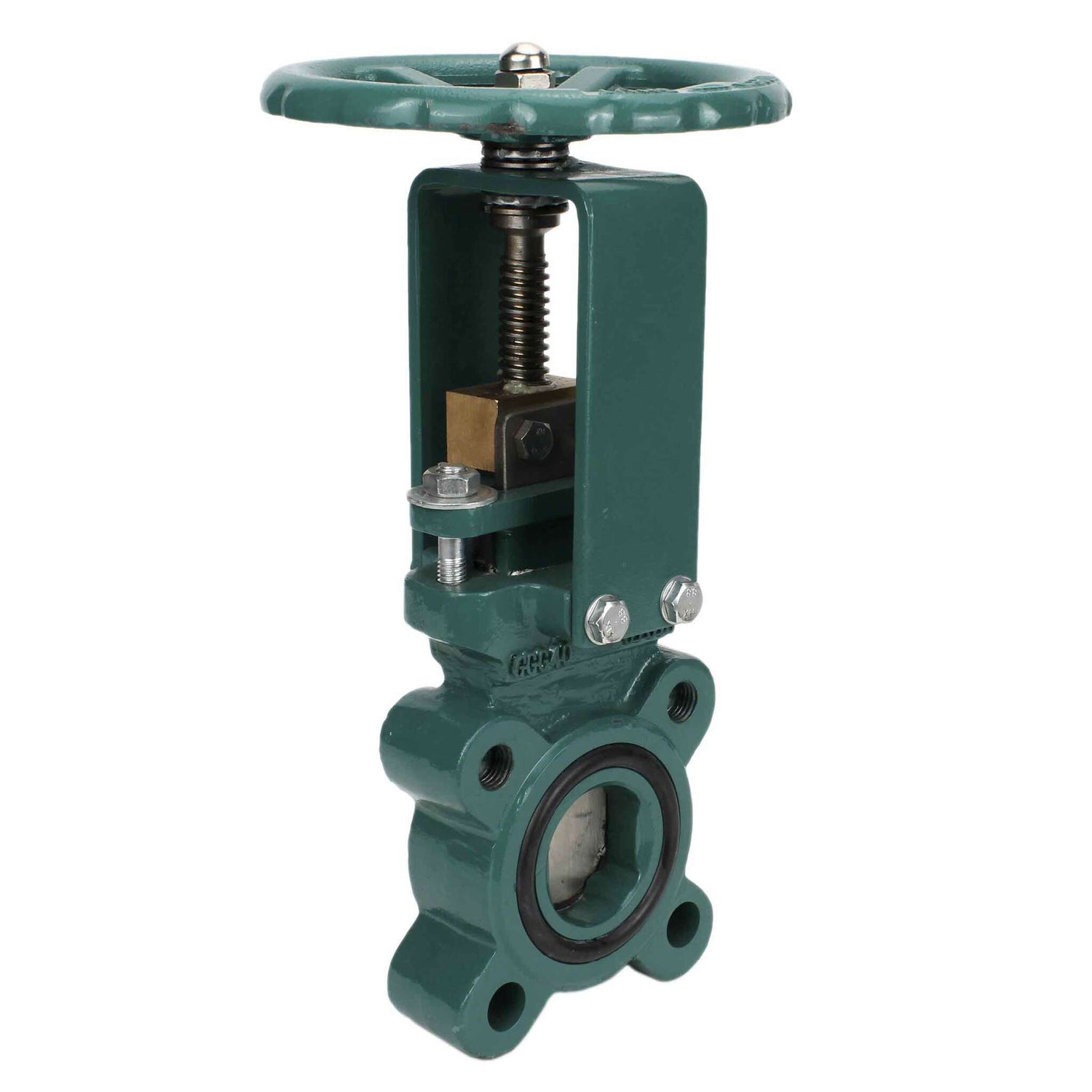

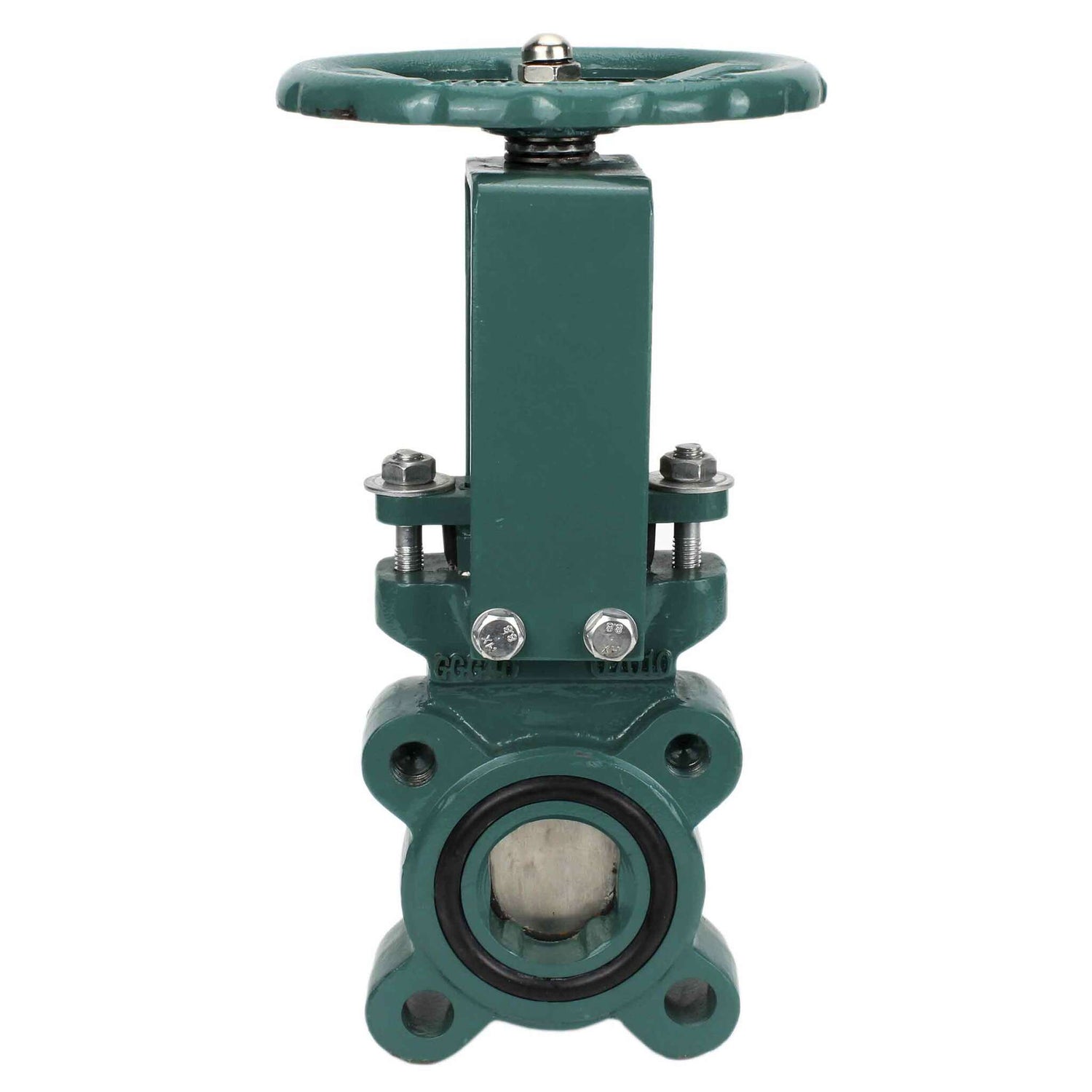

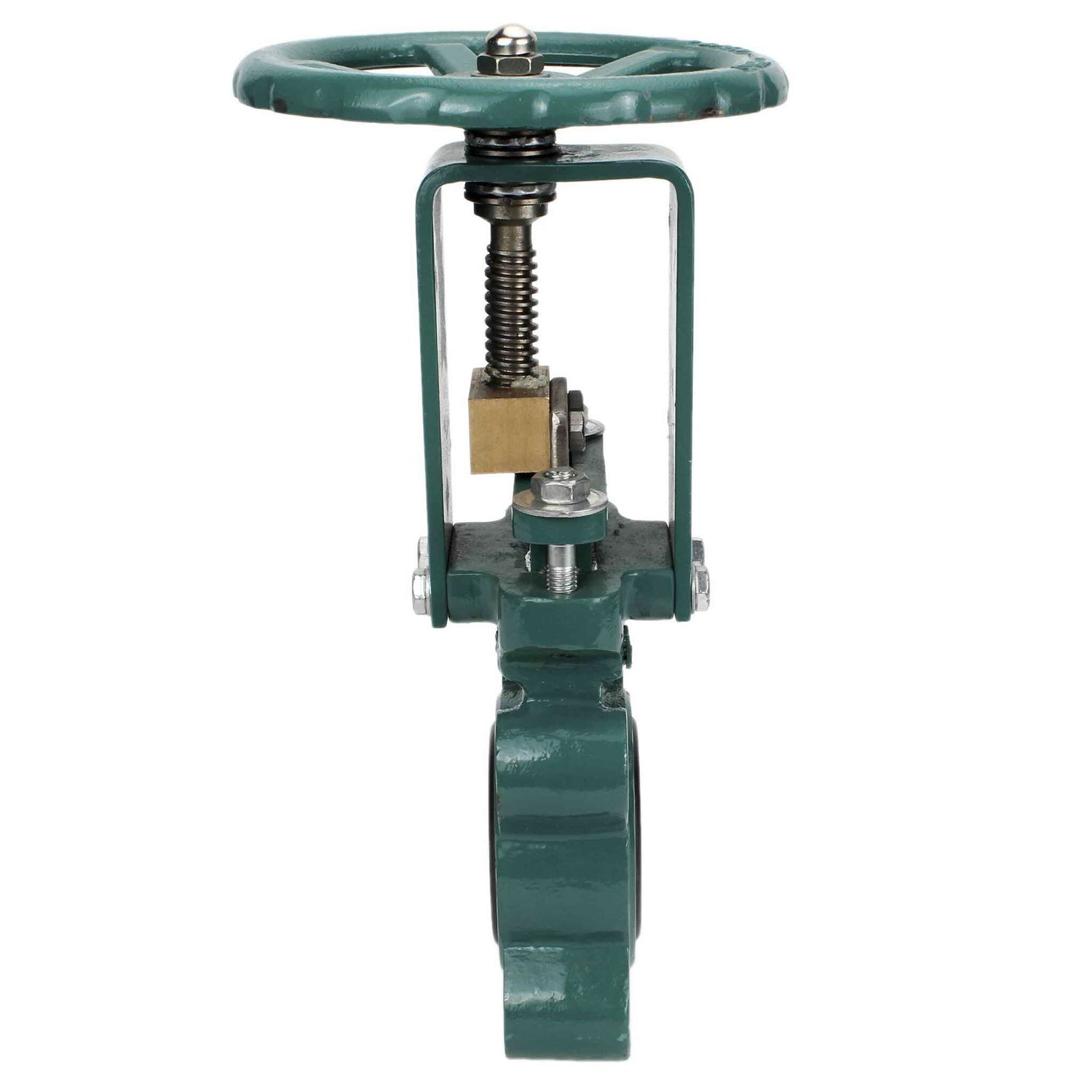

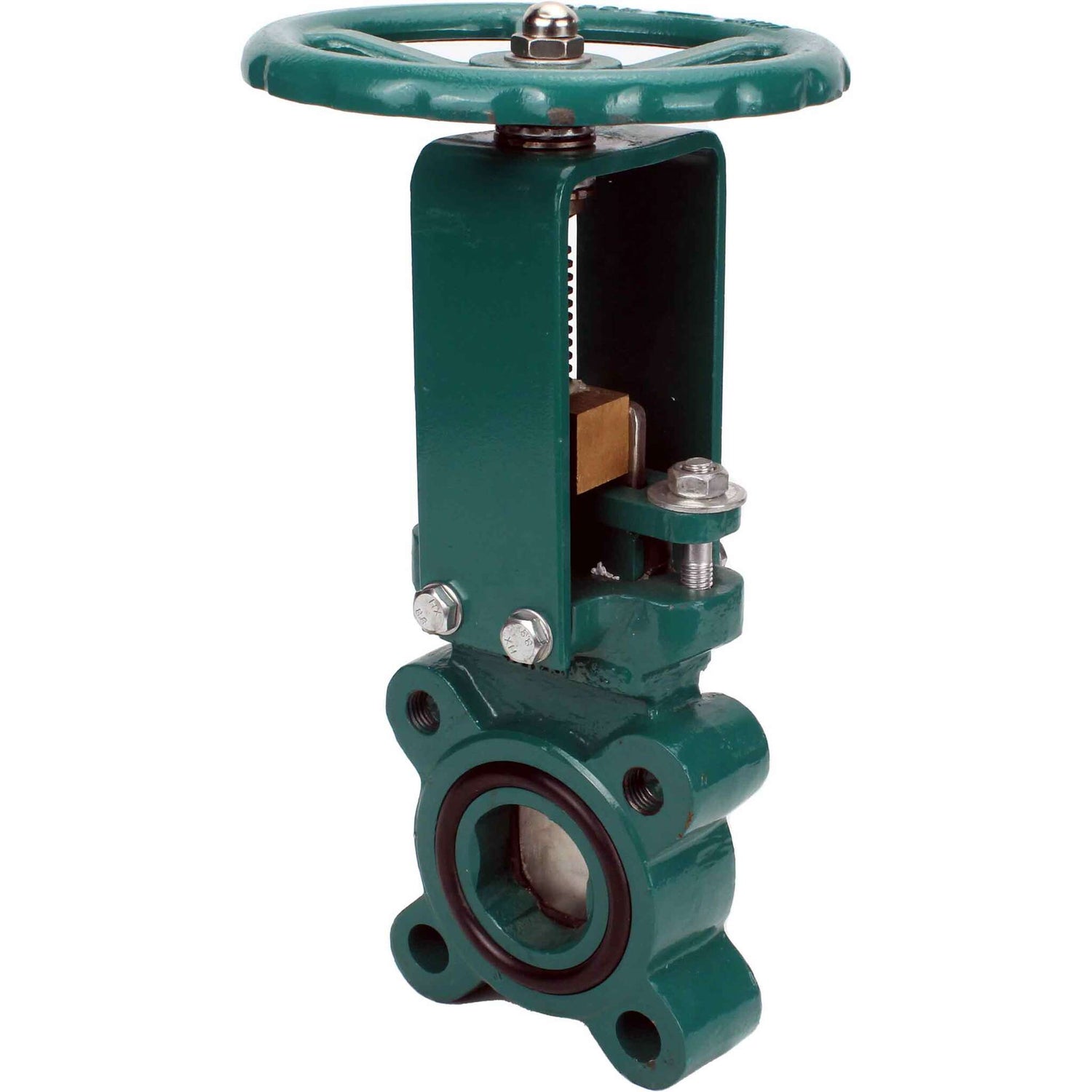

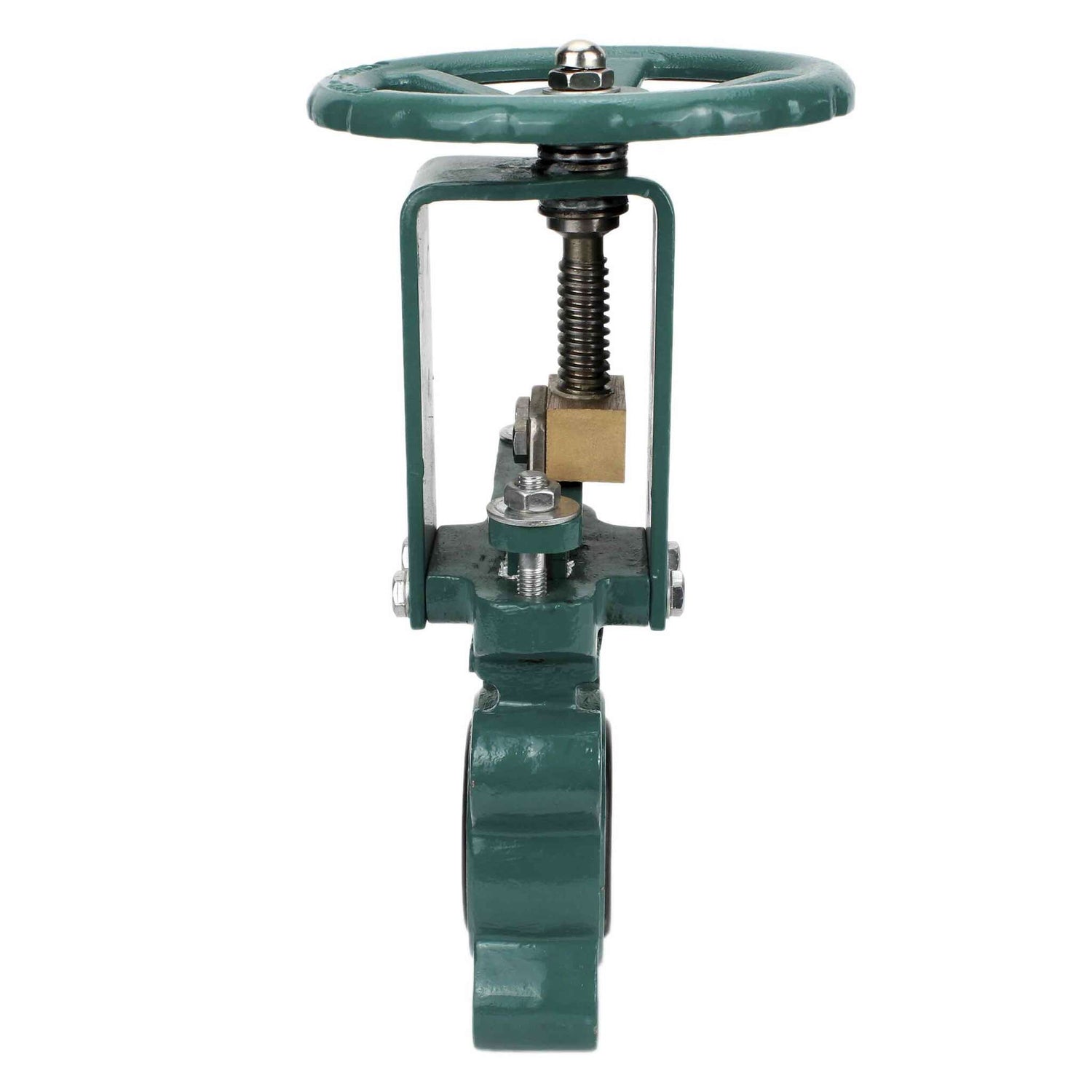

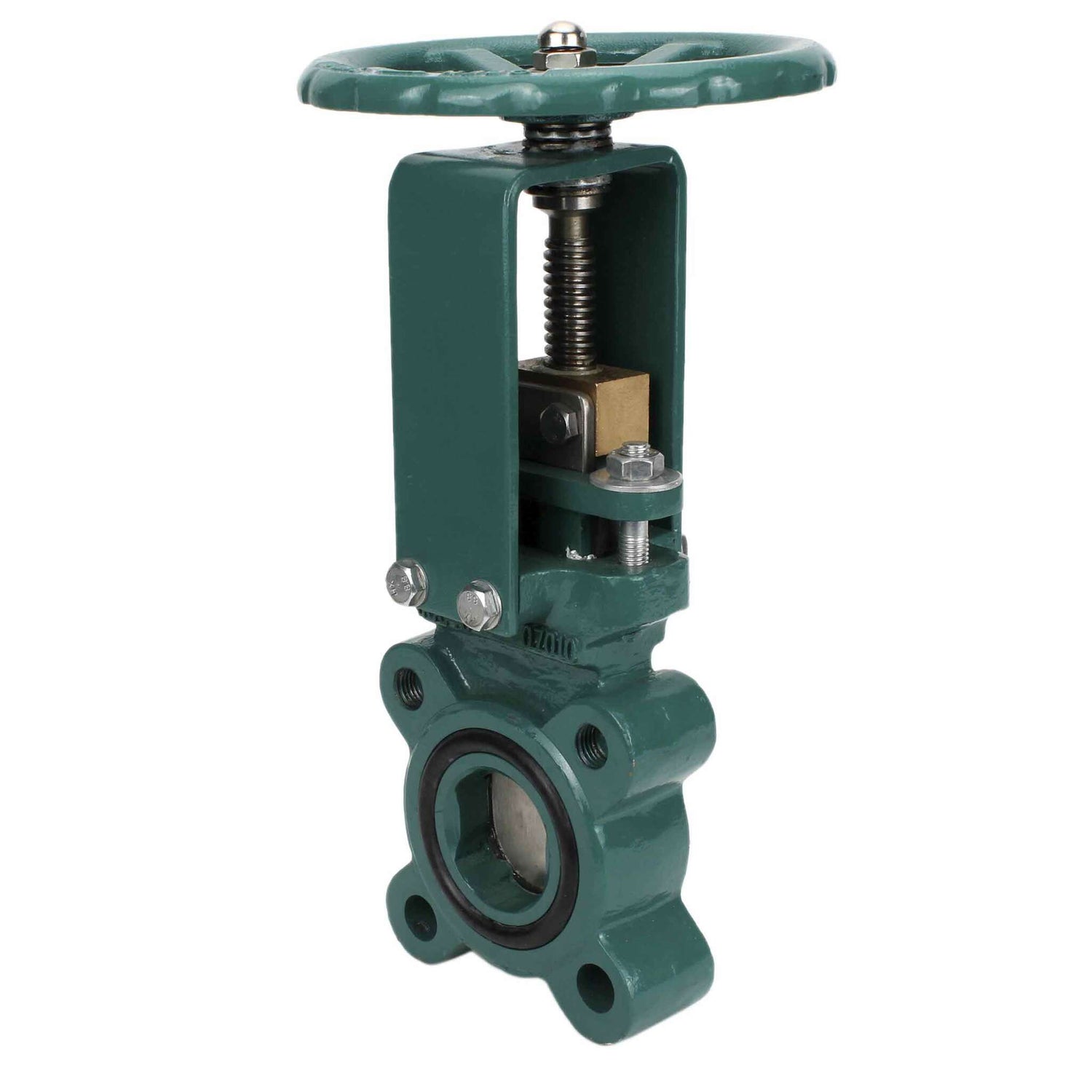

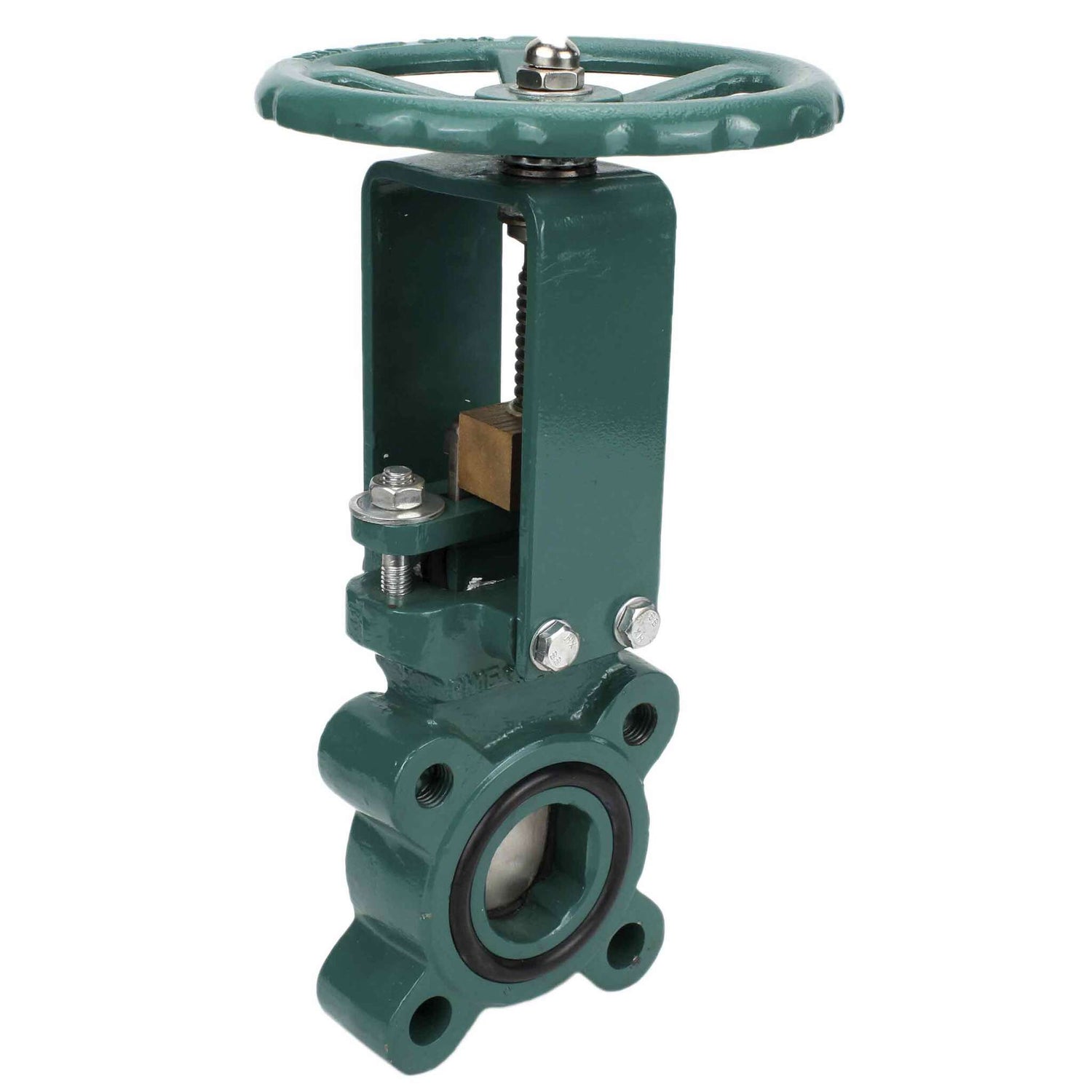

Knife Gate Valve Elephant GVKR1331M-1W-Fb-S 16 bar, wafer type, body material - Cast iron GGG-40, seal - metal, with retractable spindle, handwheel operated
Knife Gate Valve Elephant GVKR1331M-1W-Fb-S 16 bar, wafer type, body material - Cast iron GGG-40, seal - metal, with retractable spindle, handwheel operated - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Knife Gate Valve Elephant is intended for installation on a pipeline as a shut-off device and for regulating the flow of the working medium in water supply systems and the chemical industry. 1.3. The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of the medium. When the nominal diameter of the pipeline is completely blocked, a stop occurs flow, with partial flow - adjustment. The tightness of the gate valve in the closed state is ensured by pressing the gate valve to the seal under the influence of the pressure of the working medium.;
Overall and installation dimensions of gate valves Elephant GVKR1331M-1W-Fb-S 16 bar
| DN | L | D | d | H1 | N - Th | Weight, kg |
| 50 | 48 | 165 | 18 | 260 | 4 – M16 | 7 |
| 65 | 48 | 185 | 18 | 292 | 4 – M16 | 8 |
| 80 | 51 | 200 | 18 | 320 | 8 – M16 | 10 |
| 100 | 51 | 220 | 18 | 358 | 8 – M16 | 12 |
| 125 | 57 | 250 | 18 | 395 | 8 – M16 | 16 |
| 150 | 57 | 285 | 23 | 450 | 8 – M20 | 21 |
| 200 | 70 | 340 | 23 | 532 | 12 – M20 | 31 |
Sketch of gate valves Elephant GVKR1331M-1W-Fb-S 16 bar
Basic materials of gate valve parts Elephant GVKR1331M-1W-Fb-S 16 bar
| № | Name | Material |
| 1 | Case | cast iron GGG40 |
| 2 | Schieber (knife) | steel SS304 |
| 3 | Guide pad | PTFE |
| 4 | Sealing | PTFE |
| 5 | Gland packing | steel WCB |
| 6 | staple | steel Q235 |
| 7 | pin | steel 45 |
| 8 | Patron | steel WCB |
| 9 | Stem | steel 2Cr13 (SS420) |
| 10 | Upper bracket | cast iron GGG40 |
| 11 | Support | steel GCr15 |
| 12 | Nut | brass |
| 13 | Cover | steel Q235 |
| 14 | Helm | cast iron GGG40 |
| 15 | Wedge | cast iron GGG40 |
Detail sketch of slide gate valves Elephant GVKR1331M-1W-Fb-S 16 bar
Specifications
Specifications
-
Country of origin
-
Body material
-
Stopper Material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Gate valve type
-
Nominal pressure
-
Type of seal
-
Telescopic rod
-
Control column
