Elephant  |  SKU: D040-03146

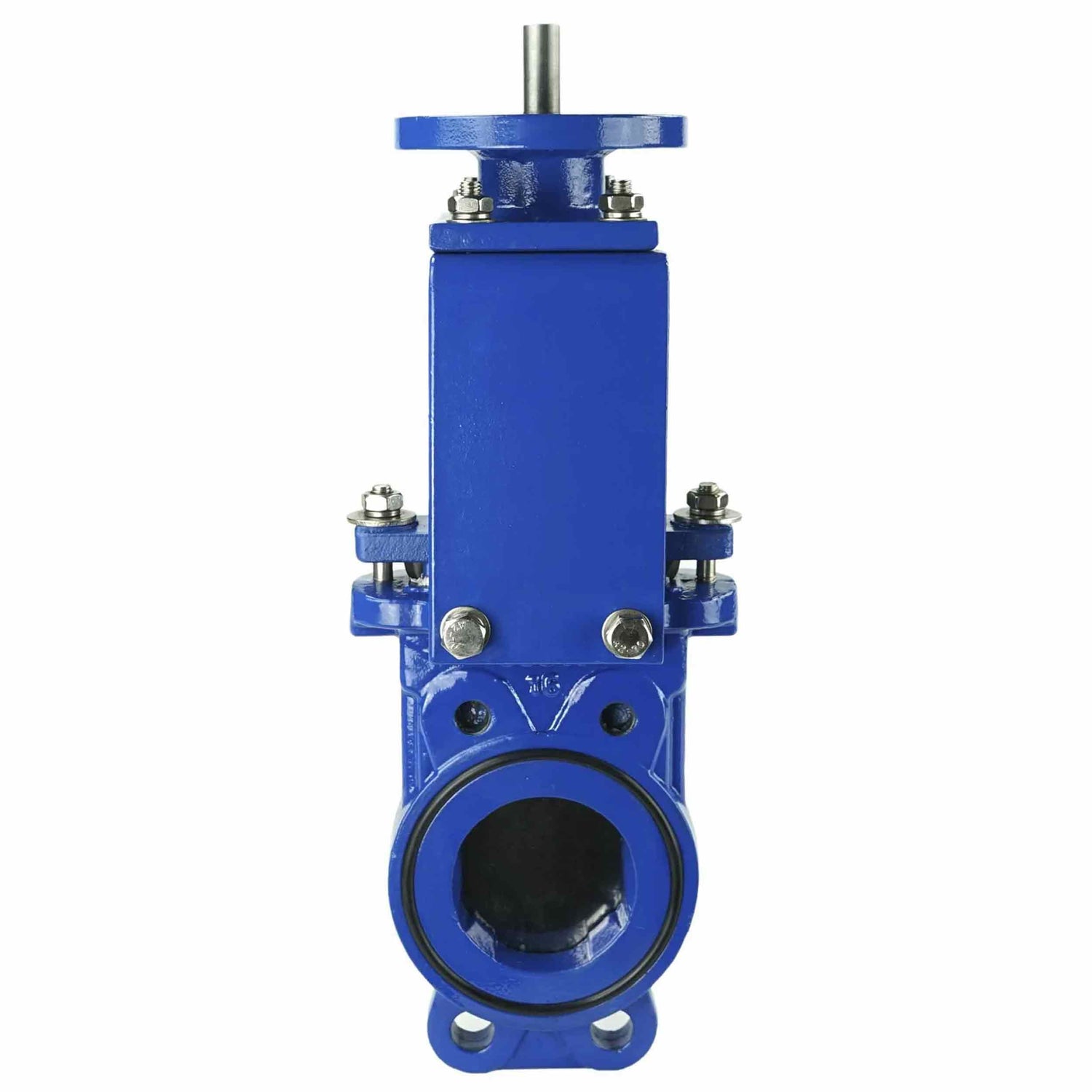

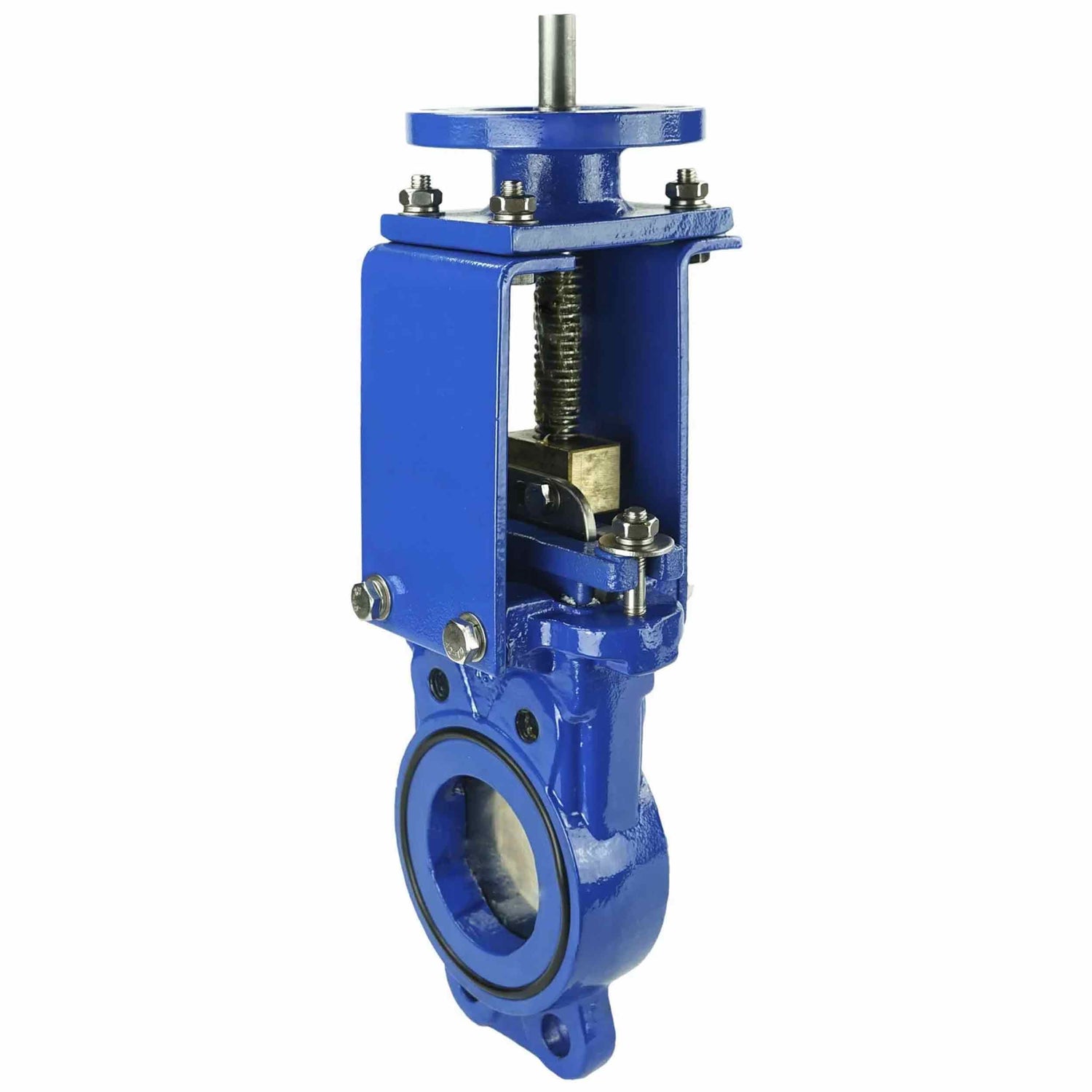

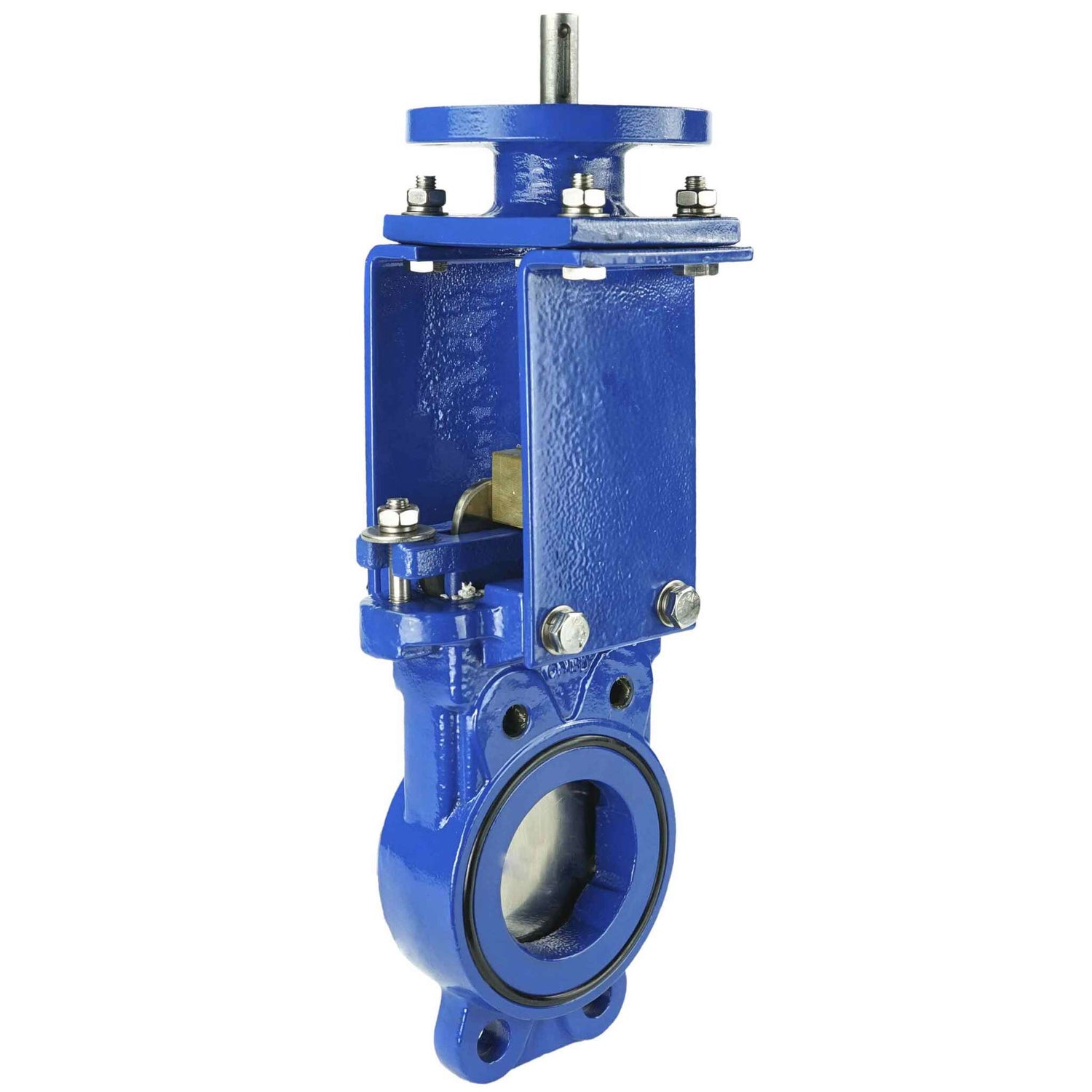

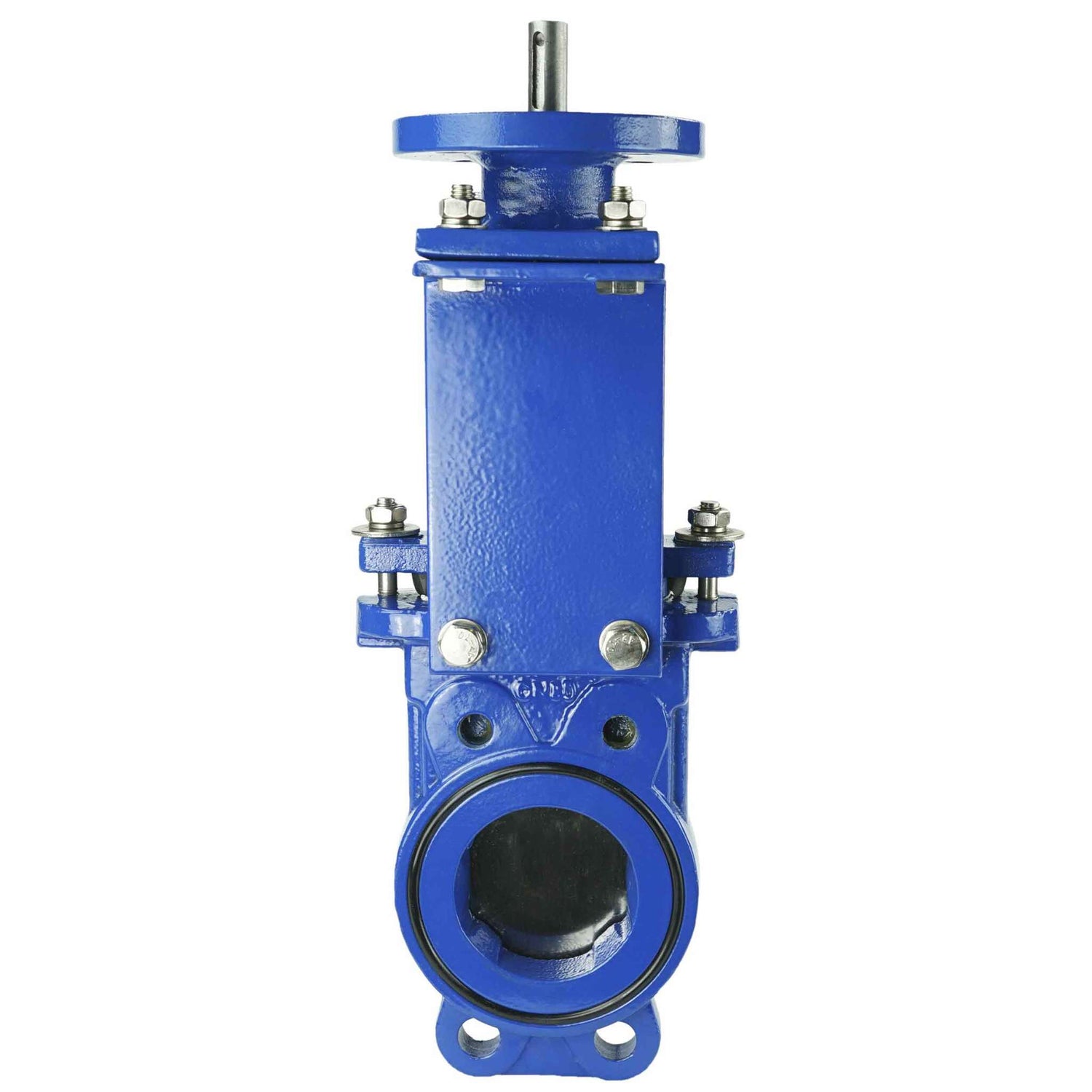

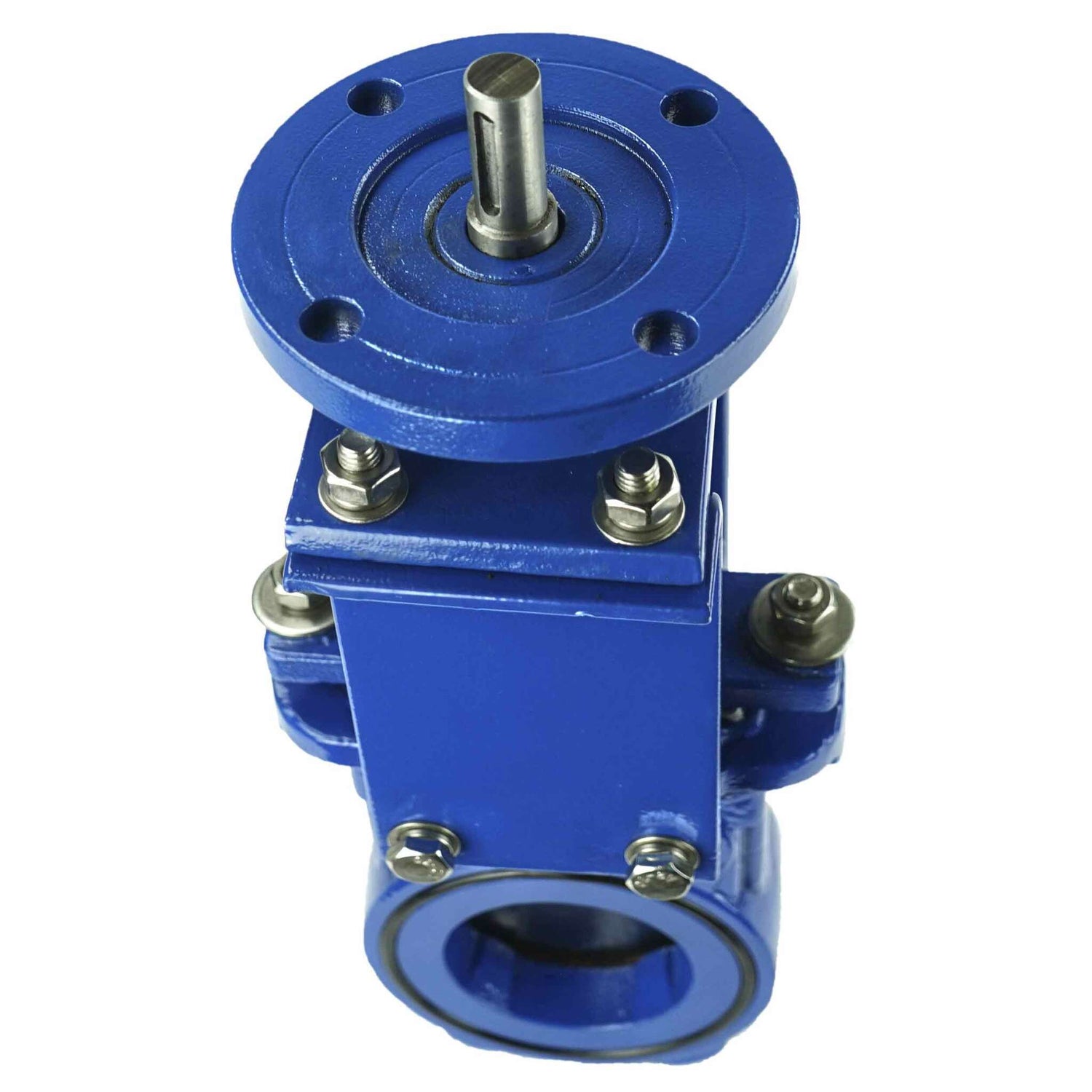

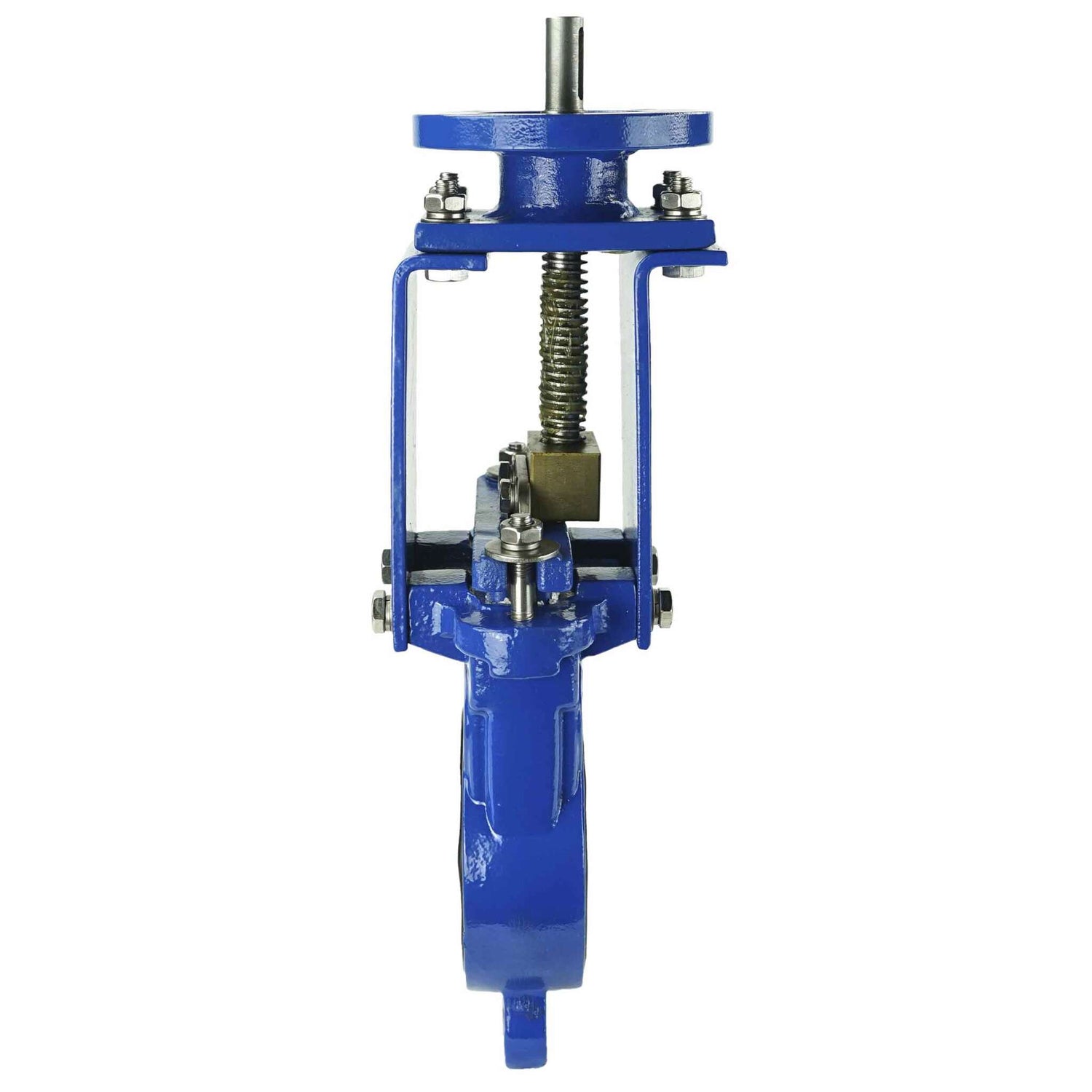

Knife gate valve Elephant GGG40-SS304-NBR-2W-ISO-16, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, stem only

€55,00
Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Knife gate valves are a specific type of gate valve that are typically used in industries for handling tough solids and slurries. Named for their shape, knife gate valves have a sharp, knife-like gate that can cut through viscous or solid material in the flow. They are commonly used in wastewater treatment plants, paper mills, mining operations, and food industries, among others. Their primary function is to start or sop a flow or adjust its volume, but they do not control the pressure or flow rate.

Overall and installation dimensions of the gate valve Elephant GGG40-SS304-NBR-2W-ISO-16, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, stem only

Overall and installation dimensions of the gate valve Elephant GGG40-SS304-NBR-2W-ISO-16, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, stem only

Valve sketch Elephant GGG40-SS304-NBR-2W-ISO-16, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, stem only

DN PN L D D1 D2 N-Th d H stem Weight ISO 5210
50 16 50 165 125 99 4-М16 Ø18 595 Ø16 7 F10
65 16 50 185 145 118 4-М16 Ø18 625 Ø16 8 F10
80 16 50 200 160 132 8-М16 Ø18 645 Ø16 10 F10
100 16 52 220 180 156 8-М16 Ø18 685 Ø18 13 F10
125 16 58 250 210 184 8-М16 Ø18 735 Ø18 18 F10
150 16 60 285 240 211 8-М20 Ø23 780 Ø18 23 F10
200 16 72 340 295 266 12-М20 Ø23 905 Ø22 31 F10
250 16 72 405 355 319 12-М24 Ø27 965 Ø22 52 F14
300 6 80 460 400 370 12-М24 Ø27 1095 Ø22 64 F14

Construction and materials of the gate Elephant GGG40-SS304-NBR-2W-ISO-16, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, stem only

Construction and materials of the gate Elephant GGG40-SS304-NBR-2W-ISO-16, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, stem only

Material sketch of valve parts Elephant GGG40-SS304-NBR-2W-ISO-16, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, stem only

№ Part name Material
1 Body Cast iron GGG40
2 Seat seal NBR nitrile
3 Knife Steel AISI304
4 Gland packing PTFE
5 gland Carbon steel WCB
6, 7,
10, 13		 Bolt Steel AISI201
8, 16 Nut Steel AISI201
9 Nut Cast iron
11 Support plates Steel A3
12 Stem Steel 2Cr13
14 Bearing cover Steel A3
15 Bearing ZChSnSb10-6
17 Gasket NBR nitrile

Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG40/EN-GJS-400-15
  • Stopper Material
    Stainless steel AISI 304/1.4301
  • Maximum allowable temperature
    90 °C
  • Connection type
    Compact flanged
  • Control type
    Stem only
  • Gate valve type
    Knife Gate Valve
  • Nominal pressure
    16 bar
  • Type of seal
    NBR
  • Coating type
    Epoxy powder
