Elephant  |  SKU: D040-03145

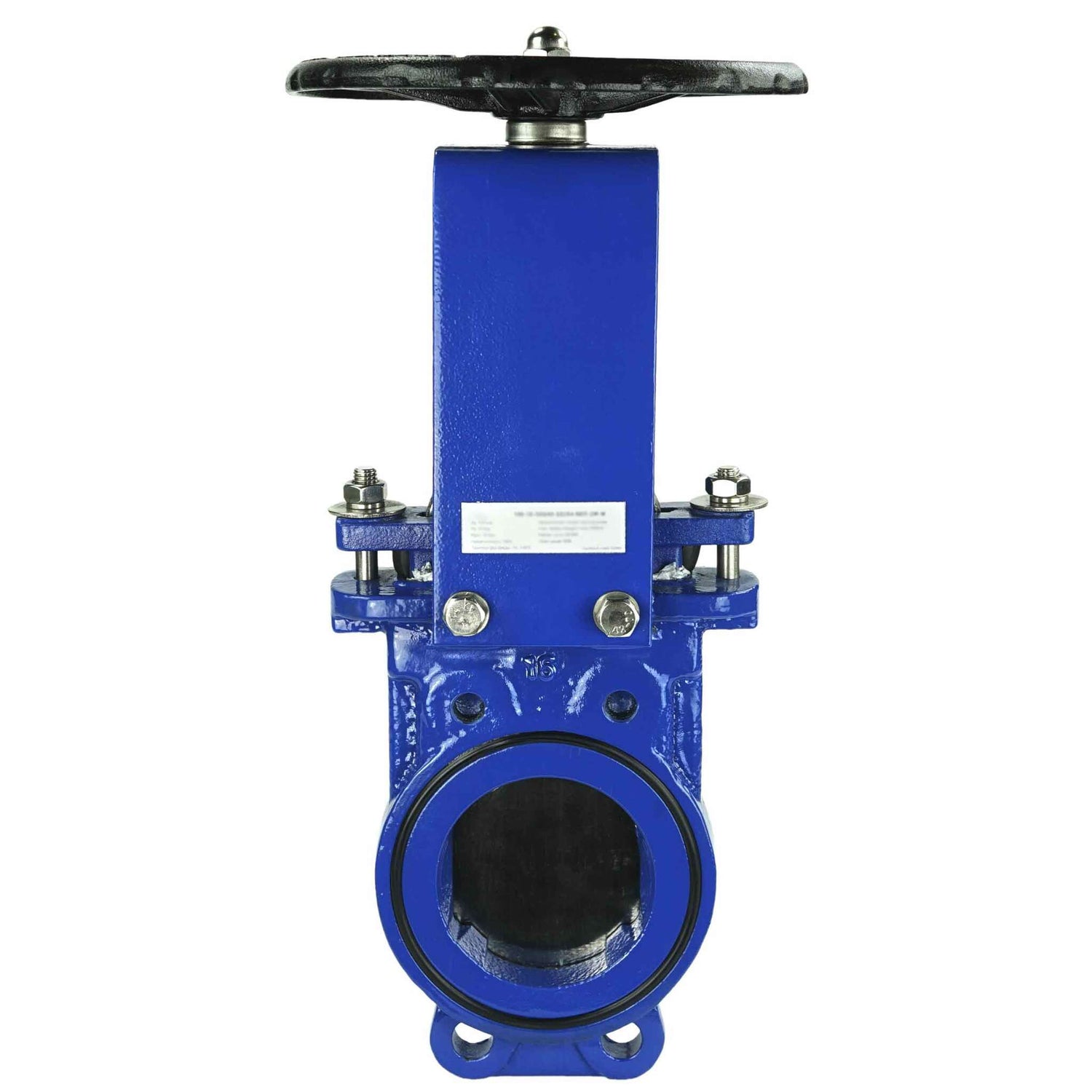

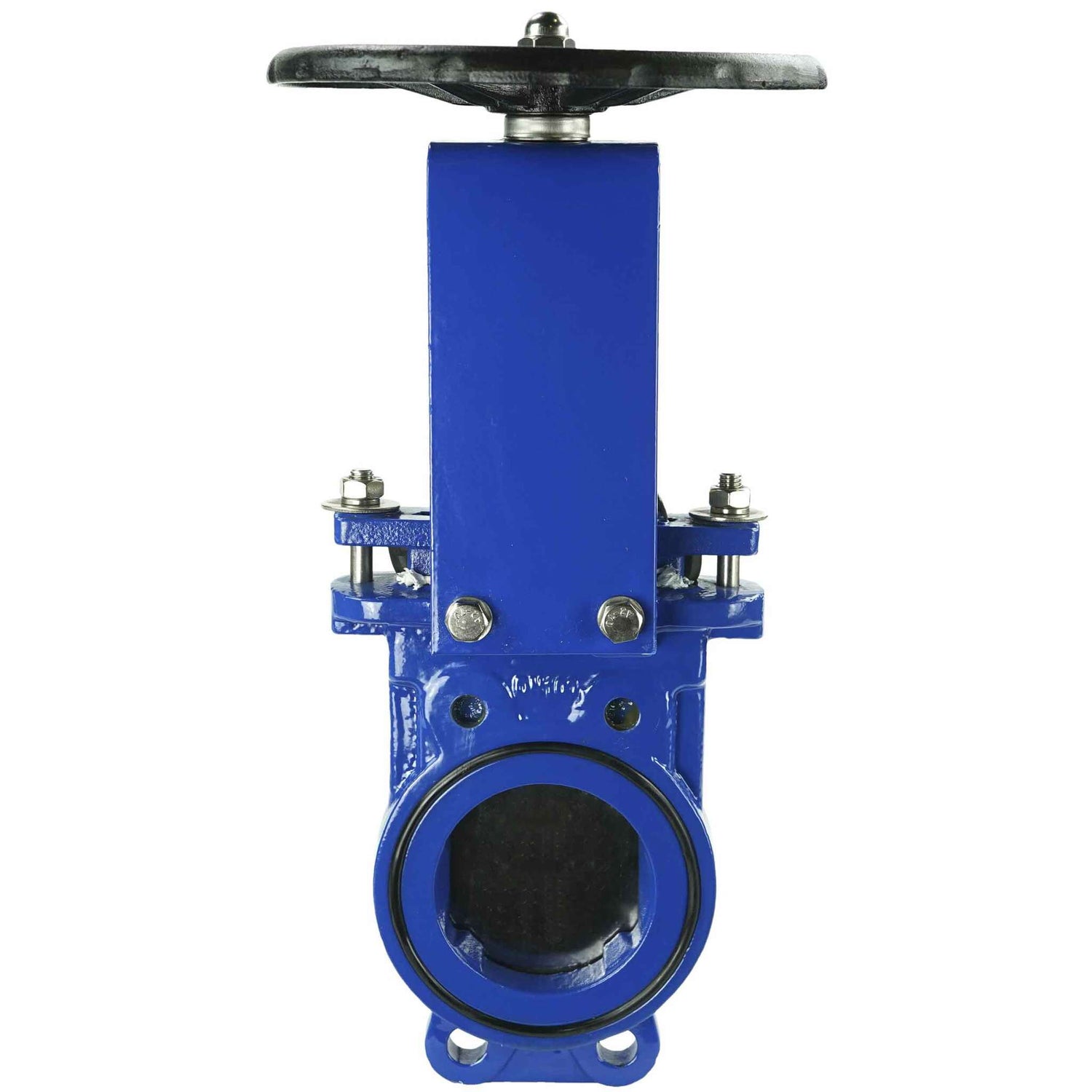

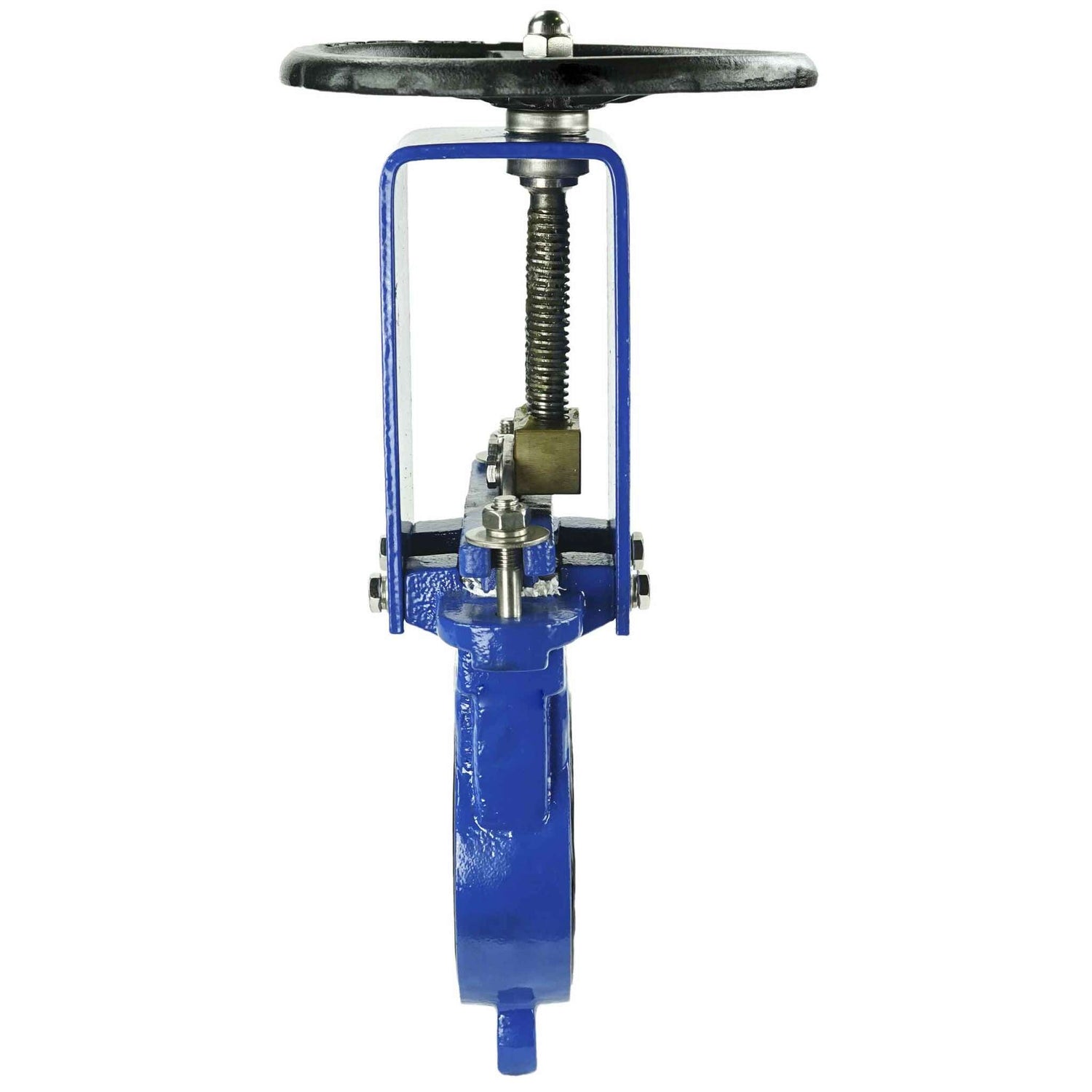

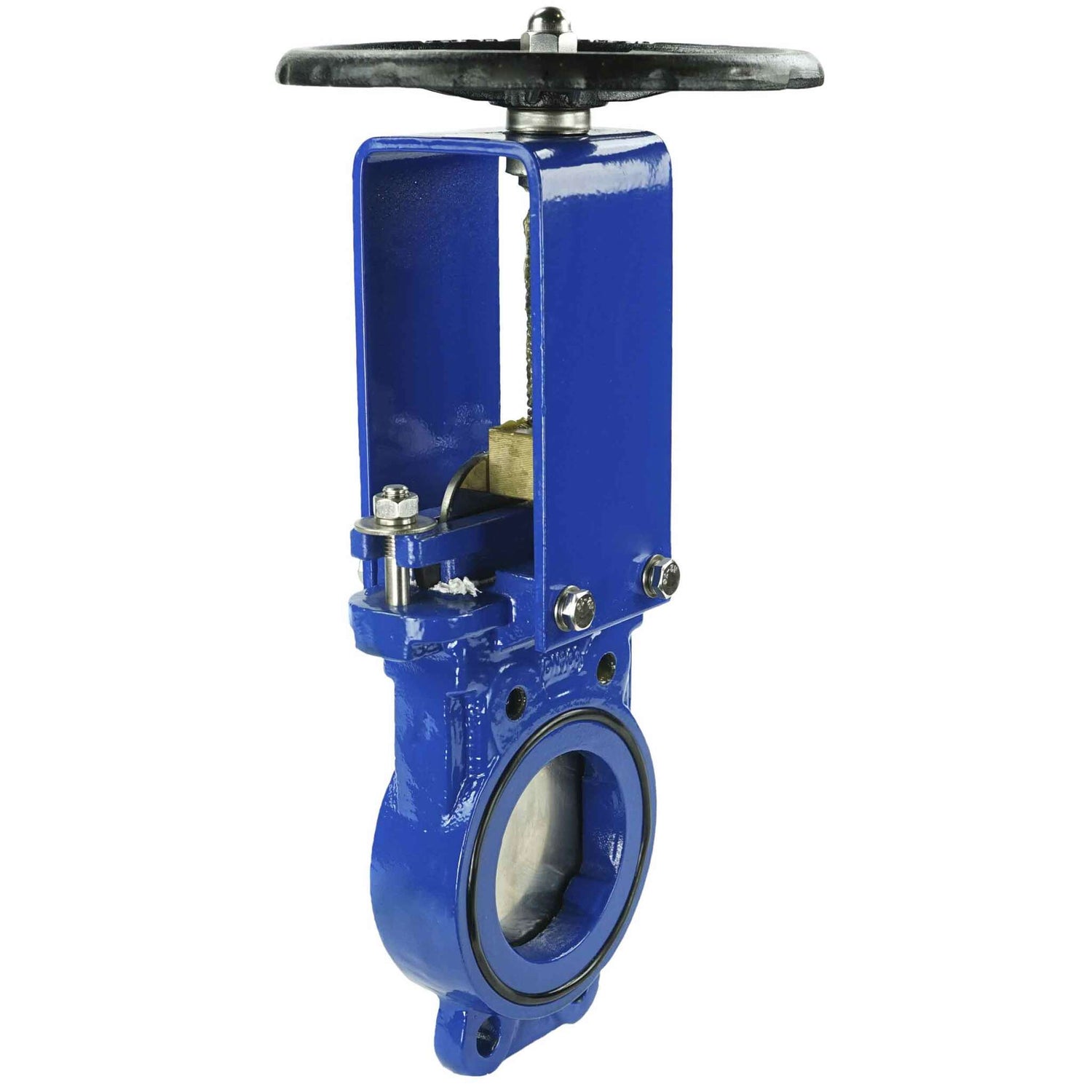

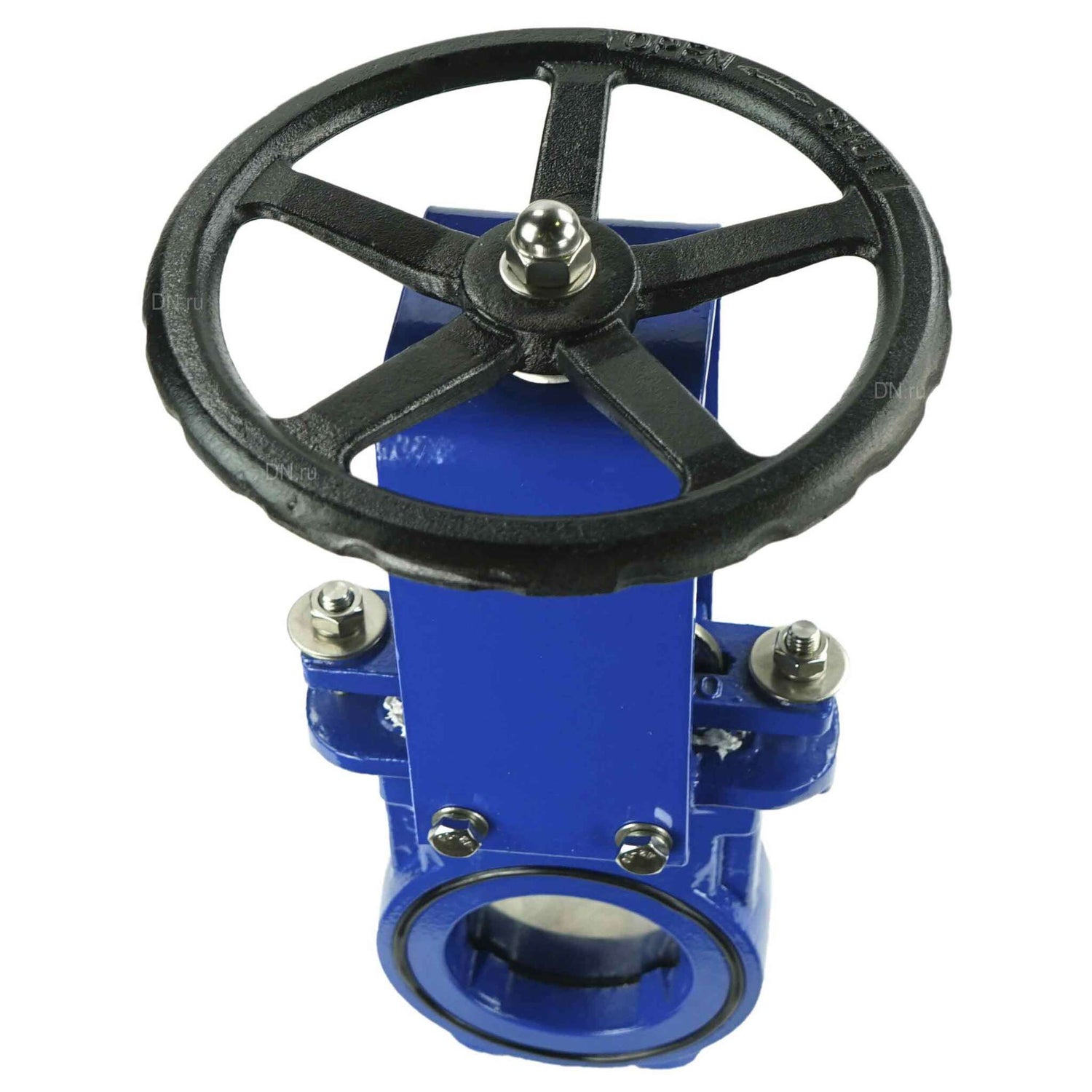

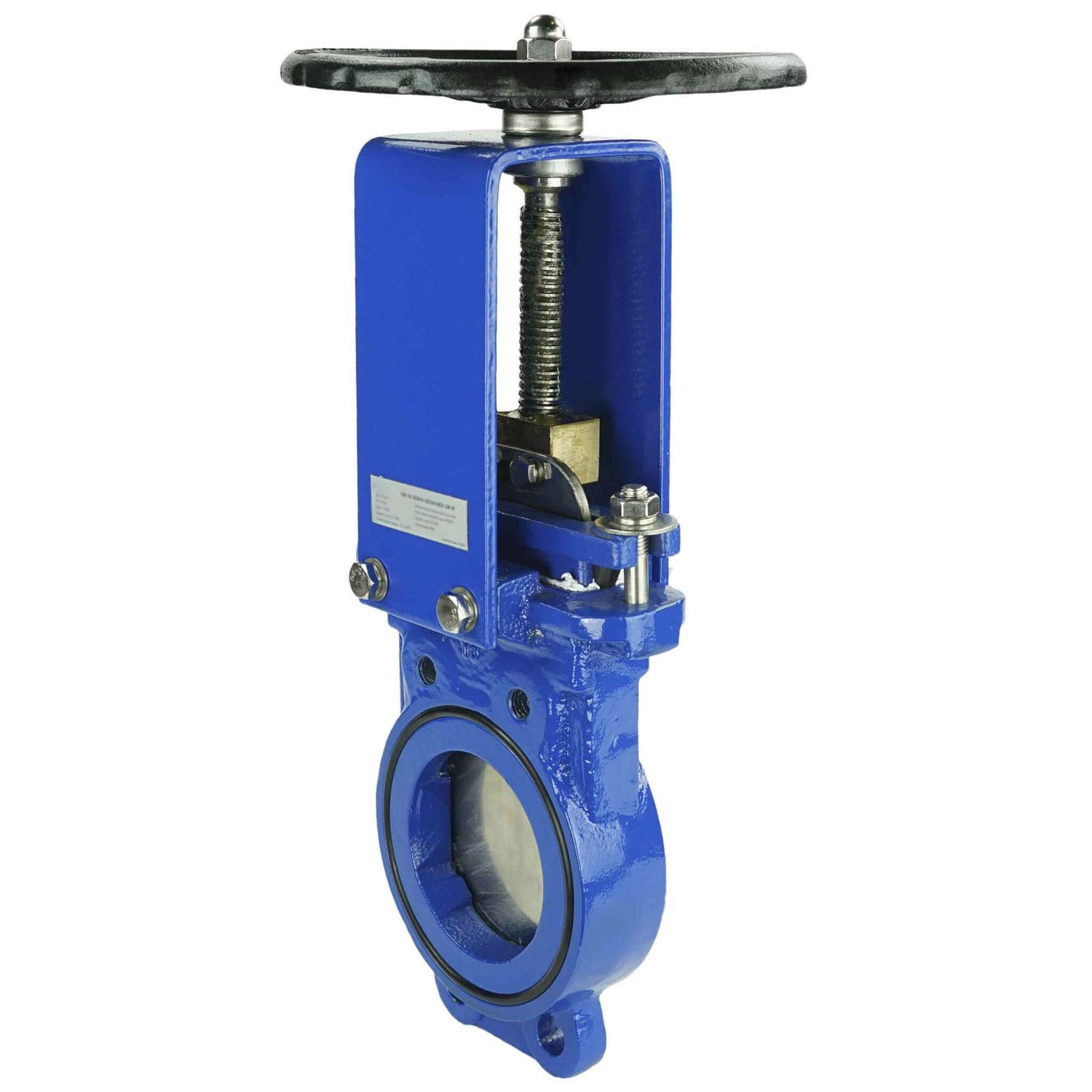

Knife gate valve Elephant GGG40-SS304-NBR-2W, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, handwheel operated

€51,00
Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Knife gate valves are a specific type of gate valve that are typically used in industries for handling tough solids and slurries. Named for their shape, knife gate valves have a sharp, knife-like gate that can cut through viscous or solid material in the flow. They are commonly used in wastewater treatment plants, paper mills, mining operations, and food industries, among others. Their primary function is to start or sop a flow or adjust its volume, but they do not control the pressure or flow rate.

Overall and installation dimensions of the gate valve Elephant GGG40-SS304-NBR-2W, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, handwheel operated

Overall and installation dimensions of the gate valve Elephant GGG40-SS304-NBR-2W, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, handwheel operated

Valve sketch Elephant GGG40-SS304-NBR-2W, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, handwheel operated

DN L±2 D D1 D2 D0 d Н1 T N, pcs M Weight
50 50 165 125 99 180 18 265 13 4 М16 5
65 50 185 145 118 200 18 285 13 4 М16 7
80 52 200 160 132 200 18 350 13 8 М16 11
100 52 220 180 156 240 18 375 13 8 М16 13
125 52 250 210 184 260 18 440 16 8 М16 15
150 62 285 240 211 280 23 475 16 8 М20 20
200 62 340 295 266 300 23 570 20 8 М20 28
12 М20
250 70 395 350 319 320 23 705 20 12 М20 47
300 70 445 400 370 350 23 790 20 12 М20 57
400 90 565 515 480 450 27 930 24 16 М24 85

Construction and materials of the gate Elephant GGG40-SS304-NBR-2W, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, handwheel operated

Construction and materials of the gate Elephant GGG40-SS304-NBR-2W, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, handwheel operated

Material sketch of valve parts Elephant GGG40-SS304-NBR-2W, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, handwheel operated

№ Part name Material
1 Body Cast iron GGG40
2 Seat seal NBR nitrile
3 Knife steel AISI304
4 Gland packing PTFE
5 gland Carbon steel WCB
6, 7, 10 Bolt steel AISI201
8, 16 Nut steel AISI201
9 Nut Cast iron
11 Support plates steel A3
12 Stem steel 2Cr13
13 Bearing ZChSnSb10-6
14 Bearing cover steel A3
15 Helm Cast iron GGG40
17 Gasket NBR nitrile

Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG40/EN-GJS-400-15
  • Stopper Material
    Stainless steel AISI 304/1.4301
  • Maximum allowable temperature
    90 °C
  • Connection type
    Compact flanged
  • Control type
    Handwheel
  • Gate valve type
    Knife Gate Valve
  • Nominal pressure
    10 bar
  • Type of seal
    NBR
  • Coating type
    Epoxy powder
