Elephant | SKU: D040-03186

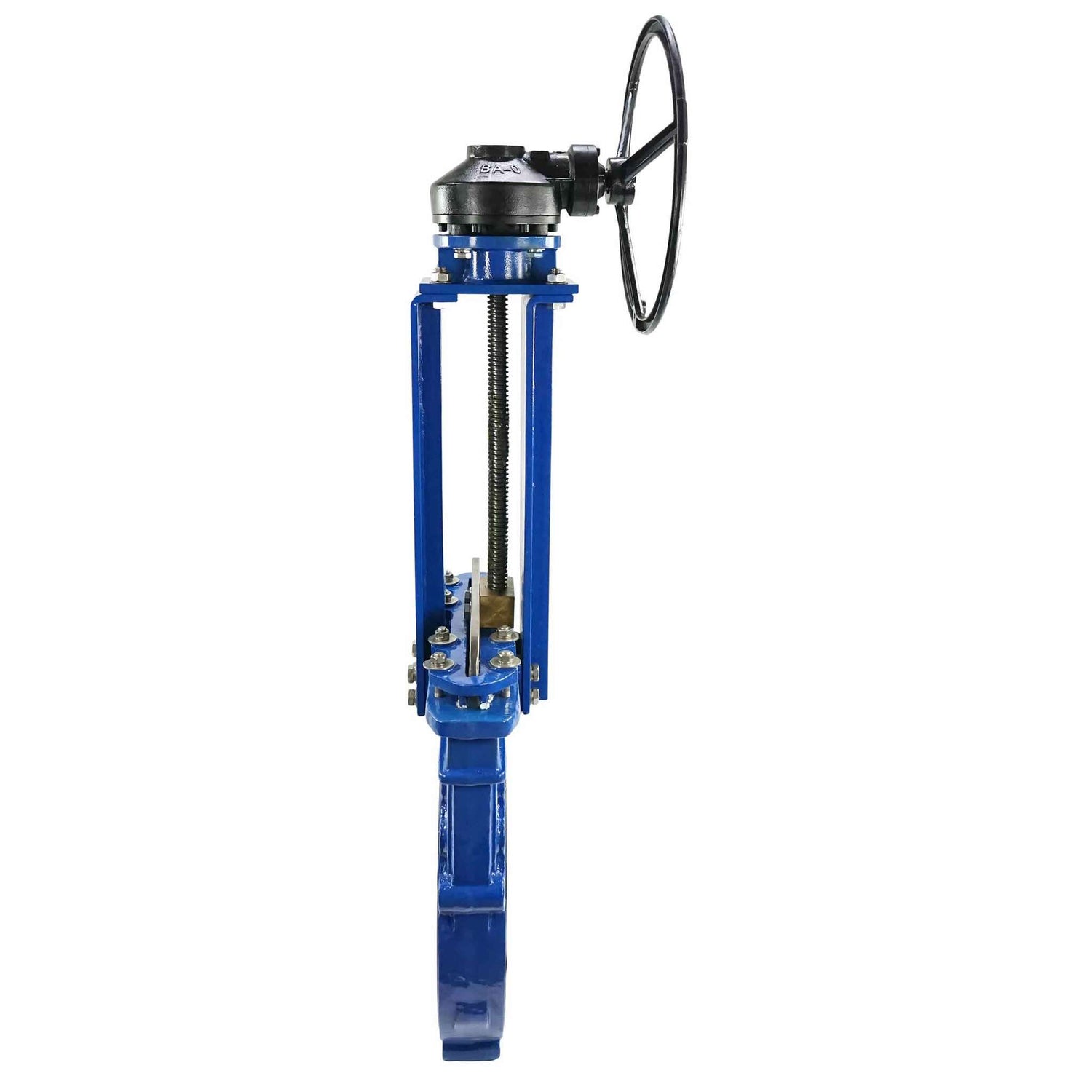

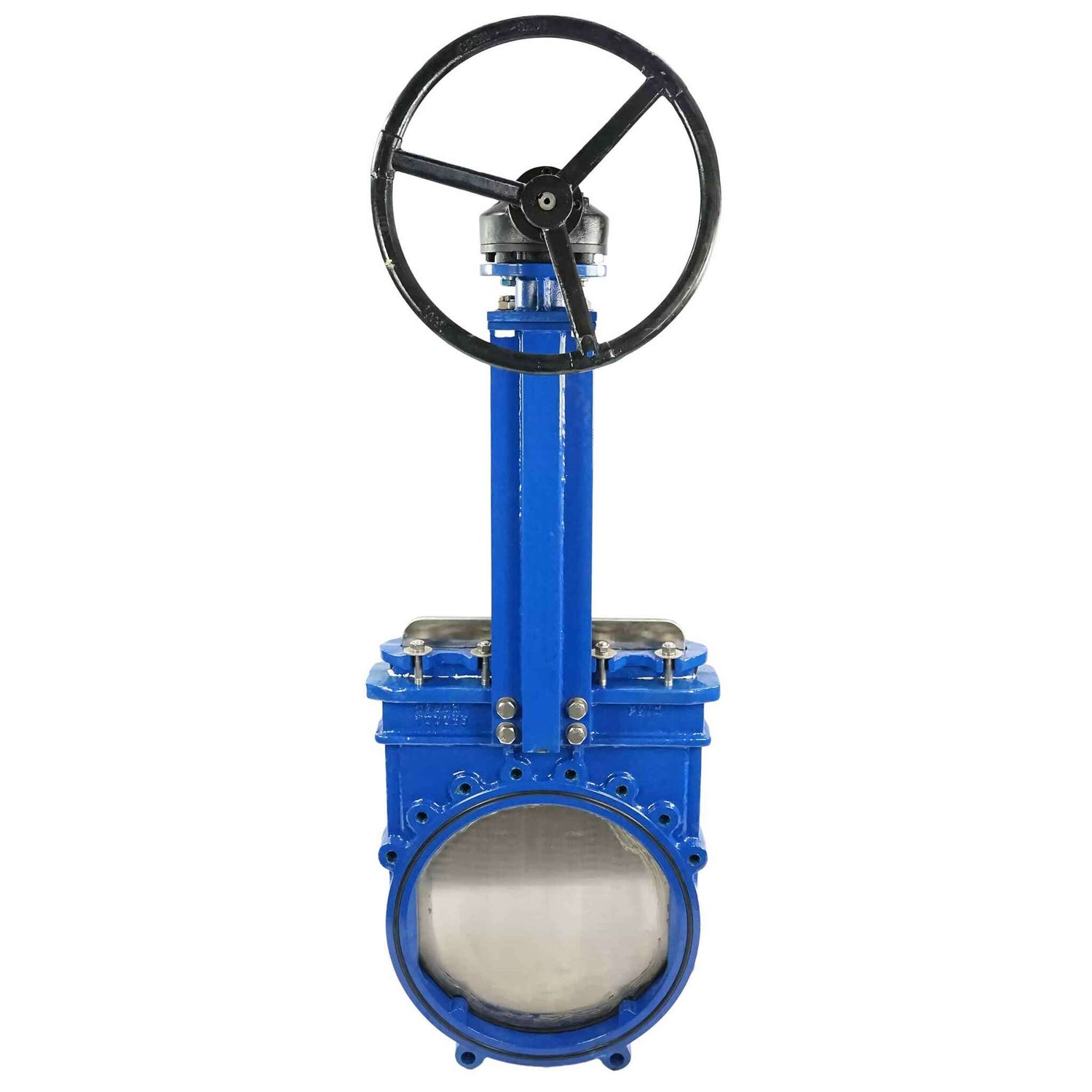

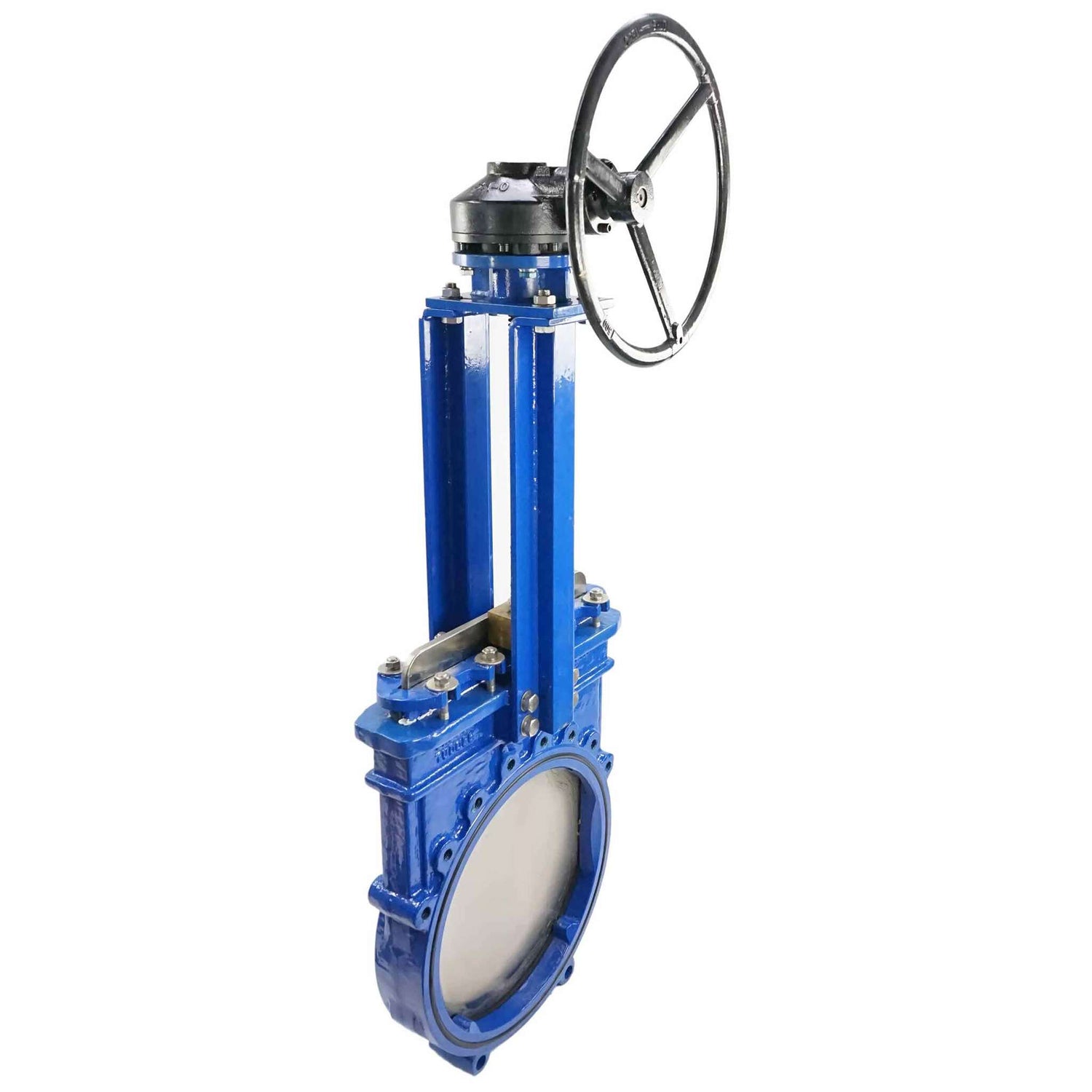

Knife gate valve Elephant GGG40-SS304-NBR-2W, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, gear operated

€659,00

Shipping calculated at checkout.

Connection size

Pressure

Product variants

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Knife gate valves are a specific type of gate valve that are typically used in industries for handling tough solids and slurries. Named for their shape, knife gate valves have a sharp, knife-like gate that can cut through viscous or solid material in the flow. They are commonly used in wastewater treatment plants, paper mills, mining operations, and food industries, among others. Their primary function is to start or sop a flow or adjust its volume, but they do not control the pressure or flow rate.

Overall and installation dimensions of the gate valve Elephant GGG40-SS304-NBR-2W, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, gear operated

Valve sketch Elephant GGG40-SS304-NBR-2W, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, gear operated

DN	PN	L	D	D1	D2	D0	N-Th	d	h	Weight
400	6	90	580	525	480	350	12-М27	Ø30	970	117
500	4	114	670	620	582	310	20-М24	Ø27	1200	230
600	4	114	780	725	682	310	20-М27	Ø30	1410	320

Construction and materials of the gate Elephant GGG40-SS304-NBR-2W, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, gear operated

Material sketch of valve parts Elephant GGG40-SS304-NBR-2W, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, gear operated

№	Part name	Material
1	O-ring	Nitrile NBR
2	Gate valve body	Cast iron GGG40
3	Disk seal	EPDM
4	Disk	steel AISI304
5	Bolt	steel AISI201
6	Gland packing	PTFE
7	Bolt and nut	steel AISI201
8	gland	Carbon steel WCB
9	Bolt and nut	steel AISI201
10	Nut	Brass
11	Stem	steel 2Cr13
12	Support plates	steel A3
13	Bolt	steel A3
14	Bearing cover	Carbon steel WCB
15	Bearing	ZChSnSb10-6
16	Gearbox	Cast iron GGG40

Specifications

Country of origin

China
Body material

Cast iron GGG40/EN-GJS-400-15
Stopper Material

Stainless steel AISI 304/1.4301
Maximum allowable temperature

90 °C
Connection type

Compact flanged
Control type

Gear
Gate valve type

Knife Gate Valve
Nominal pressure

10 bar
Type of seal

NBR
Coating type

Epoxy powder
