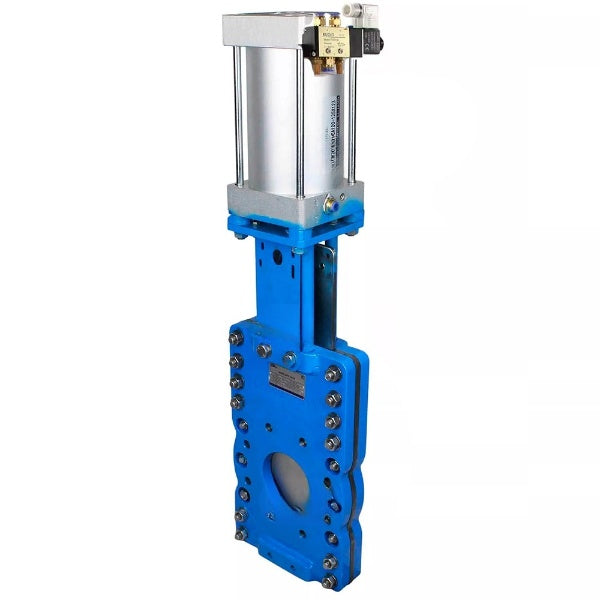

Gate gate valve with through knife is designed for installation on pipelines as a shut-off device and controlling the flow of medium with high concentration of solid particles. It can also be used in gravity feed systems for solid and powdery substances, as the cutting edge of the knife allows cutting off high density flows.
Pneumatic distributors are used for control in pneumatic systems with NAMUR docking surface, for installation of distributors through holes in the body. Electromagnetic control, is realized by means of voltage coils 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC. Depending on the model, the valves have one-way or two-way control. Solenoid operated pneumatic valves have a wide range of models and include common switching types for three (3/2) and five (5/2 and 5/3) line pneumatic valves. They are intended for use with gate valves with pneumatic cylinder. It can also be used on other pneumatically actuated valves.
Technical characteristics of gate valves Elephant GVKRT3431N-2W-Fb-2P interflanged, body - carbon steel WCB, gate - stainless steel 304, sealing - NBR, with pneumatic actuator and pneumatic valve 4V210-08 220V:
| Name | Meaning |
| Connection type | interflange |
| Medium | viscous media, powdered and crystallized media, waste paper, slurry |
| Type of control | pneumatic actuator |
| Application | extractive industry, pulp and paper industry |
| Gate valve type | Schieber |
| Working medium temperature, °С | from -30 to +110 |
| Manufacturer's country | China |
Gate valves Elephant GVKRT3431N-2W-Fb-2P interflanged, body - carbon steel WCB, gate - stainless steel 304, sealing - NBR, with pneumatic actuator and pneumatic valve 4V210-08 220V
Dimensions and dimensions of gate valves Elephant GVKRT3431N-2W-Fb-2P interflanged, body - carbon steel WCB, gate - stainless steel 304, sealing - NBR, with pneumatic actuator and pneumatic valve 4V210-08 220V:
| Size | DN, mm | L, mm | D, mm | D1, mm | D2, mm | H1, mm | G, inch | N - Th | T, mm |
| DN100 | 100 | 51 | 220 | 180 | 156 | 428 | 1/2″ | 8 – M16 | 12 |
| DN150 | 150 | 57 | 285 | 240 | 211 | 553 | 3/4″ | 8 – M20 | 14 |
| DN200 | 200 | 70 | 340 | 295 | 266 | 727 | 3/4″ | 8 – M20 | 16 |
| DN250 | 250 | 70 | 395 | 350 | 319 | 880 | 3/4″ | 12 – M20 | 16 |
Sketch dimensions and dimensions Gate valves Elephant GVKRT3431N-2W-Fb-2P interflanged, body - carbon steel WCB, gate - stainless steel 304, sealing - NBR, with pneumatic actuator and pneumatic valve 4V210-08 220V
Table of parts and materials for gate valves Elephant GVKRT3431N-2W-Fb-2P interflanged, body - carbon steel WCB, gate - stainless steel 304, sealing - NBR, with pneumatic actuator and pneumatic valve 4V210-08 220V:
| № | Part name | Material |
| 1 | Casing | WCB steel |
| 2 | Schieber | stainless steel 304 |
| 3 | Guide seal | NBR |
| 4 | Guide seal | NBR |
| 5 | Rack | steel Q235 |
| 6 | Rod | steel 45 |
| 7 | Rack head | cast iron GGG40 |
| 8 | Pneumatic cylinder | - |
| 9 | Rod coupling | steel Q235 |
| 10 | Solenoid valve | - |
| 11 | Filter | - |
Sketch of parts and materials of slide gate valves Elephant GVKRT3431N-2W-Fb-2P interflanged, body - carbon steel WCB, gate - stainless steel 304, sealing - NBR, with pneumatic actuator and pneumatic valve 4V210-08 220V
Technical parameters of SC pneumatic cylinders:
| Name | Significance |
| Action type | double-acting |
| Operating medium | compressed air |
| Mounting type | FA FB CA CB LB YB |
| Damping | adjustable |
| Damping length, mm | 32 |
| Working pressure range, bar | 1-9 |
| Maximum allowable pressure, bar | 13.5 |
| Operating temperature range, °C | from -5 to +70 |
Dimensions and dimensions of SC pneumatic cylinders:
| Pneumatic cylinder model | SC 125x145 | SC 200x220 |
| A, mm | 246 | 320 |
| B, mm | 102 | 128 |
| C, mm | 144 | 192 |
| D, mm | 60 | 80 |
| E, mm | 70 | 80 |
| F, mm | 32 | 48 |
| G, mm | 40 | 50 |
| H, mm | 50 | 60 |
| I, mm | 39 | 52 |
| J, mm | 11 | 14 |
| K | М27х2 | М36х2 |
| L | М12х1.75 | М16х2 |
| M, mm | 15 | 30 |
| N, mm | 20 | 25 |
| O, inch | G1/2″ | G3/4″ |
| S, mm | 140 | 220 |
| T, mm | 110 | 175 |
| V, mm | 32 | 50 |
| W, mm | 29 | 46 |
Sketch of dimensions and dimensions of SC pneumatic cylinders
Technical parameters of pneumatic valve 4V210-08:
| Name | Significance |
| Design | spool type |
| Nominal pressure PN, MPa | 1.2 |
| Working pressure, bar | 1.5 - 8 |
| Working medium | filtered compressed air |
| Operating temperature, °С | -20 to +70 |
| Operation frequency, cycles/sec | 5 |
| Manual duplication | is |
| Degree of protection, IP | 65 |
| Mounting | through holes in the housing |
| Housing material | anodized aluminum |
| Response time, sec. | 0.05 |
Pneumatic valve 4V210-08
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environmentViscous media, powdered and crystallized media, waste paper, slurry
-
ApplicationsExtractive industry, pulp and paper industry
-
Nominal pressure
-
Type of seal
-
Locking material
-
Manual override
-
Limit switches
-
Type of pneumatic actuator
