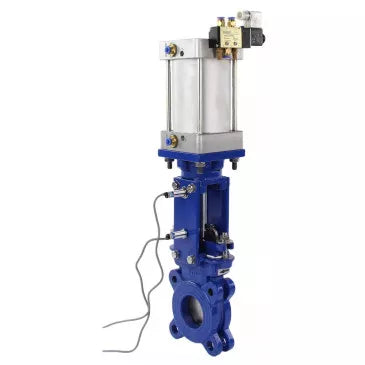

Gate valves Elephant GVKR3431M-1W-Fb-2P wafer type, with a rising spindle, body - WCB steel, seal - METAL, with pneumatic actuator, WENZ and pneumatic distributor 4V210-08 24V
Gate valves Elephant GVKR3431M-1W-Fb-2P wafer type, with a rising spindle, body - WCB steel, seal - METAL, with pneumatic actuator, WENZ and pneumatic distributor 4V210-08 24V - DN50 / 10 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The gate valve is designed for installation on a pipeline as a shut-off device and for regulating the flow of the working medium in water supply systems (except for drinking water supply systems) and the chemical industry.
Pneumatic distributors are used for control in pneumatic systems with a NAMUR mating surface for installing distributors through through holes in the body. Electromagnetic control is carried out using voltage coils 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC. Depending on the model, distributors have one-way or two-way control. Pneumatic distributors with electromagnetic control have a wide range of models and include common types of switching for three (3/2) and five (5/2 and 5/3) linear pneumatic distributors. Intended for use with gate valves with a pneumatic cylinder. Application is also possible on other valves with a pneumatic drive.
Technical characteristics of the Elephant GVKR3431M-1W-Fb-2P DN50-400 PN10 wafer gate valves, with a retractable spindle, body - WCB steel, seal - METAL, with a pneumatic actuator, WENZ and a pneumatic distributor 4V210-08 24V:
| Name | Meaning |
| Nominal pressure PN, bar | 10 |
| Connection type | interflange |
| Wednesday | water |
| Control type | pneumatic drive |
| Application | water supply, heat supply, industry |
| Gate valve type | Gate valve |
| Working environment temperature, °C | from -30 to +400 |
Sketch of the dimensions and sizes of the gate valves Elephant GVKR3431M-1W-Fb-2P Dn50-400 Ru10 interflange, with a retractable spindle, body - steel WCB, seal - METAL, with a pneumatic actuator, WENZ and a pneumatic distributor 4V210-08 24V
Dimensions and sizes of gate valves Elephant GVKR3431M-1W-Fb-2P Dn50-400 Ru10 interflange, with a retractable spindle, body - WCB steel, seal - METAL, with pneumatic actuator, WENZ and pneumatic distributor 4V210-08 24V:
| Size | Dn50 | Dn65 | Dn80 | Dn100 | Dn125 | Dn150 | Dn300 | Dn400 |
| DN, mm | 50 | 65 | 80 | 100 | 125 | 150 | 300 | 400 |
| L, mm | 48 | 48 | 51 | 51 | 57 | 57 | 76 | 89 |
| D, mm | 165 | 165 | 200 | 220 | 250 | 285 | 445 | 565 |
| D1, mm | 125 | 145 | 160 | 180 | 210 | 240 | 400 | 515 |
| D2, mm | 99 | 118 | 132 | 156 | 181 | 211 | 370 | 480 |
| D0, mm | 100 | 100 | 100 | 100 | 100 | 125 | 160 | 200 |
| H1, mm | 417 | 460 | 510 | 600 | 628 | 780 | 1232 | 1528 |
| G, inch | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ |
| N - Th | 4 – M16 | 4 – M16 | 8 – M16 | 8 – M16 | 8 – M16 | 8 – M20 | 12 – M20 | 16 – M24 |
| T, mm | 12 | 12 | 12 | 12 | 12 | 14 | 16 | 20 |
| Ød, mm | 18 | 18 | 18 | 18 | 18 | 23 | 23 | 27 |
| ⬤, mm | 4 | 4 | 4 | 4 | 4 | 4 | 6 | 10 |
| 〇, mm | - | - | 4 | 4 | 4 | 4 | 6 | 6 |
Sketch of parts and materials of gate valves Elephant GVKR3431M-1W-Fb-2P Dn50-400 Ru10 interflange, with a rising spindle, body - steel WCB, seal - METAL, with pneumatic actuator, WENZ and pneumatic distributor 4V210-08 24V
Table of parts and materials of gate valves Elephant GVKR3431M-1W-Fb-2P Dn50-400 Ru10 interflange, with a rising spindle, body - WCB steel, seal - METAL, with pneumatic actuator, WENZ and pneumatic distributor 4V210-08 24V:
| Item No. | Details | Material |
| 1 | Frame | WCB steel |
| 2 | Gate | Stainless steel SS304 |
| 3 | Guide seal | PTFE |
| 4 | Stuffing | PTFE |
| 5 | Gland packing | WCB steel |
| 6 | Rack | steel Q235 |
| 7 | Pin | steel 45 |
| 8 | Cartridge | WCB steel |
| 9 | Stock | steel 45+Cr |
| 10 | Switch | - |
| 11 | Head of the rack | cast iron GGG40 |
| 12 | Pneumatic cylinder | - |
| 13 | Solenoid valve | - |
| 14 | Filter | - |
| 15 | Wedge | WCB steel |
Technical parameters of SC pneumatic cylinders
| Name | Meaning |
| Model | SC |
| Design | double acting |
| Working environment | compressed air |
| Damping | adjustable |
| Working pressure range, bar | 1-9 |
| Operating temperature range, °C | from -5 to +70 |
Sketch of dimensions and sizes of SC pneumatic cylinders
Dimensions and sizes of SC pneumatic cylinders
| Model | SC 100x70 | SC 100x85 | SC 100x100 | SC 100x120 | SC 100x145 | SC 125x170 | SC 200x320 | SC 250x430 |
| A, mm | 112 | 112 | 112 | 112 | 112 | 140 | 220 | 270 |
| A1, mm | 125 | 125 | 125 | 125 | 125 | 155 | 260 | 220 |
| A2, mm | 70 | 70 | 70 | 70 | 70 | 85 | 140 | - |
| A3, mm | 50 | 50 | 50 | 50 | 50 | 60 | 100 | - |
| A4, mm | 104 | 104 | 104 | 104 | 104 | 130 | 226 | - |
| h3, mm | 10 | 10 | 10 | 10 | 10 | 15 | 20 | - |
| h4, mm | 10 | 10 | 10 | 10 | 10 | 15 | 20 | - |
| NM, mm | 4-M8 | 4-M8 | 4-M8 | 4-M8 | 4-M8 | 4-M10 | 4-M14 | - |
| nd, mm | 2-Ø8.2 | 2-Ø8.2 | 2-Ø8.2 | 2-Ø8.2 | 2-Ø8.2 | 2-Ø10.2 | 2-Ø14.2 | - |
| B, mm | 112 | 112 | 112 | 112 | 112 | 140 | 220 | 270 |
| B1, mm | 75±0.5 | 75±0.5 | 75±0.5 | 75±0.5 | 75±0.5 | 95±0.5 | 105±0.5 | 220±0.5 |
| B2, mm | 32±0.5 | 32±0.5 | 32±0.5 | 36±0.5 | 36±0.5 | 42±0.5 | 48±0.5 | - |
| C, mm | 33 | 33 | 33 | 33 | 33 | 40 | 50 | - |
| D, mm | Ø100 | Ø100 | Ø100 | Ø100 | Ø100 | Ø125 | Ø200 | Ø250 |
| E, mm | 21 | 21 | 21 | 21 | 21 | 30 | 40 | 65 |
| F, mm | 6.2±0.1 | 6.2±0.1 | 6.2±0.1 | 6.2±0.1 | 6.2±0.1 | 8.2±0.1 | - | - |
| S, mm | 70±1 | 85±1 | 100±1 | 120±1 | 145±1 | 170±1 | 320±1 | 430±1 |
| H, mm | 96 | 111 | 126 | 146 | 171 | 205 | 360 | 105 |
| H1, mm | 35±1 | 34±1 | 34±1 | 28±1 | 28±1 | 33±1 | 30±1 | - |
| H2, mm | 12±0.5 | 12±0.5 | 12±0.5 | 12±0.5 | 12±0.5 | 14±0.5 | 23±0.5 | 24±0.5 |
| H3, mm | 24.5±1 | 24.5±1 | 24.5±1 | 24.5±1 | 24.5±1 | 28.5±1 | - | - |
| d1, mm | 10.2 | 10.2 | 10.2 | 10.2 | 10.2 | 12.2 | - | - |
| M, mm | - | - | - | - | - | - | M27x3 | M30x3.5 |
| H4, mm | - | - | - | - | - | - | - | 650 |
Technical parameters of the pneumatic distributor Elephant 4V210-08
| Name | Meaning |
| Type of pneumatic distributor | spool valve |
| Model of pneumatic distributor | 4V210-08 |
| Working pressure, bar | 1.5 ÷ 1.8 |
| Response frequency, cycles/sec | 5 |
Specifications
Specifications
-
Country of origin
-
Body material
-
Connection type
-
Type of seal
-
Disc material
-
Limit switches
Reviews (0)
Reviews (0)
Pneumatic valve ELEPHANT 4V210-08 spool-type
