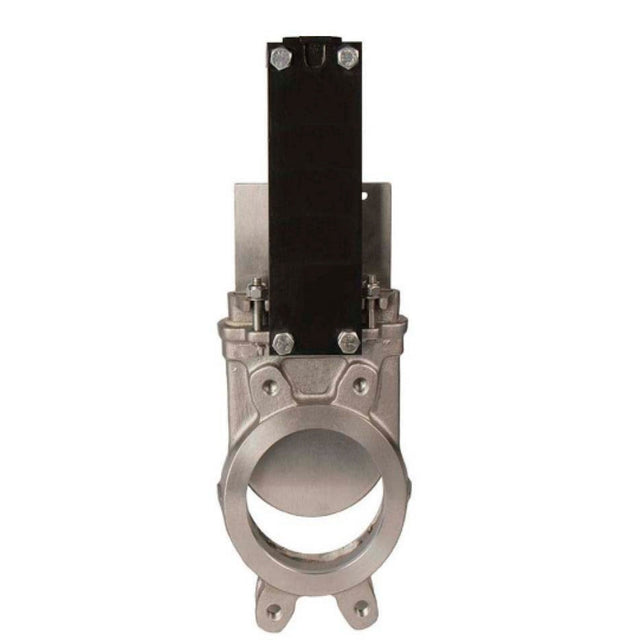

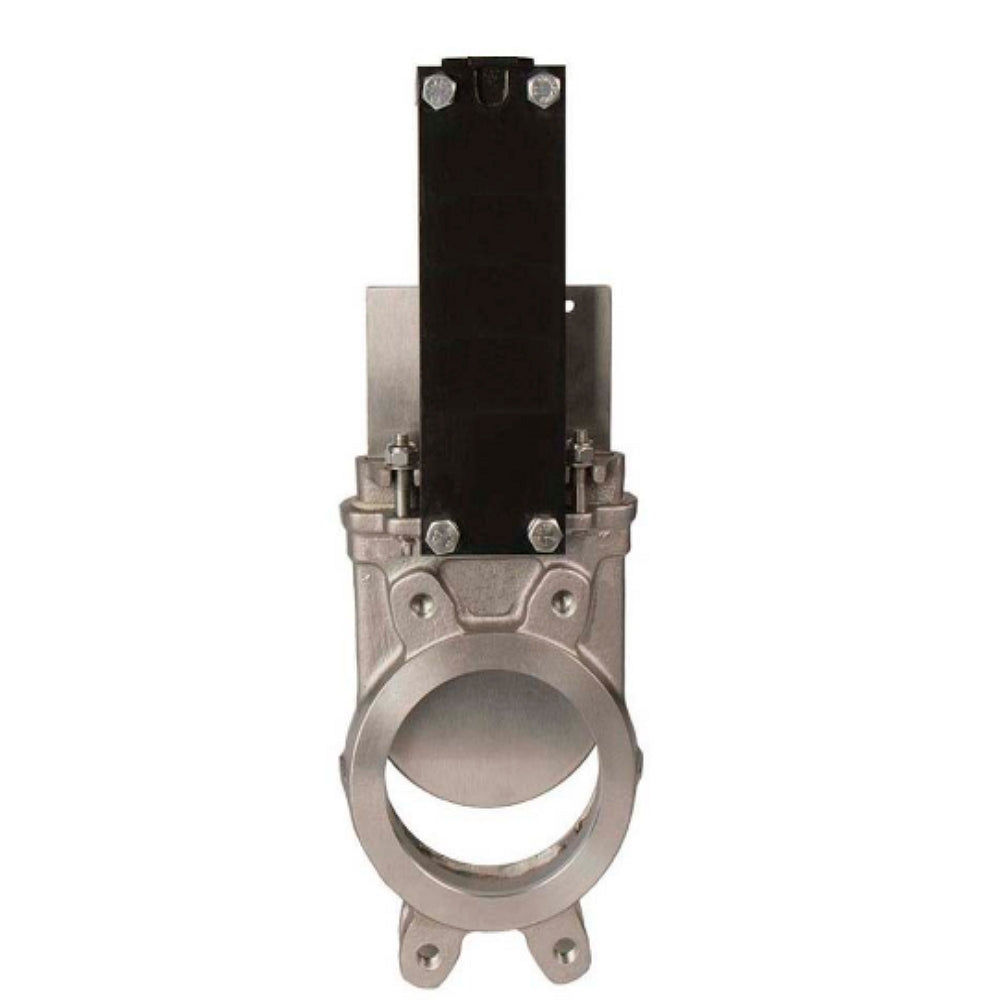

Gate valves Elephant GVKR3131V-2W-Fb-OST-VITON interflanged with OST-flange type A and round stem, body - stainless steel 304, gate - stainless steel 304, seal - VITON, under electric actuator
Gate valves Elephant GVKR3131V-2W-Fb-OST-VITON interflanged with OST-flange type A and round stem, body - stainless steel 304, gate - stainless steel 304, seal - VITON, under electric actuator - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Gate valve GVKRxxx-2W-Fb-OST stainless steel, interflanged with OST-flange and round stem under electric actuator is designed to be installed on the pipeline as a shut-off device and regulate the flow of medium in water supply systems (except drinking water supply systems) and chemical industry.
The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of medium. In case of complete closing of the pipeline nominal bore diameter the flow is stopped, in case of partial closing the flow is regulated.
Technical characteristics of gate valves Elephant GVKR3131V-2W-Fb-OST-VITON interflanged with OST-flange type A and round stem, body - stainless steel 304, gate - stainless steel 304, seal - VITON, under electric actuator:
| Nominal diameter DN, mm | 50-300 |
| Working pressure PN, bar | 10-16 |
| Working medium temperature t, ⁰C | from -20 to +200 |
| Working medium | mineral and vegetable oils, animal fats, greases and fuels, hot air, steam |
| Flow direction | double-sided |
| Body material | stainless steel AISI/SS 304 |
| Seal | VITON |
| Control type | flange OST 26-07-763-73 under electric actuator |
Gate valves Elephant GVKR3131V-2W-Fb-OST-VITON interflanged with OST-flange type A and round stem, body - stainless steel 304, gate - stainless steel 304, seal - VITON, under electric actuator
Dimensions and dimensions of gate valves Elephant GVKR3131V-2W-Fb-OST-VITON interflanged with OST-flange type A and round stem, body - stainless steel 304, gate - stainless steel 304, seal - VITON, under electric actuator:
| DN | L, mm | D, mm | D1, mm | D2, mm | H, mm | h1, mm | h2, mm | Weight, kg |
| 50 | 48 | 160 | 125 | 99 | 285 | 3 | 4 | 8.5 |
| 65 | 48 | 185 | 145 | 118 | 310 | 3 | 4 | 10 |
| 80 | 51 | 200 | 160 | 132 | 346 | 3 | 4 | 12 |
| 100 | 51 | 220 | 180 | 156 | 384 | 3 | 4 | 14 |
| 125 | 51 | 250 | 210 | 184 | 432 | 3 | 4 | 20 |
| 150 | 57 | 280 | 240 | 212 | 478 | 3 | 4 | 25 |
| 200 | 70 | 340 | 295 | 266 | 572 | 3 | 4 | 35 |
| 250 | 70 | 400 | 350 | 319 | 650 | 3 | 4 | 50 |
| 300 | 76 | 450 | 400 | 370 | 745 | 3 | 4 | 68 |
Sketch dimensions and dimensions Gate valves Elephant GVKR3131V-2W-Fb-OST-VITON interflanged with OST-flange type A and round stem, body - stainless steel 304, gate - stainless steel 304, seal - VITON, under electric actuator
Table of parts and materials for gate valves Elephant GVKR3131V-2W-Fb-OST-VITON interflanged with OST-flange type A and round stem, body - stainless steel 304, gate - stainless steel 304, seal - VITON, under electric actuator:
| № | Part name | Material |
| 1 | Casing | stainless steel AISI/SS 304 |
| 2 | Schieber | stainless steel AISI/SS 304 |
| 3-4 | Bolt-nut | A2-steel A4 steel |
| 5 | Seal | PTFE+graphite |
| 6 | Gland packing | WCB steel |
| 7-9 | Bolt-nut | A2-steel A4 |
| 10 | Stem | stainless steel AISI/SS 304 |
| 11 | Rack | A3 steel |
| 12 | Seat seal | VITON |
| 13 | Rack head | WCB steel |
| 14 | Nut | brass |
| 15 | Pin | steel 45 |
| 16 | Cotter pin | A3 steel |
Sketch of parts and materials of slide gate valves Elephant GVKR3131V-2W-Fb-OST-VITON interflanged with OST-flange type A and round stem, body - stainless steel 304, gate - stainless steel 304, seal - VITON, under electric actuator
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environmentSteam, Oils, Fuels, Hot air, Grease, Animal fats
-
ApplicationsIndustry, Wastewater systems
-
Nominal pressure
-
Type of seal
-
Locking material
-
Limit switches
