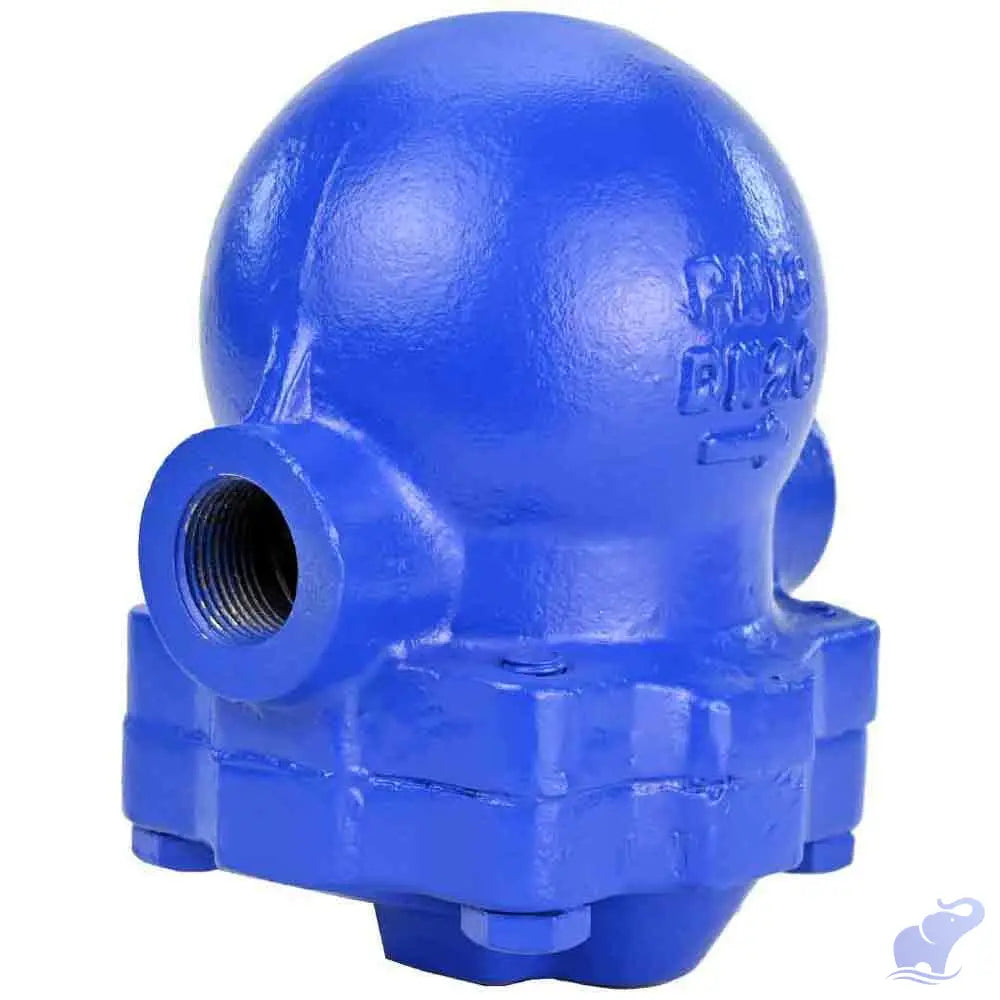

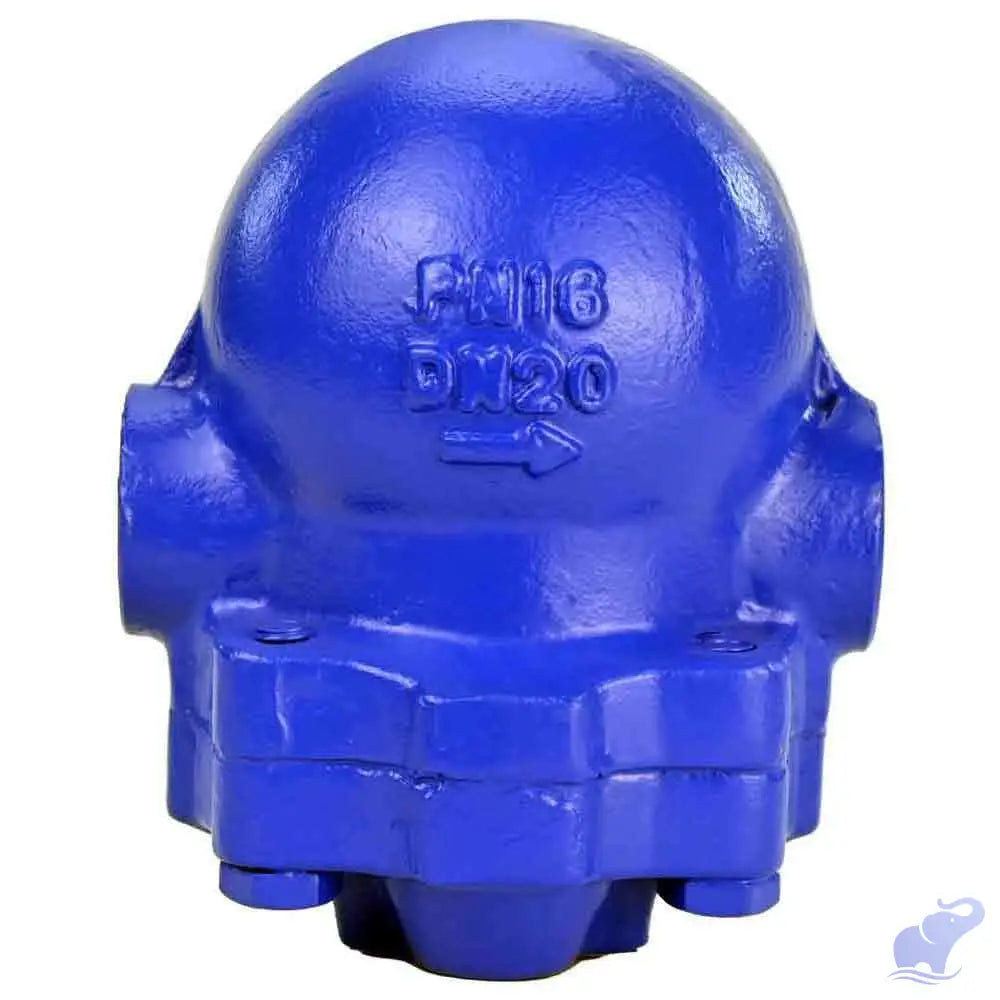

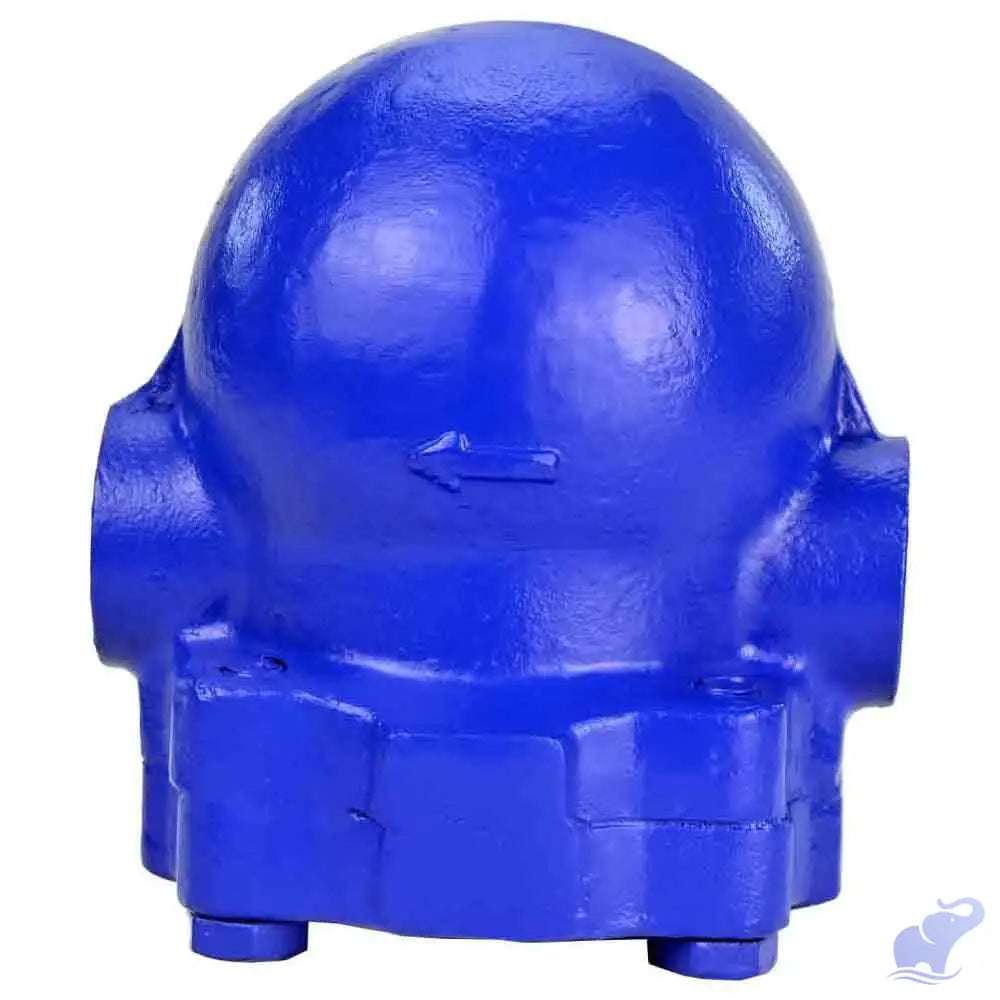

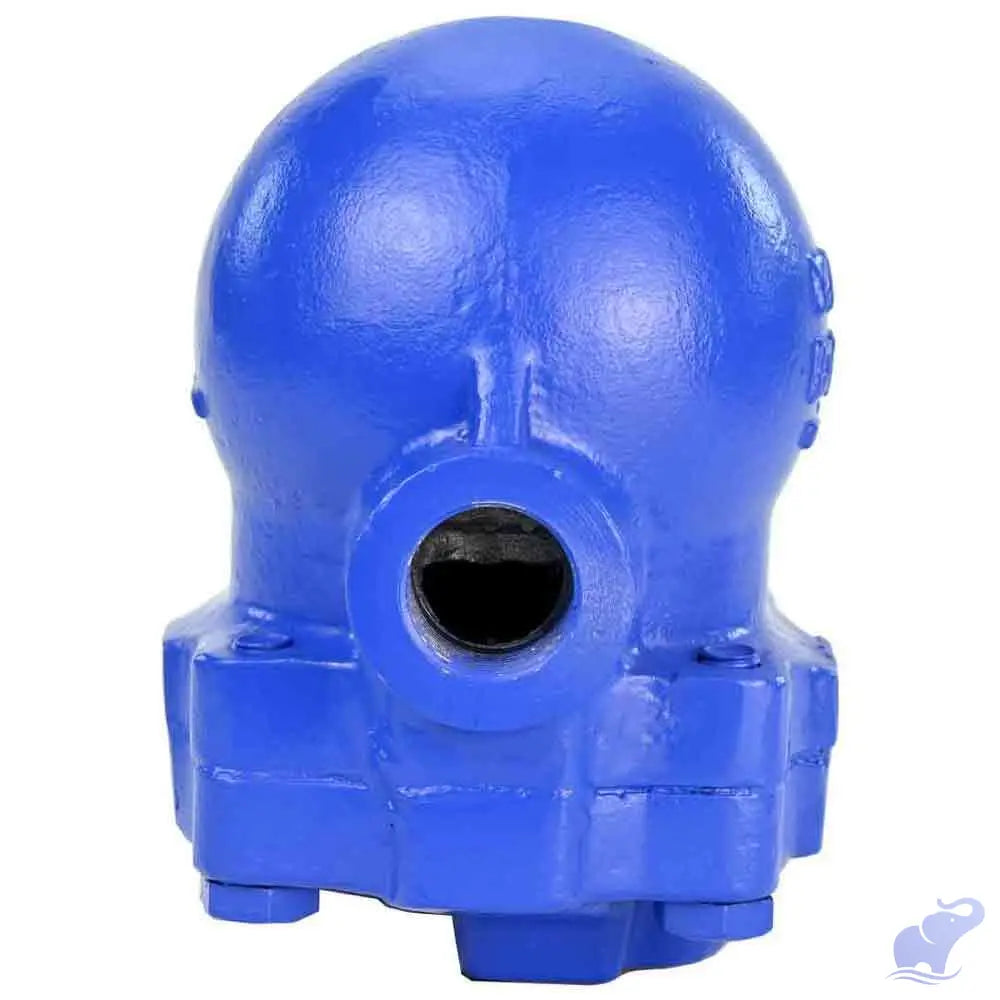

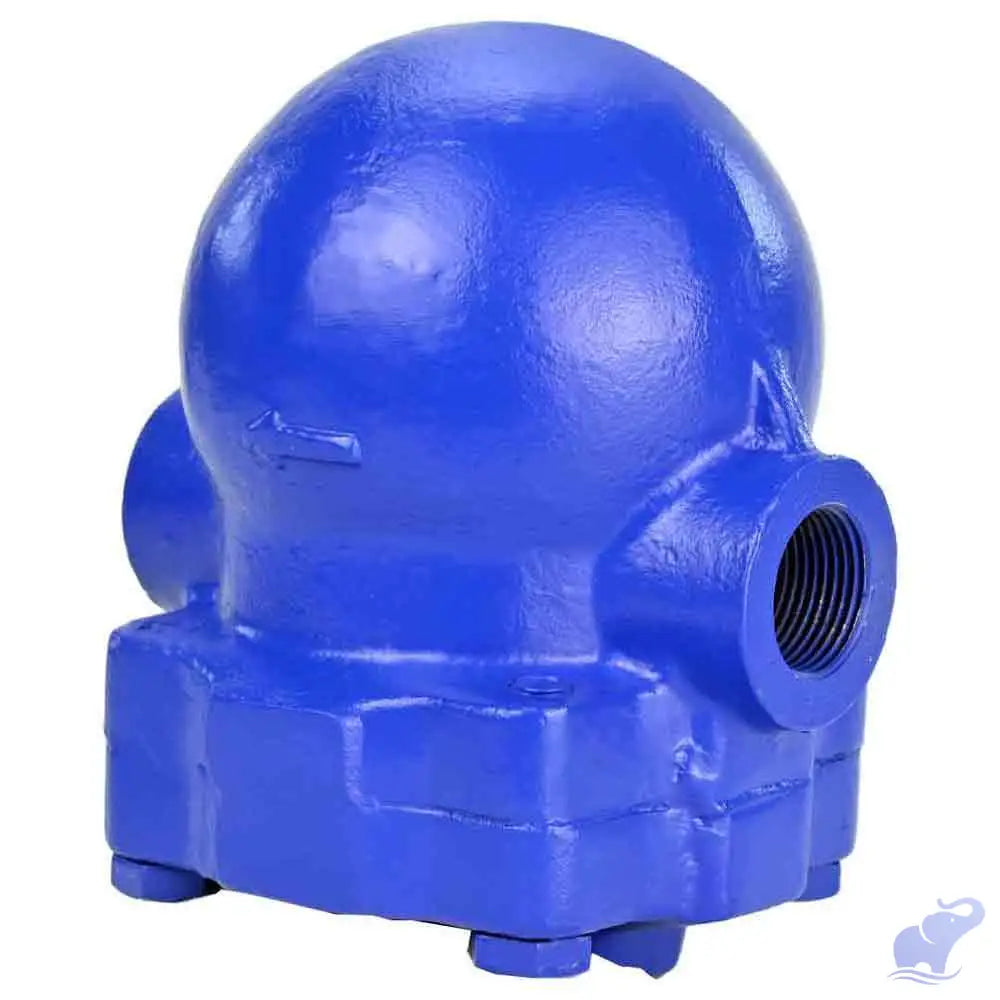

Float Steam Trap Elephant ksr, body material - carbon steel WCB, seal - Klingerit
Float Steam Trap Elephant ksr, body material - carbon steel WCB, seal - Klingerit - DN15 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Float Steam Trap Elephant ksr, body material - carbon steel WCB, se...
Description
Description
Float Steam Trap is a crucial component in HVAC systems, designed to collect and remove condensate water formed during the cooling process. It typically consists of a U-shaped pipe that creates a water seal, preventing air and gases from re-entering the HVAC unit. By allowing only condensate water to exit the system, the trap ensures efficient drainage while blocking the passage of unwanted substances. This prevents potential damage to the HVAC unit, making float steam traps essential for the proper functioning and longevity of heating and cooling systems.
Dimensions and dimensions of the Float Steam Trap Elephant ksr, body material - carbon steel WCB, seal - Klingerit
Sketch of the overall dimensions of the Float Steam Trap Elephant ksr, body material - carbon steel WCB, seal - Klingerit
| DN | A,mm | B,mm | C,mm | D,mm | F,mm | Throughput capacity Kv, t/h | Weight, kg |
| 15 | 110 | - | - | 147 | 67 | 0,45 | 2,8 |
| 20 | 120 | - | - | 147 | 67 | 0,45 | 2,8 |
| 25 | 135 | 100 | 84 | 200 | 127 | 0,5 | 4,0 |
| 40 | 250 | 130 | 115 | 255 | 125 | 2,5 | 14,5 |
| 50 | 250 | 141 | 123 | 265 | 145 | 2,5 | 15,5 |
Float Steam Trap materials Elephant ksr, body material - carbon steel WCB, seal - Klingerit
Material sketch of Float Steam Trap Elephant ksr, body material - carbon steel WCB, seal - Klingerit
| № | Part name | Material |
| 1 | Body | steel EN-1.0619 (20L) |
| 2 | Bolt | 35CrMo steel |
| 3 | Nut | steel 45 |
| 4 | Gasket | Klingerit |
| 5 | Air valve | stainless steel AISI 304 |
| 6 | Gasket | T1 steel |
| 7,8,9,10 | Thermal valve elements | stainless steel AISI 304 |
| 11 | Float | stainless steel AISI 304 |
Specifications
Specifications
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Operating environment
-
Applications
-
Nominal pressure
-
Type of seal
