Elephant  |  SKU: D150-00314

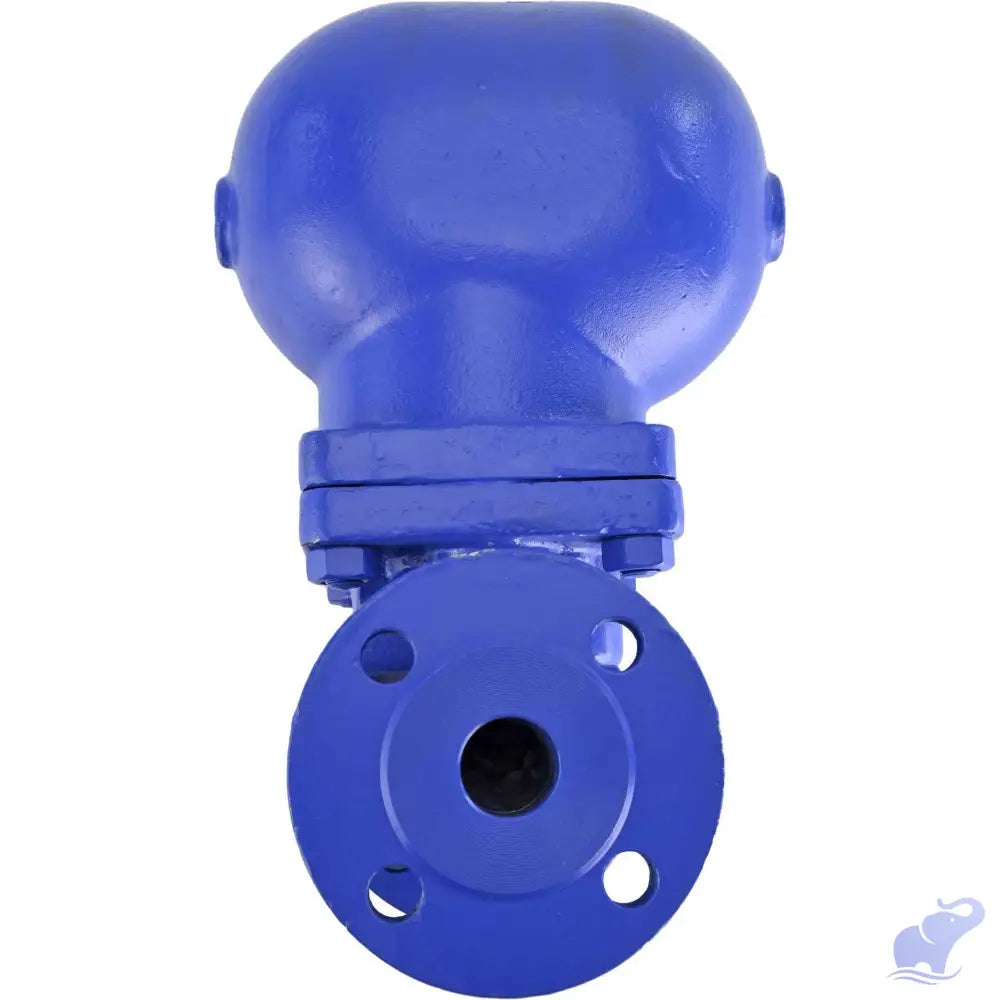

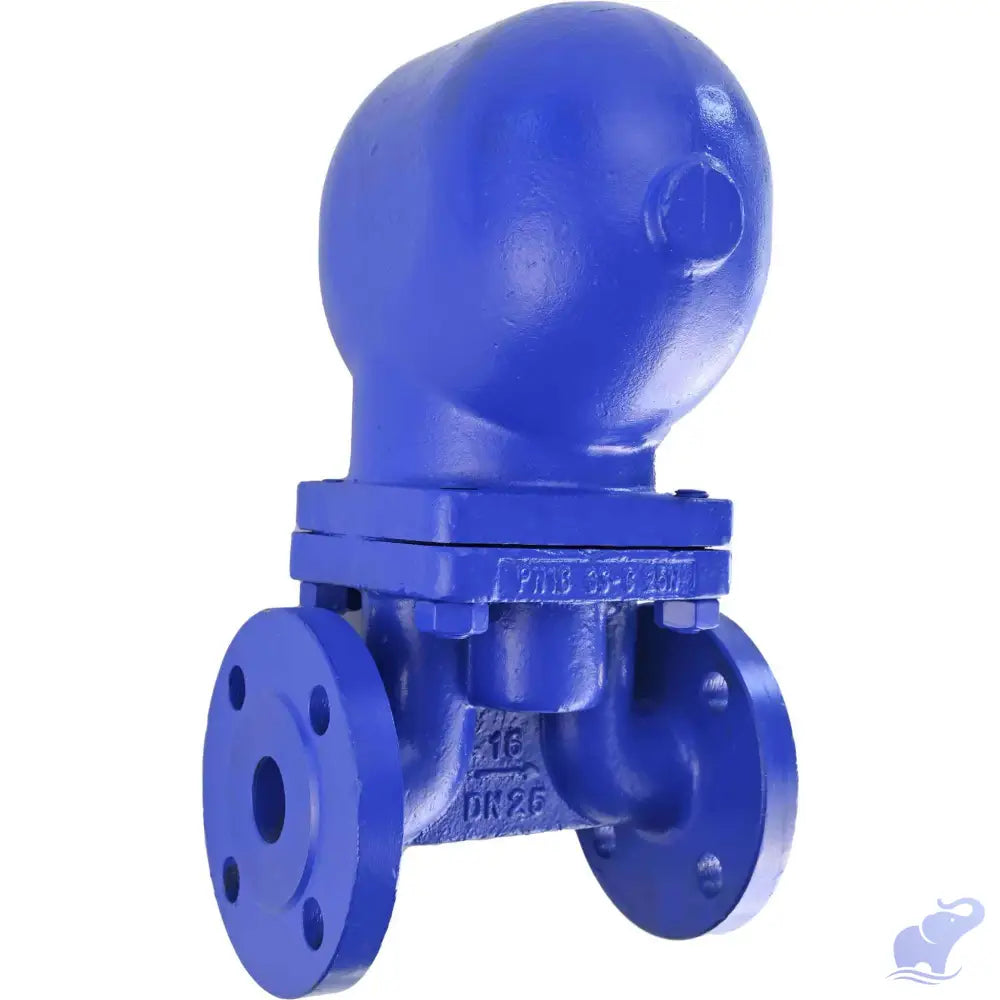

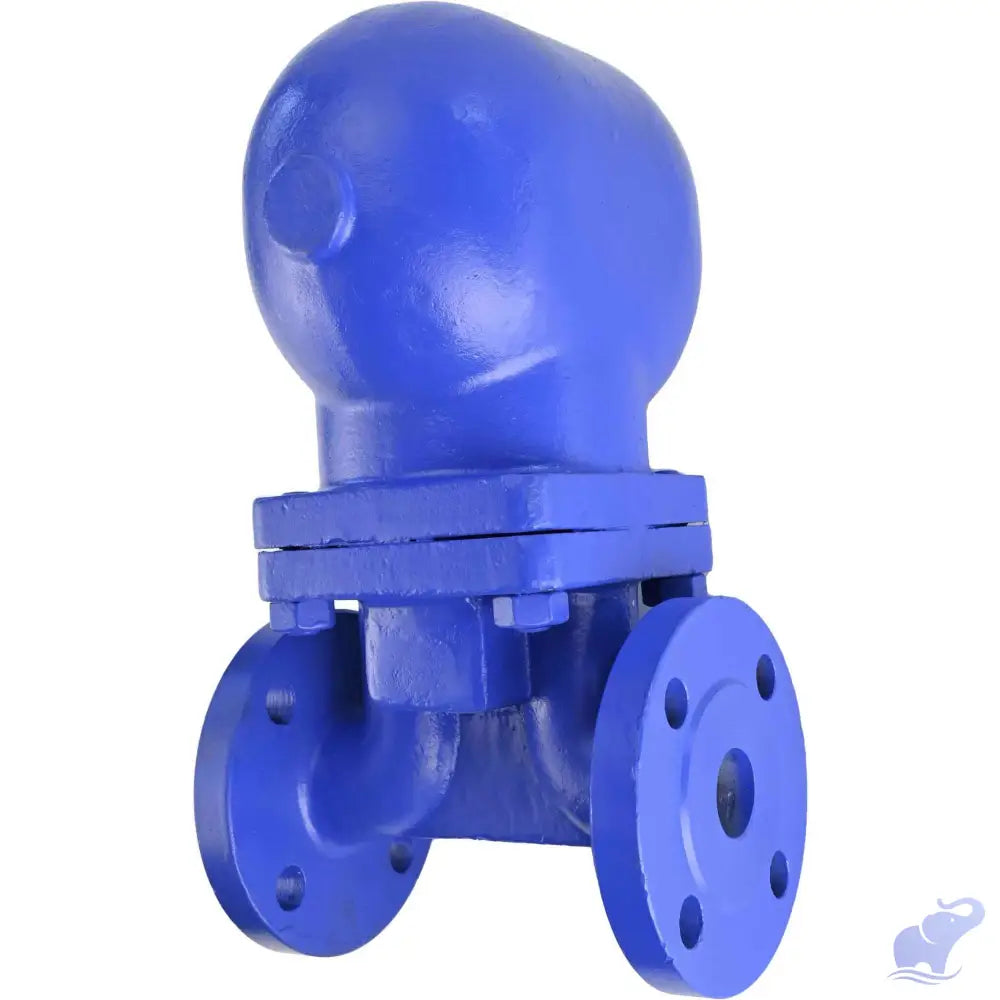

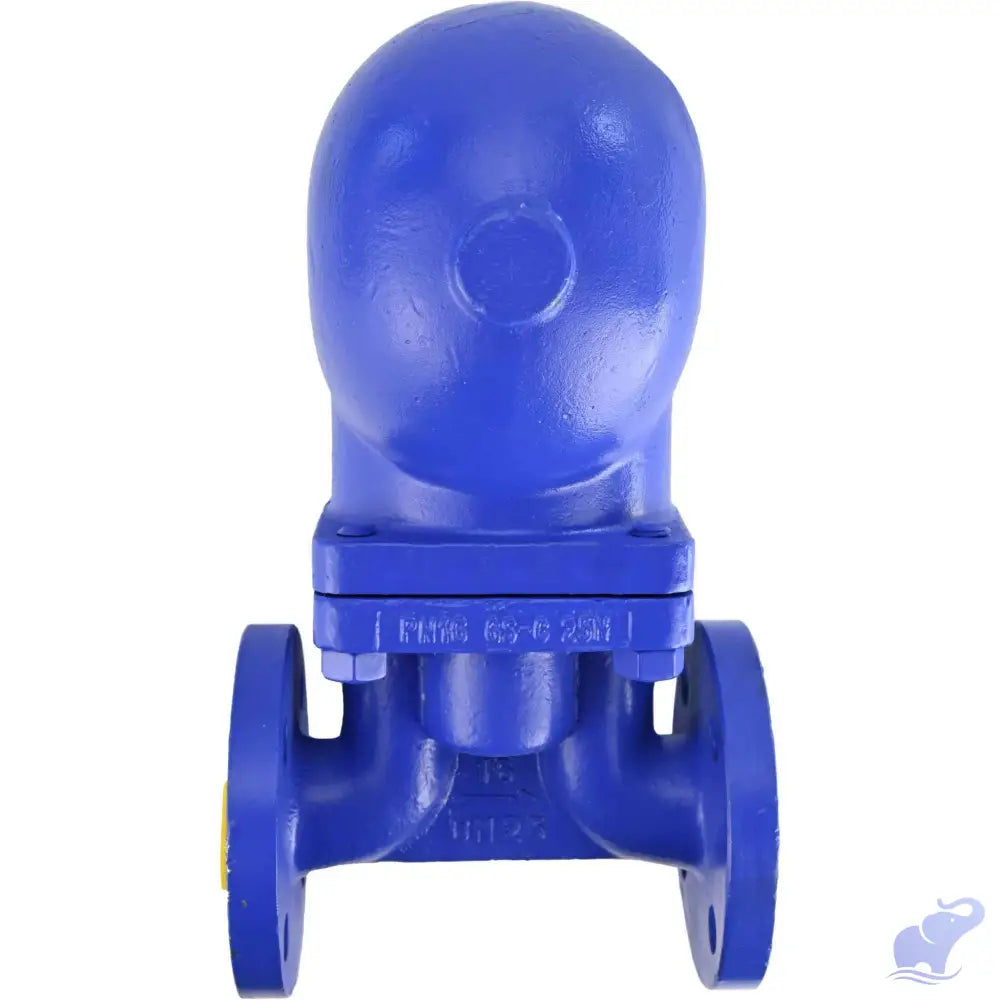

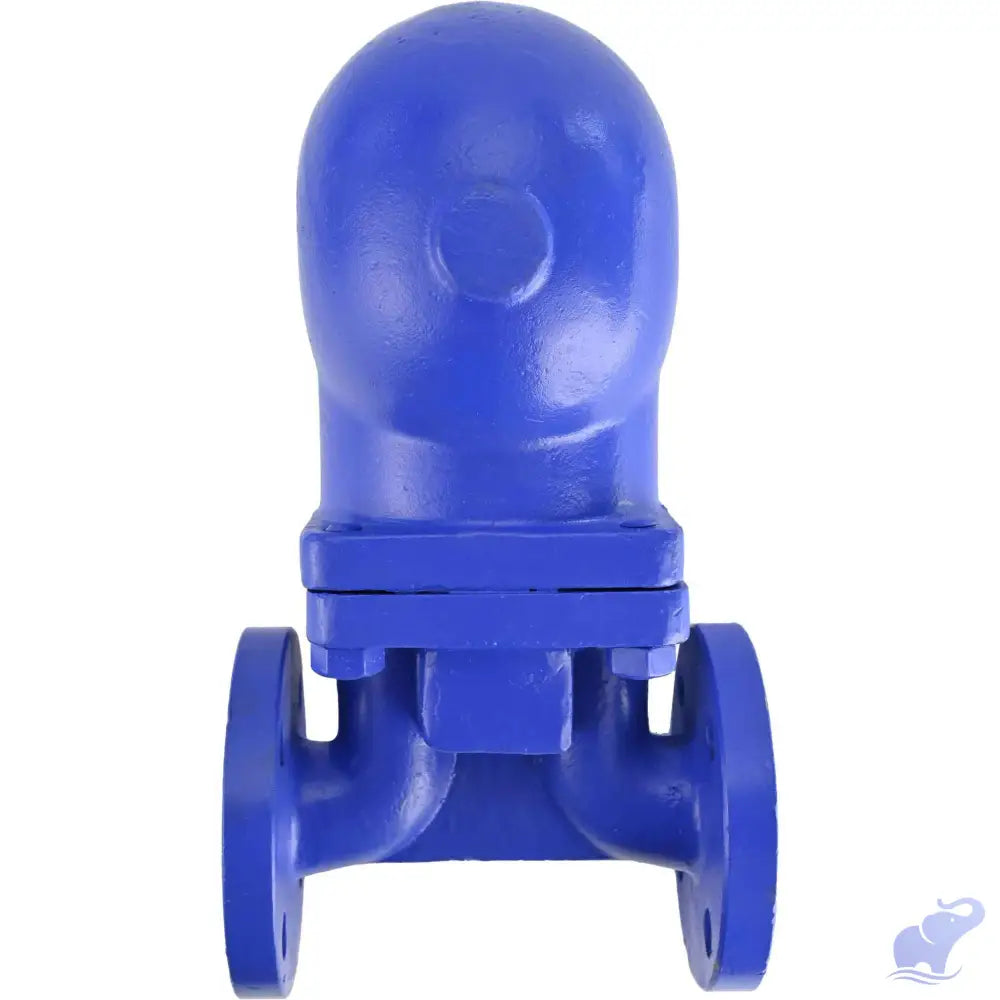

Float Steam Trap Elephant ksf, body material - carbon steel WCB, seal - Klingerit

€71,00
Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Float Steam Trap is a crucial component in HVAC systems, designed to collect and remove condensate water formed during the cooling process. It typically consists of a U-shaped pipe that creates a water seal, preventing air and gases from re-entering the HVAC unit. By allowing only condensate water to exit the system, the trap ensures efficient drainage while blocking the passage of unwanted substances. This prevents potential damage to the HVAC unit, making float steam traps essential for the proper functioning and longevity of heating and cooling systems.

Dimensions and dimensions of the Float Steam Trap Elephant ksf, body material - carbon steel WCB, seal - Klingerit

Dimensions and dimensions of the condensate trap Elephant ksf, body material - carbon steel WCB, seal - Klingerit

Sketch of the overall dimensions of the condensate trap Elephant ksf, body material - carbon steel WCB, seal - Klingerit

DN L,mm H,mm L1,mm H1,mm Weight, kg
15 150 225 160 48 4,8
20 150 225 160 53 5,5
25 160 245 184 58 8,5
40 230 337 245 75 24,5
50 230 347 264 83 28,5

Float Steam Trap materials Elephant ksf, body material - carbon steel WCB, seal - Klingerit

Condensate trap materials Elephant ksf, body material - carbon steel WCB, seal - Klingerit

Material sketch of Float Steam Trap Elephant ksf, body material - carbon steel WCB, seal - Klingerit

Part name Material
1 Body steel EN-1.0619 (20L)
2 Cover steel EN-1.0619 (20L)
3 Gasket Klingerit
4 Air valve stainless steel AISI 304
5 Valve seat stainless steel AISI 304
6 Lever stainless steel AISI 304
7 Float stainless steel AISI 304
8 Cork C35E steel

Specifications

  • Body material
    Carbon steel
  • Maximum allowable temperature
    350 °C
  • Connection type
    Flanged
  • Operating environment
    Water,air,liquid medium
  • Applications
    Heating systems,irrigation systems,ventilation systems
  • Nominal pressure
    16 bar
  • Type of seal
    Klingerit
