Flat flange Elephant pn16-01-1-b-ss304, body material - stainless steel AISI 304
Flat flange Elephant pn16-01-1-b-ss304, body material - stainless steel AISI 304 - DN15 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Flat flange Elephant pn16-01-1-b-ss304, body material - stainless s...
Description
Description

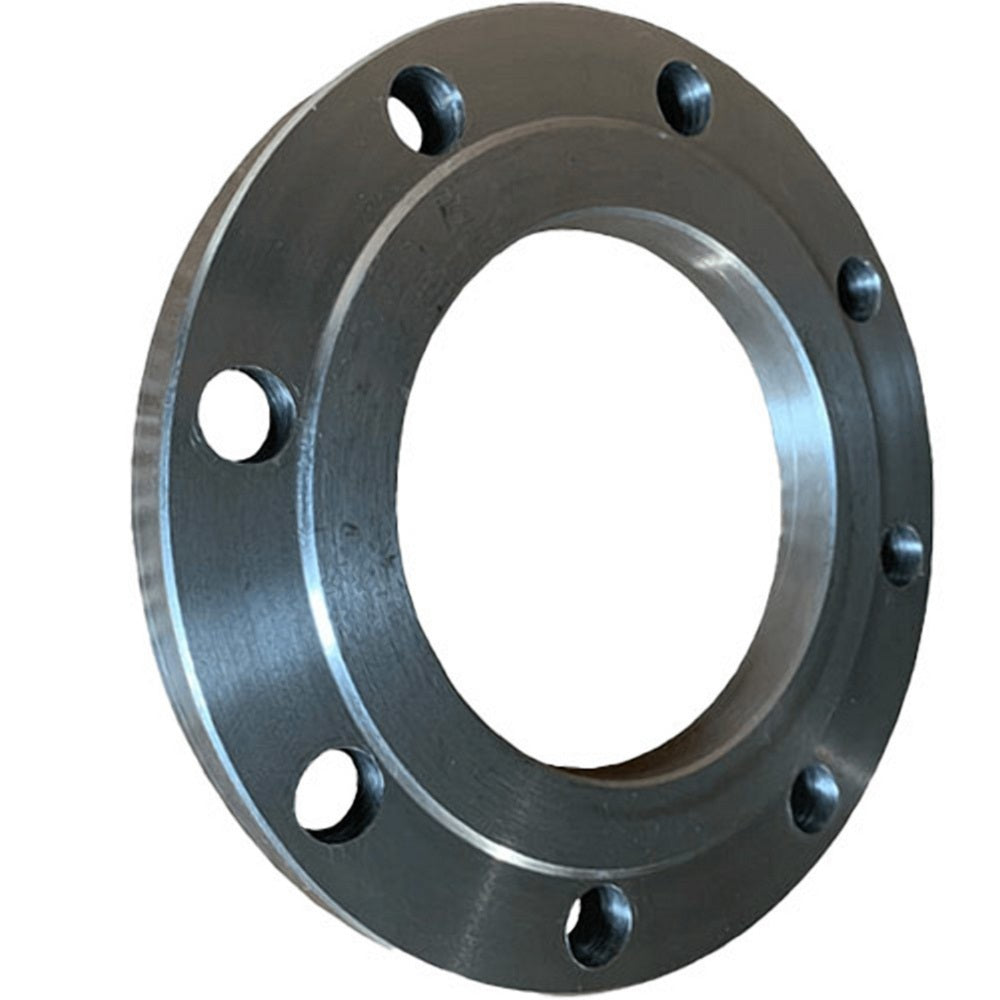

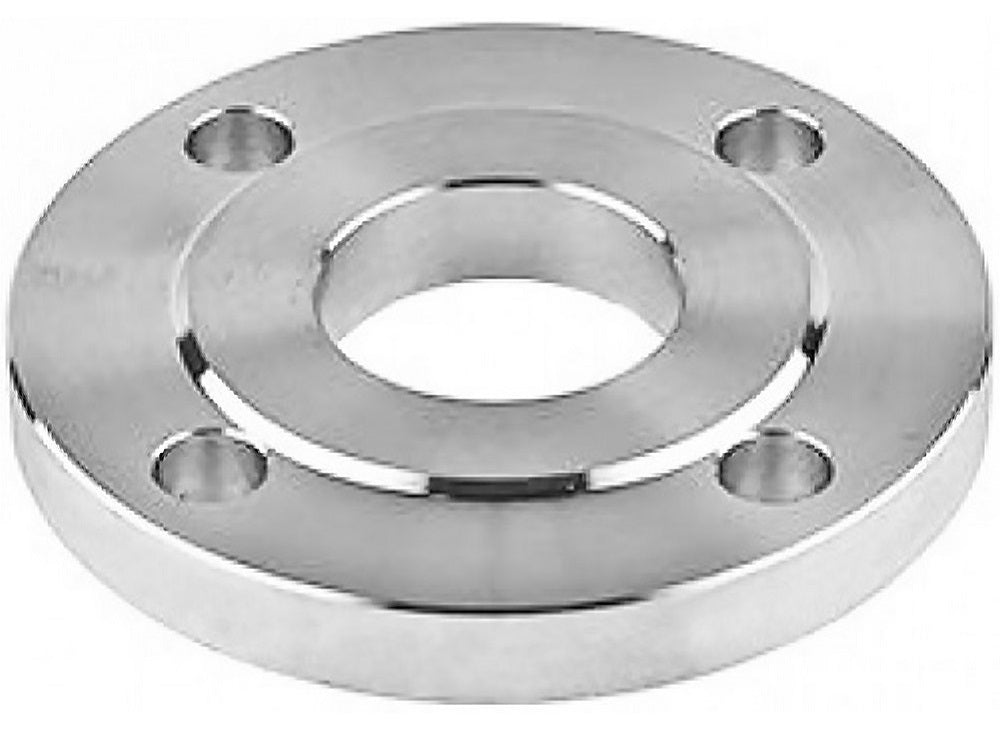

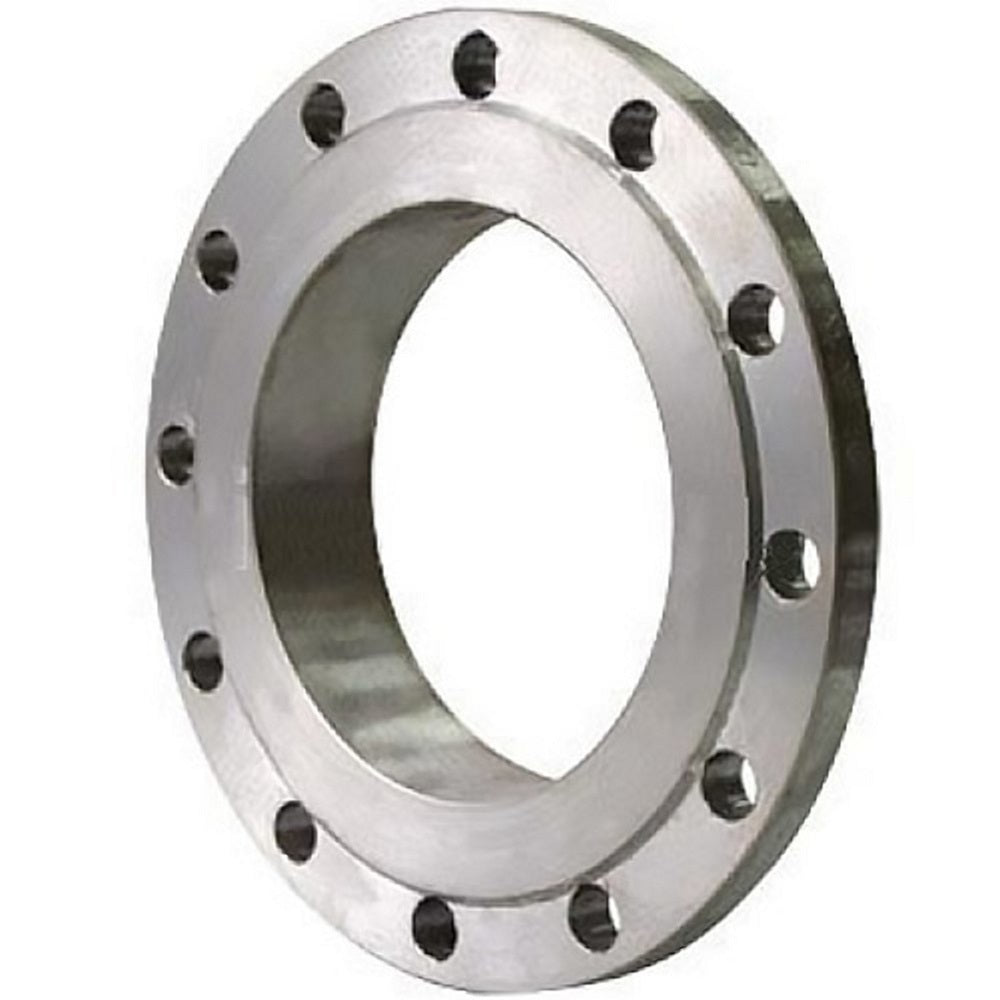

Flange is a flat or raised circular component, typically with holes for bolts or screws, used for connecting or sealing the ends of pipes, tanks, barrels, or other equipment parts. Flanges are used in various industries to provide strong and leak-proof connections between different elements of a system.
Overall and mounting dimensions of flanges Elephant pn16-01-1-b-ss304, body material - stainless steel AISI 304
Flange sketch Elephant pn16-01-1-b-ss304, body material - stainless steel AISI 304
| DN | dB | b | c1 | D | D1 | d | n | h | Weight |
| 15 | 22 | 14 | 2 | 95 | 65 | 14 | 4 | 2 | 0,61 |
| 20 | 27,5 | 16 | 2 | 105 | 75 | 14 | 4 | 2 | 0,86 |
| 25 | 34,5 | 16 | 3 | 115 | 85 | 14 | 4 | 2 | 1,17 |
| 32 | 43,5 | 18 | 3 | 140 | 100 | 18 | 4 | 2 | 1,58 |
| 40 | 49,5 | 18 | 3 | 150 | 110 | 18 | 4 | 3 | 1,96 |
| 50 | 61,5 | 20 | 3 | 165 | 125 | 18 | 4 | 3 | 2,58 |
| 65 | 77,5 | 20 | 4 | 185 | 145 | 18 | 4 | 3 | 3,42 |
| 80 | 90,5 | 20 | 4 | 200 | 160 | 18 | 8 | 3 | 3,71 |
| 100 | 116 | 22 | 4 | 220 | 180 | 18 | 8 | 3 | 4,73 |
| 125 | 141,5 | 22 | 4 | 250 | 210 | 18 | 8 | 3 | 6,38 |
| 150 | 170,5 | 24 | 4 | 285 | 240 | 22 | 8 | 3 | 8,2 |
| 200 | 221,5 | 24 | 4 | 340 | 295 | 22 | 12 | 3 | 10,2 |
| 250 | 276,5 | 29 | 6 | 405 | 355 | 26 | 12 | 3 | 14,5 |
| 300 | 327,5 | 32 | 6 | 460 | 410 | 26 | 12 | 4 | 17,8 |
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Operating environment
-
Applications
-
Nominal pressure
-
Type of seal
