Elephant  |  SKU: D270-08203

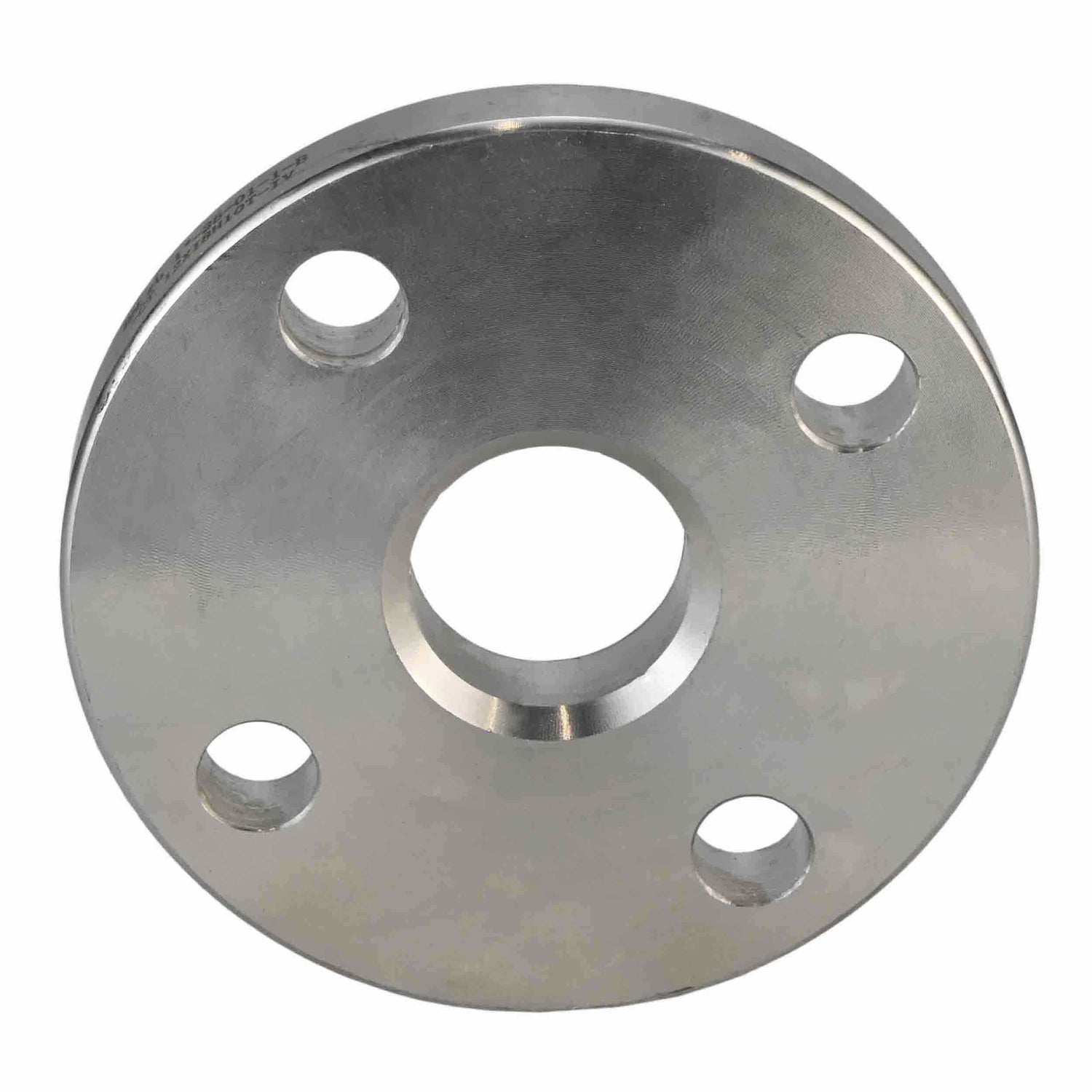

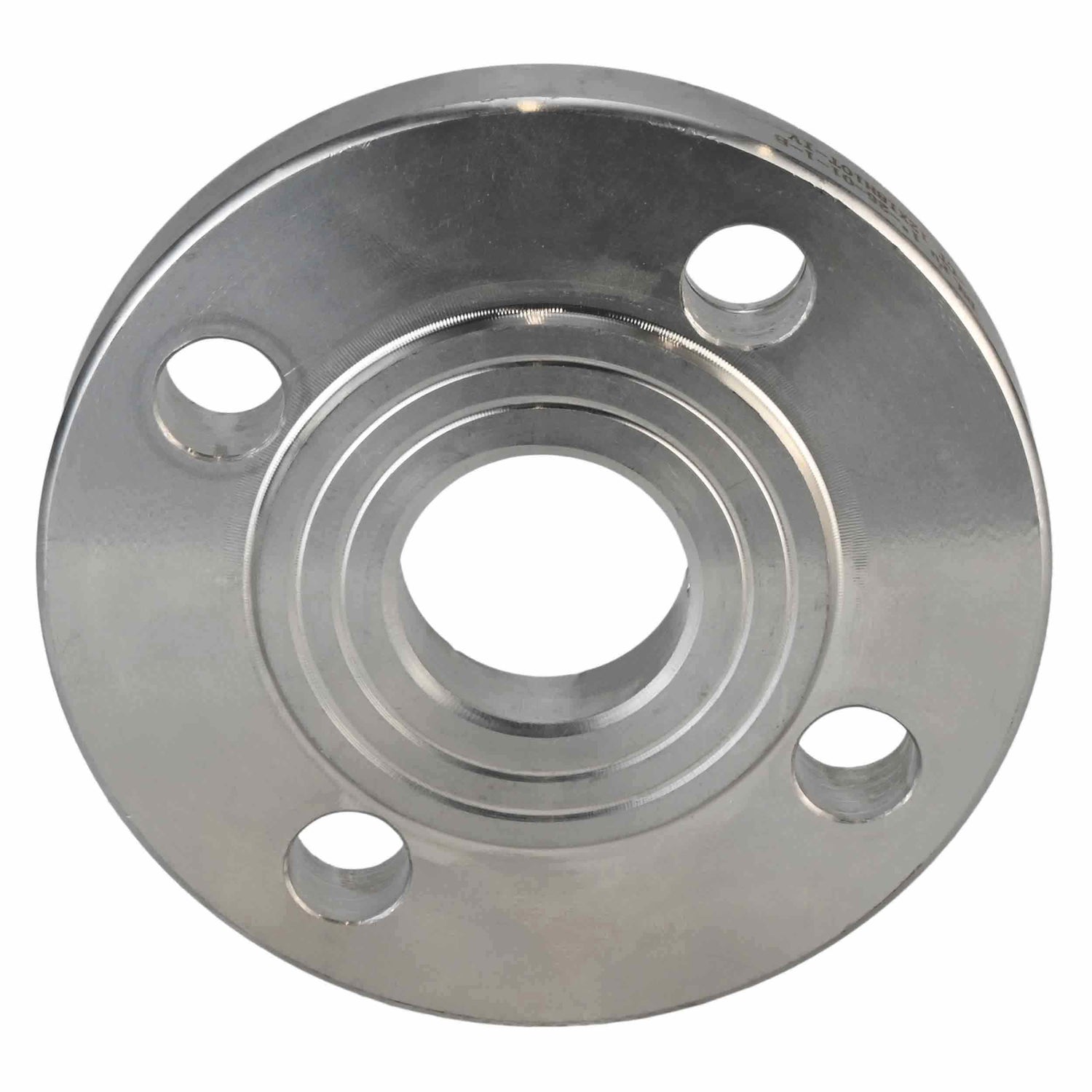

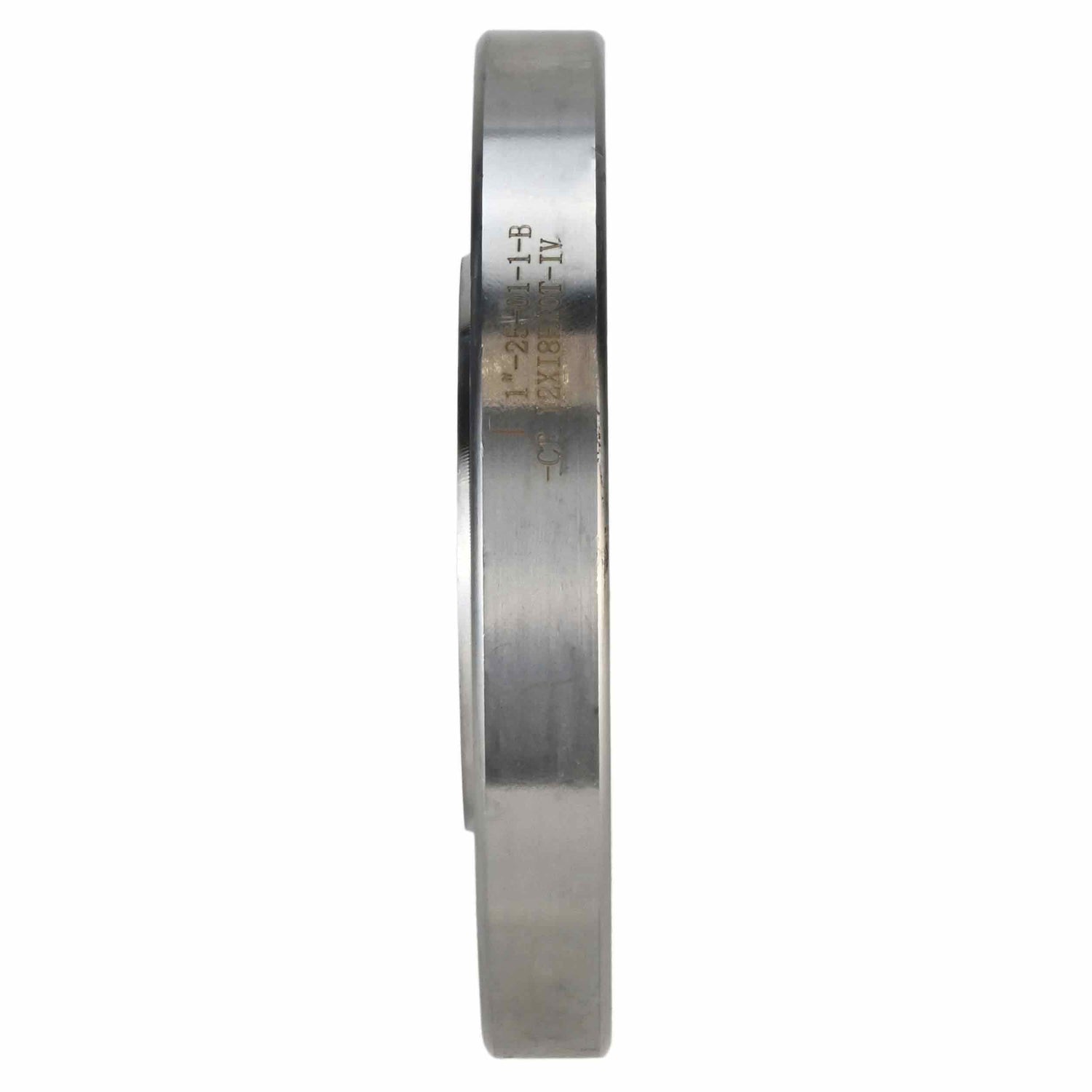

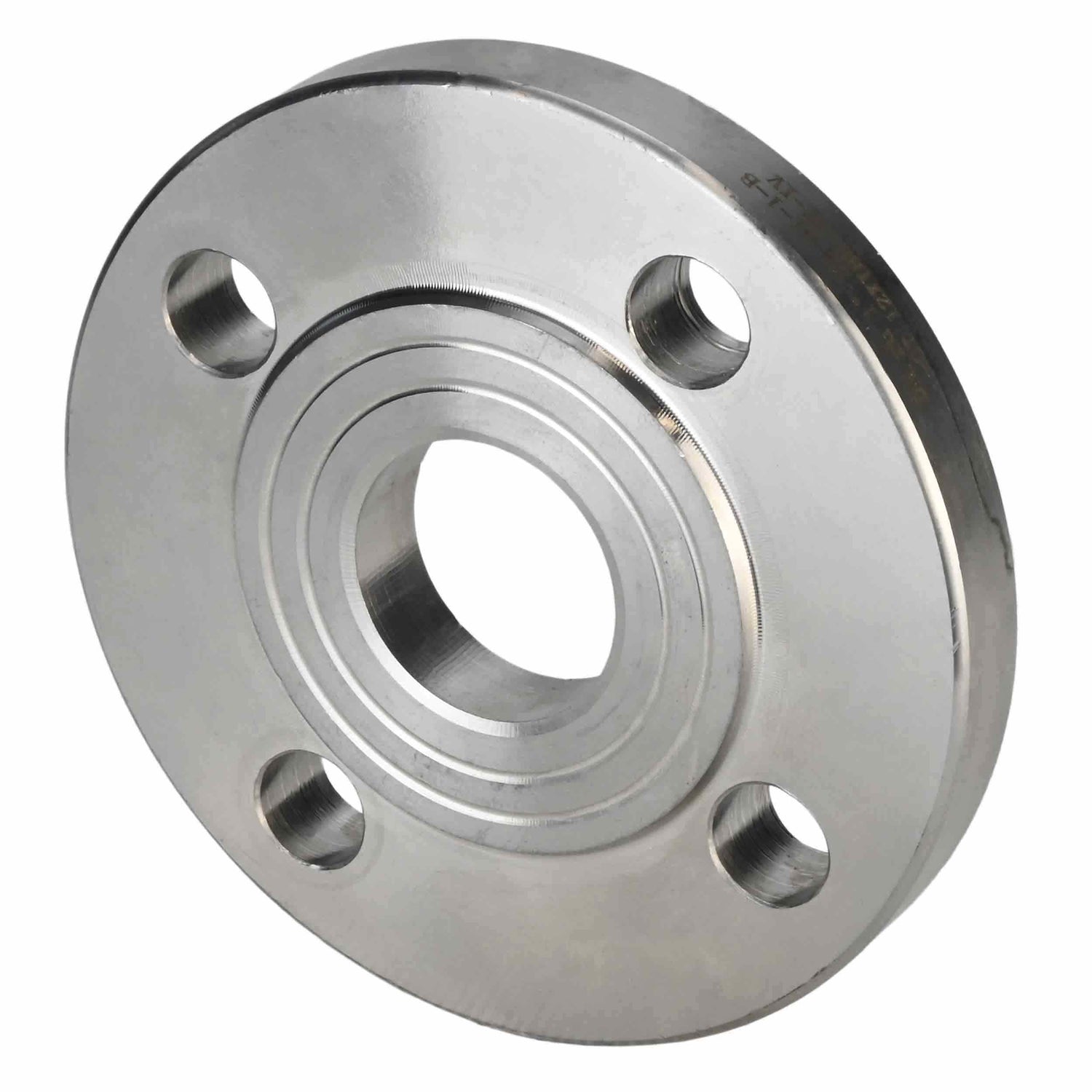

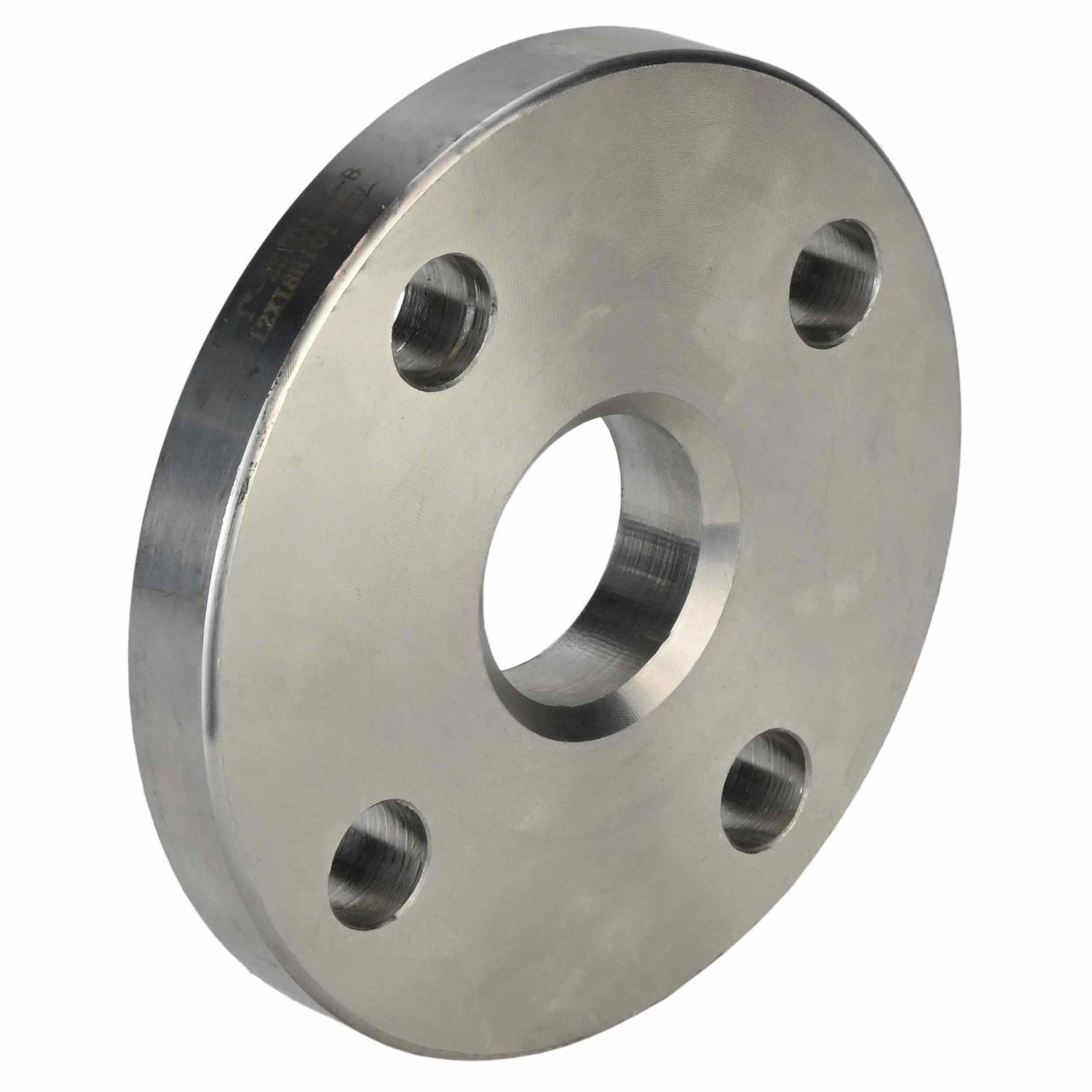

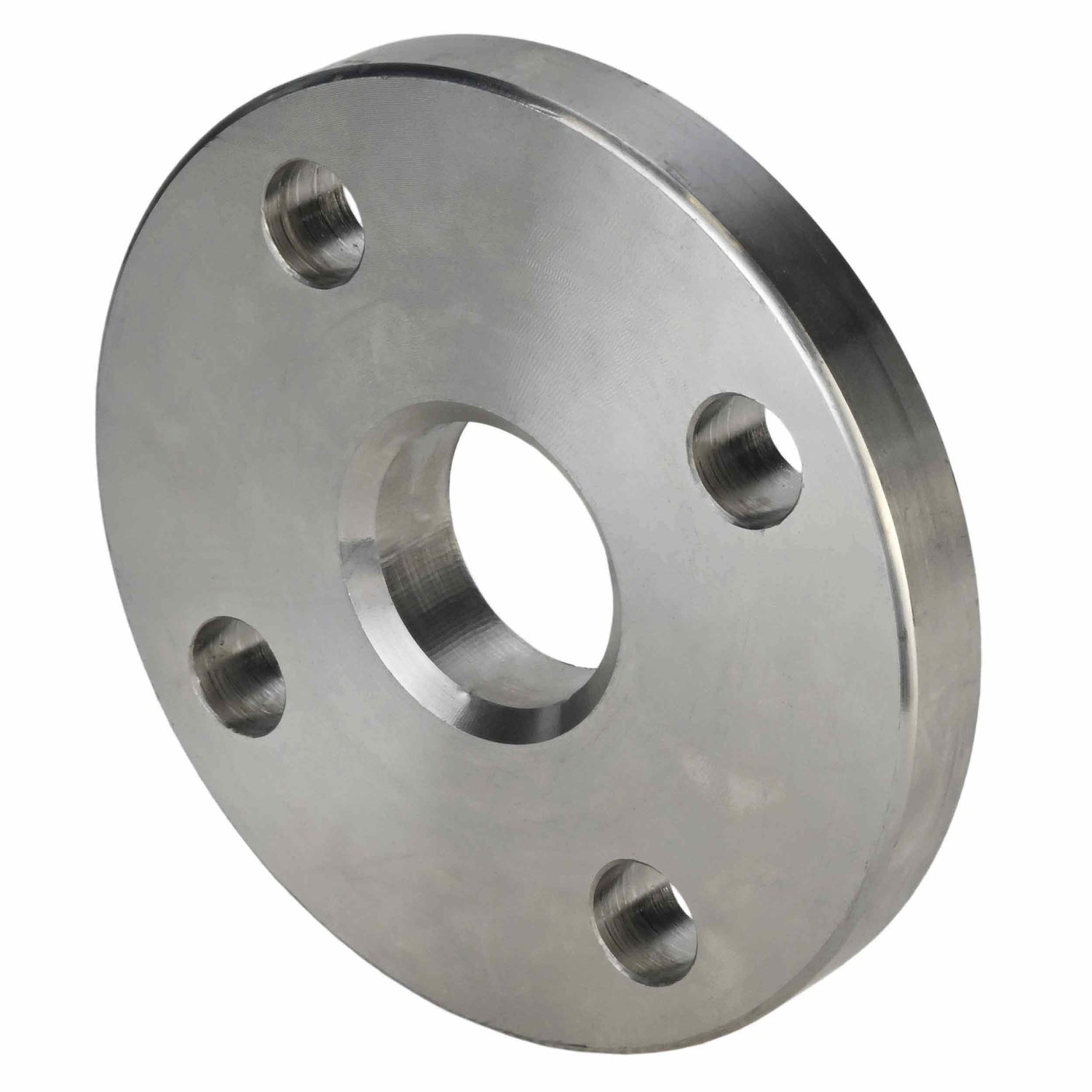

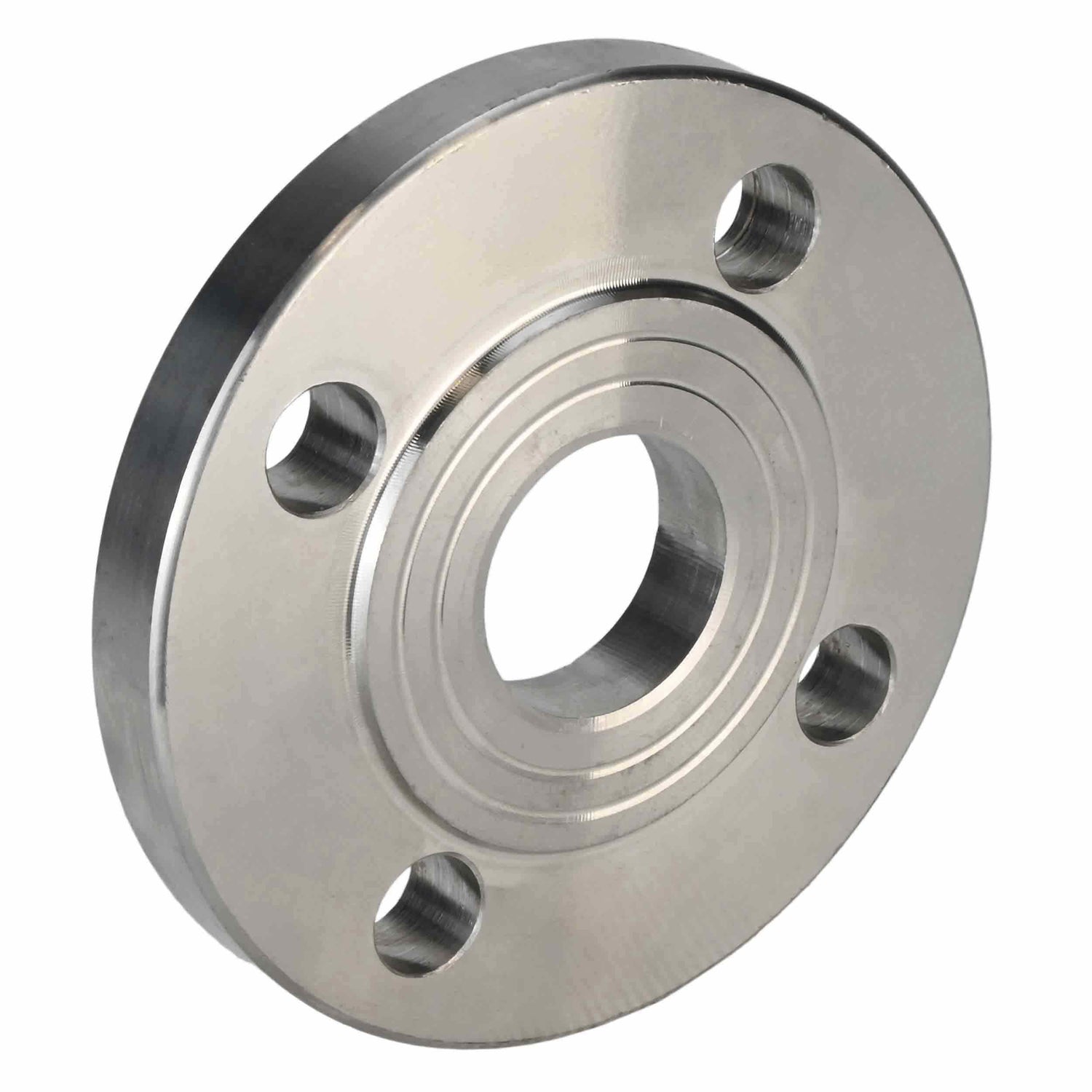

Flat flange Elephant pn16-01-1-b-12h18n10t, body material - stainless steel AISI 321

€0,00
Shipping calculated at checkout.
Connection size
Pressure

Leave your email

Get notified as soon as this product is available, along with the latest updates on new collections, sales, offers, and product arrival dates.

Secure Your Preorder

Please fill out the form to submit your preorder request. Include your full name, email, phone number, shipping address, product SKU, quantity, preferred payment method, and any additional notes or questions.

Description

Flange is a flat or raised circular component, typically with holes for bolts or screws, used for connecting or sealing the ends of pipes, tanks, barrels, or other equipment parts. Flanges are used in various industries to provide strong and leak-proof connections between different elements of a system.

Overall and mounting dimensions of flanges Elephant pn16-01-1-b-12h18n10t, body material - stainless steel AISI 321

Overall and mounting dimensions of flanges Elephant pn16-01-1-b-12h18n10t, body material - stainless steel AISI 321

Flange sketch Elephant pn16-01-1-b-12h18n10t, body material - stainless steel AISI 321

DN dB b c1 D D1 d n h Weight
15 22 14 2 95 65 14 4 2 0,61
20 27,5 16 2 105 75 14 4 2 0,86
25 34,5 16 3 115 85 14 4 2 1,17
32 43,5 18 3 140 100 18 4 2 1,58
40 49,5 18 3 150 110 18 4 3 1,96
50 61,5 20 3 165 125 18 4 3 2,58
65 77,5 20 4 185 145 18 4 3 3,42
80 90,5 20 4 200 160 18 8 3 3,71
100 116 22 4 220 180 18 8 3 4,73
125 141,5 22 4 250 210 18 8 3 6,38
150 170,5 24 4 285 240 22 8 3 8,2
200 221,5 24 4 340 295 22 12 3 10,2
250 276,5 29 6 405 355 26 12 3 14,5
300 327,5 32 6 460 410 26 12 4 17,8

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 321/1.4541
  • Maximum allowable temperature
    600 °C
  • Connection type
    For welding
  • Operating environment
    Water,air,liquid medium
  • Applications
    Heating systems,irrigation systems,ventilation systems
  • Nominal pressure
    16 bar
  • Type of seal
    None
