Flat flange Elephant DN15-300 25 bar welded, body - steel 20 – Valve Elephant
Elephant  |  SKU: D900-02940

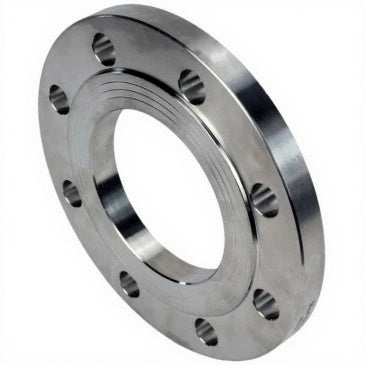

Flat flange Elephant DN15-300 25 bar welded, body - steel 20

€2,64
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Flanges are designed to connect fittings to pipelines, connect individual sections of pipelines to each other, and connect pipelines to various equipment.





Flange parameters Elephant DN15-300 25 bar welded, body - steel 20

Parameter Value
Fitting Type Flanges
Flange Type Flat
Execution Type B - Raised Face
Nominal Pressure 25 bar
Body Material Steel 20
Working Medium Water, steam, gas, non-aggressive media, petroleum products
Maximum Working Medium Temperature 400 °C
Country of Origin China





Overall and installation dimensions of flanges Elephant DN15-300 25 bar welded, body - steel 20

DN D, mm D1, mm D2, mm d1, mm b, mm h, mm d, mm Weight
15 95 65 47 19 14 2 4x14 0.7
20 105 75 58 26 16 2 4x14 0.98
25 115 85 68 33 16 2 4x14 1.17
32 135 100 78 39 18 2 4x18 1.77
40 145 110 88 46 19 3 4x18 2.18
50 160 125 102 59 21 3 4x18 2.71
65 180 145 122 78 21 3 8x18 3.22
80 195 160 133 91 23 3 8x18 4.06
100 230 190 158 110 25 3 8x22 5.92
125 270 220 184 135 27 3 8x26 8.26
150 300 250 212 161 27 3 8x26 10.12
200 360 310 278 222 29 3 12x26 13.34
250 425 370 335 273 31 3 12x30 18.9
300 485 430 390 325 32 4 16x30 23.95

Sketch of flange dimensions Elephant DN15-300 25 bar welded, body - steel 20

Specifications
  • Country of origin
    China
  • Body material
    Steel
  • Connection type
    Flanged
  • Operating environment
    Water, Steam, Gas, Non-aggressive environment, Petroleum products

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUSizePressurePrice AvailabilityQuantity Add to cart
    D900-02940DN1525 bar €2,64 Sold out
    D900-02941DN2025 bar €3,71 Sold out
    D900-02942DN2525 bar €12,86 Sold out
    D900-02943DN3225 bar €15,10 Sold out
    D900-02944DN4025 bar €16,75 Sold out
    D900-02945DN5025 bar €8,67 Sold out
    D900-02946DN6525 bar €19,95 Sold out
    D900-02947DN8025 bar €13,99 Sold out
    D900-02948DN10025 bar €20,82 Sold out
    D900-02949DN12525 bar €28,70 Sold out
    D900-02950DN15025 bar €32,97 Sold out
    D900-02951DN20025 bar €42,10 Sold out
    D900-02952DN25025 bar €56,91 Sold out
    D900-02953DN30025 bar €72,47 Sold out
