Flat flange Elephant DN15-300 16 bar welded, body - steel 20 – Valve Elephant
Elephant  |  SKU: D900-02912

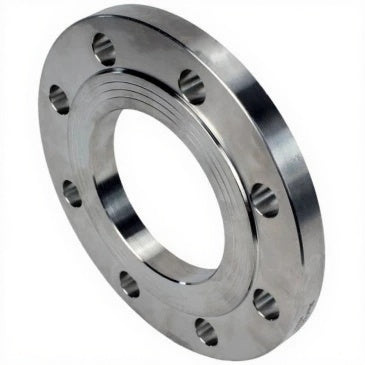

Flat flange Elephant DN15-300 16 bar welded, body - steel 20

€2,41
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Flanges are designed to connect fittings to pipelines, connect individual sections of pipelines to each other, and connect pipelines to various equipment.





Flange parameters Elephant DN15-300 16 bar welded, body - steel 20

Parameter Value
Fitting Type Flanges
Flange Type Flat
Execution Type B - Raised Face
Nominal Pressure 16 bar
Body Material Steel 20
Working Medium Water, steam, gas, non-aggressive media, petroleum products
Maximum Working Medium Temperature 400 °C
Country of Origin China





Overall and installation dimensions of flanges Elephant DN15-300 16 bar welded, body - steel 20

DN D, mm D1, mm D2, mm d1, mm b, mm h, mm d, mm Weight
15 95 65 47 19 12 2 4x14 0.61
20 105 75 58 26 14 2 4x14 0.86
25 115 85 68 33 16 2 4x14 1.17
32 135 100 78 39 16 2 4x18 1.58
40 145 110 88 46 17 3 4x18 1.96
50 160 125 102 59 19 3 4x18 2.58
65 180 145 122 78 21 3 4x18 3.42
80 195 160 133 91 21 3 4x18 3.71
100 215 180 158 110 23 3 8x18 4.73
125 245 210 184 135 25 3 8x18 6.38
150 280 240 212 161 25 3 8x22 7.81
200 335 295 268 222 27 3 8x22 10.1
250 405 355 320 273 28 3 12x26 14.49
300 460 410 370 325 28 4 12x26 17.78

Sketch of flange dimensions Elephant DN15-300 16 bar welded, body - steel 20

Specifications
  • Country of origin
    China
  • Body material
    Steel
  • Connection type
    Flanged
  • Operating environment
    Water, Steam, Gas, Non-aggressive environment, Petroleum products

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUSizePressurePrice AvailabilityQuantity Add to cart
    D900-02912DN1516 bar €2,41 Sold out
    D900-02913DN2016 bar €2,64 Sold out
    D900-02914DN2516 bar €3,23 Sold out
    D900-02915DN3216 bar €4,18 Sold out
    D900-02916DN4016 bar €5,07 Sold out
    D900-02917DN5016 bar €6,33 Sold out
    D900-02918DN6516 bar €8,88 Sold out
    D900-02919DN8016 bar €9,65 Sold out
    D900-02920DN10016 bar €17,99 Sold out
    D900-02921DN12516 bar €15,85 Sold out
    D900-02922DN15016 bar €21,11 Sold out
    D900-02923DN20016 bar €30,41 Sold out
    D900-02924DN25016 bar €45,73 Sold out
    D900-02925DN30016 bar €58,43 Sold out
