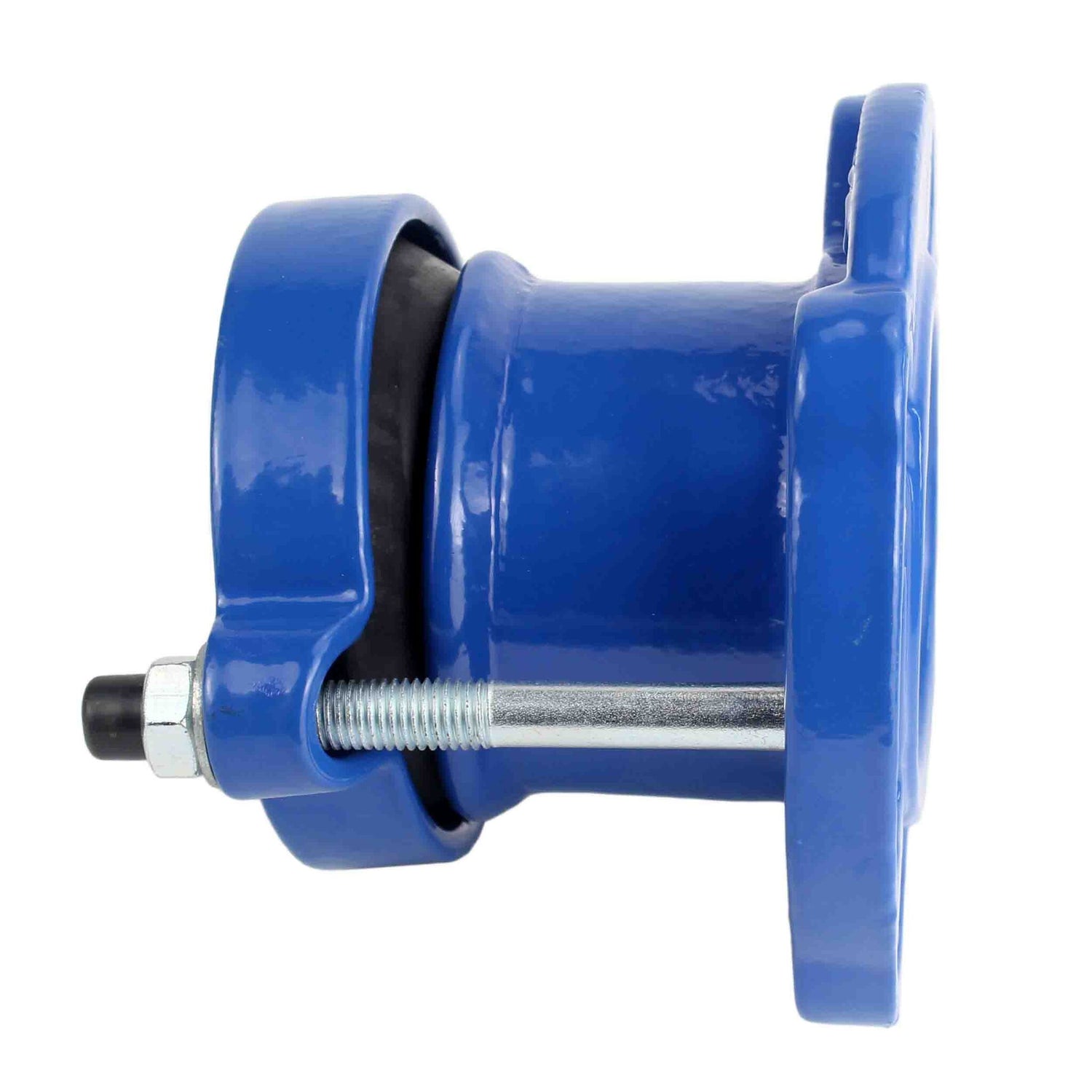

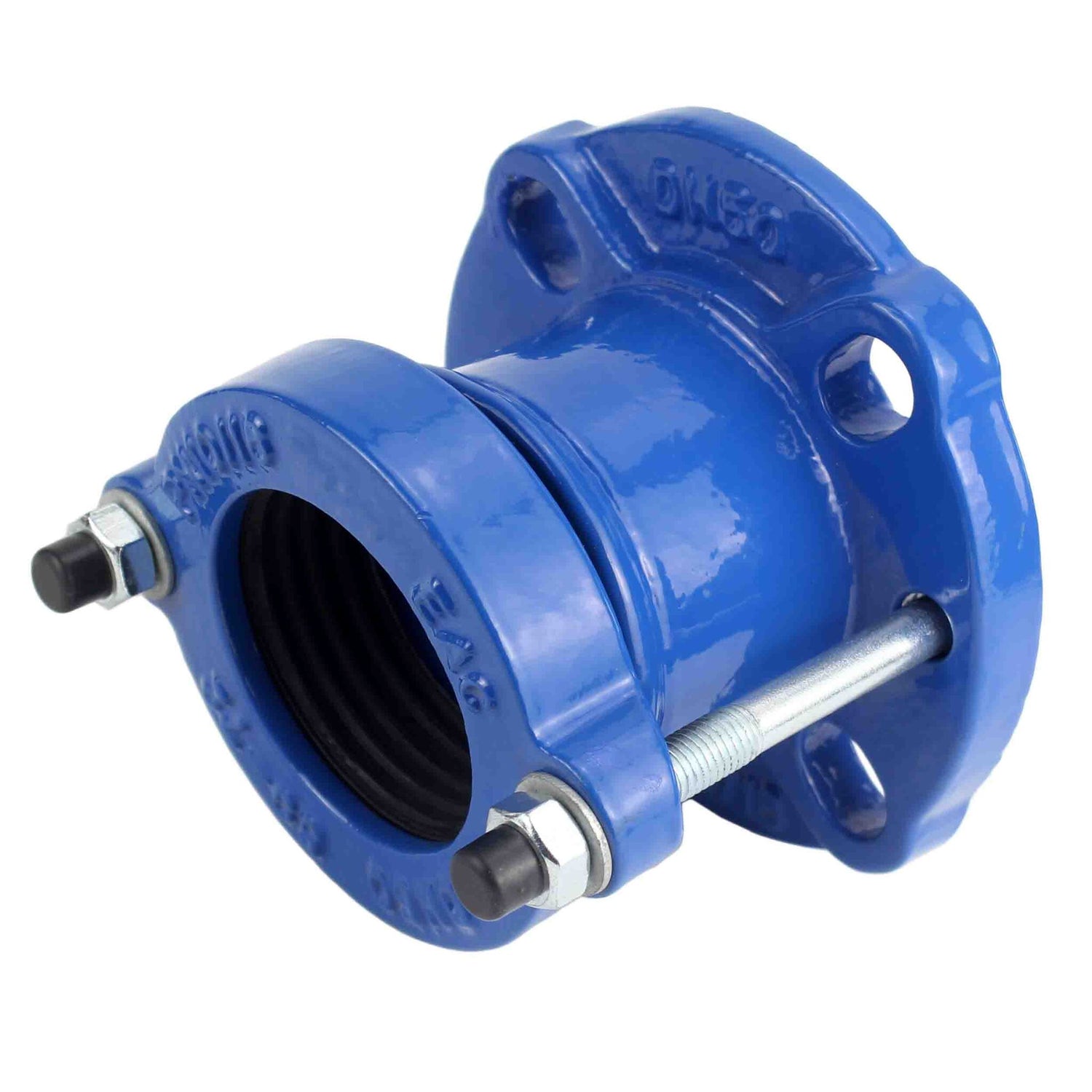

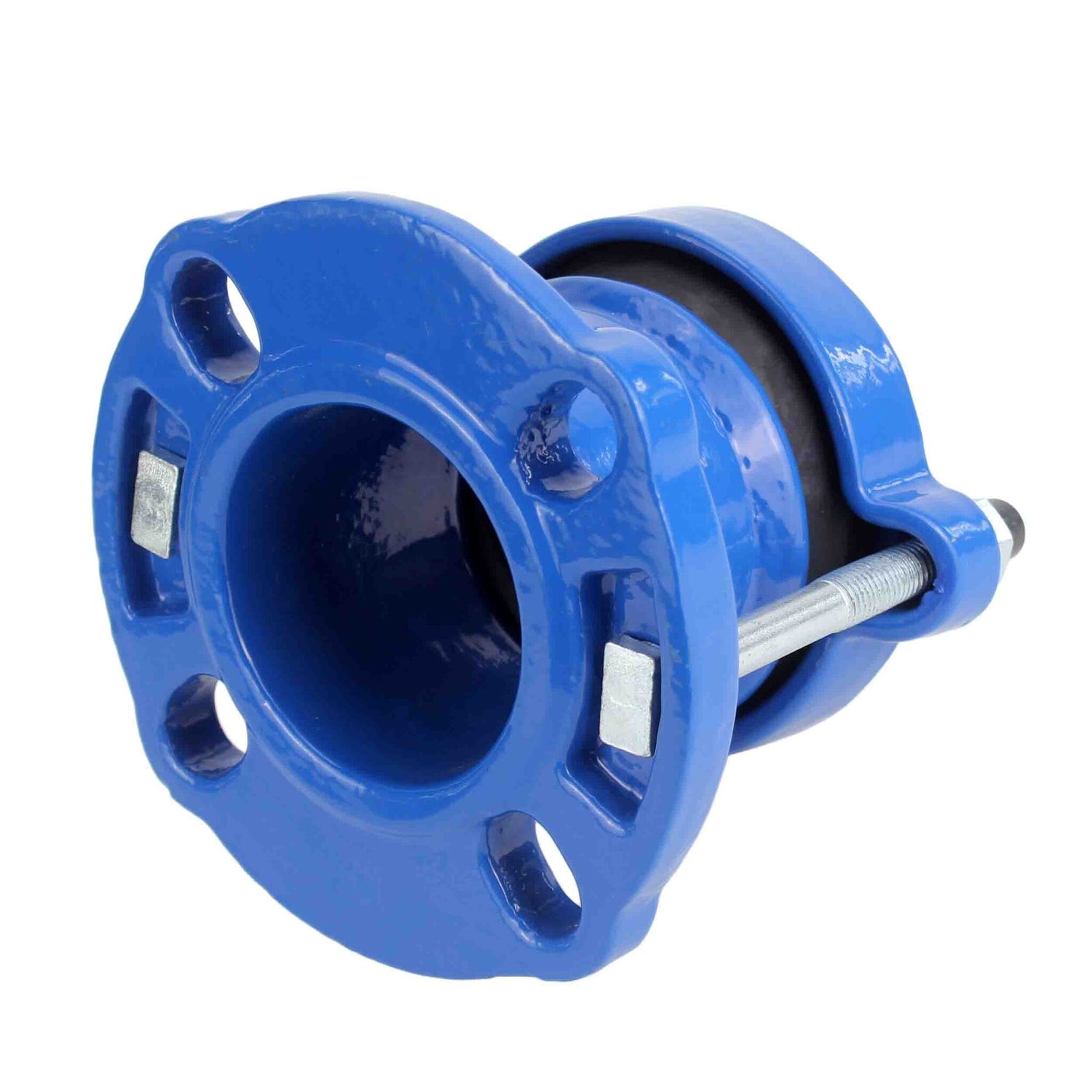

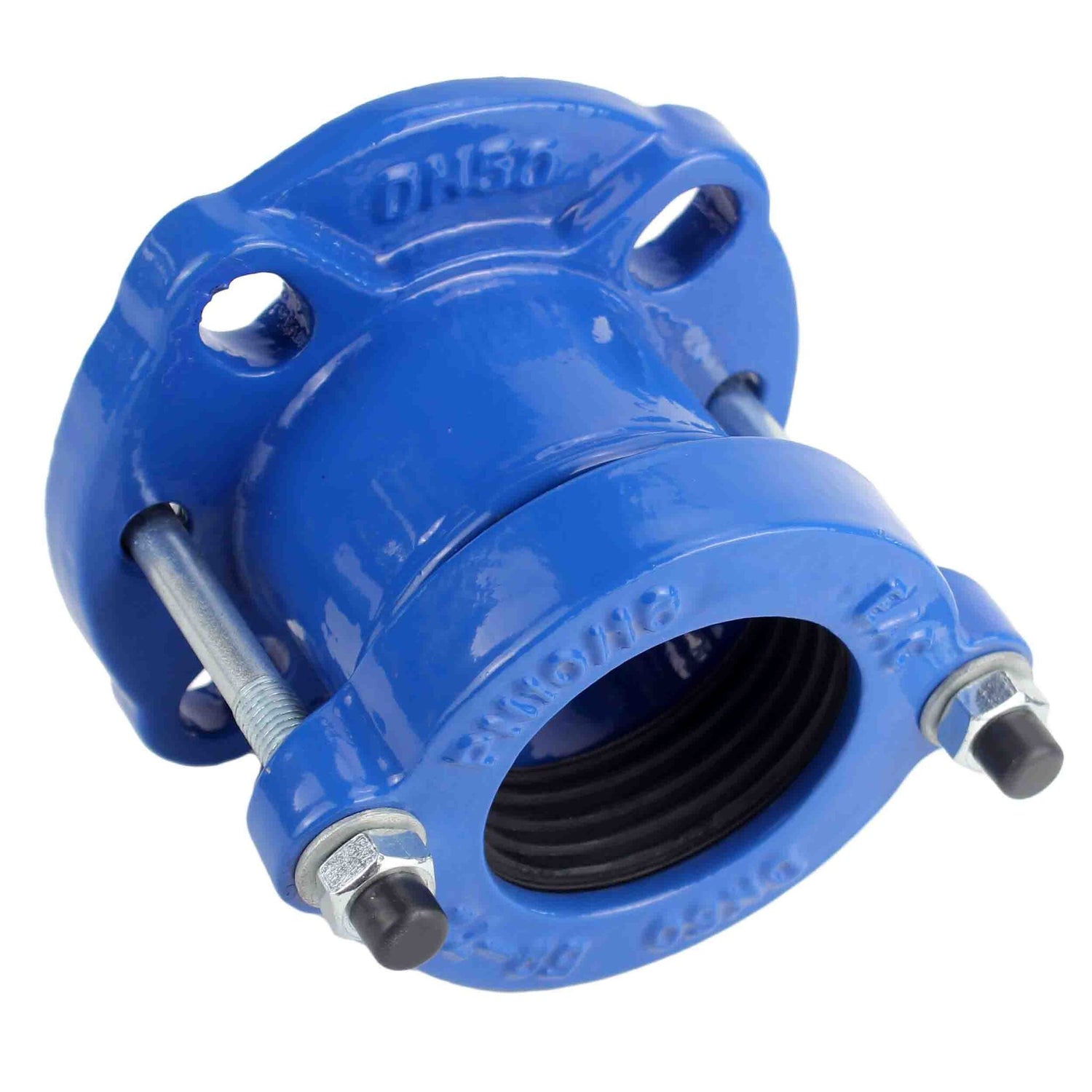

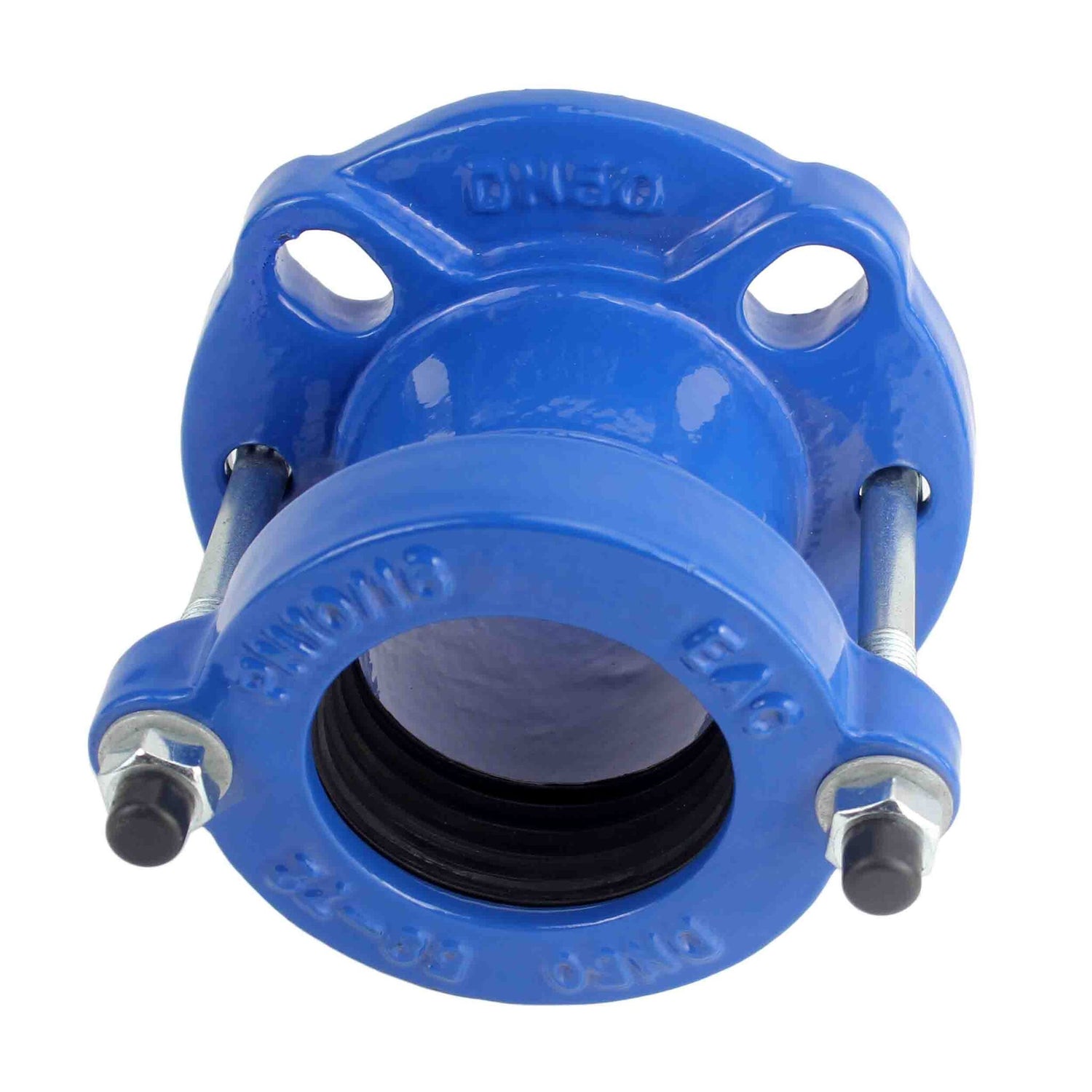

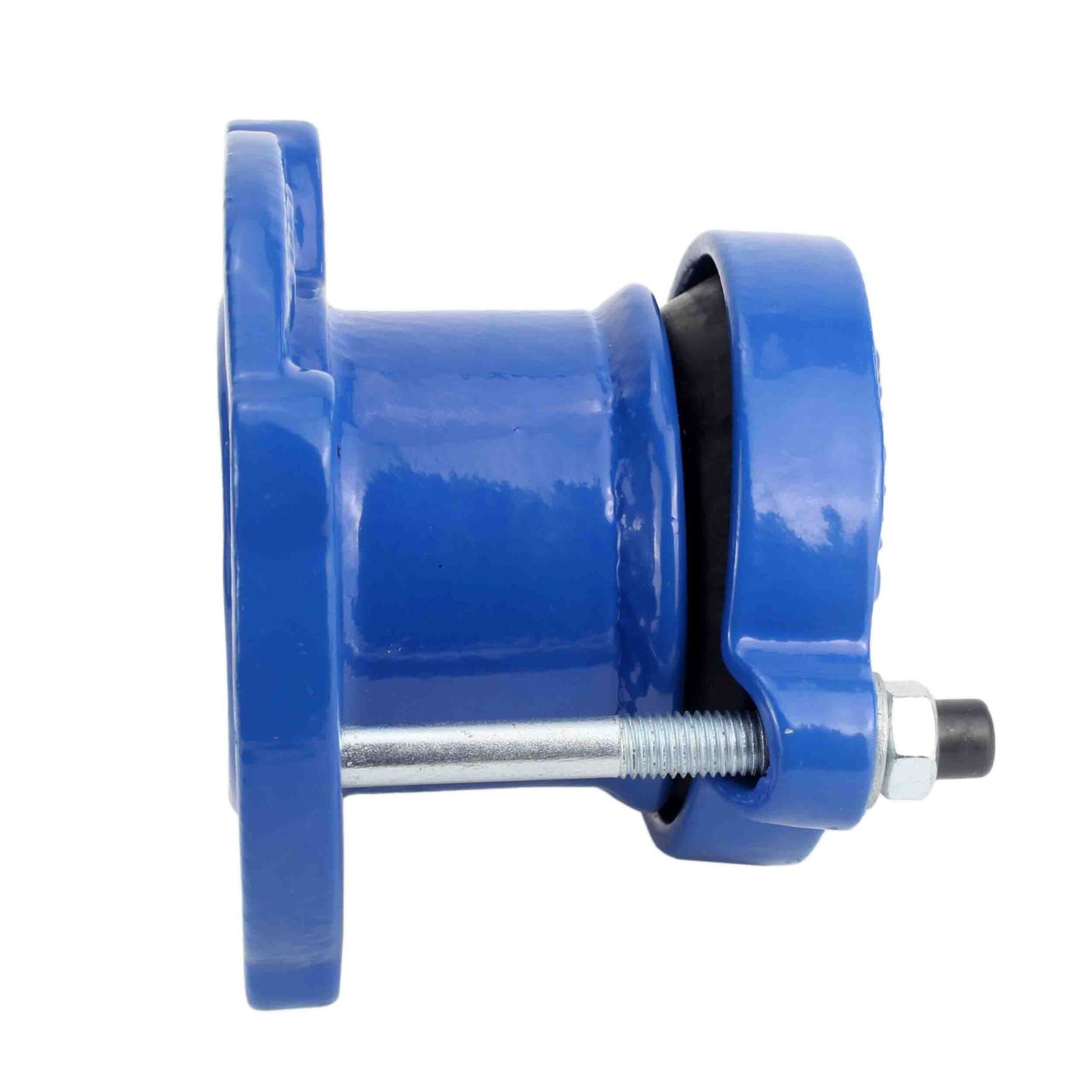

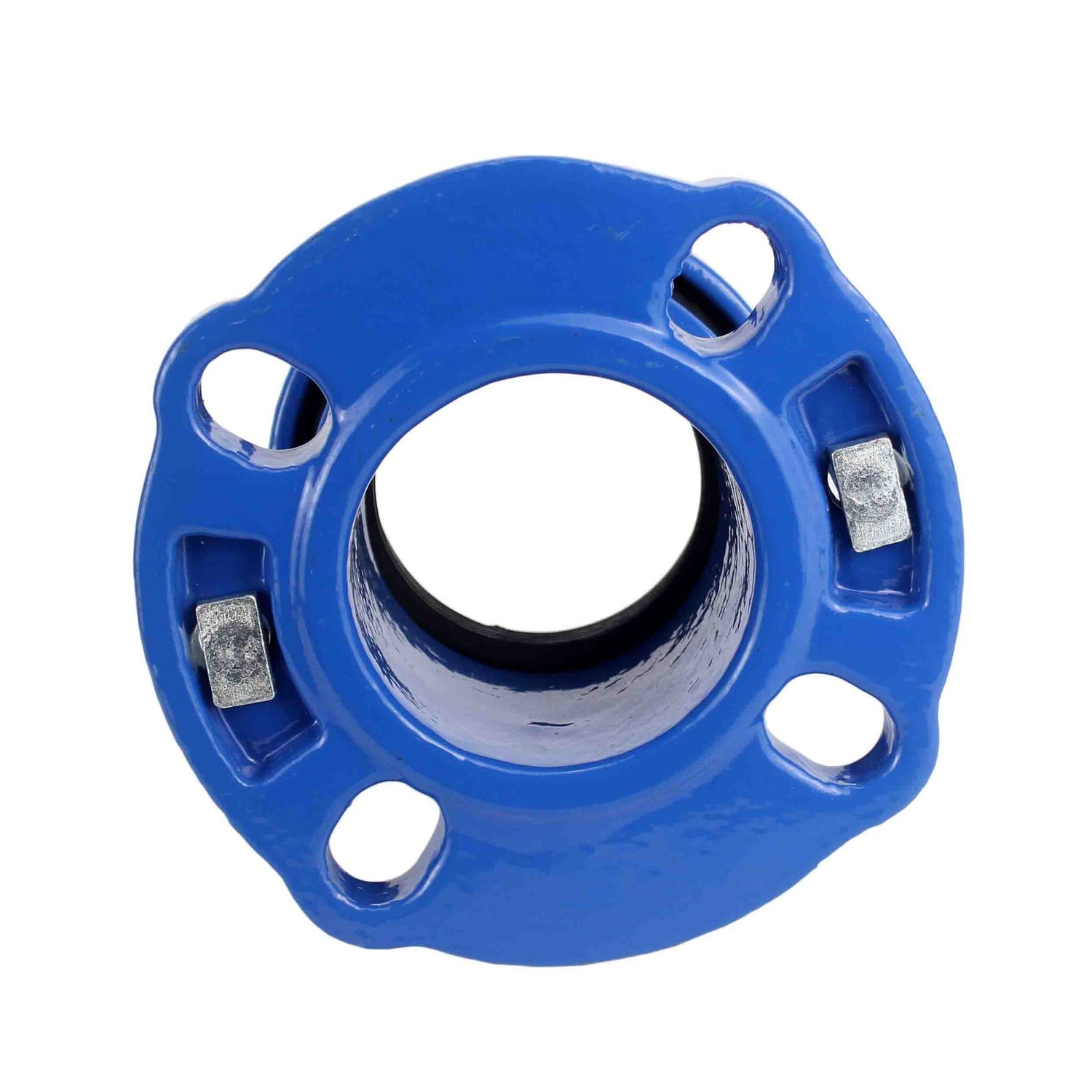

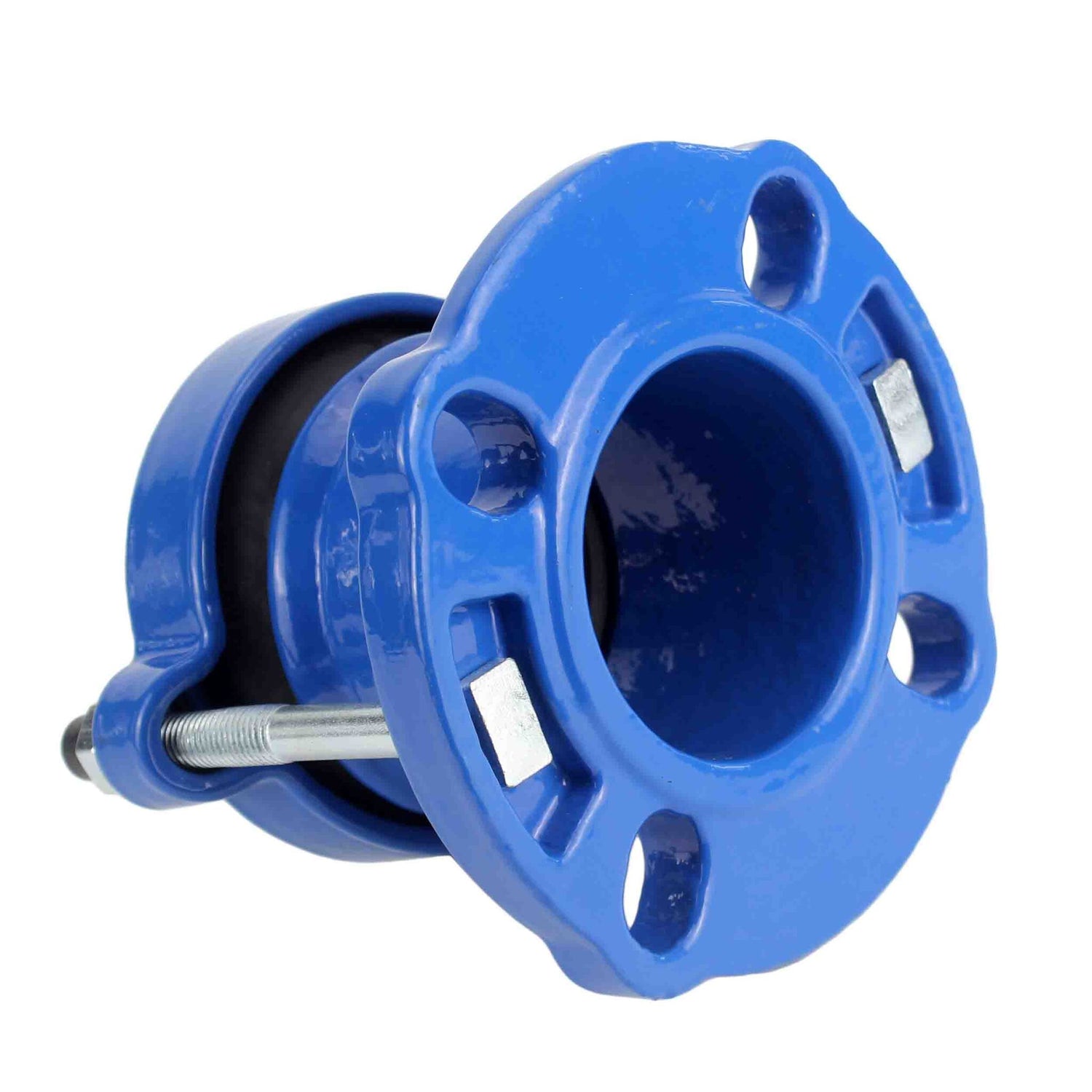

Flange adapter Elephant chugun-pn10-16, body material - cast iron GGG50, seal - PTFE
Flange adapter Elephant chugun-pn10-16, body material - cast iron GGG50, seal - PTFE - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.
Leave your email
Get notified as soon as this product is available, along with the latest updates on new collections, sales, offers, and product arrival dates.
Secure Your Preorder
Description
Description
A flange adapter is a connecting element in a piping system that allows pipes, fittings, or equipment with flanged ends to be joined. This component has flanges at both ends, which can be fastened with bolts and nuts to provide a strong and sealed connection.
Overall dimensions of the coupling coupling Elephant chugun-pn10-16, body material - cast iron GGG50, seal - PTFE
Dimensional sketch of the coupling coupling Elephant chugun-pn10-16, body material - cast iron GGG50, seal - PTFE
DN | Outer diameter of pipe, mm | D,mm | K,mm | A,mm | Bolt number-thread x length L mm |
Weight, kg |
50 | 59 - 72 | 165 | 125 | 80 | 2-M12х130 | 3 |
80 | 88 – 103 | 200 | 160 | 80 | 4-M12х130 | 4,3 |
100 | 109 – 128 | 220 | 180 | 80 | 4-M12х130 | 5,2 |
125 | 132 - 153 | 250 | 210 | 80 | 4-M12х140 | 7 |
150 | 159 - 182 | 285 | 240 | 80 | 4-M12х140 | 8 |
175 | 192 - 209 | 340 | 295 | 80 | 4-M12х140 | 10 |
200 | 218 - 235 | 340 | 295 | 80 | 4-M12х140 | 12,6 |
250 | 272 - 289 | 400 | 355 | 90 | 6-M12х150 | 14 |
300 | 315 - 332 | 455 | 400/410 | 90 | 6-M12х150 | 17 |
Materials of parts of the coupling coupling Elephant chugun-pn10-16, body material - cast iron GGG50, seal - PTFE
Detail of the coupling coupling Elephant chugun-pn10-16, body material - cast iron GGG50, seal - PTFE
№ | Part name | Material |
1 | Body | ductile iron GGG50 |
2 | cuff | EPDM |
3 | Bolt, washer, nut | galvanized steel |
