Fittings CLAMP Elephant SHK-31-W-34, body - stainless steel 304, conne – Valve Elephant
Elephant  |  SKU: D270-16983

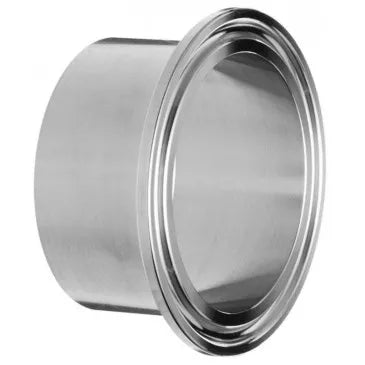

Fittings CLAMP Elephant SHK-31-W-34, body - stainless steel 304, connection - welding

€3,84
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

CLAMP connectors Elephant SHK-31-W-34 body stainless steel 304, welded are elements of CLAMP quick couplings with a rolled part for clamping clamp on one side and an end part for welding on the other side. The CLAMP connection is used in pipeline sections where quick assembly/disassembly of elements is required. This connection is designed for many cycles of connection and disconnection.

Overall and mounting dimensions of the fittings Elephant SHK-31-W-34

DN Size
ØA ØC ØD E F
15 34 15 18 2.85 18
20 34 19 22 2.85 18
25 50.5 25 28 2.85 21.5
32 50.5 31 34 2.85 21.5
40 50.5 37 40 2.85 21.5
50 64 49 52 2.85 21.5
65 91 66 70 2.85 28
80 106 81 85 2.85 28
100 119 100 104 2.85 28
Sketch of socket dimensions Elephant SHK-31-W-34



Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 304
  • Connection type
    For welding

Reviews (0)

Documentation
nullCLAMP ELEPHANT UC-31-W-x DN15-100 10 bar

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D270-16983DN1510 bar €3,84 Sold out
    D270-16984DN2010 bar €3,63 Sold out
    D270-16985DN2510 bar €3,24 Sold out
    D270-16986DN3210 bar €3,51 Sold out
    D270-16987DN4010 bar €2,88 Sold out
    D270-16988DN5010 bar €3,90 Sold out
    D270-16989DN6510 bar €6,47 Sold out
    D270-16990DN8010 bar €8,63 Sold out
    D270-16991DN10010 bar €9,47 Sold out
