Dismantling joint Elephant DIA1212E-F body material - ductile iron GGG – Valve Elephant
1 8
Elephant  |  SKU: D350-01187

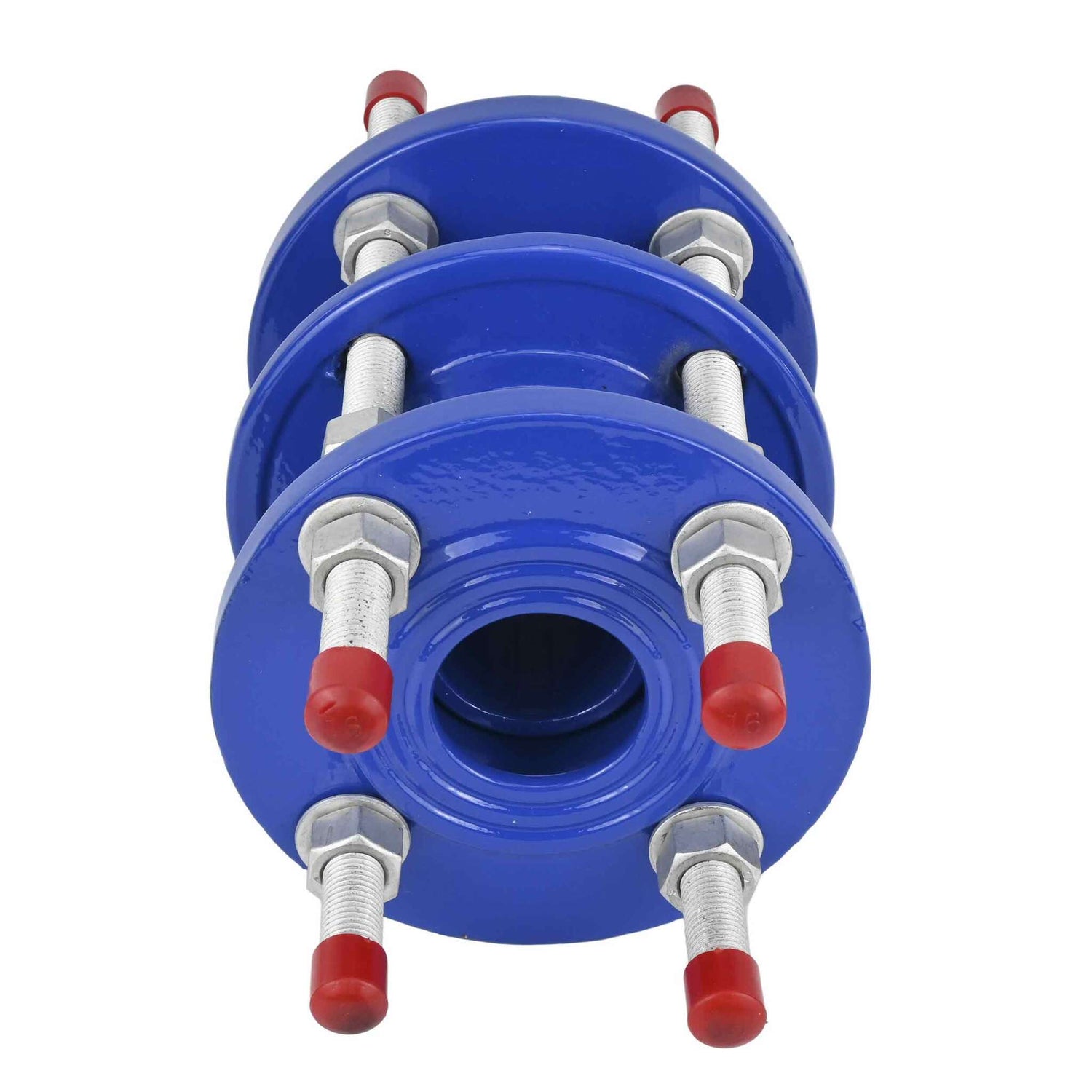

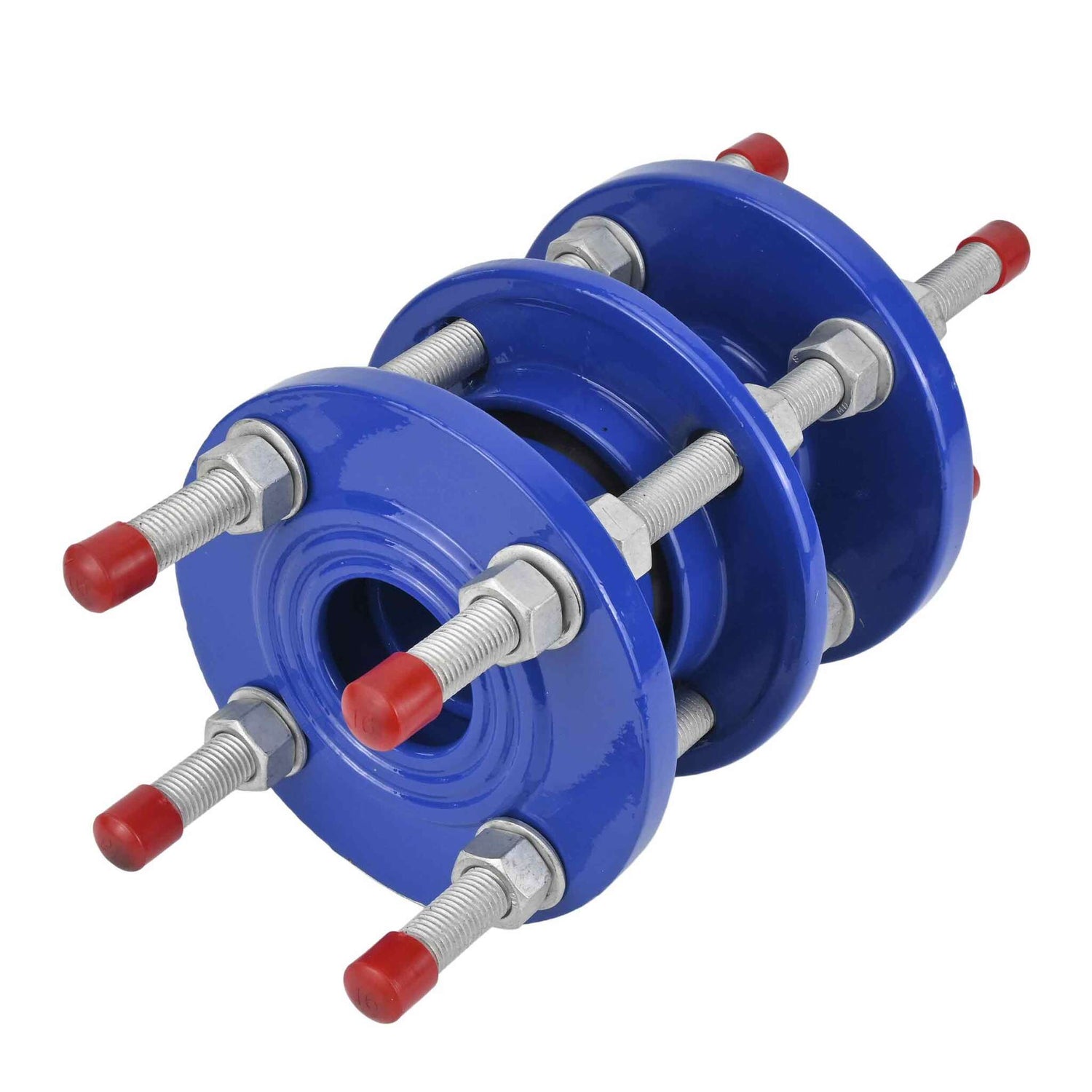

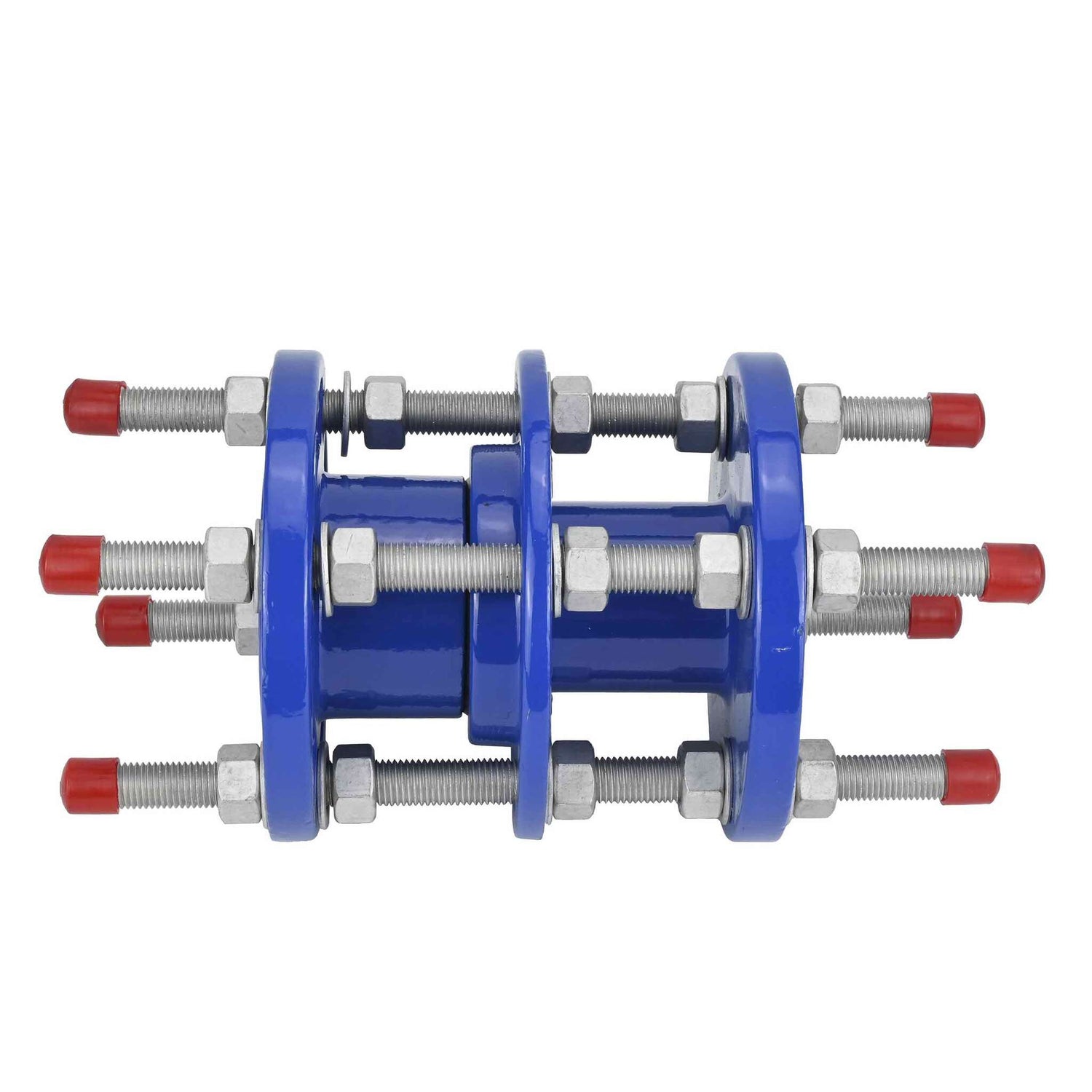

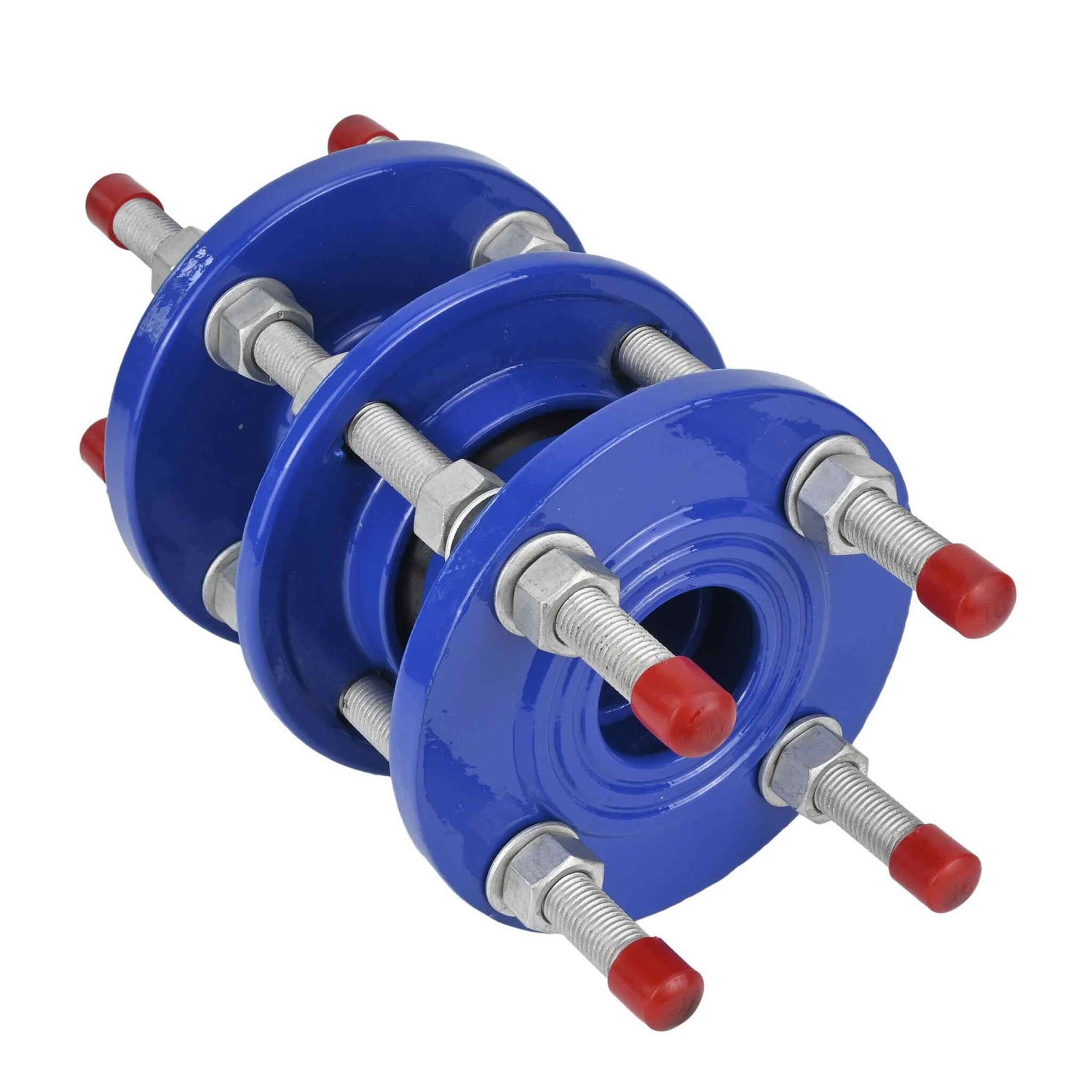

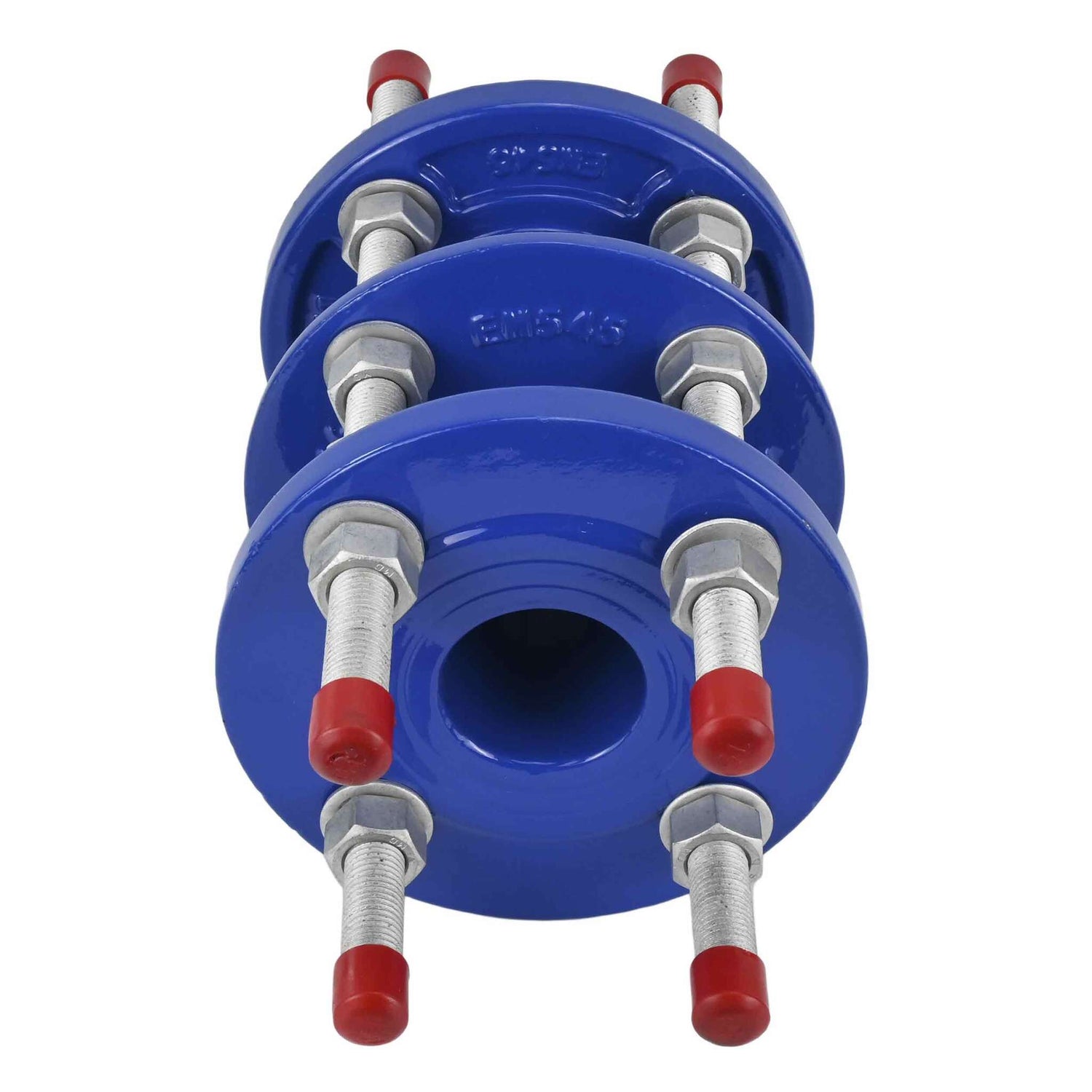

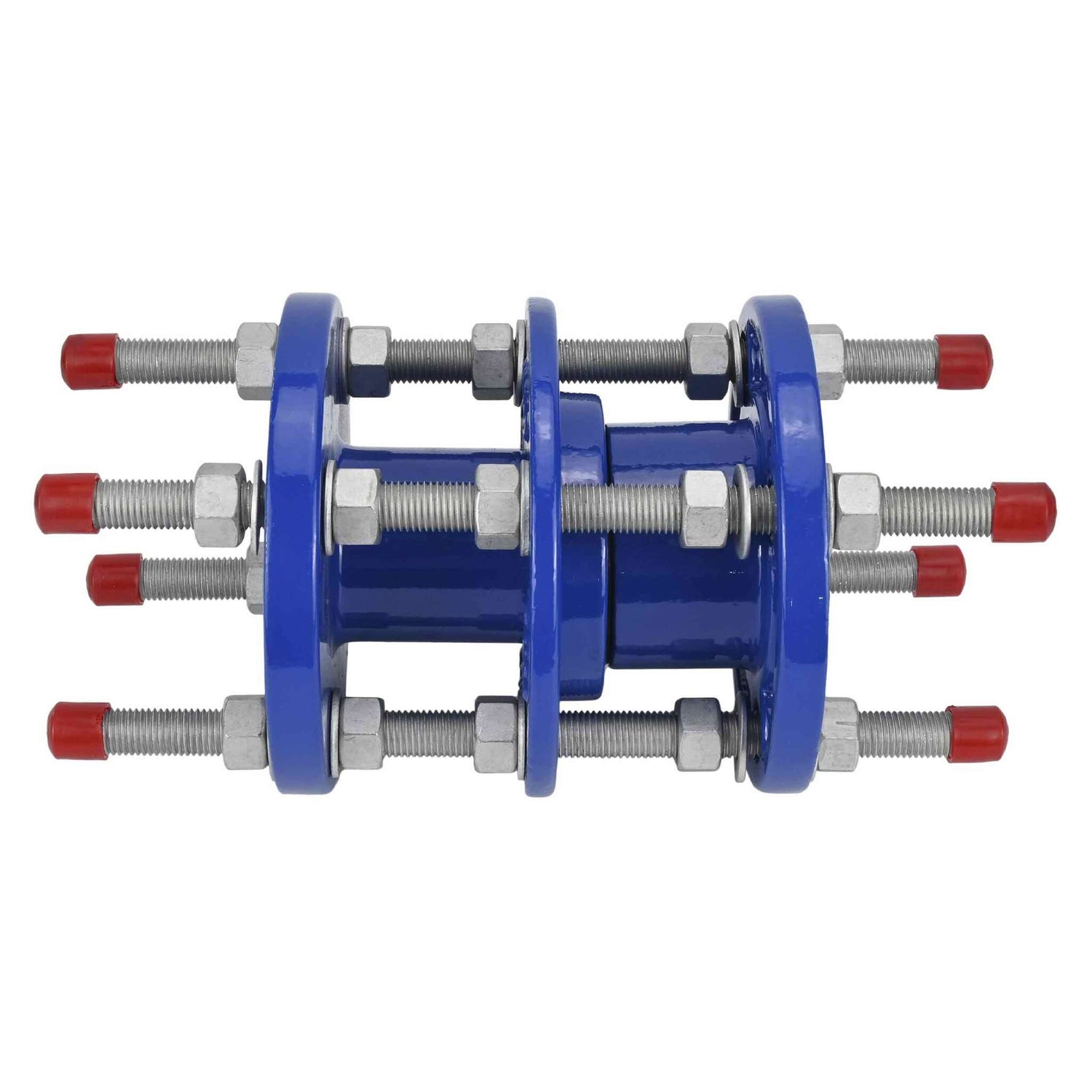

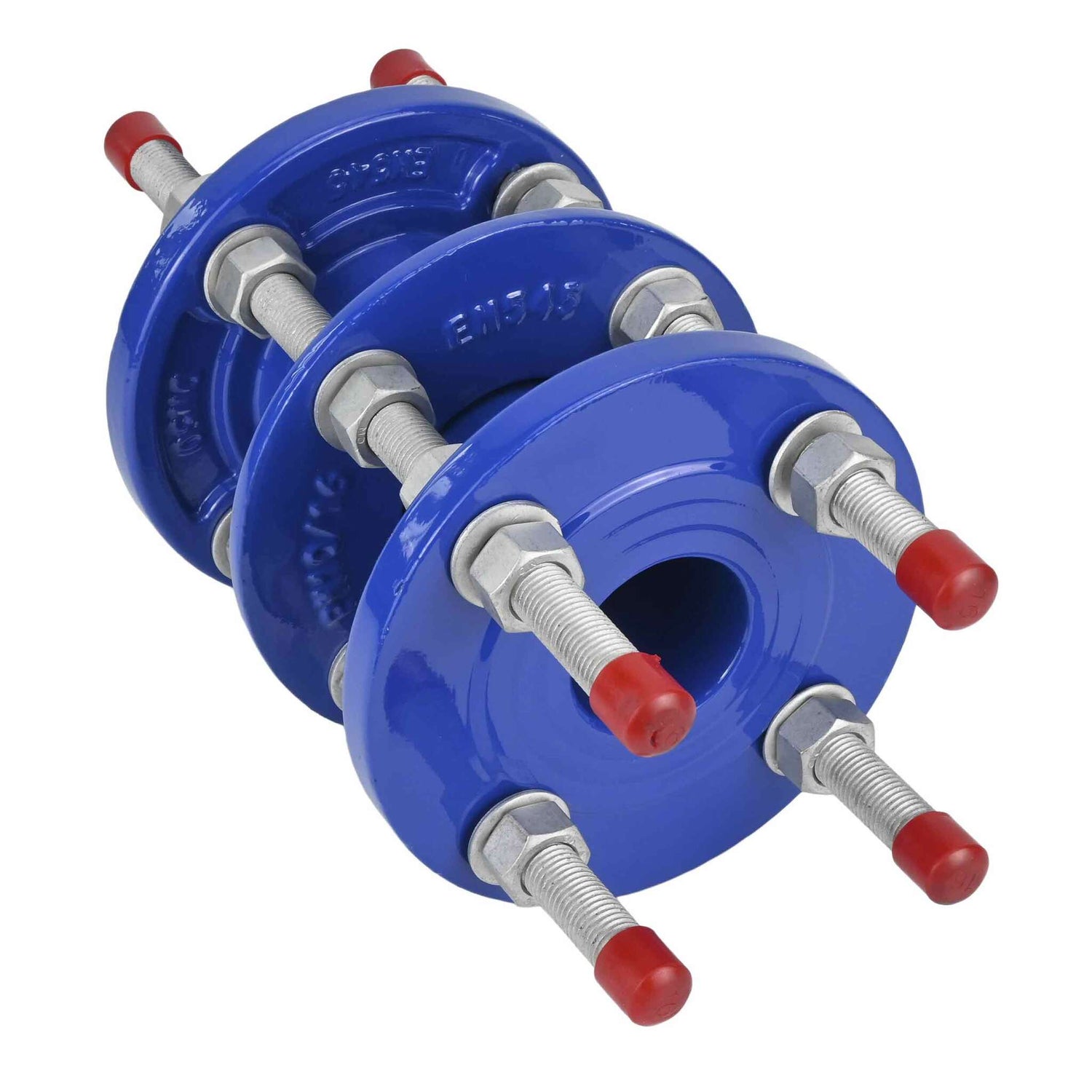

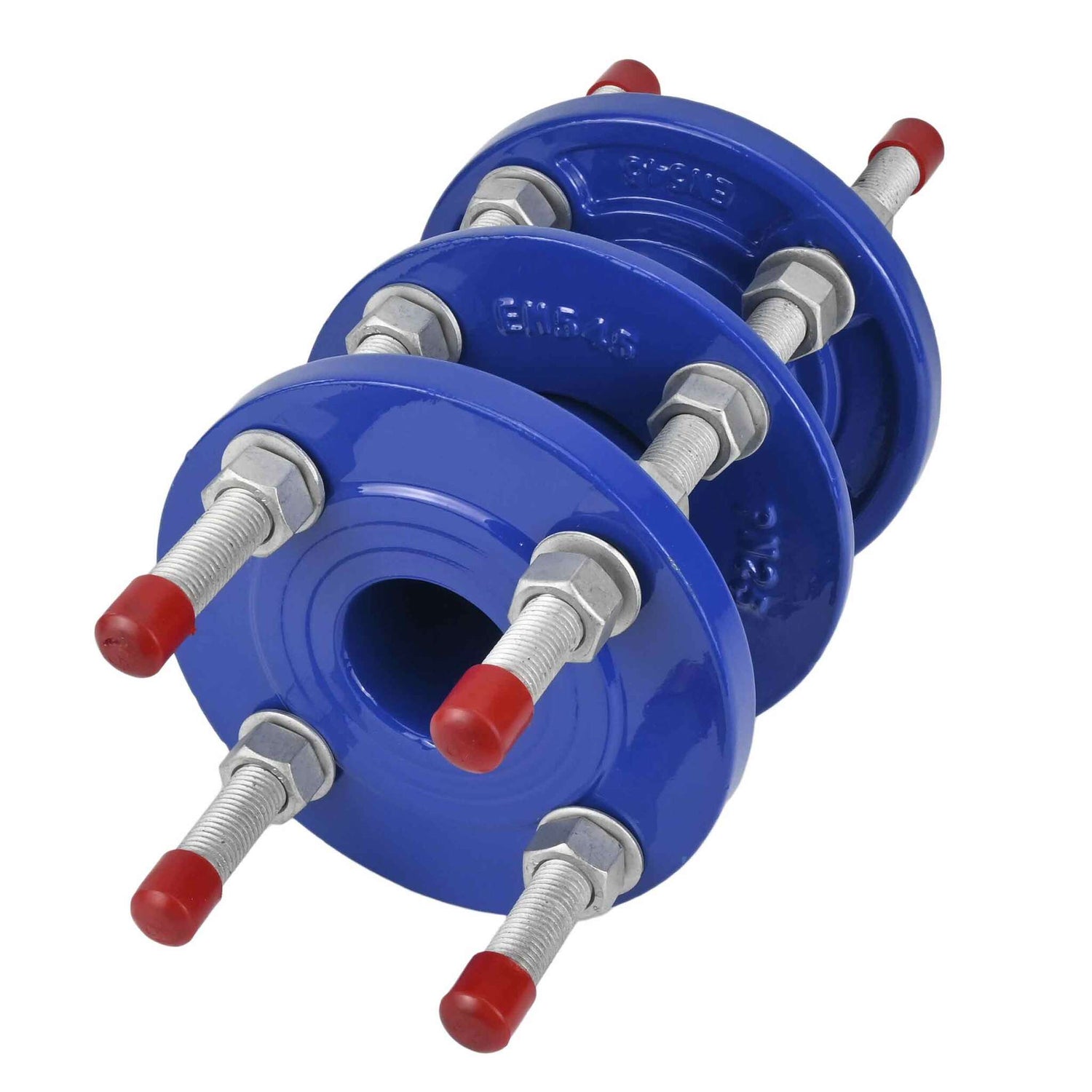

Dismantling joint Elephant DIA1212E-F body material - ductile iron GGG400, seal - EPDM, three-flanged, color - blue

€52,50
Tax included Shipping calculated at checkout.

Dismantling joint Elephant DIA1212E-F body material - ductile iron GGG400, seal - EPDM, three-flanged, color - blue - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The dismantling joint (hereinafter referred to as DJ) is designed for slight compensation of length and angle (misalignment) of the pipeline during the installation of flanged pipeline fittings, as well as for connecting two pipelines during repair and restoration works of engineering networks. It reduces excessive load on the connecting flanges and simplifies installation work, allowing easy dismantling of equipment for scheduled maintece or complete replacement.





Dimensions and installation dimensions of dismantling insert Elephant DIA1212E-F body material - ductile iron GGG400, seal - EPDM, three-flanged, color - blue

Model Size N Weight d
D1 D2 D3 L1 L2 t
DN50 10/16 bar 62 125 165 180 310 M16 4 6 8
DN80 10/16 bar 98 160 200 200 330 M16 8 8 16
DN100 10/16 bar 118 180 220 200 330 M16 8 8 19
DN150 10/16 bar 170 240 285 200 340 M20 8 8 29
DN200 10 bar 222 295 340 220 350 M20 8 8.5 37
DN250 10 bar 274 350 400 230 370 M20 12 9 51
DN300 10 bar 326 400 455 230 390 M20 12 10 63
DN200 16 bar 222 295 340 220 350 M20 12 8.5 41
DN250 16 bar 274 355 400 230 380 M24 12 9 58
DN300 16 bar 326 410 455 230 400 M24 12 10 70

Sketch of dismantling insert Elephant DIA1212E-F body material - ductile iron GGG400, seal - EPDM, three-flanged, color - blue





Materials of parts of the disassembly insert Elephant DIA1212E-F body material - ductile iron GGG400, seal - EPDM, three-flanged, color - blue

№ Name Material
1 Case ductile iron GGG400
2 Flange ductile iron  GGG400
3 Intermediate flange ductile iron  GGG400
4 Sealing EPDM
5 Hairpin galvanized steel

Material sketch of dismantling insert Elephant DIA1212E-F body material - ductile iron GGG400, seal - EPDM, three-flanged, color - blue

Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG400
  • Maximum allowable temperature
    90 °C
  • Connection type
    Flanged
  • Operating environment
    Water, Neutral Liquids
  • Applications
    Water Supply, Heating, Industry
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM

Reviews (0)

Documentation
nullDismantling insert ELEPHANT DIA1212x-F DN50-300 10 16 bar cast iron three-flanged

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D350-01187DN5016 bar €52,50 0 In stock
    D350-01188DN8016 bar €78,24 Sold out
    D350-01189DN10016 bar €92,28 Sold out
    D350-01190DN15016 bar €144,62 Sold out
    D350-01191DN20010 bar €185,38 Sold out
    D350-01194DN20016 bar €312,40 Sold out
    D350-01192DN25010 bar €237,51 Sold out
    D350-01195DN25016 bar €444,46 Sold out
    D350-01193DN30010 bar €320,88 Sold out
    D350-01196DN30016 bar €517,82 Sold out
