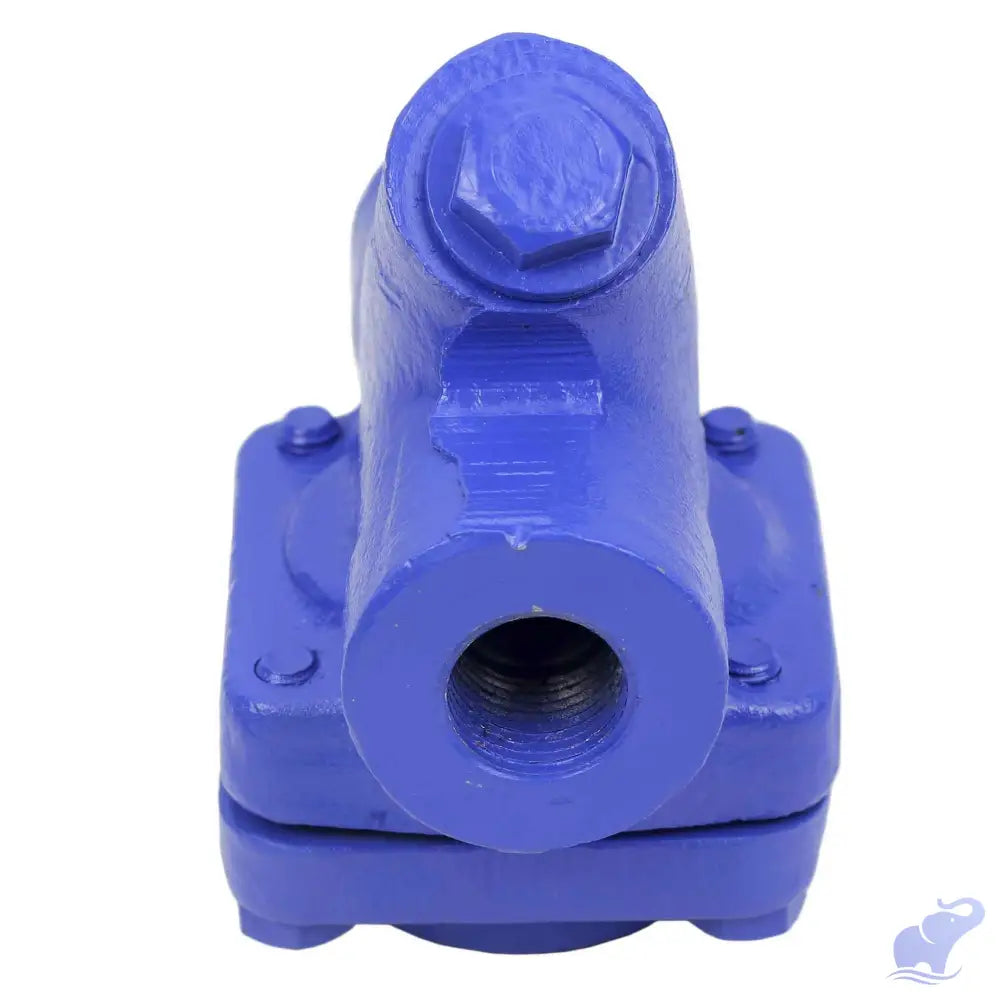

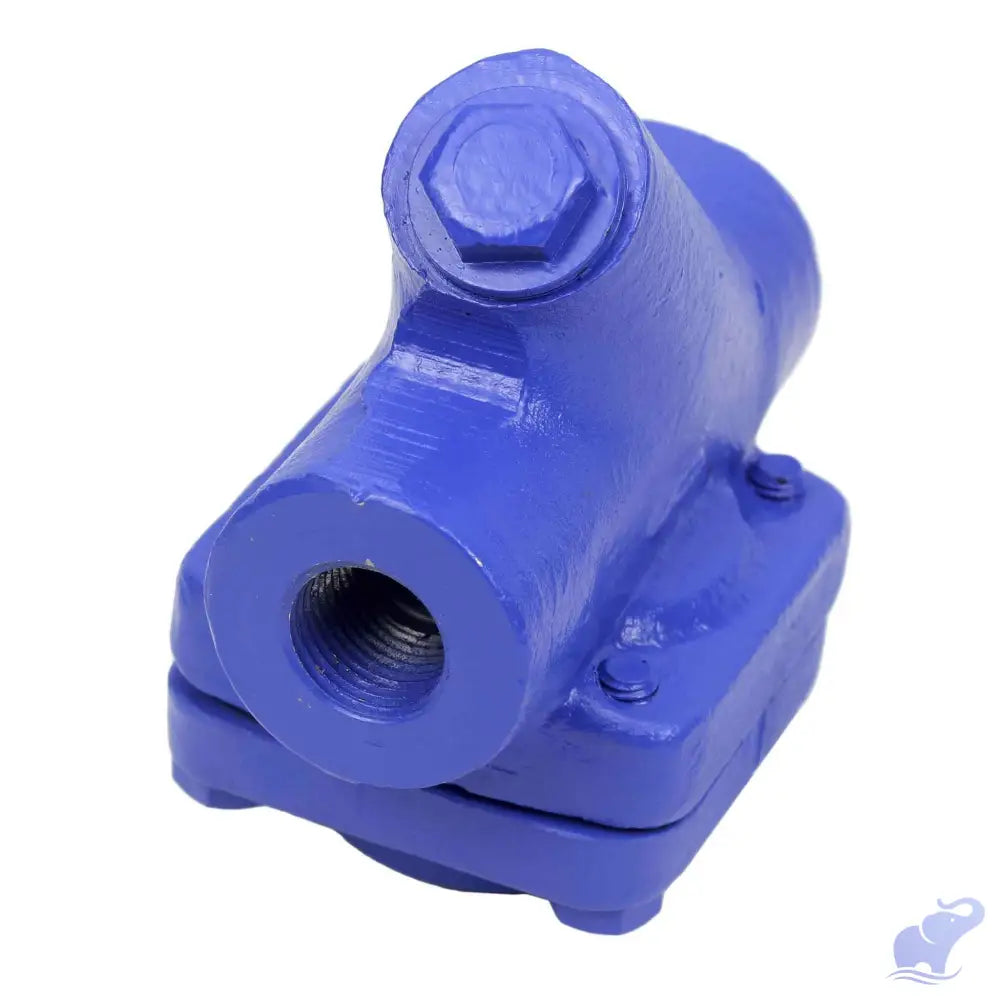

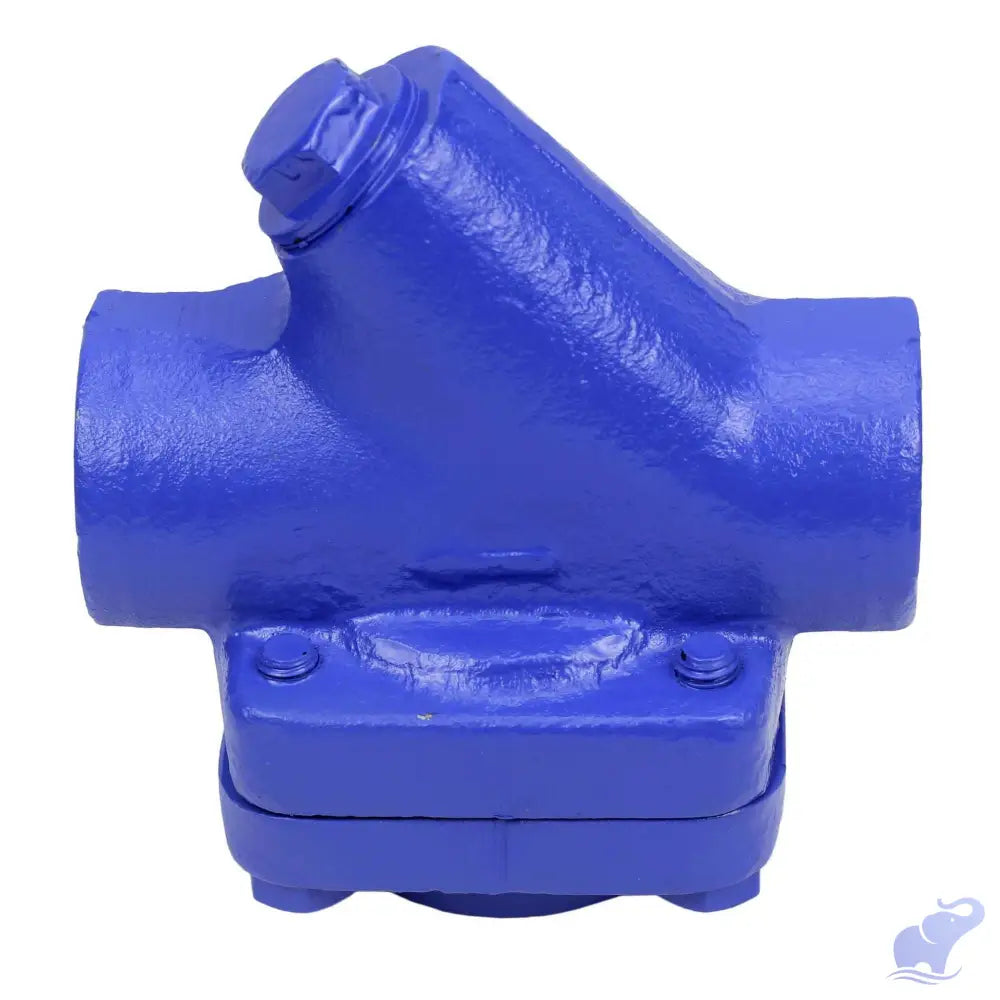

Steam Trap Elephant STS2131P-T body material - low-carbon steel A105, seal - PTFE, thermostatic, threaded, with filter
Steam Trap Elephant STS2131P-T body material - low-carbon steel A105, seal - PTFE, thermostatic, threaded, with filter - DN15 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
A steam trap is designed to discharge condensate, air, and other non-condensable gases from a steam system, while retaining steam until it is fully condensed. The operating principle is based on the temperature difference between steam and condensate. Temperature changes cause the liquid inside a capsule connected to the discharge valve to boil/condense, allowing non-condensable gases and steam below saturation temperature to be discharged.
Overall and installation dimensions of thermostatic steam traps Elephant STS2131P-T
|
Model |
L, mm |
H1, mm |
H2, mm |
Weight,kg |
|
DN15 |
100 |
52 |
62 |
2.3 |
|
DN20 |
100 |
52 |
62 |
2.4 |
|
DN25 |
100 |
52 |
62 |
2.5 |
Dimensional sketch of thermostatic steam traps Elephant STS2131P-T
Materials of thermostatic steam traps Elephant STS2131P-T
|
№ |
Part name |
Material |
|
1 |
Case |
steel A105 |
|
2 |
Saddle |
steel 2Cr13 |
|
3 |
Gasket |
brass |
|
4 |
Gasket |
PTFE |
|
5 |
capsule |
special alloy |
|
6 |
Cover |
steel A105 |
|
7 |
Disk |
SS304 stainless steel |
|
8 |
Bolt |
steel 35СrMoA |
|
9 |
drain plug |
steel A105 |
|
10 |
Gasket |
brass |
|
11 |
Filter |
SS304 stainless steel |
Material sketch of thermostatic steam traps Elephant STS2131P-T
Flow capacity kg/h of thermostatic steam traps Elephant STS2131P-T
|
DN |
Pressure drop, bar |
||||||
|
1 |
2 |
4 |
6 |
8 |
10 |
16 |
|
|
15-25 |
95 |
150 |
190 |
240 |
270 |
290 |
340 |
Specifications
Specifications
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Operating environment
-
Applications
-
Nominal pressure
-
Type of seal
