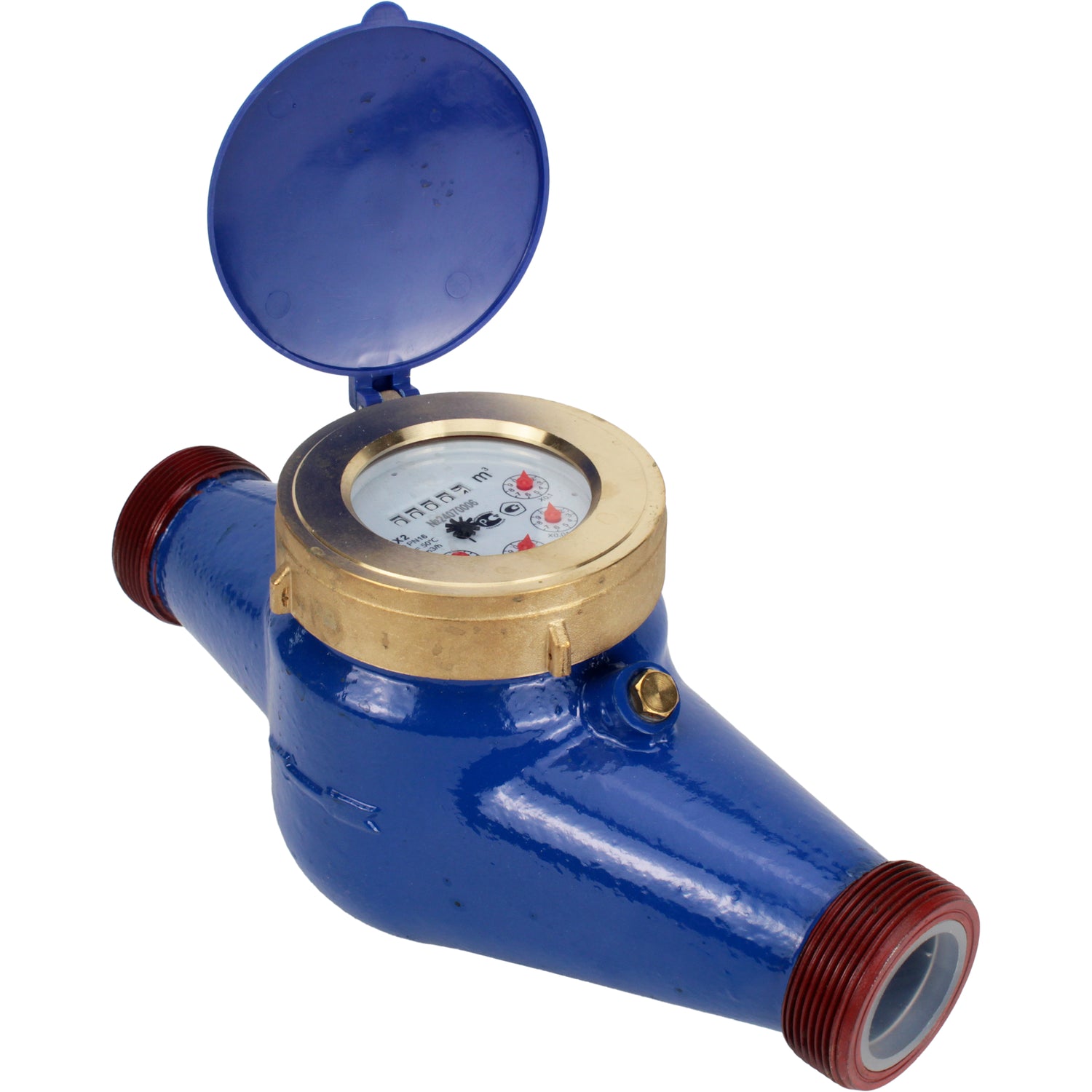

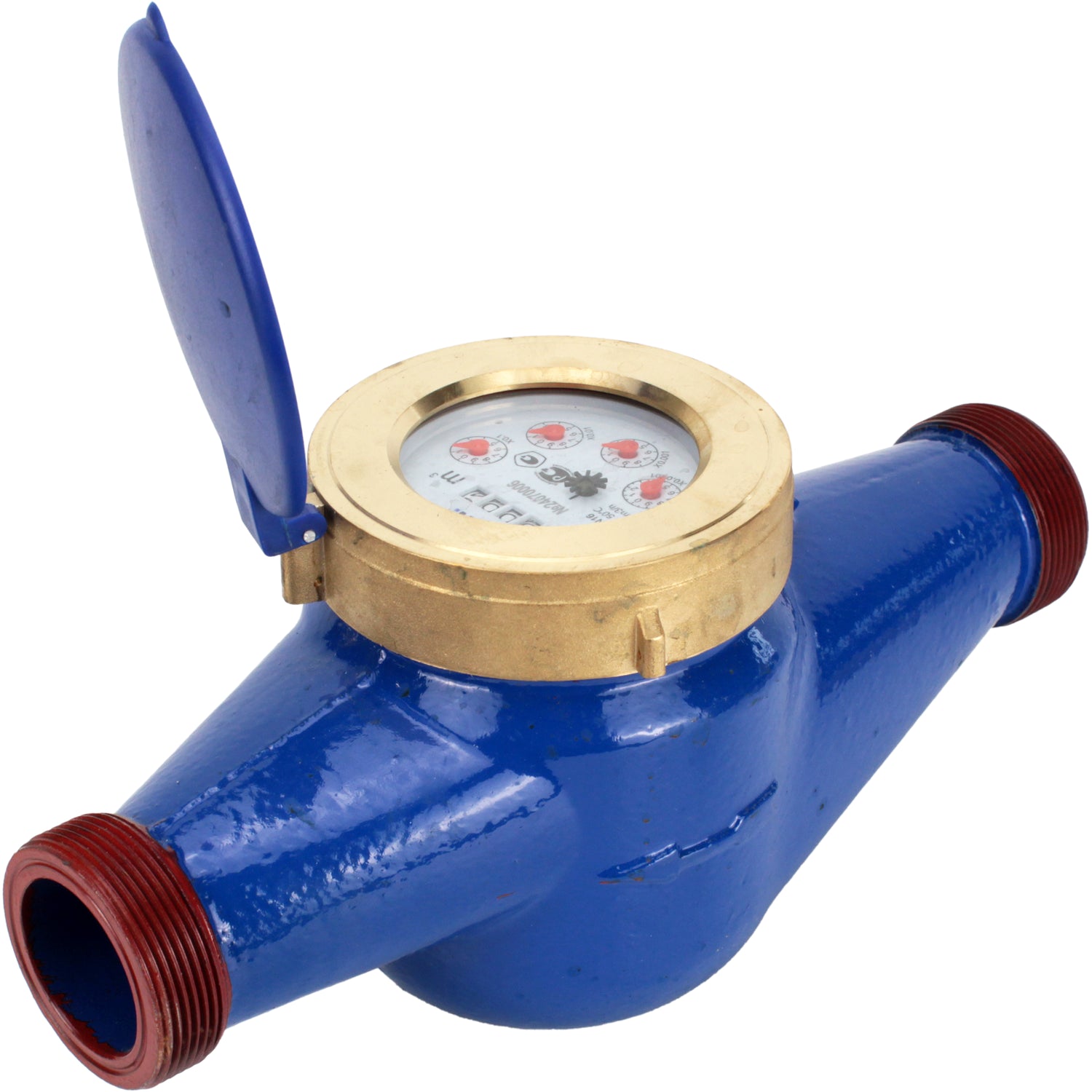

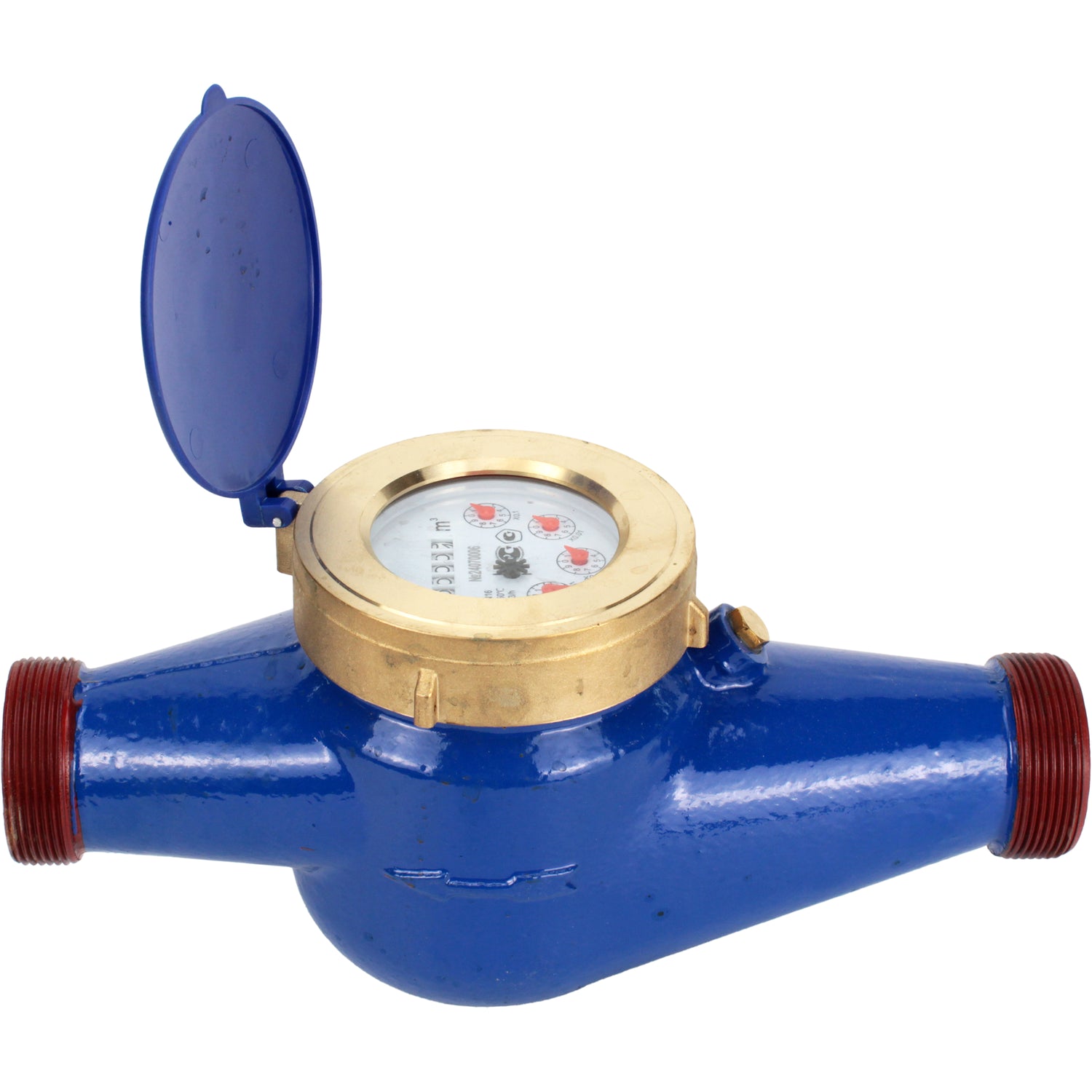

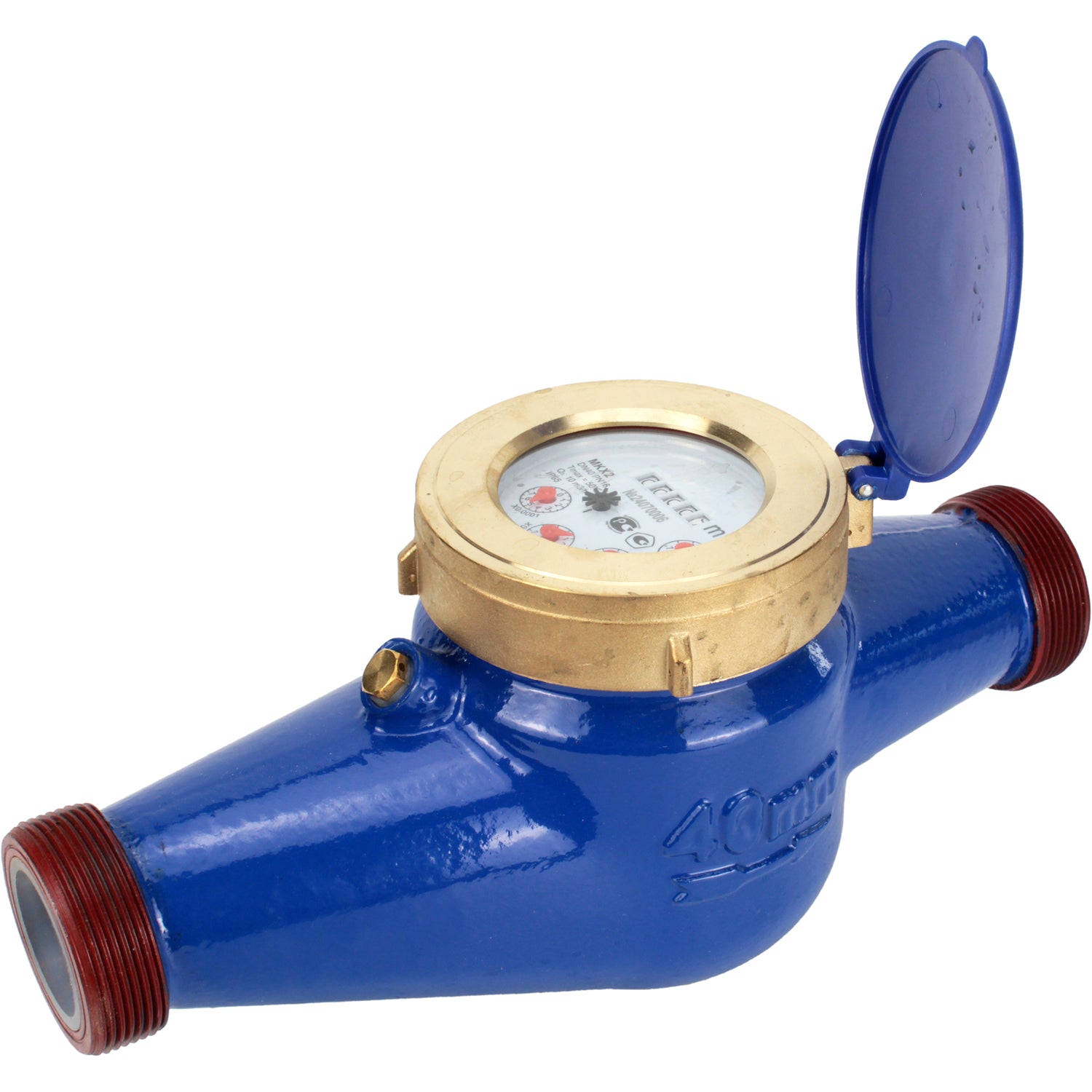

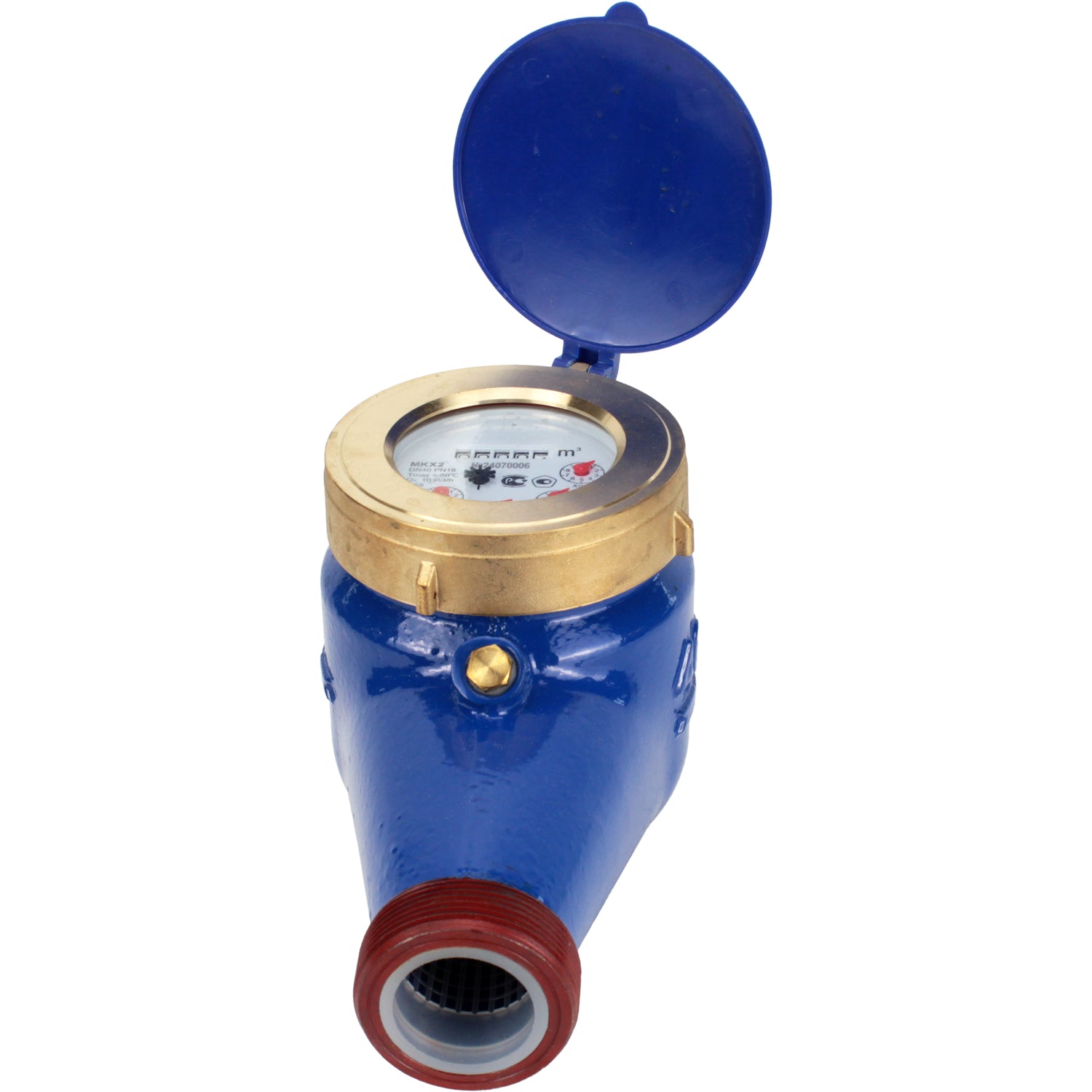

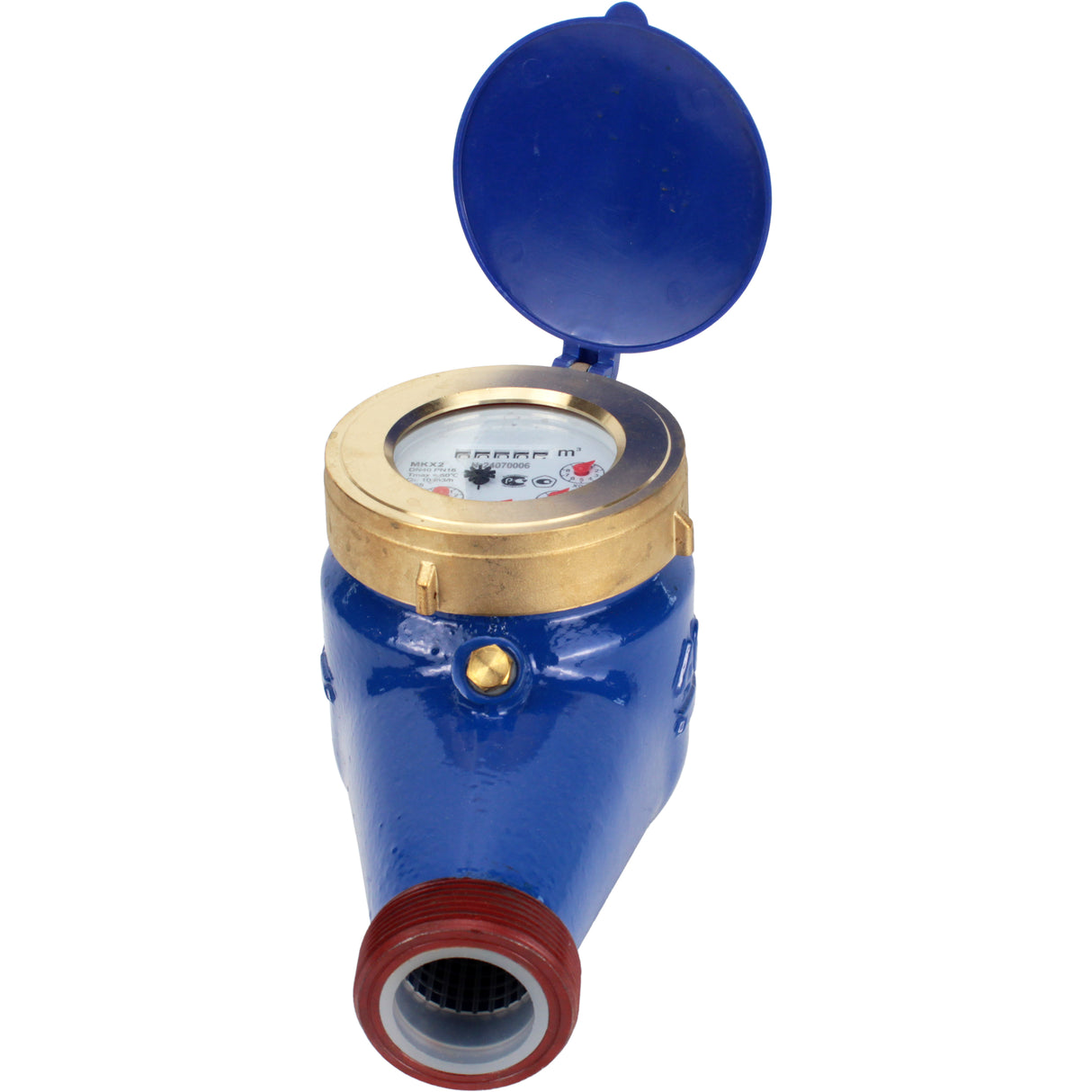

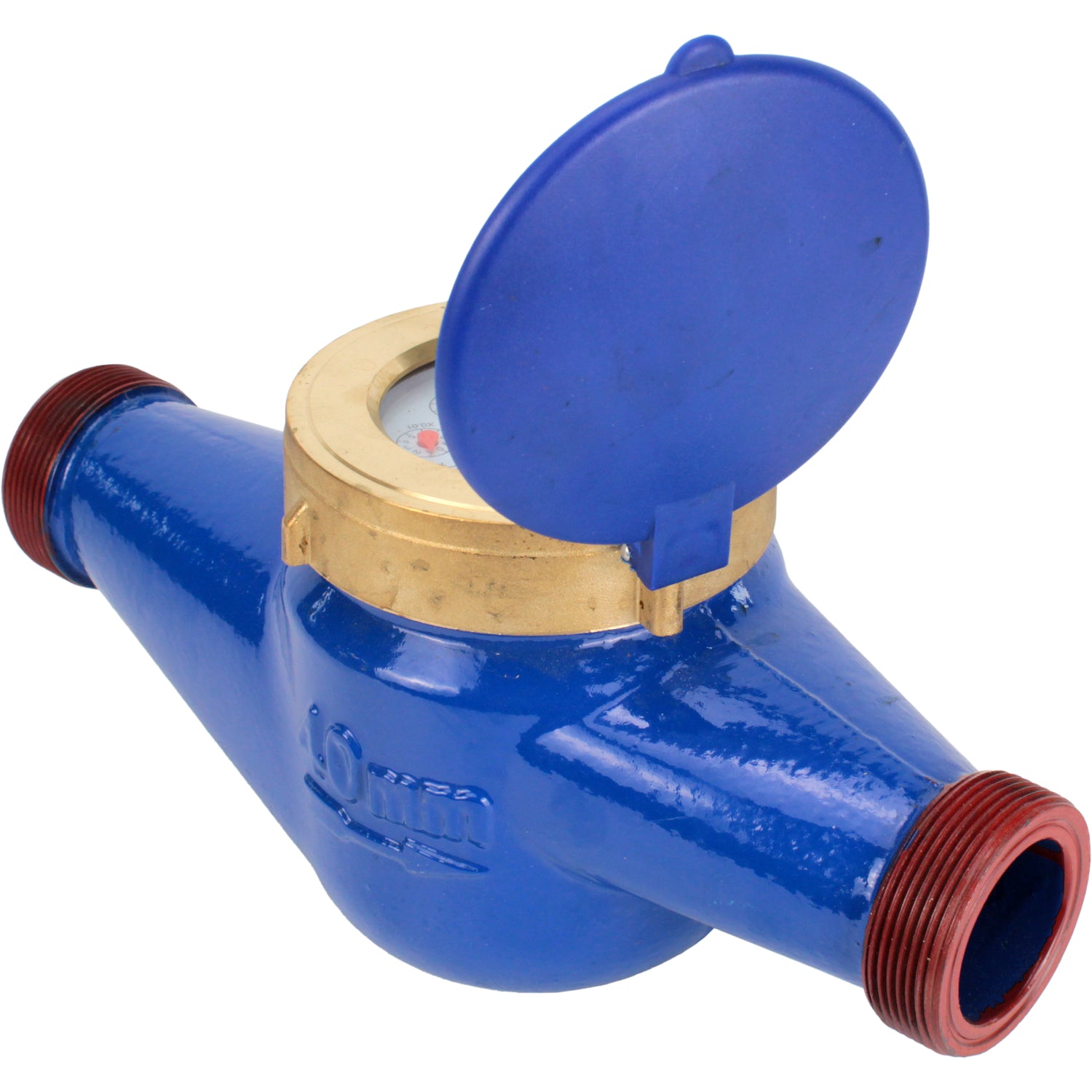

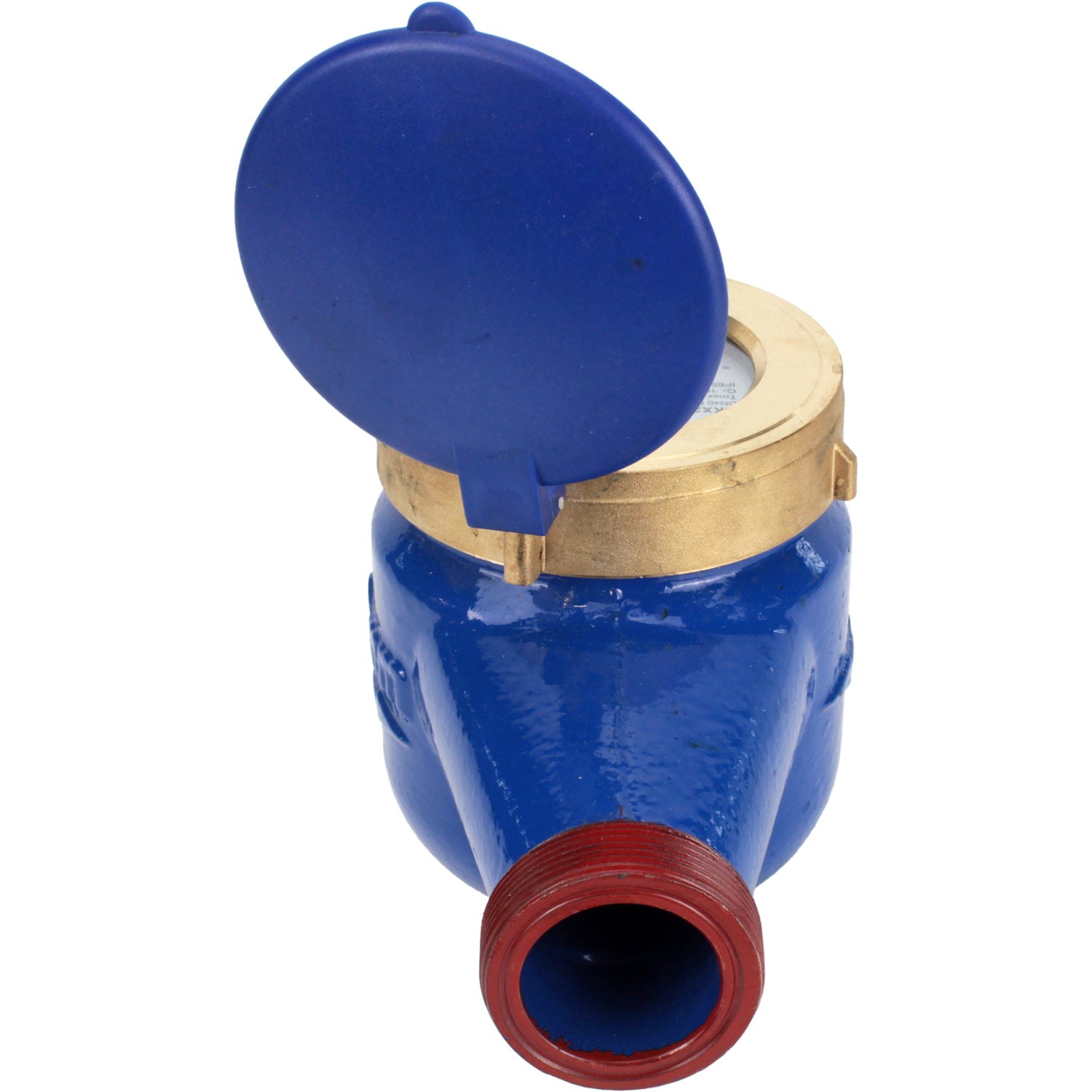

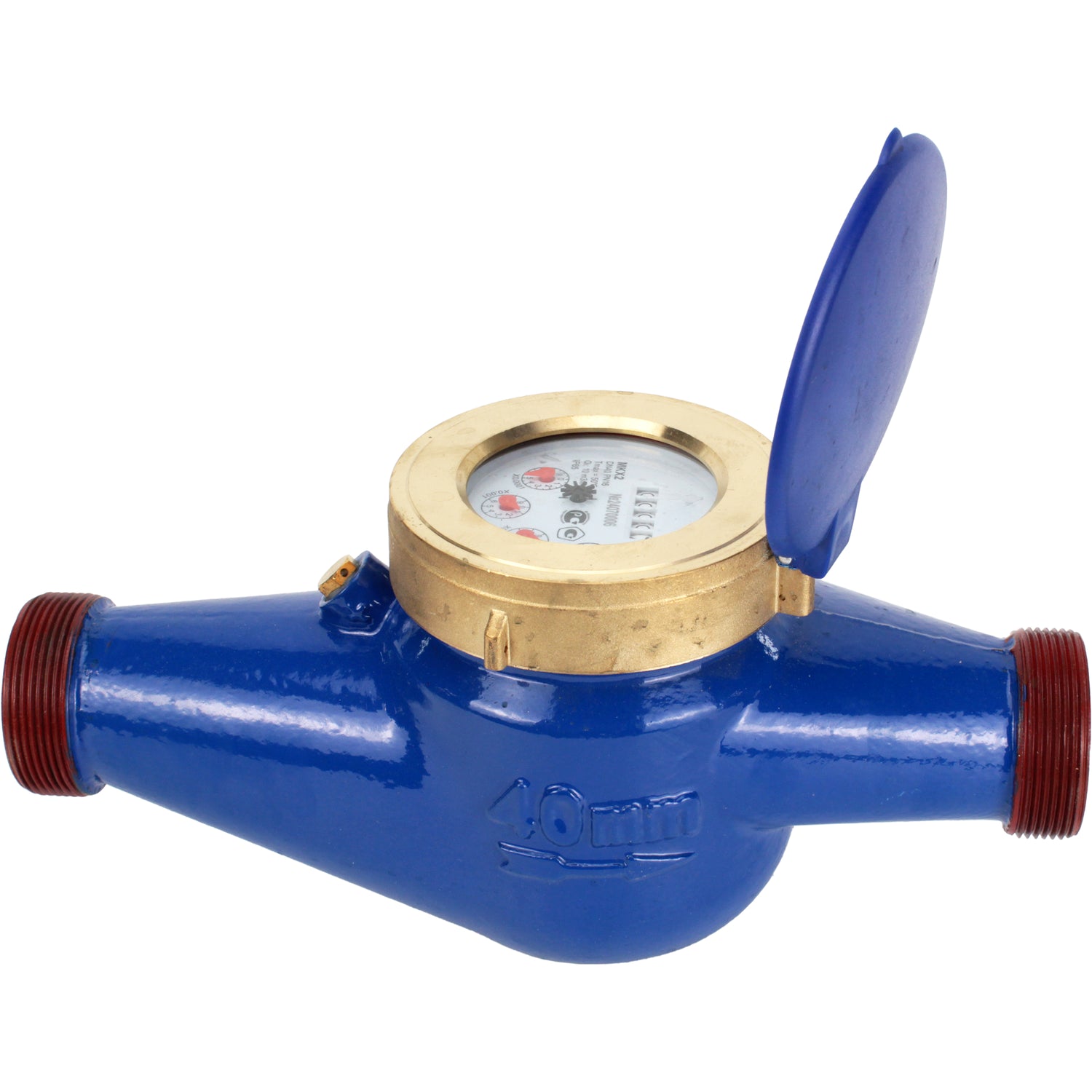

Cold water meters Elephant MKX2 winged, non-volatile, multi-jet, cast iron, threaded
Cold water meters Elephant MKX2 winged, non-volatile, multi-jet, cast iron, threaded - DN25 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The water meter is designed to measure the flow rate of cold drinking water flowing through pipelines at a pressure of up to 16 bar and temperature range from +5˚C to +40˚C. The principle of operation of the meter is to measure the number of revolutions of the impeller rotating under the action of the flow of flowing water. The flow of water enters the meter body through the inlet pipe, passes through the filter and then through the holes of the jet-directing device enters the measuring chamber, inside which the impeller with a magnet mounted on it (leading magnetic coupling) rotates on solid supports. After passing through the measuring chamber, the water flows through the outlet openings of the jet guide device into the outlet of the meter. The number of impeller revolutions is proportional to the amount of flowing water. The rotation of the impeller is transmitted to the driven part of the magnetic coupling installed in the counting mechanism. The magnetic coupling is protected from external magnetic field by an anti-magnetic shield.
Overall dimensions of cold water meters Elephant MKX2, non-volatile, multi-jet, cast-iron, threaded meters
| Model | Length | Width | Height |
| MKX2 DN25 | 260 | 190 | 120 |
| MKX2 DN32 | 260 | 190 | 120 |
| MKX2 DN40 | 300 | 250 | 150 |
| MKX2 DN50 | 300 | 280 | 180 |
Reviews (0)
Reviews (0)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Available Variants
| SKU | Connection size | Pressure | Price | Availability | Max Temperature | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|
| D070-06820 | DN25 | 16 bar | €95,00 | Out of stock | - | ||
| D070-06821 | DN32 | 16 bar | €120,00 | Out of stock | - | ||
| D070-06822 | DN40 | 16 bar | €190,00 | Out of stock | - | ||
| D070-06823 | DN50 | 16 bar | €260,00 | Out of stock | - |
