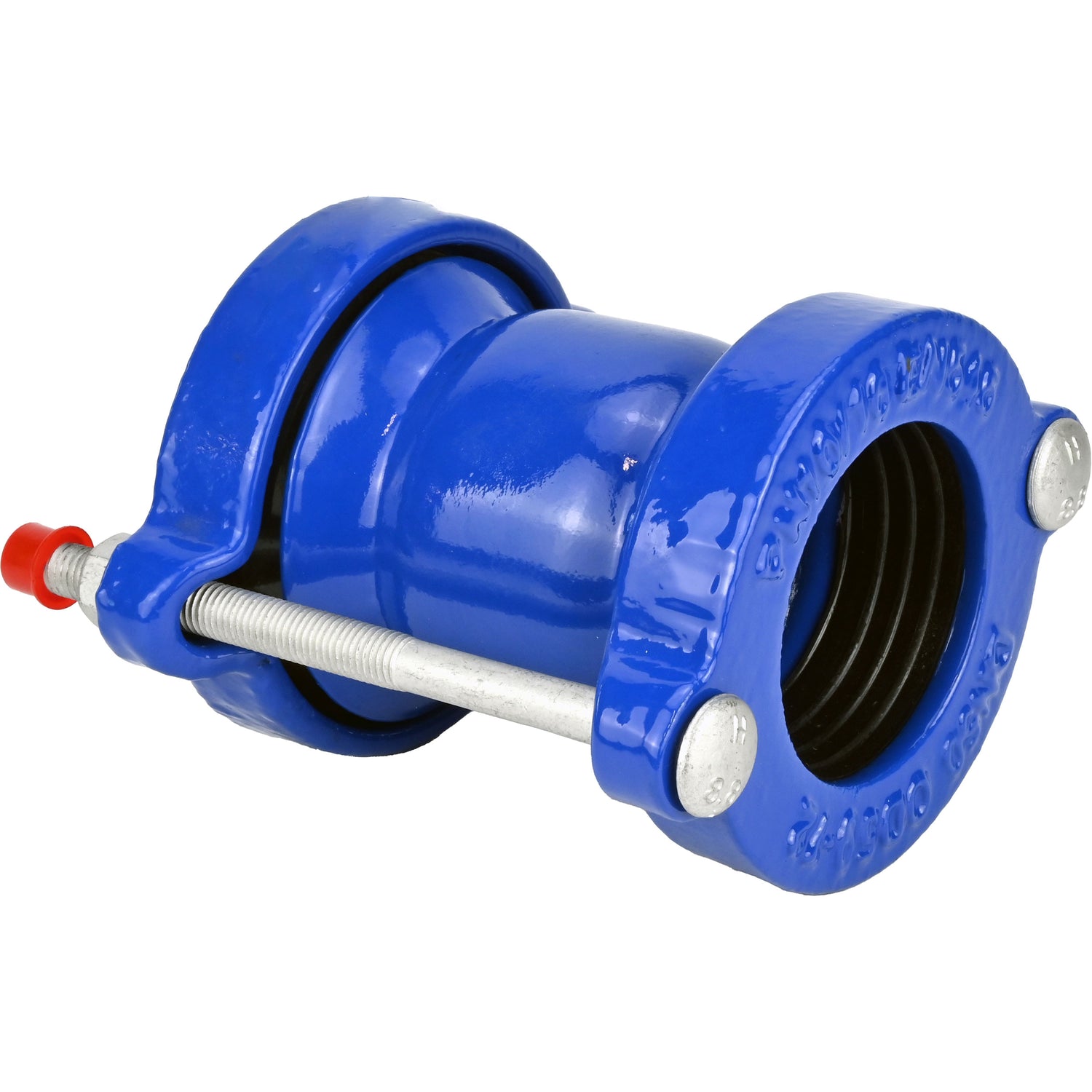

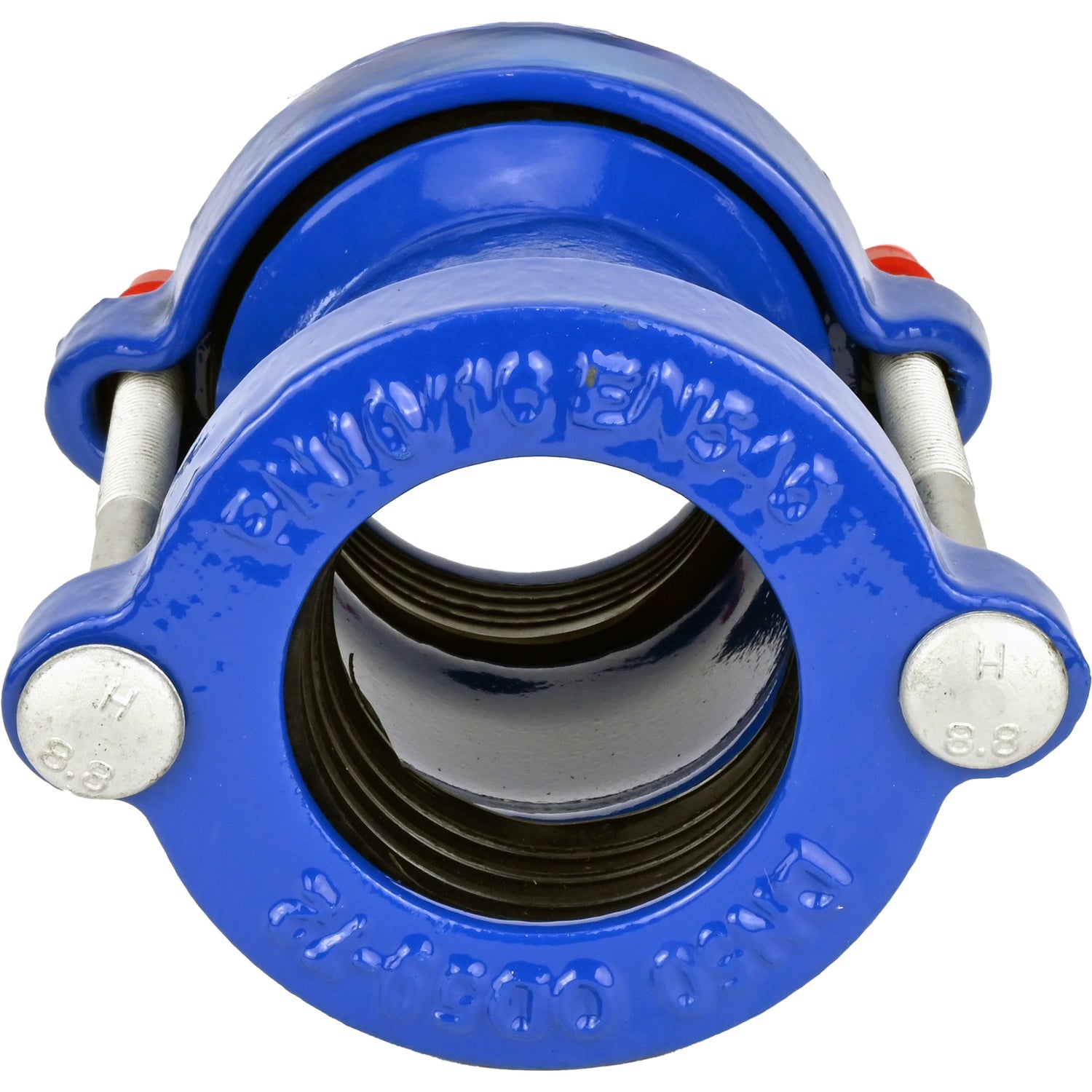

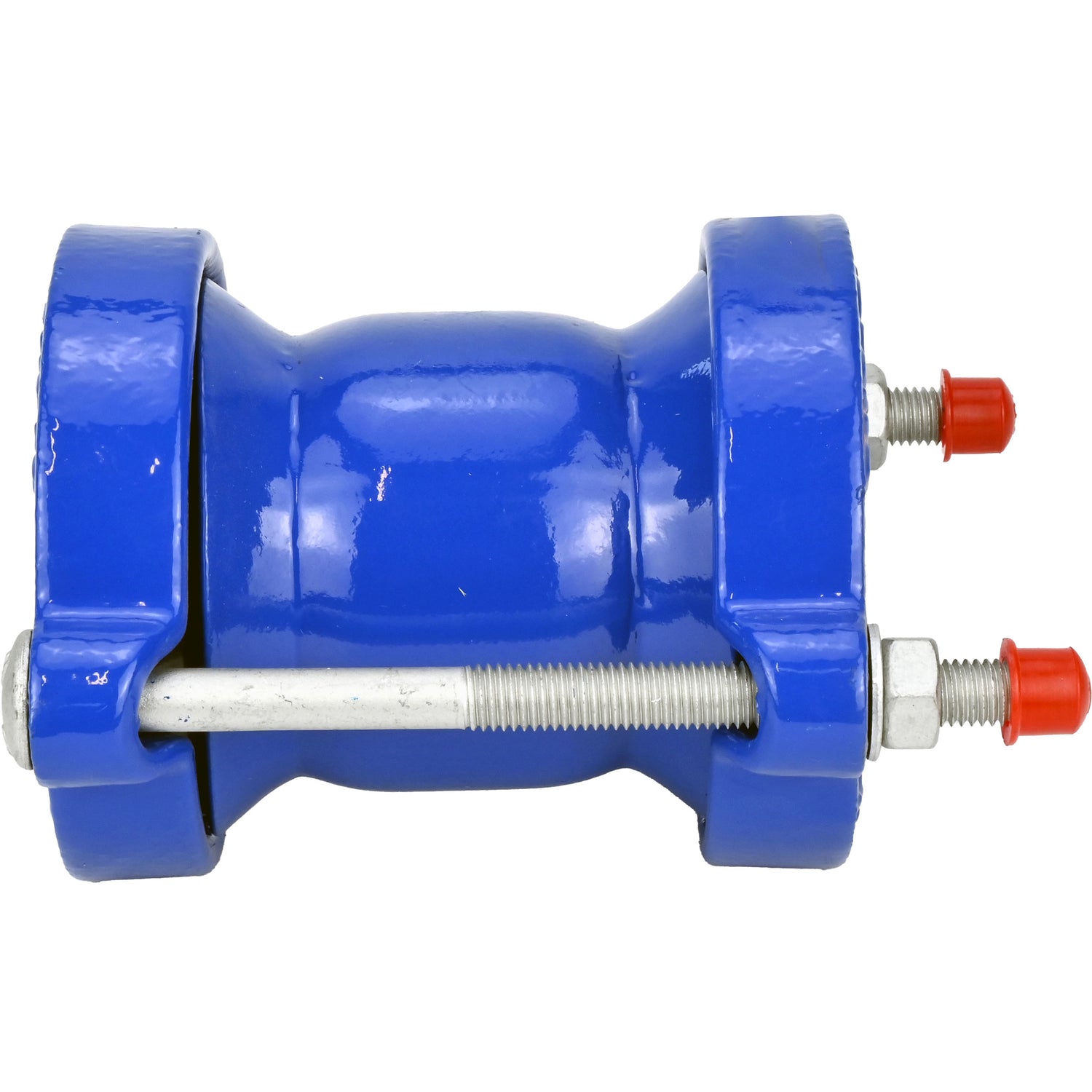

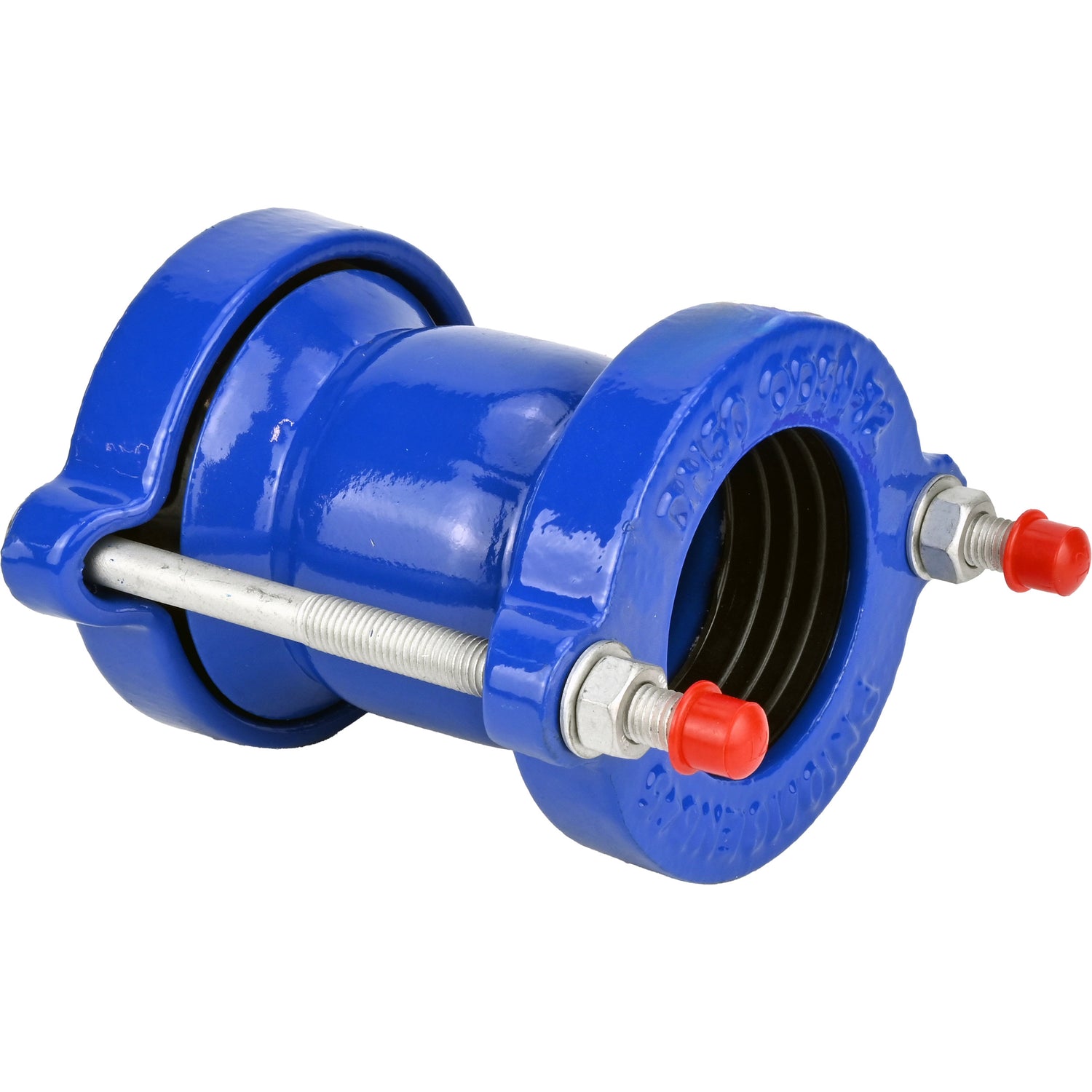

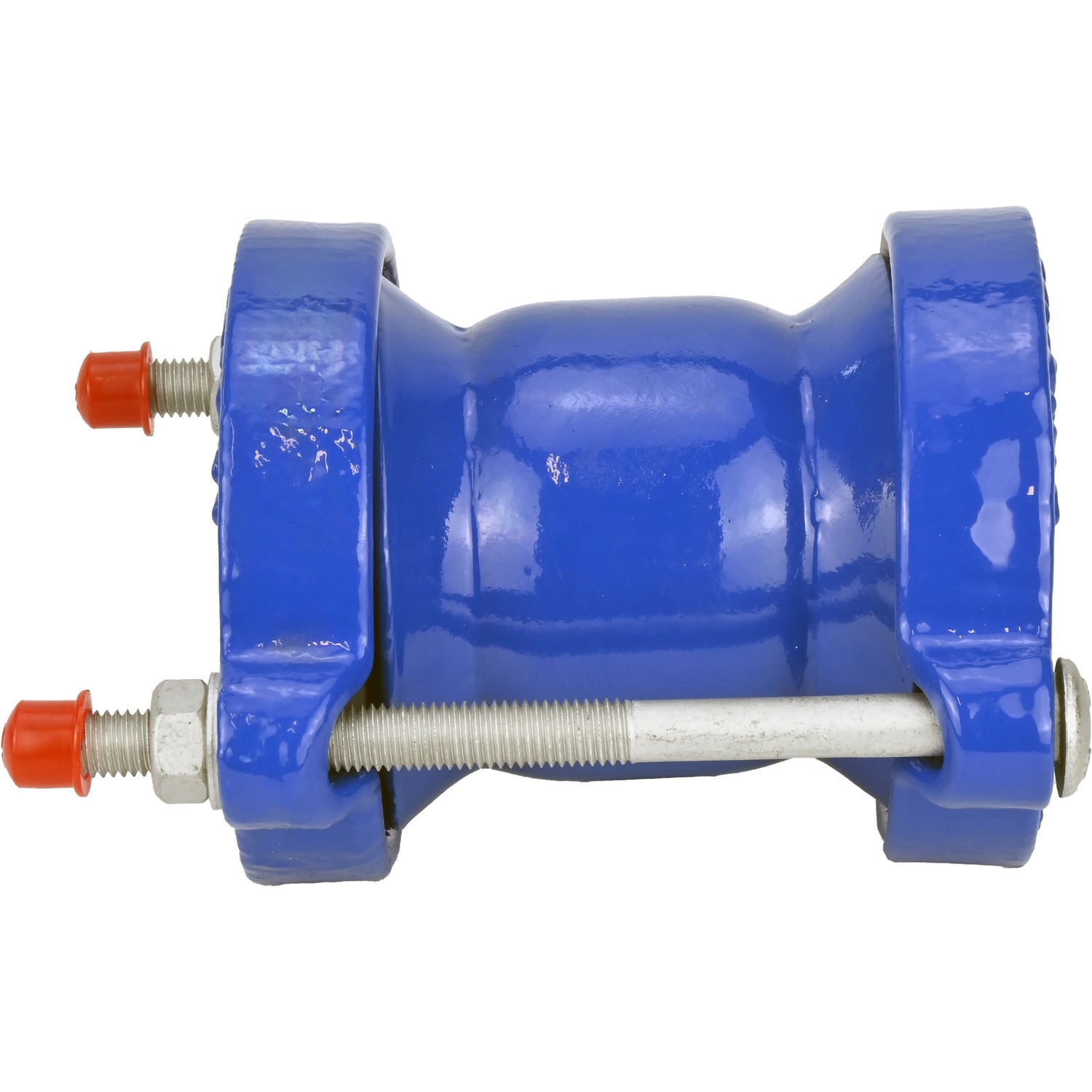

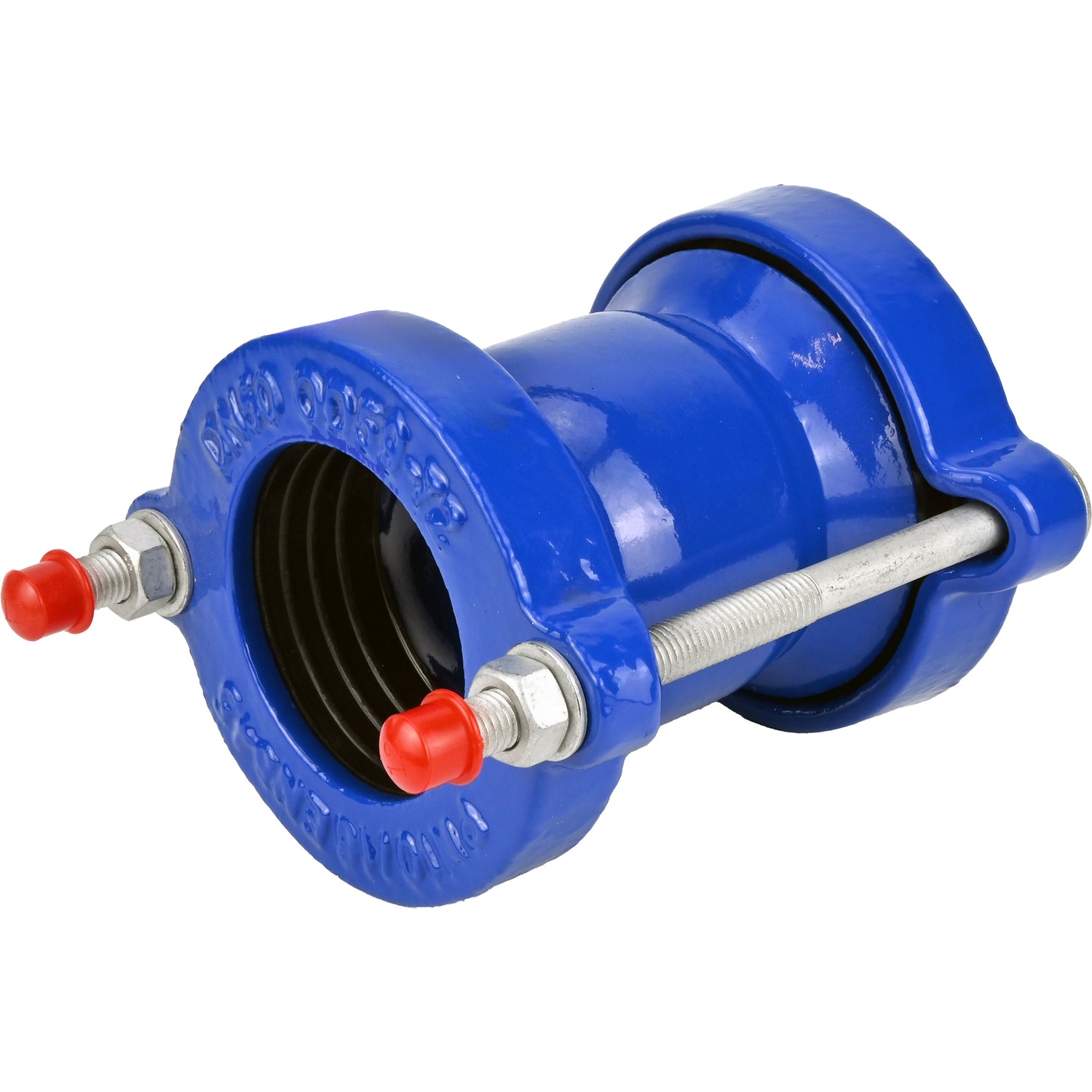

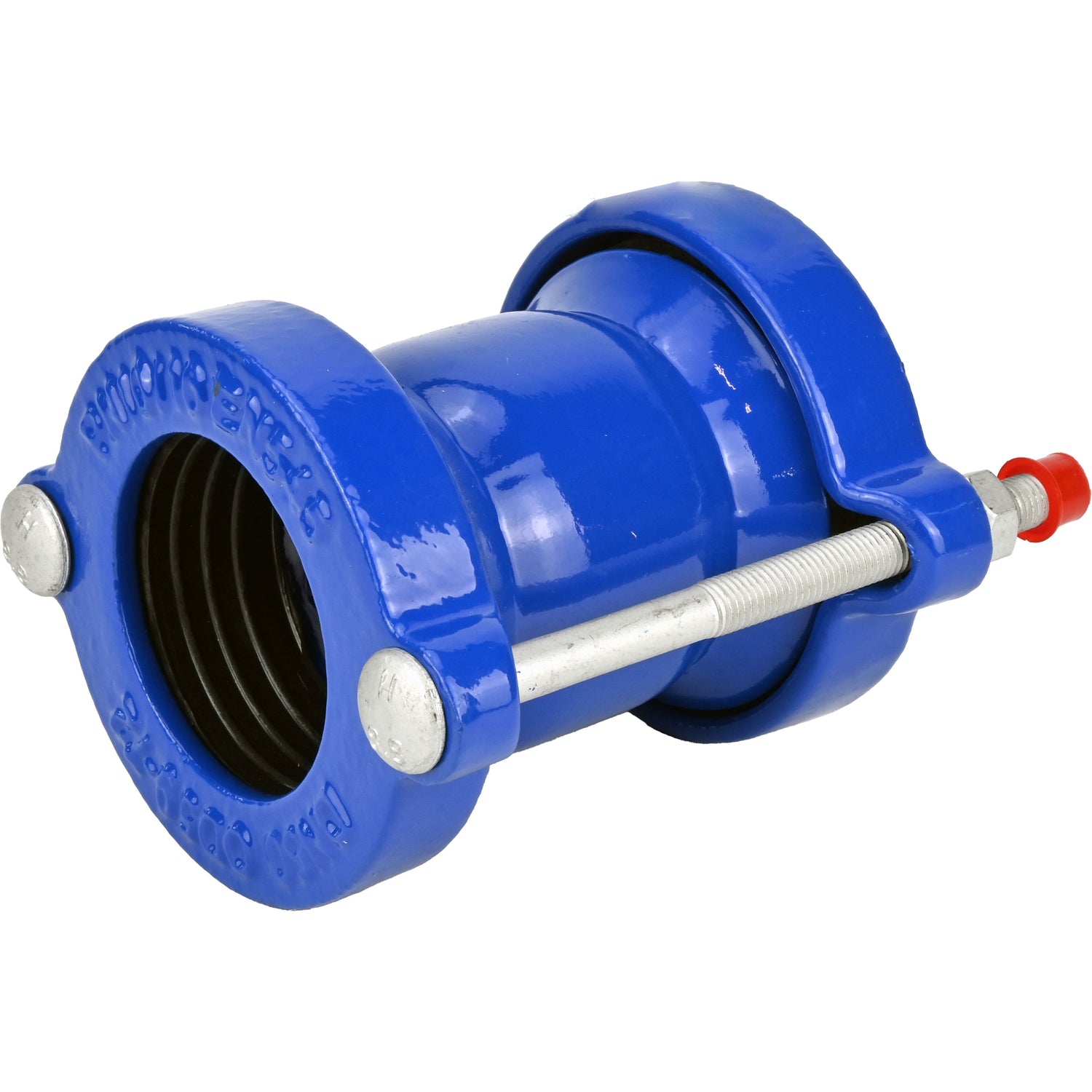

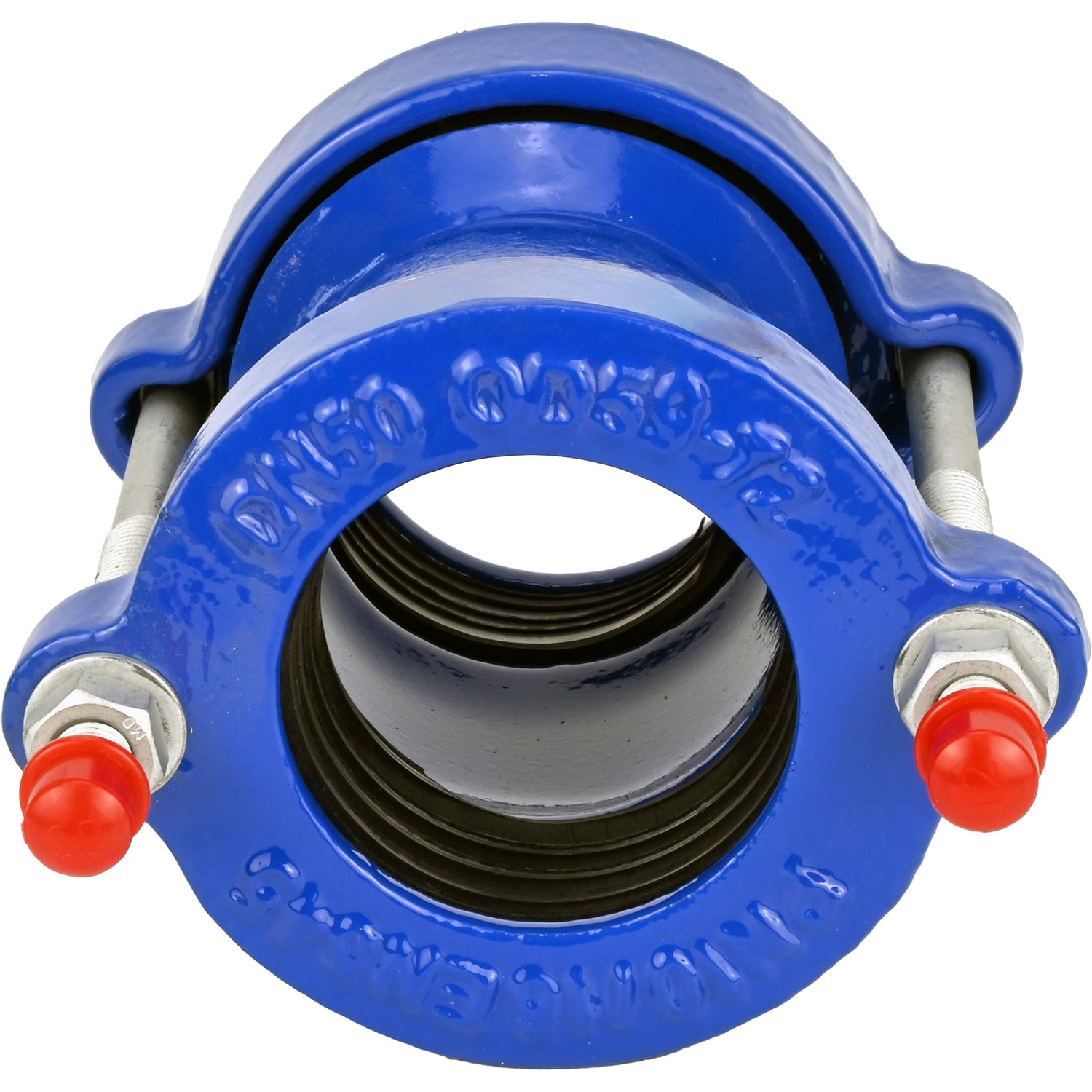

Clamp type repair couplings Elephant CCR14E(2pc) two-piece, body - cast iron GGG50, seal - EPDM
Clamp type repair couplings Elephant CCR14E(2pc) two-piece, body - cast iron GGG50, seal - EPDM - DN 107-119 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Clamp-type repair couplings are designed to repair leaks (fistulas) and local damages (including cracks), as well as for pipe connections during repair and restoration works on water supply and sewerage pipelines made of steel, cast iron, PVC, polyethylene, asbestos cement and chrysotile cement. Connection is carried out by compression method due to tightening of bolts and pressing the inner surface of the coupling to the outer surface of the pipe. The clamp type repair coupling can be used even in the presence of pressure in the pipeline, which allows to speed up the repair and restoration work.
Dimensions of repair couplings Elephant CCR14E(2pc)
| DN | Dmin | Dmax | B | L | Weight |
| 100 | 107 | 119 | 246 | 225 | 11.5 |
| 100 | 116 | 128 | 246 | 225 | 12.3 |
| 150 | 157 | 171 | 291 | 225 | 14 |
| 200 | 219 | 226 | 352 | 310 | 26.5 |
| 250 | 270 | 276 | 420 | 310 | 36.8 |
Sketch of overall dimensions of repair couplings Elephant CCR14E(2pc)
Design and materials of repair couplings Elephant CCR14E(2pc)
| № | Part name | Material of manufacture |
| 1 | Case | Cast iron GGG50 |
| 2 | Sealer | EPDM |
| 3 | Bolt | Galvanized steel |
| 4 | Nut | Galvanized steel |
Sketch of design and materials of repair couplings Elephant CCR14E(2pc)
Reviews (0)
Reviews (0)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Available Variants
| SKU | Size | Pressure | Price | Availability | Max Temperature | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|
| D270-16707 | DN 107-119 | 16 bar | €218,00 | Out of stock | - | ||
| D270-16708 | DN 116-128 | 16 bar | €221,00 | Out of stock | - | ||
| D270-16709 | DN 157-171 | 16 bar | €273,00 | Out of stock | - | ||
| D270-16710 | DN 219-226 | 16 bar | €527,00 | Out of stock | - | ||
| D270-16711 | DN 270-276 | 16 bar | €805,00 | Out of stock | - |
