Bypass pressure regulator Elephant PRB PSI 232 class 125 RF cast iron – Valve Elephant
1 6
Elephant  |  SKU: D230-09934

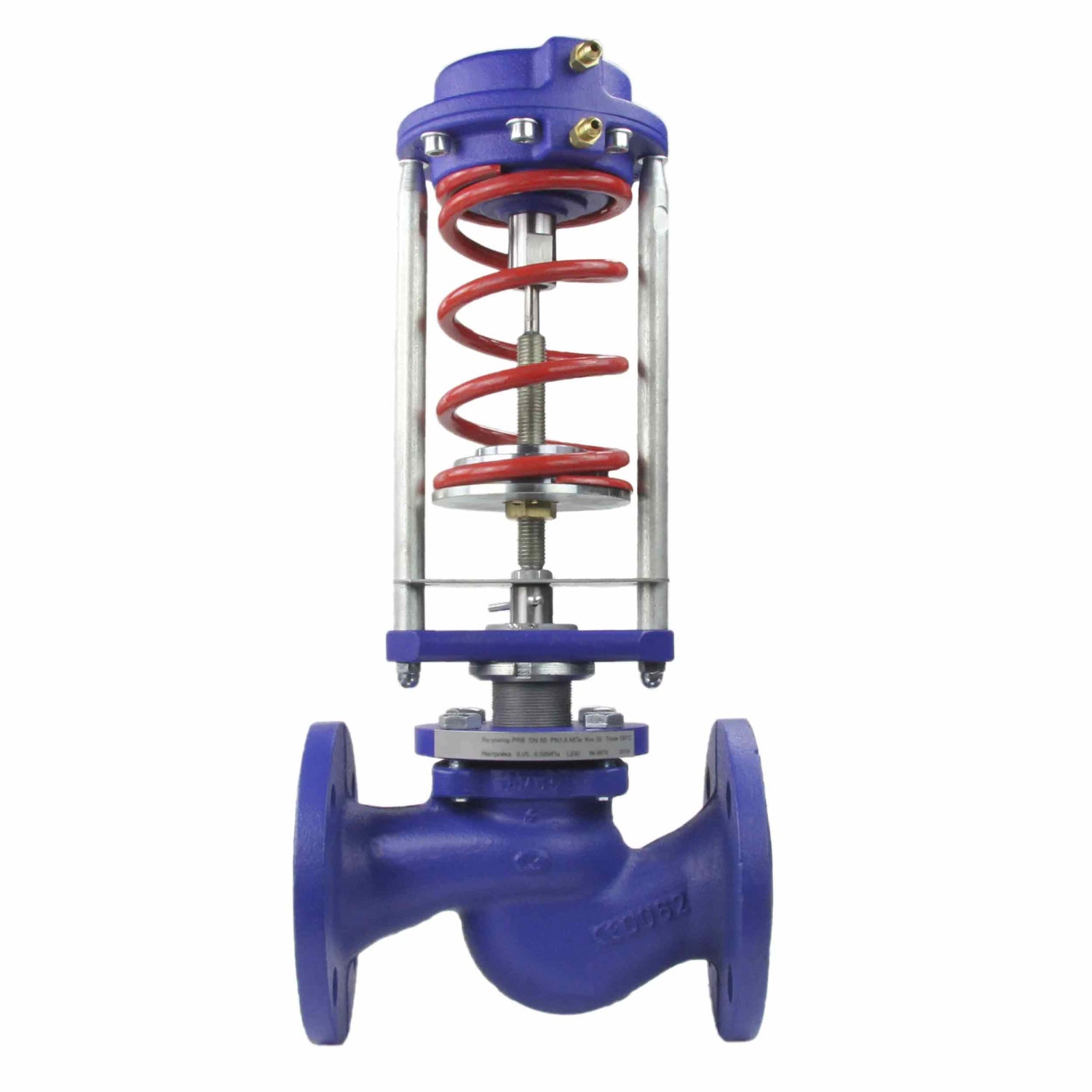

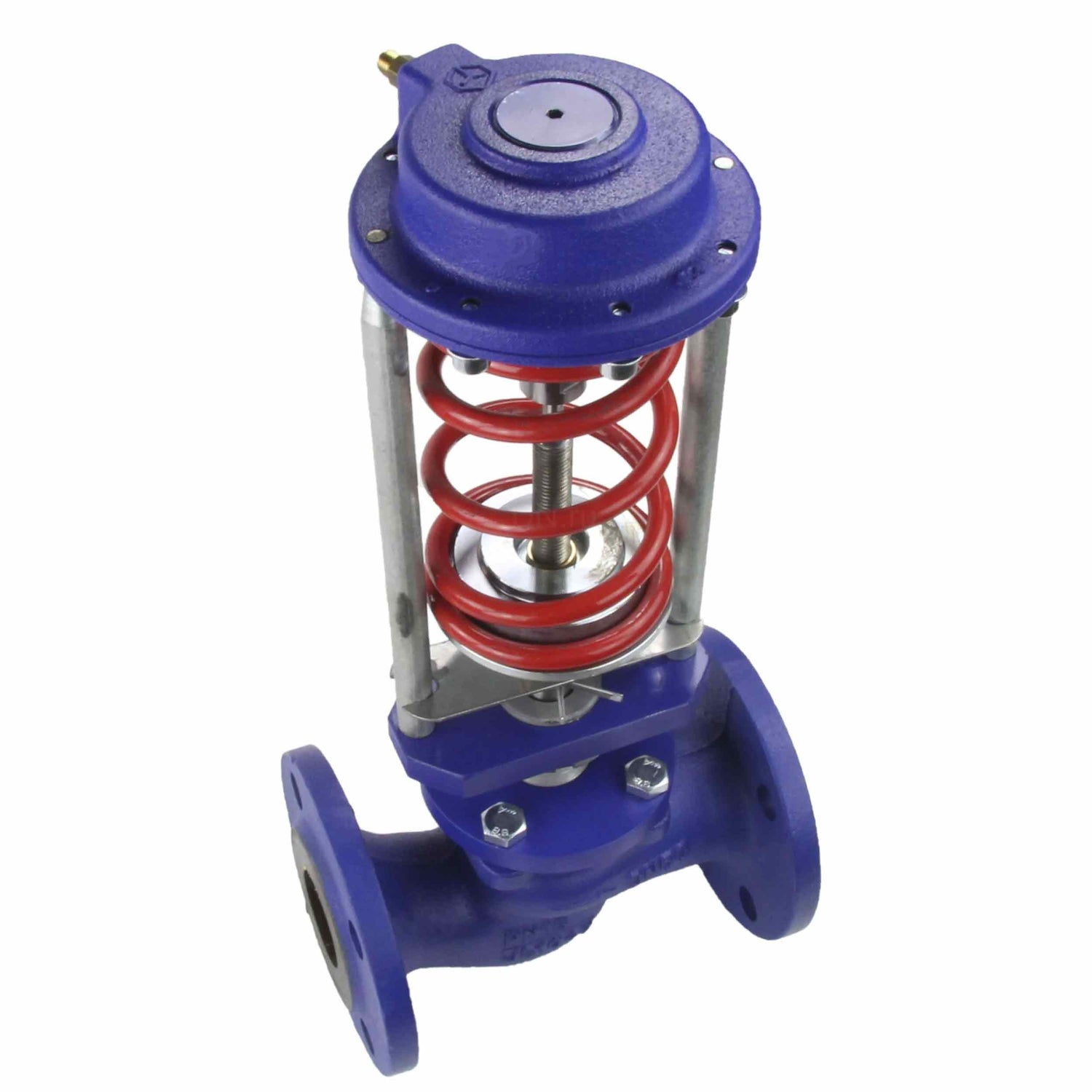

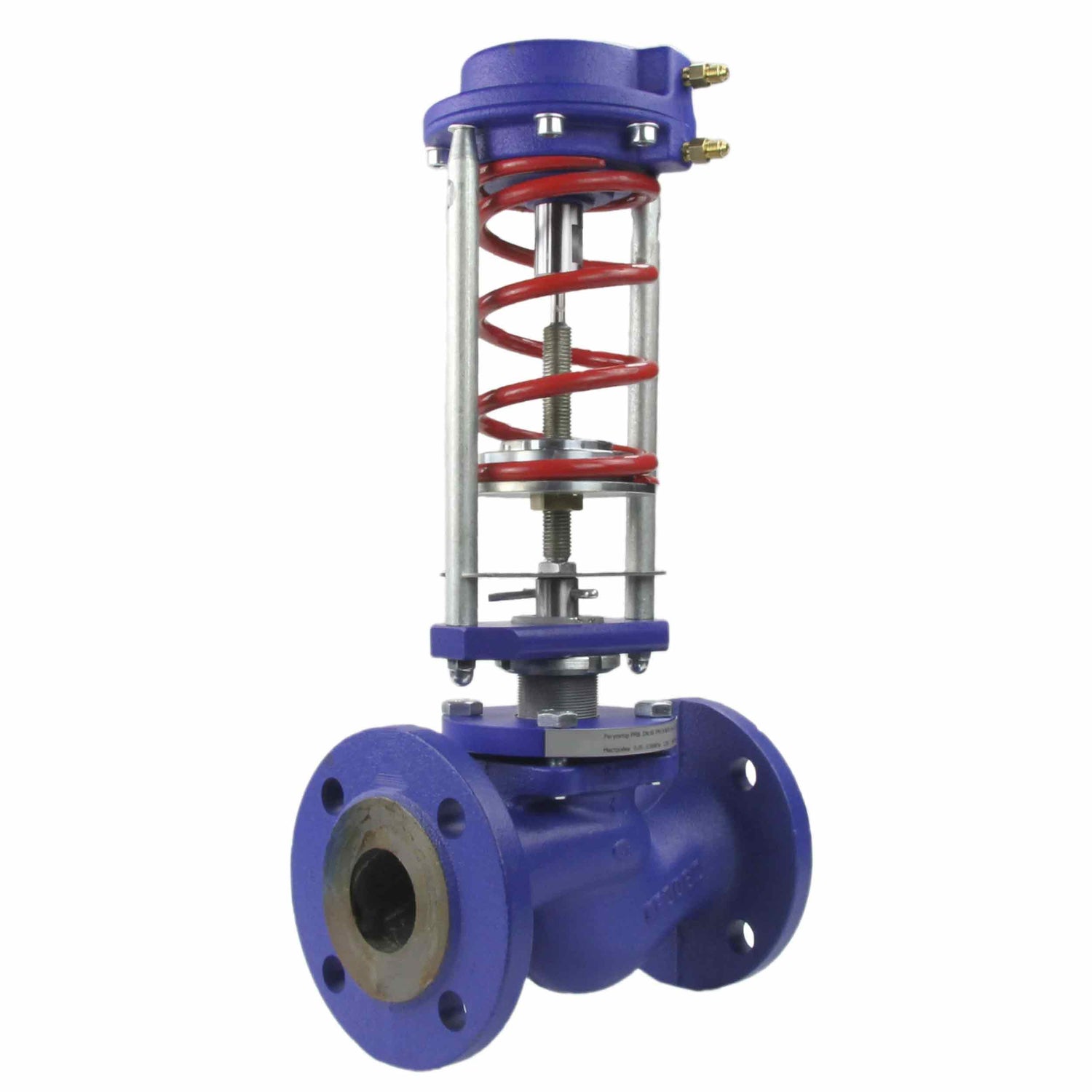

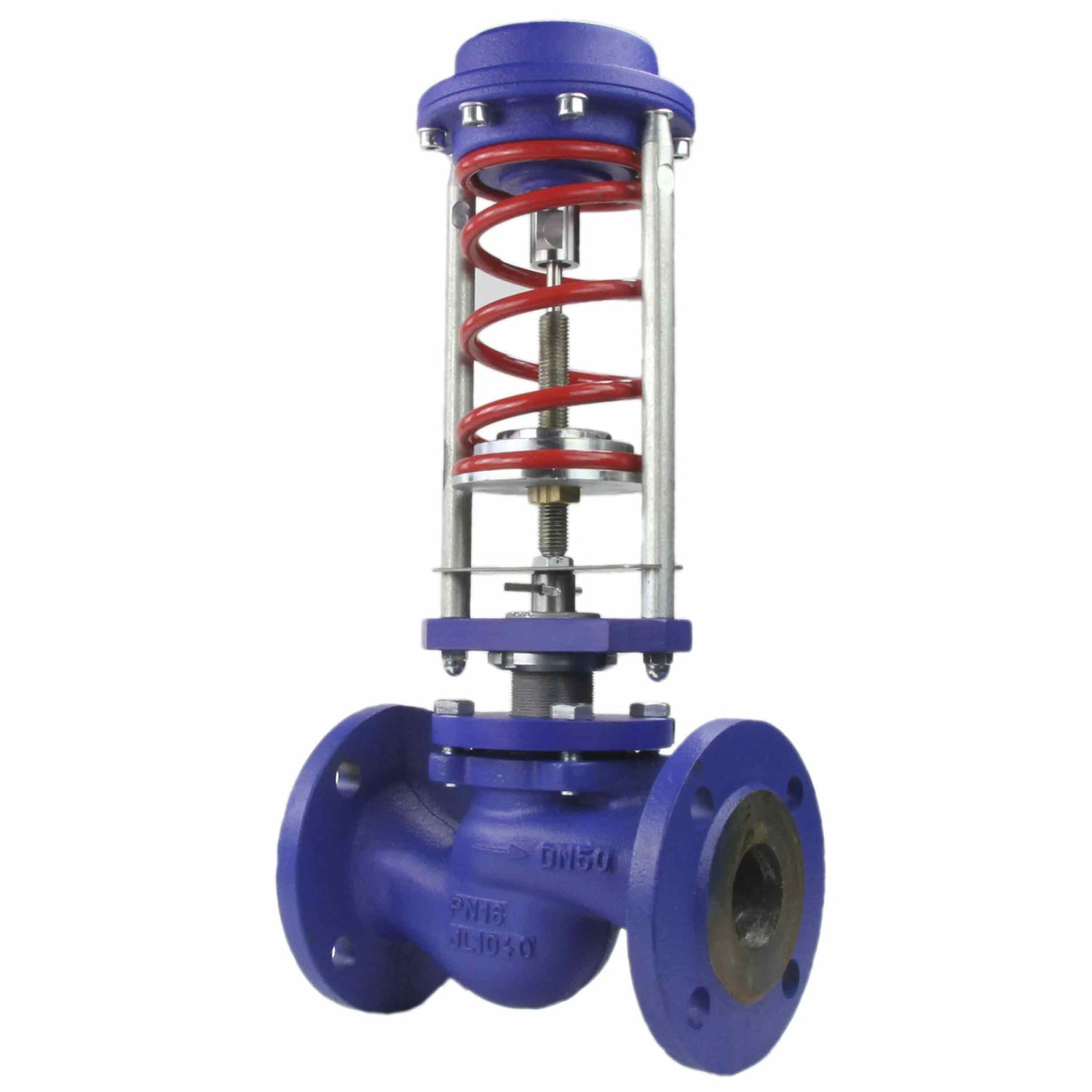

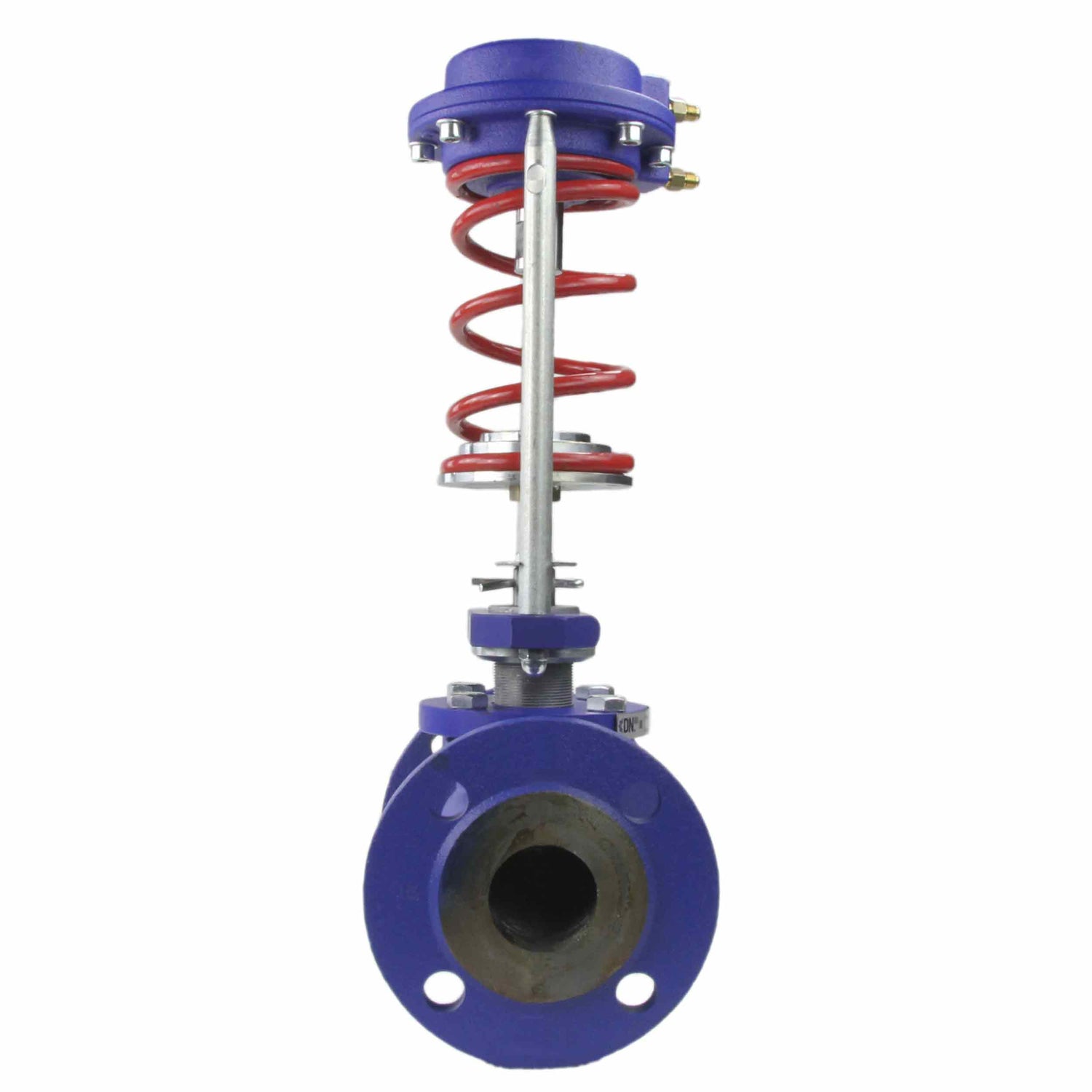

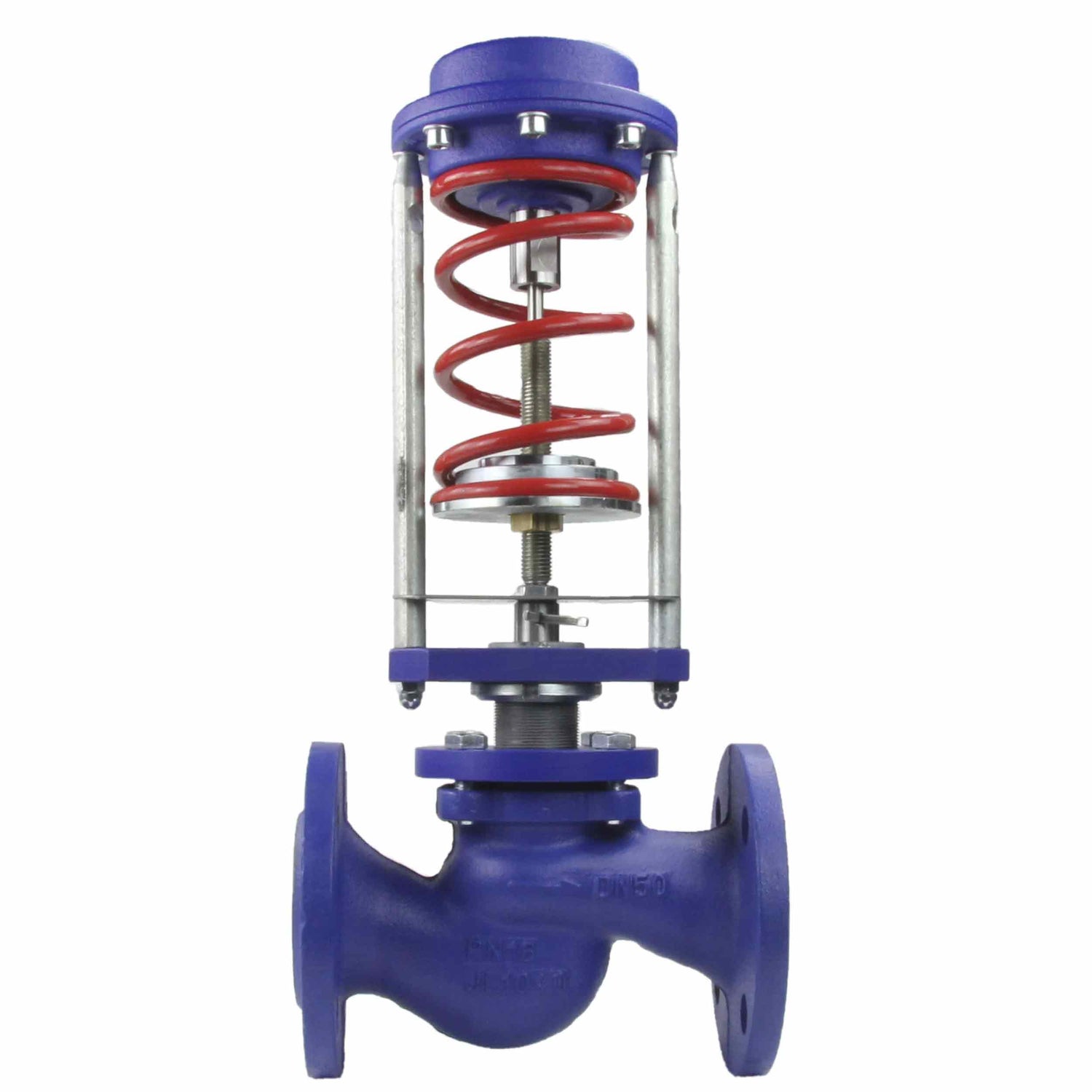

Bypass pressure regulator Elephant PRB PSI 232 class 125 RF cast iron flange connection

€461,17
Tax included Shipping calculated at checkout.

Bypass pressure regulator Elephant PRB PSI 232 class 125 RF cast iron flange connection - DN15 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The pressure regulator Elephant PRB is designed to automatically maintain the specified pressure of the working medium in the pipeline to the regulator (in the direction of the working medium). The regulator valve is normally closed when there is no pressure. When the pressure rises to the regulator, the valve opens. In an individual heating point, the pressure regulator Elephant PRB is installed on the return pipeline of the heating network to stabilize the pressure, as well as to prevent depletion and airing of the dependent heating system at low pressure in the return pipeline of the heating network. Does not work in the absence of flow and in dead-end circuits.

Specifications
  • Body material
    Cast iron
  • Connection type
    Flanged
  • Operating environment
    Cold water, Hot water, water-glycol solutions
  • Applications
    Heat supply, Water supply
  • Nominal pressure
    16 bar
  • Type of seal
    Metal
  • Locking material
    Stainless steel AISI 420/1.4031

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D230-09934DN1516 bar €461,17 0 in stock
    D230-09935DN2016 bar €480,31 0 in stock
    D230-09936DN2516 bar €499,55 0 in stock
    D230-09937DN3216 bar €528,26 0 in stock
    D230-09938DN4016 bar €576,41 0 in stock
    D230-09939DN5016 bar €595,55 0 in stock
    D230-09940DN6516 bar €653,27 0 in stock
    D230-09941DN8016 bar €768,42 0 in stock
    D230-09942DN10016 bar €979,76 0 in stock
    D230-09943DN12516 bar €1.824,94 0 in stock
    D230-09944DN15016 bar €2.428,68 0 in stock
