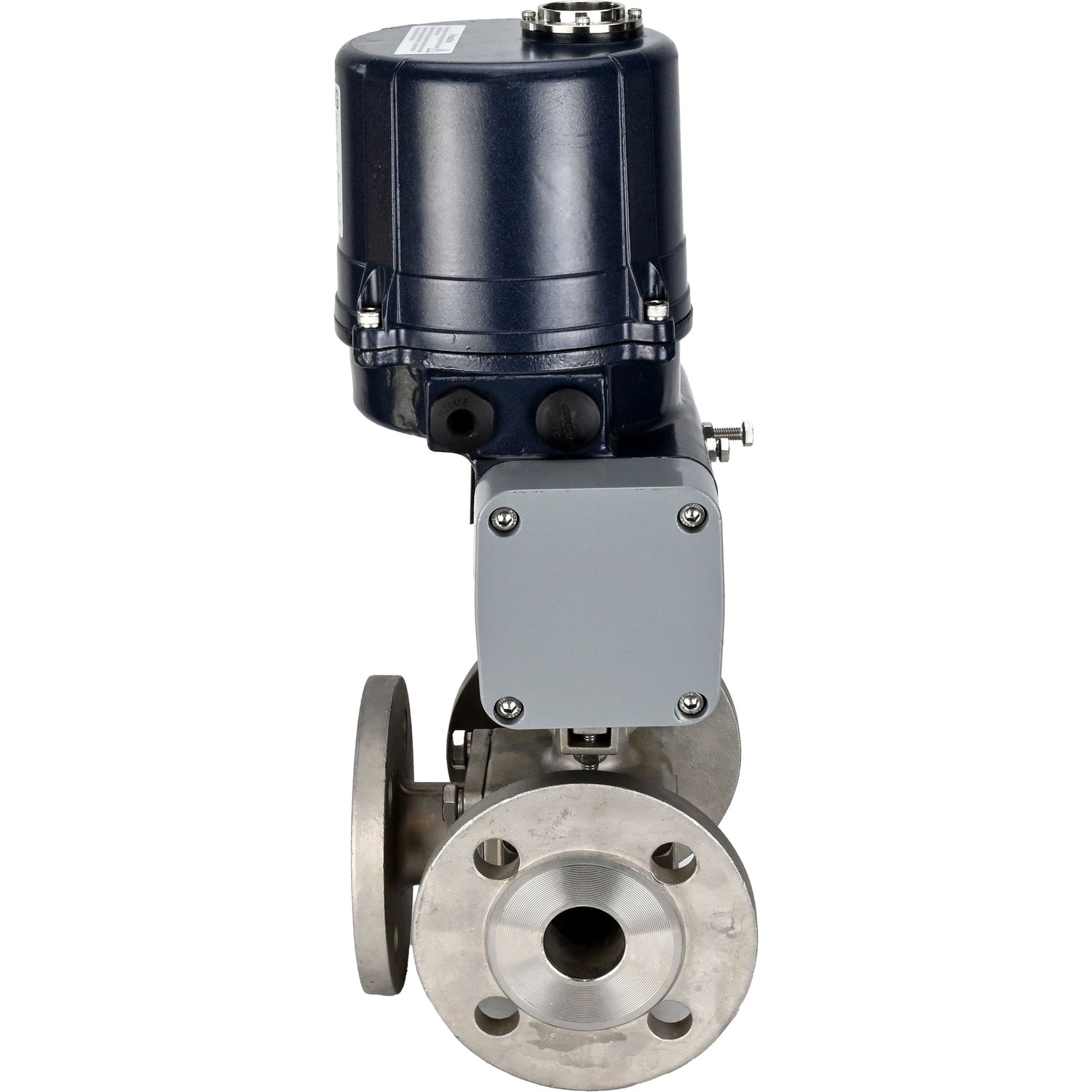

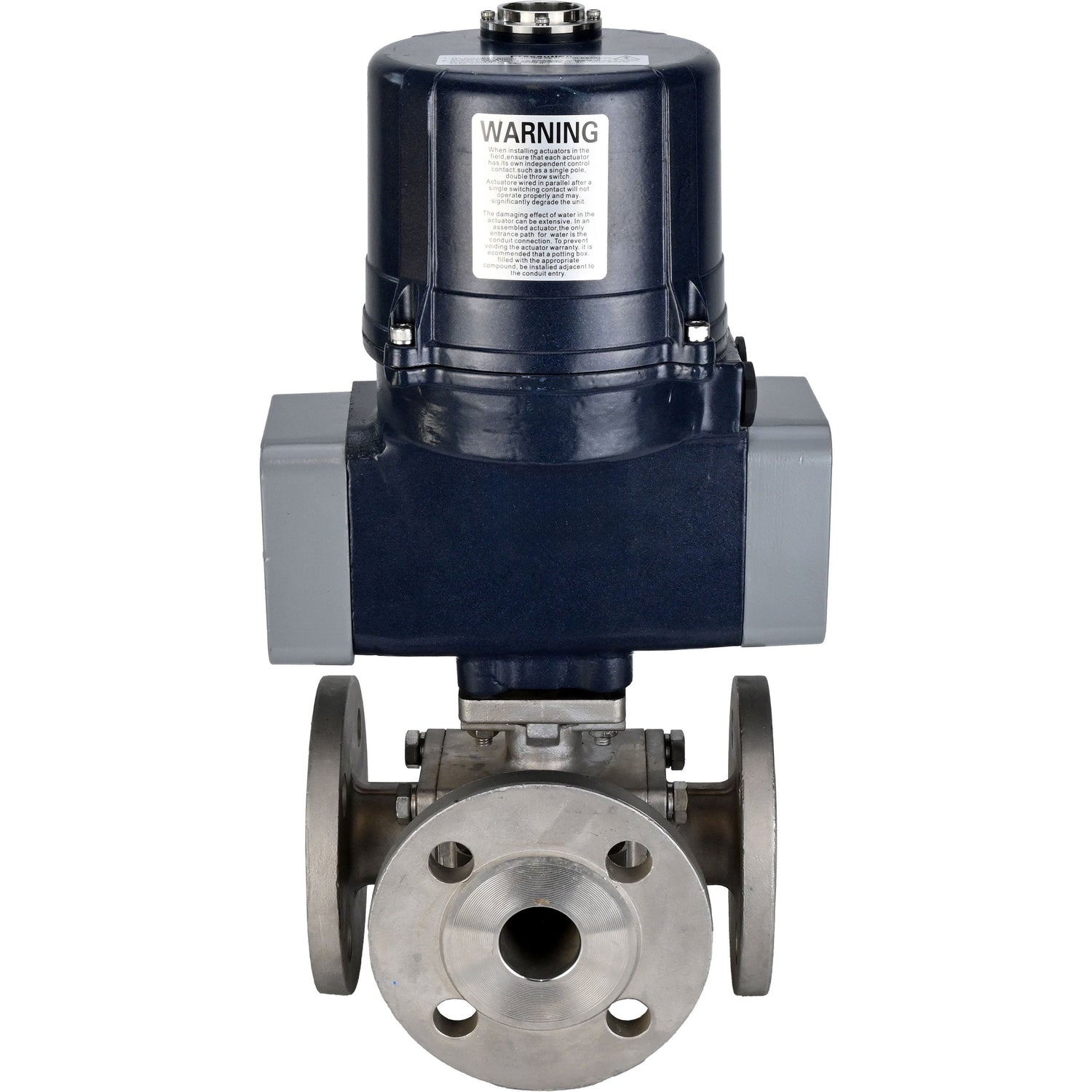

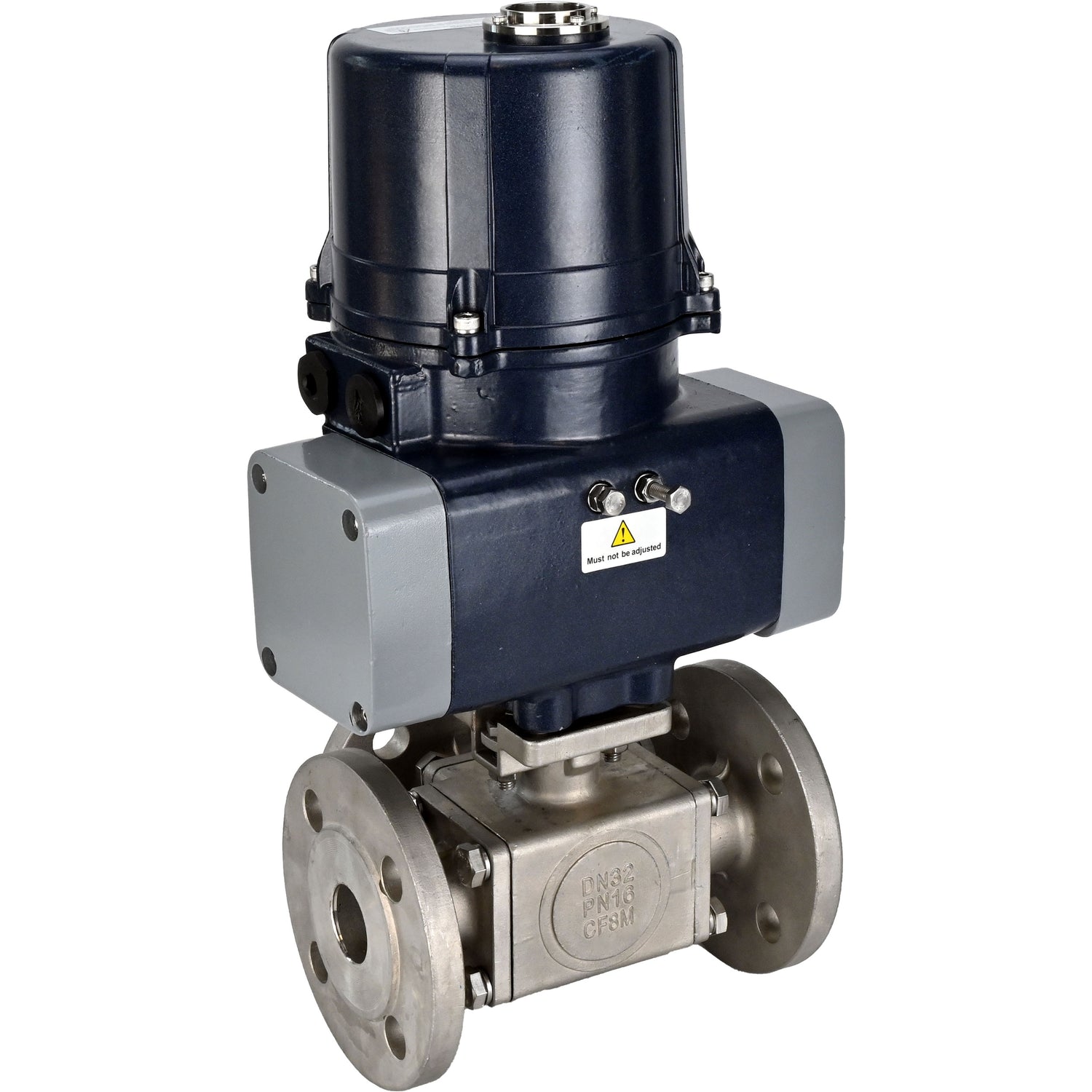

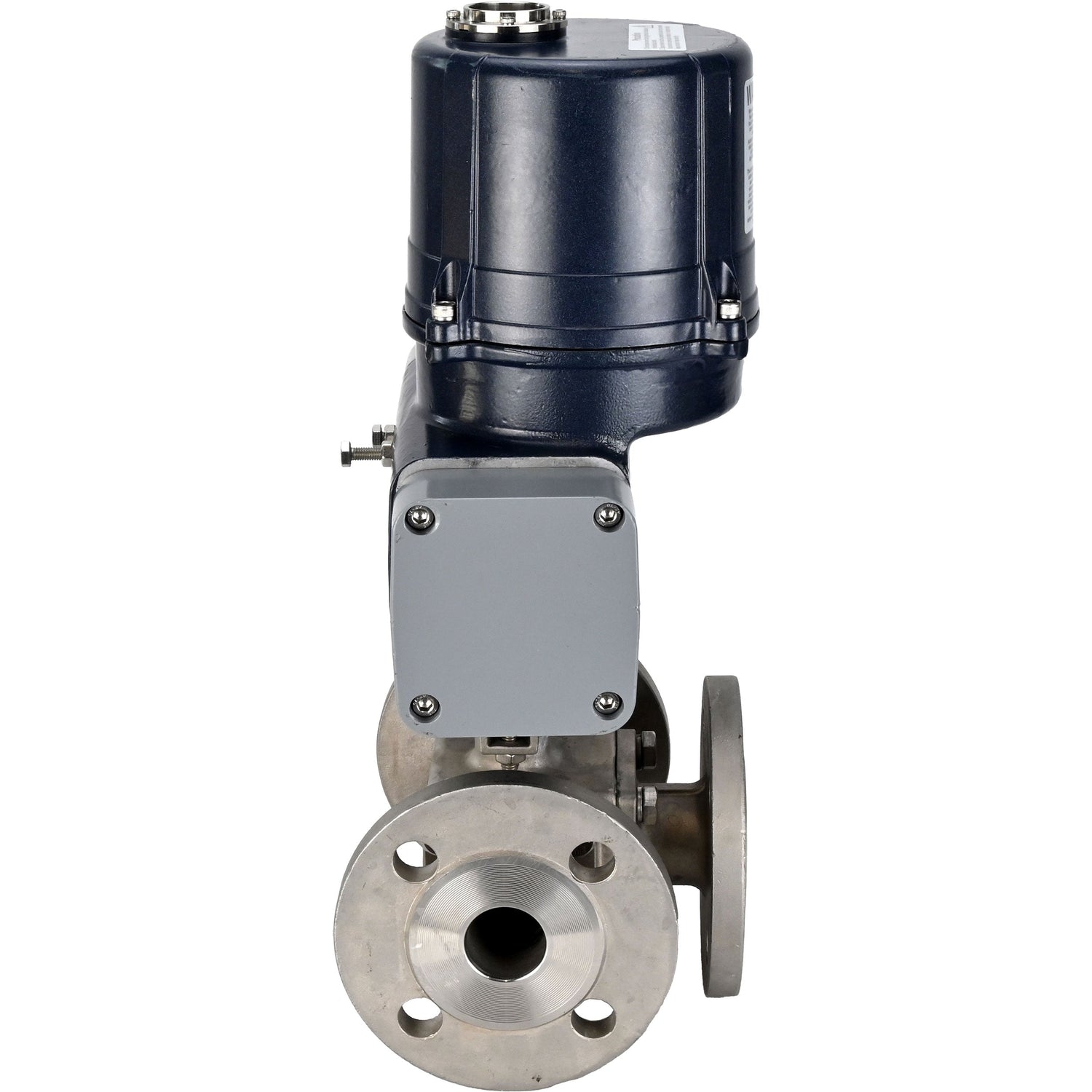

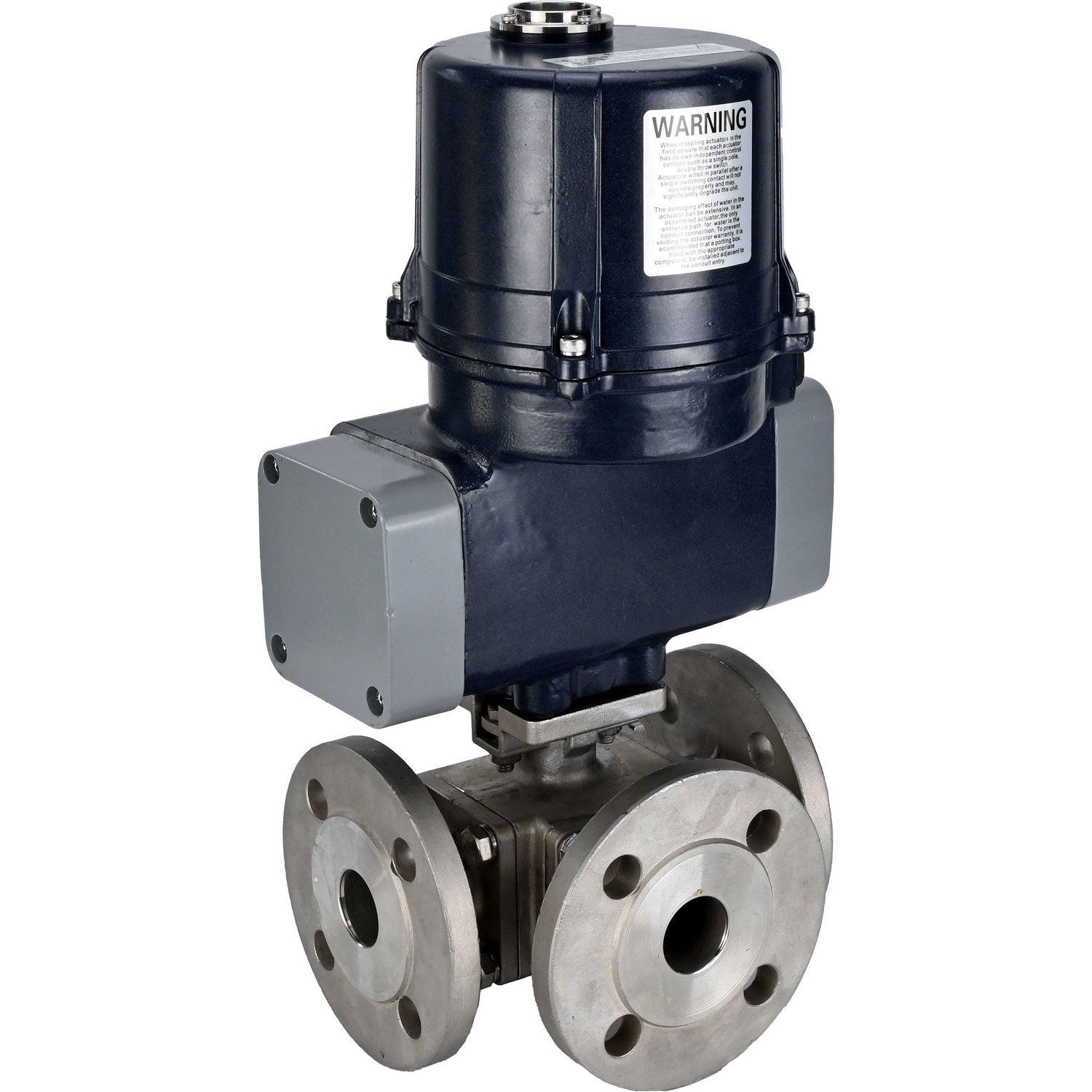

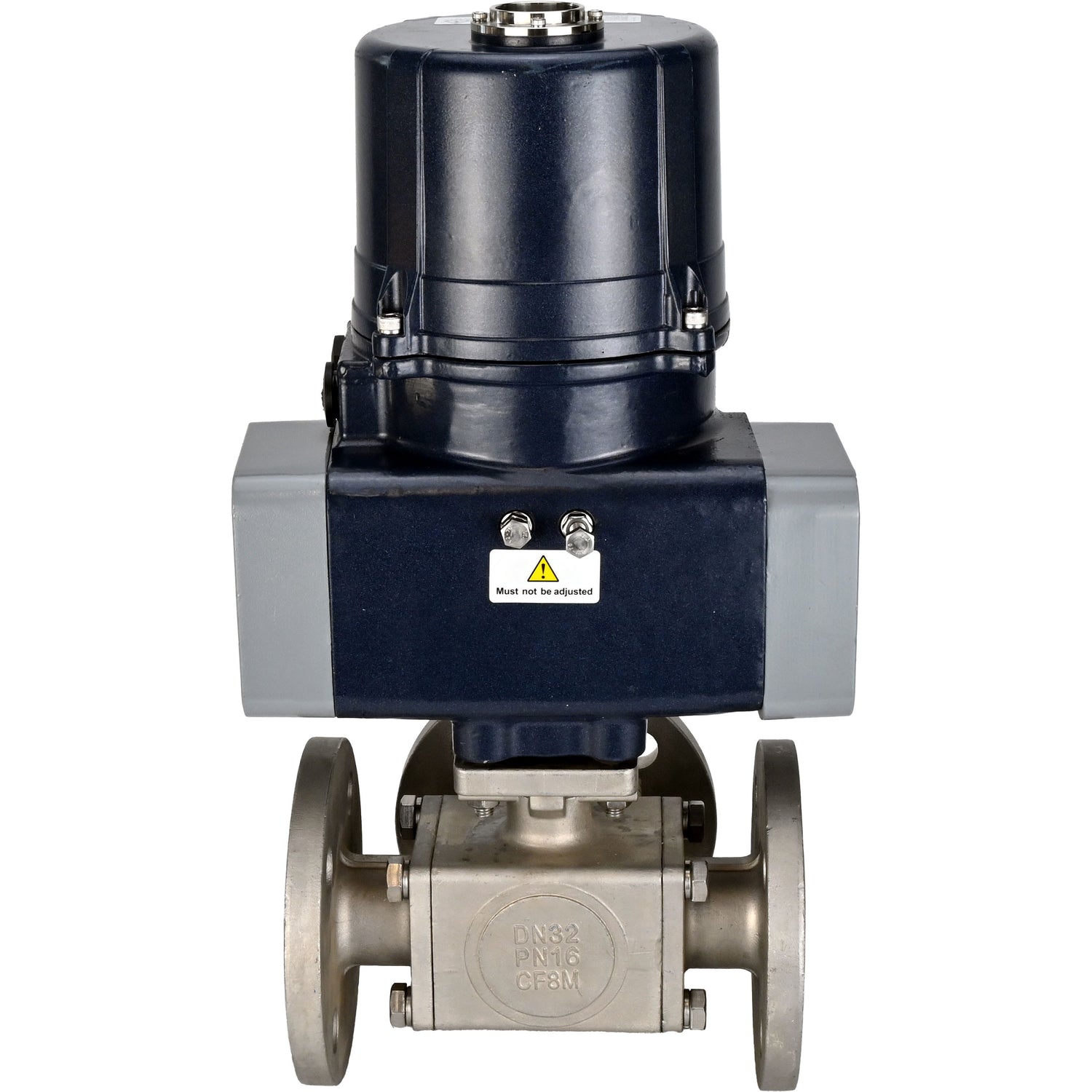

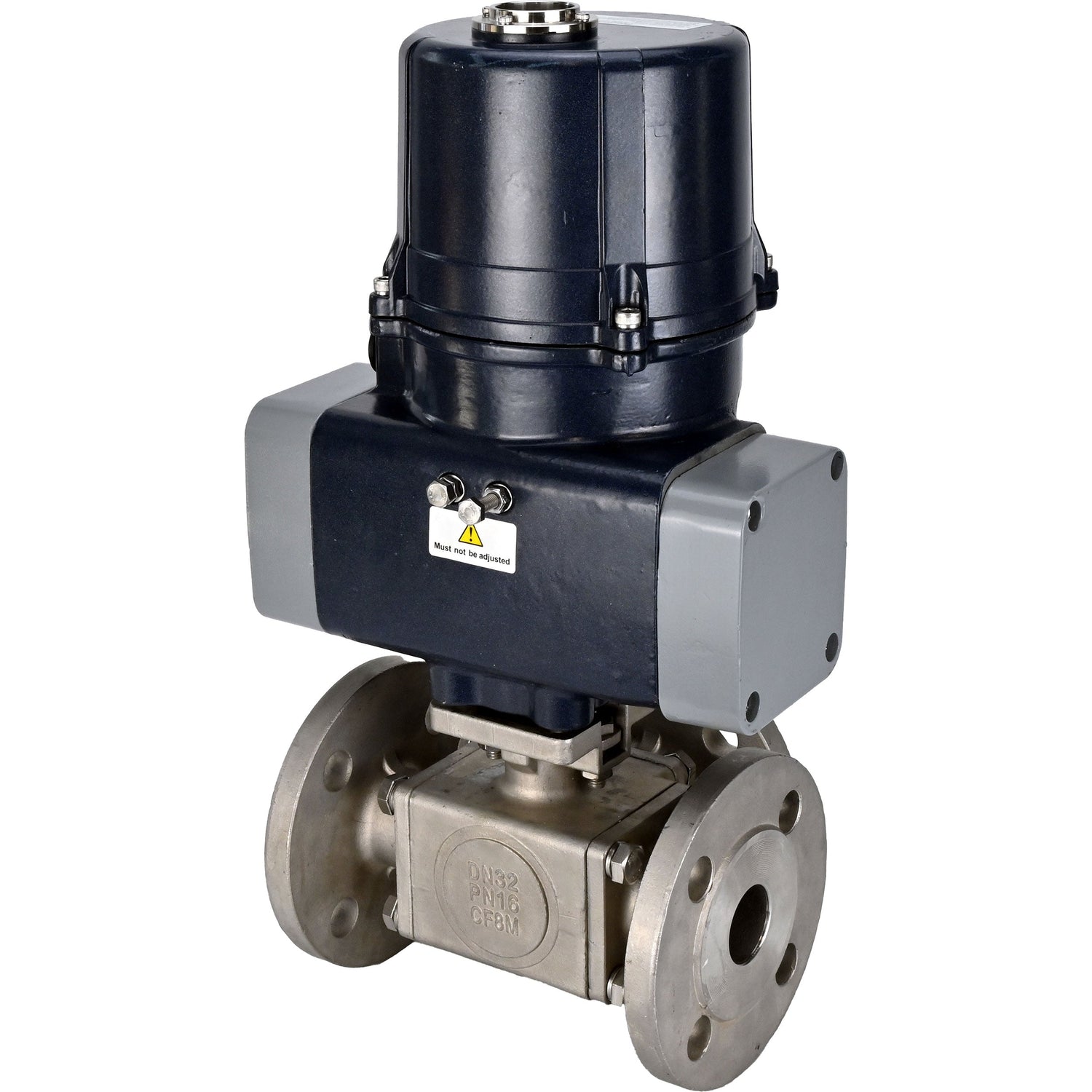

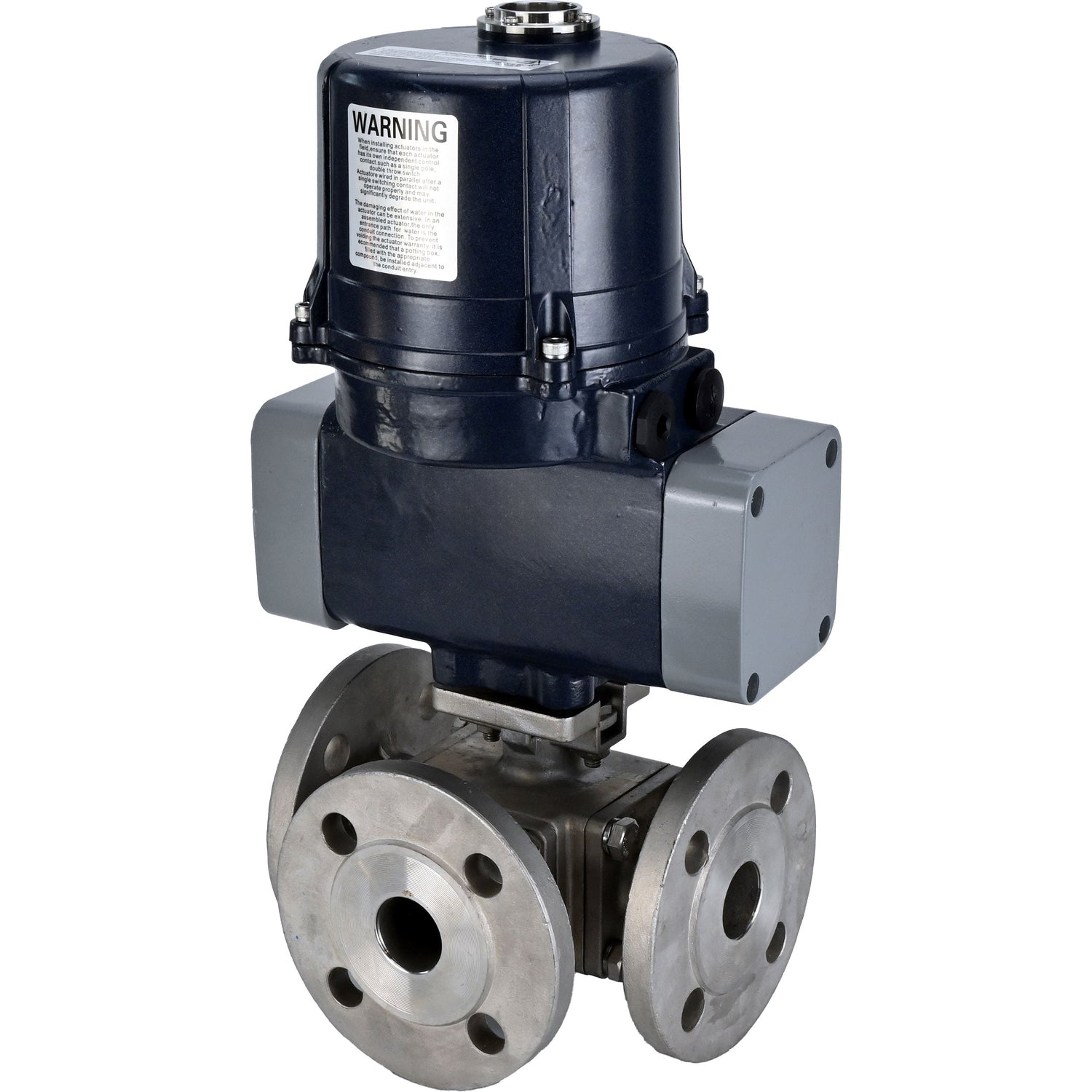

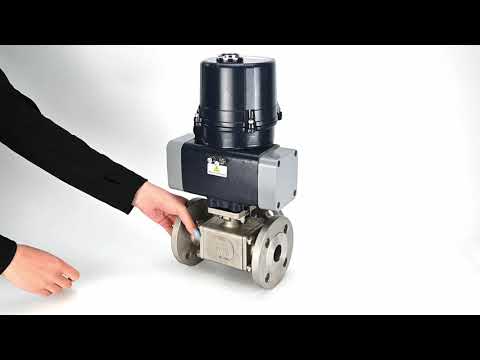

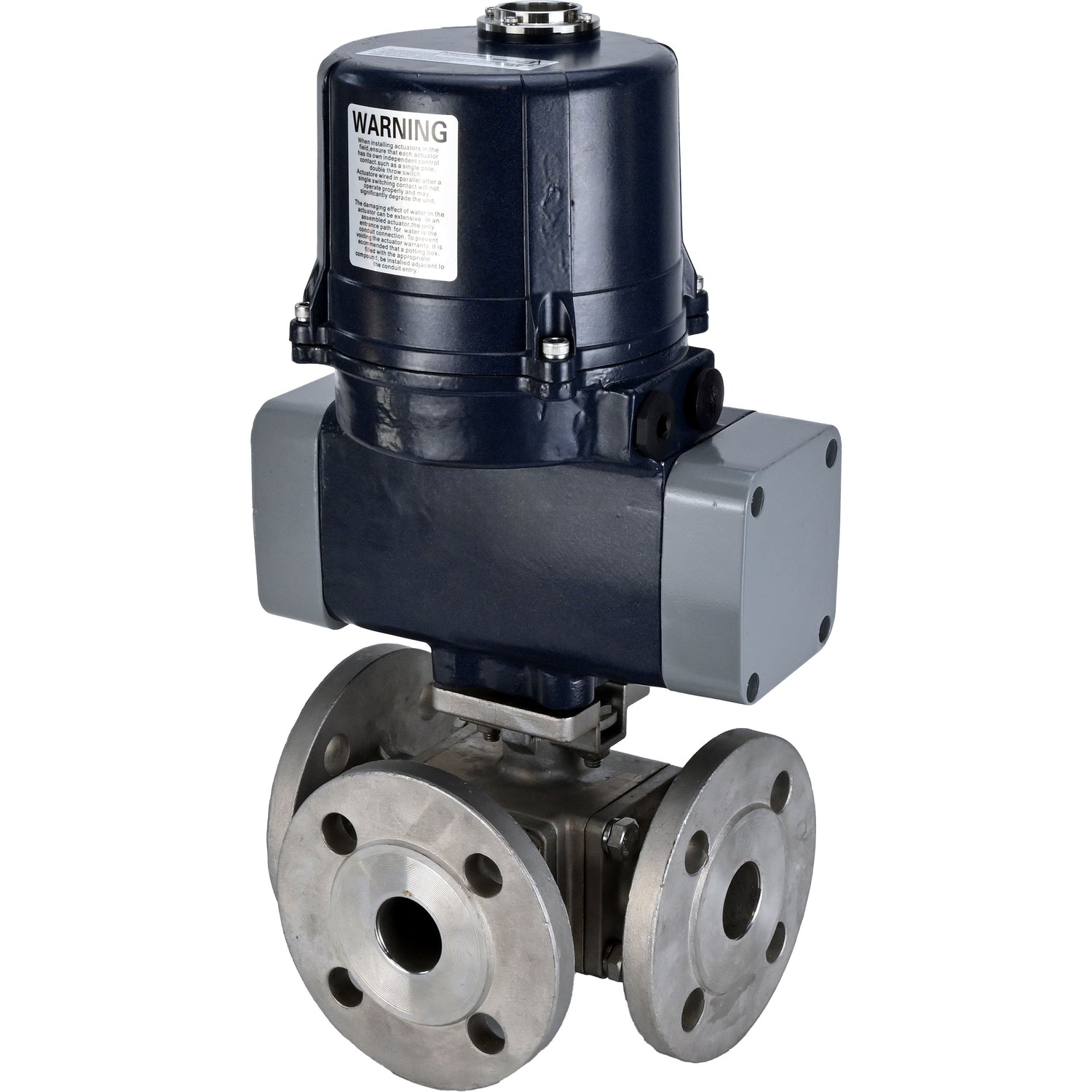

Ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore, three-way, flanged, body - SS316 stainless steel, seal - PTFE, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
Ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore, three-way, flanged, body - SS316 stainless steel, seal - PTFE, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC - DN15 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
Electric actuator with spring return is designed for safe control of valves or flaps in case of power supply voltage loss. They are used in various industries. Principle of operation: this actuator is applicable in short-term mode S2 with switching-on time of 20 minutes. The actuators are powered from the AC mains 220V 50Hz 1 phase. When the actuator is energised, the valve shut-off valve is set in motion and the spring is compressed. When the power supply is switched off, the spring is unclamped, actuating the actuator and ensuring return of the valve shut-off body to the initial position (full opening or full closing).
Technical characteristics of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore, three-way, flanged, body - SS316 stainless steel, seal - PTFE, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
| Characteristic | Value |
|---|---|
| Nominal Pressure PN, bar | 16 |
| Connection Type | Flanged |
| Control Type | With Electric Actuator |
| Application | Water Supply, Heating Supply |
| Ball Valve Bore | Full Bore |
| Operating Medium Temperature, °C | from -25 to 180 |
| Connection | Flanged |
| Actuation | Electric Actuator 220V |
| Tightness Class | A |
| Water-dispensing | No |
| Valve Type | Three-way |
| Type of Three-way Valve | L |
| Medium | Water, Steam, Petroleum Products, Gaseous Medium |
| Country of Manufacture | China |
| Warranty, years | 1 |
| Service Life, years | 10 |
Dimensions and dimensions of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore, three-way, flanged, body - SS316 stainless steel, seal - PTFE, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
| DN | L, mm | d, mm | D, mm | A, mm |
| 15 | 150 | 15 | 95 | 229 |
| 20 | 160 | 18 | 105 | 229 |
| 25 | 180 | 25 | 115 | 229 |
| 32 | 200 | 32 | 140 | 229 |
| 40 | 220 | 38 | 150 | 266 |
| 50 | 240 | 49 | 165 | 266 |
| 65 | 260 | 65 | 185 | 377 |
| 80 | 280 | 80 | 200 | 377 |
| 100 | 325 | 100 | 220 | 377 |
Sketch of dimensions and dimensions of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore, three-way, flanged, body - SS316 stainless steel, seal - PTFE, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
Table of parts and materials for ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore, three-way, flanged, body - SS316 stainless steel, seal - PTFE, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
| № | Part Name | Material |
|---|---|---|
| 1 | Ball Valve Body | Stainless Steel SS316 |
| 2 | Ball | Stainless Steel SS316 |
| 3 | Seal | PTFE |
| 4 | Body Cover | Stainless Steel SS316 |
| 5 | Bolt | Stainless Steel SS304 |
| 6 | Gasket | PTFE |
| 7 | Nut | Stainless Steel SS304 |
| 8 | Gasket | PTFE |
| 9 | Stem Seal | PTFE |
| 10 | Bolt | Stainless Steel SS304 |
| 11 | Gland | Stainless Steel SS304 |
| 12 | Electric Actuator Housing | Aluminum Alloy AL104 |
| 13 | Electric Actuator Upper Cover | Aluminum Alloy ADC12 |
Parts and materials sketch for ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H full bore, three-way, flanged, body - SS316 stainless steel, seal - PTFE, with electric quarter turn actuator Elephant QTSA-N-EM-O0-220VAC
Technical parameters of quarter-turn actuators Elephant QTSA-N-EM-O0-220VAC with spring return, square 14x14-27x27, torque 30-300Nm
| Name | Value |
|---|---|
| Type of Electric Actuator | Quarter-turn with Spring Return |
| Power Supply Voltage, V | 220V |
| Rotation Angle, ° | 90±5 |
| Mechanical Stop | Yes |
| Average Lifespan, Open/Close Cycles | 100,000 |
| Enclosure Protection Rating, IP | 67 |
| Explosion Protection | No |
| Ambient Temperature, °C | -25°C to +65°C |
| Country of Manufacture | China |
Dimensions and dimensions of electric quarter-turn actuators Elephant QTSA-N-EM-O0-220VAC with spring return, square 14x14-27x27, torque 30-300Nm
| Model | A | B | C | D | E | H |
| QTSA-N-003EM-O0-220VAC | 229 | 303 | 162 | 145 | 75 | 17 |
| QTSA-N-005EM-O0-220VAC | 266 | 380 | 199 | 177 | 96 | 19 |
| QTSA-N-014EM-O0-220VAC | 377 | 436 | 240 | 206 | 120 | 25 |
| QTSA-N-020EM-O0-220VAC | 377 | 436 | 240 | 206 | 120 | 25 |
Sketch of dimensions and dimensions of quarter-turn actuators Elephant QTSA-N-EM-O0-220VAC with spring return, square 14x14-27x27, torque 30-300Nm
Parts and materials table for quarter-turn actuators Elephant QTSA-N-EM-O0-220VAC with spring return, square 14x14-27x27, torque 30-300Nm
| № | Part Name | Material |
|---|---|---|
| 1 | Top Cover | Aluminum Alloy ADC12 |
| 2 | Housing | Aluminum Alloy AL104 |
| 3 | Side Cover | Aluminum Alloy ADC12 |
| 4 | Cable Gland | Nylon |
| 5 | Return Springs | Spring Steel |
| 6 | Piston | Aluminum Alloy ADC12 |
| 7 | Separator Block | Carbon Steel 45 |
| 8 | Drive Mechanism | Alloy Steel 40Cr |
| 9 | Viewing Window | Tempered Glass |
| 10 | Cable Gland (Fireproof) | Fireproof Nylon |
| 11 | Heater | Ceramic |
| 12 | Electric Motor | Integrated Assembly |
| 13 | Adjustment Cam | Aluminum Alloy ADC12 |
| 14 | Limit Micro Switches | Integrated Assembly |
| 15 | Mounting Plate | Carbon Steel Q235 |
| 16 | Output Shaft | Carbon Steel 45 |
| 17 | Bearing | Stainless Steel |
| 18 | Position Indicator | Nylon |
| 19 | Capacitor | Composite Material |
| 20 | Terminal Block | Integrated Assembly |
Sketch of parts and materials of quarter-turn actuators Elephant QTSA-N-EM-O0-220VAC with spring return, square 14x14-27x27, torque 30-300Nm
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Operating environmentWater, Steam, Petroleum products, Gaseous medium
-
ApplicationsWater supply, Heat supply
-
Nominal pressure
-
Type of seal
-
Disc material
