Butterfly valves Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, di – Valve Elephant
Elephant  |  SKU: D050-82618

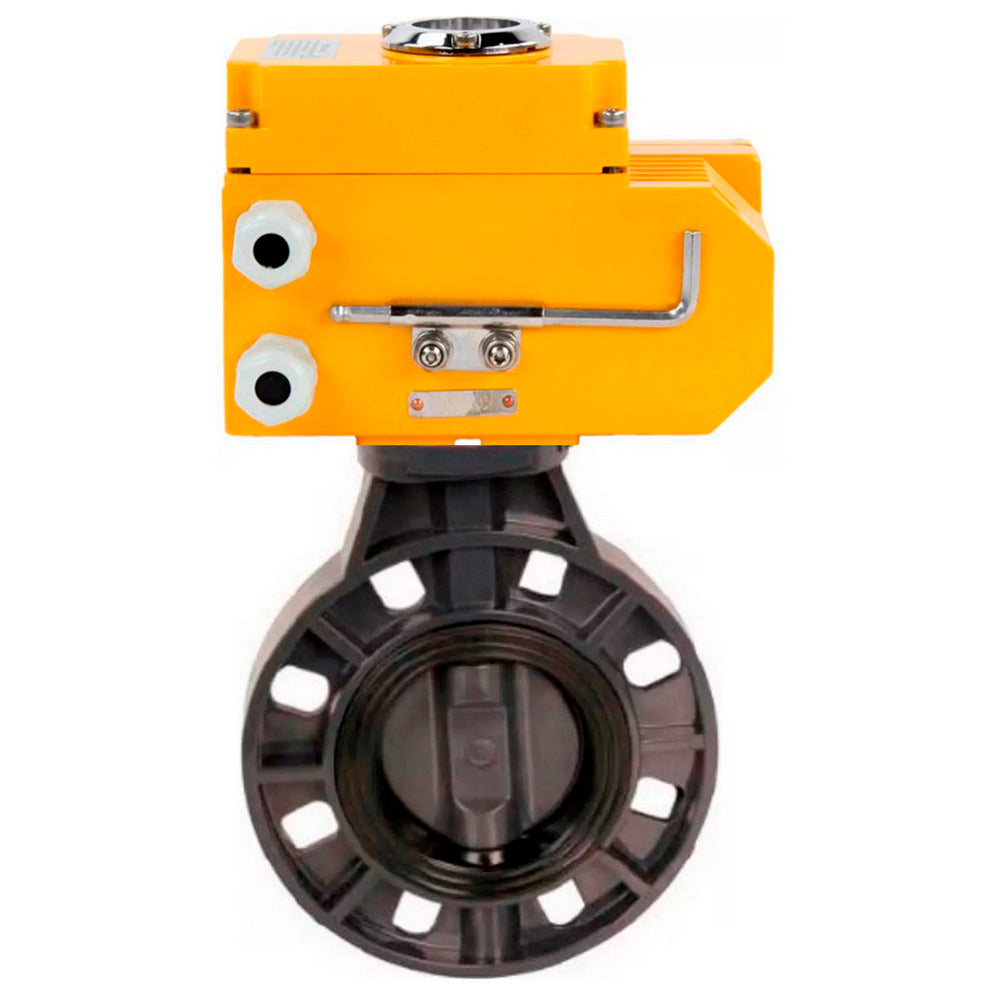

Butterfly valves Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with quarter-turn actuator QT-N-EM-O1-380VAC-U1 380V

€300,87
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves made of UPVC (unplasticized polyvinyl chloride) is designed to reliably shut off and regulate the flow of aggressive and neutral liquids at moderate pressures and temperatures. Due to its high chemical resistance and corrosion resistance, it is widely used in the chemical industry, water treatment systems and municipal infrastructure.

Quarter-turn electric actuators are designed for remote and local control of shut-off pipeline valves with a quarter-turn shut-off element. They are used in various sectors of the national economy: in the gas, oil, metallurgy, food industries, in housing and communal services, etc.



Technical parameters of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Characteristic Meaning
Gate type rotary disk
Diameter 50-200 mm
Nominal pressure 10 bar
Working medium temperature 0 to +45 °C
Application Water Supply
Operating environment Liquids, Air and Gases
Connection type Compact flanged
Control type Manual (handle, gearbox)
Sealing class A
Manufacturer's country China
Warranty 12 months

Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem



Dimensions of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Model DN50 DN65 DN80 DN100 DN125 DN150 DN200
D, mm 158 179 195 226.5 253.5 280 340
D1, mm 120.5 130.5 154 181 208 234 291.5
L, mm 45 45 48 54 63 69 89
H1, mm 98 110 131 155 169 185 231
n–Ød,
pcs-mm		 4–Ø19.3*24.5 4–Ø19.3*24.5 8–Ø20*24 8–Ø20*27 4–Ø23*27.5 4–Ø23*28 4–Ø23*28.5
ØD, mm 65 65 65 90 90 90 125
ØD1, mm 50 50 50 70 70 70 102
ØD2, mm 35.5 35.5 35.5 55.5 55.5 55.5 70.5
h, mm 3.5 3.5 3.5 3.5 3.5 3.5 3.5
H, mm 32 32 32 32 32 32 45
BxB, mm 9х9 9х9 9х9 11х11 14х14 14х14 17х17
N–Ød,
pcs-mm		 4–8 4–8 4–8 4–10 4–10 4–10 4–12

Sketch Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem





Materials of parts Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

№ Part Name Material
1 Body UPVC
2 Disc UPVC
3 Seat seal EPDM
4 Rod Steel 45
5 Rod seal EPDM

Sketch of parts and materials Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem



Technical parameters of Elephant electric drives QT-N-EM-O1-380VAC-U1:

Characteristic Meaning
Supply voltage 380V
Engine type asynchronous
Angle of rotation 90±5°
Ambient temperature from -20 to +65 °C
Manual understudy hex key (included)
Degree of protection IP67
Limit switches 2-Open/Closed 250V 10A
Mechanical limiter 2 external adjustable stoppers
Cable entry 2xM18
Body material aluminum alloy with epoxy powder coating
Average resource 30 000 cycles closing/opening

Electric drives Elephant QT-N-EM-O1-380VAC-U1



Dimensions of Elephant electric drives QT-N-EM-O1-380VAC-U1:

Model L, mm H, mm A, mm
QT-N-003EM-O1-x-U1 140 118 109
QT-N-005EM-O1-x-U1 166 122 118
QT-N-008EM-O1-x-U1 200 128 133
QT-N-010EM-O1-x-U1 200 128 133
QT-N-015EM-O1-x-U1 200 128 133
QT-N-020EM-O1-x-U1 269 155 174
QT-N-030EM-O1-x-U1 269 155 174
QT-N-040EM-O1-x-U1 269 155 174
QT-N-060EM-O1-x-U1 269 155 174
QT-N-080EM-O1-x-U1 309 178 200

Sketch Electric drives Elephant QT-N-EM-O1-380VAC-U1

Specifications
  • Country of origin
    China
  • Body material
    UPVC
  • Maximum allowable temperature
    45 °C
  • Connection type
    Compact flanged
  • Control type
    Electric actuator
  • Operating environment
    Liquids, Air and Gases
  • Applications
    Water Supply
  • Nominal pressure
    10 bar
  • Type of seal
    EPDM
  • Disc material
    UPVC
  • Voltage
    380V
  • Actuator cycle time
    20s
  • Explosion-proof
    No
  • Pneumatic actuator
    No
  • Manual override
    Hexagon
  • Limit switches
    Yes
  • Type of electric actuator
    Quarter-turn
  • Feedback sensor
    No
  • Rated current consumption
    0.15
  • Power consumption
    15
  • Angle of rotation
    90°

Reviews (0)

Documentation
nullButterfly valves Elephant WBV4242E-2W-Fb-ISO
nullElectric quarter-turn actuator ELEPHANT QT-N-xEM-O1-x-U1
