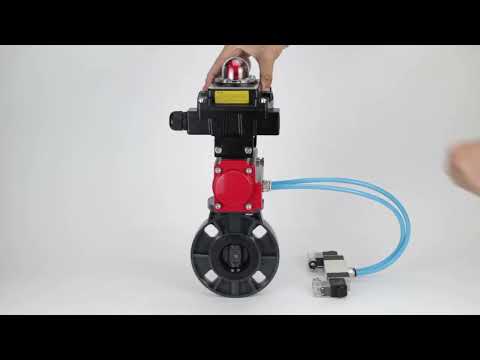

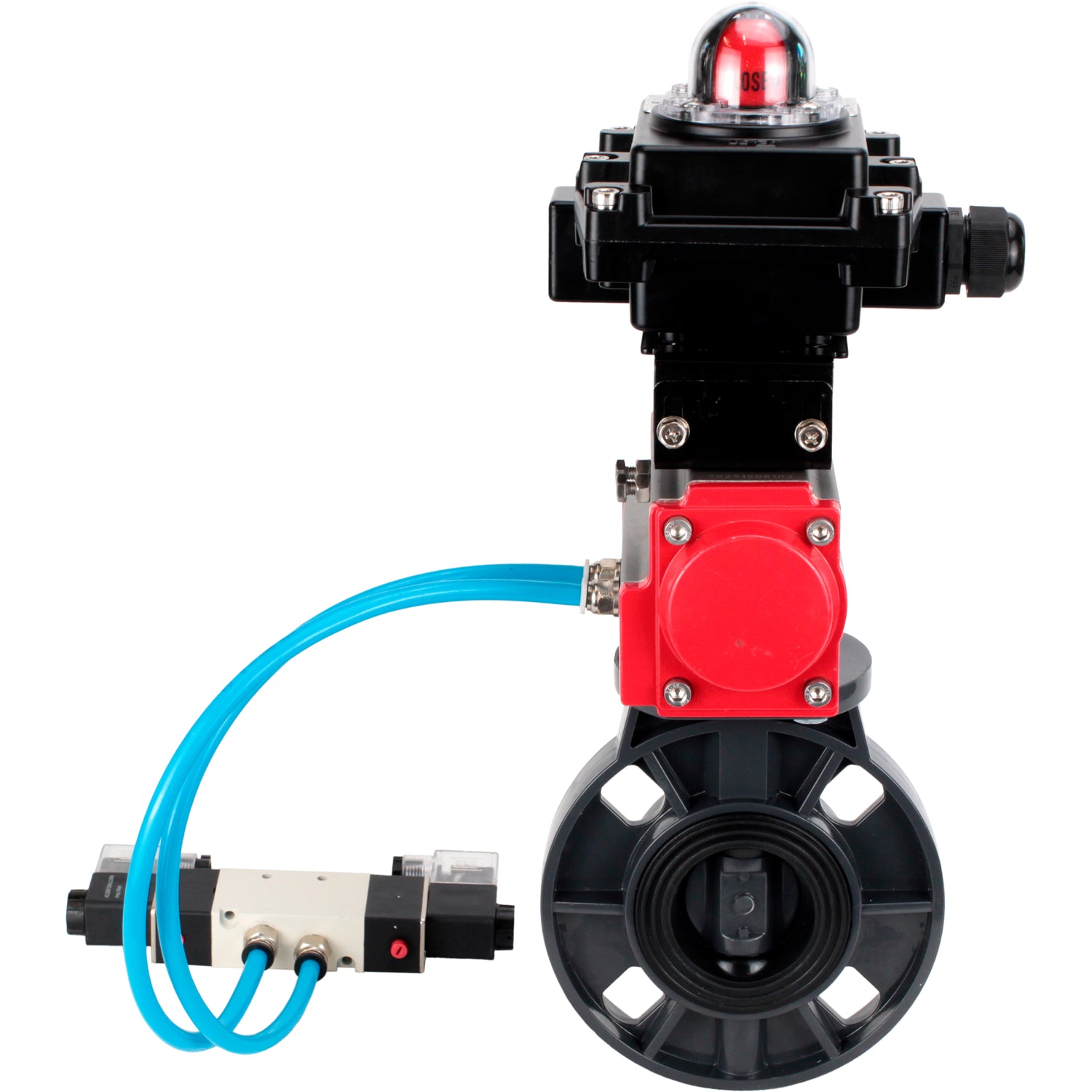

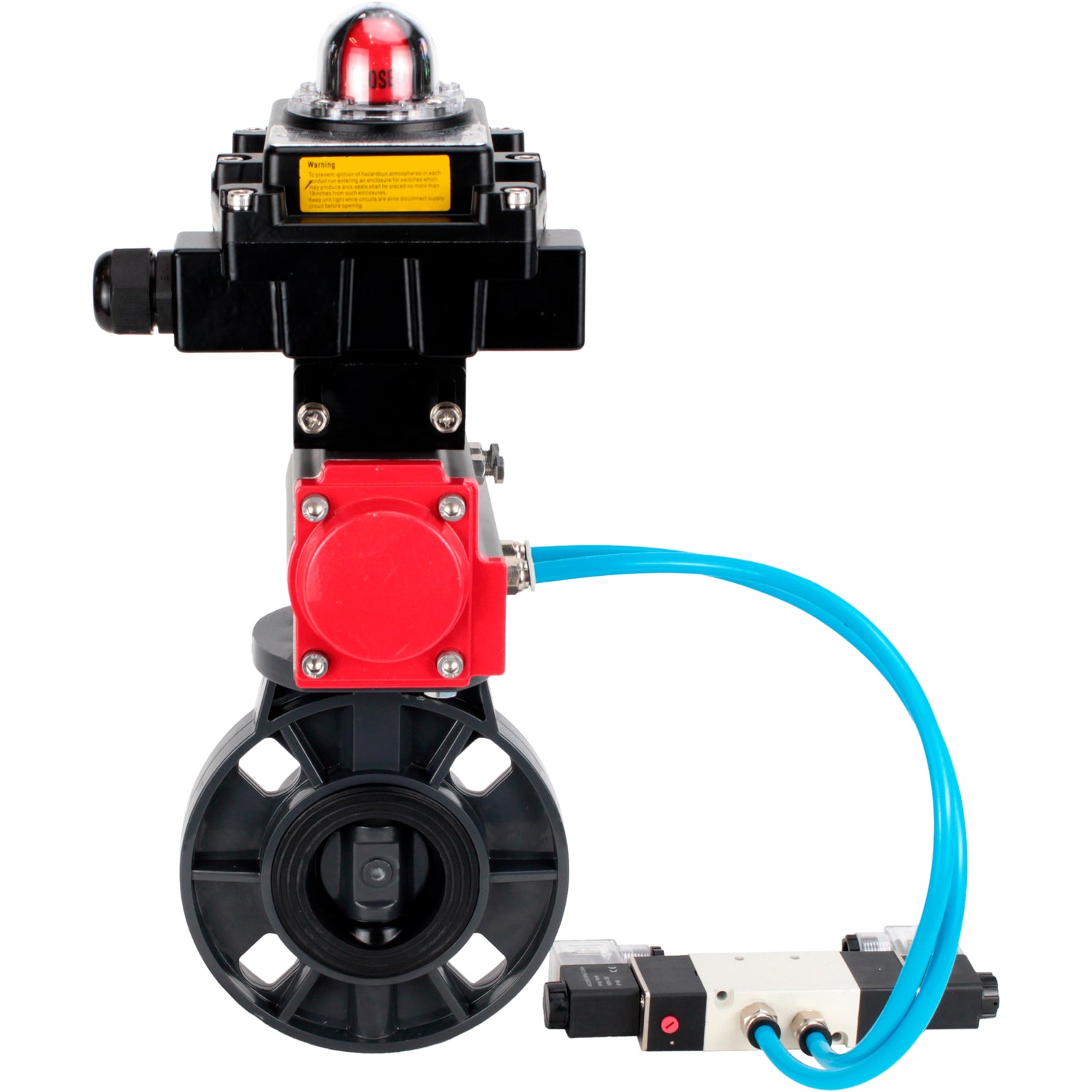

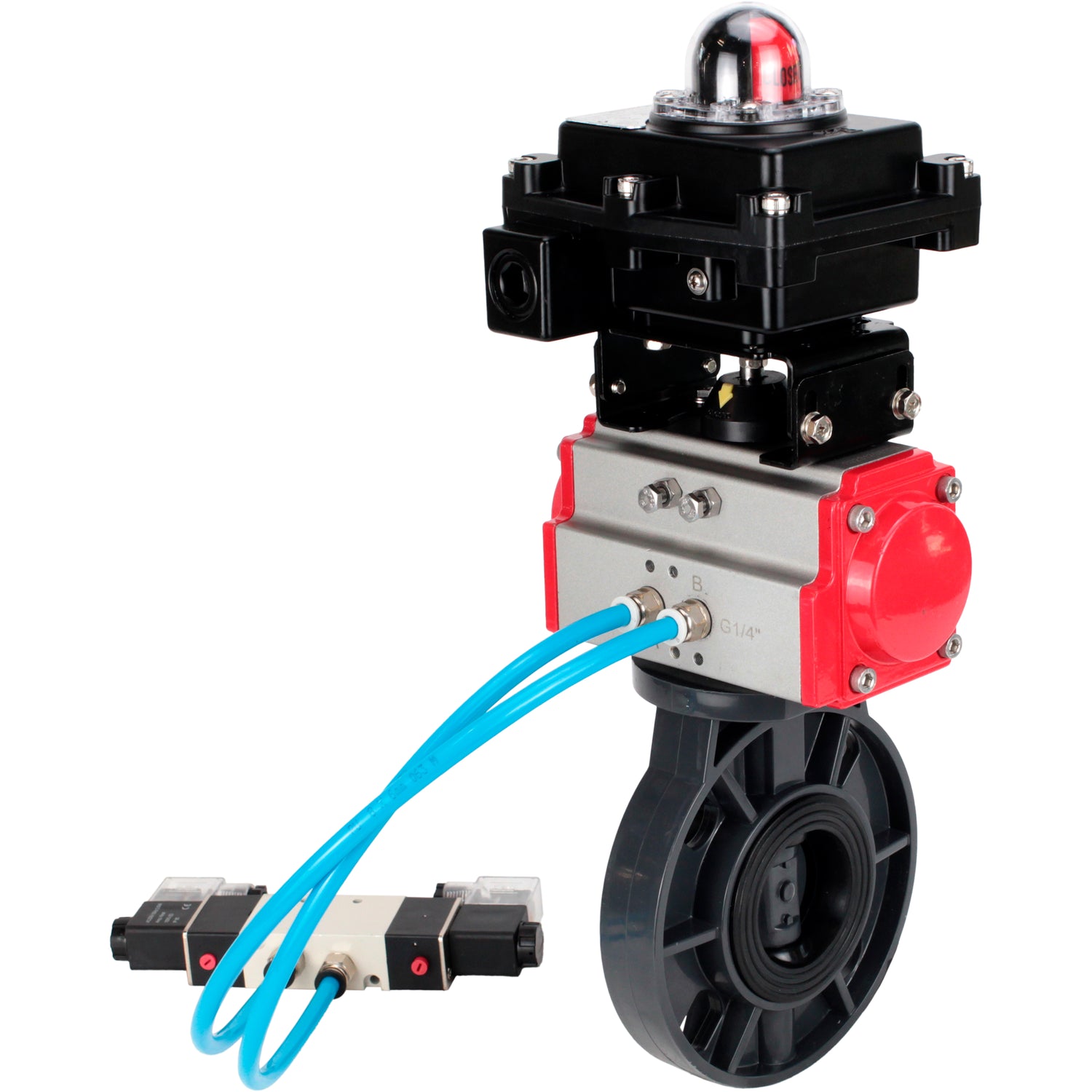

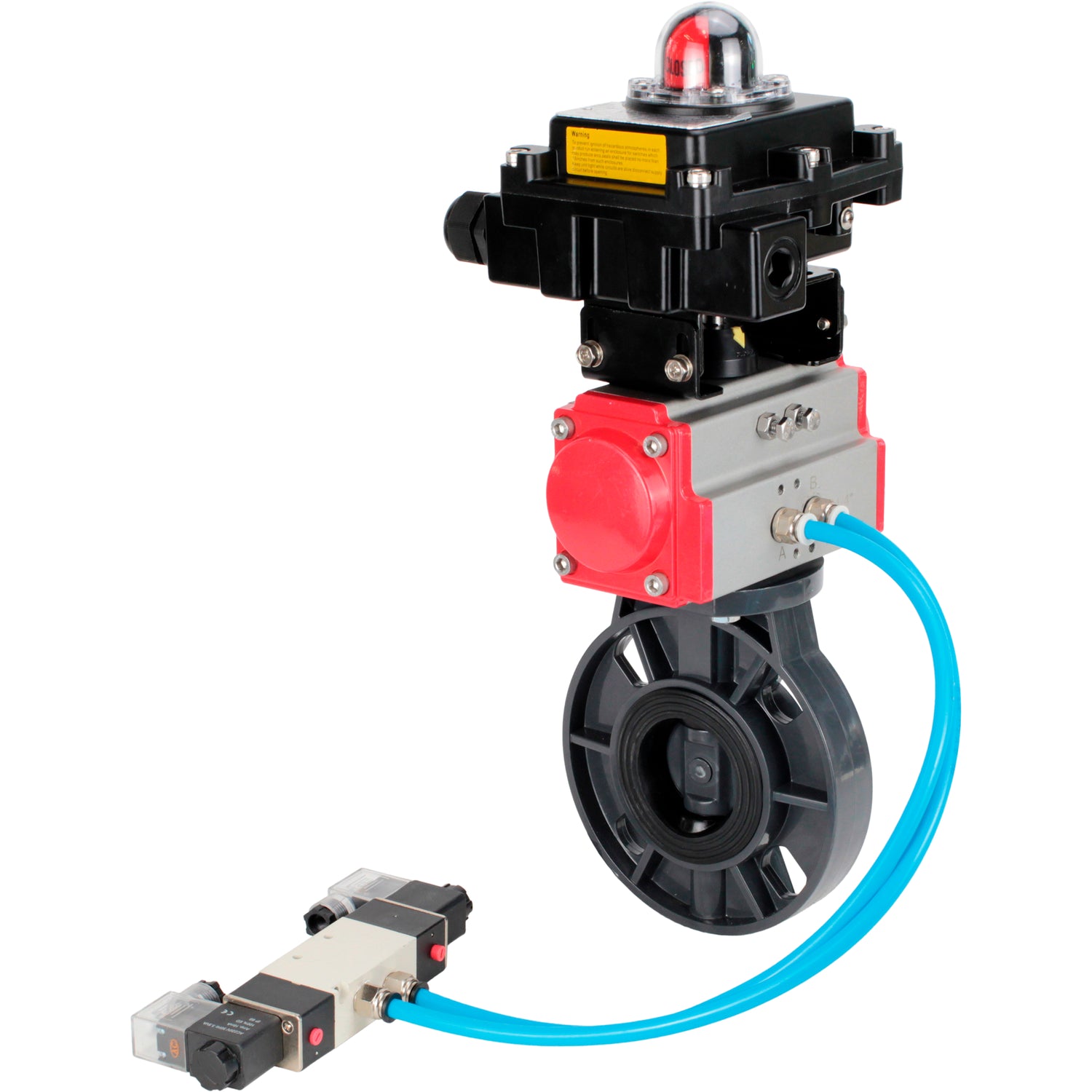

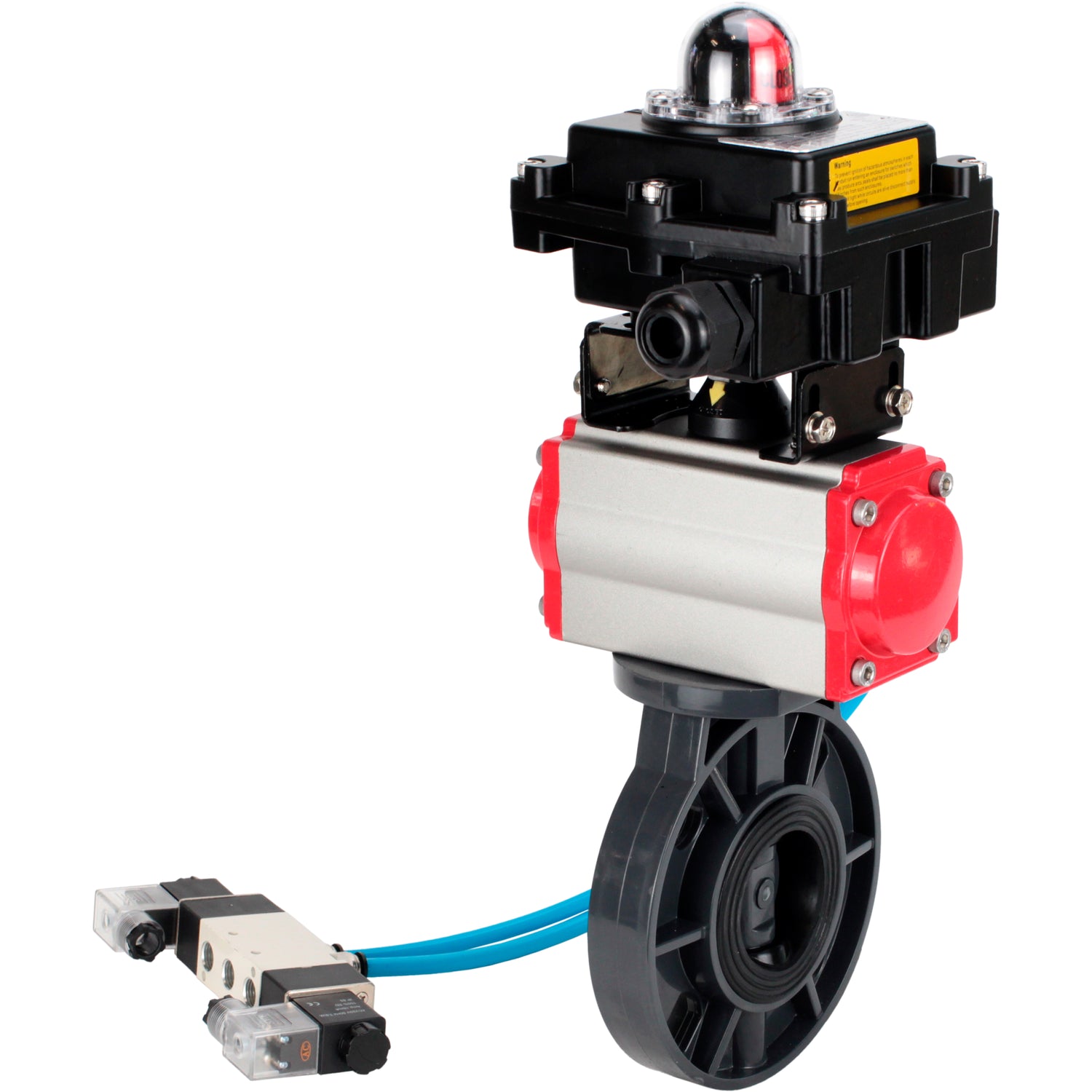

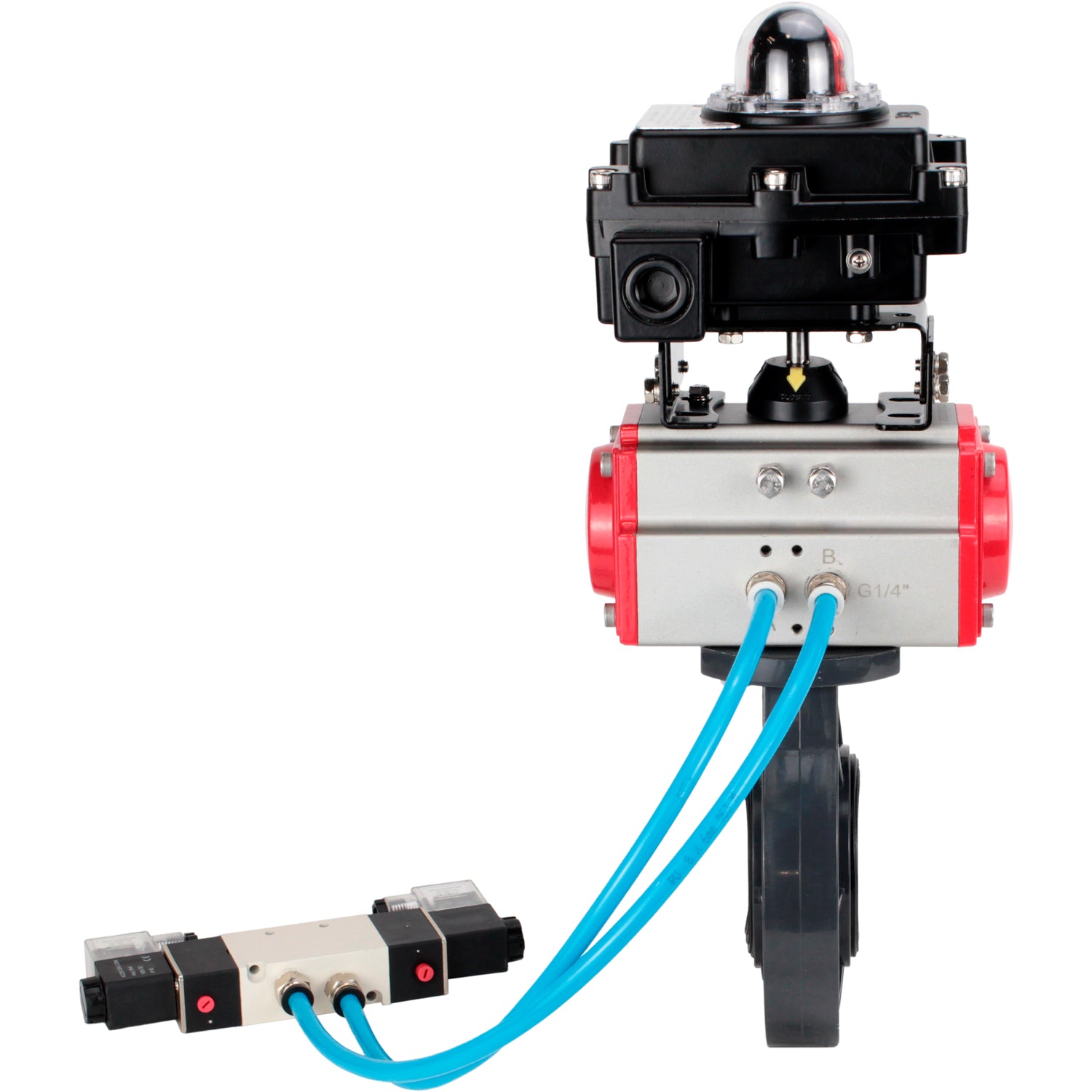

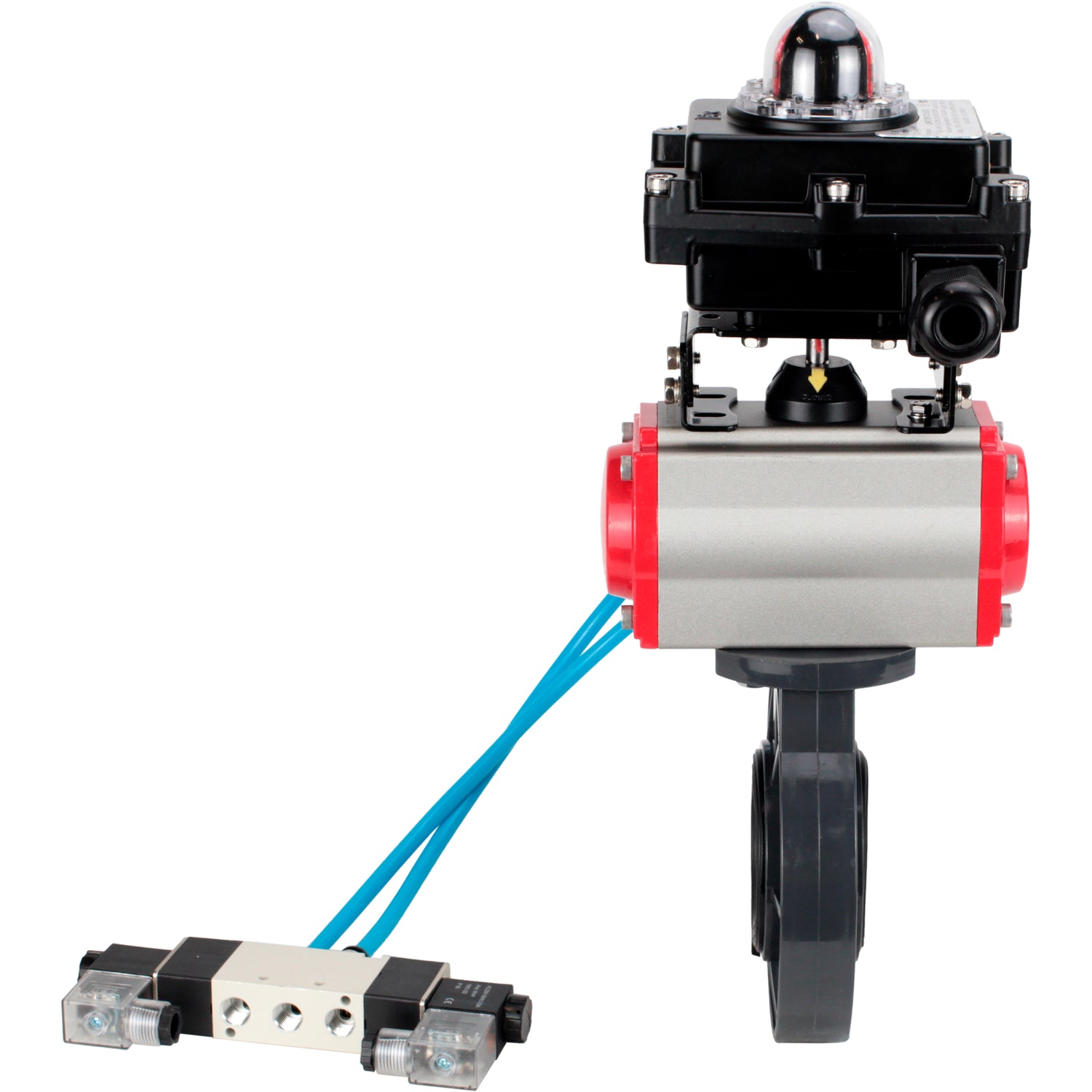

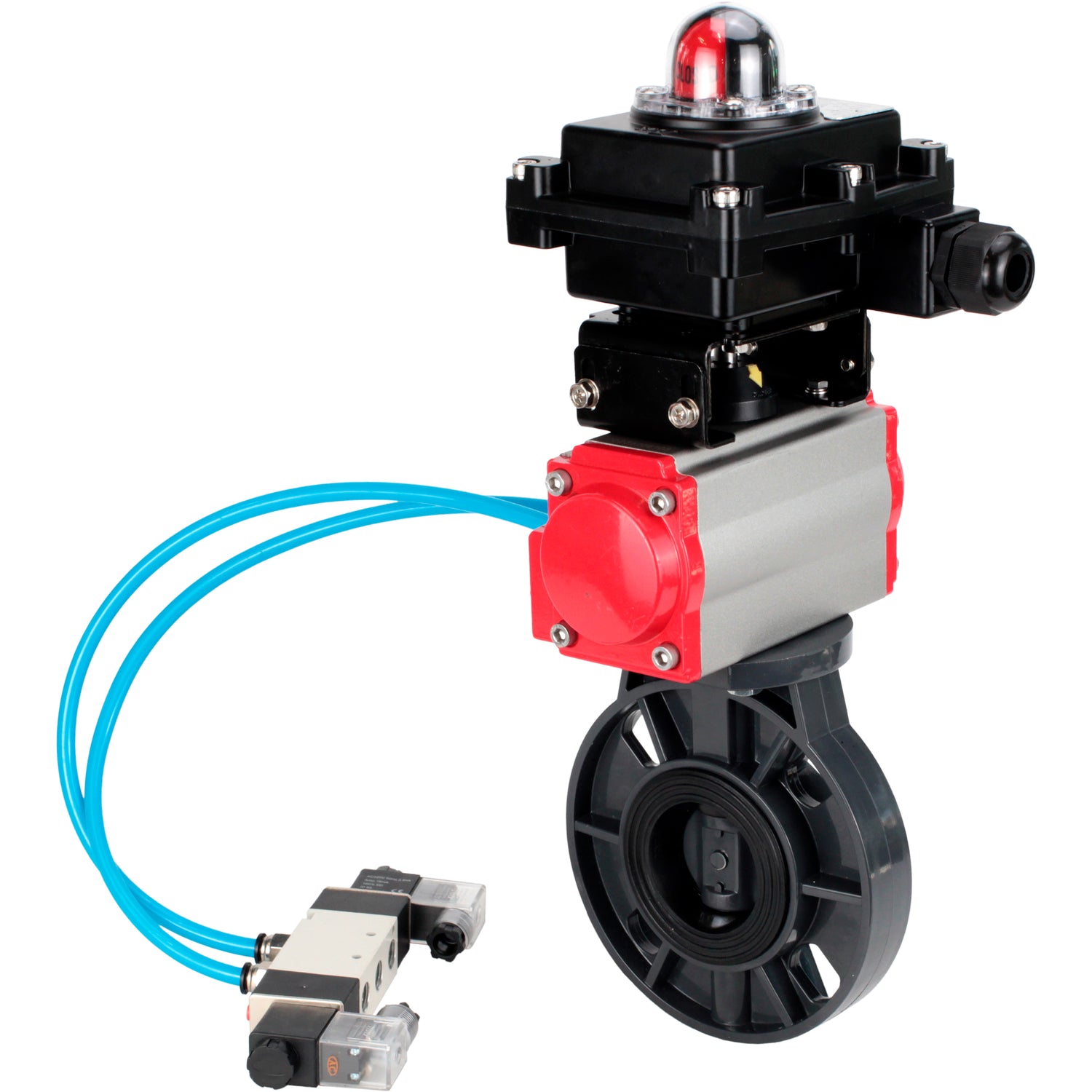

Butterfly valves Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with pneumatic actuator double action PA-DA, pneumatic distributor 4V320-10 220V and LSU APL-410N EX

€0,00
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves made of UPVC (unplasticized polyvinyl chloride) is designed to reliably shut off and regulate the flow of aggressive and neutral liquids at moderate pressures and temperatures. Due to its high chemical resistance and corrosion resistance, it is widely used in the chemical industry, water treatment systems and municipal infrastructure.

PA-DA-x double-acting pneumatic actuators use two ports to supply the control medium and create movement in both directions, both to open and close the valve. One port is used to move the piston in one direction and the other port is used to move the piston in the opposite direction.

The limit switch box is designed for visual and electrical signaling of the final positions of the shut-off valve body: ball-check-valve, ball valve or wafer butterfly valve. Mounted on top of the surface of the pneumatic actuator and connected to the drive shaft DIN standard. In a sealed box, as a rule, there are two sensors that monitor the position of the drive shaft and signal in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors.

Pneumatic distributor is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.



Technical parameters of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Characteristic Meaning
Gate type rotary disk
Diameter 50-200 mm
Nominal pressure 10 bar
Working medium temperature 0 to +45 °C
Application Water Supply
Operating environment Liquids, Air and Gases
Connection type Compact flanged
Control type Manual (handle, gearbox)
Sealing class A
Manufacturer's country China
Warranty 12 months

Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem



Dimensions of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Model DN50 DN65 DN80 DN100 DN125 DN150 DN200
D, mm 158 179 195 226.5 253.5 280 340
D1, mm 120.5 130.5 154 181 208 234 291.5
L, mm 45 45 48 54 63 69 89
H1, mm 98 110 131 155 169 185 231
n–Ød,
pcs-mm		 4–Ø19.3*24.5 4–Ø19.3*24.5 8–Ø20*24 8–Ø20*27 4–Ø23*27.5 4–Ø23*28 4–Ø23*28.5
ØD, mm 65 65 65 90 90 90 125
ØD1, mm 50 50 50 70 70 70 102
ØD2, mm 35.5 35.5 35.5 55.5 55.5 55.5 70.5
h, mm 3.5 3.5 3.5 3.5 3.5 3.5 3.5
H, mm 32 32 32 32 32 32 45
BxB, mm 9х9 9х9 9х9 11х11 14х14 14х14 17х17
N–Ød,
pcs-mm		 4–8 4–8 4–8 4–10 4–10 4–10 4–12

Sketch Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem





Materials of parts Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

№ Part Name Material
1 Body UPVC
2 Disc UPVC
3 Seat seal EPDM
4 Rod Steel 45
5 Rod seal EPDM

Sketch of parts and materials Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem



Technical parameters of Elephant pneumatic drives PA-DA:

Characteristic Meaning
Pneumatic drive type double acting
Nominal pressure 12 bar
Working pressure 2-8 bar
Ambient temperature from -20 to +80 °C
Swivel angle 0-90°
Position indicator open / closed
Working environment filtered compressed air
Swivel angle adjustment ±5%
Top and air connection standard NAMUR

Pneumatic drives Elephant PA-DA



Dimensions of Elephant pneumatic drives PA-DA:

Model A,
mm		 B,
mm		 C,
mm		 D,
mm		 E,
mm		 F,
mm		 G,
mm		 H,
mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I,
mm		 J,
mm		 M,
mm		 N,
mm		 Z,
mm		 d,
mm		 K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch Pneumatic drives Elephant PA-DA



Technical parameters of Elephant limit switch APL-410N EX:

Characteristic Meaning
Terminal Block 8 cells 0.05-2.5mm2
Voltage 250V
Rated current 10A
Indicator Position CLOSED: red, OPEN: yellow
Ambient temperature from -25 to +80 °C
Cable Entry Thread 2 x NPT1/2"
Sensor two mechanical switches,
two proximity sensors
Body IP65/NEMA4&4X
Exd IIB T6

Limit switch Elephant APL-410N EX



Dimensions of Elephant limit switch APL-410N EX:

A, mm 177
B, mm 174
C, mm 178
D, mm 101
E, mm 76
F, mm 57
G, mm 55
H, mm 23
I, mm 27
J, mm 3
K, mm 4
Ød1, mm 5
Ød2, mm 9.5

Sketch Limit switch Elephant APL-410N EX



Technical parameters of Elephant pneumatic distributor 4V320 AC220V:

Characteristic Meaning
Type of pneumatic valve slide valve
Body material aluminum alloy and technopolymer
Control two-way electromagnetic
Operating temperature -5 to +60 °C
Operating scheme 5/2
Working pressure 1.5-8 bar
Maximum pressure 12 bar
Supply voltage 220V
Degree of protection IP65
Insulation class F

Pneumatic distributor Elephant 4V320 AC220V



Dimensions of Elephant pneumatic distributor 4V320-10 AC220V:

A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
H, mm 82.4
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 83.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4

Sketch Pneumatic distributor Elephant 4V320-10 AC220V

Specifications
  • Country of origin
    China
  • Body material
    UPVC
  • Maximum allowable temperature
    45 °C
  • Connection type
    Compact flanged
  • Control type
    Pneumatic actuator
  • Operating environment
    Liquids, Air and Gases
  • Applications
    Water Supply
  • Nominal pressure
    10 bar
  • Type of seal
    EPDM
  • Disc material
    UPVC
  • Voltage
    220V
  • Electropneumatic positioner
    No
  • Pneumatic actuator
    Yes
  • Limit switches
    Yes
  • Manual understudy
    No
  • Type of pneumatic actuator
    Double acting
  • Angle of rotation
    90°
  • Drive adjustment range
    5%
