Butterfly valves Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, di – Valve Elephant
Elephant  |  SKU: D050-81609

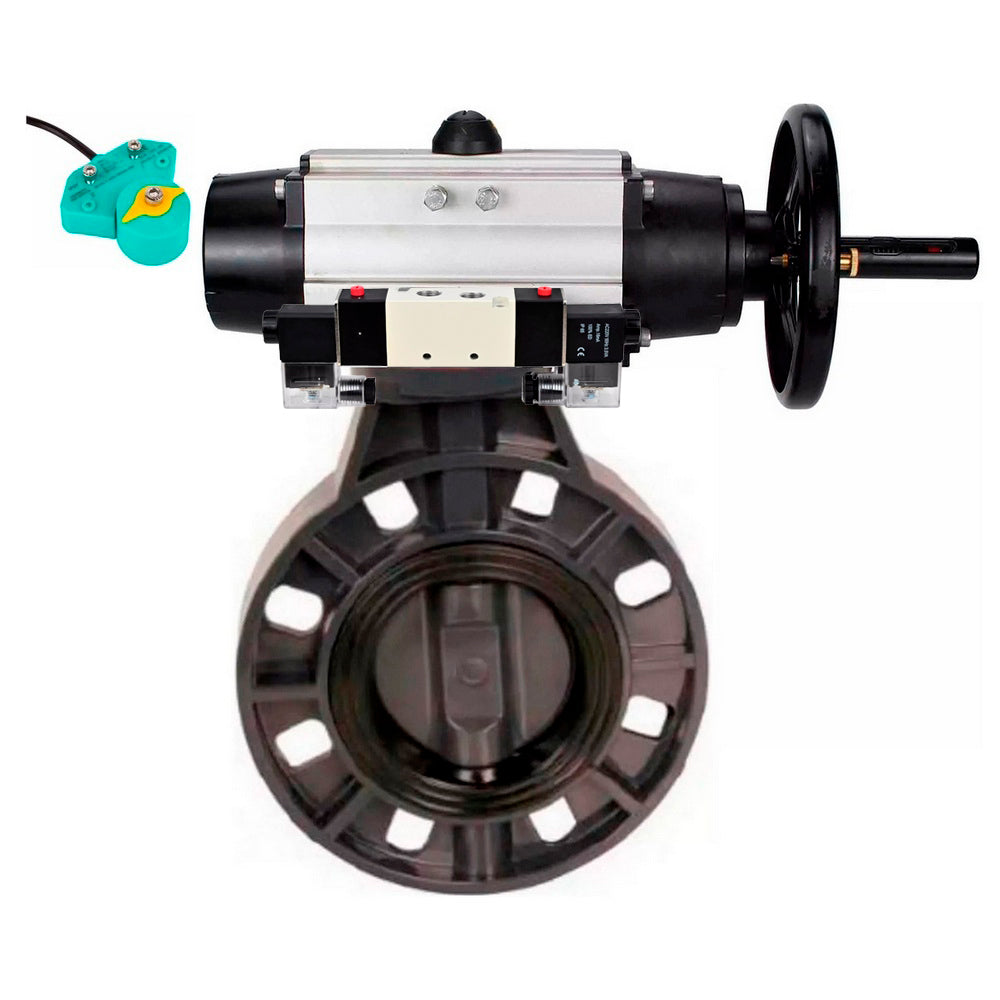

Butterfly valves Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with pneumatic actuator double action PA-DA-105-1, pneumatic distributor 4V320-08 220V and magnetic switch ALS200D

€289,74
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves made of UPVC (unplasticized polyvinyl chloride) is designed to reliably shut off and regulate the flow of aggressive and neutral liquids at moderate pressures and temperatures. Due to its high chemical resistance and corrosion resistance, it is widely used in the chemical industry, water treatment systems and municipal infrastructure.

The rotary pneumatic actuator is designed to automate the process of controlling industrial valves.

The magnetic switch Elephant ALS200D is designed to convert the final values of the shaft position of pneumatic actuators or shut-off valves into electrical signals.

Pneumatic distributor is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.



Technical parameters of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Characteristic Meaning
Gate type rotary disk
Diameter 50-200 mm
Nominal pressure 10 bar
Working medium temperature 0 to +45 °C
Application Water Supply
Operating environment Liquids, Air and Gases
Connection type Compact flanged
Control type Manual (handle, gearbox)
Sealing class A
Manufacturer's country China
Warranty 12 months

Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem



Dimensions of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Model DN50 DN65 DN80 DN100 DN125 DN150 DN200
D, mm 158 179 195 226.5 253.5 280 340
D1, mm 120.5 130.5 154 181 208 234 291.5
L, mm 45 45 48 54 63 69 89
H1, mm 98 110 131 155 169 185 231
n–Ød,
pcs-mm		 4–Ø19.3*24.5 4–Ø19.3*24.5 8–Ø20*24 8–Ø20*27 4–Ø23*27.5 4–Ø23*28 4–Ø23*28.5
ØD, mm 65 65 65 90 90 90 125
ØD1, mm 50 50 50 70 70 70 102
ØD2, mm 35.5 35.5 35.5 55.5 55.5 55.5 70.5
h, mm 3.5 3.5 3.5 3.5 3.5 3.5 3.5
H, mm 32 32 32 32 32 32 45
BxB, mm 9х9 9х9 9х9 11х11 14х14 14х14 17х17
N–Ød,
pcs-mm		 4–8 4–8 4–8 4–10 4–10 4–10 4–12

Sketch Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem





Materials of parts Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

№ Part Name Material
1 Body UPVC
2 Disc UPVC
3 Seat seal EPDM
4 Rod Steel 45
5 Rod seal EPDM

Sketch of parts and materials Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem



Technical parameters of Elephant pneumatic drives PA-DA-105-1:

Characteristic Meaning
Pneumatic drive type double acting
Control pressure 2-8 bar
Operating temperature from -20 to +80 °C
Angle of rotation 90±5°
Visual position indicator open / closed
Manual control flywheel
Air supply connection thread G1/4

Pneumatic drives Elephant PA-DA-105-1



Dimensions of Elephant pneumatic drives PA-DA-105-1:

Model A,
mm		 B,
mm		 C,
mm		 D,
mm		 G,
mm		 W,
mm
PA-DA-105-1 495 133 109.5 153 26 200

Sketch Pneumatic drives Elephant PA-DA-105-1



Technical parameters of Elephant magnetic switch ALS200D:

Characteristic Meaning
Body material Plastic PP-GF30
Protection Class IP67
Shaft Rotation Angle Indication 0-90°
Sensor Interaction Distance 1-6 mm
Ambient Temperature from -40 to +85 °C
Switching Frequency 0-4.8kHz
Nominal Voltage 5-240V AC/DC
Nominal Current 0-300mA
Nominal Power 10W
Cable Output 4 wires (2 wires/open,
2 wires/closed)

Magnetic switch Elephant ALS200D



Dimensions of Elephant magnetic switch ALS200D:

A, mm 75
B, mm 30
C, mm 51
d, mm 5.5
E, mm 40

Sketch Magnetic switch Elephant ALS200D



Technical parameters of Elephant pneumatic distributor 4V320 AC220V:

Characteristic Meaning
Type of pneumatic valve slide valve
Body material aluminum alloy and technopolymer
Control two-way electromagnetic
Operating temperature -5 to +60 °C
Operating scheme 5/2
Working pressure 1.5-8 bar
Maximum pressure 12 bar
Supply voltage 220V
Degree of protection IP65
Insulation class F

Pneumatic distributor Elephant 4V320 AC220V



Dimensions of Elephant pneumatic distributor 4V320-08 AC220V:

A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
H, mm 82.4
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 83.4
P, mm 22
S, mm 20
T, mm 6.5
U, mm 2.4

Sketch Pneumatic distributor Elephant 4V320-08 AC220V

Specifications
  • Country of origin
    China
  • Body material
    UPVC
  • Maximum allowable temperature
    45 °C
  • Connection type
    Compact flanged
  • Control type
    Pneumatic actuator
  • Operating environment
    Liquids, Air and Gases
  • Applications
    Water Supply
  • Nominal pressure
    10 bar
  • Type of seal
    EPDM
  • Disc material
    UPVC
  • Voltage
    220V
  • Electropneumatic positioner
    No
  • Pneumatic actuator
    Yes
  • Manual override
    Steering wheel
  • Limit switches
    No
  • Manual understudy
    No
  • Type of pneumatic actuator
    Double acting
  • Angle of rotation
    90°

Reviews (0)

Documentation
nullButterfly valves Elephant WBV4242E-2W-Fb-ISO
nullRotary pneumatic actuator ELEPHANT PA-DA-105-1 double-acting with handwheel
nullMagnetic switch ELEPHANT ALS200D for pneumatic actuators
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
